Product Code: VIGI-C330I(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C330I (2.8mm) is a compact outdoor bullet camera designed for high clarity surveillance in low light environments. With 3MP resolution, DWDR, and 30m IR night vision, it captures crisp detail day and night. Smart features like human/vehicle recognition and boundary alerts ensure focused monitoring, while PoE and IP67 rated housing make installation simple and reliable.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle H: 97.8°, V: 52.9°, D: 117.9°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Manual
Smart Detection Human/vehicle recognition, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 25 fps (50Hz), 30 fps (60Hz)
Supported Resolutions 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
DORI Distance (2.8mm) Detect: 98m, observe: 41m, recognize: 20m, Identify: 10m
Video Enhancement DWDR, 3D DNR
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Certifications CE, BSMI, VCCI, ONVIF
Dimensions (L × W × H) 174 × 74 × 71 mm
Net Weight 0.2 kg
Gross Weight 0.35 kg
Warranty 1 Year Limited

Product Code: VIGI-C440I(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C440I (2.8mm) is a high-performance IR turret camera designed for outdoor surveillance with 4MP ultra clear resolution and advanced smart detection. Equipped with human/vehicle classification, corridor mode, and a 30m IR range, it delivers precise monitoring in both wide and narrow spaces. H.265+ compression ensures efficient storage and bandwidth usage, while IP67 rated housing and PoE support make installation seamless and reliable.

📦 Key Specifications
Attribute Details
Max Resolution 4MP (2560 × 1440)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle (2.8mm) H: 88.8°, V: 48.9°, D: 106.5°
Night Vision IR LED (850nm), range up to 30m
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps (60Hz), 25 fps (50Hz)
Supported Resolutions 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
DORI Distance (2.8mm) Detect: 60m, observe: 25m, recognize: 12m, Identify: 6m
Video Enhancement Smart IR, DWDR, 3D DNR
Privacy Mask Up to 4 zones
Illuminator Control Auto / Scheduled / Always On / Always Off
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67 (assumed based on outdoor spec)
Pan/Tilt/Rotate Range Pan: 0–360°, Tilt: 0–85°, Rotate: 0–360°
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.19 kg
Gross Weight 0.34 kg
Warranty 1 Year Limited

Product Code: VIGI-C340I(4MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C340I (4mm) is a high-resolution outdoor bullet camera built for precision surveillance. With 4MP clarity, infrared night vision up to 30 meters, and smart detection features including human/vehicle classification it delivers focused alerts and reliable monitoring. The 4mm lens offers a balanced field of view for medium range coverage, while H.265+ compression ensures efficient bandwidth and storage. Its IP67 rated housing and flexible power options make it ideal for perimeter, parking, and commercial security.

📦 Key Specifications
Attribute Details
Max Resolution 4MP (2560 × 1440)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 4 mm, F2.2 aperture, M12 mount
Viewing Angle (4mm) H: 82.5°, V: 44.9°, D: 99.3°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Manual
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps (60Hz), 25 fps (50Hz)
DORI Distance (4mm) Detect: 80m, observe: 33m, recognize: 16m, Identify: 8m
Video Enhancement 3D DNR, WDR, Smart IR
Illuminator Control Auto / Scheduled / Always On / Always Off
Power Supply 12V DC ±5% (Max 5W), 5.5mm Coaxial Plug or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Dimensions (L × W × H) 174 × 74 × 71 mm
Net Weight ~0.2 kg
Gross Weight ~0.35 kg
Warranty 1 Year Limited

Product Code: VIGI-C320I(4MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C320I (4mm) is a full HD outdoor bullet camera designed for reliable perimeter surveillance. With 2MP resolution, AI-powered human and vehicle classification, and smart detection features, it delivers accurate alerts and crisp footage. Smart video enhancements like WDR, Smart IR, and 3D DNR ensure clarity in challenging lighting. Its IP67 rated housing and PoE support make it ideal for commercial, industrial, and residential deployments.

📦 Key Specifications
Attribute Details
Max Resolution 2MP (1920 × 1080)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 4 mm, F2.0 aperture, M12 mount
Viewing Angle (4mm) H: 82.5°, V: 44.9°, D: 99.3°
Night Vision IR LEDs (850nm), range up to 30m
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps
Video Enhancement Smart IR, WDR, 3D DNR
Corridor Mode Supported (16:9 to 9:16 aspect ratio)
Power Supply PoE (802.3af/at) via RJ45 cable
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Lens Options Available in 2.8mm, 4mm, and 6mm variants
Management Options VIGI app, NVR UI, VIGI Security Manager
Dimensions (L × W × H) ~174 × 74 × 71 mm (estimated)
Net Weight 0.2 kg
Gross Weight 0.35 kg
Warranty 1 Year Limited

Product Code: VIGI-C420I(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C420I (2.8mm) is a compact turret camera offering 2MP Full HD resolution and advanced AI-powered detection. With human/vehicle classification, customizable alarm zones, and smart video enhancements like WDR and Smart IR, it delivers reliable surveillance in both indoor and outdoor environments. Corridor mode optimizes vertical viewing for hallways and narrow spaces, while PoE simplifies installation with a single cable for power and data.

📦 Key Specifications
Attribute Details
Max Resolution 2MP (1920 × 1080)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle (2.8mm) H: 88.8°, V: 48.9°, D: 106.5°
Night Vision IR LEDs (850nm), range up to 30m
Minimum Illumination 0.1 Lux (Color), 0 Lux with IR
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps
Corridor Mode Aspect ratio switch from 16:9 to 9:16
Video Enhancement Smart IR, WDR, 3D DNR
Power Supply PoE (802.3af/at) via RJ45 cable
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.21 kg
Gross Weight 0.36 kg
Warranty 1 Year Limited

Product Code: VIGI-C430(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C430 (2.8mm) is a full color turret camera designed for high clarity surveillance in low light environments. With 3MP resolution, a large aperture lens, and supplemental white light LEDs, it delivers vivid color detail even in total darkness. Smart features like human/vehicle detection and built-in microphone for two-way audio enhance situational awareness. DWDR and 3D DNR ensure image clarity, while PoE and IP rated housing make installation flexible and reliable.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 2.8 mm, F1.6 aperture, M12 mount
Viewing Angle H: 107.5°, V: 57.2°, D: 128.7°
Night Vision Full color with white light + IR (30m range)
Minimum Illumination 0.005 Lux (Color), 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Human/vehicle detection, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps
Supported Resolutions 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
DORI Distance (2.8mm) Detect: 52m, observe: 22m, recognize: 10m, Identify: 5m
Video Enhancement DWDR, 3D DNR
Audio Built-in microphone (two-way audio capable)
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP-rated (not explicitly listed)
Pan/Tilt/Rotate Range Pan: 0–360°, Tilt: 0–85°, Rotate: 0–360°
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.21 kg
Gross Weight 0.36 kg
Warranty 1 Year Limited

Product Code: VIGI-C330I(4MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C330I (4mm) is a robust outdoor bullet camera offering 3MP resolution and infrared night vision up to 30 meters. Its 4mm fixed lens provides a balanced field of view for medium range surveillance, while smart encoding (H.265+/H.264+) ensures efficient bandwidth and storage usage. With IP67 rated weatherproofing and support for multiple protocols, it’s ideal for securing driveways, storefronts, and perimeter zones.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 4 mm, F2.0 aperture, M12 mount
Viewing Angle (4mm) H: 82.5°, V: 44.9°, D: 99.3°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Switch Auto, Manual, Scheduled
DORI Distance (4mm) Detect: 65m, observe: 27m, recognize: 13m, Identify: 7m
Compression Format H.265+/H.265/H.264+/H.264
Bitrate 256 Kbps to 4 Mbps
Frame Rate Up to 30 fps (60Hz), 25 fps (50Hz)
Supported Resolutions 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS
Power Supply 12V DC ±5% (Max 5W), 5.5mm Coaxial Plug or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Dimensions (L × W × H) 174 × 74 × 71 mm
Net Weight 0.2 kg
Gross Weight 0.35 kg
Warranty 1 Year Limited

Product Code: VIGI-C330I(6MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C330I (6mm) is a precision outdoor bullet camera designed for long range surveillance. With 3MP resolution, infrared night vision up to 30 meters, and a 6mm fixed lens, it captures crisp detail across extended distances. Smart encoding (H.265+/H.264+) reduces bandwidth and storage costs, while IP67 rated housing ensures reliable performance in harsh environments. Ideal for perimeter security, parking lots, and industrial zones.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 6 mm, F2.0 aperture, M12 mount
Viewing Angle (6mm) H: 51.9°, V: 28.7°, D: 60°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Switch Auto, Manual, Scheduled
DORI Distance (6mm) Detect: 98m, observe: 41m, recognize: 20m, Identify: 10m
Compression Format H.265+/H.265/H.264+/H.264
Bitrate 64 Kbps to 4 Mbps
Frame Rate Up to 30 fps
Image Enhancement BLC, 3D DNR, HLC, Smart IR
Power Supply 12V DC ±5% (Max 5W), 5.5mm Coaxial Plug or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C (corrected)
Weatherproof Rating IP67
Dimensions (L × W × H) 174 × 74 × 71 mm
Net Weight 0.2 kg
Gross Weight 0.35 kg
Warranty 1 Year Limited

Product Code: VIGI-C440I(4MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C440I is a high-definition turret camera built for 24/7 full-color surveillance. With a 4mm lens, large aperture optics, and supplemental spotlight LEDs, it captures vivid detail even in pitch-black conditions. Smart detection features including motion, intrusion, line crossing, and tampering alerts ensure proactive monitoring. H.265+ compression reduces bandwidth and storage costs, while PoE and DC power options simplify installation. Ideal for retail, commercial, and perimeter security.

📦 Key Specifications
Attribute Details
Max Resolution 4MP (2560 × 1440)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 4 mm, F2.2 aperture, M12 mount
Viewing Angle H: 75.1°, V: 41.5°, D: 88.7°
Night Vision Full color with spotlight LEDs + IR (30m range)
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Motion, area intrusion, line crossing, video tampering
Compression Format H.265+/H.265/H.264+/H.264
Video Enhancement DWDR, 3D DNR, Privacy Mask (up to 4 zones)
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Operating Humidity ≤ 95% RH (non-condensing)
Weatherproof Rating IP-rated (not explicitly listed)
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.19 kg
Gross Weight 0.34 kg
Warranty 1 Year Limited

Product Code: VIGI-C430I(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C430I (2.8mm) is a compact turret-style IP camera engineered for wide-area surveillance with sharp 3MP resolution and 30m infrared night vision. Smart features like human/vehicle detection and corridor mode enhance situational awareness, while DWDR and 3D DNR ensure image clarity in challenging lighting. With PoE support, IP67 weatherproofing, and IK-rated durability, it’s ideal for both indoor and outdoor deployments.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle H: 97.8°, V: 52.9°, D: 117.9°
Night Vision IR LED (850nm), range up to 30m
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Human/vehicle detection, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Bitrate Main: 256 Kbps 4 Mbps
Frame Rate Up to 30 fps
Video Enhancement DWDR, 3D DNR, Privacy Mask (up to 4 zones)
DORI Distance (2.8mm) Detect: 49m, observe: 20m, recognize: 10m, Identify: 5m
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Pan/Tilt/Rotate Range Pan: 0–360°, Tilt: 0–85°, Rotate: 0–360°
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.19 kg
Gross Weight 0.34 kg
Warranty 1 Year Limited

Product Code: VIGI-C430I(4MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C430I is a compact 3MP turret camera designed for wide area outdoor surveillance. With infrared night vision up to 30 meters, smart detection features, and support for multiple video compression formats, it delivers sharp, efficient monitoring. The 4mm lens offers a balanced field of view for medium range coverage, while its rugged build supports flexible installation with PoE or DC power. Ideal for commercial, residential, and perimeter security.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 4 mm, F2.0 aperture, M12 mount
Viewing Angle (4mm) H: 82.5°, V: 44.9°, D: 99.3°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Bitrate Main: 256 Kbps–4 Mbps
Frame Rate Up to 30 fps
Video Enhancement WDR, 3D DNR, Privacy Mask (up to 4 zones)
Protocols TCP/IP, UDP, HTTP/HTTPS, RTSP, DHCP, DNS, NTP, UPnP, SSL/TLS
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Pan/Tilt/Rotate Range Pan: 0–360°, Tilt: 0–85°, Rotate: 0–360°
Dimensions (L × W × H) 174 × 78 × 70 mm
Gross Weight 0.34 kg
Warranty 1 Year Limited

Product Code: VIGI-C220I(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C220I is a compact yet rugged dome camera designed for reliable indoor and outdoor surveillance. With 2MP resolution, 30m infrared night vision, and smart detection features including human/vehicle classification, it delivers clear and actionable monitoring. Its IK10 rated vandal resistant housing and IP67 waterproofing ensure durability in high-risk environments. Flexible power options (PoE/12V DC) and H.265+ compression make it efficient and easy to deploy across commercial, retail, and residential sites.

📦 Key Specifications
Attribute Details
Max Resolution 1920 × 1080 (2MP)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle (2.8mm) H: 88.2°, V: 48.7°, D: 106.5°
Night Vision IR LEDs (850nm), range up to 30m
Smart Detection Human/vehicle detection, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps
DORI Distance (2.8mm) Detect: 45m, observe: 19m, recognize: 9m, Identify: 5m
Audio Support Not specified
Storage MicroSD slot (capacity not listed)
Power Supply 12V DC ±5% or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Vandal Resistance IK10
Dimensions (L × W × H) 115 × 86 × 115 mm
Net Weight 0.28 kg
Gross Weight 0.41 kg
Warranty 1 Year Limited

Product Code: VIGI-C340(6MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C340 (6mm) is a precision engineered 4MP bullet camera built for high performance outdoor surveillance. With full color night vision, AI-powered human and vehicle classification, and active defense features like sound and light alarms, it delivers proactive protection around the clock. The 6mm lens offers a tighter field of view for long-range monitoring, while H.265+ compression ensures efficient bandwidth and storage. Rugged IP67 waterproof housing and flexible power options (PoE/12V DC) make it ideal for commercial, industrial, and perimeter security.

📦 Key Specifications
Attribute Details
Max Resolution 2560 × 1440 (4MP)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 6 mm, F1.6 aperture
Viewing Angle (6mm) H: 55.1°, V: 30.2°, D: 64°
Night Vision Full color + IR (850nm), range up to 30m
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Active Defense Sound and light alarm
Audio Two-way audio with built-in mic
Compression Format H.265+/H.265/H.264+/H.264
Video Enhancement Smart IR, WDR, 3D DNR
Storage MicroSD slot (up to 256 GB), NVR, VIGI app, web UI
Power Supply 12V DC ±5% (Max 7.5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Weatherproof Rating IP67
Material Plastic housing
Dimensions (L × W × H) 174 × 78 × 70 mm
Net Weight 0.28 kg
Gross Weight 0.42 kg
Warranty 1 Year Limited
HS Code: 8525.80

Product Code: VIGI-C340(4MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C340 is a high performance 4MP bullet camera designed for 24/7 outdoor surveillance. With full-color night vision, smart detection features, and built-in audio input, it delivers sharp, actionable monitoring in any lighting condition. Its IP67 rated housing ensures durability in harsh environments, while H.265+ compression optimizes bandwidth and storage. Ideal for commercial, industrial, and residential security setups.

📦 Key Specifications
Attribute Details
Max Resolution 2560 × 1440 (4MP)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 4 mm, F1.6 aperture
Viewing Angle (2.8mm) H: 107°, V: 57°, D: 129°
Night Vision Full color + IR (850nm), range up to 30m
Smart Detection Human/vehicle detection, motion, intrusion, tampering
Audio Input Built-in microphone
Compression Format H.265+/H.265/H.264+/H.264
Bitrate Main: 256 Kbps–4 Mbps, Sub: 64 Kbps–512 Kbps
Frame Rate Up to 30 fps
Storage MicroSD slot (capacity not specified)
Power Supply 12V DC ±5% (Max 7.5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Weatherproof Rating IP67
Material Plastic housing
Dimensions (L × W × H) 174 × 78 × 70 mm
Net Weight 0.28 kg
Gross Weight 0.42 kg
Warranty 1 Year Limited

Product Code: VIGI-C230I MINI(2.8MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C230I Mini is a compact, yet powerful dome camera designed for wide angle surveillance in tight indoor or semi outdoor spaces. With 3MP resolution, 30m infrared night vision, and smart detection features, it delivers reliable monitoring around the clock. Its IK08-rated vandal resistant housing and IP rated weatherproofing make it ideal for high-risk environments like entrances, corridors, and retail zones. Supports PoE and 12V DC power for flexible installation.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens 2.8 mm, F1.6 aperture, M12 mount
Viewing Angle H: ~107°, V: ~57°, D: ~129°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Switch Auto, Manual, Scheduled
Smart Detection Human/Vehicle detection, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Audio Input/output, full duplex, 8KHz sampling, G.711 codec
DORI Distance (2.8mm) Detect: 49m, observe: 20m, recognize: 10m, Identify: 5m
Video Streams Up to 3 main streams
Bitrate Range 64 Kbps to 4 Mbps
Power Supply 12V DC ±5% or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP-rated (not explicitly listed)
Vandal Resistance IK08
Dimensions (W × H × D) 114 × 114 × 58 mm
Net Weight 0.23 kg
Gross Weight 0.41 kg
Warranty 1 Year Limited

Product Code: VIGI-C330(2.8MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C330 is a compact yet powerful 3MP bullet camera designed for 24/7 outdoor surveillance. With full-color night vision, smart detection features, and IP67 rated durability, it delivers sharp, reliable monitoring in all conditions. The 2.8mm wide angle lens captures expansive views, while H.265+ compression ensures efficient bandwidth and storage usage. Ideal for residential, retail, and commercial security setups.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens 2.8 mm fixed, F1.6 aperture
Viewing Angle H: 107.5°, V: 57.2°, D: 128.7°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Switch Auto, Manual, Scheduled
Smart Detection Human/Vehicle detection, motion, intrusion, tampering
Compression Format H.265+, H.265, H.264
Audio Support Two-way audio (sold separately)
DORI Distance (2.8mm) Detect: 52m, observe: 22m, recognize: 10m, Identify: 5m
Weatherproof Rating IP67
Power Supply 12V DC ±5% (Max 5.4W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Mounting Accessories Included
Dimensions (L × W × H) 174 × 78 × 71 mm
Gross Weight 0.4 kg
Warranty 1 Year Limited

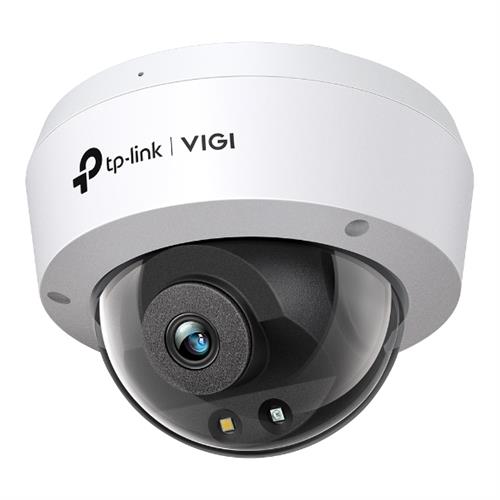

Product Code: VIGI-C240(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C240 is a rugged, high-definition dome camera engineered for 24/7 full color surveillance. With 4MP resolution, a large-aperture lens, and supplemental lighting, it captures vivid detail even in pitch-black conditions. Smart detection features including human/vehicle classification, object removal alerts, and tamper detection ensure proactive monitoring. Its IK10 vandal proof and IP67 waterproof housing makes it ideal for harsh environments, while flexible power options (PoE/12V DC) and multi-platform management offer seamless integration.

📦 Key Specifications
Attribute Details
Resolution 4MP (2560 × 1440)
Image Sensor 1/3" CMOS, high sensitivity
Lens 2.8 mm, F1.6, wide-angle
Field of View ~110° diagonal (estimated)
Night Vision Full color with supplemental lights, Smart IR
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Audio Built-in microphone (15-ft radius)
Compression Format H.265+, H.265, H.264
Video Enhancement Smart IR, WDR, 3D DNR
Storage microSD slot (up to 256 GB), local/NVR/cloud
Power Supply PoE (802.3af) or 12V DC
Management Options Web UI, NVR UI, VIGI app, VIGI Security Manager
Security AES-128 encryption, SSL/TLS
Weatherproof Rating IP67
Vandal Resistance IK10
Dimensions (W × H × D) 140 × 140 × 100 mm (estimated)
Warranty 1 Year Limited
Gross Weight: 0.9 to 1.2 kg

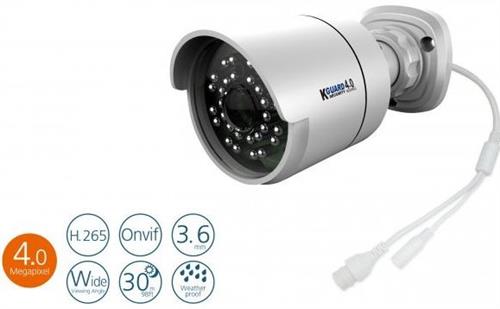

Product Code: IPB-400
Brand: KGuard

🌟 Overview
The KGuard IPB-400 is a robust 4MP indoor-outdoor PoE IP camera designed for high-definition surveillance. Featuring a 1/3" CMOS sensor with IR cut filter and a 3.6mm fixed lens, it delivers sharp 2592 × 1520 resolution at 30fps. With 30m infrared night vision, IP66 waterproof housing, and ONVIF 2.3 compatibility, it’s ideal for securing shops, banks, warehouses, and industrial sites. Supports H.265/H.264/MJPEG compression for efficient storage and streaming.

📦 Key Specifications
Attribute Details
Resolution 2592 × 1520 (4MP) @ 30 FPS
Image Sensor 1/3" CMOS with IR Cut Filter
Lens 3.6mm fixed focal length
Compression Formats H.265, H.264, MJPEG
Night Vision Range Up to 30 meters
ONVIF Compatibility ONVIF 2.3
Waterproof Rating IP66
Power Supply PoE (IEEE 802.3af)
Mounting Type Wall or ceiling mount
Dimensions (W × H × D) 70 × 70 × 150 mm (estimated)
Weight 0.5 to 0.7 kg (estimated)
Warranty 1 Year Limited
Gross Weight: 0.7 to 1.0 kg
Box Dimensions (L × W × H): 180 × 140 × 90 mm

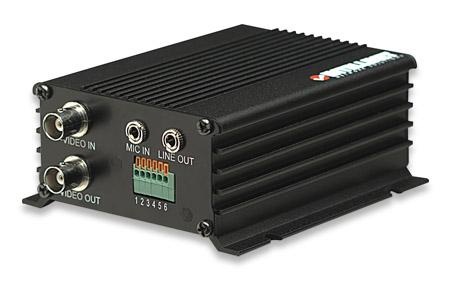

Product Code: 550994 Brand: Intellinet

🌟 Overview
The Intellinet NVS30 Network Video Server is a powerful bridge between analog CCTV systems and modern IP networks. It digitizes analog video and streams it over LAN, intranet, or the Internet using MPEG4 and Motion JPEG formats. With full duplex audio, motion detection, and support for mobile streaming, it’s ideal for upgrading legacy surveillance setups. The unit includes DDNS, HTTPS encryption, and PoE support, making it secure, scalable, and easy to deploy.

📦 Key Specifications
Attribute Details
Video Input Analog BNC input + BNC loop-through
Max Resolution 640 × 480 (VGA) @ 30 fps
Compression Formats MPEG4, Motion-JPEG, 3GPP
Audio Support Full duplex, external mic/speaker ports
Motion Detection Integrated with pre/post-alarm buffering
Streaming Modes CBR & VBR, mobile phone support (RTSP, WAP)
Web Access Via standard browser, DDNS support
Security HTTPS encryption, privacy zones, text overlay
PTZ Support Compatible with Pan/Tilt/Zoom cameras
Network Protocols HTTP, FTP, DDNS, DHCP, UPnP
Power Supply IEEE 802.3af PoE or external 12V DC
Zoom 10× digital zoom
Software Included 16-channel viewing/recording utility (excludes NSC10/NSC18)
Warranty 1 Year Limited

Product Code: VIGI-C485(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C485 is a high resolution 8MP turret camera designed for 24/7 full color surveillance. With 4K Ultra HD clarity, smart detection features, and a robust metal housing, it’s ideal for outdoor and indoor security applications. AI powered human and vehicle classification, two-way audio, and flexible illuminator controls ensure intelligent monitoring and proactive protection. Compatible with PoE and 12V DC power, it integrates seamlessly into modern surveillance setups.

📦 Key Specifications
Attribute Details
Resolution 3840 × 2160 (4K UHD)
Image Sensor 1/2.7" Progressive Scan CMOS
Lens Fixed 2.8 mm, F1.6, M12 mount
Field of View H: 111.4°, V: 58.8°, D: 134°
Night Vision Full color with 4× white LEDs (30m range)
Minimum Illumination 0.005 Lux (Color), 0 Lux with IR/LED
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Human/Vehicle classification, line-crossing, tamper alerts
Compression Format H.265+/H.265/H.264+/H.264
Bitrate Control CBR/VBR (Main: 256 Kbps–6 Mbps, Sub: 64 Kbps–512 Kbps)
Wide Dynamic Range 120 dB
Audio Two-way audio, noise filtering
Storage Cloud support, ROI region, privacy mask (up to 4 zones)
Power Supply 12V DC ±5% (Max 11.5W) or PoE 802.3af/at (Max 12.5W)
Operating Temp -30°C to +60°C
Material Metal housing
Net Weight 0.48 kg
Dimensions (L × W × H) ~150 × 150 × 100 mm (estimated)
Warranty 1 Year Limited
Gross Weight: ~0.7 to 1.0 kg
Box Dimensions (L × W × H): ~180 × 160 × 110 mm
