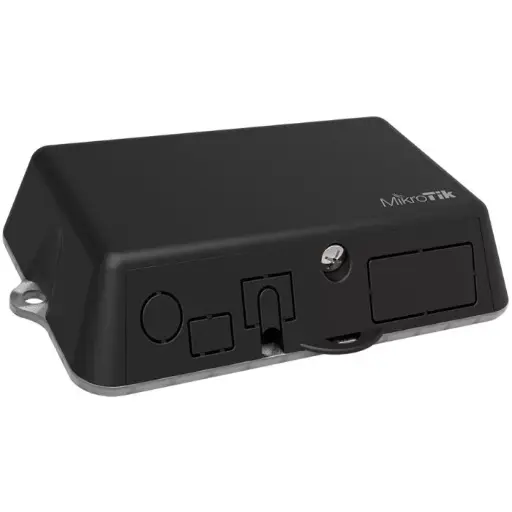

MikroTik's RB-LTAP is a small weatherproof wireless access point with integrated LTE antennas and a mini-PCI-e slot.

The LTAP mini has one 10/100 Ethernet LAN port for your wired devices, and an RS232 serial port gives you console access for debugging. The unit has several powering options: 8-30V via the DC Jack, Passive and 803.3af PoE via the Ethernet port or power it up using the 5V micro-USB.

LTAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built-in GPS module to track the location of your vehicle in real time.

Combine this with an ANT-MLTE to improve signal and performance or RB-GPS for use as a tracking solution.

*Note: The second SIM slot is for scripted failover configurations only. It does not automatically failover or do load balancing.

SKU RB-LTAP
Manufacturer MikroTik
Manufacturer Product Code RB912R-2nD-LTm&EC200A

Specifications

Antenna Gain: LTE: 3.5dBi (with UFL connector); Wireless: 1.5dBi
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink ; Wireless: 2.4GHz 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset; Mode
Max. Power Consumption: 9W
Mounting: Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 10V-57V (Passive PoE and 802.3af/at)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: 1x RS232
SIM Slots: 2 Mini SIM slots
Supported Voltage Range: PoE in: 10V-57V (Passive PoE and 802.3af/at with unshielded cable) DC jack: 8V-30V or Micro USB: 5V
USB Ports: None
Dimensions: 139 x 77 x 28.5mm

MikroTik's RB-NETBOX5AX is a WiFi 6 outdoor router with a data rate of up to 2400Mbps. The unit features a Gigabit Ethernet Port with Passive PoE input as well as a USB port for additional storage and 2x SMA connectors for external antennas.

*Note: Maximum distance must be configured for client connections over 2km.

SKU RB-NETBOX5AX
Manufacturer MikroTik
Manufacturer Product Code L11UG-5HaxD-NB

Specifications

Antenna Gain: Antenna Dependent (2x SMA RP Female)
Beam-width: Antenna Dependent
Data Rate: 5.8GHz 2400Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-28V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-28V
USB Ports: 1x USB 2.0
Dimensions: 245 x 121 x 50 mm

MikroTik's RB-NETMETAL is equipped with a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas.

The NetMetal is in a waterproof metal enclosure and it's rugged design is made to withstand the toughest conditions. It is easy to use and can be opened and closed with one hand. The solid aluminium enclosure also works as a reliable heat-sink for it’s high output power radio.

The Netmetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

Compatible with ANT-D530PA, a 5GHz, 30dBi dish antenna, also by MikroTik.

SKU RB-NETMETAL
Manufacturer MikroTik
Manufacturer Product Code RB922UAGS-5HPacD-NM

Specifications

Antenna Gain: Antenna Dependent (2x SMA RP Female)
Beam-width: Antenna Dependent
Data Rate: 5.8GHz 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 19W
Mounting: Pole Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 8V-30V
USB Ports: 1x USB 2.0
Other: 1x 1.25Gbps SFP Port
Dimensions: 143 x 247 x 48mm

MikroTik's RB-NETMETALAX is a dual band Wi-Fi 6, IP66 outdoor access point featuring 1x Gigabit Ethernet Port, 1x 2.5Gbps SFP Port, a USB port, and mini PCIe slot for expansion. The unit is equipped with 2x RP-SMA connectors which make provision for an antenna of your choice. You can adapt the Net Metal ax for low range deployments with the ANT-O25 screw on antenna.

SKU RB-NETMETALAX
Manufacturer MikroTik
Manufacturer Product Code L23UGSR-5HaxD2HaxD-NM

Specifications

Antenna Gain: Antenna Dependent (2x SMA RP Female)
Beam-width: Antenna Dependent
Data Rate: 2.4GHz: 574Mbps: 5.8GHz: 2400Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Pole Mount
Operating System: Router OS (Level 4 License)
Operating Temperature: -40°C to 70°C
PoE Input: 18V-28V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: Non
SIM Slots: None
Supported Voltage Range: 18V-28V (PoE) 12V-28V (DC)
USB Ports: 1x USB 2.0
Other: 1x 2.5Gbps SFP Port
Dimensions: 143 x 247 x 48mm

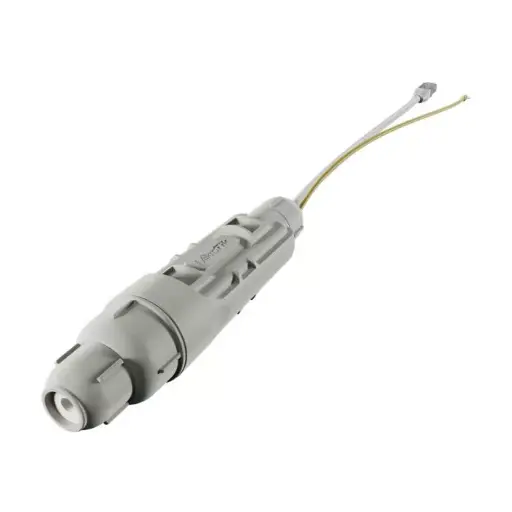

MikroTik's RB-GESP is an outdoor Gigabit Ethernet Surge Protector with a ground wire that supports Passive PoE and can be used to protect networks from lighting or surge damages. The unit comes with an IP67 outdoor enclosure and grounding cable. The maximum suggested cable length is 40 meters. For maximum protection, it is recommended to use an RB-GESP for outdoor connections and the RB-GESPIN at the other end for indoor connection.
SKU RB-GESP
Manufacturer MikroTik
Manufacturer Product Code RBGESP

Specifications

Data Line Protection: RJ45 10/100/1000 Ethernet
DC Spark-Over Voltage: 90V @ 100V/s
Discharge Current: 5kA (8/20μs)
Ethernet Ports:1x 10/100/1000
Maximum Impulse Spark-Over Voltage: 700V @ 1kV/µs
Operating Temperature: -40 to 70°C
PoE Support: Passive
Dimensions: 200 x 130 x 40mm

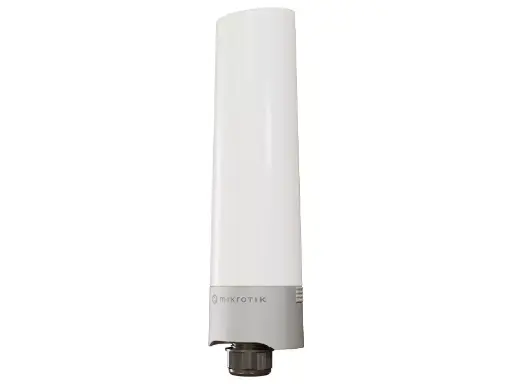

MikroTik's RB-GPERX4 is a compact, outdoor-ready IP68, Gigabit device designed to split a single 90W PoE-out port into 3x 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices. The RB-GPERX4 supports PoE-in as well as 2-pin terminal and is equipped with SwOS Lite for advanced management.

*Note: Ports are isolated and only communicate with the first port. This device functions as an extender, not a traditional switch.

Specifications

Ethernet Ports: 4x 10/100/1000
Max Power Consumption: 4W
Hardware Button: None
Mounting: Pole Mount
Operating System: SwOS Lite
Operating Temperature: -40°C to 70°C
PoE Input: 802.3af/bt
PoE Output: 802.3af/at Ports 2-4
Power Input: 24V-57V (2-Pin Terminal) ; 802.3bt PoE
SFP Ports: None
Supported Voltage Range: 24V-57V (2-Pin Terminal); 48-57V (PoE)
Dimensions: 281 x 76 x 70 mm

MikroTik's RB-CS318 is SwOS Cloud Smart Switch featuring 16x Gigabit Ethernet ports and 2x 10Gbps SFP+ ports. With its versatile mounting options and compact form factor, it can be installed in 10-inch racks, standard 19-inch racks, or even side-by-side - fitting two switches in a single 1U 19-inch space. Powered by SwOS, the unit is configurable from a web browser and provides all the basic functionality of a managed switch. Additional features include port-to-port forwarding, MAC filters, VLANs, mirror traffic, applying bandwidth limitation and even adjusting some MAC and IP header fields.

Specifications

Ethernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Rackmount
Operating System: SwOS
Operating Temperature: -40°C to 70°C
PoE Input: None
PoE Output: None
Power Input: 1x Clover Power Cord (Included)
Processor: Switch Chip 98DX2518
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 16MB
USB Ports: None
Other: None
Dimensions: 218 x 157 x 44 mm

MikroTik's RB-CSS326 is SwOS Cloud Smart Switch featuring 24x Gigabit Ethernet ports and 2x 10Gbps SFP+ 10Gbps ports. Powered by SwOS, the unit is configurable from a web browser and provides all the basic functionality of a managed switch. Additional features include port-to-port forwarding, MAC filters, VLANs, mirror traffic, applying bandwidth limitation and even adjusting some MAC and IP header fields

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 19W
Mounting: Rack-Mount
Operating System: SwOS
Operating Temperature: -20°C to 70°C
PoE Input: 10V-30V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Processor: Switch Chip
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 10V-30V
System Memory: 2MB
USB Ports: None
Other: None
Dimensions: 440 x 144 x 44mm

MikroTik's RB-CSS610 is a SwOS Lite Cloud Smart Switch featuring 8x Gigabit Ethernet ports, 2x 10Gbps SFP+ ports and can be powered by either DC Jack or 12-57V PoE. Powered by SwOS, the unit is configurable from a web browser and provides all the basic functionality of a managed switch. Additional features include port-to-port forwarding, MAC filters, VLANs, mirror traffic, applying bandwidth limitation and even adjusting some MAC and IP header fields.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Rack-Mount
Operating System: SwOS Lite
Operating Temperature: -20°C to 60°C
PoE Input: 12V-57V (Passive PoE)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Processor: Switch Chip
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 12-57V
System Memory: 64KB
USB Ports: None
Other: None
Dimensions: 200 x 167 x 46 mm

MikroTik's RB-CSS610P is a SwOS Lite Cloud Smart Switch featuring 8x Gigabit PoE ports, 2x 10Gbps SFP+ ports and can be powered by either DC Jack or the included IEC power cord. The 8 Gigabit PoE ports offer both Passive PoE and auto-sensing 802.3af/at PoE. Powered by SwOS, the unit is configurable from a web browser and provides all the basic functionality of a managed switch as well as some additional features such as port-to-port forwarding, MAC filters, VLANs, mirror traffic, apply bandwidth limitation and even adjusting some MAC and IP header fields.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Rack-Mount
Operating System: SwOS Lite
Operating Temperature: -40°C to 70°C
PoE Input: None
PoE Output: 802.3af/at or Passive PoE 18-57V
Power Input: 1x IEC Power Cable (Included) or 48-57V Power Supply (Not Included)
Processor: Switch Chip
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100-240V AC or 48-57V DC
System Memory: 64KB
USB Ports: None
Other: None
Dimensions: 272 x 216 x 50mm

MikroTik's RB-260GSP is SwOS smart switch featuring 5x Gigabit Ethernet ports, 1x 1.25Gbps SFP Port and PoE passthrough on ports 2 to 5. Powered by SwOS, the unit is configurable from a web browser and provides all the basic functionality of a managed switch. Additional features include port-to-port forwarding, MAC filters, VLANs, mirror traffic, applying bandwidth limitation and even adjusting some MAC and IP header fields.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: SwOS
Operating Temperature: -25°C to +65°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: 8V-30V Passive PoE on Ports 2 to 5
Power Input: 24V 2.5A Power Supply (Included)
Processor: Taifatech TF470
Serial Interface: None
SFP Ports: 1x 1.25Gbps SFP Port
Supported Voltage Range: 8V-30V
System Memory: 128KB
USB Ports: None
Other: None
Dimensions: 113 x 138 x 29mm

MikroTik's RB-260GS is a SwOS smart switch featuring 5x Gigabit Ethernet ports and 1x 1.25Gbps SFP port. Powered by SwOS, the unit is configurable from a web browser and provides all the basic functionality of a managed switch. Additional features include port-to-port forwarding, MAC filters, VLANs, mirror traffic, applying bandwidth limitation and even adjusting some MAC and IP header fields.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: SwOS
Operating Temperature: -25°C to +65°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Processor: Taifatech TF470
Serial Interface: None
SFP Ports: 1x 1.25Gbps SFP Port
Supported Voltage Range: 8V-30V
System Memory: 128KB
USB Ports: None
Other: None
Dimensions: 113 x 138 x 29mm

MikroTik's RB-CUBE60PKIT includes two 60GHz 802.11ay Cube 60Pro ac CPE's in a pre-configured link. The kit features automatic 5.8GHz 802.11ac failover, 1x Gigabit Ethernet and a durable, unobtrusive enclosure. Establish an ultra-fast, Point-to-Point connection for distances up to 2.4km with Channel 5 enabled.

Specifications

Antenna Gain: 5.8GHz: 11.5dBi: 60GHz: N/A Recommended for up to 2.4km
Beam-width: 5.8GHz: 35° : 60GHz: 11°
Data Rate: 60GHz: up to 1Gbps+ : 5.8GHz: 433Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 13W
Mounting: Pole-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 802.3af/at or 18V-57V (Passive PoE)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18-57V
USB Ports: None
Dimensions: 115 x 95 x 82 mm

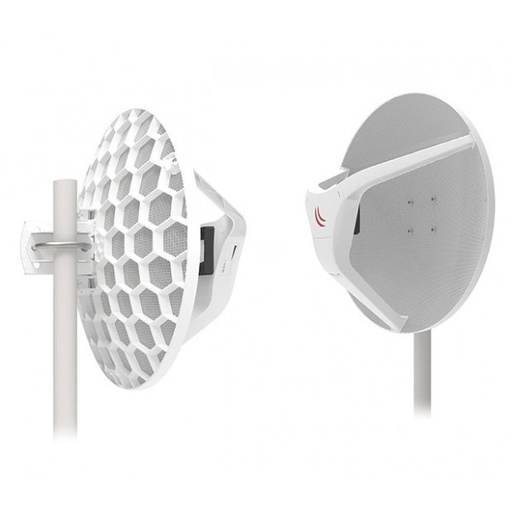

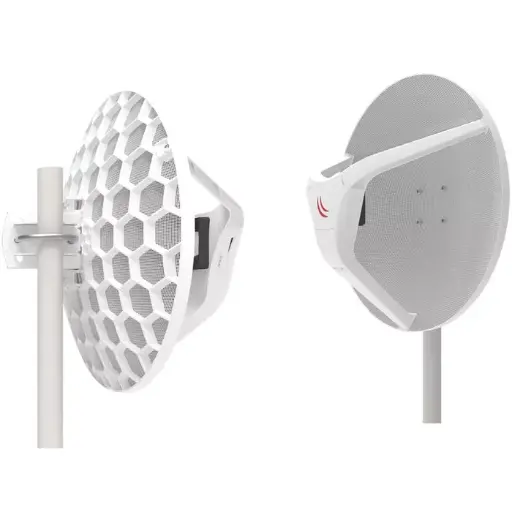

MikroTik Wireless Wire Dish (LHG 60GHz Kit)

The Wireless Wire Dish is a groundbreaking solution which offers Fiber speed and quality on distances up to 1500 m for a fraction of the price!

This amazing kit makes a secure AES encrypted 60 GHz wireless link that is not affected by the crowded WiFi spectrum, offering a stable and fast link for distances of 1500 meters or more. Simply point the included devices at one another and power them on, they are already preconfigured to connect automatically and will make a 2 Gb/s aggregate link.

The box includes two LHGG-60ad devices that are already paired together, power supplies, PoE injectors and mounting kits for both devices.

Specifications Antenna Gain: Maximum of 42dBi
Beam-width: 3°
Data Rate: 60GHz: 1Gbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 license)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE; 802.3af/at)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V-57V
USB Ports: None

Dimensions: Ø 391 x 222mm

MikroTik's RB-CAPLTE12AX is a Wi-Fi 6, indoor, ceiling mount Access Point with integrated LTE 12 modem. It features a quad-core 1.8GHz CPU, 2x Gigabit Ethernet Ports with PoE in and PoE out, and an aggregate Wi-Fi data rate of up to 1800Mbps and an LTE data rate of up to 600Mbps.

Specifications

Antenna Gain: 2.4GHz: 6dBi; 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: LTE: 600Mbps Downlink; 150Mbps Uplink; Wireless: 2.4GHz: 574Mbps; 5.8GHz: 1200Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 13W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS v7 only (Level 4 Licence)
Operating Temperature: -40°C to 50°C
PoE Input: 18V-57V (Passive PoE, 802.3af/at)
PoE Output: Passive PoE Pass-through Port 2
Power Input: 48V 0.95A Power Supply (Included)
Serial Interface: None
SIM Slots: 1x Micro SIM
Supported Voltage Range: 18V-57V
USB Ports: None
Other: None
Dimensions: 228 x 48 mm

MikroTik's cAP lite is a tiny access point device, ideal for public locations and hospitality areas like hotels, airports, shopping malls etc. Included with the product are two different casings, which can be swapped out easily. You also have the capability to custom design the casing by using the included 3D printer friendly design files. The cAP lite supports 802.11b/g/n and can be powered by Power over Ethernet. It’s the ideal companion for the MikroTik Caps MAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand-alone access point with the full potential of Router OS.
*Note: This device only supports 10-60V Passive PoE input.

Specifications

Antenna Gain: 1.5dBi
Beam-width: 360°
Data Rate: 2.4Ghz 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 4W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 10V-60V (Passive PoE)
PoE Output: None
Power Input: 24V 0.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10V-60V
USB Ports: 1x Micro USB for Powering Device
Other: None
Dimensions: Wall case: 88 x 52 x 20mm; Ceiling case: 88 x 20mm

MikroTik's RB-CAPACXL is an 802.11ac (WiFi 5) Access Point featuring a Qualcomm Quad Core CPU, high-gain dual-band antennas, built-in reflectors and 2x Gigabit Ethernet Ports. The unit supports 802.3af/at PoE input on Port 1 and passive PoE output (up to 57V) on Port 2. It is compatible with MikroTik CAPs MAN (controlled AP system manager), allowing you to manage all your Access Points from one central location.

Specifications

Antenna Gain: 2.4GHz: 6dBi; 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-57V (Passive PoE or 802.3af/at)
PoE Output: 18-57V Passive PoE
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-57V
USB Ports: None
Other: None
Dimensions: 191 x 42 mm

MikroTik's RB-CAPAC is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual-band wireless radio supports dual chain 2GHz and 5GHz in 802.11ac and legacy standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output (up to 57V) on the second port. The cAP ac is a feature-packed device with a sleek enclosure, that can become inconspicuous with sounds at its default configuration, but can be reconfigured to launch any RouterOS script.

The device comes bundled with two enclosures, so you can choose the design you like best.

Specifications

Antenna Gain: 2.4GHz: 2dBi 5.8GHz: 2.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 13W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 50°C
PoE Input: 17V-57V (Passive PoE, 802.3af/at)
PoE Output: Passive PoE Pass-through Port 2
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 17V-57V
USB Ports: None
Other: None
Dimensions: Round case: 136 x 30mm; Square case: 145 x 145 x 30mm

MikroTik's RB-CAPAX is a Wi-Fi 6 indoor ceiling mount Access Point. It features a quad-core 1.8GHz CPU, 2x Gigabit Ethernet Ports with PoE in and PoE out, and an aggregate data rate of up to 1800Mbps across its 5.8GHz and 2.4GHz bands.

Specifications

Antenna Gain: 2.4GHz: 6dBi; 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 1200Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS v7 only (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18V-57V (Passive PoE, 802.3af/at)
PoE Output: Passive PoE Pass-through Port 2
Power Input: 48V 0.95A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-57V
USB Ports: None
Other: None
Dimensions: 228 x 48 mm

MikroTik's RB-HAP is a small home access point, ideal for homes or small offices where all you need is a wireless AP to which you can connect a few wired devices. Based on MikroTik's RB951-2n, the new hAP offers several improvements.

The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. The hAP is preconfigured, so all you need to do is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.

SKU RB-HAP
Manufacturer MikroTik
Manufacturer Product Code RB951Ui-2nD

Specifications

Antenna Gain: 1.5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 5x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -30°C to 70°C
PoE Input: 10V-28V (Passive PoE)
PoE Output: Passive PoE Pass-through on Port 5
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10V-28V
USB Ports: 1 USB 2.0
Other: None
Dimensions: 113 x 89 x 28mm
