Reyee 10 Port Multi-Gigabit Layer 3 Managed Switch with 8 PoE++ Ports and 2 SFP+ Uplink Ports | RG-NBS5300-8MG2XS-UP

Features 10 multi-gigabit ports, including 8 PoE++ ports compliant with 802.3bt/at/af standards, and 2 SFP+ uplink ports, ensuring a versatile and robust connectivity solution. The 2.5 Gbps ports shatter the Gigabit barrier, seamlessly integrating with WiFi 6 APs to unleash their full potential.

With a total power supply of 370W for PoE++ ports, this switch is an ideal choice for high-demand network environments. Advanced security features like IP-MAC-Port Binding, ACL, Port Security, and DoS Defend, coupled with Storm Control, DHCP Snooping, and 802.1X with Radius Authentication, ensure a secure and reliable network. The Reyee RG-NBS5300 series switches offer lifetime management through the Ruijie Cloud portal, providing ease of access and control from anywhere at any time.

Highlight Features

2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
802.3bt/at/af-compliant PoE++ ports with a total power supply of 370W.
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication.
Lifetime management on Ruijie Cloud at any time anywhere.

Reyee Cloud - Making Your Business Easier

SON, zero touch provisioning to Cloud
Monitor switch statistics at anytime and anywhere
Configure VLANs on Ruijie Cloud APP
Easy maintenance, save onsite time and cost

Reyee 10-Port Gigabit Smart Cloud Managed PoE Switch | RG-ES210GS-P

Highlight Features

9-Port gigabit cloud managed switch with 8 PoE+ ports
Cost-Effective Smart Cloud Managed Switches
IP Camera Recognition, Unique Value for CCTV Network
Automatic Loop Prevention Ensures Service Continuity
Lifetime management on Ruijie Cloud at anytime anywhere

Reyee's RG-ES220GP is an 18 port, Layer 2 managed Gigabit switch with 16x 802.3af/at PoE ports, 2x Gigabit and 2x SFP uplink ports. The switch offers a 250W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 18x 10/100/1000
Hardware Button: None
Max. Power Consumption: 19W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 16
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 300 x 223 x 43.6 mm
Weight: 2.8kg

Introducing the Reyee RG-EST100-E, a 2.4GHz wireless bridge kit optimized for short-distance point-to-point (PTP) connections. Elevate your surveillance systems with stable, real-time data transmission even from 500 meters away. With factory-free configuration, you're spared from complex alignments. Its robust IP55 weatherproof design ensures unwavering performance in the harshest conditions, from bone-chilling cold to scorching heat.

Key Features:

500-Meter Real-Time Transmission: Stay connected and ensure stable signal for wireless connections even at a distance.

Plug-and-Play Design: Hassle-free setup without the need for intricate configurations or alignments.

Rugged & Weatherproof: IP55 rated to withstand the elements; confidently use it outdoors or in challenging environments like elevators.

Optimized for Surveillance: Support up to 10 x 3MP cameras at 100m and 5 x 3MP cameras at 500m, making it ideal for CCTV scenarios.

Remote Monitoring & Maintenance: With intuitive statistics viewable on Ruijie Cloud, you can monitor and manage your setup remotely with ease.

Better Visibility: Incorporated fluorescent stickers ensure easy recognition even in the dark.

Rust-Proof for Reliability: A design focused on longevity, ensuring a lower failure rate.


With the RG-EST100-E, experience unparalleled stability in your wireless connections, designed with CCTV systems in mind.

Specifications
Antenna Gain: 2.4GHz: 8dBi
Beam-width: 70°
Data Rate: 2.4GHz: 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 60°C
PoE Input: 12V Passive PoE
PoE Output: None
Power Input: 12V Passive PoE or 12V Power Supply (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V
USB Ports: None
Dimensions: 165.5 × 68.7 x 42mm
Weight: 0.30kg

Reyee's RG-NBS24G4S is a Layer 2+ smart switch featuring 24x Gigabit Ethernet Ports and 4x 1.25Gbps SFP Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: None
Max. Power Consumption: 25W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 50°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 440 × 165 × 44mm
Ean code 2000111121279
Gross weight (kg) 22.00

Reyee's RG-NBS24P2S is a Layer 2+ smart switch featuring 24 Gigabit 802.3af/at PoE Ports and 4 x1.25Gbps SFP Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: None
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 440 × 293 × 44mm

Reyee's RG-ES228GP is a 26 port Layer 2 managed Gigabit switch with 24x 802.3af/at PoE ports, 2x Gigabit and 2x SFP uplink ports. The switch offers a 370W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 26x 10/100/1000
Hardware Button: None
Max. Power Consumption: 21W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100 to 240V
Dimensions: 440 x 214.9 x 44 mm
Weight: 4kg

Reyee's RG-NBS48P4XS is a Layer 2+ smart switch featuring 48 Gigabit 802.3af/at PoE Ports and 4 x10 Gbps SFP+ Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 48x 10/100/1000
Hardware Button: None
Max. Power Consumption: 48W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 50°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 48
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 10 Gbps
Supported Voltage Range: 100-240V
Dimensions: 440 x 357.6 x 43.6 mm
Weight: 5.4kg

Reyee's RG-EG105GP is a cloud-managed router featuring 5x Gigabit Ethernet Ports with up to x2 WAN ports and 4x 802.3af/at PoE ports. It supports up to 100 users with a maximum WAN bandwidth of 600Mbps. The router integrates with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN); 1x 10/100/1000 (WAN); 1x 10/100/1000 (LAN/WAN)
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 4x 802.3af/at on Ports 1-4
Power Input: 54V 1.11A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 220V
System Memory: 128MB
USB Ports: None

Dimensions: 206.5 x 108.5 x 28mm
Weight: 840g

Reyee's RG-EG105G is a cloud-managed router featuring 5x Gigabit Ethernet Ports with up to x2 WAN ports. It supports up to 100 users with a maximum WAN bandwidth of 600Mbps. The router integrates with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN); 1x 10/100/1000 (WAN); 1x 10/100/1000 (LAN/WAN)
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12v Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 220V
System Memory: 128MB
USB Ports: None

Dimensions: 206.5 x 108.5 x 28mm
Weight: 840g

Reyee's RG-E305GP is a 5 port cloud-managed, dual-core router featuring 4 Gigabit Ethernet PoE ports and up to x4 WAN ports. It supports up to 300 users with a maximum WAN bandwidth of 1.5Gbps.

The router integrates with Ruijie's free cloud service allowing users to quickly and easily auto-provision, deploy, and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN/WAN) ; 1x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 0-3
Power Input: 54V 1.4A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 54V
System Memory: 512MB
USB Ports: None

Dimensions: 202 x 108 x 28 mm
Weight: 0.55kg

Reyee's RG-EG105GW is a cloud-managed, WiFi 5 MU-MIMO Wave 2 router with 5 Gigabit Ethernet ports and up to 4 WAN ports. With concurrent 2.4G and 5G wireless, the unit supports up to 1267Mbps aggregate over wireless, as well as up to 150 users with a maximum WAN bandwidth of 600Mbps. The router integrates with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely.

Specifications

Antenna Gain: 2.4GHz : 3dBi; 5.8GHz : 4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100/1000 (LAN); 1x 10/100/1000 (WAN); 3x 10/100/1000 (LAN/WAN)
Hardware Button: Reset, MESH
Max. Power Consumption: 15W
Mounting: Desktop / Wall Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: DC 12V 1.5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 220V
USB Ports: 1x USB 2.0

Dimensions: 120 x 120 x 28mm
Weight: 0.251Kg

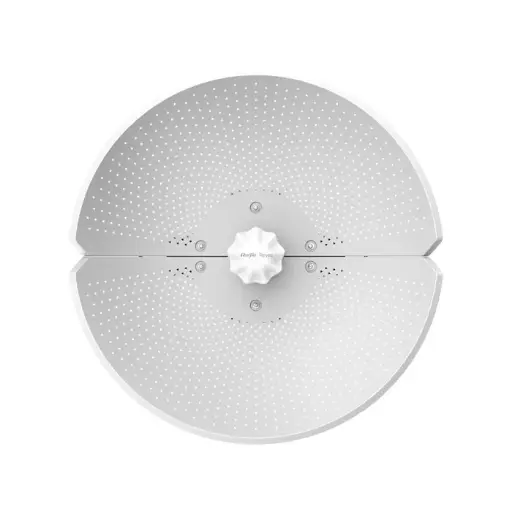

Reyee's RG-AM-460F WiFi 5 AirMetro Radio features an IP65 enclosure with an integrated 5GHz 867Mbps radio, 23dBi antenna, 1x Fast Ethernet Port and is powered by 24V Passive PoE. In PtP mode, the device can connect at a maximum distance of 15Km and in PtMP mode up to 10km when paired with the RG-S520 Sector Antenna and the RG-AM-550GB base station.

It also supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 5GHz: 23dBi
Beam-width: 9°
Data Rate: 5GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole Mount
Operating System: Reyee
Operating Temperature: -40°C ~ 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V Passive PoE (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 368.5 x 271 mm

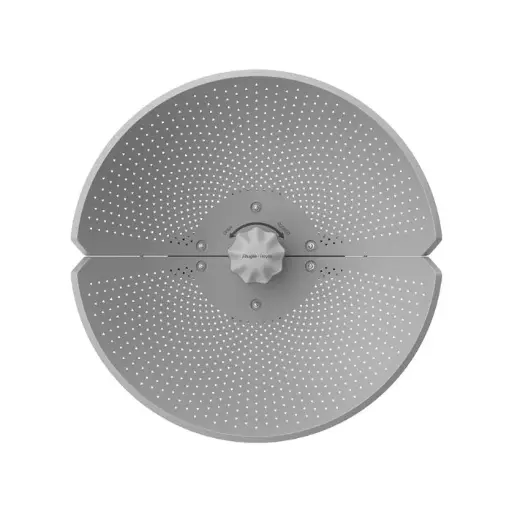

Reyee's RG-AM-460G WiFi 5 AirMetro Radio features an IP65 enclosure with an integrated 5GHz 867Mbps radio, 23dBi antenna, 1x Gigabit Ethernet Port and is powered by 24V Passive PoE. In PtP mode, the device can connect at a maximum distance of 15km and in PtMP mode up to 10km when paired with the RG-S520 Sector Antenna and the RG-AM-550GB base station.

It also supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 5GHz: 23dBi
Beam-width: 9°
Data Rate: 5GHz: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Pole Mount
Operating System: Reyee
Operating Temperature: -40°C ~ 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V Passive PoE (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 368.5 x 271 mm

Ruijie Reyee Series RG-EST310 V2 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, RG-EST310 V2 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services.

RG-EST310 V2 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end.

Specifications

Antenna Gain: 5GHz: 10dBi
Beam-width: 60°
Data Rate: 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 55°C
PoE Input: 24v Passive PoE
PoE Output: None
Power Input: 24V Passive PoE (Included) or 12V 1A Power Supply (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 24v PoE PoE or 12V 1A DC
USB Ports: None

Dimensions: 400 x 231 x 88 mm
Weight: 0.35g

Reyee's RG-AM-550GB WiFi 5 AirMetro Base Station features an IP55 enclosure rating, 2x Gigabit Ethernet Ports, 2x RP SMA connectors for antenna pairing and can support up to 32 clients. Pair with the RG-S520 for distances of up to 10km when connecting to the AirMetro client radios.

It also supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Pole-Mount
Operating System: Reyee
Operating Temperature: -30°C to 65°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V Passive PoE or 12V DC
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V or 12VDC
USB Ports: None
Dimensions: 200 x 99 x 29 mm
Weight: 680g

Reyee's RG-EST330FP is a 5GHz WiFi 5 CPE featuring a 13dBi antenna, 3x Fast Ethernet Ports, 2x PoE Output, a maximum throughput of up to 867Mbps over its 5GHz (2x2 MIMO) radio and a 3km coverage range when used in a Point-to-Point or Point-to-MultiPoint installation with the RG-EST450G. The dedicated 2.4GHz management radio allows for easy setup via the Reyee mobile app.

It supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 2dBi 5GHz: 13dBi
Beam-width: 30°
Data Rate: 2.4GHz: 150Mbps (Mangement Radio); 5GHz: 867Mbps
Ethernet Ports: 3x 10/100
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 55°C
PoE Input: 24v Passive PoE or 802.3af/at
PoE Output: 2x 802.3af PoE (Depending on Power Input)
Power Input: 24V Passive PoE, 802.3af/at, or 12V DC (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V/ 1A; 24V/ 1.5A
USB Ports: None
Dimensions: 199 x 102 x 54 mm
Weight: 370g

Reyee's RG-EST450G is a Dual Band, WiFi 5 sector antenna featuring a 15dBi antenna, 3x Gigabit Ethernet Ports, a maximum throughput of up to 1017Mbps over its 5GHZ (2x2 MIMO) radio and a 5km range when paired with the RG-EST350G and a 3km range when paired with the RG-EST330FP. The dedicated 2.4GHz management radio allows for easy setup via the Reyee mobile app.

It supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 2dBi 5GHz: 15dBi
Beam-width: 120°
Data Rate: 2.4GHz: 150Mbps; 5GHz: 867Mbps
Ethernet Ports: 3x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 65°C
PoE Input: 24V Passive PoE or 802.3af/at
PoE Output: None
Power Input: 12V DC; 24V Passive PoE or 802.3af/at
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V/ 1.2A; 24V/ 0.6A
USB Ports: None
Dimensions: 355 x 124 x 48 mm
Weight: 830g

Reyee's RG-EST350G is a 5GHz, WiFi 5 CPE featuring a 16dBi antenna, 3x Gigabit Ethernet Ports, a maximum throughput of up to 867Mbps over its 5GHz (2x2 MIMO) radio and a 5km coverage range when used in a Point-to-Point or Point-to-MultiPoint installation with the RG-EST450G. The dedicated 2.4GHz management radio allows for easy setup via the Reyee mobile app.

It supports Ruijie’s smart networking feature, which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 2dBi 5GHz: 16dBi
Beam-width: 30°
Data Rate: 2.4GHz: 150Mbps (Management Radio) ; 5GHz: 867Mbps
Ethernet Ports: 3x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 65°C
PoE Input: 24v Passive PoE or 802.3af/at
PoE Output: None
Power Input: 24V Passive PoE, 802.3af/at or 12V DC (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V/ 1.2A; 24V/ 0.6A
USB Ports: None
Dimensions: 240 x 133 x 108 mm
Weight: 730g

Reyee's RG-ES206GSP is a 6 port Layer 2 Gigabit smart switch with 4x 802.3af/at PoE ports, 2x Gigabit Ethernet uplink ports and 1x SFP combination port. The switch offers a 54W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 6x 10/100/1000
Hardware Button: None
Max. Power Consumption: 6W
Mounting: Desktop or Wall Mount
Operating System: None
Operating temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 4
Power Input: 54V 1.11A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x SFP Combo Port
Supported Voltage Range: 54V

Dimensions: 148 x 78 x 26mm
Weight: 308g
