Hikvision 8-ch 1080p 1U H.265 AcuSense DVR 1 SATA 12TB supports 2ch facial recognition or 4ch advanced perimeter VCA or 8ch Motion 2.0
Feature
8 channels and 1 HDD 1U AcuSense DVR
Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 4-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5M Lite @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 12 -ch network cameras can be connected
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Network
Remote Connection64
Total Bandwidth96 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
Serial InterfaceRS-485 (half-duplex)
SATA1 SATA interface, up to 10 TB capacity for each disk
Alarm In/OutN/A (optional to support)
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply12 VDC, 1.5 A
Consumption≤ 18 W (without HDD)
Working Temperature-10 °C to + 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight≤ 1.78 kg (3.9 lb) (without HDD)

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized varifocal lens for easy installation and monitoring
Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
DimensionØ141 mm × 99.9 mm (Ø5.6″ × 3.9″)
Package Dimension140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
WeightApprox. 820 g (1.8 lb.)
With Package WeightApprox. 1200 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

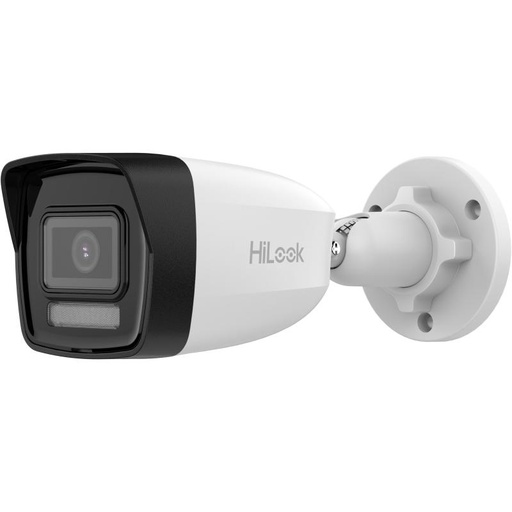

4 MP Smart Hybrid Light MD 2.0 Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens MountM12
Iris Type Fixed
ApertureF1.6
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength850 nm
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
MaterialMetal & Plastic
Dimension184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight Approx. 270 g (0.6 lb.)
With Package Weight Approx. 481 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

HiLook 16-ch 5 MP 1U H.265 DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 8 MP)
Up to 8 MP@8 fps encoding capability

Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.

Video and Audio
IP Video Input 8-ch (up to 24-ch)
Enhanced IP mode on:
16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps,
4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20
fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps,
720p@30 fps, 720p@25 fps

CVBS Input PAL/NTSC
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable

Video Output Mode HDMI/VGA simultaneous output

Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the
audio input) Synchronous playback16-ch

Network
Total Bandwidth128 Mbps Remote Connection128 Network ProtocolTCP/IP, PPPoE, DHCP,
HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA2 SATA interfaces
Capacity Up to 10 TB capacity for each disk
USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
General
Power Supply12 VDC, 5 A
Consumption≤ 25 W (without HDD)

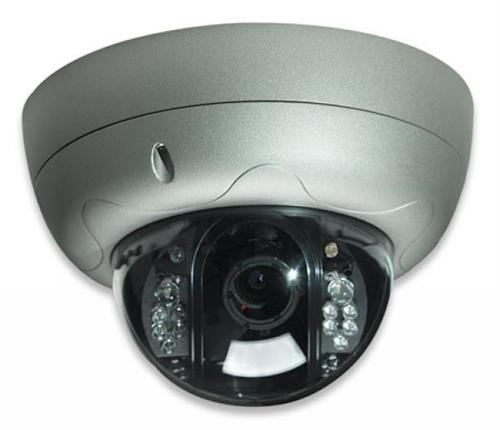

Intellinet PRO Serie R Network Dome,IR - (620 TV lines) 1/3" Sony Super HAD CCD image sensor for excellent image quality Vandal- and tamper-proof aluminum housing Up to 25 frames per second in all image resolutions Supports image resolutions up to 720 x 576 (D1) For surveillance in low light or nighttime conditions , minimum 0 lux (complete darkness) Equipped with an IR lens with 24 IR LEDs and 1 IR sensor IR sensitive, supports external IR illuminators Supports simultaneous MPEG4 and Motion-JPEG image compression Supports MPEG4 video streaming with CBR (constant bit rate) and VBR (variable bit rate) modes Supports HTTPS encryption for enhanced security RTSP (Real-Time Steaming Protocol) support Supports IEEE 802.3af Power over Ethernet injectors, mid- and endspans Controllable frame rate Video access through any standard Web browser Additional administrator functions include disabling the Camera LEDs during operation, disabling audio and/or video Audio support, Retail Box, 3 Year Warranty

Product Overview
The Intellinet Pro Series Network Dome Camera is designed for security surveillance applications and comes fully equipped with state-of-the-art features that set it apart from other network cameras on the market today.

Vandal-Proof Dome Housing
Not only is the housing small and discreet, it can also take a beating. Thanks to heavy-duty aluminium and the use of tamper-proof screws, the Network Dome Camera is well-protected.

Surveillance 24 Hours a Day, Even in Complete Darkness
The Pro-Series Night Vision Network Dome Camera is equipped with an IR lens which automatically engages as the light levels drop. The camera also supports third-party IR illuminators, allowing for the surveillance of larger areas.

Excellent Video Quality
The INTELLINET NETWORK SOLUTIONS Pro Series Network Dome Camera combines excellent image quality and very high light sensitivity for low-light video surveillance. The integrated Sony Super HAD CCD image sensor provides an astonishing 620 TV lines of image resolution — and it shows: Now you can really enjoy brilliant full-motion video in DVD resolution.

SSL Encryption
Secure network connections using data encryption between the camera and the network client means additional data security.

Dual Mode: Simultaneous MPEG4 + Motion-JPEG Streaming
The Pro Series Network Camera supports MPEG4 as well as Motion-JPEG video formats, providing superior quality and, at the same time, continuing to support existing applications (the law in most countries only accepts JPEG video format as evidence in court). MPEG4, on the other hand, allows you to transmit a larger amount of data over the same amount of bandwidth while providing smooth and seamless viewing.

Bi-Directional Audio Support
Attaching a microphone and loudspeakers to the Pro Series Network Camera will allow you to listen and talk using the two-way audio support. This is ideal for most security and surveillance applications, but can be applied to provide cost-effective video conferencing, as well.

Power over Ethernet
The Pro Series Network Camera supports the 802.3af standard, allowing it to be installed in locations where an AC power source is not readily available. Simply plug the camera into a PoE-compliant switch and begin transmitting power as well as data over the Cat5e or Cat6 network cabling.
Weight 0.242 kg
Dimensions 30.25 × 16.94 × 21.78 cm

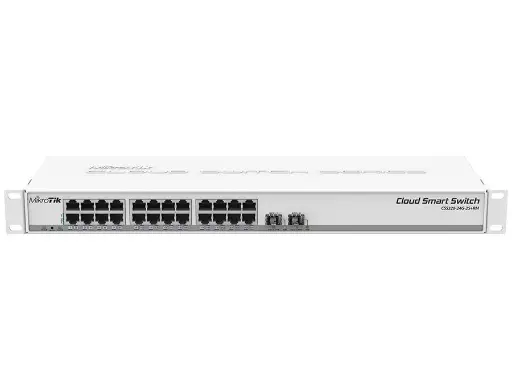

MikroTik Cloud Smart Switch CSS326-24G-2S+RM

The Cloud Smart Switch 326-24G-2S+RM is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwitchOS.

SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows you to manage port-to-port forwarding, apply MAC filtering, configure VLANs, mirror traffic, apply bandwidth limitations and even adjust some MAC and IP header fields. The SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.


Product Features:


Non-blocking Layer 2 switching capacity
16K host table
IEEE 802.1Q VLAN
Supports up to 4K simultaneous VLANs
Port isolation
Port security
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol
Access Control List
MikroTik neighbor discovery
SNMP v1
Web-based GUI

RouterBoard Specs

RouterBoard CPU Powered by a Marvell DX switch chip (98DX3216A1)
Wired Interfaces 24x Gigabit Ethernet Ports, 2x SFP+ Slots
DC Power Yes - 12-30V DC
PoE Yes, PoE input on Eth1 (12-30V DC - Non 802.3af PoE)
Operating System MikroTik SwitchOS

Specifications:
Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 19W
Mounting: Rack-Mount
Operating System: SwOS
Operating Temperature: -20°C to 70°C
PoE Input: 10V-30V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Processor: Switch Chip
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 10V-30V
System Memory: 2MB
USB Ports: None
Other: None
Weight & Dimensions
W : 20 cm
L : 56 cm
H : 7 cm
Weight: 1720 g

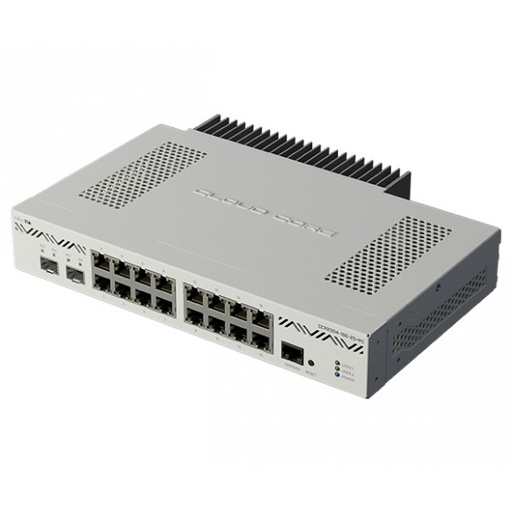

Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!


The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.


Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.


So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009.


The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general. One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.


With the new CCR2004, you can take your office network to the next level. Without breaking the bank.

Specifications

Ethernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Rack-Mount
Operating System: RouterOS v7 Only (Level 6 Licence)
Operating Temperature: -20°C to 60°C
PoE Input: None
PoE Output: None
Power Input: 36V-57V DC Jack or 2 Pin Terminal
Processor: 4 core 1.2GHz AL32400 ARM 64bit
Serial Interface: 1x RJ45 Serial Console Port
SFP Ports: 2x 10Gbps
Supported Voltage Range: 36V-57V
System Memory: 4GB
USB Ports: None
Weight & Dimensions
W : 21cm
L : 39cm
H : 6cm
Weight : 1460g

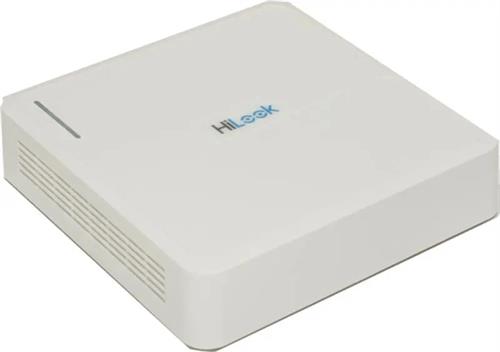

HiLook 8CH Hybrid DVR High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 8 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA and 8-ch via coaxial cable Audio via coaxial cable, SATA Interface Support up to 4TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 5 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Deep learning based human and vehicle targets classification of Motion Detection 2.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty

Product Overview
HiLook 8CH Hybrid DVR High Definition Stand Alone DVR

Features

•H.265 Pro+/H.265 Pro/H.265 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Up to 10-ch IP camera input (up to 5 MP)

Specifications

•Product code: DVR-108G-M1
•Description: HiLook 8CH Hybrid DVR High Definition Stand Alone DVR
•Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
•Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF
•For SD stream access: WD1/4CIF/VGA/CIF
•Main stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
•For 1080p and 720p stream access CIF/QVGA@15 fps
•For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
•Support H.265+/H.265/H.264+/H.264 IP cameras
•BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
•HDTVI Input:1080p25, 1080p30, 720p25, 720p30
•AHD Input: 1080p25, 1080p30, 720p25, 720p30
•HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
•HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•Video Output Mode: HDMI/VGA simultaneous output
•Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ)
•Audio Output: 1-ch, RCA (Linear, 1 KΩ)
•TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
•1, RJ45 10/100 Mbps self-adaptive Ethernet interface
•Power Supply: 12 VDC, 1.5 A
•200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
•≤ 1 kg (without HDD, 2.2 lb.)

8-ch 720p Mini 1U H.265 DVR Deep learning based human and vehicle targets classification of Motion Detection 2.0 H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Audio via coaxial cable Up to 10-ch IP camera input (up to 5 MP) Encoding ability up to 1080p lite @ 15 fps Max. 1200 m for 720p HDTVI signal Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; SATA 1 SATA interface Capacity Up to 4 TB capacity for each disk

Product Overview

The 8-ch 720p Mini 1U H.265 DVR features deep learning-based motion detection 2.0, enabling accurate human and vehicle classification to reduce false alarms. It supports H.265 Pro+/H.265 Pro/H.265 video compression and various video inputs, including HDTVI, AHD, CVI, CVBS, and IP, with up to 10 IP camera inputs. Equipped with a SATA interface for storage up to 4TB, it offers efficient recording and playback capabilities.

Features

•Deep learning based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Audio via coaxial cable
•Up to 10-ch IP camera inputs (up to 5 MP)
•Up to 1080p Lite@15 fps encoding capability
•Max. 1200 m for 720p HDTVI signal

Specifications

•Product Code: DS-7108HGHI-M1
•Description: Hikvision DS-7108HGHI-M1 DVR
•Power Supply: 12 VDC, 1.5 A
•Consumption: ≤ 17 W (without HDD)
•Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)
•Working Humidity: 10% to 90%
•Dimension (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
•Weight: ≤ 1 kg (without HDD, 2.2 lb.)
•Total Bandwidth: 72 Mbps
•Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPTM, HTTPS
•Remote Connection: 64
•Network Interfac : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
•ideo Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF
•For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
•Main stream:
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
•4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
•Video Bitrate : 32 Kbps to 4 Mbps
•Stream Type : Video, Video & Audio
•Audio Compression : G.711u
•Audio Bitrate : 64 Kbps

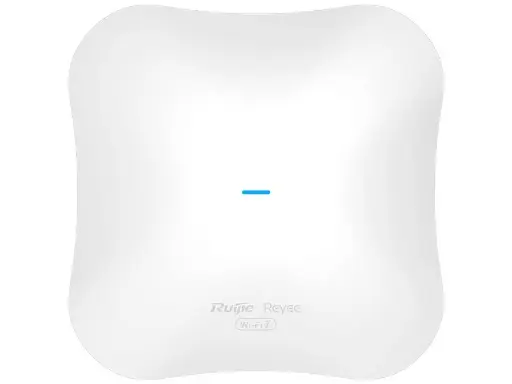

Reyee's RG-RAP72PRO is a WiFi 7 (802.11be) dual band ceiling mount access point featuring 1x 2.5Gbps Ethernet port, 1x Gigabit Ethernet port, seamless roaming and speeds of up to 5040Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: This device requires an 802.3at PoE injector or 12V 2.5A Power Supply which are not included.

Specifications
Antenna Gain: 2.4GHz: 3dBi; 5GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 688Mbps; 5GHz: 4323Mbps
Ethernet Ports: 1x 10/100/1000/2500 ; 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Wall or Ceiling Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3at
PoE Output: None
Power Input: 802.3at or 12V 2.5A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 12V (DC Input)
USB Ports: None
Dimensions: 208 x 208 x 40mm
Weight: 650g

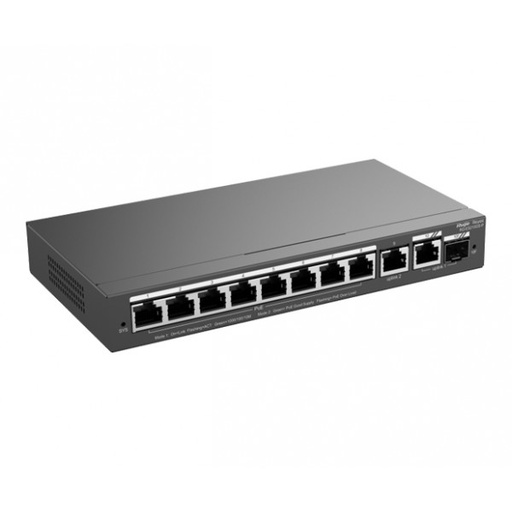

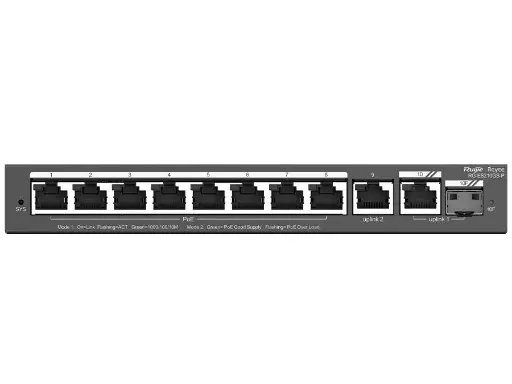

Reyee's RG-ES210GSP is a 10 port Layer 2 Gigabit smart switch with 8x 802.3af/at PoE ports, 2x Gigabit Ethernet uplink ports and 1x SFP Combination Port. The switch offers a 120W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 10x 10/100/1000
Hardware Button: None
Max. Power Consumption: 10W
Mounting: Desktop or Wall Mount
Operating System: None
Operating temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 8
Power Input: 54V 2.4A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x SFP Combo Port
Supported Voltage Range: 54V

Dimensions: 202 x 108 x 28mm
Weight: 539g

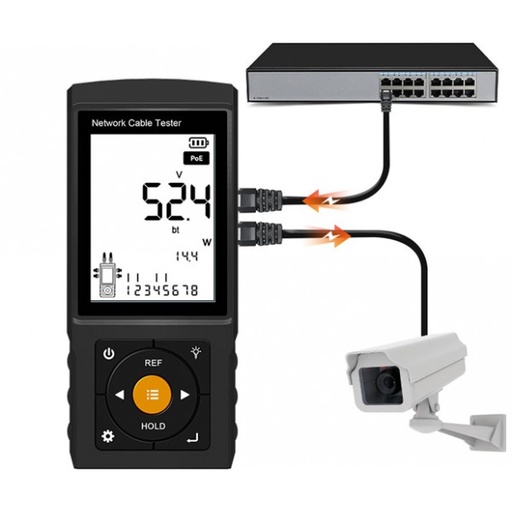

UltraLAN Multi-Function Fiber & Network Cable Tester

Short Description:

RJ45 + fiber tester in one hand-held unit
Wire-map, length (1–600 m ±3%), PoE 0–90 W, port-flash, tracer, NCV
Built-in OPM: –70 to +6 dBm, 850–1650 nm, REF-loss mode
10 mW VFL: 650 nm red laser, continuous & pulse, 10 km range
Supplied with remote terminator, RJ45/RJ11 leads, FC/SC/LC adaptors, carry-case

Key Specifications:

Cable Types: RJ45 Ethernet + fiber optic
Functions: Wire-map, cable length (1–600 m ±3%), PoE detection (0–90 W, af/at/bt), port-flash, tracer, NCV (non-contact voltage)
Optical Power Meter (OPM): –70 to +6 dBm range; wavelength support 850–1650 nm; REF-loss mode; user calibration
Visual Fault Locator (VFL): 10 mW 650 nm red laser; continuous & 1/2 Hz pulse modes; detects breaks up to 10 km
Display: 3" high-contrast LCD
Operating Temp: –10 °C to +50 °C
Power Supply: 5 × AA batteries (3 × AA for emitter, 2 × AA for receiver)
Included Accessories: Remote terminator, RJ45/RJ11 leads, FC/SC/LC adaptors, carry-case
Warranty: 1-year UltraLAN warranty
Gross shipping weight: Approx. 1.2 kg
Retail pack includes Tester unit, remote terminator, leads, adaptors, carry-case, user manual

Fanvil's FAN-V65W is a dual band WiFi 5 VoIP phone featuring dual Gigabit Ethernet ports, video support, 20 SIP lines, HD Audio with Opus support and a 4.3'' high-resolution colour LCD screen. The unit also features integrated bluetooth support, as well as a USB 2 port for scalability. The FAN-V65W is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: PSU-5V10W power supply not included.
Specifications Bluetooth Support: Integrated Bluetooth Version 4.2
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 9W
Headset Port: 1x RJ9
Mounting: Desktop or Wall with FAN-WB107
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 2A (Not included) or 802.3af/at PoE
SIP Lines: 20
WiFi Support: Dual Band, WiFi 5

Dimensions: 228 x 222 x 37.4 mm
Weight: 1.55kg

Cudy's CD-GS1016 is a 16 Port Gigabit Switch that supports both Desktop and Rack-Mount options. It features a toggle switch with VLAN, Extender and Default Modes. In Default mode, all ports operate freely. VLAN mode enables port isolation on ports 1-14 while Extender mode increases the transmission distance on ports 1-14 to 250m at 10Mbps.
Specifications Ethernet Ports: 16x 10/100/1000
Hardware Button: None
Max. Power Consumption: 15W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100V-240V

Dimensions: 200 x 118 x 44mm

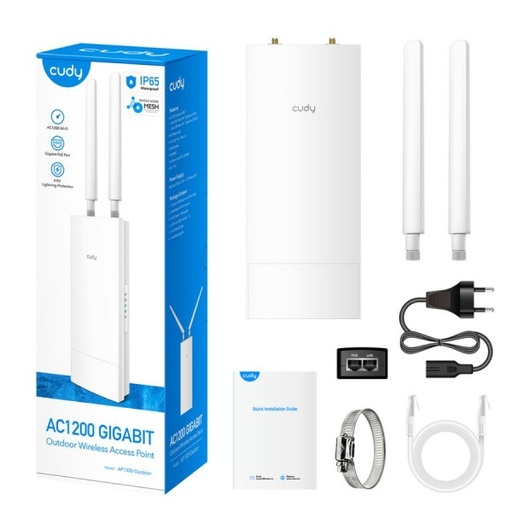

Outdoor AC1200 Gigabit Wireless Access Point

AC1200 MU-MIMO Dual Band Wi-Fi
MT7621DAT+MT7613B+MT7603E
4-In-1: AP/RE/Router/WISP
1× Gigabit WAN/LAN
WPS Button, Reset Button
802.3at/af PoE or Passive PoE (Adapter Included)
Cudy Mesh
IP65, -20~60°C (Ext. -40~65 °C), 8/15 KV Contact/Air ESD + 4 KV Surge/Lightning Protection
Antenna Specs
Frequency Range 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps 20/40/80 MHz
Load Balancer Specs
Interfaces 1× Gigabit Ethernet (RJ-45) Port (Support IEEE802.3af PoE and Passive PoE) 1× Reset Button
Power Supply 802.3af/at PoE 24-57 V Passive PoE (+4,5pins; -7,8pins)
NVR Specs
Operating Temperature -20/60°C Extend -40/65°C (Booted up in advance. Performance may drop slightly.)
Powerline Specs
Security Access Control Mac Filtering Wireless Isolation Clients
Reyee CAP
Antenna 2× Detachable Omni-directional Antennas
UniFi Specs
Environment Operating Temperatures: -20~60 °C (-4~140°F) ext. -40~65 °C (-40~149°F) Storage Temperature: -40–70 °C (-40–158 °F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
WAN Router Specs
Wireless Standards Wi-Fi 5 (802.11ac/n/g/b/a)
AirFiber
Mounting Pole/Wall Mounting (Kits included)
Weatherproofing Dust/Water-Proof - IP65 (Protection against any dust and low-pressure water from any directions) Lightning Protection - 4 KV Lightning/Surge protection at the Ethernet port ESD - 8 KV Contact / 15 KV Air ESD protection
Operating mode Access Point Wi-Fi Router Range Extender WISP Mesh

LTE FDD/TDD Cat 4
AC1200 Wi-Fi
1× 10/100 Mbps WAN/LAN
Nano SIM Slot
24 V Passive PoE
2× Internal WiFi Antennas + 2× Detachable 4G Antennas
VPN & DDNS
IP65 WaterProof

4G Band Lock

4G band lock makes it possible to lock the 4G working frequency to one or several bands to keep the stability of operation.
VPN support

With built-in PPTP, L2TP, WireGuard and OpenVPN Clients, this router can easily establish a connection to VPN Server to transport all your online data and traffic, securing it with its encryption at the same time.
WAN Failover

Configure LAN/WAN port as WAN and plug an ethernet cable with internet to the LAN/WAN port, then the LAN/WAN port would be the main source of the internet, while the 4G network would be worked as a backup. If the WAN/LAN Internet service fails, it will switch to 4G service automatically.


Home

With an integrated 4G LTE modem and a built-in AC1200 dual-band WiFi, all you need to do is insert a micro SIM card and turn on the Router. Enjoying fast, stable Wi-Fi at home has never been easier.
Office

Use as a primary or backup internet connection. Provides high-speed Internet for office. Can also be a backup automatically if your existing Internet service fails, making your office network always online.
Remote Area

Simply insert a SIM card and get all your Wi-Fi devices connected to the internet, very convenient for places where cable internet is unavailable, such as your holiday cabins, remote cameras, boat and RV.

305m Economy CAT6 CCA Solid UTP Cable


305m box of CAT6 Economy CCA Ethernet cable suitable for home installations or shorter cable runs. This Economy cable is a very cost effective option when doing cable installations with short runs (we do not recommend exceeding cable runs longer then 50m).

The Economy cable is great for installations on a budget where only data connectivity is required, and is not recommended for any Power over Ethernet (PoE) applications. Comes in a generic easy-pull box, and the CAT6 cable features a 0.50mm CCA conductor core.

Please take note: For applications where PoE is used, it is recommend to use UltraLAN Bare Copper cable.


General Specifications

Packaging: 305m Box

Conductor material: Solid Copper-Clad Aluminium (CCA)

Conductor diameter: 0.50mm

Colour: Grey

Product Dimensions ‏ : ‎ 4.05 x 2.1 x 2.1 cm; 4.05 kg

305m box of CAT5e Economy CCA Ethernet cable suitable for home installations or shorter cable runs. This Economy cable is a very cost-effective option when doing cable installations with short runs (we do not recommend exceeding cable runs longer then 50m).

The Economy cable is great for installations on a budget where only data connectivity is required and is not recommended for any Power over Ethernet (PoE) applications. Comes in a generic easy-pull box, and the CAT5e cable features a 0.50mm CCA conductor core.

Please take note: For applications where PoE is used, it is recommended to use UltraLAN Premium Series cable.


General Specifications

Packaging: 305m Box

Conductor material: Solid Copper-Clad Aluminium (CCA)

Conductor diameter: 0.50mm

Colour: Grey
Product Dimensions ‏ : ‎ 4.05 x 2.1 x 2.1 cm; 4.05 kg

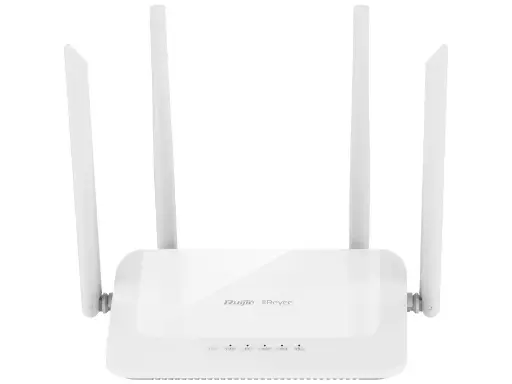

Reyee's RG-EW1200F is a dual-band Fast Ethernet router featuring 802.11ac (WiFi 5) MU-MIMO Wave 2 technology with speeds up to 1167Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: This device does not support WPS for third party devices. WiFi password settings do not support special characters.

Specifications
Antenna Gain: 4x5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset ; Mesh
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Dimensions: 182 x 120 x 32mm
Weight: 400g

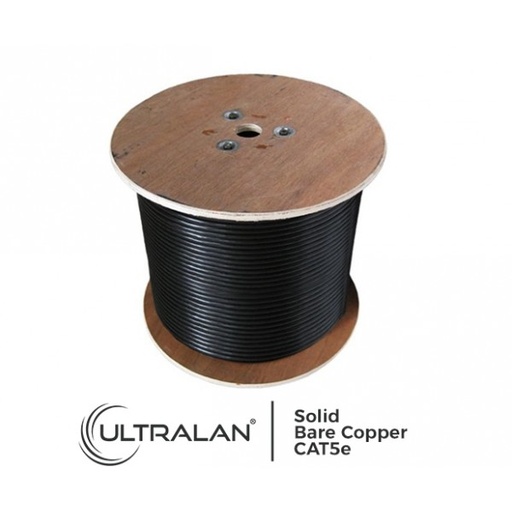

UltraLAN Cable - Outdoor CAT5e Bare Copper Solid FTP with drain wire (305m drum)

305m box of UltraLAN UV-resistant CAT5e Ethernet cable with drain wire suitable for outdoor networking installations. A drain wire provides the ability to ground outdoor networking equipment, reducing risk of damage to the hardware as a result of ESD or storm activity. Shielded RJ45 connectors should be used and all power supplies and/or injectors properly grounded to get the benefits of this high quality cable.

UltraLAN's outdoor cable dramatically increases Ethernet link states, speeds and overall performance. It has been designed and manufactured to perform in the harshest weather environments, and is suitable for any outdoor applications that requires robust and reliable cabling.

This cable features Bare Copper conductor cores with a 0.5mm width, ideal for longer cable runs or for powering devices with PoE over greater lengths. Also ideal for outdoor IP cameras or for clients who use camera baluns and require high quality cable.
Solid Bare Copper 0.50mm core for better conductivity and performance.
Multi-layered UV protected cable sheath allows for superior protection from the elements.

FTP (Foil Twisted Pair) cable provides excellent external interface mitigation.
Drain wire provides additional protection from ESD.
Meets and exceeds CAT5e rating (suitable for Gigabit applications).
