Ubiquiti's LTU-ROCKET is a connectorised radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM. and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz ). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

Specifications

*Note: For maximum throughput firmware version 2.3.0 or later is required.
Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: Up to 600Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 1A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 244 x 82 x 48mm
Weight: 468g

Ubiquiti's LTU-XR is a 5GHz, 29dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 29dBi
Beam-width: 3 dB: 5.5°, 6 dB: 7.5° (Horizontal & Vertical)
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 747 x 525 x 347mm
Weight: 3.2kg

Ubiquiti's UISP-R is a router featuring 8x Gigabit PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. Its dual core, 880Mhz processor is ideal for Micro Pop applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Processor Dual-core 880 MHz, MIPS1004Kc
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 24-28V
System Memory: 512 MB DDR3
USB Ports: None
Dimensions: 210.4 x 95 x 29 mm
Weight: 600g

Ubiquiti's UISP-RPRO is a professional router featuring 9x Gigabit Ethernet ports, and 4x 10Gbps SFP+ ports. Its quad-core 1.7GHz processor is ideal for ISP applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cable (Included)
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 4 GB DDR4
USB Ports: None
Dimensions: 442.4 x 200 x 43.7 mm
Weight: 3.3kg

Ubiquiti's UISP-SPRO features Layer 2 switching capabilities, 24x Gigabit Ethernet Ports of which 16 are 27V Passive PoE ports, 4x SFP+, and a PoE budget of 220W. The UISP Switch Pro can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~16
Power Input: 1x IEC Power Cable (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
Dimensions: 442.4 x 267.5 x 43.7 mm
Weight: 4kg

Ubiquiti's UISP-S features Layer 2 switching capabilities, 8x Gigabit 27V Passive PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. The UISP Switch can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 27V
Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

Ubiquiti's UISP-SPLUS features Layer 2 switching capabilities, 4x 2.5Gbps 27V Passive PoE ports, 4x SFP+, and a PoE budget of 160W when powered with the included Power Supply.

The UISP Switch can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Desktop, Wall-Mount or Rack Mount
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~4
Power Input: 27V 7.04A Power Supply (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 27V
Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

Ubiquiti's WAVE-MLO5 is a high-performance dual 5GHz, Wi-Fi 7-based Point-to-Point radio with Multi-Link Operation (MLO) technology for enhanced throughput. It features an outdoor IPX6 rating, 1x 10Gbps Ethernet port, 1x 10Gbps SFP+ port and is powered by the included 10Gbps PoE Injector. It offers an aggregate data rate of up to 5Gbps on its dual 5GHz (2x2 MU-MIMO) radios. It can be managed via the UISP network management platform.

Specifications

Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: 5Gbps
Ethernet Ports: 1x 10/100/1000/10000
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Pole-Mount
Operating System: UISP
Operating Temperature: -40°C to 60°C
PoE Input: 22-27V (4-pairs) or 44-54V Passive PoE
PoE Output: None
Power Input: 54V 0.56A, 10Gbps PoE Adapter (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 44-54V or 22–27V
USB Ports: None
Other: 1x RP SMA GPS Connector, 1x 10G SFP+
Dimensions: 249.3 x 82 x 47.6 mm
Weight: 575g

Ubiquiti's ACB-AC is a dual band, WiFi 5 Router/Access Point. It features 24V PoE pass-through to easily integrate with airMAX® CPEs. It is designed to work with the UISP network management platform.
Antenna Gain: 2.4GHz 4dBi ; 5.8GHz 5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300 Mbps ; 5.8GHz 866.7Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Desktop
Operating System: airOS
Operating Temperature: -10°C to 50°C
PoE Input: 24V Passive PoE on Port 1
PoE Output: 24V Passive PoE Pass-Through on Port 4
Power Input: 24V; 0.83A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 22-26V
USB Ports: None

Ubiquiti's AF-11KIT includes an AF-11 radio, an AF-11G35 35dBi dish antenna and an AF-DUPL single low band duplexer. Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Kit includes Antenna and Duplexer. For more information regarding an 11GHz spectrum license, please email [email protected].
Antenna Gain: 35dBi
Beam-width: 2.5°
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data: 10/100/1000 ; Management: 10/100
Hardware Button: Reset
Max. Power Consumption: 36W
Mounting: Antenna: Pole-Mount Radio: Antenna or Pole-Mount
Operating System: airMAX ac
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None
Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: Antenna: ø 811 x 460mm Radio: 327 x 112 x 86mm
Weight: Antenna: 11.85kg Radio: 2.260kg

Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Duplexers and Antenna not included. For more information regarding an 11GHz spectrum license, please email [email protected].

Antenna Gain: Antenna Dependant (4x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data Port - 1x 10/100/1000 ; Management Port – 10/100
Hardware Button: Reset
Max. Power Consumption: 36W
Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None
Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: 327 x 112 x 86mm
Weight: 2.260kg

Ubiquiti's AF-5XHD is designed for use in the 5GHz frequency band offering channel bandwidths of up to 100MHz, GPS synchronization and uses airOS LTU, manageable via UISP. The AF-5XHD is designed to work with Ubiquiti® airFiber X slant-polarized antennas for improved noise immunity and signal-to-noise ratio but is also compatible with other dish antennas in the Ubiquiti range. This device is managed via the UISP network management platform.

*Note: Antenna not included. The AF-5XHD only functions in PtP (master or slave) mode and therefore is not suitable for PtMP installations. The AF-5XHD is not backwards compatible with the AF5X.
Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 1.34 Gbps
Ethernet Ports: Data - 1x 10/100/1000 ; Management – 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W-12W
Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 1A Gigabit PoE Injector (Included)
Serial Interface: Bluetooth V4.0
SIM Slots: None
Supported Voltage Range: 18V-54V
USB Ports: None

Dimensions: 224 x 82 x 48mm
Weight: 0.35kg

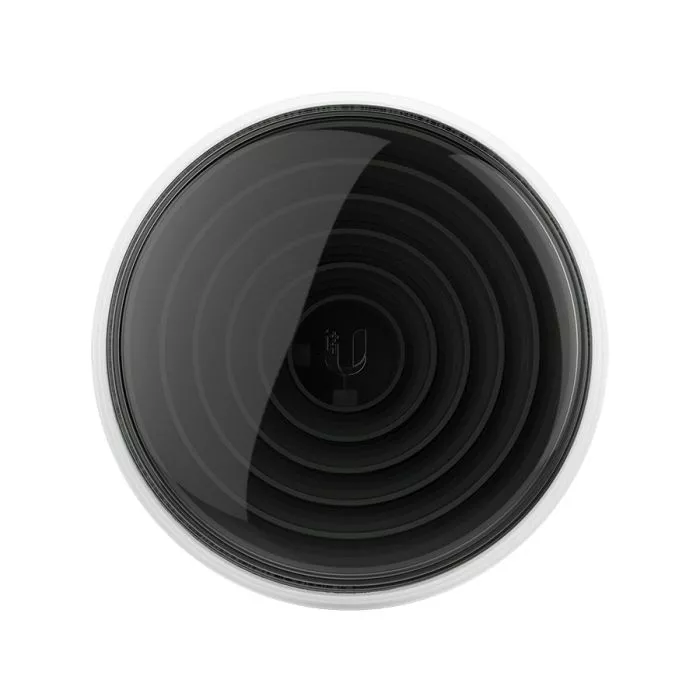

Ubiquiti's ISO-514AC is a shielded airMAX ac 5GHz radio with a 14dBi, 45° symmetrical horn antenna. It can be used as a PtMP (point to multipoint) access point in high-interference environments and is easily co-located due to its small size. It can also be used as a short-range CPE (client premises equipment). The antenna can be interchanged with any of the other horn antennas from Ubiquiti's range (sold separately). The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

The IsoStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the IsoStation 5AC is versatile and cost-effective to deploy.

The IsoStation 5AC comes with a 45° isolation antenna.

Specifications
Antenna Gain: 14dBi
Beam-width: 45°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20-26V
USB Ports: None
Dimensions: 174 x 174 x 150mm
Weight: 725.7g

Ubiquiti's LAP-516AC is an airMAX ac 5GHz radio with 16dBi, 120° sector antenna. It is designed as a lightweight, cost-effective PtMP (point to multipoint) access point solution. The bracket requires minimal tools for adjustment to simplify installation.

Specifications

Antenna Gain: 16dBi
Beam-width: 120°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V, 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20-26V
USB Ports: None
Dimensions: 452.3 x 78.7 x 54.4mm
Weight: 420g

Ubiquiti's LAP-517AC is an airMAX ac 5GHz radio with 17dBi, 90° sector antenna with GPS. It is designed as a lightweight, cost-effective PtMP (point to multipoint) access point solution. The GPS radio is used in co-location environments to assist with mitigating interference. The bracket requires minimal tools for adjustment to simplify installation. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 17dBi
Beam-width: 90°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7.1W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.3A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20-26V
USB Ports: None
Dimensions: 360.98 x 124.57 x 71.28mm
Weight: 752g

Ubiquiti's LBE-523ACG2 is an airMAX AC 5GHz radio with a 23dBi antenna. It is designed as a lightweight, cost-effective, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 23dBi
Beam-width: 15°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.3A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 358 x 271.95 x 272.5mm
Weight: 980g

Ubiquiti's LBE-529ACXR is an airMAX AC 5GHz radio with a 29dBi antenna. It is designed as a lightweight, long-range, CPE (client premises equipment) or PtP (point-to-point) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 29dBi
Beam-width: 7.5°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22-26V
USB Ports: None
Dimensions: 747 x 525 x 347 mm
Weight: 3.2 kg

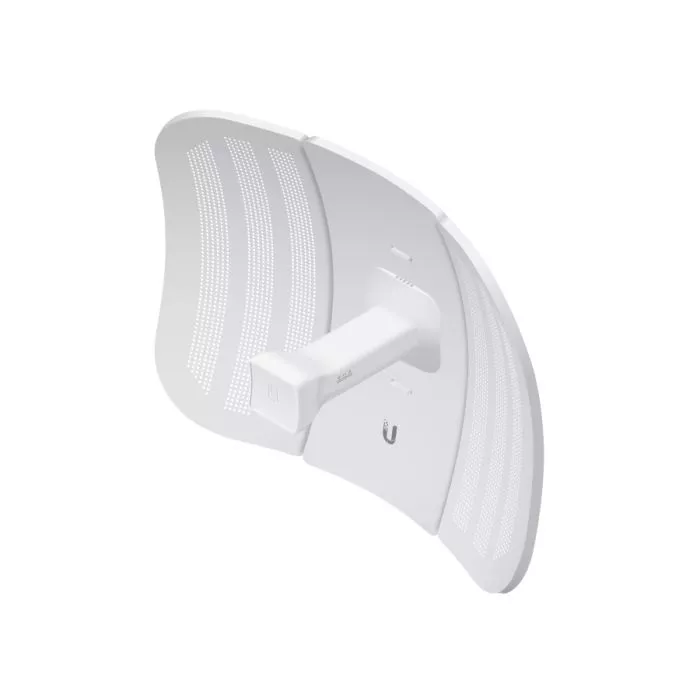

Ubiquiti's LBE-523 is an airMAX M series 5GHz radio with a 23dBi antenna. It is designed as a lightweight, cost-effective, long-distance CPE (client premises equipment) or PtP (point-to-point) solution. It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 23dBi
Beam-width: 15°
Data Rate: 150Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 4W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 0.2A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 362 x 267 x 184mm
Weight: 750g

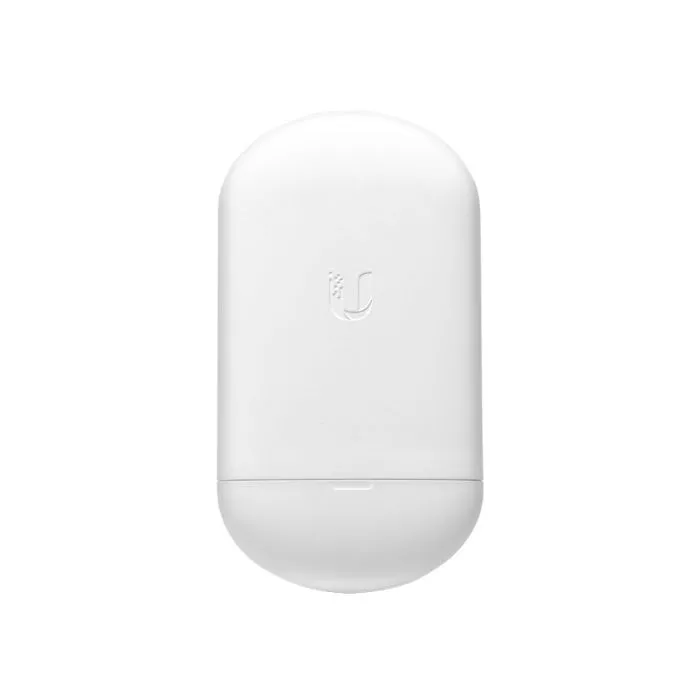

Ubiquiti's LOCO-5ACL is an airMAX AC 5GHz radio with a 13dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) solution or PtMP (point to multipoint) solution. The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

*Note: The LOCO-5ACL does not ship with a PoE adapter; we recommend powering the unit with our UPOE-24G12W

Specifications

Antenna Gain: 13dBi
Beam-width: 45°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V Passive PoE
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 179 x 77.5 x 59.1mm
Weight: 180g

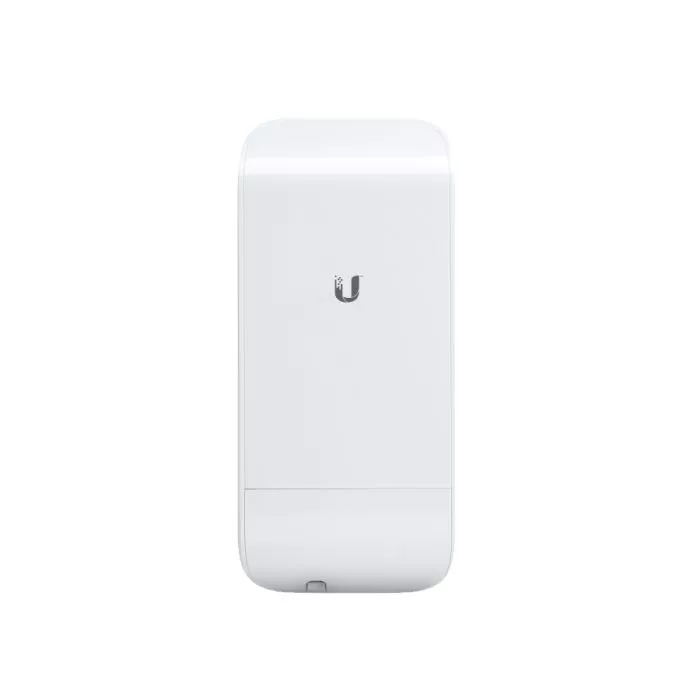

Ubiquiti's LOCO-M2 is an airMAX M series 2GHz radio with a 10dBi antenna. It is designed as a lightweight, cost-effective, short-distance CPE (client premises equipment), PtP (point to point) or PtMP (point to multipoint) access point solution. It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 8.5dBi
Beam-width: 60°
Data Rate: 150Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 5.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -30°C to 75°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 161 x 31 x 80mm
Weight: 180g
