AVT808 offers 16 channels of video analysis using AME ( the Artificial Mind Engine )
Capable of Analyzing any rtsp video stream of VGA Resolution at 6 Frames per second per channel. Model includes Power supply, battery, relay outputs, tamper detection and indoor enclosure. Detection regions of up to 50 Meters

AVT332 offers 32 channels of video analysis using AME ( the Artificial Mind Engine )
Capable of Analysing any rtsp video stream of 1Megapixel Resolution at 6 Frames per second per channel. Model includes Power supply, battery, relay outputs, tamper detection and indoor enclosure. Ideal for detection regions of up to 50 Meters

AVT808 offers 8 channels of video analysis using AME ( the Artificial Mind Engine )
Capable of Analyzing any rtsp video stream of VGA Resolution at 6 Frames per second per channel. Model includes Power supply, battery, relay outputs, tamper detection and indoor enclosure. Detection regions of up to 30 Meters

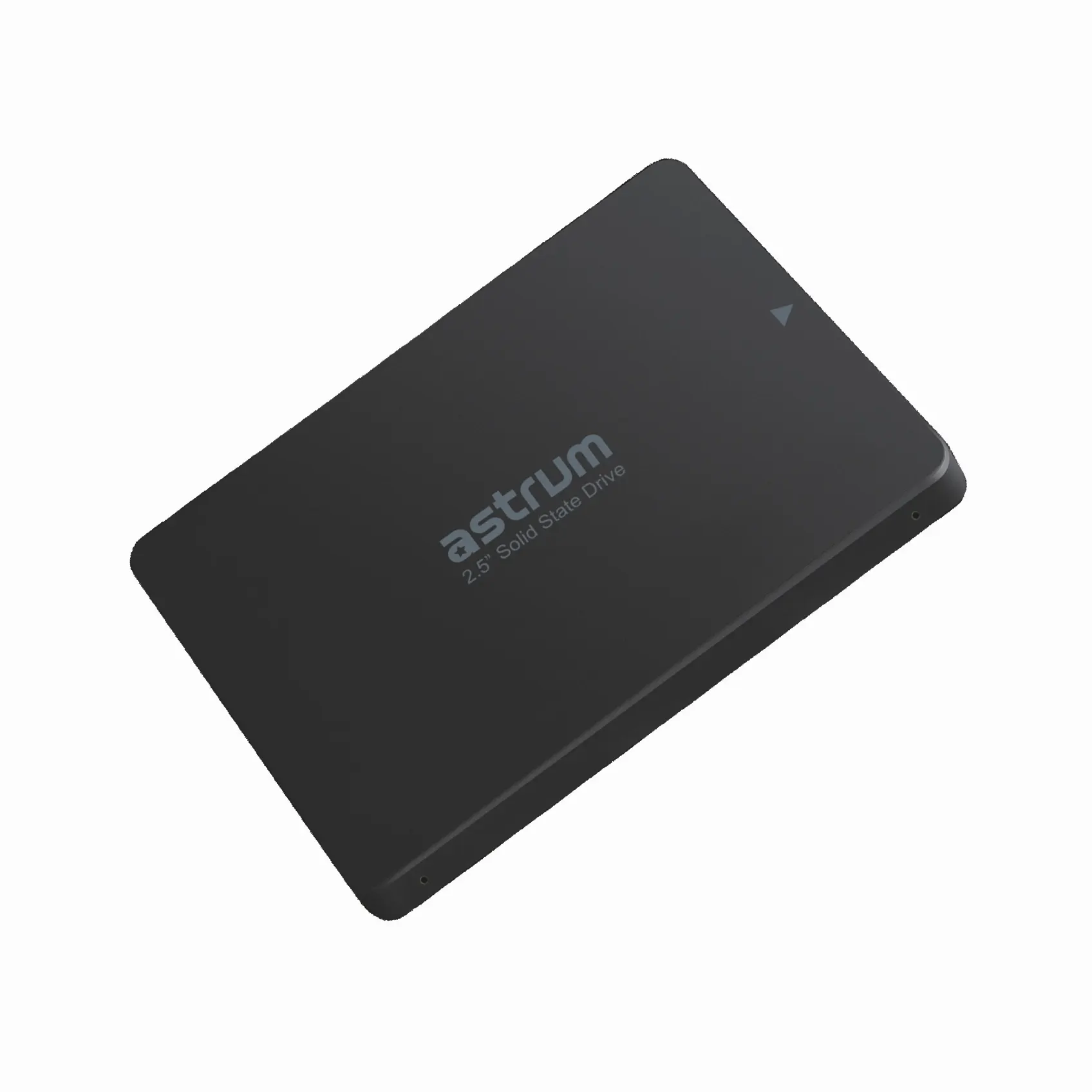

S128GX 128GB 2.5″ SATA3 SSD Drive: Swift 518MB/s Read and 47MB/s Write Speeds for Efficient Performance "36 Months Limited Manufacturer Warranty"
Enhance your system with the S128GX 128GB 2.5″ SATA3 SSD Drive, engineered to provide fast and reliable performance in a compact form factor. With read speeds up to 518MB/s and write speeds up to 47MB/s, this SSD offers a significant boost in speed and efficiency, ideal for upgrading older systems or adding a responsive storage solution to new builds.

Key Features:

Fast Performance: Enjoy improved data access with read speeds of up to 518MB/s. While write speeds reach up to 47MB/s, this SSD enhances overall system responsiveness and reduces load times for applications and files.
128GB Storage Capacity: Provides ample space for your operating system, essential applications, and frequently used files. Ideal for users who need a boost in performance without requiring extensive storage.
Reliable and Durable: Built for long-lasting performance, this SSD is designed to handle everyday use and offer dependable data storage. Its robust construction minimizes the risk of data loss and enhances system reliability.
Simple Installation: The 2.5″ SATA3 interface ensures broad compatibility with desktops and laptops. The installation process is straightforward, making it easy to upgrade your existing system or incorporate into new builds.
Energy Efficient: Consumes less power compared to traditional hard drives, contributing to longer battery life in laptops and reducing overall energy consumption in desktops.
Quiet Operation: With no moving parts, this SSD operates silently, eliminating the noise typically associated with mechanical hard drives.

Upgrade your storage with the S128GX 128GB 2.5″ SATA3 SSD Drive for a boost in speed and efficiency, offering a reliable and cost-effective solution for enhancing system performance.

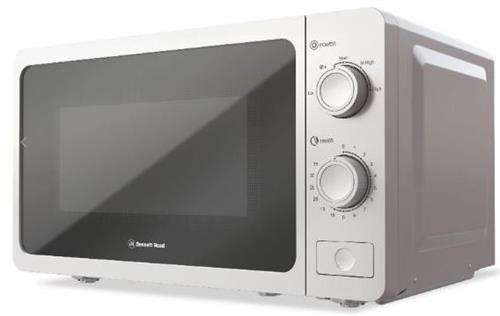

Bennet Read 20 Litre Manual Microwave Oven White -20 Litre Cooking Capacity , 5 Power Levels For Precision Cooking, 700w Rated Power, Quick and Easy Heating, Convenient 35 Minute Cooking Time, Fast and Efficient Defrost Function, Glass Door, Easy-To-Clean, Classic Sleek White Exterior and Grey Interior , Retail Box 1 Year Warranty

Product Overview
The Bennett Read 20L Microwave in White seamlessly blends style and functionality, offering a versatile solution for preparing a variety of home-cooked meals. Its premium design, adorned with stylish finishes and a classic white exterior, adds an elegant touch to any kitchen. Boasting a 20-litre cooking capacity and an array of convenient features, this microwave is tailored to streamline meal preparation for individuals, couples, and small families. Crafted with user convenience in mind, this microwave is equipped with a variety of useful features, including a convenient 35-minute cooking timer and a fast and efficient defrost function. The easy-to-use classic controls and easy-to-clean white interior further enhance its usability. With five power levels, this microwave ensures precision cooking, eliminating guesswork for optimal results. Its 700W rated power delivers quick and efficient heating, ensuring meals are ready in no time. Additionally, users can access a free online recipe guide, providing inspiration for culinary creations.
Highlights
• Stock Code KMW114
• Description Bennet Read 20 Litre Manual Microwave Oven White
• Product Type Manual Microwave Oven
• 20-Litre Cooking Capacity
• Ample Space For Cooking Various Dishes,
• Equipped With 5x Power Levels For Optimal Results
• 700w Rated Power Delivers Quick And Efficient Heating
• Convenient 35-Minute Cooking Time Making Meal Preparation Hassle-Free.
• Fast And Efficient Defrost Function Saving Time And Ensuring Even Thawing.
• Transparent Glass Door Allowing To Monitor The Cooking Process.
• Easy-To-Clean White Interior And Sleek Finishes Is Effortless
• Classic Sleek Black Exterior Boasts A Timeless Design That Adds Elegance To Any Kitchen Space.
• Voltage 2220-240v 50/60HZ
• Classic Sleek White Exterior and Grey Interior
• Dimensions: 245mm (H) x 452mm (W) x 330mm (D)
• Weight: 12.5kg

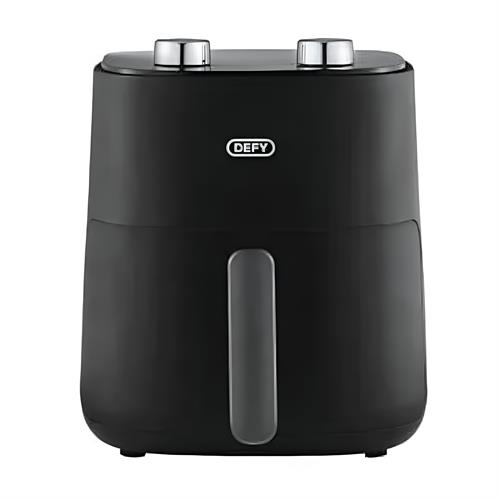

Defy 4.7L Manual Airfryer Black With Silver Accents - 4.7l Capacity, 1300w, With Fryer Rack Accessories, Pre-Set Menus, Time Settings, Temperature Settings, Elegant & Compact Design, Black With Silver Accents Retail Box 1 year warranty
Product Overview
The Defy 4.7L Manual Airfryer combines a generous 4.7L capacity with a powerful 1300W design, offering pre-set menus and customizable time and temperature settings for versatile cooking. Its elegant black finish with silver accents enhances any kitchen decor, while the included fryer rack accessories make meal preparation easy and efficient. Compact and user-friendly, this air fryer is perfect for healthier frying without sacrificing flavor or texture.
Specifications
•Product code: DAF2347MB
•Description: Defy 4.7L Manual Airfryer Black With Silver Accents
•4.7L capacity
•1300W
•With fryer rack accessories
•Pre-set menus
•Time settings
•Temperature settings
•Elegant & compact design
•Product Dimensions (WxHxD) (cm): 28x32x38
•Box Dimensions (WxHxD) (cm): 35.5×35.5×31

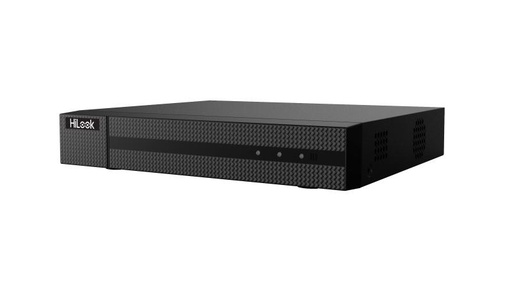

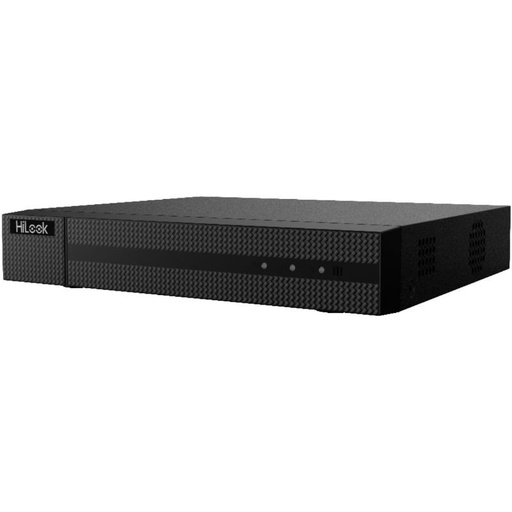

HiLook 16-ch 1080p Lite 1U H.265 DVR
Deep learning-based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 18-ch IP camera input (up to 5 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
Motion Detection 2.0 Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.
Video and Audio
IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30

General
Power Supply12 VDC, 2 A
Consumption≤ 10 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight≤ 1.1 kg (without HDD, 2.4 lb.)

FEATURES

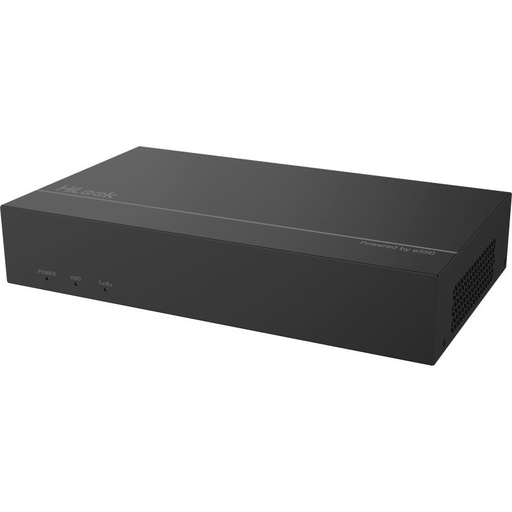

HiLook 16-ch 1080pLite 1U H.265 eSSD DVR

Powered by eSSD technology
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Scene-adaptive bitrate control video compression
Up to 1080p Lite@15 fps encoding capability
Low power consumption
Audio via coaxial cable

PRODUCT SPECIFICATIONS
Brand HiLook
Item model number IL-HIL052E-DVR-E16G-B
Product Type DVR
Power Supply 12 VDC, 1 A
Consumption ≤ 9.5 W (with eSSD)
Working Temperature -10 °C to 45 °C (14 °F to 113 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 235 × 146.6 × 46.6 mm (9.25 × 5.77 × 1.83 inch)

High quality imaging with 2 MP resolution
Excellent low-light performance
Efficient H.265+ compression technology
Water and dust resistant (IP67)
24/7 colorful imaging
Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Day & Night24/7 Color imaging
Min. Illumination Color: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Speed1/3 s to 1/100, 000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1°
4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
Lens MountM12
Iris Type Fixed
ApertureF1.0
Camera Material Aluminum alloy body
Camera DimensionØ76.6 mm × 164.4 mm (Ø3" × 6.5")
Package Dimension234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Camera Weight Approx. 400 g (0.9 lb.)
With Package Weight Approx. 670 g (1.5 lb.)

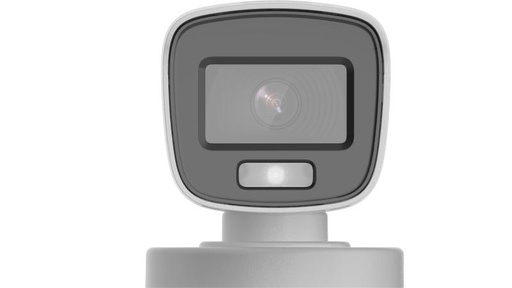

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to140°F), humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 2.4 W
Material Plastic
White Light Range Up to 20 m
Dimension162.7 mm × 70 mm × 70 mm (6.41" × 2.75" × 2.75")
Weight Approx. 152.5 g (0.34 lb.)

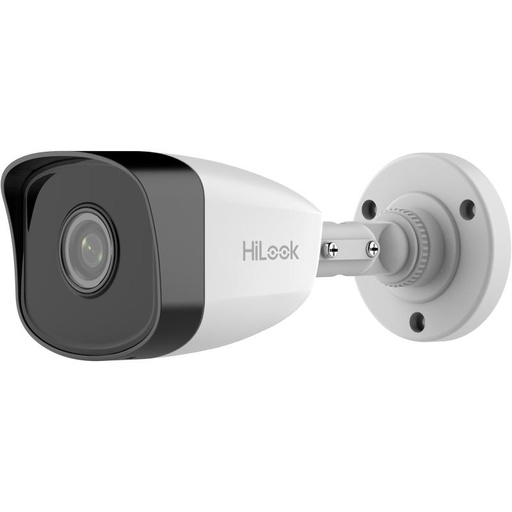

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
Camera
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100, 000 s
Day & NightIR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens MountM12
FocusFixed
ApertureF2.0
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Iris TypeFixed
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight Approx. 270 g (0.6 lb.)
With Package Weight Approx. 490 g (1.1 lb.)

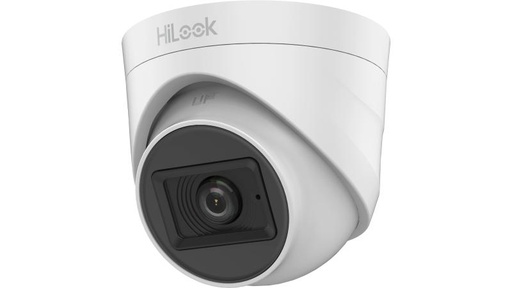

HiLook 2 MP Indoor Audio Fixed Turret Camera

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 103 3.6 mm, horizontal FOV: 80.7
6 mm, horizontal FOV: 50.1
Lens Mount M12

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 20 m

Image Settings Brightness;Sharpness;Mirror;Smart IR;AGC
Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Image Enhancement BLC;DWDR
Noise Reduction2D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power12 VDC ±15%, max. 4 W
MaterialPlastic
DimensionØ 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")
WeightApprox. 130 g (0.29 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language English

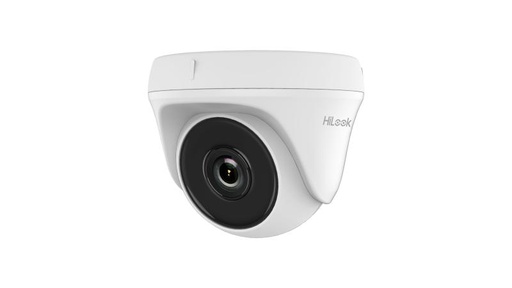

HiLook 2 MP Indoor Audio Fixed Turret Camera

1080P turret camera
Up to 20 m IR distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
With built-in microphone, enhancing your safety with video and audio together.
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens MountM12

General
Power12 VDC ± 25%, max. 2.7 W
Material Plastic
DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Weight Approx. 140.5 g (0.31 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language English

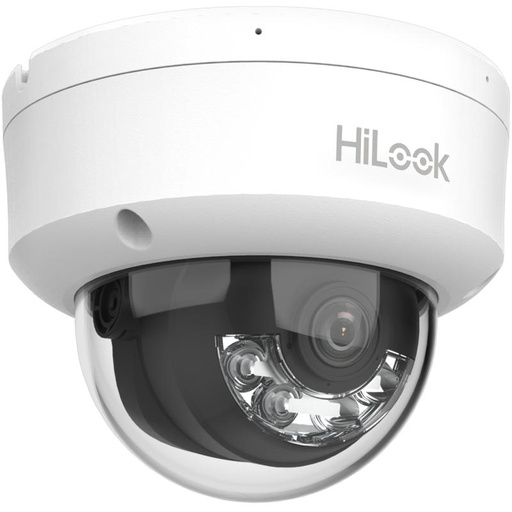

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Camera
Image Sensor1/2.9" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens MountM12
Iris TypeFixed
ApertureF1.6
Dimension184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
WeightApprox. 265 g (0.6 lb.)
With Package WeightApprox. 495 g (1.1 lb.)

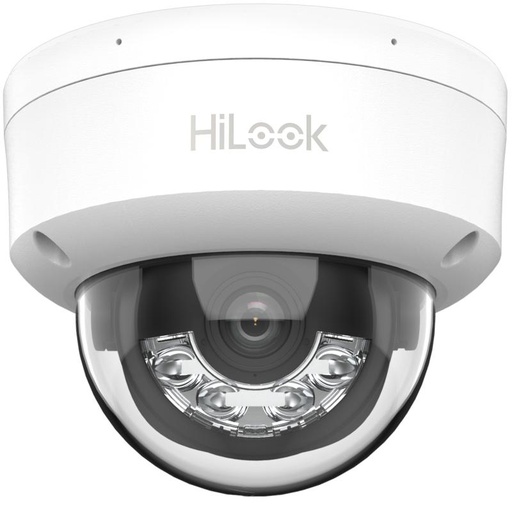

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal resistant (IK08)
Efficient H.265+ compression technology
Camera
Image Sensor1/2.9" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens MountM12
Iris TypeFixed
ApertureF1.6
DimensionØ121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 550 g (1.2 lb.)
With Package Weight Approx. 800 g (1.8 lb.)

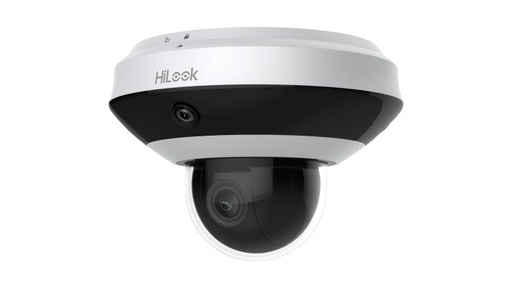

Three 2 MP cameras face different directions to cover larger areas
One 2 MP camera for close-up view with 4x zoom ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to DWDR technology
Good night-time performance with up to 10 m IR
Lens
FOVHorizontal field of view: 120° to 56.6° (wide - tele),Vertical field of view: 61.8° to
31.7° (wide - tele),Diagonal field of view: 149° to 65° (wide - tele)
Focal Length2.8 mm to 12 mm, 4× optical zoom
Zoom SpeedApprox.5.4 s (optical, wide - tele)
Working Distance10 mm to 1500 mm (wide - tele)
Aperture RangeF2.0 to F2.4
Smart Features
Basic Event Detection Motion Detection, Video Tampering Detection, Exception
Smart Detection Audio Exception Detection, Intrusion Detection, Line Crossing
Detection
Smart Record ANR (Automatic Network Replenishment)
ROIMain stream supports eight fixed areas.
Smart Image Enhancement HLC/BLC/3D DNR/Regional Exposure/Regional Focus
MaterialPC + ABS & Aluminum alloy
DimensionsΦ 183 mm × 133 mm (Φ 7.20" × 5.24")
WeightApprox. 0.9 kg (1.98 lb)
Protection LevelTVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power 12 VDC, 2.0 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class 4
Max.24 W (Max. 6 W for IR)
Working Temperature-10°C to 50°C (14°F to 122°F)
Working Humidity≤ 90%

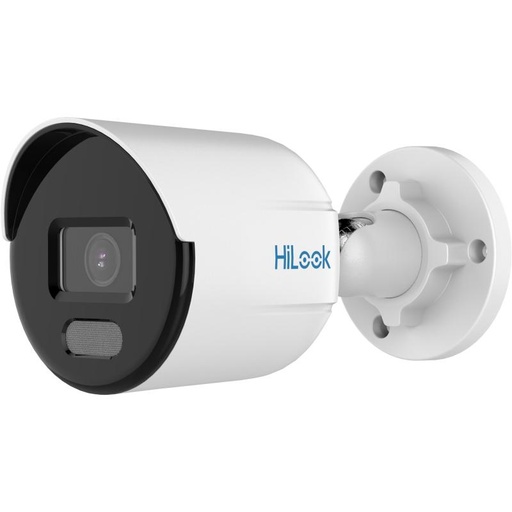

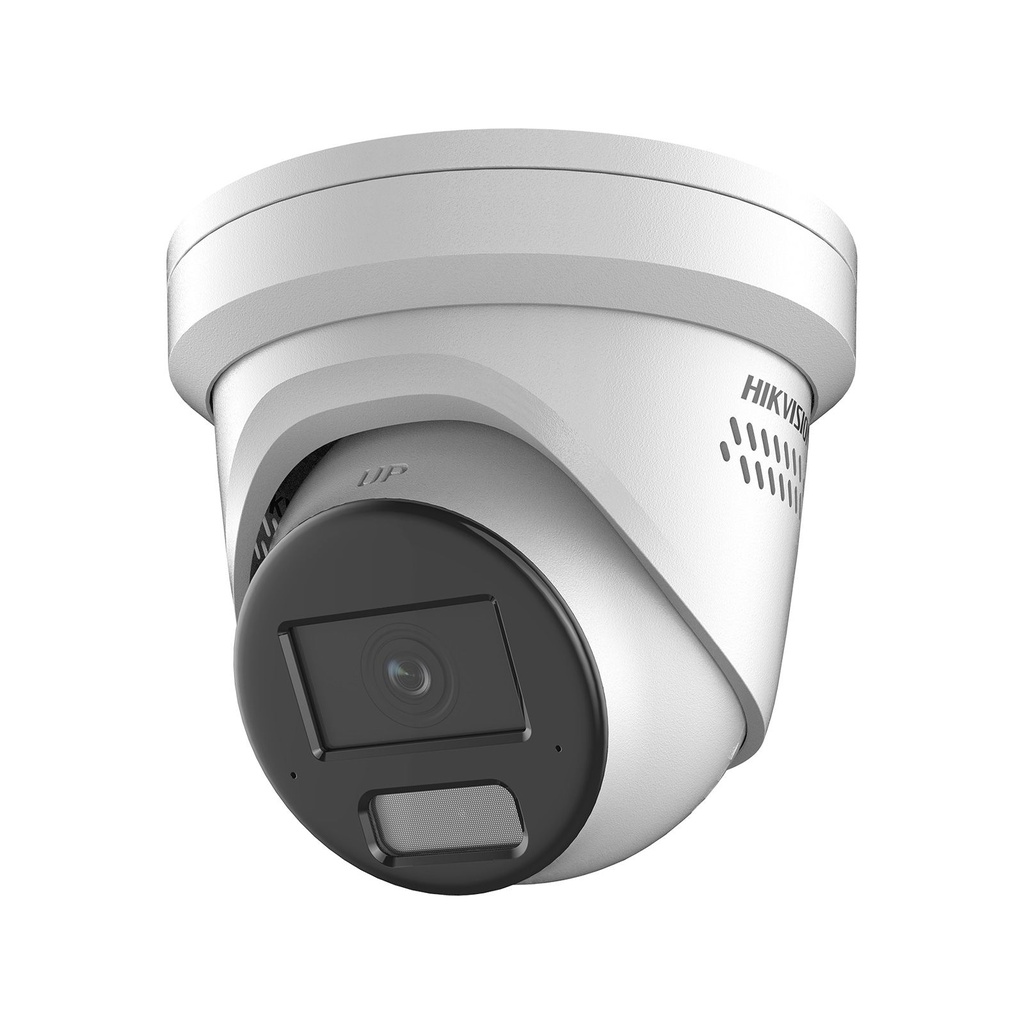

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal resistant (IK08)
Efficient H.265+ compression technology
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens MountM12
Iris Type Fixed
ApertureF1.6
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal & Plastic
DimensionØ121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 550 g (1.2 lb.)
With Package WeightApprox. 800 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

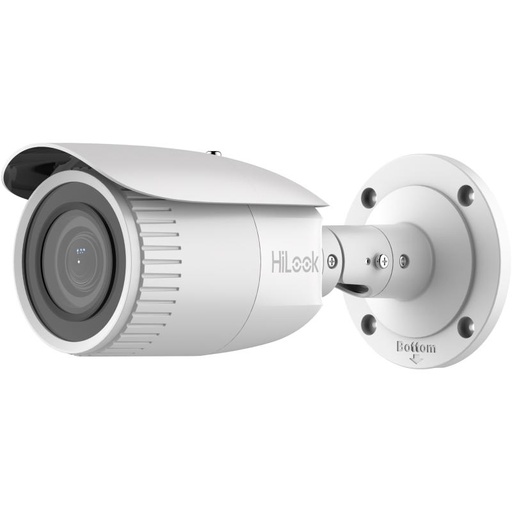

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Motorized varifocal lens for easy installation and monitoring
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to
18°, diagonal FOV 122° to 36°
Lens MountØ14
Iris TypeFixed
ApertureF1.6
General
Power 12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
Dimension Ø105 mm × 244.4 mm (Ø4.1" × 9.6")
Package Dimension 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Weight Approx. 1035 g (2.3 lb.)
With Package Weight Approx. 1550 g (3.4 lb.)
Storage Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)

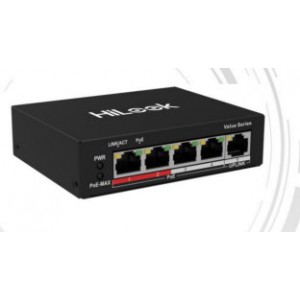

Port Fast Ethernet Unmanaged POE Switch

Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port
All ports support 6 kV lighting protection
35 W PoE power budget
Maximum transmission distance is 250 meters
MAC address auto learning and auto aging

General
ShellMetal material, fan-free design
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply48 VDC, 0.8 A
Storage humidity5% to 95% (no condensation)
Net weight 0.2 kg (0.4 lb)
Gross weight 0.48 kg (1.06 lb)
Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle3 W
PoE power supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE port Ports 1 to 4
Max. port power30 W
PoE power budget35 W
Max. power consumption38 W

HiLook 4-ch 1080p Lite 1U H.265 DVR
Deep learning-based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 5-ch IP camera input (up to 2 MP)
Encoding ability up to 1080p lite @ 30 fps
Max. 1200 m for 720p HDTVI signal
Motion Detection 2.0 Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights Quick search by object or event type is supported.
Video and Audio
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Input Support
HDTVI Input1080p25, 1080p30, 720p25, 720p30
Synchronous playback4-ch
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
Video Output Mode HDMI/VGA simultaneous output
Audio Output1-ch, RCA (Linear, 1 KΩ)
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Two-Way Audio Reuse the first audio input

General
Power Supply12 VDC, 1.5 A
Consumption≤ 16 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight≤ 0.8 kg (without HDD, 1.8 lb.)
