Ubiquiti's UCK-G2-SSD is a compact UniFi console running the complete UniFi application suite for full stack network management and features a pre-installed 1TB SSD. The unit can be powered by PoE or a USB-C quick charge adapter.

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9.6W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: 0°C to 35°C
PoE Input: 802.3af/at (PoE)
PoE Output: None
Power Input: 802.03af/at (PoE) or 9V 2A USB-C Power Supply (Not Included)
Processor: Octa-core Arm® Cortex®-A53 based chip
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 9V 2A (USB-C)
System Memory: 3 GB DDR4
USB Ports: None
Dimensions: 131.2 x 27.1 x 134.2 mm
Weight: 560g

Ubiquiti's UDB-PRO-SEC is a UniFi 5GHz, 17dBi point-to-multipoint, 90° integrated sector which can connect up to 40+ UDB-PRO devices at distances of up to 5km. It features an outdoor IPX6 rating, 2 spatial streams, and up to 400Mbps throughput on its 5GHz radio. It can be configured and managed with the UniFi Network Application.

Specifications

Antenna Gain: 5.8GHz: 17dBi
Beam-width: 90°
Data Rate: 5.8GHz: 400Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole-Mount
Operating System: UniFi
Operating Temperature: -40°C to 60°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at PoE (Not Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 42.5–57V DC
USB Ports: None
Dimensions: 360.9 x 129.6 x 71.4 mm
Weight: 835g

Ubiquiti's UDB-PRO is a UniFi long range outdoor radio with integrated UniFi Wi-Fi Auto-Link. It features 2x Gigabit Ethernet ports, one for PoE input and the other with PoE output. PoE+ (802.3at) input is required for PoE passthrough on port 2. The UDB-PRO is sold as a single unit and can be bridged to any UniFi Access point or used as a pair for PtP connections. It can be configured and managed with the UniFi Network Application.

Specifications

Antenna Gain: 5.8GHz: 19dBi
Beam-width: 12°
Data Rate: 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole-Mount
Operating System: UniFi
Operating Temperature: -40°C to 60°C
PoE Input: 802.3af/at
PoE Output: 48V PoE Passthrough when powered with PoE+ (802.3at)
Power Input: 48V 0.32 Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 42.5–57V DC
USB Ports: None
Dimensions: Ø189.5 x 64.3 mm
Weight: 515g

Ubiquiti's UDB is a UniFi Plug-and-play, wireless bridging PoE adapter with integrated UniFi Wi-Fi Auto-Link. It features 1xGE LAN port that provides 48V 15W PoE output, a 5GHz band with up to 867 Mbps throughput and is compatible with UniFi Protect PoE cameras and various IoT devices via an Ethernet connection. It can be configured and managed with the UniFi Network Application.

Specifications

Antenna Gain: 5.8GHz: 5dBi (Internal Antenna) or 4 dB (External Omni Antenna)
Beam-width: 360°
Data Rate: 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Wall Mount
Operating System: UniFi
Operating Temperature: -10 to 40°C
PoE Input: None
PoE Output: 48V 15W
Power Input: 1x Clover Power Cable (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 100—240V
USB Ports: None
Dimensions: 130 x 55 x 34 mm
Weight: 200g

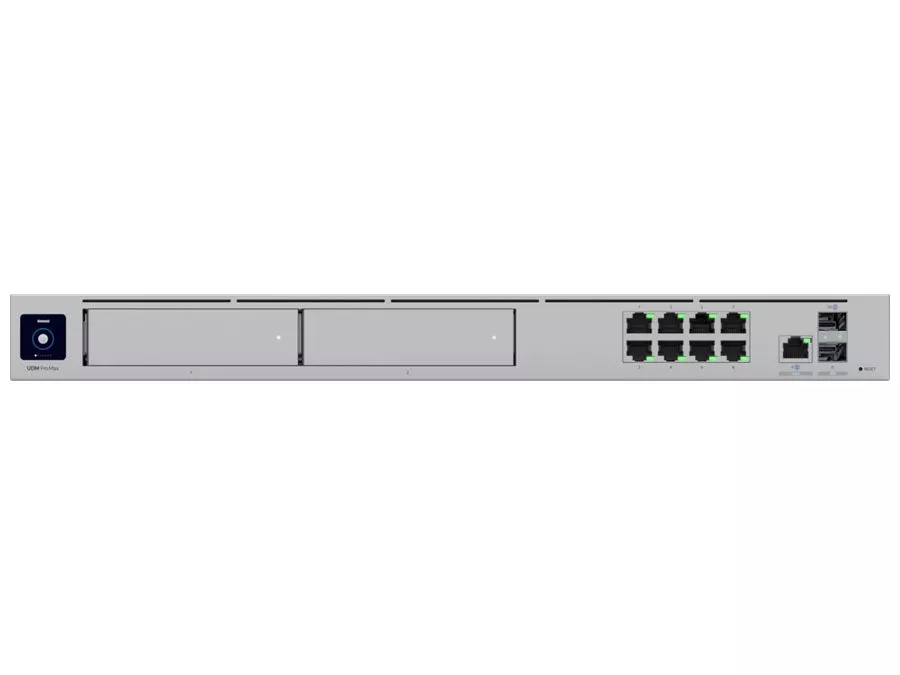

Ubiquiti's UDM-PRO is an all-in-one enterprise-grade UniFi OS Console. It supports the full UniFi application suite and features an advanced security gateway with dual-WAN ports, 8 port Gigabit switch, a 10G SFP+ LAN Port and a 3.5" HDD Bay for NVR Storage (2.5" HDD also supported). It features a 1.3" LCM (Liquid Crystal Monitor) colour touchscreen to display key system and connection information.

*Note: Hard drive not included.

Specifications

Ethernet Ports: 8x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 33W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included); 1x RPS DC Input
Processor: 1.7Ghz Arm Cortex-A57 Quad-Core
Serial Interface: None
SFP Ports: 2x 10Gbps (1xLAN 1xWAN)
Supported Voltage Range: 100V-240V
System Memory: 4 GB DDR4
USB Ports: None
Dimensions: 442.4 x 43.7 x 285.6mm
Weight: 3.90kg

Ubiquiti's UDM-MAX is an all-in-one enterprise-grade UniFi OS Console. It supports the full UniFi application suite and features an advanced security gateway with dual-WAN ports (2.5Gbps Ethernet & SFP+), 8 port Gigabit switch, a 10G SFP+ LAN Port and 2x 3.5" HDD Bays for NVR Storage (2.5" HDD also supported). It features a 1.3" LCM (Liquid Crystal Monitor) color touchscreen to display key system and connection information.

*Note: Hard drives not included.

Specifications

Ethernet Ports: 8x 10/100/1000 (LAN) ; 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset
Max. Power Consumption: 100W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included); 1x RPS DC Input
Processor: 2.0GHz Arm Cortex-A57 Quad-Core
Serial Interface: None
SFP Ports: 2x 10Gbps (1xLAN 1xWAN)
Supported Voltage Range: 100V-240V
System Memory: 8 GB DDR4
USB Ports: None
Dimensions: 442.4 x 43.7 x 285.6 mm
Weight: 4.7kg

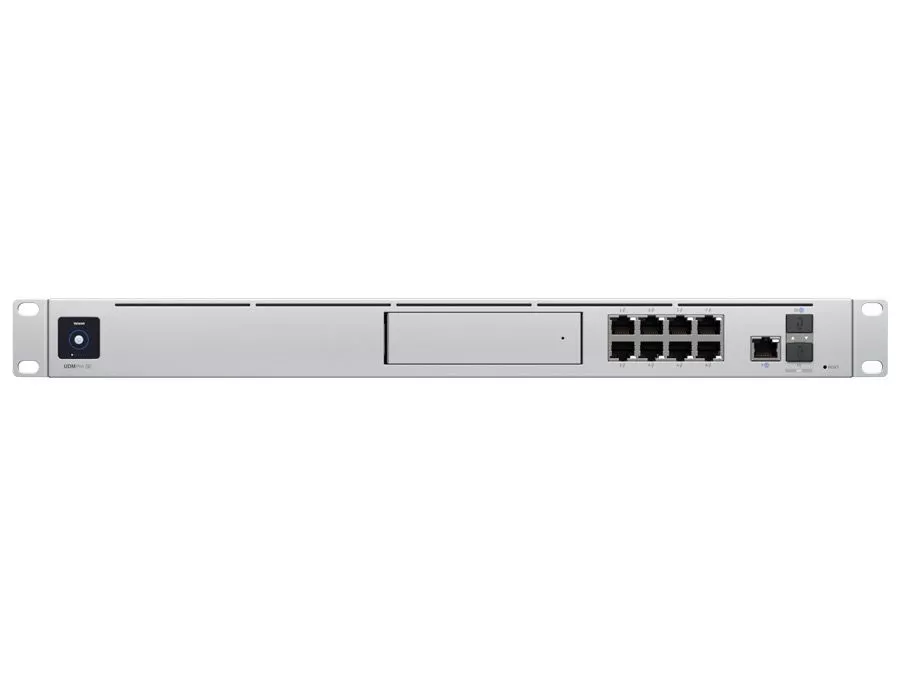

Ubiquiti's UDM-SE is an all-in-one enterprise-grade UniFi OS Console. It is designed to host the full UniFi application suite. It comes with an advanced security gateway feature set and a built-in 8-Port Switch with 6 PoE and 2 PoE+ ports. It also features Dual WAN Ports (one 10G SFP+ and one 2.5Gbps RJ45), a 10G SFP+ LAN Port and a 3.5" HDD Bay for NVR Storage (2.5" HDD also supported). It features a 1.3" LCM (Liquid Crystal Monitor) colour touchscreen to display key system and connection information. PoE budget on the unit is 190W.

*Note: Hard drive not included.

Specifications

Ethernet Ports: 1x 10/100/1000/2500 (WAN); 8x 10/100/1000 (LAN)
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: 6x 802.3af ; 2x 802.3at
Power Input: 1x IEC Power Cord (Included); 1x RPS DC Input
Processor: Quad-Core ARM® Cortex®-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 2x 10Gbps (1xLAN; 1xWAN)
Supported Voltage Range: 100V-240V ; 44-57V (802.3af) ; 50-57V (802.3at)
System Memory: 4 GB DDR4
USB Ports: None
Dimensions: 442.4 x 43.7 x 285.6 mm
Weight: 4.95kg

Ubiquiti's UDR7 is a desktop, Tri-Band, 10Gbps cloud gateway with integrated Wi-Fi 7, microSD storage, and full UniFi Application Suite support. The unit features 1x 10Gbps SFP+ port, 4x 2.5Gbps Ethernet Ports, and a pre-installed 64GB microSD for UniFi Protect. It delivers an aggregate data rate of up to 10.7Gbps over its 6GHz (2x2 MU-MIMO), 5GHz (2x2 MU-MIMO), and 2.4GHz (2x2 MU-MIMO) bands and can be configured and managed with the UniFi Network Application.

Specifications

Antenna Gain: 2.4GHz: 5dBi; 5.8GHz: 7dBi : 6GHz: 6dBi
Beam-width: 360
Data Rate: 2.4GHz: 688Mbps; 5GHz: 4.3Gbps ; 6GHz: 5.7Gbps
Total aggregate data rate: 10.7Gbps
Ethernet Ports: 3x 10/100/1000/2500 (LAN); 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset
Max. Power Consumption: 26W
Mounting: Ceiling or Wall Mount
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: 802.3af on Port 3
Power Input: 100 - 240VAC, 1.5A Max, 50/60 Hz
Serial Interface: None
SFP Ports: 1x 10Gbps SFP+ (WAN)
SIM Slots: None
Supported Voltage Range: 100V—240V AC
USB Ports: None
Dimensions: Ø110 x 184.1 mm
Weight: 1.1kg

Ubiquiti's U7-IW is a Dual-Band WiFi 7, wall-mounted AP with 4 spatial streams and 3x 2.5Gbps ports, with one supporting PoE input and one supporting PoE output. It delivers an aggregate data rate of up to 5Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands. It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

Specifications
Antenna Gain: 2.4GHz: 4dBi: ; 5GHz: 8dBi
Beam-width: 360°
Data Rate: 2.4GHz: 688Mbps; 5GHz: 4.3Gbps
Ethernet Ports: 3x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 13W
Mounting: Wall-Mount
Operating System: UniFi
Operating Temperature: -30°C to 40°C
PoE Input: 802.3af/at (PoE+ required for PoE output)
PoE Output: 802.3af
Power Input: 802.3at/at
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 42.5 to 57V
USB Ports: None
Dimensions: 137 x 98.7 x 30.2 mm
Weight: 400g

Ubiquiti's USW-E24XG is a layer 3 switch featuring 24x 10Gbps Ports, 2x 25Gbps SFP28 ports and a 1.3" LCM colour touchscreen with AR switch management.

It can be configured and managed with the UniFi Network Application.

*Note: The two SFP28 ports do not support mixed speed in 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps, the others will be limited at 25 Gbps. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.

Specifications

Ethernet Ports: 24x 10Gbps
Hardware Button: Reset
Max. Power Consumption: 100W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 25Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 442 x 44 x 285 mm
Weight: 4.57kg

Ubiquiti's USW-E8P is an 8 port, fully managed Layer 3 switch with 8x 2.5GbE, 802.3at PoE+ ports, 2x 10Gbps SFP+ ports and a PoE budget of 120W. The switch includes a wall mount kit and features a 1.3" LCM colour touchscreen to display key system and connection information.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 8x 100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop or Wall Mount (Kit Included)
Operating System: UniFi
Operating Temperature: -5°C to 45°C
PoE Input: None
PoE Output: 8x 802.3af/at
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 200 x 248 x 44 mm
Weight: 2.4Kg

Ubiquiti's UX is a compact UniFi Cloud Gateway with an integrated Wi-Fi 6 access point that runs UniFi Network. The integrated Wi-Fi 6 access point delivers an aggregate data rate of 3Gbps over 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands. It features an LCM (Liquid Crystal Monitor) color screen to display key system and connection information.

The UX is configured and managed with the pre-installed UniFi Network Application.

For more information on how this device compares to the similar UXG-LITE read our blog post.

*Note: When running as a gateway and AP, the UX is limited to managing only 4 other UniFi devices. It does not support IPS/IDS.

Specifications

Antenna Gain: 2.4GHz: 4dBi; 5.8GHz: 5.15dBi
Beam-width: 360°
Data Rate: 2.4GHz: 573Mbps; 5.8GHz: 2.4Gbps
Ethernet Ports: 1x 10/100/1000 (WAN); 1x 10/100/1000 (LAN)
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: USB Type C (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 5V 3A
USB Ports: USB Type C (Powering device only)
Dimensions: 98 x 98 x 30 mm
Weight: 302g

Ubiquiti's UX7 is a compact UniFi Cloud Gateway with an integrated Wi-Fi 7 tri-band access point that runs UniFi Network. The integrated Wi-Fi 7 access point delivers an aggregate data rate of 10Gbps over its 6GHz (2x2 MU-MIMO), 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands. It features an LCM (Liquid Crystal Monitor) color screen to display key system and connection information.

The UX is configured and managed with the pre-installed UniFi Network Application.

Specifications

Antenna Gain: 2.4GHz: 4dBi; 5.8GHz: 7dBi; 6GHz: 6dBi
Beam-width: 360°
Data Rate: 2.4GHz: 688Mbps; 5.8GHz: 4.3Gbps; 6GHz: 5.7Gbps
Ethernet Ports: 1x 10/100/1000/10000 (WAN); 1x 10/100/1000/2500 (LAN)
Hardware Button: Reset
Max. Power Consumption: 22W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: USB Type C (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 5V 5A
USB Ports: USB Type C (Powering device only)
Dimensions: 117 x 117 x 42.5 mm
Weight: 422 g

Ubiquiti's USW-8FLEX-2.5G is an indoor, compact, 8 Port 2.5Gbps switch powered via PoE or the included USB-C adapter. It also features a 10Gbps Ethernet or 10Gbps SFP+ combination uplink port.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 8x 10/100/1000/2500; 1x 10/100/1000/2500/10000 (Combo)
Hardware Button: None
Max. Power Consumption: PoE: 14W; PSU: 14W
Mounting: Desktop, wall-mount, DIN (Not Included)
Operating System: UniFi
Operating temperature: -20°C to 45°C
PoE Input: 802.3at (PoE+) on Port 9
PoE Output: None
Power Input: USB Type-C 5V 3A or PoE+
Serial Interface: None
SFP Ports: 10Gbps SFP+ (Combo)
Supported Voltage Range: 4.8-5.2V DC/USB or 44-57V PoE
Dimensions: 212.9 x 76 x 33.5mm
Weight: 395g

Ubiquiti's USW-8FLEX-2.5GP is an indoor, compact, 8 Port 2.5Gbps 802.3bt PoE switch that can be powered via PoE or the UACC-PSU-210W AC power adapter (Not Included). It also features a 10Gbps Ethernet or 10Gbps SFP+ combination uplink port.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 8x 10/100/1000/2500; 1x 10/100/1000/10000 (Combo)
Hardware Button: None
Max. Power Consumption: PoE: 14W; PSU: 17W
Mounting: Desktop
Operating System: UniFi
Operating temperature: 20 to 45°C
PoE Input: 802.3bt (PoE+++) on Port 8
PoE Output: 802.3at PoE++)
Power Input: 802.3bt (PoE+++) or UACC-PSU-210W (Not Included)
Serial Interface: None
SFP Ports: 10Gbps SFP+ (Combo)
Supported Voltage Range: 50-57V
Dimensions: 212.9 x 99.4 x 33.5 mm
Weight: 567g

Ubiquiti's USW-5FLEX-2.5G is an indoor, compact, 5 Port 2.5Gbps switch that can be powered via PoE on Port 5 or via the included USB-C adapter. It can be configured and managed with the UniFi Network Application.

Specifications

SKU USW-5FLEX-2.5G
Manufacturer Ubiquiti
Manufacturer Product Code USW-Flex-2.5G-5-EU
Ethernet Ports: 5x 10/100/1000/2500
Hardware Button: None
Max. Power Consumption: AC/DC: 5W ; PoE: 6.4W
Mounting: Desktop
Operating System: UniFi
Operating temperature: 20 to 45°C
PoE Input: 802.3af/at on Port 5
PoE Output: None
Power Input: 5V USB-C Adapter (Included) or PoE on Port 5
Serial Interface: None
SFP Ports: None
Supported Voltage Range: AC/DC: 5V ; PoE: 44-57V
Dimensions: 117.1 x 90 x 21.2 mm
Weight: 206g

Ubiquiti's USW-5FLEXMINI is an indoor, fully managed, 5 port, Gigabit UniFi switch with 1x 802.3af PoE+ input on port 1.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: None
Max. Power Consumption: 2.5W
Mounting: Desktop
Operating System: UniFi
Operating temperature: -5°C to 45°C
PoE Input: 802.3af/at on Port 1
PoE Output: None
Power Input: 5V 1A USB-C Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 4.7V-5.3V DC or 802.3af/at PoE
Dimensions: 107.16 x 70.15 x 21.17mm
Weight: 150g

Ubiquiti's USW-5FLEX is a managed, Layer 2, UniFi switch with 5x Gigabit Ethernet Ports. It includes 4x 802.3af PoE+ Ports and 1x 802.3af/at/bt PoE input. It is designed for indoor or outdoor use with its weatherproof housing and versatile mounting options. The USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.
We recommend using the UPOE-48G60W or a Ubiquiti UniFi Switch to power these devices. When making use of the UPOE-48G60W, be sure to set the power source on the UniFi Network Application to injector.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop, Wall and Pole-Mount
Operating System: UniFi
Operating Temperature: -40°C to 55°C
PoE Input: 802.3af/at/bt
PoE Output: 802.3af on Ports 2~5
Power Input: 802.3af/at/bt on Port 1
Serial Interface: 1x RJ45 Ethernet In-Band
SFP Ports: None
Supported Voltage Range: 44–57V (802.3af) 50-57V (802.3bt)
Dimensions: 122.5 x 107.1 x 28.0mm
Weight: 230g

Ubiquiti's USW-FLEXU is an outdoor, weatherproof enclosure designed for use with the USW-5FLEX. Included with the unit are an Ethernet patch lead and a 60W PoE Injector providing a maximum PoE budget of 46W. The unit can be pole mounted and is easy to secure using the screw lock.

*Note: USW-5FLEX not Included.

Specifications

US-FLEXU Specifications
Compatibility: US5-FLEX

Dimensions: 249 x 218 x 60mm
Weight: 740g

60W PoE Adapter Specifications
Ethernet Ports: 1x 10/100/1000
Operating Temperature: -20°C to 60°C
PoE Output: 54V 1.11A Passive PoE
Power Input: Terminal Block
Supported Voltage Range: 100V-240V
Dimensions: 118.5 x 63 x 34.7mm
Weight: 206g

Ubiquiti's UMR-ULTRA is an ultra-compact, Wi-Fi 4 managed LTE4 mobile router with 2x Fast Ethernet Ports for IoT applications. It features detachable LTE antennas, wired WAN, automatic failover, and can be powered by either USB-C (5V 2A) or 4-pin ATX DC power socket (9-30V DC).

*Note: UMR-ULTRA comes with a 180-day mobility cloud free trial and is available for purchase thereafter from UI.

Specifications

Antenna Gain: LTE 2x External Antennas; 2.4GHz: 1x External Antenna
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink 2.4GHz: 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 5.7W
Mounting: DIN-rail or Wall-Mount (Included)
Operating System: UniFi
Operating Temperature: -30°C to 70°C
PoE Input: None
PoE Output: None
Power Input: USB-C 5V 2A
Serial Interface: None
SIM Slots: 1 (Nano SIM)
Supported Voltage Range: USB-C: 5V 2A; ATX DC: 9V-30V
USB Ports: None
Dimensions: 193.5 x 82 x 26 mm
Weight: 220g
