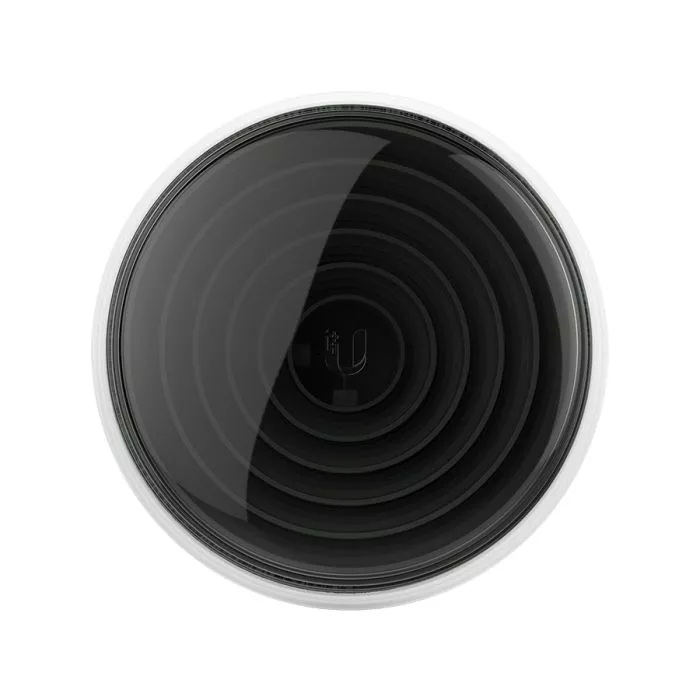

Ubiquiti's ISO-514AC is a shielded airMAX ac 5GHz radio with a 14dBi, 45° symmetrical horn antenna. It can be used as a PtMP (point to multipoint) access point in high-interference environments and is easily co-located due to its small size. It can also be used as a short-range CPE (client premises equipment). The antenna can be interchanged with any of the other horn antennas from Ubiquiti's range (sold separately). The dedicated 2.4GHz management radio allows for easy set-up via the UISP network management platform.

The IsoStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the IsoStation 5AC is versatile and cost-effective to deploy.

The IsoStation 5AC comes with a 45° isolation antenna.

Specifications
Antenna Gain: 14dBi
Beam-width: 45°
Data Rate: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20-26V
USB Ports: None
Dimensions: 174 x 174 x 150mm
Weight: 725.7g

Ubiquiti's AF-5XHD is designed for use in the 5GHz frequency band offering channel bandwidths of up to 100MHz, GPS synchronization and uses airOS LTU, manageable via UISP. The AF-5XHD is designed to work with Ubiquiti® airFiber X slant-polarized antennas for improved noise immunity and signal-to-noise ratio but is also compatible with other dish antennas in the Ubiquiti range. This device is managed via the UISP network management platform.

*Note: Antenna not included. The AF-5XHD only functions in PtP (master or slave) mode and therefore is not suitable for PtMP installations. The AF-5XHD is not backwards compatible with the AF5X.
Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 1.34 Gbps
Ethernet Ports: Data - 1x 10/100/1000 ; Management – 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W-12W
Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 1A Gigabit PoE Injector (Included)
Serial Interface: Bluetooth V4.0
SIM Slots: None
Supported Voltage Range: 18V-54V
USB Ports: None

Dimensions: 224 x 82 x 48mm
Weight: 0.35kg

Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Duplexers and Antenna not included. For more information regarding an 11GHz spectrum license, please email hello@quickstore.co.za.

Antenna Gain: Antenna Dependant (4x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data Port - 1x 10/100/1000 ; Management Port – 10/100
Hardware Button: Reset
Max. Power Consumption: 36W
Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None
Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: 327 x 112 x 86mm
Weight: 2.260kg

Ubiquiti's AF-11KIT includes an AF-11 radio, an AF-11G35 35dBi dish antenna and an AF-DUPL single low band duplexer. Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Kit includes Antenna and Duplexer. For more information regarding an 11GHz spectrum license, please email hello@quickstore.co.za.
Antenna Gain: 35dBi
Beam-width: 2.5°
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data: 10/100/1000 ; Management: 10/100
Hardware Button: Reset
Max. Power Consumption: 36W
Mounting: Antenna: Pole-Mount Radio: Antenna or Pole-Mount
Operating System: airMAX ac
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None
Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: Antenna: ø 811 x 460mm Radio: 327 x 112 x 86mm
Weight: Antenna: 11.85kg Radio: 2.260kg

Product Overview

The Ubiquiti UISP airCube ISP (ACB-ISP) is a compact and efficient 2.4 GHz WiFi 4 Router and Access Point designed for Internet Service Providers and network deployments. It seamlessly integrates with the UISP network management platform for easy control and monitoring. The device features 24V Passive PoE pass-through, making it ideal for powering airMAX® CPEs without additional wiring complexity.
Key Features

Dual Functionality: Acts as both a WiFi router and access point on the 2.4 GHz band.

WiFi 4 Standard: Delivers reliable 300 Mbps data rates, perfect for ISP customer premises.

24V Passive PoE Pass-Through: Powers compatible airMAX® devices directly for simplified deployments.

Four Ethernet Ports: Four 10/100 Mbps LAN ports for wired connections.

Compact & Lightweight: Desktop mountable with a small footprint (87.8 x 89.5 x 89.25 mm; 215g).

360° Antenna Coverage: Built-in 4 dBi omnidirectional antenna with wide beam-width.

Robust Operating Conditions: Works reliably from -10°C to 50°C.

Easy Reset: Dedicated hardware reset button for quick troubleshooting.

Power Options: Supports 24V Passive PoE input or 5V Micro USB power (power supply and injector not included).

Managed by UISP Platform: Seamless integration for centralized network management and monitoring.

Technical Specifications
Specification Details
Frequency 2.4 GHz (WiFi 4)
Data Rate Up to 300 Mbps
Antenna Gain 4 dBi Omnidirectional
Beam-width 360°
Ethernet Ports 4 × 10/100 Mbps
Power Consumption Max 5 Watts
PoE Input 24V Passive PoE
PoE Pass-Through Output 24V Passive PoE
Power Input Options 24V Passive PoE or Micro USB (2A)
Operating Temp. Range -10°C to 50°C
Dimensions (mm) 87.80 x 89.50 x 89.25
Weight 215g
Package Contents

1 × Ubiquiti UISP airCube ISP WiFi Access Point (ACB-ISP)

1 × Quick Start Guide

Note: PoE injector and power supply are not included. Recommended PoE injector: POE-24G-24W.
Why Buy from QuickStore.co.za?

✔ Genuine Ubiquiti products with official warranty
✔ Fast nationwide delivery
✔ Expert technical support available

Ubiquiti's ACB-AC is a dual band, WiFi 5 Router/Access Point. It features 24V PoE pass-through to easily integrate with airMAX® CPEs. It is designed to work with the UISP network management platform.
Antenna Gain: 2.4GHz 4dBi ; 5.8GHz 5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300 Mbps ; 5.8GHz 866.7Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Desktop
Operating System: airOS
Operating Temperature: -10°C to 50°C
PoE Input: 24V Passive PoE on Port 1
PoE Output: 24V Passive PoE Pass-Through on Port 4
Power Input: 24V; 0.83A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 22-26V
USB Ports: None

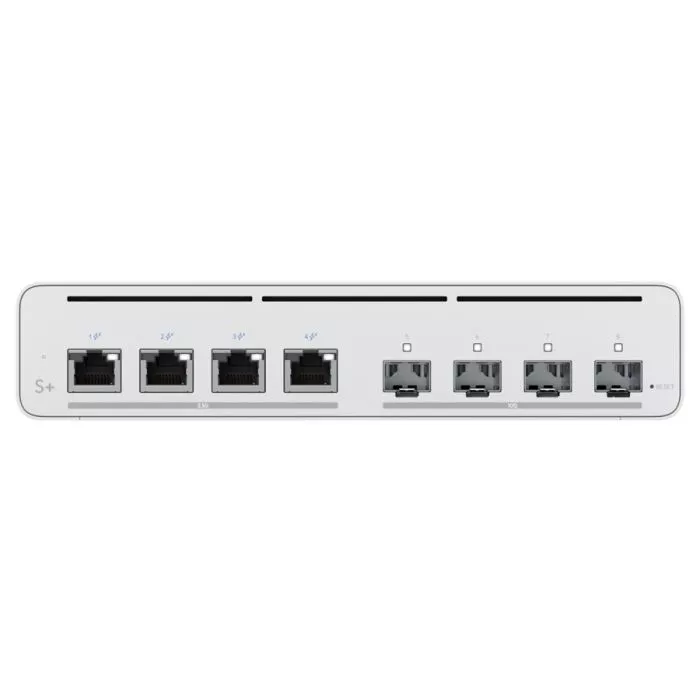

Ubiquiti's UISP-SPLUS features Layer 2 switching capabilities, 4x 2.5Gbps 27V Passive PoE ports, 4x SFP+, and a PoE budget of 160W when powered with the included Power Supply.

The UISP Switch can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Desktop, Wall-Mount or Rack Mount
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~4
Power Input: 27V 7.04A Power Supply (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 27V
Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

Ubiquiti's UISP-S features Layer 2 switching capabilities, 8x Gigabit 27V Passive PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. The UISP Switch can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 27V
Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

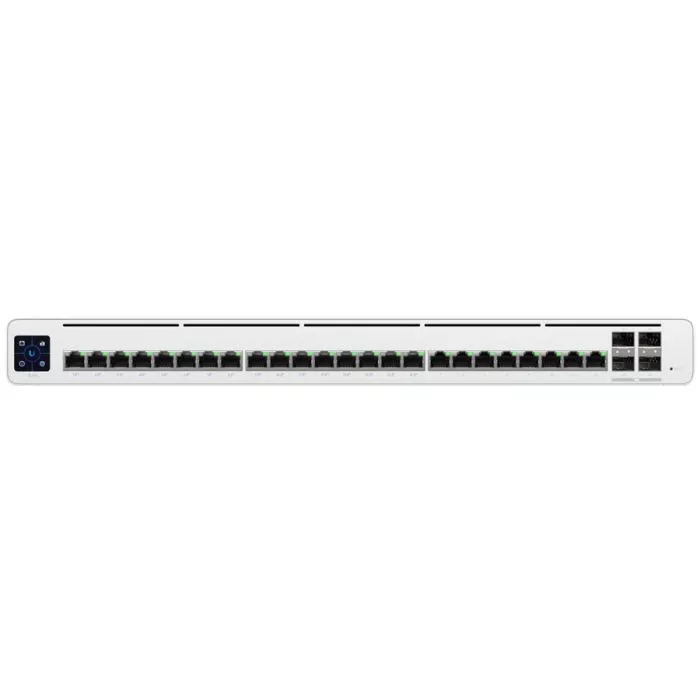

Ubiquiti's UISP-SPRO features Layer 2 switching capabilities, 24x Gigabit Ethernet Ports of which 16 are 27V Passive PoE ports, 4x SFP+, and a PoE budget of 220W. The UISP Switch Pro can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~16
Power Input: 1x IEC Power Cable (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
Dimensions: 442.4 x 267.5 x 43.7 mm
Weight: 4kg

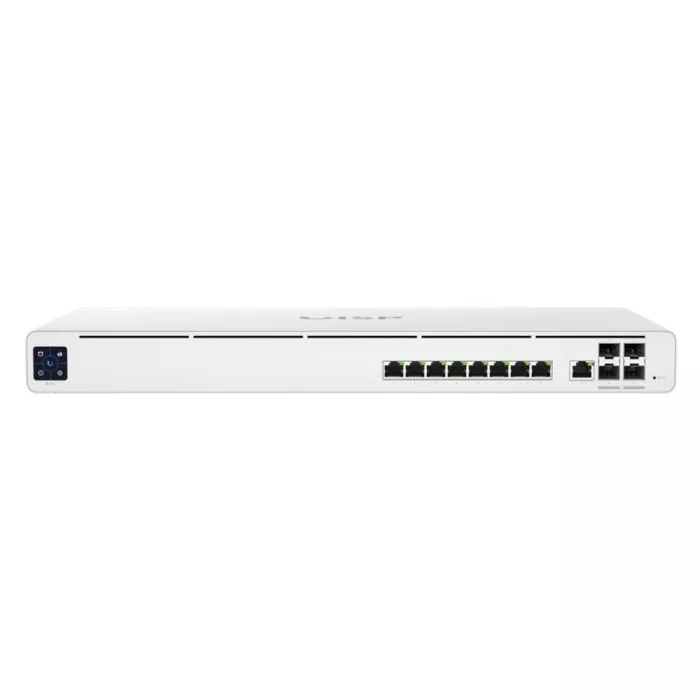

Ubiquiti's UISP-RPRO is a professional router featuring 9x Gigabit Ethernet ports, and 4x 10Gbps SFP+ ports. Its quad-core 1.7GHz processor is ideal for ISP applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cable (Included)
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 4 GB DDR4
USB Ports: None
Dimensions: 442.4 x 200 x 43.7 mm
Weight: 3.3kg

Ubiquiti's UISP-R is a router featuring 8x Gigabit PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. Its dual core, 880Mhz processor is ideal for Micro Pop applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Processor Dual-core 880 MHz, MIPS1004Kc
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 24-28V
System Memory: 512 MB DDR3
USB Ports: None
Dimensions: 210.4 x 95 x 29 mm
Weight: 600g

Ubiquiti's LTU-XR is a 5GHz, 29dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 29dBi
Beam-width: 3 dB: 5.5°, 6 dB: 7.5° (Horizontal & Vertical)
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 747 x 525 x 347mm
Weight: 3.2kg

Ubiquiti's LTU-ROCKET is a connectorised radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM. and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz ). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

Specifications

*Note: For maximum throughput firmware version 2.3.0 or later is required.
Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: Up to 600Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 1A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 244 x 82 x 48mm
Weight: 468g

Ubiquiti's LTU-PRO is a 5GHz, 24dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 24dBi
Beam-width: 14°
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 316.5 x 316.5 x 174.3mm
Weight: 1.3kg

Ubiquiti's LTU-LITE is a 5GHz, 13dBi integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 13dBi
Beam-width: 45°
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount & Wall-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 153 x 84 x 39.5mm
Weight: 250g

Ubiquiti's LTU-INS is a 5.8GHz integrated feed featuring proprietary LTU technology, supplied in a 5-Pack with PoE Injectors included. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900Mbps of real TCP/IP throughput.

The unit functions in either a Point-to-Point (PtP) or Point-to-Multipoint (PtMP) environment with the LTU-ROCKET as its base station. The feed design allows for quick and easy conversion of existing LBE-523ACG2 to a 22dBi LTU CPE.

It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 22dBi
Beam-width: 15°
Data Rate: Up to 900Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22 - 26V
USB Ports: None
Dimensions: 201.46 x 64.15 x 56.15mm
Weight: 215g

Ubiquiti's UF-WIFI is a robust, high-performance GPON CPE. It features an LED display, 4x Gigabit Ethernet ports, 1x SC APC port and 2.4GHz WiFi connectivity. It provides powerful Layer 2/3 management features. The unit can be powered using 24V Passive PoE on Port 1, or by a 24V power supply.

It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 1dBi
Beam-width: 360°
Data Rate: 300Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-28V
USB Ports: None
Other: 1x 2.5/1.25Gbps SC APC GPON
Dimensions: 126.34 x 126.09 x 31.65mm
Weight: 190g

Ubiquiti's UF-LOCO is a robust, high-performance GPON CPE that features extremely low power consumption and a choice of 24V passive PoE or Micro-USB power methods. It supports GPON links of up to 20km. The UF-LOCO integrates with the UF-OLT4 and UF-OLT and provides powerful Layer 2/3 management features.

It can be managed via the UISP network management platform.

For third-party compatibility, Ubiquiti has provided the following guide: OLT Compatibility Guide.(https://help.ui.com/hc/en-us/articles/115009335068-UISP-Fiber-Supported-Third-Party-OLTs)

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 3.5W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 5V 1A Micro USB Power Supply (Included)
Processor: MIPS32; 240 MHz
Serial Interface: None
SFP Ports: 1x 2.5/1.25Gbps SC APC GPON
Supported Voltage Range: 24V Passive PoE or 4.7 – 5.3VDC
System Memory: 128 MB DDR3
USB Ports: None
Dimensions: 76.5 x 76.5 x 26.4mm
Weight: 77g

Ubiquiti's UF-OLT-4 is a fibre solution that anyone can deploy. No command lines, manuals or paid support licenses are required. UISP offers internet and telecom service providers a cost-effective fibre optic delivery system for Triple Play Services (data, voice, IPTV/VoD). The UISP Fiber OLT 4 features four PON ports to connect up to 512 ONUs. The SFP+ port delivers up to 10 Gbps of uplink connectivity. The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19" wide rack.

It can be managed via the UISP network management platform.

*Note: 1x UF-GP-B+ included.

Specifications

Ethernet Ports: None
Hardware Button: Reset
Max. Power Consumption: 35W
Mounting: Rack-Mount
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included) ; 24VDC (Not Included)
Processor: MIPS 1004kc; 880 MHz Dual Core
Serial Interface: 1x RJ45 Serial Console Port
SFP Ports: 4x 2.5/1.25Gbps GPON Ports ; 1x 10Gbps
Supported Voltage Range: 24V or 100V – 240V
System Memory: 512 MB DDR3; 512 MB NAND
USB Ports: 1x USB 2.0
Dimensions: 299.80 x 258.95 x 42.55mm
Weight: 2.13kg

Ubiquiti's ES8-150 is a managed 8 port Gigabit PoE switch with SFP connectivity. It features 802.3af/at PoE as well as passive 24v PoE on all Ethernet ports with a maximum budget of 130W. L2/L3 functionality makes them suitable for a wide range of high-performance applications. It can be managed via the UISP network management platform.
Specifications
Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Desktop
Operating System: EdgeMAX
Operating Temperature
PoE Input: None
PoE Output: 802.3af/at or 24V Passive PoE on Ports 1~8
Power Input: 1x IEC Power Cord (Included) Or 42V to 56V DC input with Terminal Block
Serial Interface: 1x RJ45 Ethernet In/Out Band
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100V-240V
Dimensions: 204 x 43 x 235mm
Weight: 1.8Kg
