Scoop’s SPS-16F2GS is an unmanaged 16 port Fast Ethernet AI PoE switch with 2x Gigabit Ethernet and 1x SFP Combo Uplink ports.

Each of these PoE ports are 802.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. The total PoE budget is 150W and up to a maximum of 30W per port.

The SPS-16F2GS supports 4 working modes:
AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-16.
AI QOS: Prioritizes network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

SKU SPS-16F2GS
Manufacturer Scoop

Specifications

Ethernet Ports: 16x 10/100; 2x 10/100/1000 (Combo)
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 8W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~16
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps (Combo)
Supported Voltage Range: 100V-240V
Dimensions: 280mm x 180mm x 44mm

Scoop's SPS-8G2G is an unmanaged 8 port Gigabit Ethernet AI PoE switch with 2x Gigabit Ethernet Uplink Ports.

Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 96W and the maximum budget per port is 36W.

The SPS-8G2G supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on Port 1-8.
AI Extend Mode: Transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
AI QOS: Priorities network bandwidth based on network usage history & analytics.
SKU SPS-8G2G
Manufacturer Scoop

Specifications

Ethernet Ports: 10x 10/100/1000
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8
Power Input: 52V 1.85A Power Adapter (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 52V
Dimensions: 184 x 94 x 27mm

Scoop's SPS-8F2F is an unmanaged 8 port Fast Ethernet AI PoE switch with 2x Fast Ethernet uplink ports.

Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 96W and the max budget per port is 36W.

The SPS-8F2F supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on Port 1-8.
AI Extend Mode: Transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
AI QOS: Priorities network bandwidth based on network usage history & analytics.
SKU SPS-8F2F
Manufacturer Scoop

Specifications

Ethernet Ports: 10x 10/100
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 3W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8
Power Input: 52V 1.85A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 52V
Dimensions: 184 x 94 x 27mm

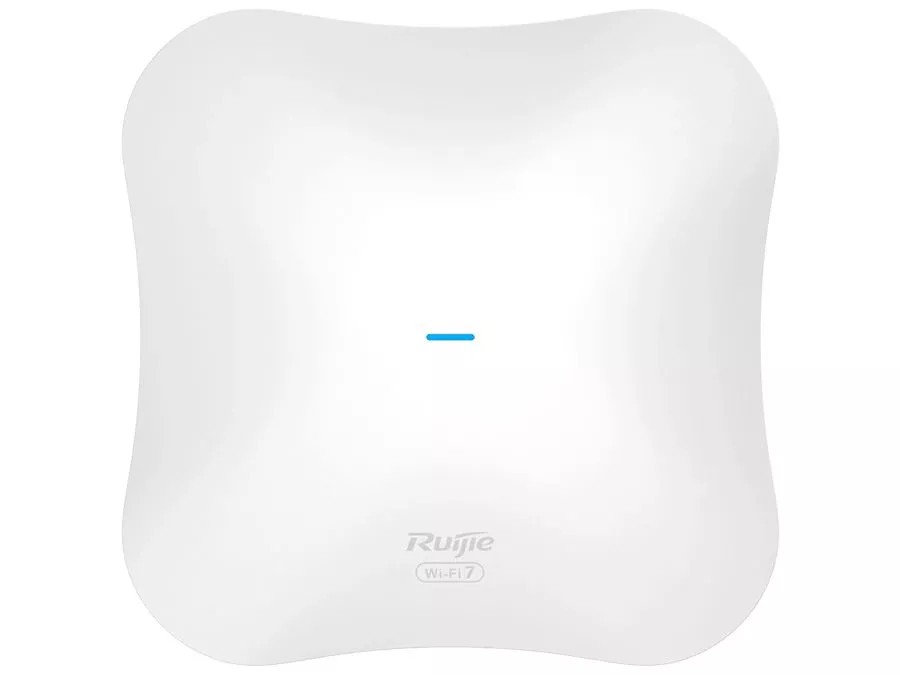

Reyee's RG-RAP73PRO is a WiFi 7 (802.11be) Tri-band ceiling mount access point featuring 1x 2.5Gbps Ethernet port, 1x 10Gbps SFP+ Port, seamless roaming and speeds of up to 14000Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: This device requires an 802.3at/bt PoE injector or 54V 0.55A Power Supply which are not included.

Specifications

Antenna Gain: 2.4GHz: 3.6dBi; 5.8GHz: 5.9dBi ; 6GHz: 5.2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 688Mbps; 5.8GHz: 4323Mbps ; 6GHZ: 8646Mbps
Ethernet Ports: 1x 10/100/1000/2500
Hardware Button: Reset
Max Power Consumption: 30W
Mounting: Wall or Ceiling Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3at/bt
PoE Output: None
Power Input: 802.3at/bt or 54V 0.55A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 54V (DC Input)
USB Ports: None
Other: 1x 10Gbps SFP+

Dimensions: 220 x 220 x 45 mm
Weight: 1.1kg

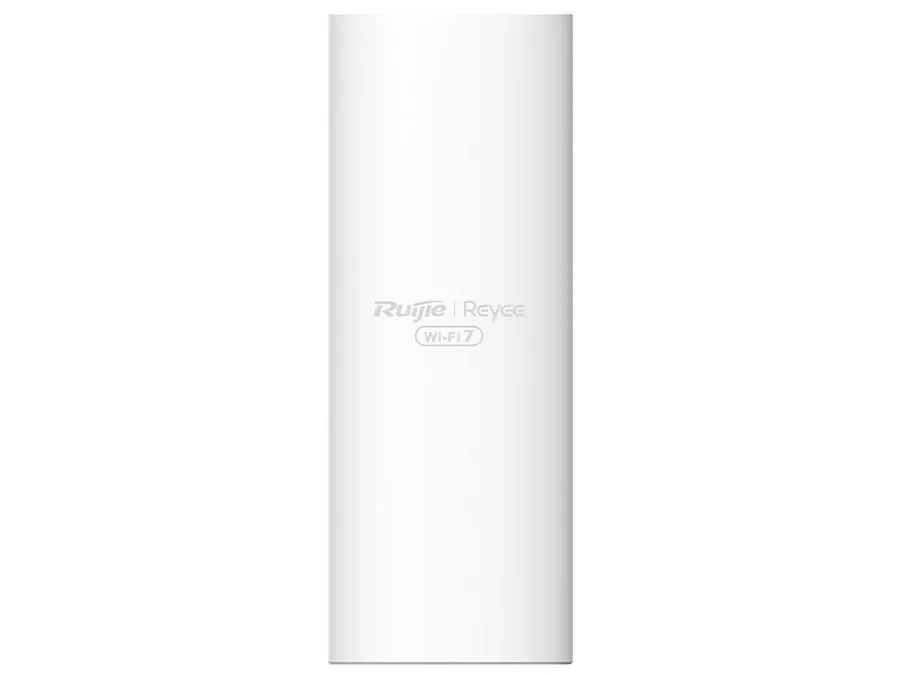

Reyee BE5040 Wi-Fi 7 Indoor/Outdoor Versatile Access Point (RG-RAP72Pro-OD)


The RG-RAP72Pro-OD is a versatile Wi-Fi 7 access point designed for both indoor and outdoor environments. This device delivers exceptional wireless performance with a combined peak data rate of up to 5,011 Mbps, ensuring seamless connectivity for high-demand applications.

Highlight Features:

AI-Powered Wi-Fi 7 Versatile Outdoor/Indoor Mesh AP
Wall or Pole Mounting to Fit in Any Location
IP65 Weatherproof Rating, Delivering Consistent Protection and Signal Stability
Build-in Antennas for Customized Coverage Where Needed
Tailored for Retail Businesses with Reyee Mesh, Standalone Portal, and AI Roaming Features

*Note: PoE injector not included.

Specifications

Antenna Gain: 2.4GHz: 3.6dBi : 5GHz: 6.2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 688Mbps; 5.8GHz: 4323Mbps
Ethernet Ports: 1x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 21W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C to 65°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 37-57V (POE)
USB Ports: None
Dimensions: 200 × 70 × 35.7 mm
Weight: 700g

Reyee's RG-RAP62X is a compact WiFi 6, dual-band, IP65 outdoor access point with external antennas. The unit features 2x2 MU-MIMO, 1x Gigabit Ethernet ports, standalone portal, and seamless Layer 3 roaming. The unit supports up to 2974Mbps with 573Mbps on 2.4GHz and 2401Mbps on 5.8GHz. It also supports Ruijie’s smart networking feature which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: PoE injector not included.

Specifications

Antenna Gain: 2.4GHz: 4dBi : 5GHz: 6.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 573Mbps; 5.8GHz: 2401Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C to 65°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at or 24V Passive PoE (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 802.3af PoE or 24V Passive PoE
USB Ports: None
Dimensions: 200 × 70 × 35.7 mm
Weight: 400g

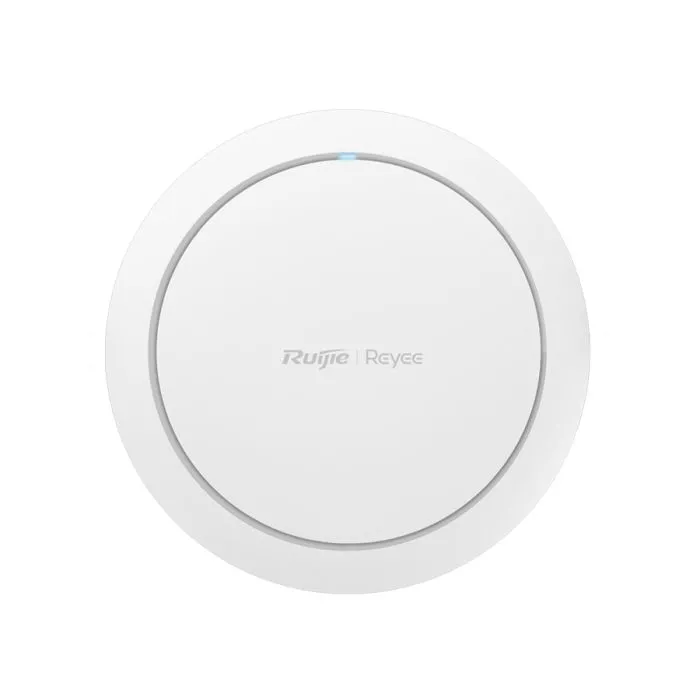

Reyee's RG-RAP2266GX is a WiFi 6 (802.11ax) dual-band ceiling mount access point featuring 1x Gigabit Ethernet port, seamless roaming and speeds of up to 3000Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: This device requires an 802.3at PoE injector or 12V 2A Power Supply which are not included.

Specifications

Antenna Gain: 2.4GHz: 3.5dBi; 5.8GHz: 5.15dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W
Mounting: Wall or Ceiling Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3at
PoE Output: None
Power Input: 802.3at or 12V 2A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 12V (DC Input)
USB Ports: None
Dimensions: 220 x 220 x 52.6 mm
Weight: 560g

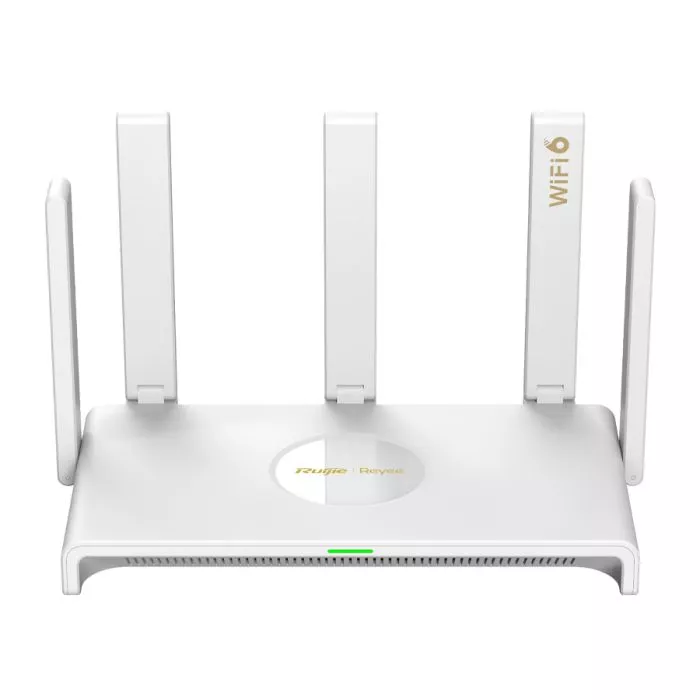

Reyee's RG-EW3000GX is a WiFi 6, dual-band, 2x2 MU-MIMO Gigabit router featuring dual WAN aggregation, 5x high gain antennas and an aggregate wireless data rate of up to 3000Mbps. It can be used as a stand-alone router or an access point, but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices.
It supports Ruijie’s smart networking feature which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: The Mesh button on this unit is only for use with other Reyee devices.

Specifications

Antenna Gain: 2.4GHz: 5dBi; 5.8GHz: 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 1x 10/100/1000 (LAN/WAN) ; 3x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset ; Mesh
Max. Power Consumption: 12W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1.0A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1.0A
USB Ports: None

Dimensions: 240mm × 130mm × 32mm
Weight: 0.48kg

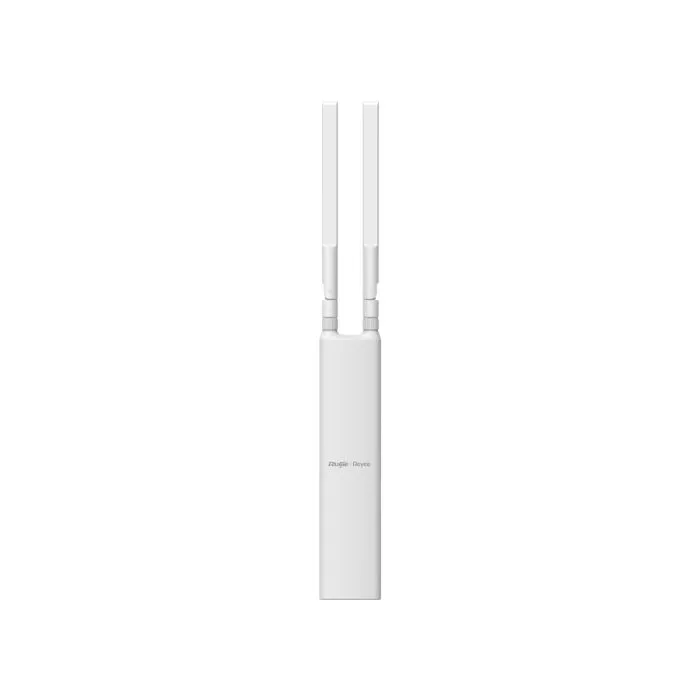

Reyee's RG-RAP52G is a compact WiFi 5, dual-band, IP65 outdoor access point with external antennas. The unit features 2x2 MU-MIMO, 1x Gigabit Ethernet ports, standalone portal, and seamless Layer 3 roaming. The unit supports up to 1267Mbps with 400Mbps on 2.4GHz and 867Mbps on 5.8GHz. It also supports Ruijie’s smart networking feature which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: PoE injector not included.

Specifications

Antenna Gain: 2.4GHz: 3dBi : 5GHz: 4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 14W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C to 65°C
PoE Input: 802.3af
PoE Output: None
Power Input: 802.3af or 24V Passive PoE (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 802.3af PoE or 24V Passive PoE
USB Ports: None
Dimensions: 220 × 50 × 35.7 mm
Weight: 400g

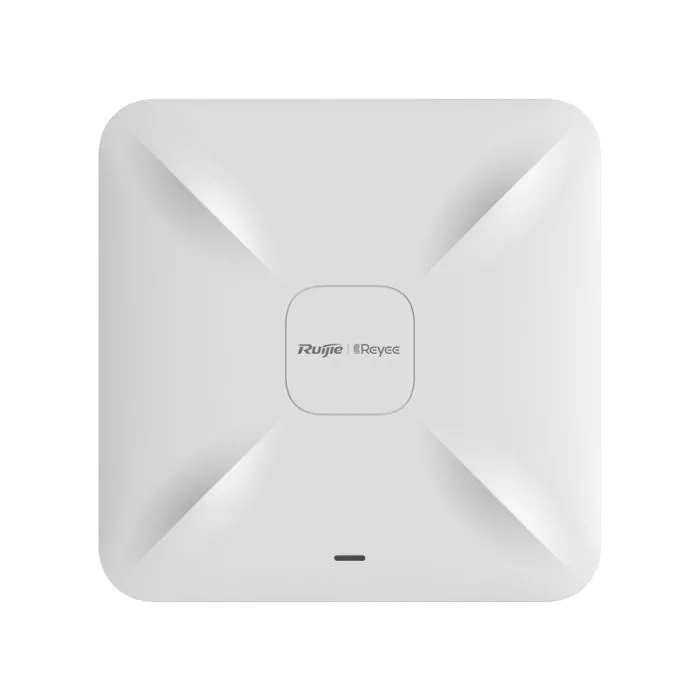

Reyee's RG-RAP2200G is an 802.11ac (WiFi 5) dual-band ceiling mount access point featuring MU-MIMO Wave 2 technology, dual Gigabit Ethernet ports, seamless roaming and speeds of up to 1267Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: Power Supply/PoE Injector not included.

Specifications

Antenna Gain: 2.4GHz: 2dBi; 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12.95W
Mounting: Ceiling or Wall-Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at or 12V 1.5A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 12V (DC Input)
USB Ports: None
Dimensions: 194 x 194 x 35mm
Weight: 450g

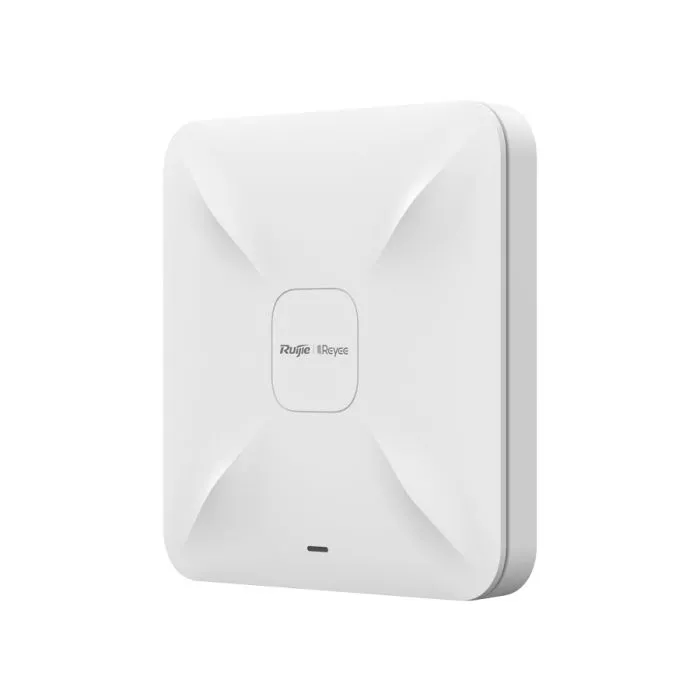

Reyee's RG-RAP2200F Reyee's is an 802.11ac (WiFi 5) dual-band ceiling mount access point featuring MU-MIMO Wave 2 technology, dual Fast Ethernet ports, seamless roaming and speeds up of up to 1267Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: Power Supply/PoE Injector not included.

Specifications

Antenna Gain: 2.4GHz: 2dBi; 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 12.95W
Mounting: Ceiling or Wall-Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at or 12V 1.5A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 12V (DC Input)
USB Ports: None
Dimensions: 194 x 194 x 35mm
Weight: 450g

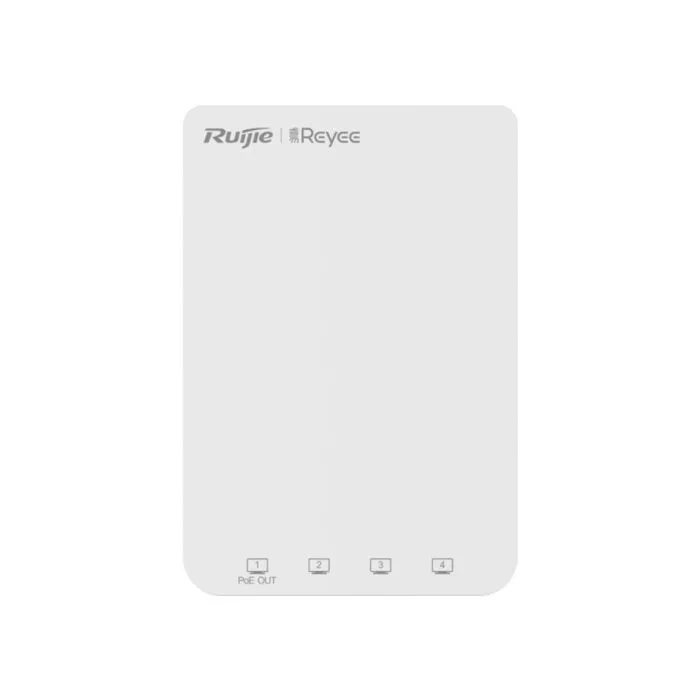

Reyee's RG-RAP1200GP is an 802.11ac (WiFi 5) Wave 2 In-Wall Access point with 5x Gigabit Ethernet Ports, PoE-Input and PoE Pass-through. The unit supports up to 1267Mbps with 400Mbps on 2.4GHz and 867Mbps on 5.8GHz and includes a mounting plate for quick and easy installation. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 2dBi ; 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps ; 5.8GHz: 867Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Wall-Mount (Mounting Bracket Included)
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: PoE Pass-through
Power Input: 802.3af/at
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V
USB Ports: None
Dimensions: 126 × 86 × 50 mm
Weight: 240g

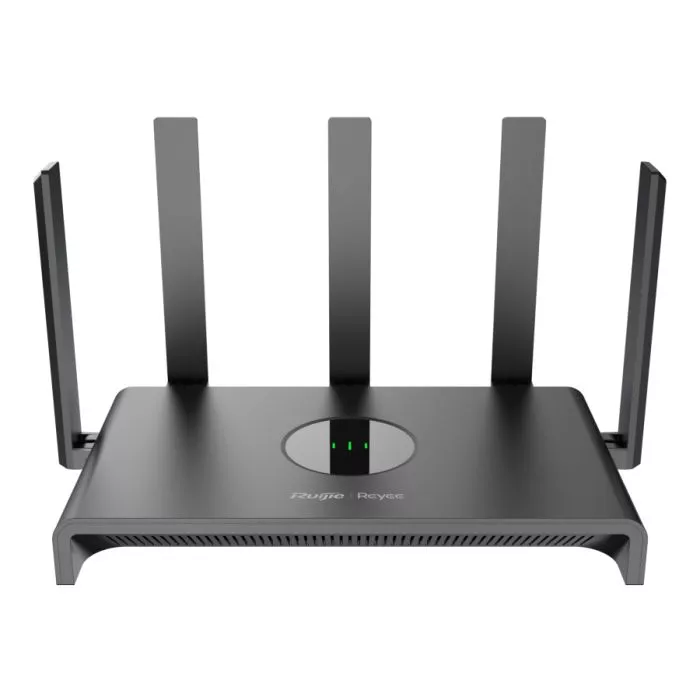

Reyee's RG-EW1300G is a dual-band Gigabit Ethernet router featuring 4x Gigabit Ethernet ports and WiFi 5, MU-MIMO Wave 2 technology with speeds up to 1267Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

Specifications

Antenna Gain: 2.4GHz: 4.5dBi, 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset ; Mesh
Max. Power Consumption: 12W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 230 × 130 × 30mm
Weight: 980g

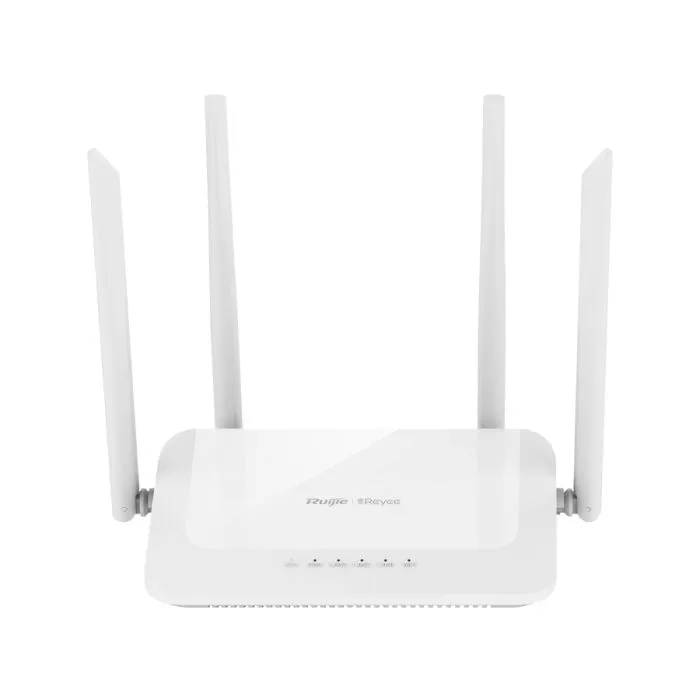

Reyee's RG-EW1200F is a dual-band Fast Ethernet router featuring 802.11ac (WiFi 5) MU-MIMO Wave 2 technology with speeds up to 1167Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: This device does not support WPS for third party devices. WiFi password settings do not support special characters.

Specifications

Antenna Gain: 4x5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset ; Mesh
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 182 x 120 x 32mm
Weight: 400g

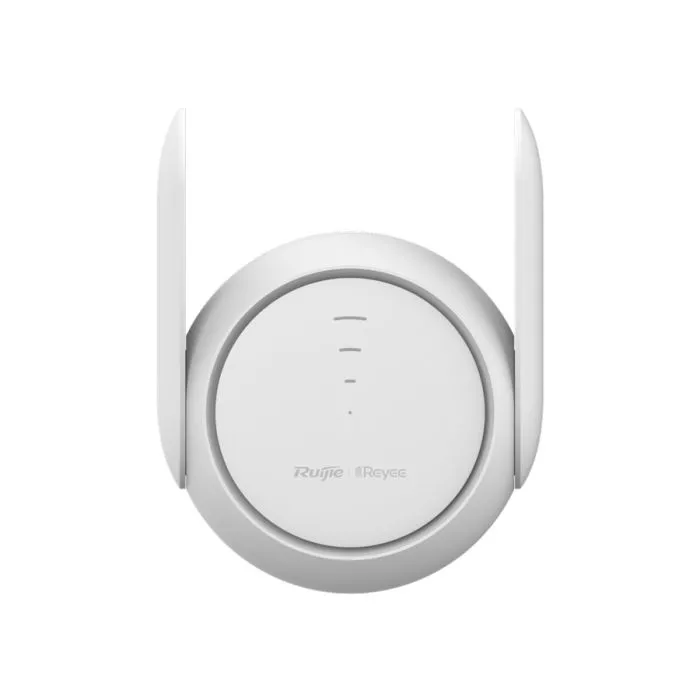

Reyee's RG-EW1200R is a dual band, 802.11ac (WiFi 5) range extender featuring 1x Fast Ethernet Port, 2x 4dBi external antennas and dual band 2x2 MU-MIMO with speeds up to 1167Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

Specifications

Antenna Gain: 2x4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset ; Mesh ; Reset
Max. Power Consumption: 15W
Mounting: Plug Point
Operating System: Reyee
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 2 Pin 5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 100-240V
USB Ports: None
Dimensions: 128 x 102 x 60 mm
Weight: 250g

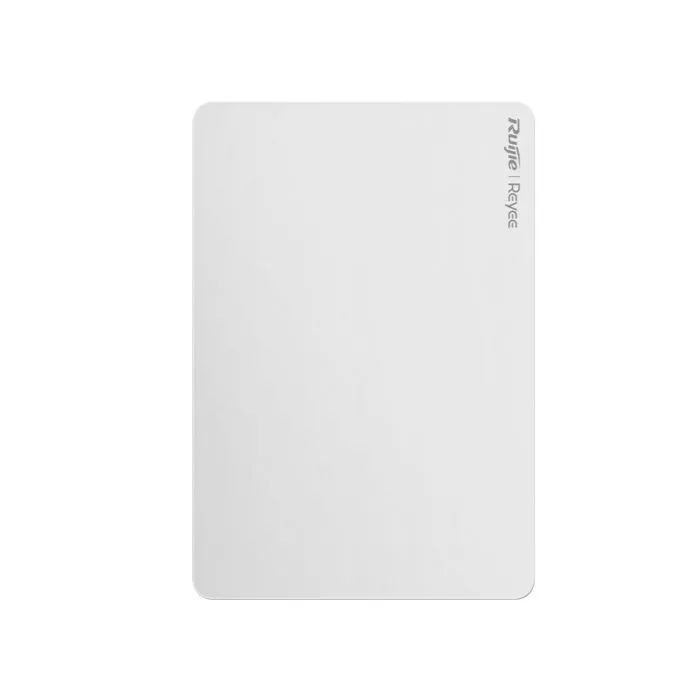

Reyee's RG-RAP1206X is a WiFi 6 (802.3ax) Dual Band, In-Wall Access Point featuring 5x Gigabit Ethernet Ports with PoE-Input and smart AI roaming. The unit supports up to 2976Mbps with 574Mbps on 2.4GHz and 2402Mbps on 5.8GHz and includes a mounting plate for quick and easy installation. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 3dBi ; 5.8GHz: 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps ; 5.8GHz: 2402Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Wall-Mount (Mounting Bracket Included)
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V
USB Ports: None
Dimensions: 124 × 86 × 24 mm
Weight: 500g

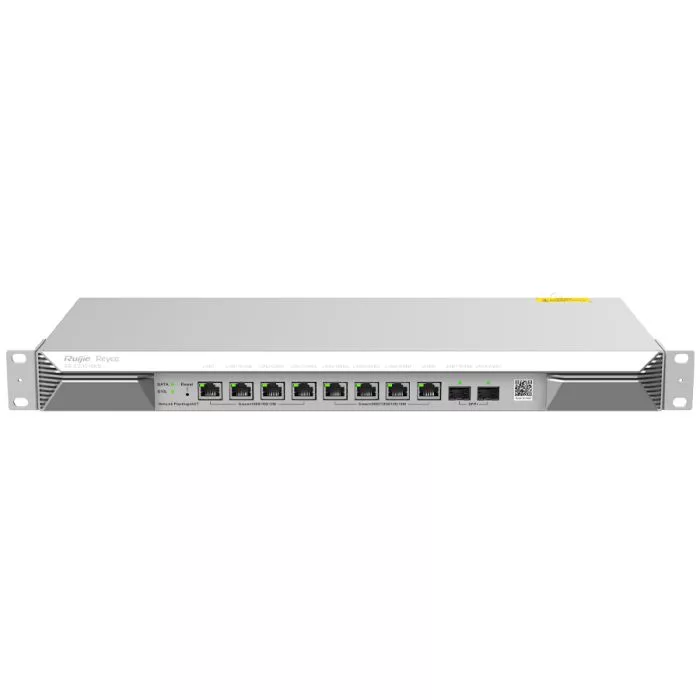

Reyee's RG-EG1510XS is a 10 port cloud-managed, 4-core router featuring 4x Gigabit Ethernet ports, 4x 2.5Gbps Ethernet ports, 2xSFP+ ports, and caters for up to 7 WAN ports. It supports up to 1500 users with a maximum WAN bandwidth of 4Gbps.

The unit is equipped with a 2.5'' SATA HDD bay for local syslog storage and integrates with Ruijie's free cloud service allowing users to quickly and easily auto-provision, deploy, and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN/WAN) ; 3x 10/100/1000/2500 (LAN/WAN); 1x 10/100/1000 (LAN) ; 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Rack-Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 4GB
USB Ports: None

Dimensions: 440 x 210 x 43.6 mm
Weight: 3kg

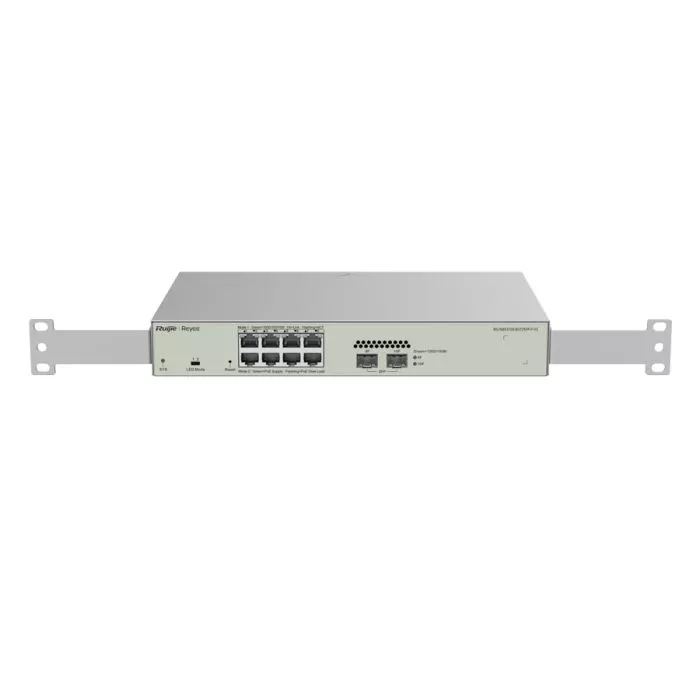

Reyee's RG-NBS8P2S is a Layer 2+ smart switch featuring 8 Gigabit PoE Ports and 2x 1.25Gbps SFP Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.
Specifications
Ethernet Ports: 8x 10/100/1000
Hardware Button: None
Max. Power Consumption: 25W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 50°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 8
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 300 x 205 x 44mm

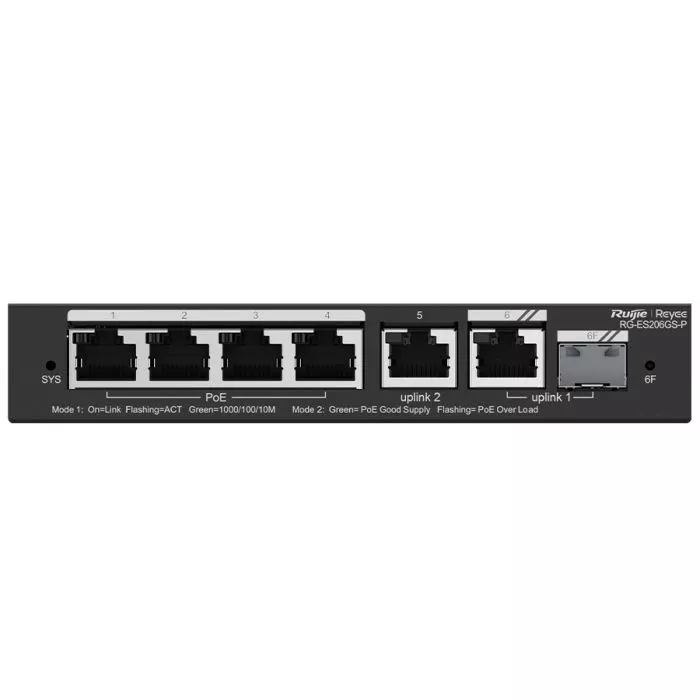

Reyee's RG-ES206GSP is a 6 port Layer 2 Gigabit smart switch with 4x 802.3af/at PoE ports, 2x Gigabit Ethernet uplink ports and 1x SFP combination port. The switch offers a 54W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 6x 10/100/1000
Hardware Button: None
Max. Power Consumption: 6W
Mounting: Desktop or Wall Mount
Operating System: None
Operating temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 4
Power Input: 54V 1.11A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x SFP Combo Port
Supported Voltage Range: 54V

Dimensions: 148 x 78 x 26mm
Weight: 308g

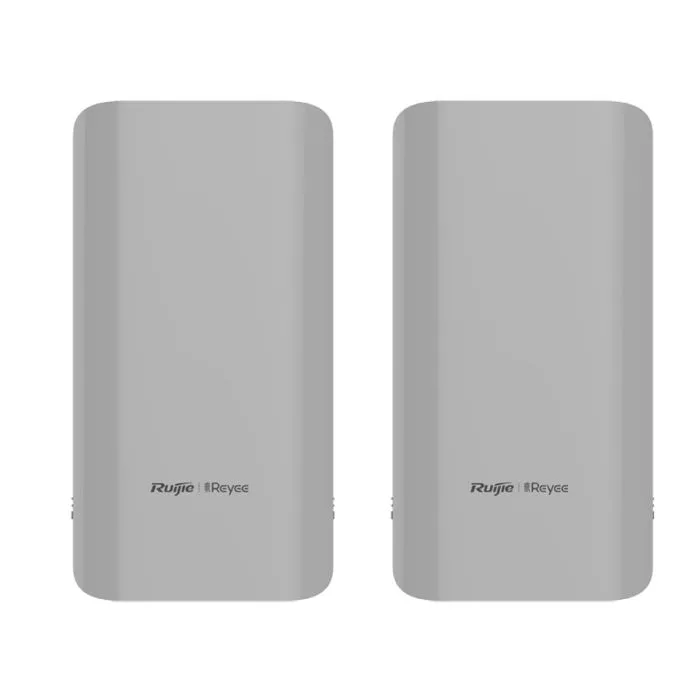

Ruijie Reyee Series RG-EST310 V2 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, RG-EST310 V2 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services.

RG-EST310 V2 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end.

Specifications

Antenna Gain: 5GHz: 10dBi
Beam-width: 60°
Data Rate: 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 55°C
PoE Input: 24v Passive PoE
PoE Output: None
Power Input: 24V Passive PoE (Included) or 12V 1A Power Supply (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 24v PoE PoE or 12V 1A DC
USB Ports: None

Dimensions: 400 x 231 x 88 mm
Weight: 0.35g
