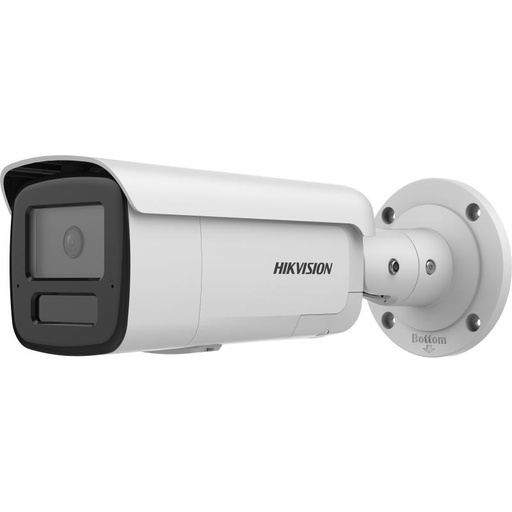

Hikvision 4 MP AcuSense bullet IP camera with DarkFighter low-light tech, EXIR 2.0 up to 80 m, built-in mic & speaker, IP67 metal body, and 120 dB WDR.

Short Description:

4 MP resolution with 4 mm F1.0 lens
DarkFighter colour at 0.001 lux; EXIR 2.0 IR up to 80 m
AcuSense 3.0 human/vehicle classification
Built-in mic & speaker, 1 alarm I/O
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 78 m / Observe 31 m / Recognize 15 m / Identify 7 m

Key Specifications:

Sensor and Resolution: 4 MP 1/3" CMOS; 2688 × 1520 @ 30 fps
Lens and FOV: 4 mm F1.0 fixed lens; 94.6° diagonal field of view
Low-Light Performance: DarkFighter 0.001 lux colour, 0 lux IR
IR Range: EXIR 2.0 up to 80 m; 850 nm wavelength
Image Enhancements: 120 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Audio: Built-in microphone and speaker
I/O: 1 alarm input/output
Storage: micro-SD slot (up to 512 GB)
Power: PoE or 12 V DC; max 10 W
Build: IP67 weather-proof, metal body
Dimensions and Weight: 287 × 93 × 91 mm; 1.08 kg
DORI Distances: Detect 78 m / Observe 31 m / Recognize 15 m / Identify 7 m
SKU DS-2CD2T46G2H-IS2U-SL-4MM
Gross shipping weight: Approx. 1.3 kg
Retail pack includes Bullet camera, mounting bracket, screws, quick start guide

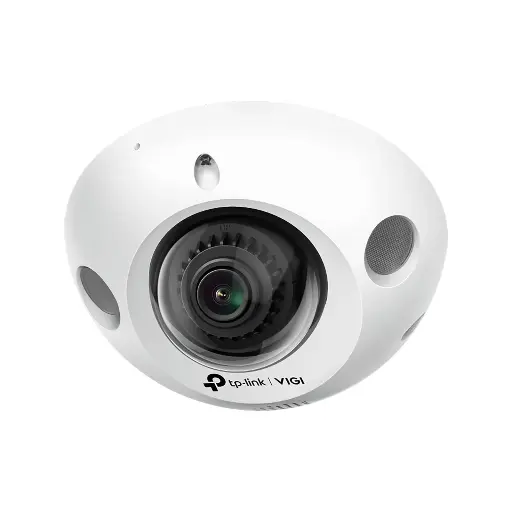

TP-Link VIGI C230I Mini 3 MP dome camera with Smart IR, Smart Encoding, IK08 vandal resistance, IP67 weatherproofing, and PoE support.

Short Description:

3 MP resolution with 2.8 mm F2.0 lens
Smart IR up to 30 m; 0.005 lux colour, 0 lux IR
Smart Encoding (H.265+) saves up to 70% bandwidth/storage
IK08 vandal-resistant, IP67 weather-proof
PoE or 12 V DC; micro-SD up to 256 GB
DORI: Detect 70 m / Observe 28 m / Recognize 14 m / Identify 7 m

Key Specifications:

Sensor and Resolution: 3 MP 1/2.8" CMOS; 2304 × 1296 @ 25 fps
Lens and FOV: 2.8 mm F2.0 fixed lens; 102° diagonal field of view
Illumination: Smart IR up to 30 m; 0.005 lux colour, 0 lux IR
Encoding: Smart Encoding (H.265+) saves up to 70% bandwidth/storage
Durability: IK08 vandal-resistant, IP67 weather-proof
Power: PoE or 12 V DC; max 4.3 W
Storage: micro-SD slot (up to 256 GB)
Protocols: ONVIF Profile S/G
Dimensions and Weight: Ø 110 × 83 mm; 280 g
DORI Distances: Detect 70 m / Observe 28 m / Recognize 14 m / Identify 7 m
SKU VIGI-C230I-MINI-2.8MM
Gross shipping weight: Approx. 400 g
Retail pack includes Dome camera, mounting screws, quick start guide

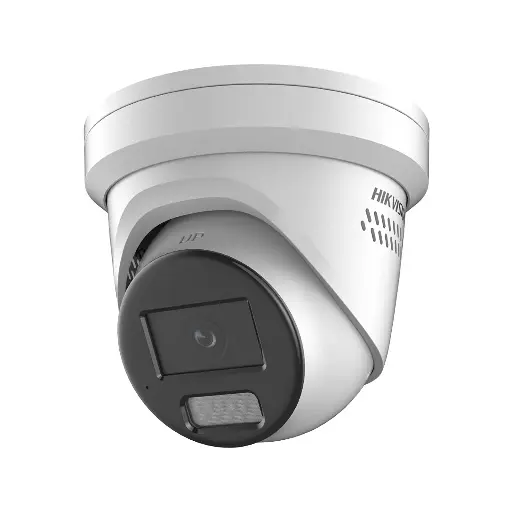

Hikvision 4 MP ColorVu turret IP camera with Smart Hybrid Light up to 30 m, AcuSense 3.0, built-in mic & speaker, IP67 metal body, and 130 dB WDR.

Short Description:

4 MP resolution with 2.8 mm F1.0 lens
ColorVu 3.0 with Smart Hybrid Light up to 30 m
AcuSense 3.0 human/vehicle classification
Built-in mic & speaker, 1 alarm I/O
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 61 m / Observe 24 m / Recognize 12 m / Identify 6 m

Key Specifications:

Sensor and Resolution: 4 MP 1/1.8" CMOS; 2688 × 1520 @ 25/30 fps
Lens and FOV: 2.8 mm F1.0 fixed lens; 138.5° diagonal field of view
Illumination: ColorVu 3.0 with Smart Hybrid Light (IR + white); 0.0005 lux colour, 0 lux with light; 30 m range
Image Enhancements: 130 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Audio: Built-in microphone and speaker
I/O: 1 alarm input/output
Storage: micro-SD slot (up to 512 GB)
Power: PoE or 12 V DC; max 8 W
Build: IP67 weather-proof, IK10 vandal-resistant metal body
Dimensions and Weight: Ø 138 × 115 mm; 770 g
DORI Distances: Detect 61 m / Observe 24 m / Recognize 12 m / Identify 6 m
SKU DS-2CD2347G2H-LISU-SL-2.8MM
Gross shipping weight: Approx. 950 g
Retail pack includes Turret camera, mounting screws, quick start guide

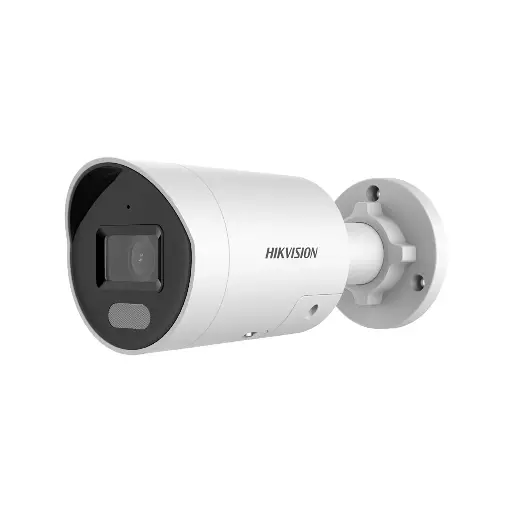

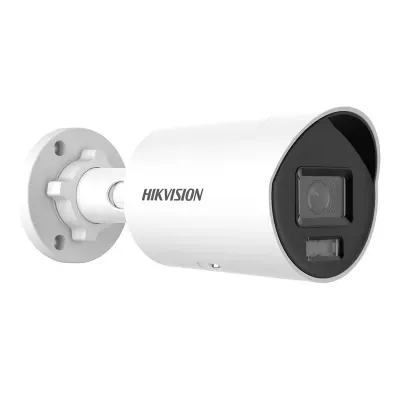

Hikvision 4 MP ColorVu mini bullet IP camera with Smart Hybrid Light up to 40 m, AcuSense 3.0, built-in mic, IP67 metal body, and 130 dB WDR.

Short Description:

4 MP resolution with 2.8 mm F1.0 lens
ColorVu 3.0 with Smart Hybrid Light up to 40 m
AcuSense 3.0 human/vehicle classification
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 61 m / Observe 24 m / Recognize 12 m / Identify 6 m

Key Specifications:

Sensor and Resolution: 4 MP 1/1.8" CMOS; 2688 × 1520 @ 25/30 fps
Lens and FOV: 2.8 mm F1.0 fixed lens; 126.7° diagonal field of view
Illumination: ColorVu 3.0 with Smart Hybrid Light (IR + white); 0.0005 lux colour, 0 lux with light; 40 m range
Image Enhancements: 130 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE or 12 V DC; max 7.5 W
Build: IP67 weather-proof, IK10 impact-resistant metal body
Dimensions and Weight: Ø 74 × 176 mm; 515 g
DORI Distances: Detect 61 m / Observe 24 m / Recognize 12 m / Identify 6 m
SKU DS-2CD2047G2H-LIU-SL-2.8MM
Gross shipping weight: Approx. 700 g
Retail pack includes Mini bullet camera, mounting bracket, screws, quick start guide

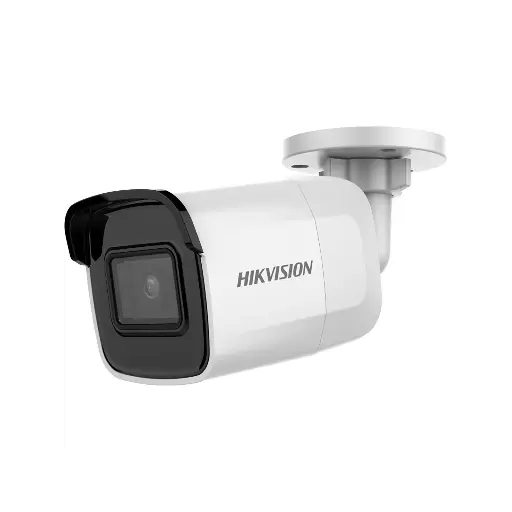

Hikvision 2 MP mini bullet IP camera with Smart Hybrid Light up to 30 m, built-in mic, motion detection, PoE, IP67 metal body, and micro-SD storage.

Short Description:

2 MP resolution with 4 mm F1.6 lens
Smart Hybrid Light (IR + white) up to 30 m
Built-in microphone, motion detection, human classification
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 256 GB
DORI: Detect 56 m / Observe 22 m / Recognize 11 m / Identify 5 m

Key On-Page Specifications:

Sensor and Resolution: 2 MP 1/2.9" CMOS; 1920 × 1080 @ 30 fps
Lens and FOV: 4 mm F1.6 fixed lens; 99° diagonal field of view
Illumination: Smart Hybrid Light (IR + white) up to 30 m; auto-switching
Low-Light Performance: 0.005 lux colour; 0 lux with light
Image Enhancements: Digital WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: Motion detection, human classification
Audio: Built-in microphone
Storage: micro-SD slot (up to 256 GB)
Power: PoE or 12 V DC; max 6.5 W
Build: IP67 weather-proof, metal body
Dimensions and Weight: 170.8 × 66 × 69.1 mm; 265 g
DORI Distances: Detect 56 m / Observe 22 m / Recognize 11 m / Identify 5 m
SKU DS-2CD2021G0-LIU-4MM
Gross shipping weight: Approx. 400 g
Retail pack includes Mini bullet camera, mounting bracket, screws, quick start guide

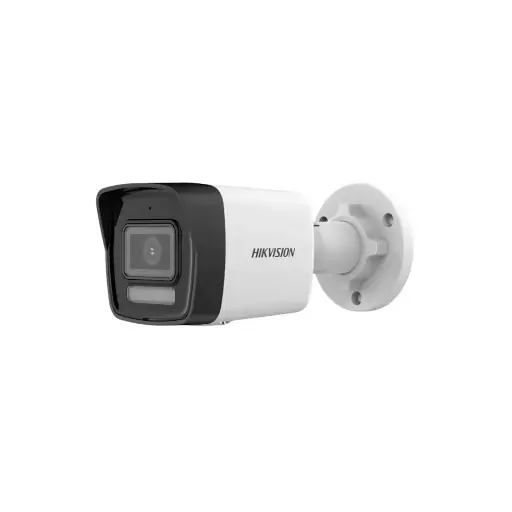

Hikvision 2 MP mini bullet camera with Smart Hybrid Light up to 30 m, built-in mic, motion detection, PoE, IP67 metal body, and micro-SD storage.

Short Description
2 MP resolution with 2.8 mm F1.6 lens
Smart Hybrid Light (IR + white) up to 30 m
Built-in microphone, motion detection, human classification
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 256 GB
DORI: Detect 44 m / Observe 17 m / Recognize 8 m / Identify 4 m

Key Specifications:

Sensor and Resolution: 2 MP 1/2.9" CMOS; 1920 × 1080 @ 30 fps
Lens and FOV: 2.8 mm F1.6 fixed lens; 118° diagonal field of view
Illumination: Smart Hybrid Light (IR + white) up to 30 m; auto-switching
Low-Light Performance: 0.005 lux colour; 0 lux with light
Image Enhancements: Digital WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: Motion detection, human classification
Audio: Built-in microphone
Storage: micro-SD slot (up to 256 GB)
Power: PoE or 12 V DC; max 6.5 W
Build: IP67 weather-proof, metal body
Dimensions and Weight: 138.8 × 60.9 × 57.9 mm; 175 g
DORI Distances: Detect 44 m / Observe 17 m / Recognize 8 m / Identify 4 m
Gross shipping weight: Approx. 350 g
Retail pack includes Mini bullet camera, mounting bracket, screws, quick start guide

Hikvision 4 MP bullet camera with DarkFighter low-light tech, EXIR 2.0 up to 80 m, AcuSense 3.0 smart alerts, 4 mm F1.0 lens, IP67 metal body, and 120 dB WDR.

Short Description:

4 MP resolution with 4 mm F1.0 lens
DarkFighter colour at 0.001 lux; EXIR 2.0 IR up to 80 m
AcuSense 3.0 human/vehicle classification
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 78 m / Observe 31 m / Recognize 15 m / Identify 7 m

Key Specifications:

Sensor and Resolution: 4 MP 1/3" CMOS; 2688 × 1520 @ 30 fps
Lens and FOV: 4 mm F1.0 fixed lens; 94.6° diagonal field of view
Low-Light Performance: DarkFighter 0.001 lux colour, 0 lux IR
IR Range: EXIR 2.0 up to 80 m; 850 nm wavelength
Image Enhancements: 120 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE or 12 V DC; max 10 W
Build: IP67 weather-proof, metal body
Dimensions and Weight: 287 × 93 × 91 mm; 1.08 kg
DORI Distances: Detect 78 m / Observe 31 m / Recognize 15 m / Identify 7 m
Gross shipping weight: Approx. 1.3 kg
Retail pack includes Bullet camera, mounting bracket, screws, quick start guide
SKU DS-2CD2T46G2H-4I-4MM

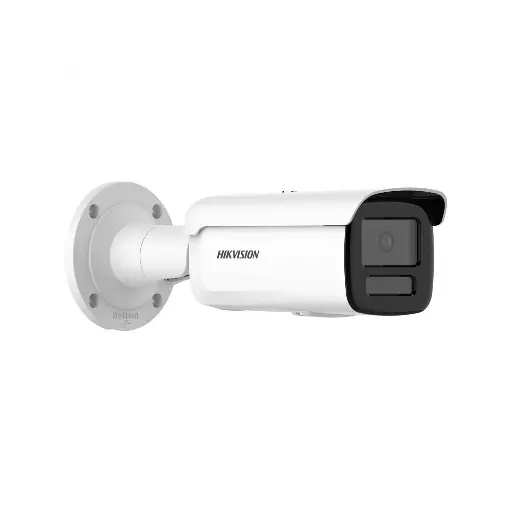

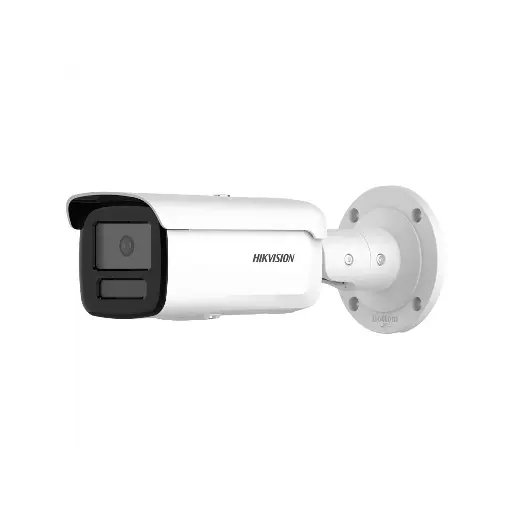

The Hikvision 4 MP AcuSense Bullet Camera delivers precision surveillance with advanced low-light performance and intelligent detection. Its 2.8 mm F1.0 lens captures wide-angle footage at 119.7° diagonal FOV, supported by DarkFighter technology for vivid colour in near-dark conditions (0.001 lux). EXIR 2.0 infrared extends visibility up to 60 meters. AcuSense 3.0 enables smart human and vehicle classification, reducing false alerts. With 120 dB true WDR, 3D-DNR, and H.265+ compression, it ensures sharp, efficient video. Rugged IP67 metal housing and PoE support make it ideal for outdoor installations.

Short Description:

4 MP resolution with 2.8 mm F1.0 lens
DarkFighter low-light colour + EXIR 2.0 IR up to 60 m
AcuSense 3.0 human/vehicle classification
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 60 m / Observe 24 m / Recognize 12 m / Identify 6 m

Key On-Page Specifications:

Sensor and Resolution: 4 MP 1/3" CMOS; 2688 × 1520 @ 25 fps
Lens and FOV: 2.8 mm F1.0 fixed lens; 119.7° diagonal field of view
Low-Light Performance: DarkFighter 0.001 lux colour, 0 lux IR
IR Range: EXIR 2.0 up to 60 m; 850 nm wavelength
Image Enhancements: 120 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE or 12 V DC; max 7.2 W
Build: IP67 weather-proof, metal body
Dimensions and Weight: 287 × 93 × 91 mm; 1.64 kg
DORI Distances: Detect 60 m / Observe 24 m / Recognize 12 m / Identify 6 m
Gross shipping weight: Approx. 1.9 kg
Retail pack includes Bullet camera, mounting bracket, screws, quick start guide
SKU DS-2CD2T46G2H-2I-2.8MM

The Hikvision 5 MP Fisheye Dome Camera delivers immersive 180° coverage with advanced image correction and flexible mounting options. Its ultra-wide 1.05 mm F2.25 lens captures 2560 × 1920 resolution at 25 fps, supported by 120 dB true WDR, 3D-DNR, defog, and distortion-correction for clear, balanced footage. Smart IR extends visibility up to 8 meters in low light. With 14 display modes including fisheye, 360° panorama, and 4-PTZ, it adapts to wall, ceiling, or table installations. Built-in mic and speaker enable two-way audio, while PoE or 12 V DC power options and onboard micro-SD storage make it ideal for retail, office, and public spaces.

Short Description:

5 MP fisheye dome with 180° horizontal/vertical field of view
1.05 mm F2.25 lens; 2560 × 1920 @ 25 fps
14 display modes including 360° panorama and 4-PTZ
Smart IR up to 8 m; built-in mic and speaker
PoE or 12 V DC; micro-SD up to 128 GB

Key Specifications:

Sensor and Resolution: 5 MP 1/2.7" CMOS; 2560 × 1920 @ 25 fps
Lens and FOV: 1.05 mm F2.25 lens; 180° horizontal/vertical field of view
Image Enhancements: 120 dB true WDR, 3D-DNR, defog, distortion-correction
IR Range: Smart IR up to 8 m; 850 nm wavelength
Display Modes: 14 modes including fisheye, 360° panorama, 4-PTZ
Audio: Built-in mic and speaker
I/O: 1 alarm input/output
Storage: micro-SD slot (up to 128 GB)
Power: PoE or 12 V DC; max 7.5 W
Housing: IP-capable (no anti-corrosion rating)
Dimensions and Weight: Ø 119.9 × 41.2 mm; 600 g
Operating Temperature: –10 °C to 50 °C
Gross shipping weight: Approx. 850 g
Retail pack includes Dome camera, mounting screws, quick start guide

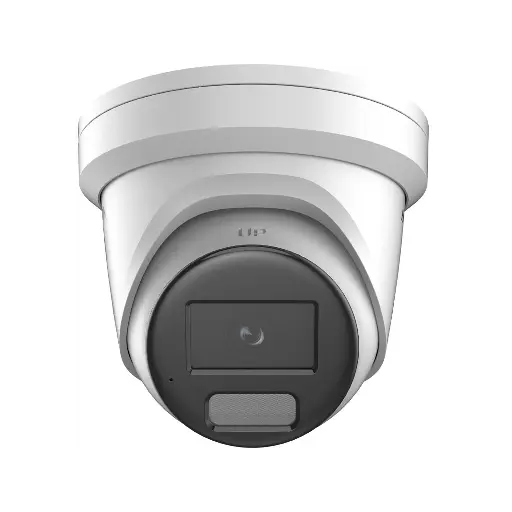

The Hikvision 4MP ColorVu turret delivers vivid, full-colour surveillance day and night thanks to Smart Hybrid Light and a large-aperture 2.8 mm F1.0 lens with a 138.5° diagonal field of view. Built for perimeter and entrance monitoring, it combines AcuSense 3.0 intelligence including human/vehicle classification, face-capture and perimeter-protection with industry-grade imaging: 130 dB true WDR, 3D-DNR and H.265+ compression. Rugged IP67 weatherproofing and IK10 vandal resistance ensure reliable outdoor performance. Compact and power-efficient, it supports PoE or 12 V DC and local micro‑SD storage up to 512 GB.

Short Description:

4MP ColorVu turret with 2.8 mm F1.0 lens; 138.5° diagonal FOV
Smart Hybrid Light (IR + white) up to 30 m; 0.0005 lux colour, 0 lux with light
AcuSense 3.0: human/vehicle classification, face-capture, perimeter-protection
PoE or 12 V DC; IP67 weather-proof, IK10 vandal-resistant; micro-SD up to 512 GB

Key Specifications:

Sensor & Resolution: 4 MP 1/1.8" CMOS; 2688 × 1520 @ 25/30 fps
Lens & FOV: 2.8 mm F1.0 fixed lens; 138.5° diagonal field of view
Illumination: Smart Hybrid Light (IR + white) up to 30 m; auto-switching
Low-Light Performance: 0.0005 lux colour; 0 lux with light
Image Enhancements: 130 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 — human/vehicle classification, face-capture, perimeter-protection
Storage: micro-SD slot (up to 512 GB)
Power: PoE (802.3af) or 12 V DC; max 6 W
Build: IP67 weather-proof, IK10 vandal-resistant
Dimensions & Weight: Ø 138 × 115 mm; 770 g
DORI Distances: Detect 61 m / Observe 24 m / Recognize 12 m / Identify 6 m
Gross shipping weight: Approx. 1.2 kg
Retail pack includes Turret camera, mounting base, screws, quick start guide

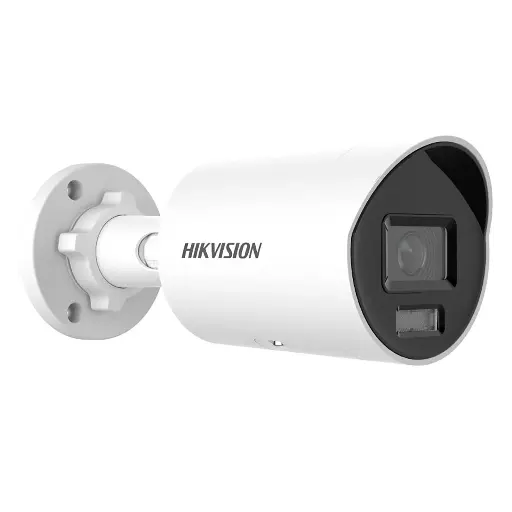

The Hikvision DS-2CD2041G0-LIU-2.8MM is a compact, high-performance 4MP ColorVu bullet IP camera designed for full-colour surveillance around the clock. Its 2.8 mm F1.0 lens delivers an ultra-wide 134° diagonal field of view, while white-light LEDs provide vivid colour imaging up to 30 meters—even in complete darkness. Auto-brightness adjustment ensures optimal illumination without glare. Powered by deep-learning algorithms, it accurately classifies humans and vehicles to reduce false alerts. With 130 dB true WDR, 3D-DNR, and H.265+ compression, it delivers sharp, efficient video. Rugged IP67 metal housing makes it ideal for outdoor installations.

Short Description:

4MP resolution with 2.8 mm F1.0 lens
ColorVu white-light LEDs for 24/7 colour, 30 m range
Deep-learning human/vehicle classification
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 58 m / Observe 23 m / Recognize 11 m / Identify 6 m

Key On-Page Specifications:

Sensor & Resolution: 4 MP 1/1.8" CMOS; 2688 × 1520 @ 25 fps
Lens & FOV: 2.8 mm F1.0 fixed lens; 134° diagonal field of view
Illumination: White-light LEDs; 30 m range; auto-brightness
Low-Light Performance: 0.0005 lux (colour)
Image Enhancements: 130 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: Deep-learning human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE (802.3af) or 12 V DC; max 7.5 W
Build: IP67 weather-proof, metal body
Dimensions & Weight: 215 × 79 × 79 mm; 695 g
DORI Distances: Detect 58 m / Observe 23 m / Recognize 11 m / Identify 6 m
Gross shipping weight: Approx. 1.0 kg
Retail pack includes Camera unit, mounting bracket, screws, quick start guide

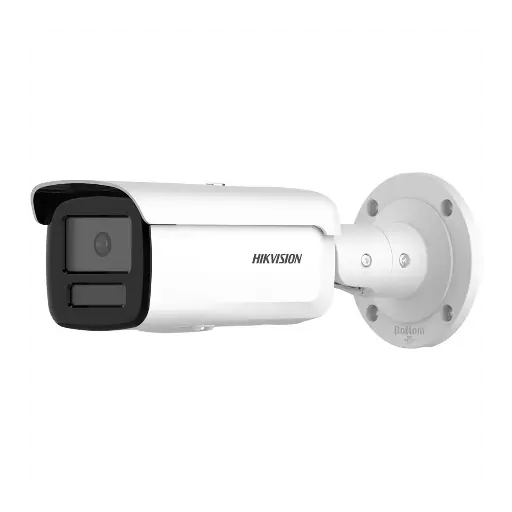

The Hikvision DS-2CD2T47G2H-LI-4MM is a high-performance 4MP ColorVu bullet IP camera designed for full-color surveillance in any lighting condition. Its 4 mm F1.0 lens delivers a 108° diagonal field of view, while Smart Hybrid Light technology automatically switches between IR and white light to maintain visibility up to 60 meters even in total darkness. AcuSense 3.0 enables intelligent human and vehicle classification, reducing false alerts. With 130 dB true WDR, 3D-DNR, and H.265+ compression, it ensures sharp, efficient video. Rugged IP67 metal housing makes it ideal for perimeter, parking, and industrial monitoring.

Short Description:

4MP resolution with 4 mm F1.0 lens
Smart Hybrid Light (IR + white) up to 60 m
AcuSense 3.0 human/vehicle classification
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 63 m / Observe 25 m / Recognize 12 m / Identify 6 m

Key Specifications:

Sensor & Resolution: 4 MP 1/1.8" CMOS; 2688 × 1520 @ 30 fps
Lens & FOV: 4 mm F1.0 fixed lens; 108° diagonal field of view
Illumination: Smart Hybrid Light (IR + white) up to 60 m; auto-switching
Low-Light Performance: 0.0005 lux (color), 0 lux with light
Image Enhancements: 130 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE (802.3af) or 12 V DC; max 7.5 W
Build: IP67 weather-proof, metal body
Dimensions & Weight: 286 × 93 × 91 mm; 1.1 kg
DORI Distances: Detect 63 m / Observe 25 m / Recognize 12 m / Identify 6 m
Gross shipping weight: Approx. 1.4 kg
Retail pack includes Camera unit, mounting bracket, screws, quick start guide

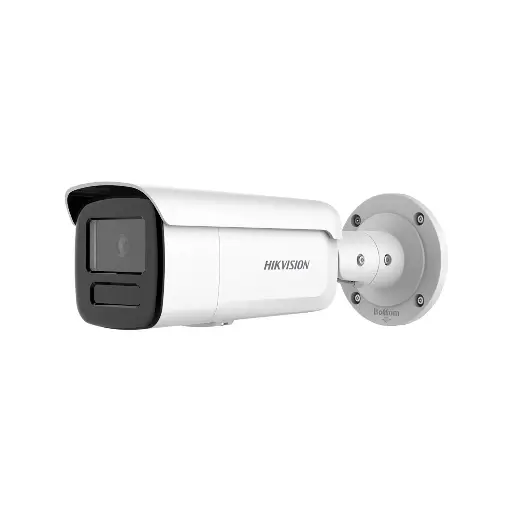

The Hikvision DS-2CD2647G2H-LIU is a high-performance 4MP ColorVu bullet IP camera designed for full-color surveillance in any lighting condition. Its 2.8 mm F1.0 lens delivers a wide 126.7° diagonal field of view, while Smart Hybrid Light technology automatically switches between IR and white light to maintain visibility up to 60 meters even in total darkness. AcuSense 3.0 enables intelligent human and vehicle classification, reducing false alerts. With 130 dB true WDR, 3D-DNR, and H.265+ compression, it ensures sharp, efficient video. Rugged IP67 metal housing makes it ideal for perimeter, parking, and industrial monitoring.

Short Description:

4MP resolution with 2.8 mm F1.0 lens
Smart Hybrid Light (IR + white) up to 60 m
AcuSense 3.0 human/vehicle classification
PoE or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 63 m / Observe 25 m / Recognize 12 m / Identify 6 m

Key Specifications:

Sensor & Resolution: 4 MP 1/1.8" CMOS; 2688 × 1520 @ 25/30 fps
Lens & FOV: 2.8 mm F1.0 fixed lens; 126.7° diagonal field of view
Illumination: Smart Hybrid Light (IR + white) up to 60 m; auto-switching
Low-Light Performance: 0.0005 lux (color), 0 lux with light
Image Enhancements: 130 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE (802.3af) or 12 V DC; max 10.5 W
Build: IP67 weather-proof, metal body
Dimensions & Weight: Ø 93 × 286 mm; 1.1 kg
DORI Distances: Detect 63 m / Observe 25 m / Recognize 12 m / Identify 6 m
Gross shipping weight: Approx. 1.4 kg
Retail pack includes Camera unit, mounting bracket, screws, quick start guide

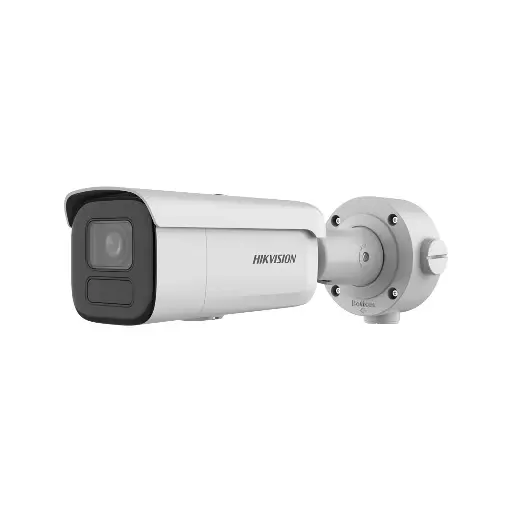

The Hikvision DS-2CD2646G2H-IZS is a high-performance 4MP bullet IP camera designed for long-range outdoor surveillance. With a 2.8 mm F1.0 lens and DarkFighter technology, it captures vivid color down to 0.001 lux and switches to smart IR for up to 80 meters in total darkness. AcuSense 3.0 enables precise human and vehicle classification, minimizing false alerts. Advanced image enhancements like 120 dB true WDR, 3D-DNR, and H.265+ compression ensure clarity and bandwidth efficiency. Rugged IP67 weatherproofing and a robust metal housing make it ideal for perimeter, parking, and industrial monitoring.

Short Description:

4MP resolution with 2.8 mm F1.0 lens
DarkFighter: 0.001 lux color, 80 m smart IR
AcuSense 3.0 human/vehicle classification
PoE or 12 V DC; IP67-rated; micro-SD up to 512 GB
DORI: Detect 63 m / Observe 25 m / Recognize 12 m / Identify 6 m

Key Specifications:

Sensor & Resolution: 4 MP 1/3" CMOS; 2688 × 1520 @ 25/30 fps
Lens & FOV: 2.8 mm F1.0 fixed lens; 119.7° diagonal field of view
Low-Light Performance: DarkFighter; 0.001 lux (color), 0 lux with IR
IR Range: Smart IR up to 80 m; 850 nm wavelength
Image Enhancements: 120 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE (802.3af) or 12 V DC; max 7 W
Build: IP67 weather-proof
Dimensions & Weight: Ø 93 × 286 mm; 1.1 kg
DORI Distances: Detect 63 m / Observe 25 m / Recognize 12 m / Identify 6 m
Gross shipping weight: Approx. 1.4 kg
Retail pack includes Camera unit, mounting bracket, screws, quick start guide

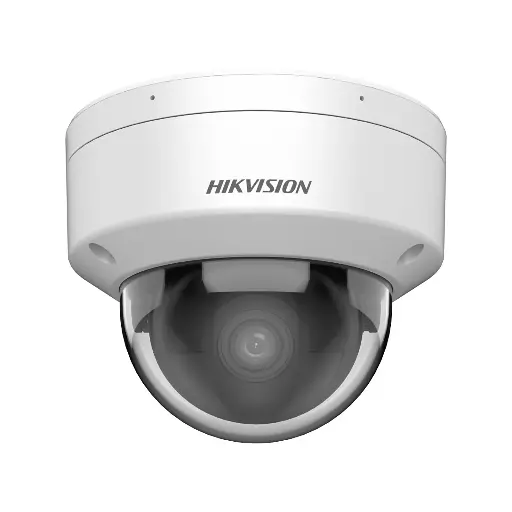

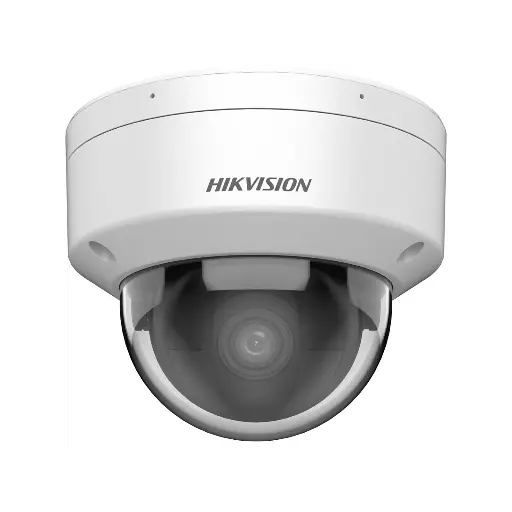

The Hikvision DS-2CD2146G2H-I is a compact, high-performance 4MP dome IP camera built for demanding outdoor surveillance. Its 2.8 mm F1.0 lens delivers a wide 119.7° diagonal field of view, while DarkFighter technology ensures vivid color capture down to 0.001 lux. In complete darkness, the 850 nm smart IR system extends visibility up to 30 meters. AcuSense 3.0 enables intelligent human and vehicle classification, reducing false alerts. With 120 dB true WDR, 3D-DNR, and H.265+ compression, it delivers sharp, efficient video. Rugged IP66 and IK10 ratings make it ideal for perimeter, entrance, and commercial deployments.

Short Description;

4MP resolution with 2.8 mm F1.0 lens
DarkFighter: 0.001 lux color, 30 m smart IR
AcuSense 3.0 human/vehicle classification
PoE or 12 V DC; IP66, IK10-rated; micro-SD up to 512 GB
DORI: Detect 63 m / Observe 25 m / Recognize 12 m / Identify 6 m

Key Specifications:

Sensor & Resolution: 4 MP 1/3" Progressive CMOS; 2688 × 1520 @ 25/30 fps
Lens & FOV: 2.8 mm F1.0 fixed lens; 119.7° diagonal field of view
Low-Light Performance: DarkFighter; 0.001 lux (color), 0 lux with IR
IR Range: 30 m smart IR; 850 nm wavelength
Image Enhancements: 120 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE (802.3af) or 12 V DC; max 6.5 W
Build: IP66 weather-proof, IK10 vandal-resistant
Dimensions & Weight: Ø 127 × 96 mm; 540 g
DORI Distances: Detect 63 m / Observe 25 m / Recognize 12 m / Identify 6 m
Gross shipping weight: Approx. 1.1 kg
Retail pack includes: Dome camera, mounting screws, bracket, quick start guide

The Hikvision DS-2CD2047G2H-LIU is a next-generation 4MP ColorVu 3.0 mini bullet IP camera designed for full-color surveillance in any lighting condition. Its 2.8 mm F1.0 lens delivers a wide 126.7° diagonal field of view, while the Smart Hybrid Light system combines IR and white LEDs to maintain visibility up to 40 meters even in total darkness. Powered by AcuSense 3.0, it offers intelligent human and vehicle classification to reduce false alarms. With 130 dB true WDR, 3D-DNR, and H.265+ compression, it ensures sharp, efficient video. Rugged IP67 and IK10 ratings make it ideal for outdoor deployments.

Short Description:

4MP resolution with 2.8 mm F1.0 lens
ColorVu 3.0: 0.0005 lux color, Smart Hybrid Light (IR + white)
AcuSense 3.0 human/vehicle classification
PoE or 12 V DC; IP67, IK10-rated; micro-SD up to 512 GB
DORI: Detect 61 m / Observe 24 m / Recognize 12 m / Identify 6 m

Key Specifications:

Sensor & Resolution: 4 MP 1/1.8" CMOS; 2688 × 1520 @ 25/30 fps
Lens & FOV: 2.8 mm F1.0 fixed lens; 126.7° diagonal field of view
Low-Light Performance: ColorVu 3.0; 0.0005 lux (color), 0 lux with Smart Hybrid Light
Illumination Range: 40 m (IR + white light); 850 nm wavelength
Image Enhancements: 130 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE (802.3af) or 12 V DC; max 7 W
Build: IP67 weather-proof, IK10 impact-rated
Dimensions & Weight: Ø 74 × 176 mm; 515 g
DORI Distances: Detect 61 m / Observe 24 m / Recognize 12 m / Identify 6 m
Gross shipping weight: Approx. 0.9 kg
Retail pack includes Camera unit, mounting bracket, screws, quick start guide

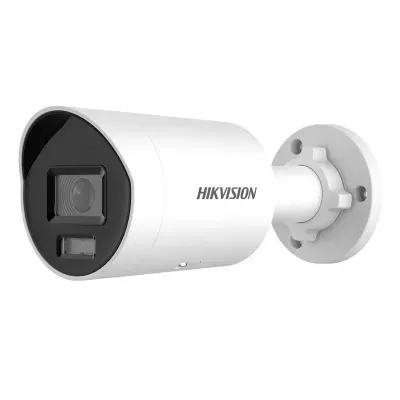

The Hikvision DS-2CD2046G2H-I (4 mm) is a compact, high-performance 4MP mini bullet IP camera designed for precision outdoor surveillance. Its 4 mm F1.0 lens delivers a 94.6° diagonal field of view, while DarkFighter technology ensures vivid color capture down to 0.001 lux. In complete darkness, the 850 nm smart IR system extends visibility up to 40 meters. Deep-learning algorithms enable accurate human and vehicle classification, reducing false alerts. With 120 dB true WDR, 3D-DNR, and H.265+ compression, it’s built for clarity and efficiency. Rugged IP67 and IK10 ratings make it ideal for perimeter, entrance, and commercial deployments.

Short Description
4MP resolution with 4 mm F1.0 lens
DarkFighter tech: 0.001 lux color, 40 m smart IR
Deep-learning human/vehicle classification
PoE or 12 V DC; IP67, IK10-rated; micro-SD up to 512 GB
DORI: Detect 78 m / Observe 31 m / Recognize 15 m / Identify 7 m

Key Specifications:

Sensor & Resolution: 4 MP 1/3" CMOS; 2688 × 1520 @ 25/30 fps
Lens & FOV: 4 mm F1.0 fixed lens; 94.6° diagonal field of view
Low-Light Performance: DarkFighter; 0.001 lux (color), 0 lux with IR
IR Range: 40 m smart IR; 850 nm wavelength
Image Enhancements: 120 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: Deep-learning human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE (802.3af) or 12 V DC; max 6.5 W
Build: IP67 weather-proof, IK10 impact-rated
Dimensions & Weight: Ø 74 × 176 mm; 515 g
DORI Distances: Detect 78 m / Observe 31 m / Recognize 15 m / Identify 7 m
Gross shipping weight: Approx. 0.9 kg
Retail pack includes Camera unit, mounting bracket, screws, quick start guide

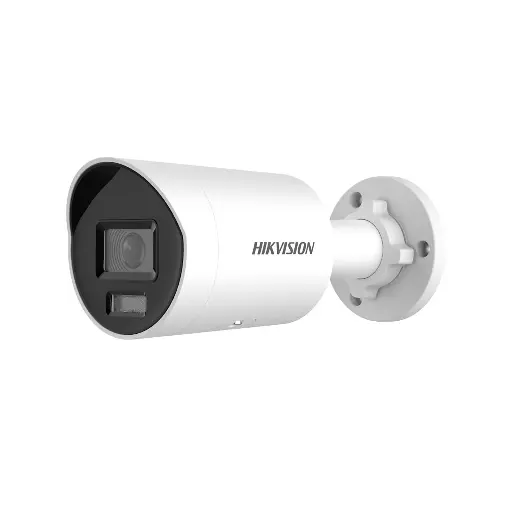

The Hikvision DS-2CD2046G2H-I is a compact, high-performance 4MP mini bullet IP camera designed for demanding outdoor surveillance. Equipped with a 2.8 mm F1.0 lens and DarkFighter technology, it delivers vivid color in ultra-low light (0.001 lux) and switches to 40 m smart IR for total darkness. Deep-learning algorithms enable precise human and vehicle classification, while advanced image enhancements like 120 dB WDR, 3D-DNR, BLC, and HLC ensure clarity in challenging lighting. With IP67 weatherproofing, IK10 impact resistance, and support for PoE or 12 V DC, it’s ideal for perimeter, entrance, and commercial monitoring.

Short Description.
4MP resolution with 2.8 mm F1.0 lens
DarkFighter low-light tech, 40 m smart IR
Deep-learning human/vehicle detection
PoE or 12 V DC; IP67, IK10-rated; micro-SD up to 512 GB
Code: DS-2CD2046G2H-I; 515 g; 120 dB WDR

Key Specifications:

Sensor & Resolution: 4 MP 1/3" CMOS; 2688 × 1520 @ 25/30 fps
Lens & FOV: 2.8 mm F1.0 fixed lens; 119.7° diagonal field of view
Low-Light Performance: DarkFighter; 0.001 lux (color), 0 lux with IR
IR Range: 40 m smart IR; 850 nm wavelength
Image Enhancements: 120 dB true WDR, 3D-DNR, BLC, HLC
Compression: H.265+, H.264+
Smart Detection: Deep-learning human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE (802.3af) or 12 V DC; max 6.5 W
Build: IP67 weather-proof, IK10 impact-rated
Dimensions & Weight: Ø 74 × 176 mm; 515 g
Gross Shipping Weight Approx. 0.9 kg Includes camera, mounting bracket, screws, and retail packaging.

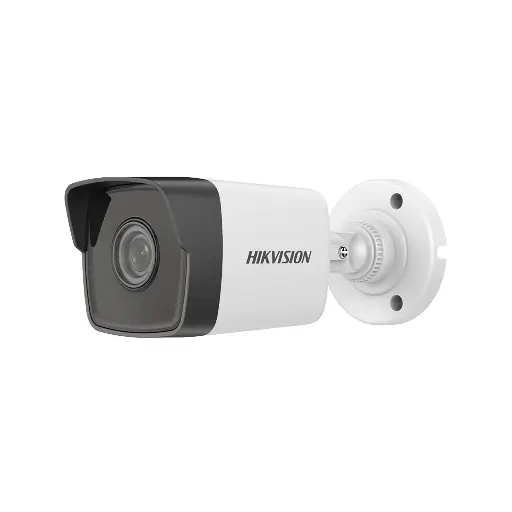

The Hikvision DS-2CD1023G0E-I is a professional-grade 2 MP outdoor bullet IP camera engineered for reliable perimeter and entrance surveillance. It pairs a high-quality 1/2.8" CMOS sensor with a 2.8 mm F2.0 lens to deliver clear 1080p video at 30 fps and a wide 112° horizontal field of view. Advanced EXIR 2.0 illumination and smart IR deliver usable colour down to 0.01 lux and improved detail up to 30 m in total darkness. Flexible power options include PoE (802.3af) or 12 V DC with low maximum power consumption. Robust weatherproofing (IP67), a 3-axis bracket for precise aiming, and enterprise-grade video codecs and image enhancements make this camera ideal for commercial and residential installations.

Specifications:

Sensor Resolution: 2 MP, 1/2.8" CMOS; 1920 × 1080 @ 30 fps
Lens: 2.8 mm, F2.0; 112° HFOV
Night Vision: 30 m EXIR 2.0; Smart IR; 0.01 lux (color); 0 lux with IR
Power: 12 V DC or PoE (802.3af); Max 6.5 W
Video & Compression: H.265+ / H.264+
Image Enhancements: DWDR, 3D-DNR, ROI
Storage & Protocols: micro-SD slot up to 256 GB; ONVIF compatible
Mounting & Environment: IP67; 3-axis mounting bracket; operating −30 °C to +60 °C

Technical Specifications:

Specification Details
Brand Hikvision
Model / SKU DS-2CD1023G0E-I
Form Factor Outdoor Bullet
Resolution 2 MP (1920 × 1080) @ 30 fps
Lens 2.8 mm F2.0; 112° HFOV
Night Vision EXIR 2.0, 30 m; Smart IR
Power Options 12 V DC; PoE (802.3af)
Max Power 6.5 W
Video Codecs H.265+ / H.264+
Image Enhancements DWDR; 3D-DNR; ROI
Storage micro-SD up to 256 GB
Protocols ONVIF
Ingress Protection IP67
Mount 3-axis bracket
Operating Temp −30 °C to +60 °C
Estimated gross shipping weight: 1.2 kg (camera, bracket, accessories, packaging)

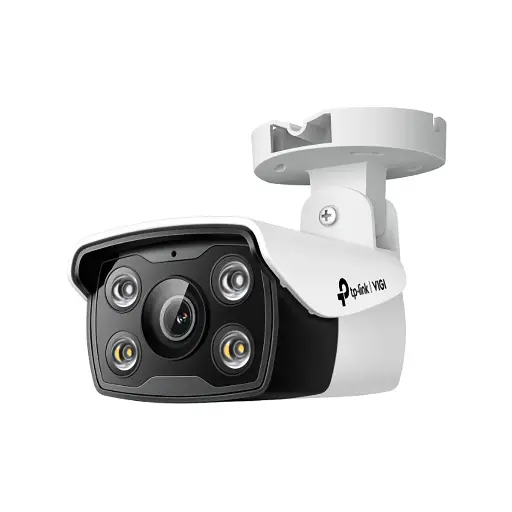

4MP (2560 × 1440 @ 25 fps) outdoor bullet camera with 2 mm F1.6 fixed lens and 114° diagonal field of view. 24‑hour full‑colour imaging via high‑sensitivity sensor + built‑in white LEDs (30 m white‑light range). Smart AI human/vehicle classification, line‑crossing, area‑intrusion, and tamper alerts. Dual power: PoE (802.3af) or 12 V DC; micro‑SD up to 256 GB; ONVIF Profile S/G. Rugged IP66 housing, operating 30 °C to 60 °C; 3D‑DNR, DWDR, H.265+/H.264+; 6‑month carry‑in warranty.

Sensor & Resolution: 1/3" CMOS; 4 MP (2560 × 1440) @ 25 fps
Lens & FOV: 2 mm fixed, F1.6; 114° diagonal FOV
24‑Hour Colour: High‑sensitivity sensor + built‑in white LEDs; 30 m white‑light range
Smart Detection: Human/vehicle classification; line crossing; area intrusion; camera tamper alerts
Power & Storage: PoE (802.3af) or 12 V DC; micro‑SD up to 256 GB; ONVIF Profile S/G
Video & Image: 3D‑DNR; DWDR; H.265+ / H.264+
Environmental & Mechanical: IP66; operating temp −30 °C to 60 °C; fixed lens bullet form factor
Warranty: 6‑month carry‑in

Technical Specifications:

Specification Details
Brand TP‑Link
Model / SKU VIGI‑C340‑2.8MM
Form Factor Bullet
Resolution 4MP (2560 × 1440) @ 25 fps
Lens 2 mm F1.6 fixed
Diagonal FOV 114°
Night / Colour 24‑hour full‑colour (high‑sensitivity sensor + white LEDs)
White‑Light Range 30 m
Smart AI Human/vehicle classification; line crossing; area intrusion; tamper
Compression H.265+ / H.264+
Image Enhancements 3D‑DNR; DWDR
Power PoE (802.3af) or 12 V DC
Storage micro‑SD up to 256 GB
Protocols ONVIF Profile S/G
IP Rating IP66
Operating Temp −30 °C to 60 °C
Warranty 6‑month carry‑in
