Cudy's CD-GS105D features 5x Gigabit Ethernet Ports and supports non-blocking switching architecture and MAC address auto-learning and auto-aging.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: None
Max. Power Consumption: 2.3W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 5V 0.5A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V
Dimensions: 100 x 69 x 24 mm
Weight: 75g

Cudy's CD-GS1005PT is a 5-Port Gigabit switch with 4x 802.3af/at PoE ports, 1x SFP and 1x Gigabit Uplink ports. The switch offers a 115W PoE budget with up to 60W (802.3bt) on port 1 and 30W on ports 2~4. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-4 while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: -20°C to 50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 200 x 112 x 40mm
Weight: 600g

Cudy's CD-LT700 is a dual band 802.11ac (WiFi 5) Gigabit router with an integrated CAT6 LTE modem offering speeds of up to 50Mbps uplink and 300Mbps downlink. The router features 4x Gigabit Ethernet ports, 2x fixed WiFi antennas, 4x detachable LTE antennas and an aggregate wireless data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system, TR069 as well as multiple VPN Client options including PPTP, L2TP, OpenVPN, Wire Guard, IPSec and Zero tier.

Specifications

Antenna Gain: LTE: 4x 5dBi (detachable); Wi-Fi: 2x 5dBi
Beam-width: 360°
Data Rate: LTE: 300Mbps Downlink; 50Mbps Uplink; Wireless: 2.4GHz: 300Mbps ; 5.8GHz: 867Mbps
Ethernet Ports: 3x 10/100/1000 (LAN); 1x 10/100/1000 (LAN/WAN)
Hardware Button: Reset ; WPS
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 45°
PoE Input: None
PoE Output: None
Power Input: 12V 1.5A Power Supply (Included)
Serial Interface: None
SIM Slots: 2 (Nano SIM)
Supported Voltage Range: 12V 1.5A
USB Ports: None
Dimensions: 252.5 x 161 x 48.2 mm

Cudy's CD-LT500 is a dual band 802.11ac (WiFi 5) Fast Ethernet router with an integrated CAT4 LTE modem with speeds of up to 50Mbps uplink and 150Mbps downlink. The router features 4x Fast Ethernet ports, 4x 5dBi high gain antennas and an aggregate wireless data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system as well as multiple VPN Client options including PPTP, L2TP, OpenVPN, Wire Guard, IPSec and Zero tier.

Specifications

Antenna Gain: 5dBi (2x WiFi, 2x LTE)
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink; Wireless: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 3x 10/100 (LAN); 1x 10/100 (LAN/WAN)
Hardware Button: Reset; WPS
Max. Power Consumption: 10W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Nano SIM)
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 200 x 130 x 40mm
Weight: 299g

Cudy's CD-LT500O is an IP65 outdoor, dual band WiFi 5 (802.11ac) Fast Ethernet router. With an integrated CAT4 LTE modem, it reaches speeds of up to 50Mbps uplink and 150Mbps downlink. It features 1x Fast Ethernet port, 2x Internal WiFi antennas, 2x detachable LTE antennas, and an aggregate wireless data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system (only as the main router) as well as multiple VPN options including PPTP, L2TP, OpenVPN, Wire Guard, IPSec and Zero tier.

Specifications

Antenna Gain: LTE: 2x 5dBi; Wireless: 2.4GHz: 3.5 dBi ; 5GHz: 5dBi
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink; Wireless: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset; WPS
Max. Power Consumption: 10W
Mounting: Pole-mount or Wall-mount
Operating System: Cudy
Operating Temperature: -20° to 60°
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE (Included)
Serial Interface: None
SIM Slots: 1 (Nano SIM)
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 200 x 130 x 40mm
Weight: 299g

Cudy’s CD-GSPOE40 is a 4-Port Gigabit PoE switch with an 802.3af/at/bt Gigabit PoE input port. The switch can only be powered via PoE input on port 5. The switch has a maximum PoE budget of 60W when powered by 802.3bt and can supply up to 30W per port. It can be either desktop or wall mounted.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: None
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at/bt
PoE Output: 802.3af/at PoE on Ports 1~4
Power Input: 802.3af/at/bt on Port 5
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 44-57V (802.3af/at/bt)
Dimensions: 119 x 85 x 28 mm

Cudy's CD-GS1024 is a 24 Port Gigabit Switch that supports both desktop and rack-mount options. It features a toggle switch with VLAN, Extender and Default modes. In Default mode all ports operate freely. VLAN mode enables port isolation on ports 1-22 while Extender mode increases the transmission distance on ports 1-22 to 250m at 10Mbps.
Ethernet Ports: 24x 10/100/1000
Hardware Button: None
Max. Power Consumption: 15W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100V-240V

Dimensions: 270 x 180 x 44mm

Provide a variety of installation methods for easy deployment in any environment
● Support 11-inch Rack-mount Steel Case
● Support Desktop installation

High Performance
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Power Saving
Save power up to 40% - The GS1024 uses green Ethernet technology to make your network compatible without compromising performance. The switch automatically powers down the ports that are idle and budgets power output for different Ethernet cable lengths. It helps you save power up to 40%.


Features
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
Store-and-Forward switching method
Supports 16K MAC address auto-learning and auto-agin

Cudy's CD-GS1026PS is a 24 Port Gigabit switch with 24x 802.3af/at PoE ports, 2x Gigabit and 2x SFP Uplink ports. The switch offers a 280W PoE budget and up to 30W per PoE port. In Extended Mode, the transmission range on ports 17-24 is extended to 250 meters at 10Mbps. The Watchdog function continuously monitors PoE connections when in Extender Mode. If an error is detected on the device, the switch immediately restarts the port.

Specifications

Ethernet Ports: 26x 10/100/1000
Hardware Button: Extended; Default
Max. Power Consumption: 20W
Mounting: Rack-Mount
Operating System: None
Operating Temperature: -10~50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 320 x 207 x 44 mm
Weight: 2.5kg

Fanvil's FAN-W610W features a 2.0” colour screen, IEEE802.11k/v/r roaming, built in Bluetooth and dual band WiFi with up to 9 hours of talk time. The FAN-W610W is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom and others.
Bluetooth Support: Integrated Bluetooth 5.0
Ethernet Ports: None
Battery Capacity: 1900mAH Rechargable
Headset Port: Compatible with Bluetooth 5.0
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: None
Power Input: 5V 2A Power Supply (Included)
SIP Lines: 4
WiFi Support: Dual Band WiFi 4

Dimensions: 156 x 53 x 17.7 mm
Weight: 147g

Fanvil's FAN-V61G features dual Gigabit Ethernet ports, 4 SIP lines, HD Voice, Opus support, a 6-way conference function, integrated hall switch and a 2.4' colour LCD display. The FAN-V61G is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: Designed for use with a PoE switch or injector (not included). Alternatively, use with PSU-5V10W DC power supply, sold separately.
Bluetooth Support: None
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 6.7W
Headset Port: 1x RJ9
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 1A (Not included) or 802.3af/at PoE
SIP Lines: 4
WiFi Support: None

Dimensions: 295 x 222 x 56 mm

Fanvil's FAN-X303 features dual Fast Ethernet ports, 4 SIP lines, HD Voice, IPv4/IPv6, Opus support, a 3-way conference function and a 2.4' colour LCD display. The FAN-X303 is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: This IP Phone is not compatible with PoE. A 5V 0.6A Power Supply is included.
Bluetooth Support: None
Ethernet Ports: 2x 10/100

Max Power Consumption: 2.09W
Headset Port: 1x RJ9
Mounting: Desktop or Wall-Mount when used with FAN-WB108
Operating Temperature: 0°C to 45°C
PoE Input: None
Power Input: 5V 0.6A Power Supply (Included)
SIP Lines: 4
WiFi Support: None

Dimensions: 169 x 201.1 x 177.4 mm

Fanvil's FAN-V61W is a WiFi 6 desktop phone featuring dual Gigabit Ethernet ports, 4 SIP lines, Bluetooth & Opus support, integrated hall switch and a 2.4' colour LCD display. The FAN-V61W is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: Designed for use with a PoE switch or injector (not included). Alternatively, use with PSU-5V10W DC power supply, sold separately.
Bluetooth Support: Bluetooth 5.4
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 6.7W
Headset Port: 1x RJ9
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 1A (Not included) or 802.3af/at PoE
SIP Lines: 4
WiFi Support: Dual Band WiFi 6

Dimensions: 295 x 222 x 56 mm

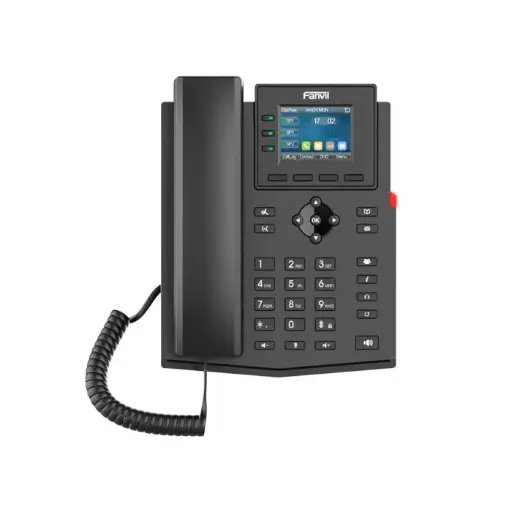

Fanvil's FAN-X303P features dual Fast Ethernet ports, 4 SIP lines, HD Voice, IPv4/IPv6, Opus support, a 3-way conference function and an easy-to-read lattice display. The FAN-X303P is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: Designed for use with a PoE switch or injector (not included). Alternatively, use with PSU-5V10W DC power supply, sold separately.
Bluetooth Support: None
Ethernet Ports: 2x 10/100

Max Power Consumption: 2.09W
Headset Port: 1x RJ9
Mounting: Desktop or Wall-Mount when used with FAN-WB108
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 0.6A (Not included) or 802.3af/at PoE
SIP Lines: 4
WiFi Support: None

Dimensions: 169 x 201.1 x 177.4 mm

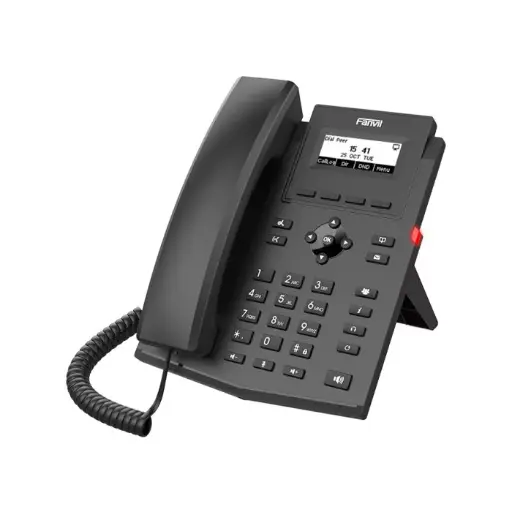

Fanvil's FAN-X301G features dual Gigabit Ethernet ports, 2 SIP lines, HD Voice, IPv4/IPv6, Opus support, a 3-way conference function and an easy-to-read lattice display. The FAN-X301G is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: Designed for use with a PoE switch or injector (not included). Alternatively, use with PSU-5V10W DC power supply, sold separately.
Bluetooth Support: None
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 1.86W
Headset Port: 1x RJ9
Mounting: Desktop or Wall-Mount when used with FAN-WB108
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 0.6A (Not included) or 802.3af/at PoE
SIP Lines: 2
WiFi Support: None

Dimensions: 169 x 201.1 x 177.4 mm

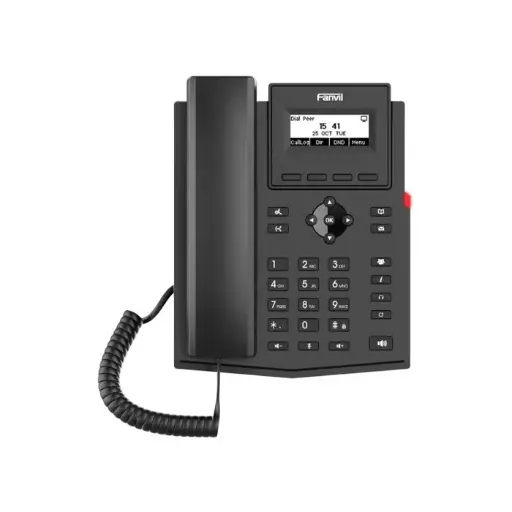

Fanvil's FAN-X301 features dual Fast Ethernet ports, 2 SIP lines, HD Voice, IPv4/IPv6, Opus support, a 3-way conference function and an easy-to-read lattice display. The FAN-X301 is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: This IP phone is not compatible with PoE. A 5V 0.6A power supply is included.
Bluetooth Support: None
Ethernet Ports: 2x 10/100
Max Power Consumption: 1.86W
Headset Port: 1x RJ9
Mounting: Desktop or Wall-Mount when used with FAN-WB108
Operating Temperature: 0°C to 45°C
PoE Input: None
Power Input: 5V 0.6A Power Supply (Included)
SIP Lines: 2
WiFi Support: None

Dimensions: 169 x 201.1 x 177.4 mm

Fanvil's FAN-X301P features dual Fast Ethernet ports, 2 SIP lines, HD Voice, IPv4/IPv6, Opus support, a 3-way conference function and an easy-to-read lattice display. The FAN-X301P is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: Designed for use with a PoE switch or injector (not included). Alternatively, use with PSU-5V10W DC power supply, sold separately.
Bluetooth Support: None
Ethernet Ports: 2x 10/100
Max Power Consumption: 1.86W
Headset Port: 1x RJ9
Mounting: Desktop or Wall-Mount when used with FAN-WB108
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 0.6A (Not included) or 802.3af/at PoE
SIP Lines: 2
WiFi Support: None

Dimensions: 169 x 201.1 x 177.4 mm

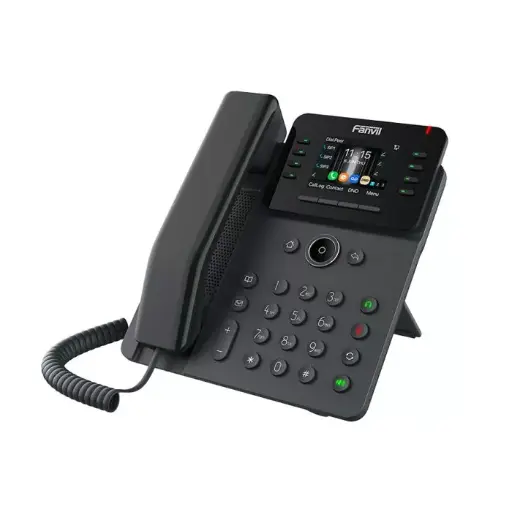

Fanvil's FAN-V62G features dual Gigabit Ethernet ports, 802.3af/at PoE support, 12 SIP lines, HD Audio, and a 2.8' colour LCD screen. The FAN-V62G is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: PSU-5V10W power supply not included.

Bluetooth Support: None
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 6.7W
Headset Port: 1x RJ9
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at
Power Input: 5V 1A (Not included) or 802.3af/at PoE
SIP Lines: 12
WiFi Support: None

Dimensions: 295 x 222 x 56 mm

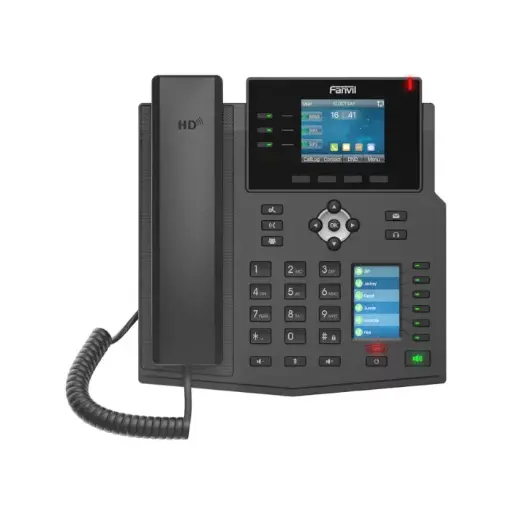

Fanvil's FAN-X4U features dual Gigabit Ethernet ports, 802.3af/at PoE, 12 SIP lines, HD Audio with Opus support, a 2.8' main colour LCD screen as well as a 2.4' DSS colour display. The unit also makes provision for WiFi and Bluetooth connections via external dongles (not Included). The FAN-X4U is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: PSU-5V10W power supply not included.
Bluetooth Support: External Dongle (Not Included)
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 10.46W
Headset Port: 1x RJ9
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 2A (Not included) or 802.3af/at PoE
SIP Lines: 12
WiFi Support: External Dongle (Not Included)

Dimensions: 315 x 228 x 84 mm

Fanvil's FAN-V62W is a WiFi 6 desktop phone featuring dual Gigabit Ethernet ports, 12 SIP lines, Bluetooth & Opus support, integrated hall switch and a 2.8' colour LCD display. The FAN-V62W is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom, etc.

*Note: Designed for use with a PoE switch or injector (not included). Alternatively, use with PSU-5V10W DC power supply, sold separately.
Bluetooth Support: Bluetooth 5.4
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 6.7W
Headset Port: 1x RJ9
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at PoE
Power Input: 5V 1A (Not included) or 802.3af/at PoE
SIP Lines: 12
WiFi Support: Dual Band WiFi 6

Dimensions: 295 x 222 x 56 mm

8 Independent 100MPS POE ports; Video Content Analytics; 1-Ch Audio input; HDMI and VGA output at up to 1920×1080P; 1x SATA interface(Up to 6TB); Mini 1U case; 12VDC
Description
NVR-108-B
8-ch Mini 1U 4 PoE 4K NVR
Connectable to the third-party network cameras
Up to 8 network cameras can be connected
H.264+ compression effectively reduces the storage space and costs by up to 50%
Full channel recording at up to 4 MP resolution
HDMI/VGA output at 1080p resolution
2-ch playback at 4 MP resolution or 4-ch at 1080p resolution
1 SATA hard disk can be connected with 6TB capacity
HDD quota management: different capacity can be assigned to different channel
Supports line crossing detection and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the
playback efficiency
One-key operation: automatically search, modify and add IP cameras after device is
activated
Hik-Connect and DyDDNS for easy network management
100 Mbps Ethernet network interface

General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)
