The Reolink RLC‑820A is a 4K Ultra HD PoE dome camera engineered for sharp, reliable, and intelligent outdoor surveillance. With AI‑powered person, vehicle, and pet detection, it filters out false alerts from shadows, insects, and moving leaves. Its 18× IR LEDs deliver up to 30m night vision, while the F1.6 fixed lens and 1/2.49" CMOS sensor ensure crisp detail day and night. The IP66 weatherproof housing, PoE single‑cable installation, and multiple recording options make it ideal for homes, businesses, and high‑traffic outdoor areas.

✅ Key Specifications
4K Ultra HD (3840×2160) clarity
AI person/vehicle/pet detection
18× IR LEDs with 30m night vision
Time‑lapse recording support
PoE single‑cable power & data
microSD/NVR/FTP storage options
IP66 weatherproof dome housing

✅ Technical Details
Feature Details
Image Sensor 1/2.49" CMOS sensor
Resolution 4K Ultra HD (3840×2160)
Lens Fixed 2.8mm, F1.6
Night Vision 18× IR LEDs, up to 30m
Video Compression H.264, H.265
Field of View 87° horizontal, 44° vertical
Audio Built‑in microphone (one‑way)
Detection AI person/vehicle/pet
Connectivity PoE (IEEE 802.3af), RJ45
Storage microSD (256GB), FTP, NVR
Weatherproof IP66
Operating Temperature –10°C to 55°C

The Reolink RLC‑81PA is a 4K Ultra HD PoE security camera designed for wide‑area coverage with its 180° horizontal pan rotation. Control the camera remotely via the Reolink App/Client and set custom preset points for instant monitoring of key zones. With color night vision, multiple night modes, AI detection, active deterrence, and two‑way audio, it delivers powerful, intelligent protection for homes and businesses. The rugged IP67 aluminum housing, PoE installation, and flexible recording options make it a reliable, long‑term surveillance solution.

✅ Key Specifications
4K Ultra HD (3840×2160) clarity
180° horizontal pan rotation
Color night vision with spotlight
Multiple night modes (IR, color, smart)
AI detection: person, vehicle, pet
Active deterrence: siren + spotlight
Two‑way audio (mic + speaker)
Time‑lapse recording support
PoE single‑cable installation
microSD/NVR/FTP storage options
IP67 weatherproof aluminum housing

✅ Technical Details
Feature Specification
Resolution 4K Ultra HD (3840×2160)
Pan Range 180° horizontal
Night Vision IR up to 30m + color spotlight
Detection AI person, vehicle, pet
Audio Two‑way
Installation PoE (Power over Ethernet)
Storage microSD (256GB), NVR, FTP
Weather Rating IP67
Operating Temperature –10°C to 55°C
Housing Rugged aluminum
Dimensions — (not provided by Reolink)

The Reolink RLC‑81MA is a 4K Ultra HD dual‑lens PoE security camera designed to eliminate blind spots with simultaneous panoramic and telephoto views. Its 109° wide‑angle lens captures the full scene, while the telephoto lens provides detailed close‑ups — all displayed side‑by‑side in one unified feed. With AI‑powered person, vehicle, and pet detection, active deterrence, two‑way audio, and flexible night vision modes, it delivers professional‑grade protection for homes and businesses. The IP66 weatherproof housing, PoE installation, and multiple recording options make it a powerful, long‑term surveillance solution.

✅ Key Specifications
Dual‑lens panoramic + telephoto dual view
4K Ultra HD 8MP resolution
Flexible night vision: B&W, color, smart
AI detection: person, vehicle, pet
Active deterrence: siren + spotlights
Two‑way audio (mic + speaker)
Time‑lapse recording (wide‑angle only)
PoE single‑cable installation
microSD/NVR/FTP storage options
IP66 weatherproof housing

✅ Technical Details
Feature Specification
Resolution 4K Ultra HD (3840×2160)
Lenses Dual (wide‑angle + telephoto)
Field of View 109° panoramic + telephoto close‑up
Night Vision IR up to 30m + full‑color spotlight
Detection AI person, vehicle, pet
Deterrence Siren + dual spotlights
Audio Two‑way (mic + speaker)
Installation Power over Ethernet (PoE)
Storage microSD (256GB), NVR, FTP
Weather Rating IP66
Operating Temperature –10°C to

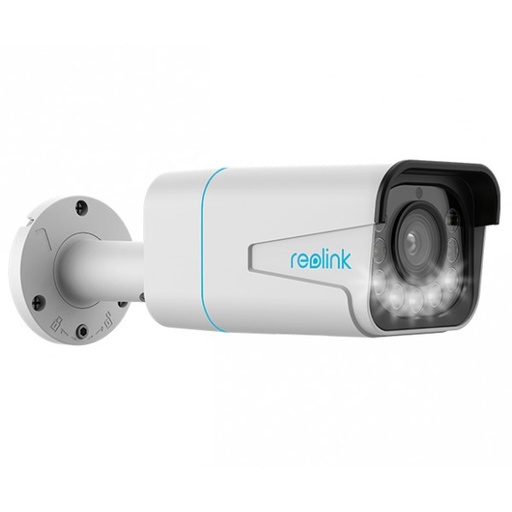

The Reolink RLC‑811A is a 4K Ultra HD PoE security camera built for powerful, intelligent protection. With AI‑powered person, vehicle, and pet detection, it filters out false alerts from shadows, insects, and tree movement so you only get notifications that matter. The built‑in dual spotlights and siren provide active deterrence, while the 5× optical zoom and motorized varifocal lens deliver flexible, high‑detail coverage. Enjoy full‑color night vision, two‑way audio, PoE installation, and multiple recording options, all inside a durable IP66 weatherproof housing.

✅ Key Specifications
4K Ultra HD (3840×2160) clarity
AI person/vehicle/pet detection
Active deterrence: spotlights + siren
Two‑way audio (mic + speaker)
5× optical zoom (31°–105° FoV)
Full‑color night vision with spotlights
30m IR night vision
PoE single‑cable installation
microSD/NVR/FTP/Cloud storage options
IP66 weatherproof housing

✅ Technical Details
Feature Specification
Resolution 4K Ultra HD (3840×2160)
Lens Motorized varifocal, 5× optical zoom (31°–105° FoV)
Night Vision IR up to 30m + full‑color spotlight mode
Audio Two‑way (microphone + speaker)
Deterrence Siren + dual spotlights
Detection AI person/vehicle/pet recognition
Connectivity PoE (Power over Ethernet)
Storage microSD (256GB), NVR, FTP, Cloud
Weather Rating IP66
Operating Temperature –10°C to 55°C
Dimensions 238 × 90 × 90

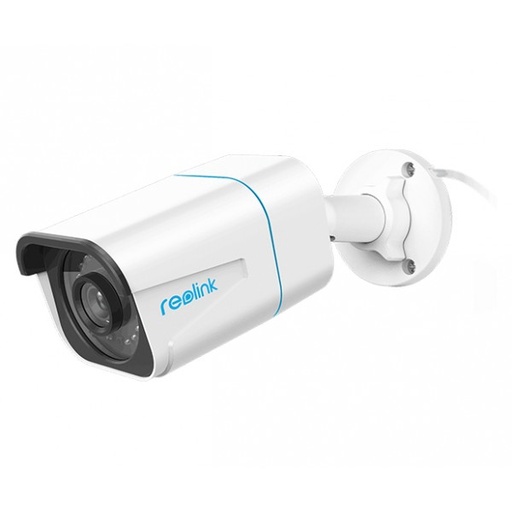

The Reolink RLC‑810A is a 4K Ultra HD PoE security camera built for high‑precision monitoring with AI‑powered person, vehicle, and pet detection. Its advanced motion analysis filters out irrelevant triggers like insects, shadows, and moving branches, ensuring you only receive alerts that matter. With 18× IR LEDs, 100ft night vision, and PoE single‑cable installation, it delivers professional‑grade performance for homes, businesses, and multi‑camera setups. The IP66 weatherproof housing and flexible microSD/NVR/FTP storage options make it a durable, long‑term surveillance solution.

✅ Key Specifications
4K Ultra HD (3840×2160) clarity
AI person/vehicle/pet detection
18× IR LEDs with 30m night vision
Time‑lapse recording support
PoE single‑cable power & data
Reolink NVR compatible
IP66 weatherproof housing
microSD/NVR/FTP/Cloud storage options

✅ Technical Details
Feature Specification
Resolution 4K Ultra HD (3840×2160)
Lens Fixed 4.0mm
Night Vision 18× IR LEDs, up to 30m
Audio None (video only)
Detection AI person/vehicle/pet
Connectivity PoE (Power over Ethernet)
Storage microSD (256GB), NVR, FTP, Cloud
Weather Rating IP66
Operating Temperature –10°C to 55°C
Dimensions 186 × 66 × 66 mm

The Reolink RLC‑520A is a 5MP Super HD PoE dome camera built for reliable, discreet, and accurate outdoor monitoring. With AI‑powered person and vehicle detection, it filters out false alerts from insects, rain, and moving branches, ensuring you only get notifications that matter. Its 18× IR LEDs deliver up to 30m night vision, while the built‑in microphone adds valuable audio context. The IP66 weatherproof dome, PoE single‑cable installation, and microSD/NVR/FTP storage options make it ideal for entrances, high‑traffic areas, and commercial environments.

✅ Key Specifications
5MP Super HD (2560×1920) clarity
AI person & vehicle detection
18× IR LEDs with 30m night vision
Built‑in microphone for audio capture
Time‑lapse recording support
PoE single‑cable power & data
Reolink NVR compatible
IP66 weatherproof dome housing
microSD/NVR/FTP/Cloud storage options

✅ Technical Details
Feature Specification
Resolution 5MP (2560 × 1920)
Lens Fixed 4.0mm
Night Vision 18× IR LEDs, up to 30m
Audio Built‑in microphone
Detection AI person/vehicle
Connectivity PoE (Power over Ethernet)
Storage microSD (256GB), NVR, FTP, Cloud
Weather Rating IP66
Operating Temperature –10°C to 55°C
Dimensions 108 × 93 mm

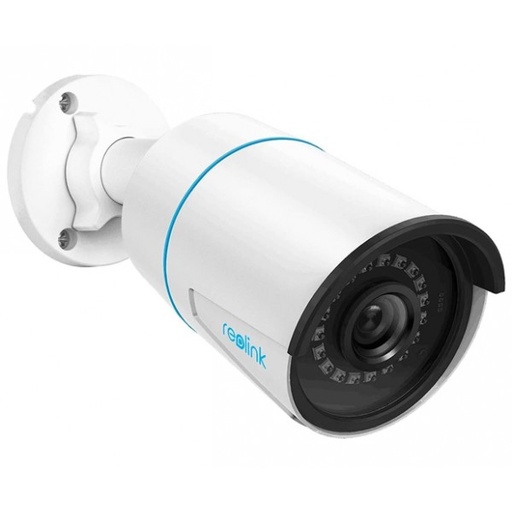

The Reolink RLC‑510A is a 5MP Super HD PoE security camera designed to deliver accurate, reliable protection with AI‑powered person and vehicle detection. Its advanced motion analysis filters out shadows, insects, and tree movement, ensuring you only receive alerts that matter. With 30m infrared night vision, a built‑in microphone, and PoE single‑cable installation, it’s ideal for homes, offices, and retail environments. The IP66 weatherproof housing, microSD/NVR/FTP storage options, and time‑lapse recording make it a versatile and dependable surveillance solution.

✅ Key Specifications
5MP Super HD (2560×1920) clarity
AI person & vehicle detection
18× IR LEDs with 30m night vision
Built‑in microphone for audio recording
Time‑lapse recording support
PoE single‑cable power & data
Reolink NVR compatible
IP66 weatherproof housing
microSD/NVR/FTP/Cloud storage options

✅ Technical Details
Feature Specification
Resolution 5MP (2560 × 1920)
Lens Fixed 4.0mm
Night Vision 18× IR LEDs, up to 30m
Audio Built‑in microphone
Detection AI person/vehicle
Connectivity PoE (Power over Ethernet)
Storage Options microSD (256GB), NVR, FTP, Cloud
Operating Conditions –10°C to 55°C
Weatherproof IP66
Dimensions 186 × 66 × 66 mm

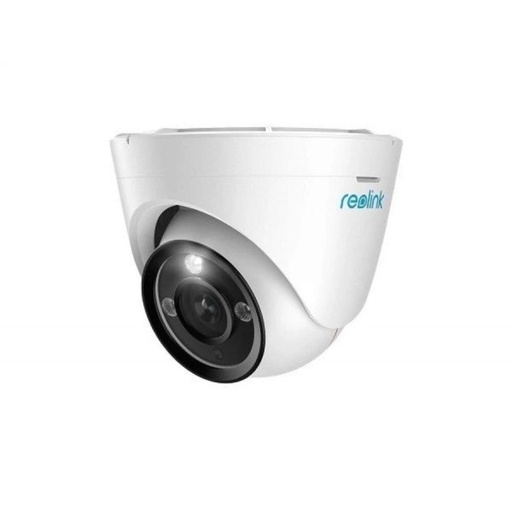

The Reolink RLC‑1224A is a 12MP Ultra HD PoE security camera engineered for forensic‑grade clarity. With 4000×3000 resolution, an F1.6 super‑aperture lens, and dual night vision (color spotlight + 100ft IR), it captures every detail in both daylight and darkness. AI‑powered detection for people, vehicles, and pets ensures accurate alerts, while forensic zoom allows clear identification of license plates up to 50ft away. Built with IP67 weatherproofing, PoE single‑cable installation, and triple storage options, the RLC‑1224A is ideal for businesses, high‑security homes, and long‑range monitoring.

✅ Key Specifications
12MP Ultra HD resolution
F1.6 super‑aperture low‑light lens
Dual night vision: color + 100ft IR
AI detection: people, vehicles, pets
Forensic zoom for license plate capture
Two‑way audio with noise‑canceling mic
PoE 802.3af single‑cable installation
IP67 weatherproof housing
microSD/NVR/FTP storage options

✅ Technical Details
Feature Specification
Resolution 12MP (4000 × 3000 @ 20fps)
Sensor 1/1.7" CMOS
Night Vision Color spotlight + IR (100 ft)
Smart Detection People, Vehicles, Pets
Audio Two‑way (noise‑canceling)
PoE Standard 802.3af (15.4W)
Weatherproof

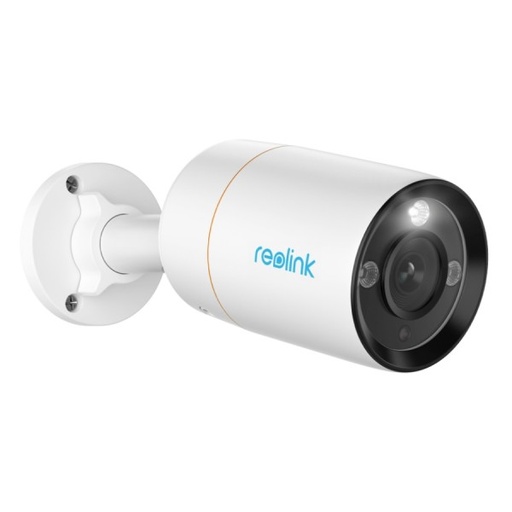

The Reolink RLC‑1212A is a forensic‑grade 12MP Ultra HD PoE+ security camera engineered for maximum detail capture. With 4000×3000 resolution, an F1.6 super‑aperture lens, and true color night vision, it delivers evidence‑level clarity day and night. The advanced 1/1.7" CMOS sensor captures more light than standard 4K cameras, while AI detection for people, vehicles, and pets ensures accurate alerts with minimal false triggers. Featuring PoE+ power, two‑way audio, IP67 weatherproofing, and triple storage options, the RLC‑1212A is ideal for businesses, high‑security homes, and long‑range identification tasks such as license plate capture.

✅ Key Specifications
12MP Ultra HD (4000×3000) clarity
F1.6 super‑aperture lens for enhanced low‑light capture
True color night vision + 100ft IR
AI detection: people, vehicles, pets
Forensic zoom for license plate identification
Two‑way audio with noise‑canceling mic
PoE+ 802.3at 30W power delivery
IP67 weatherproof housing
microSD/NVR/FTP storage with AES‑256 encryption

✅ Technical Details
Feature Specification
Resolution 12MP (4000 × 3000 @ 20fps)
Sensor Size 1/1.7" CMOS
Night Vision Color spotlight + IR (100 ft)
Smart Detection People, Vehicles, Pets
Audio Two‑way (noise‑canceling mic)
PoE Standard 802.3at (30W)
Weatherproof IP67
Warranty 2‑Year Limited

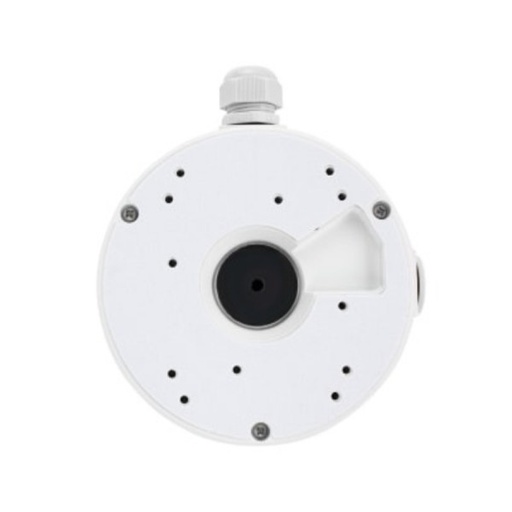

🔥 Problem-Solving Description

Enterprise-Grade Protection for Dome Camera Installations

🛡️ Military-Grade Protection:
• Aerospace Aluminum Alloy - Corrosion-resistant in extreme climates (-40°F to 185°F)
• IP68 Waterproof - Submersible up to 1m for flood-prone areas

🔧 Smart 4-Port Design:
• Multi-Camera Support:

Hole A: D400/D800/820A/822A/833A

Hole B: 842A/542WA

Hole C: E1 Outdoor Series

Hole D: 823A/523WA
• Tool-Less Latches - Secure cables in <15 seconds

📸 Perfect for:
✔ Commercial Installations - Shopping malls, parking lots
✔ Harsh Environments - Coastal areas, industrial sites
✔ Neat Cable Management - Hide PoE/RJ45 connections
📊 Technical Specifications Table
Feature Detail
Material AL6061 Aluminum + PC/ABS
Protection IP68 (1m/30min waterproof)
Cable Capacity 4× RJ45 + power (25mm max cable diameter)
Dimensions 5.9×4.7×2.8 in (150×120×70mm)
Weight 1.1 lbs (500g)

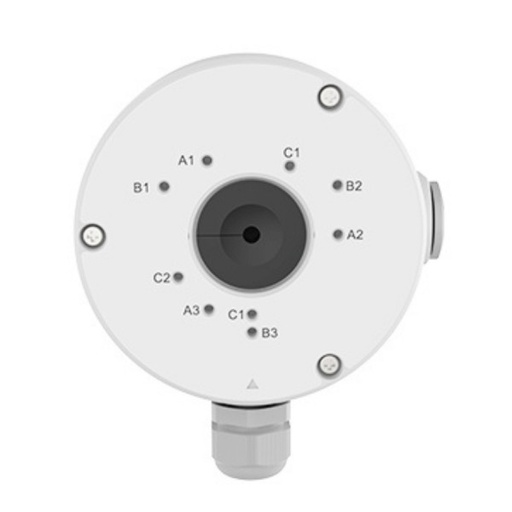

🔥 Problem-Solving Description

Professional-Grade Protection for Your PoE Camera Connections

🛡️ Ultimate Weather & Vandal Protection:
• Aircraft-Grade Aluminum - Rust-proof and durable in extreme temperatures (-40°F to 150°F)
• IP66 Waterproof - Fully sealed against rain, snow, and dust

🔧 Hassle-Free Installation:
• Tool-Free Design - Secure cables in seconds with screwless clamps
• 360° Rotatable Base - Flexible mounting for perfect camera alignment

📸 Perfect Compatibility:
• Designed for: B400 • RLC-410 • RLC-511 • RLC-810A/811A/812A
• Fits: All standard RJ45 connectors (including bulky weatherproof plugs)

⚡ Bonus: Includes silicone sealant ring for extra waterproofing
📊 Technical Specifications Table
Feature Detail
Material Aluminum Alloy + ABS
Protection IP66 Waterproof/Dustproof
Cable Entry 2× 3/4" Knockouts
Dimensions 4.7 x 3.1 x 2.4 inches
Weight 0.66 lbs

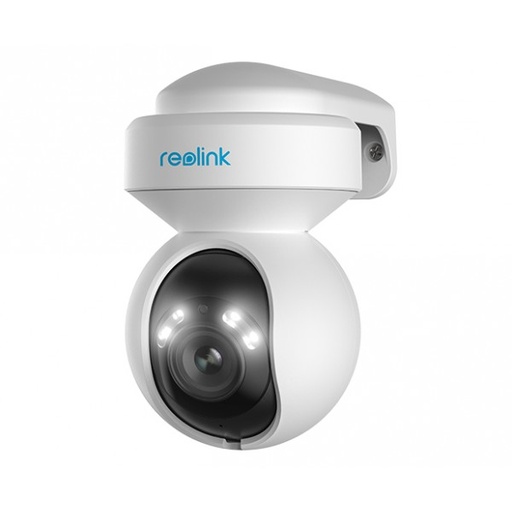

The Reolink E1 Outdoor PoE is a compact yet powerful 4K PTZ security camera designed for discreet, intelligent monitoring. With 355° pan, 50° tilt, and auto‑tracking, it keeps people and vehicles perfectly centered in the frame. The dual‑light system delivers full‑color night vision, while AI detection ensures accurate alerts with minimal false triggers. Featuring PoE installation, two‑way audio, hyperlapse recording, and Alexa/Google integration, the E1 Outdoor PoE is ideal for homes, retail spaces, and Airbnb properties needing high‑performance surveillance in a small form factor.

✅ Key Specifications
4K Ultra HD resolution
355° pan + 50° tilt PTZ control
Auto‑tracking for people/vehicles
3000K warm‑light color night vision
IR night vision up to 30 ft
AI detection: people, vehicles
Two‑way audio
PoE 802.3af single‑cable installation
Hyperlapse/time‑lapse recording
IP66 weatherproof housing
Works with Alexa & Google Assistant

✅ Technical Details
Feature Specification
Resolution 4K (3840 × 2160 @ 25fps)
PTZ Range 355° pan / 50° tilt
Night Vision Color (3000K) + IR up to 30 ft
Smart Detection People, Vehicles
Audio Two‑way (mic + speaker)
PoE Standard 802.3af (15.4W)
Weatherproof IP66

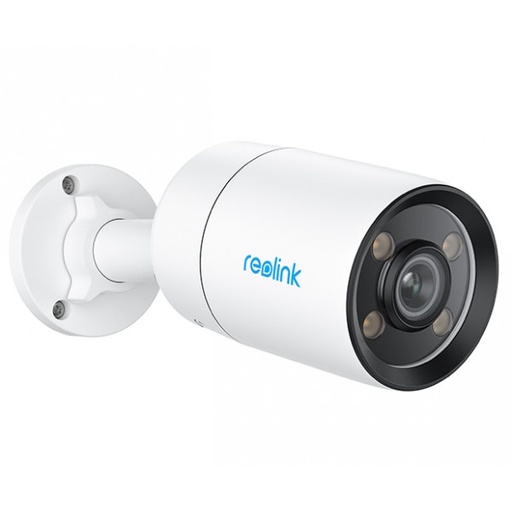

The Reolink CX410 is a next‑generation 4MP 2K PoE security camera engineered for unmatched low‑light performance. Featuring ColorX technology, a F1.0 super aperture, and a 1/1.8" advanced sensor, it captures true full‑color footage even at 0.0001 lux, delivering clarity where most cameras fail. The built‑in 3000K warm light, AI smart detection, and dual deterrent system (spotlight + siren) provide intelligent, proactive protection. With PoE installation, two‑way audio, and NVR compatibility, the CX410 is ideal for homes, businesses, and wildlife monitoring.

✅ Key Specifications
4MP 2K ColorX full‑color night vision
F1.0 super aperture + 1/1.8" sensor
3000K adjustable warm light
AI detection: people, vehicles, pets
Dual deterrent: spotlight + siren
PoE single‑cable installation
Two‑way audio
Works with Reolink NVRs (RLN8/16‑410)
IP67 weatherproof housing

✅ Technical Details
Feature Specification
Resolution 4MP (2560 × 1440 @ 30fps)
Night Vision ColorX (0.0001 lux) + IR up to 30 ft
Lens F1.0, 2.8mm fixed (110° FOV)
Smart Detection People, Vehicles, Pets
Audio Two‑way (mic + speaker)
PoE Standard 802.3af (15.4W)
Weatherproof IP67

The Reolink RLN8‑410 is a complete, ready‑out‑of‑the‑box 4K surveillance hub for homes and small businesses. With an integrated 8‑port PoE switch, it powers and connects up to eight 8MP/4K Reolink cameras using single Ethernet cables and auto‑detects them for true plug‑and‑play setup. H.265+ compression extends retention without sacrificing clarity, while the pre‑installed 6 TB HDD provides ample space for continuous 24/7 recording. Smart person/vehicle detection delivers focused alerts, and 4K HDMI output ensures crystal‑clear local monitoring.

Key features:

Crystal‑clear monitoring: 8 channels at up to 8MP/4K; smooth 3840×2160 @ 25 fps per channel.
Storage built‑in: 6 TB HDD pre‑installed for long retention; expandable for larger archives.
Efficient compression: H.265+ reduces storage needs by up to 80% vs. H.264.
Simplified installation: 8 × PoE ports (15.4 W/port); auto camera discovery for zero‑config setup.
Smart security: AI person/vehicle detection; app‑based smart alerts and remote playback.
Flexible outputs: 4K HDMI for primary display, 1080p VGA for secondary.
Perfect use cases: Whole‑property 4K security, retail/office/warehouse coverage, and easy expandability for tech enthusiasts.

Technical specifications:

Feature Specification
Video input 8 channels @ 8MP (3840×2160 @ 25 fps)
Compression H.265+, H.265, H.264
PoE ports 8 × PoE, 15.4 W per port
Smart detection People, vehicles (NVR and/or camera‑side)
Video outputs 4K HDMI, 1080p VGA
Storage (included) 1 × 6 TB HDD (pre‑installed)
Storage (max) Up to 12 TB total capacity
Plug‑and‑play Auto‑detects Reolink cameras
Note: AI features and frame rates depend on camera capabilities. For third‑party ONVIF cameras, confirm stream compatibility and PoE power requirements.

What’s included:

NVR: Reolink RLN8‑410 with 6 TB HDD pre‑installed
Accessories: Power adapter, USB mouse, quick start guide
Cabling: Ethernet cables and cameras are typically sold separately

Deployment tips:

Power budget: 15.4 W per port suits most fixed‑lens cameras; PTZ or high‑draw models may need external PoE injectors/switches.
Retention planning: Use H.265+ and motion recording with smart filters to extend storage without losing key events.
Network hygiene: Place cameras on a dedicated VLAN, enforce strong credentials, and keep firmware up to date.
Display setup: Use 4K HDMI for your main wall and 1080p VGA for a secondary console.

Built for demanding, always-on environments, the Reolink RLN16-410 is a 16‑channel PoE NVR that’s truly ready to deploy. With 16 integrated PoE ports (15.4 W each), it powers and connects cameras over single cables, auto‑detects Reolink cameras for instant setup, and supports up to 12MP/4K streams for ultra‑detailed monitoring. H.265+ compression maximizes retention, while the pre‑installed 4 TB HDD and expansion up to 24 TB keep 24/7 recordings accessible. AI person/vehicle detection helps cut false alerts, and 4K HDMI ensures local monitoring at full resolution.

Key features:

All‑in‑one PoE: 16 built‑in PoE ports (15.4 W/port) for power + data over single cables; true plug‑and‑play with Reolink cameras.
Ultra HD support: Compatible with 12MP/4K cameras; 4K HDMI output for sharp local viewing.
Efficient storage: H.265+ compression for reduced bandwidth and storage; pre‑installed 4 TB HDD, expandable up to 24 TB (4 × 6 TB).
AI detection: On‑device smart person/vehicle recognition to reduce false alarms.
Scalable performance: 16 channels at high resolution for multi‑site and enterprise deployments.
Flexible outputs: 4K HDMI + 1080p VGA for versatile monitoring setups.
Deploy anywhere: Ideal for retail, warehouses, offices, estates, farms, and multi‑building sites.

Technical specifications:

Feature Spec
Channels 16 (supports up to 12MP; 8MP at 30 fps)
PoE ports 16 × PoE, 15.4 W per port
Compression H.265+, H.265, H.264
Smart detection People, vehicles
Video outputs 4K HDMI, 1080p VGA
Storage (included) 1 × 4 TB HDD (pre‑installed)
Storage (max) Up to 24 TB (4 × 6 TB)
Plug‑and‑play Auto‑detects Reolink cameras

Tip: For non‑Reolink ONVIF cameras, confirm stream compatibility (codec, resolution, frame rate) and PoE power requirements.

What’s included:

NVR: Reolink RLN16‑410 with 4 TB HDD pre‑installed
Power & accessories: NVR power adapter, mouse, quick start guide
Note: Ethernet cables and cameras are typically sold separately

Deployment recommendations:

Power planning: The total PoE budget is bound by the NVR’s PSU; high‑draw cameras (PTZ, heaters) may need external PoE injectors/switches.
Storage strategy: Use H.265+ where supported; set motion‑based recording with AI filters to extend retention.
Network setup: Isolate camera VLANs for security; enable remote access via secure ports or Reolink app with strong credentials.
Display & monitoring: Use the 4K HDMI output for local multi‑camera walls; VGA for secondary stations.

AX1800 Wi-Fi 6 dual-band Gigabit ceiling mount Indoor Access Point, dual Gigabit LAN uplink ports, built-in antennas, dual-band 2.4GHz/5GHz, 802.11ax, 802.11ac wave2/wave1, up to 1775Mbps
Ruijie Cloud app management; DC 12V/1.5A or POE (Note: power adapter not included)
Coverage 50m+ or 25m+ radius, users 100 max 512
Reyee CAP
Wireless Protocol 802.11ax (Wi-Fi 6), 1775Mbps
Antenna Built-in Omni-directional
Recommended Clients 512/100
Certifications CE, ROHS
MIMO 2x2 @2.4 GHz, 2x2 @5 GHz
Reyee switches
10/100/1000M Base-T ports 2
Dimensions 194mm × 194mm × 35mm
Weight 0.56kg (excluding mounting Kits)
Power consumption <15.3W
Power supply 802.3at PoE, 12V/1.5A DC Adaptor
Operating temperature 0°C~40°C
Warranty 3 Years

HiLook 24-Port 100 Mbps Long-Range Unmanaged PoE Switch
Unmanaged switch with 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
All ports support 6 kV lighting protection
230 W PoE power budget
Maximum transmission distance is 250 meters for port 17 to 24 in "extend" mode
MAC address auto learning and auto aging

Port number24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority ports Ports 1 to 8
Ports for long-distance transmission Ports 17 to 24
MAC address table4 K
Switching capacity8.8 Gbps
Packet forwarding rate6.547 Mpps
Internal cache2.75 Mbits
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE port Ports 1 to 24
Max. port power30 W
PoE power budget230 W
Max. power consumption250 W
Shell Metal material
Gross weight3.33 kg (7.34 lb)
Net weight2.55 kg (5.6 lb)
Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity5% to 95% (no condensation)
Storage humidity5% to 95% (no condensation)
Power supply100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle20 W

16 Port Fast Ethernet Unmanaged POE Switch
Unmanaged switch with 16 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
All ports support 6 kV lighting protection
130 W PoE power budget
Maximum transmission distance is 250 meters for port 9 to 16 in "extend" mode
MAC address auto learning and auto aging
General
Shell Metal material
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Storage humidity5% to 95% (no condensation)
Net weight1.8 kg (4.0 lb)
Gross weight2.58 kg (5.69 lb)
Dimension (L × H × D)266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle20 W

Network parameters
Port number16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
MAC address table4 K
Switching capacity7.2 Gbps
Packet forwarding rate5.356 Mpps
Internal cache2.75 Mbits
High priority ports Ports 1 to 8
Ports for long-distance transmission Ports 9 to 16
PoE power supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE portPorts 1 to 16
Max. port power30 W
PoE power budget130 W
Max. power consumption150 W

8 Port Fast Ethernet Unmanaged POE Switch

Unmanaged switch with 8 x 100 Mbps PoE ports, 1 x 100 Mbps RJ45 port
All ports support 6 kV lighting protection
60 W PoE power budget
Maximum transmission distance is 250 meters for port 1 to 8 in "extend" mode
MAC address auto learning and auto aging
General
Shell Metal material, fan-free design
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply48 VDC, 1.35 A
Storage humidity5% to 95% (no condensation)
Net weight0.35 kg (0.77 lb)
Gross weight0.89 kg (1.96 lb)
Dimension (L × H × D)170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle5 W
Network parameters
Port number8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
MAC address table2 K
Switching capacity1.8 Gbps
Packet forwarding rate1.339 Mpps
Internal cache1 Mbits
High priority ports Ports 1 to 2
Ports for long-distance transmission Ports 1 to 8

Port Fast Ethernet Unmanaged POE Switch

Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port
All ports support 6 kV lighting protection
35 W PoE power budget
Maximum transmission distance is 250 meters
MAC address auto learning and auto aging

General
ShellMetal material, fan-free design
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply48 VDC, 0.8 A
Storage humidity5% to 95% (no condensation)
Net weight 0.2 kg (0.4 lb)
Gross weight 0.48 kg (1.06 lb)
Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle3 W
PoE power supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE port Ports 1 to 4
Max. port power30 W
PoE power budget35 W
Max. power consumption38 W
