UltraLAN Multi-Function Fiber & Network Cable Tester

The UltraLAN FIB-T-MPCT-OPM-VFL is a powerful hybrid tester combining RJ45 cable diagnostics with fiber optic testing — making it the ultimate tool for both copper and fiber environments. In addition to standard network functions like cable tracing, pin sequence checks, length measurement (up to 600m), and PoE diagnostics, this unit also features an integrated Optical Power Meter (OPM) and Visual Fault Locator (VFL). These built-in fiber tools enable quick and accurate identification of optical signal strength, fiber continuity, and break detection — all from one compact device. Ideal for technicians working across both wired and fiber infrastructure.

Support for PoE testing up to 90W (IEEE 802.3bt/at/af and non-standard) makes it perfect for CCTV, VoIP, and access control setups. Additional features include switch port flashing, cable tracing with adjustable sensitivity, NCV detection for live wires, and optional built-in modules for optical power measurement and visual fault location.

Key Features:

Tests RJ45 cable sequence, continuity, crimping quality, and pin faults
Cable length test up to 600m with ±3% accuracy
Real-time PoE testing (IEEE 802.3af/at/bt) up to 90W: Voltage, power, polarity
Switch/router port identification using port flash mode
Digital cable tracer with adjustable sensitivity and anti-interference design
NCV detection with live/neutral wire identification and audible alerts
Optical Power Meter (optional): -70 to +6 dBm, 850–1650nm wavelengths
Visual Fault Locator (optional): 10mW red laser, 650nm, range up to 10km
LED light and auto power-off features

Specifications:

General:

Display: 3" high-contrast LCD
Operating Temperature: -10°C to +50°C
Operating Humidity: 30%–90%
Power: 3x AA batteries (emitter), 2x AA batteries (receiver)

Network Cable Testing

Supported Cable Types: RJ45 (UTP/STP), RJ11, low-voltage metal cables
Cable Length Measurement: 1–600m (±3% ±1m accuracy)
Wiremap Test: Detects open, short, miswire, cross, and split pairs
Continuity Test: Pin-level fault detection and crimp verification
Port Flashing: Locates switch/router ports and identifies 100M/1000M link speed
PoE Testing: Supports IEEE802.3af/at/bt and non-standard PoE detection
Power supply pinout, polarity, real-time voltage & wattage (0–90W load)
Cable Tracer: Anti-interference digital signal tracing with adjustable sensitivity
NCV Function: Detects AC voltage in cables and power outlets

Fiber Testing:

Optical Power Meter (OPM):
Supported Wavelengths: 980, 1270, 1300, 1577, 1650nm
Measurement Range: -70 to +6 dBm
Features: Real-time optical power display, wavelength selection, REF mode for fiber loss comparison, and user calibration support
Visual Fault Locator (VFL):
Output Power: 10mW
Wavelength: 650nm red laser
Modes: Continuous and pulse (1Hz, 2Hz)
Detection Range: Up to 10km — ideal for locating fiber breaks, cracks, and bends

Reyee's RG-ES210GSP is a 10 port Layer 2 Gigabit smart switch with 8x 802.3af/at PoE ports, 2x Gigabit Ethernet uplink ports and 1x SFP Combination Port. The switch offers a 120W PoE budget and up to 30W per PoE port. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 10x 10/100/1000
Hardware Button: None
Max. Power Consumption: 10W
Mounting: Desktop or Wall Mount
Operating System: None
Operating temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 8
Power Input: 54V 2.4A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x SFP Combo Port
Supported Voltage Range: 54V

Dimensions: 202 x 108 x 28mm
Weight: 539g

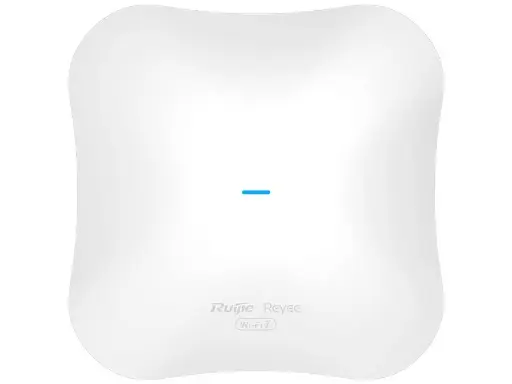

Reyee's RG-RAP72PRO is a WiFi 7 (802.11be) dual band ceiling mount access point featuring 1x 2.5Gbps Ethernet port, 1x Gigabit Ethernet port, seamless roaming and speeds of up to 5040Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: This device requires an 802.3at PoE injector or 12V 2.5A Power Supply which are not included.

Specifications
Antenna Gain: 2.4GHz: 3dBi; 5GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 688Mbps; 5GHz: 4323Mbps
Ethernet Ports: 1x 10/100/1000/2500 ; 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Wall or Ceiling Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3at
PoE Output: None
Power Input: 802.3at or 12V 2.5A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 12V (DC Input)
USB Ports: None
Dimensions: 208 x 208 x 40mm
Weight: 650g

8-ch 720p Mini 1U H.265 DVR Deep learning based human and vehicle targets classification of Motion Detection 2.0 H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Audio via coaxial cable Up to 10-ch IP camera input (up to 5 MP) Encoding ability up to 1080p lite @ 15 fps Max. 1200 m for 720p HDTVI signal Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; SATA 1 SATA interface Capacity Up to 4 TB capacity for each disk

Product Overview

The 8-ch 720p Mini 1U H.265 DVR features deep learning-based motion detection 2.0, enabling accurate human and vehicle classification to reduce false alarms. It supports H.265 Pro+/H.265 Pro/H.265 video compression and various video inputs, including HDTVI, AHD, CVI, CVBS, and IP, with up to 10 IP camera inputs. Equipped with a SATA interface for storage up to 4TB, it offers efficient recording and playback capabilities.

Features

•Deep learning based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Audio via coaxial cable
•Up to 10-ch IP camera inputs (up to 5 MP)
•Up to 1080p Lite@15 fps encoding capability
•Max. 1200 m for 720p HDTVI signal

Specifications

•Product Code: DS-7108HGHI-M1
•Description: Hikvision DS-7108HGHI-M1 DVR
•Power Supply: 12 VDC, 1.5 A
•Consumption: ≤ 17 W (without HDD)
•Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)
•Working Humidity: 10% to 90%
•Dimension (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
•Weight: ≤ 1 kg (without HDD, 2.2 lb.)
•Total Bandwidth: 72 Mbps
•Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPTM, HTTPS
•Remote Connection: 64
•Network Interfac : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
•ideo Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF
•For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
•Main stream:
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
•4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
•Video Bitrate : 32 Kbps to 4 Mbps
•Stream Type : Video, Video & Audio
•Audio Compression : G.711u
•Audio Bitrate : 64 Kbps

HiLook 8CH Hybrid DVR High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 8 Channel Analog and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA and 8-ch via coaxial cable Audio via coaxial cable, SATA Interface Support up to 4TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 5 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Deep learning based human and vehicle targets classification of Motion Detection 2.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cellphone, Retail Box , 1 year warranty

Product Overview
HiLook 8CH Hybrid DVR High Definition Stand Alone DVR

Features

•H.265 Pro+/H.265 Pro/H.265 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Up to 10-ch IP camera input (up to 5 MP)

Specifications

•Product code: DVR-108G-M1
•Description: HiLook 8CH Hybrid DVR High Definition Stand Alone DVR
•Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
•Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF
•For SD stream access: WD1/4CIF/VGA/CIF
•Main stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
•For 1080p and 720p stream access CIF/QVGA@15 fps
•For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
•Support H.265+/H.265/H.264+/H.264 IP cameras
•BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
•HDTVI Input:1080p25, 1080p30, 720p25, 720p30
•AHD Input: 1080p25, 1080p30, 720p25, 720p30
•HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
•HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
•Video Output Mode: HDMI/VGA simultaneous output
•Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ)
•Audio Output: 1-ch, RCA (Linear, 1 KΩ)
•TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
•1, RJ45 10/100 Mbps self-adaptive Ethernet interface
•Power Supply: 12 VDC, 1.5 A
•200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
•≤ 1 kg (without HDD, 2.2 lb.)

Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!


The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.


Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.


So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009.


The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general. One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.


With the new CCR2004, you can take your office network to the next level. Without breaking the bank.

Specifications

Ethernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Rack-Mount
Operating System: RouterOS v7 Only (Level 6 Licence)
Operating Temperature: -20°C to 60°C
PoE Input: None
PoE Output: None
Power Input: 36V-57V DC Jack or 2 Pin Terminal
Processor: 4 core 1.2GHz AL32400 ARM 64bit
Serial Interface: 1x RJ45 Serial Console Port
SFP Ports: 2x 10Gbps
Supported Voltage Range: 36V-57V
System Memory: 4GB
USB Ports: None
Weight & Dimensions
W : 21cm
L : 39cm
H : 6cm
Weight : 1460g

MikroTik Cloud Smart Switch CSS326-24G-2S+RM

The Cloud Smart Switch 326-24G-2S+RM is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwitchOS.

SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows you to manage port-to-port forwarding, apply MAC filtering, configure VLANs, mirror traffic, apply bandwidth limitations and even adjust some MAC and IP header fields. The SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.


Product Features:


Non-blocking Layer 2 switching capacity
16K host table
IEEE 802.1Q VLAN
Supports up to 4K simultaneous VLANs
Port isolation
Port security
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol
Access Control List
MikroTik neighbor discovery
SNMP v1
Web-based GUI

RouterBoard Specs

RouterBoard CPU Powered by a Marvell DX switch chip (98DX3216A1)
Wired Interfaces 24x Gigabit Ethernet Ports, 2x SFP+ Slots
DC Power Yes - 12-30V DC
PoE Yes, PoE input on Eth1 (12-30V DC - Non 802.3af PoE)
Operating System MikroTik SwitchOS

Specifications:
Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 19W
Mounting: Rack-Mount
Operating System: SwOS
Operating Temperature: -20°C to 70°C
PoE Input: 10V-30V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Processor: Switch Chip
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 10V-30V
System Memory: 2MB
USB Ports: None
Other: None
Weight & Dimensions
W : 20 cm
L : 56 cm
H : 7 cm
Weight: 1720 g

Intellinet PRO Serie R Network Dome,IR - (620 TV lines) 1/3" Sony Super HAD CCD image sensor for excellent image quality Vandal- and tamper-proof aluminum housing Up to 25 frames per second in all image resolutions Supports image resolutions up to 720 x 576 (D1) For surveillance in low light or nighttime conditions , minimum 0 lux (complete darkness) Equipped with an IR lens with 24 IR LEDs and 1 IR sensor IR sensitive, supports external IR illuminators Supports simultaneous MPEG4 and Motion-JPEG image compression Supports MPEG4 video streaming with CBR (constant bit rate) and VBR (variable bit rate) modes Supports HTTPS encryption for enhanced security RTSP (Real-Time Steaming Protocol) support Supports IEEE 802.3af Power over Ethernet injectors, mid- and endspans Controllable frame rate Video access through any standard Web browser Additional administrator functions include disabling the Camera LEDs during operation, disabling audio and/or video Audio support, Retail Box, 3 Year Warranty

Product Overview
The Intellinet Pro Series Network Dome Camera is designed for security surveillance applications and comes fully equipped with state-of-the-art features that set it apart from other network cameras on the market today.

Vandal-Proof Dome Housing
Not only is the housing small and discreet, it can also take a beating. Thanks to heavy-duty aluminium and the use of tamper-proof screws, the Network Dome Camera is well-protected.

Surveillance 24 Hours a Day, Even in Complete Darkness
The Pro-Series Night Vision Network Dome Camera is equipped with an IR lens which automatically engages as the light levels drop. The camera also supports third-party IR illuminators, allowing for the surveillance of larger areas.

Excellent Video Quality
The INTELLINET NETWORK SOLUTIONS Pro Series Network Dome Camera combines excellent image quality and very high light sensitivity for low-light video surveillance. The integrated Sony Super HAD CCD image sensor provides an astonishing 620 TV lines of image resolution — and it shows: Now you can really enjoy brilliant full-motion video in DVD resolution.

SSL Encryption
Secure network connections using data encryption between the camera and the network client means additional data security.

Dual Mode: Simultaneous MPEG4 + Motion-JPEG Streaming
The Pro Series Network Camera supports MPEG4 as well as Motion-JPEG video formats, providing superior quality and, at the same time, continuing to support existing applications (the law in most countries only accepts JPEG video format as evidence in court). MPEG4, on the other hand, allows you to transmit a larger amount of data over the same amount of bandwidth while providing smooth and seamless viewing.

Bi-Directional Audio Support
Attaching a microphone and loudspeakers to the Pro Series Network Camera will allow you to listen and talk using the two-way audio support. This is ideal for most security and surveillance applications, but can be applied to provide cost-effective video conferencing, as well.

Power over Ethernet
The Pro Series Network Camera supports the 802.3af standard, allowing it to be installed in locations where an AC power source is not readily available. Simply plug the camera into a PoE-compliant switch and begin transmitting power as well as data over the Cat5e or Cat6 network cabling.
Weight 0.242 kg
Dimensions 30.25 × 16.94 × 21.78 cm

HiLook 16-ch 5 MP 1U H.265 DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 8 MP)
Up to 8 MP@8 fps encoding capability

Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.

Video and Audio
IP Video Input 8-ch (up to 24-ch)
Enhanced IP mode on:
16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps,
4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20
fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps,
720p@30 fps, 720p@25 fps

CVBS Input PAL/NTSC
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×
1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable

Video Output Mode HDMI/VGA simultaneous output

Audio Output1-ch, RCA (Linear, 1 KΩ) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the
audio input) Synchronous playback16-ch

Network
Total Bandwidth128 Mbps Remote Connection128 Network ProtocolTCP/IP, PPPoE, DHCP,
HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA2 SATA interfaces
Capacity Up to 10 TB capacity for each disk
USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
General
Power Supply12 VDC, 5 A
Consumption≤ 25 W (without HDD)

4 MP Smart Hybrid Light MD 2.0 Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens MountM12
Iris Type Fixed
ApertureF1.6
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength850 nm
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
MaterialMetal & Plastic
Dimension184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight Approx. 270 g (0.6 lb.)
With Package Weight Approx. 481 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized varifocal lens for easy installation and monitoring
Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
DimensionØ141 mm × 99.9 mm (Ø5.6″ × 3.9″)
Package Dimension140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
WeightApprox. 820 g (1.8 lb.)
With Package WeightApprox. 1200 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR 1 SATA 12TB supports 2ch facial recognition or 4ch advanced perimeter VCA or 8ch Motion 2.0
Feature
8 channels and 1 HDD 1U AcuSense DVR
Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 4-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5M Lite @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 12 -ch network cameras can be connected
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Network
Remote Connection64
Total Bandwidth96 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
Serial InterfaceRS-485 (half-duplex)
SATA1 SATA interface, up to 10 TB capacity for each disk
Alarm In/OutN/A (optional to support)
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply12 VDC, 1.5 A
Consumption≤ 18 W (without HDD)
Working Temperature-10 °C to + 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight≤ 1.78 kg (3.9 lb) (without HDD)

Hikvision 16-ch 1080p Mini 1U H.265 AcuSense DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 6 MP)
Encoding ability up to 3K/5M Lite @ 12 fps

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported
Perimeter Protection
Line Crossing Detection/Intrusion Detection4-ch
Facial Detection
Facial Detection and CaptureFace picture detection, face picture search
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Network
Remote Connection128
Total Bandwidth128 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10M/100M/1000M
self-adaptive Ethernet interface
General
Power Supply12 VDC, 2A
Consumption≤ 24W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
Weight≤ 1 kg (2.2 lb)

Hikvision Pro Series 32-channel 1080p 1U H.265 AcuSense DVR iDS-7232HQHI-M2/XT

Pro Series with AcuSense
Detect humans & vehicles and search fast with deep learning technology

- 32 channels and 2 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 8-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/ 5MP Lite@12fps
- Up to 40 channels IP camera inputs, each channel up to 6MP
- Up to 24*1080P@30fps decoding ability
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
Specifications:

Product colour: Black
Maximum video resolution: 3840 x 2160 pixels
Video compression formats: H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Video resolutions: 1280 x 720,1920 x 1080,2560 x 1440,3840 x 2160
Video input channels: 32 channels
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Supported network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Ethernet LAN data rates: 10,100,1000 Mbit/s
Maximum HDD capacity: 12 TB
Supported HDD interfaces: Serial ATA
General
Power Supply12 VDC, 5 A
Consumption≤ 60 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight≤ 2.1 kg (4.6 lb)

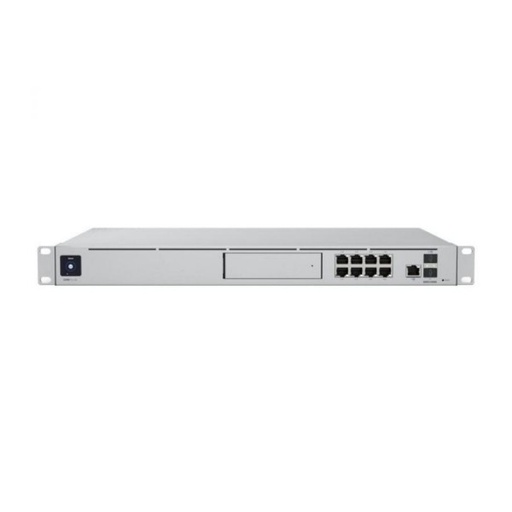

All-in-one router and security gateway with an integrated PoE switch and network video recorder.

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).


Features:
1.7 GHz quad-core processor
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
(8) GbE RJ45 ports, including (6) PoE and (2) PoE+ LAN ports
(1) 10G SFP+ LAN port
(1) 1.3" LCM color touchscreen for at-a-glance network monitoring
Customizable internet threat filtration and traffic identification for enhanced network security
Quick, Bluetooth-powered setup via the UniFi Network web application or mobile app
1U-sized, rack-mountable device
Connect a SmartPower Redundant Power System to create an uninterruptible network
Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5" HDDs
128 GB integrated storage for full UniFi OS Application experience
Dimensions
442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2")
Weight 5 kg (10.9 lb)

Reyee 10 Port Multi-Gigabit Layer 3 Managed Switch with 8 PoE++ Ports and 2 SFP+ Uplink Ports | RG-NBS5300-8MG2XS-UP

Features 10 multi-gigabit ports, including 8 PoE++ ports compliant with 802.3bt/at/af standards, and 2 SFP+ uplink ports, ensuring a versatile and robust connectivity solution. The 2.5 Gbps ports shatter the Gigabit barrier, seamlessly integrating with WiFi 6 APs to unleash their full potential.

With a total power supply of 370W for PoE++ ports, this switch is an ideal choice for high-demand network environments. Advanced security features like IP-MAC-Port Binding, ACL, Port Security, and DoS Defend, coupled with Storm Control, DHCP Snooping, and 802.1X with Radius Authentication, ensure a secure and reliable network. The Reyee RG-NBS5300 series switches offer lifetime management through the Ruijie Cloud portal, providing ease of access and control from anywhere at any time.

Highlight Features

2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
802.3bt/at/af-compliant PoE++ ports with a total power supply of 370W.
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication.
Lifetime management on Ruijie Cloud at any time anywhere.

Reyee Cloud - Making Your Business Easier

SON, zero touch provisioning to Cloud
Monitor switch statistics at anytime and anywhere
Configure VLANs on Ruijie Cloud APP
Easy maintenance, save onsite time and cost

Reyee 10-Port Gigabit Smart Cloud Managed PoE Switch | RG-ES210GS-P

Highlight Features

9-Port gigabit cloud managed switch with 8 PoE+ ports
Cost-Effective Smart Cloud Managed Switches
IP Camera Recognition, Unique Value for CCTV Network
Automatic Loop Prevention Ensures Service Continuity
Lifetime management on Ruijie Cloud at anytime anywhere

Reyee's RG-EW1200R is a dual band, 802.11ac (WiFi 5) range extender featuring 1x Fast Ethernet Port, 2x 4dBi external antennas and dual band 2x2 MU-MIMO with speeds up to 1167Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

Specifications

Antenna Gain: 2x4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset ; Mesh ; Reset
Max. Power Consumption: 15W
Mounting: Plug Point
Operating System: Reyee
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 2 Pin 5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 100-240V
USB Ports: None

Dimensions: 128 x 102 x 60 mm
Weight: 250g

Ubiquiti's U7-PRO-OUT is a WiFi 7 Tri-Band, IP67 outdoor access point featuring 6 spatial streams, 1x 2.5Gbps Ethernet port, two external antennas and a versatile wall and pole mounting. It delivers an aggregate data rate of up to 10Gbps over its 6GHz (2x2 MU-MIMO), 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MU-MIMO) bands. It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.

Specifications
Antenna Gain: 2.4GHz: Internal: 8 dBi External: 6 dBi; 5GHz: Internal: 11 dBi External: 8 dBi : 6GHz: Internal: 10 dBi
Beam-width: 2.4GHz: 90° ; 5GHz: 45°
Data Rate: 2.4GHz: 688Mbps; 5GHz: 4.3Gbps ; 6GHz: 5.7Gbps
Ethernet Ports: 1x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 21W
Mounting: Wall or Pole Mount
Operating System: UniFi
Operating Temperature: -30°C to 60°C
PoE Input: 802.3at (PoE+) or Passive PoE
PoE Output: None
Power Input: 802.3at (PoE+) or Passive PoE (Not Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 42.5 to 57V
USB Ports: None
Dimensions: 170 x 208 x 66.5 mm
Weight: 1.2kg

Ubiquiti's NS4 is an unmanaged, outdoor, 4 port Gigabit switch with PoE passthrough. If powered by 24V Passive PoE can provide up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

*Note: PoE Injector not Included.

Specifications

Ethernet Ports: 4x 10/100/1000
Max. Power Consumption: 30W
Mounting: Wall or Pole Mount
Operating Temperature: -30C ~ 70C
PoE Input: Passive 24V PoE
PoE Output: 24V Passive PoE Pass-through
Power Input: 24V Passive PoE (Not Included)
Supported Voltage Range: 21.6 - 30V
Dimensions: 196.4 x 93.5 x 32.4mm
Weight: 271g
