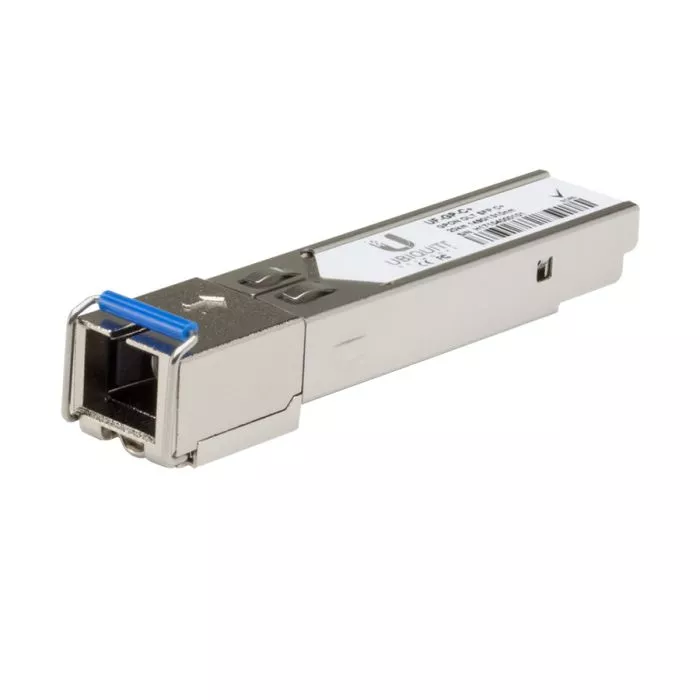

Ubiquiti's UF-GPC module increases the capacity of your UFiber OLT and allows you to connect with your new customers quickly. The UFiber UF-GPC module is designed for use with the Ubiquiti UISP UFiber GPON OLT (UF-OLT-4).

It can be managed via the UISP network management platform.

Specifications

Connector: 1x SC/UPC
Data Rate: Downstream: 2.5Gbps; Upstream: 1.25Gbps
Form Factor: SFP
Mode: Single Mode
Supported Distance: 20km
Wavelength: 1490nm

Ubiquiti's UACC-HDD16 is an enterprise-grade 3.5" 16TB SATA hard drive, ideal for storage-intensive UniFi camera security and NAS systems.

Specifications
Capacity: 16TB
Hard Disk Form Factor: 3.5-inch
Mean Time Between Failure (MTBF): 2,500,000 h
Management Interface: SATA 6Gb/s
Operating temperature: 5 to 60° C
Power Method: 5V/12V input
Rotation Speed: 7200 RPM
Workload Rating: 550TB/year
Dimensions: 147 x 101.9 x 26.1 mm
Weight: 720g

Ubiquiti's UACC-PM is an easy-to-install wall mount bracket for the U7-PRO or U6-PRO.
Specifications
Dimensions: 174 x 189 x 30 mm
Weight: 136g

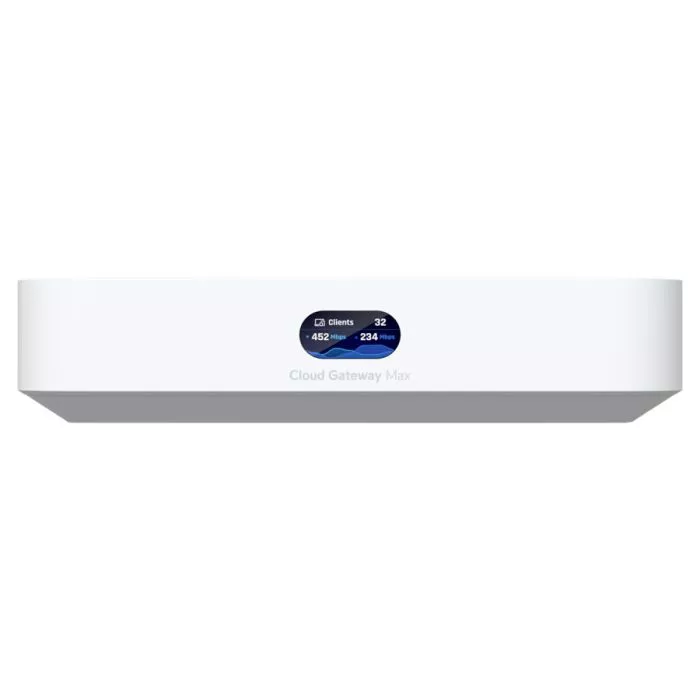

Ubiquiti's UCG-MAX is a powerful and compact 2.5Gbps multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features with 1.5Gbps IPS routing and a 512GB SSD for NVR storage. The unit can run all UniFi applications for full-stack network management and features 4x 2.5Gbps Ethernet ports, 1x 2.5Gbps WAN Port, a quad-core 1.5GHz CPU, 0.96" LCM status display, and Multi-WAN load balancing.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 4x 10/100/1000/2500 (LAN); 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset
Max. Power Consumption: 16.1W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x 5V 5A USB Power Adapter (Included)
Processor: Quad-core ARM® Cortex®-A53 at 1.5GHz
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V 3A via USB
System Memory: 3GB DDR4
USB Ports: None
Dimensions: 141.8 x 127.6 x 30 mm
Weight: 0.52kg

Ubiquiti's UPOE48-30W-2G is a 48V, 0.65A, 2.5Gbps, PoE injector. The unit is compatible with products that require 802.3at PoE and features Electrostatic Discharge (ESD) protection, surge protection, clamping protection, peak pulse current and maximum surge discharge, all of which aid in protecting your PoE devices.

*Note: Power cable not included, we recommend POWU.

Specifications

Ethernet Ports: 2x 10/100/1000/2500
PoE Output: 48V 0.65A Passive PoE
Power Input: Clover Power Cord (Not Included)
Supported Voltage Range: 100V-240V

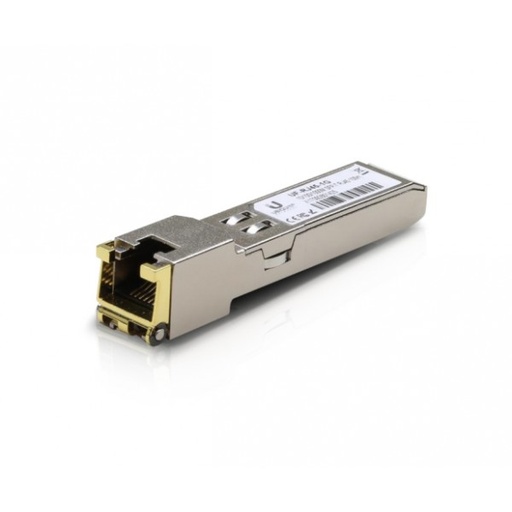

Ubiquiti 1Gbps RJ45 Copper SFP Module


Ubiquiti Networks offers a variety of U® Fiber modules to suit your fiber connectivity applications.


To connect copper Ethernet cables to SFP ports, use the UF-RJ45-10G in an SFP+ port for speeds of up to 10 Gbps and distances of up to 30 m, or use the UF-RJ45-1G in an SFP port for speeds of up to 1 Gbps and distances of up to 100m.
upported Media Copper
Connector Type RJ45
BiDi N/A
TX Wavelength N/A
RX Wavelength N/A
Data Rate 10/100/1000 Mbps
Cable Distance 100 m

Ubiquiti 10Gbps Single Mode (LC) SFP+ Module Pair


The UF-SM-10G is ideal for long-distance, outdoor, bi-directional, single-mode fiber runs for distances of up to 10 km at 10 Gbps.

Outdoor Fiber Installations

For long-distance runs of up to 10KM, use UFiber 10G single-mode modules for maximum reuse of existing infrastructure and maximum speed.
UF-SM-10G
Supported Media Single-Mode Fiber
Connector Type (2) LC
BiDi No
TX Wavelength
1310nm
RX Wavelength
1310nm
Data Rate 10 Gbps SFP+
Cable Distance 10 km
Pack Options 1-Pair

Please note: This kit is only sold as a pair (one box with 2 units inside)

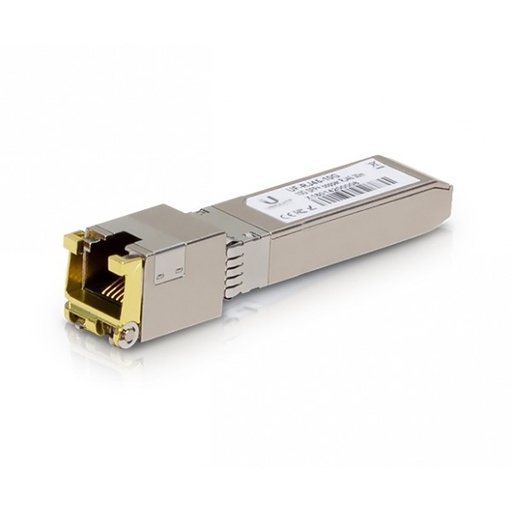

Ubiquiti 10Gbps RJ45 Copper SFP+ Module

Ubiquiti Networks offers a variety of U® Fiber modules to suit your fiber connectivity applications.

To connect copper Ethernet cables to SFP ports, use the UF-RJ45-10G in an SFP+ port for speeds of up to 10 Gbps and distances of up to 30 m, or use the UF-RJ45-1G in an SFP port for speeds of up to 1 Gbps and distances of up to 100 m.
Supported Media Copper
Connector Type RJ45
BiDi N/A
TX Wavelength N/A
RX Wavelength N/A
Data Rate 1/10 Gbps
Cable Distance
1 Gbps
(Cat 5e)
100 m
10 Gbps
(Cat 6A)
30 m
Pack Options 1-Pack

Ubiquiti 10Gbps Multi Mode (LC) SFP+ Module Pair

The UF-MM-10G is ideal for short-distance,bi-directional, multi-mode fiber runs for distances of up to 300m at 10 Gbps.

Outdoor Fiber Installations

For short-distance runs of 300 meters, use UFiber 10G multi-mode modules for maximum reuse of existing infrastructure.
UF-MM-10G
Supported Media Multi-Mode Fiber
Connector Type (2) LC

TX Wavelength
850 nm

RX Wavelength
850 nm

Data Rate 10 Gbps SFP+
Cable Distance 300 m
Pack Options 1-Pair


Please note: This kit is only sold as a pair (one box with 2 units inside)

Ubiquiti's UACC-RJ451G enables you to convert unused SFP+ Ports to 1G Ethernet RJ45 Ports.

*Note: The UACC-RJ451G module is not compatible with MikroTik devices.

Specifications
Connector: RJ45
Data Rate: 1.25Gbps
Form Factor: SFP
Mode: Copper
Supported Distance: 100m
Wavelength: None

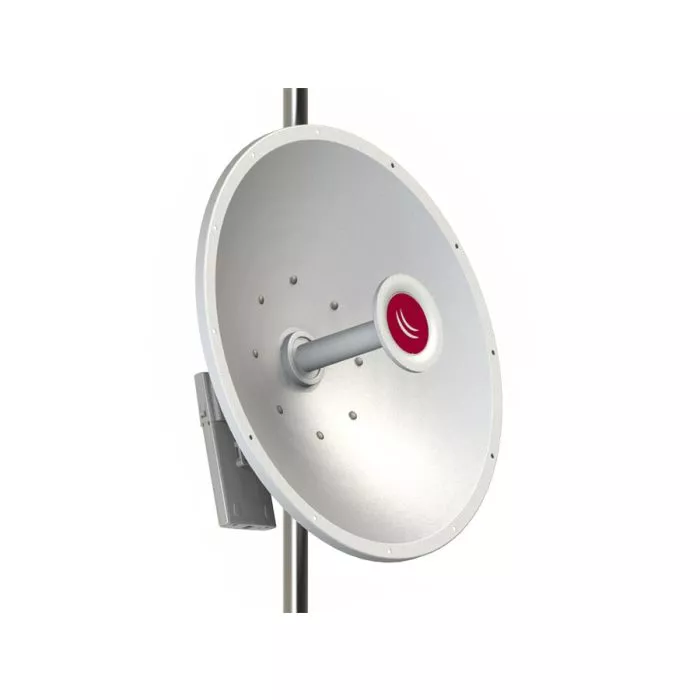

MikroTik's ANT-D530PA is a 5GHz 30dBi dish antenna and precision alignment mount built to accommodate the BaseBox series of products. It can also be used with any pole-mounted, 5GHz wireless device due to the adequate length of the included Flex Guide cable.

*Note: Radio not included

Specifications

Antenna Gain: 30dBi
Beam-width: +/-2.5 deg
Connector: 2x RP SMA Female
Frequency Range: 4.7GHz-5.875GHz
Polarization: Vertical & Horizontal
Wind Loading: 181.4kg @ 200km/hr
Dimensions: Ø 700 x 450mm
PLEASE TAKE NOTE:
This product is the MikroTik Dish ONLY. Electronic devices/CPE’s such as the MikroTik BaseBox5 or Ubiquiti RocketM5 are sold separately and not included. Pictures for the mANT30 dish are for illustration purposes only and shows the CPE mounting position for items such as the BaseBox5.

Linkbasic’s SFP-DC5 is a 5-metre high-performance SFP+ DAC designed for 10G Ethernet and fibre applications. SFP+ copper assemblies provide a cost-effective uplink solution and simplify your deployment.

* Note: Compatible with Mikrotik, Ubiquiti products.
SKU SFP-DC5
Manufacturer Linkbasic
Manufacturer Product Code A-26-D-5

Specifications

Cable Length: 5M
Connectors: 2x SFP+ Modules
Data Rate: 10Gbps
Form Factor: Direct Attached
Mode: Copper
Wavelength: None

Linkbasic’s SFP-DC3 is a 3 metre high-performance SFP+ DAC designed for 10G Ethernet and fibre applications. SFP+ copper assemblies provide a cost-effective uplink solution and simplify your deployment.

* Note: Compatible with Mikrotik, Ubiquiti products.

SKU SFP-DC3
Manufacturer Linkbasic
Manufacturer Product Code A-30-D-3

Specifications

Cable Length: 3M
Connectors: 2x SFP+ Modules
Data Rate: 10Gbps
Form Factor: Direct Attached
Mode: Copper
Wavelength: None

Linkbasic’s SFP-DC1 is a 1 metre high-performance SFP+ DAC designed for 10G Ethernet and 10G fibre applications. SFP+ copper assemblies provide a cost-effective uplink solution and simplify your deployment.

*Note: Compatible with MikroTik, Ubiquiti
SKU SFP-DC1
Manufacturer Linkbasic
Manufacturer Product Code A-30-D-1

Specifications

Cable Length: 1M
Connectors: 2x SFP+ Modules
Data Rate: 10Gbps
Form Factor: Direct Attached
Mode: Copper
Wavelength: None
