Procet’s POE-48V15W is a Gigabit, 48V, 15W, surge-protected, passive PoE injector enclosed in an IP40 fire-retardant plastic case ideal for powering 802.3af PoE devices.

*Note: Clover Power Cable Not Included.
SKU POE-48V15W
Manufacturer Scoop

Specifications

Ethernet Ports: 2x 10/100/1000
Operating Temperature: 0°C to 40°C
PoE Output: 48V 0.32A Passive PoE
Power Input: 1x Clover Power Cable (Not Included)
Supported Voltage Range: 100V-240V
Dimensions: 86.5mm x 46mm x 30.5mm
Weight: 91g

Procet’s POE-52V30W is a Gigabit, 52V, 30W, surge-protected, passive PoE injector enclosed in an IP40 fire retardant plastic case ideal for powering 802.3af/at PoE devices.

*Note: Clover Power Cable Not Included.
SKU POE-52V30W
Manufacturer Scoop

Specifications

Ethernet Ports: 2x 10/100/1000
Operating Temperature: 0°C to 40°C
PoE Output: 52V 0.58A Passive PoE
Power Input: 1x Clover Power Cable (Not Included)
Supported Voltage Range: 100V-240V
Dimensions: 95.3mm x 51mm x 34.5mm
Weight: 135g

Scoop's POE-4G is a 4-Port Gigabit Passive PoE Injector. The unit supports an input voltage of 12-57V and can be wall-mounted.

*Note: Power supply sold separately.
SKU POE-4G
Manufacturer Scoop

Specifications

Ethernet Ports: 8x 10/100/1000 (4x PoE ; 4x Ethernet)
Max. Current Per Port: 1000mA
Operating Temperature: 0°C to 40°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 12-57V Power Supply (Not Included)
Supported Voltage Range: 12-57V

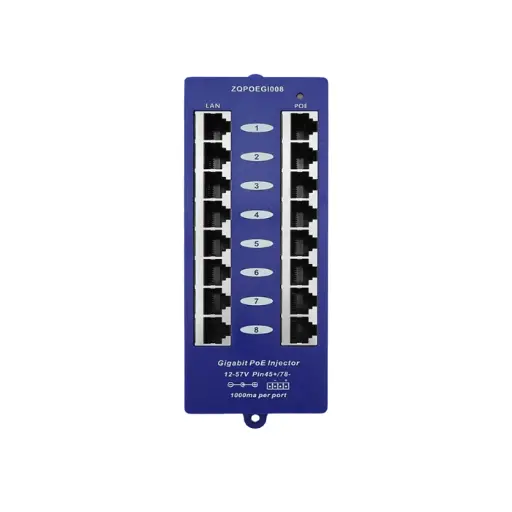

Scoop's POE-8G is an 8-Port Gigabit Passive PoE Injector with both DC and Terminal Powering options. The unit supports an input voltage of 12-57V and can be wall-mounted.

*Note: Power supply sold separately.
SKU POE-8G
Manufacturer Scoop

Specifications

Ethernet Ports: 16x 10/100/1000 (8x PoE ; 8x Ethernet) Max. Current Per Port: 1000mA
Operating Temperature: 0°C to 40°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 12-57V Power Supply (Not Included)
Supported Voltage Range: 12-57V

Scoop’s POE-KIT is supplied as an injector and splitter combination. It is used to supply Fast Ethernet PoE to devices which do not have native PoE support. PoE range is limited to the tolerance of the end device after the voltage drop along the PoE run. Therefore, we do not recommend installation for distances longer than 30m.
SKU POE-KIT
Manufacturer Scoop
Specifications N/A

Scoop's POE-RACK is a blank rack mountable 19" panel, ideal for mounting multiple PoE injectors.

*Note: This product is compatible with the Ubiquiti PoE Injectors. PoE Injectors sold separately.
SKU POE-RACK
Manufacturer Scoop

Specifications

Material: Cold steel sheet with electrostatic power coating
Size: 19 inch rack-mountable

Procet's POE-USBC is a 44-57V PoE (802.3af/at) to 5V 2A USB-C adapter which includes a 0.5m USB-C cable. This indoor adapter converts power and data from PoE to USB-C devices while still providing 10W of USB output power. It also supports the PD2.0/3.0 charging protocol and is encapsulated in an IP40 white plastic housing.
SKU POE-USBC
Manufacturer Scoop

Specifications

Operating Temperature: -20℃ to 40℃
Ports: 1x USB-C ; 1x 10/100 (Both data & power)
Power Input: 802.3af/at
Power Output: USB-C 5V 2A
Supported Voltage Range: 44-57V
Dimensions: 65mm X 29mm X 16.2mm
Weight: 26g

Scoop's PSU-52V65W is a 52V 65W (1.25A) IEC power supply suitable as a replacement PSU for the 4 port Scoop PoE Switches or with our range of single or multi-port Passive PoE Injectors.
SKU PSU-52V60W
Manufacturer Scoop

Specifications

Connector: IEC
DC Connector: 2.1mm Jack
Voltage: 52V
Wattage: 65W

Scoop's PSU-52V96W is a 52V 96W (1.85A) IEC power supply suitable as a replacement PSU for the 8 port Scoop PoE Switches or with our range of single or multi-port Passive PoE Injectors.

SKU PSU-52V96W
Manufacturer Scoop

Specifications

Connector: IEC
DC Connector: 2.1mm Jack
Voltage: 52V
Wattage: 96Witches or with our range of single or multi-port Passive PoE Injectors.

Scoop's RB-RMTRAY is a 19 inch rack-mountable tray, ideal for rack mounting the smaller MikroTik wireless and wired Routers.

*Note: This product is compatible with the MikroTik hAP, HEX and RB-951UI2 routers. Routers sold separately.
SKU RB-RMTRAY
Manufacturer Scoop

Specifications

Compatible Products: MikroTik hAP; HEX & RB-951UI2
Material: Cold steel sheet with electrostatic powder coating
Size: 19 inch rack-mountable

Scoop's TOOL-EZCRIMP features a solid and robust RJ45/RJ11 crimping, stripper and side cutter tool. It is designed for standard RJ45 connectors as well as the EZ Crimp range of pass-through modular plugs. The EZ range of RJ45 connectors allows you to push the eight strands of UTP cable through the connector and once crimped, the crimper cuts off any excess copper.

*Note: EZ RJ45 connectors not included.
SKU TOOL-EZCRIMP
Manufacturer Scoop

Specifications

Compatibility: RJ45-EZ & RJ45-CAT6EZ
Functions: Crimper & Stripper
Material: Carbon Steel

Scoop's RJ45-EZ is a Cat5e EZ RJ45 connector which allows all eight strands of a UTP cable to pass through the head of the connector. Then using the TOOL-EZCRIMP you can crimp and cut off the excess copper. This ensures a strong connection and eliminates possible packet loss on partially crimped cables. The RJ45-EZ connector is only compatible with pass through crimpers such as TOOL-EZCRIMP.

*Note: The EZ crimping tool is not included.
SKU RJ45-EZ
Manufacturer Scoop

Specifications

Compatibility: 23-26AWG
Conductor Material: 50 Micron Inches of Gold Plating over Copper Alloy
Design: 8 Conductors
Material: Polycarbonate

Scoop's RJ45-FTPEZ is an FTP Cat5e EZ RJ45 connector which allows all eight strands of an FTP cable to pass through the head of the connector. Then using the TOOL-EZCRIMP you can crimp and cut off the excess copper. This ensures a strong connection and eliminates possible packet loss on partially crimped cables. The RJ45-FTPEZ connector is only compatible with pass through crimpers such as TOOL-EZCRIMP.

*Note: The EZ crimping tool is not included.
SKU RJ45-FTPEZ
Manufacturer Scoop

Specifications

Compatibility: 23-26AWG
Conductor Material: 50 Micron Inches of Gold Plating over Copper Alloy
Design: 8 Conductors
Material: Polycarbonate

Scoop's TC-100C is a 100m outdoor Cat5e CCA FTP cable designed as a cost-effective network cabling solution. Each twisted pair is made from copper-coated aluminum with higher DC resistance than solid copper cable. The Cat5e cable includes an ESD drain wire, UV protected outer sheath and carries an AWG rating of 24.
SKU TC-100C
Manufacturer Scoop

Specifications

AWG Rating: 24
Cable Length: 100m
Color: Black
Conductor Dimensions: 0.50mm
Construction: FTP – CCA Copper Clad Aluminum
Cross Filter: None
ESD Drain Wire: Yes – Copper Clad Aluminum
Number of Pairs: 4
Outer Jacket: UV-PE
Dimensions: 280 x 290 x 80mm

Scoop's TC-305C is a 305m outdoor Cat5e CCA FTP cable designed as a cost-effective network cabling solution. Each twisted pair is made from copper-coated aluminium with higher DC resistance than solid copper cable. The Cat5e cable includes an ESD drain wire, UV protected outer sheath, an AWG rating of 24 and is supplied in an easy pull 305m box.
SKU TC-305C
Manufacturer Scoop

Specifications

AWG Rating: 24
Cable Length: 305m
Colour: Black
Conductor Dimensions: 0.50mm
Construction: FTP – CCA Copper Clad Aluminium
Cross Filter: None
ESD Drain Wire: Yes – Copper Clad Aluminium
Number of Pairs: 4
Outer Jacket: UV-PE

Dimensions: 400 x 400 x 240mm

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Scoop's TC-500C is a 500m outdoor Cat5e CCA FTP cable designed as a cost-effective network cabling solution. Each twisted pair is made from copper-coated aluminium with higher DC resistance than solid copper cable. The Cat5e cable includes an ESD drain wire, UV protected outer sheath, an AWG rating of 24 and is supplied in a 500m drum.
SKU TC-500C
Manufacturer Scoop

Specifications

AWG Rating: 24
Cable Length: 500m
Colour: Black
Conductor Dimensions: 0.50mm
Construction: FTP – CCA Copper Clad Aluminium
Cross Filter: None
ESD Drain Wire: Yes – Copper Clad Aluminium
Number of Pairs: 4
Outer Jacket: UV-PE
Dimensions: 310 x 310 x 300mm

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Scoop's TC-6305C is a 305m outdoor Cat6 CCA FTP cable designed as a cost-effective network cabling solution. Each twisted pair is made from copper-coated aluminum with higher DC resistance than solid copper cable. The Cat6 cable includes an ESD drain wire, UV protected outer sheath, an AWG rating of 23 and is supplied in an easy pull 305m box.
SKU TC-6305C
Manufacturer Scoop

Specifications

AWG Rating: 23
Cable Length: 305m
Color: Black
Conductor Dimensions: 0.56mm
Construction: FTP – CCA Copper Clad Aluminum
Cross Filter: Yes
ESD Drain Wire: Yes – Copper Clad Aluminum
Number of Pairs: 4
Outer Jacket: UV-PE
Dimensions: 420 x 420 x 265mm

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

Scoop's TOOL-POE is designed for testing the PoE on an ethernet cable. This can be used with Passive Injectors, 802.3af, 802.3at, 802.3bt, 568A, 568B or reverse polarity PoE. Mode A and B are also both supported. It is a very handy tool for installers when needing to confirm whether a cable is carrying POE or not. This tool is small enough to fit on a keyring.
KU TOOL-POE
Manufacturer Scoop
Manufacturer Product Code TOOL-POE

Specifications

Compatibility: Passive PoE; 802.3af/at/bt; 568A/B; Reverse PoE
LED Indicators: Mode A/B; Passive 24V; Passive 48/56V; 802.3af/at; Reverse PoE

Scoop's UTP-100C is a 100m Cat5e CCA UTP cable designed as a cost-effective network cabling solution. Each twisted pair is made from copper-coated aluminium with higher DC resistance than solid copper cable. The Cat5e cable includes a PVC outer sheath and carries an AWG rating of 24.
SKU UTP-100C
Manufacturer Scoop

Specifications

AWG Rating: 24
Cable Length: 100m
Colour: Grey
Conductor Dimensions: 0.50mm
Construction: UTP – CCA Copper Clad Aluminium
Cross Filter: None
ESD Drain Wire: None
Number of Pairs: 4
Outer Jacket: PVC
Dimensions: 260 x 270 x 70.5mm

Scoop's UTP-305C is a 305m Cat5e CCA UTP cable designed as a cost-effective network cabling solution. Each twisted pair is made from copper-coated aluminium with higher DC resistance than solid copper cable. The Cat5e cable includes a PVC outer sheath, an AWG rating of 24 and is supplied in an easy pull 305m box.
SKU UTP-305C
Manufacturer Scoop

Specifications

AWG Rating: 24
Cable Length: 305m
Colour: Grey
Conductor Dimensions: 0.50mm
Construction: UTP - CCA Copper Clad Aluminium
Cross Filter: None
ESD Drain Wire: None
Number of Pairs: 4
Outer Jacket: PVC
Dimensions: 370.5 x 370.5 x 230.5mm
