Ubiquiti's U6+ is a dual band, WiFi 6 (802.11ax) access point. It delivers an aggregate data rate of up to 3Gbps over its 5GHz (2x2 MU-MIMO) and 2.4GHz (2x2 MIMO) bands.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included. The U6+ has replaced the UAP-AC-LR and U6-LITE. Read more about that here.
Antenna Gain: 2.4GHz: 3dBi ; 5.8GHz: 5.4dBi
Beam-width: 360
Data Rate: 2.4GHz: 573.5Mbps ; 5.8GHz: 2402Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Ceiling or Wall Mount
Operating System: UniFi
Operating Temperature: -30°C to 60°C
PoE Input: 802.3af or 48V Passive PoE
PoE Output: None
Power Input: 802.3af/at or 48V Passive PoE (Not Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 44 to 57V
USB Ports: None

Dimensions: Ø160 x 33 mm
Weight: 413g

Upgrade your multimedia experience with the Ubiquity VoIP & HDMI/DVI-IN Encoder. This innovative device lets you seamlessly stream high-quality video and audio content over IP networks. Simply connect your HDMI or DVI-IN sources, and you’re ready to go! Its built-in VoIP capabilities infuse audio into your video streams, delivering a comprehensive multimedia package. Ideal for use in conference rooms, classrooms and for digital signage applications, this versatile encoder is your solution to reliable high-quality streaming. Amp up your streaming game with the Ubiquity VoIP & HDMI/DVI-IN Encoder.

Experience the Marvel of the Ubiquity VoIP & HDMI/DVI-IN Encoder

Step into a world of unparalleled audio-visual mastery and discover the brilliance of Ubiquity VoIP & HDMI/DVI-IN Encoder. This innovative device combines the best of VoIP and content encoding technologies to deliver a seamless user experience.
The Power and Performance of Ubiquity VoIP & HDMI/DVI-IN Encoder

Instantly encode HD content and watch your favorite videos come to life.
Experience the amazing output quality with crystal clear sound and vibrant visuals.
Interact with various devices and mediums effortlessly through its highly compatible design.
Savor the sleek, compact and elegant design that ensures easy installation and saves space.
Stay connected with enhanced network connectivity for uninterrupted operation.

Beyond these amazing features, the Ubiquity VoIP & HDMI/DVI-IN Encoder also provides exclusive benefits such as:

Support for multiple video input resolutions allowing superb playback quality irrespective of the source.
Crisp and clear audio input and output capabilities that delivers pure sounds.
Flexible video output resolutions to cater to diverse display requirements.
Incorporation of powerful video and audio processing tools to ensure smooth and optimal performance.

Embrace the Future with Ubiquity VoIP & HDMI/DVI-IN Encoder: Being a limited edition piece, this encoder is the tech masterpiece that everyone wants. Make it yours before someone else does!

Enter a new era of content encoding and elevate your audio-visual experience. Add the Ubiquity VoIP & HDMI/DVI-IN Encoder to your cart and secure your piece before stocks run out!

Product SKU:PIN-MVX-E5150F

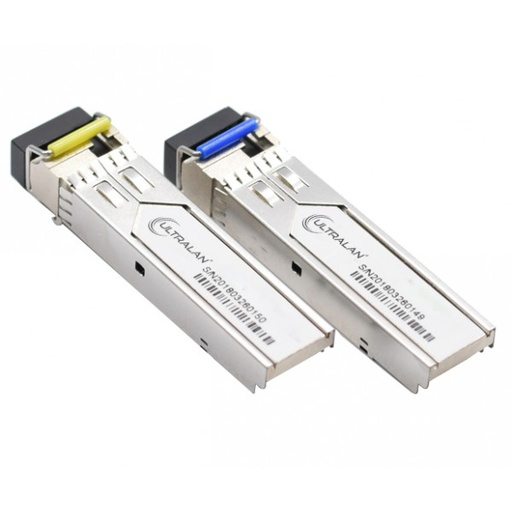

UltraLAN 10G SFP BiDi Module Pair - SM 10KM 1270/1330nm


UltraLAN's SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 10Gbps and 10km transmission distance with SMF.


The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.


Product Features:

Supports 10G rates
Bi-Directional LC connector
Hot pluggable SFP footprint
Applicable for 10KM SMF connection
Low power consumption, < 0.8W
Digital Diagnostic Monitor Interface
Compliant with SFP MSA and SFF-8472
Very low EMI and excellent ESD protection


Please note, as these are BiDi SFP Modules they are only sold in a pair.

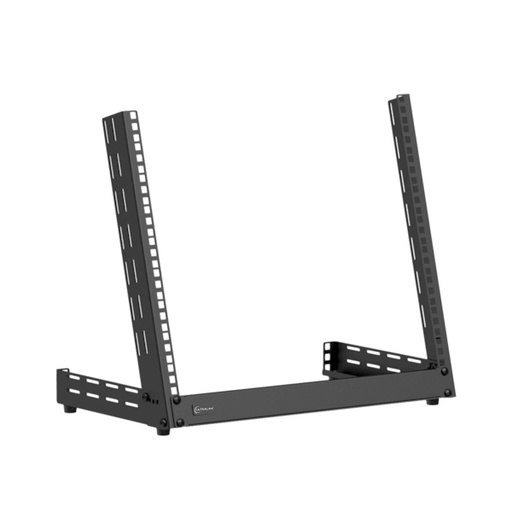

A professional and solid constructed desktop rack with adjustable angle for 19'' equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It ensures maximum installation, connectivity and maintenance ease while simultaneously storing up to 10 units for studio, processing, test, and other 19” equipment. The 0° ~ 15° adjustable slanted front profiles offer optimal stability and a perfect viewing angle on the front panels of the installed equipment at any given time.

The construction is made of 2.0 mm thick steel finished in a black (RAL9004) powder coating with fine structure. Punched equipment mounting profiles on the front offer a multifunctional use of the rack while perforated sides allow cable guiding or accessories mounting. Delivered in a flat-down package, the simple structure allows assembly by a single person in record-breaking time.

Product features:


Adjustable angle 0° - 15° adjustable tilt angle

Unit height 9 HE

Max. load 30 kg

Dimensions 509 x 446,2 x 301,3 mm (W x H x D) (incl. rubber feet)

Colours Black (RAL9004)

Accessories Included 1 set Assembly hardware

20 x Cage nuts + screws

Highlights:


Stores up to 10 units of 19'' Equipment

Punched square holes for use with snap-in cage nuts

2.0 mm thick cold rolled steel frame

Easy assembly in 5 minutes

Ships as flat-down package

Desktop standing use

Slanted front for optimal stability and equipment viewing

Perforated sides for cable guiding or accessories mounting

0° - 15° adjustable angle

1 unit backside mounting possibility

UltraLAN 12U Fixed Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas.



The cabinets have toolless removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.


Product features:

Enclosure body depth of 450mm
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock
Maximum static load: 60 kg


Package contents:

1x 12U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door

UltraLAN 12U Fixed Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas.



The cabinets have toolless removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.


Product features:

Enclosure body depth of 450mm
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock
Maximum static load: 60 kg

Cabinet Specs
Cabinet Dimensions (H x W x D) 645 x 615 x 465 mm
Vertical Rack Space 12 U
Horizontal Rack Mounting Space 19 inch
Maximum Static Load 60 KG
Fan Mountings 2 slots (fans not included)

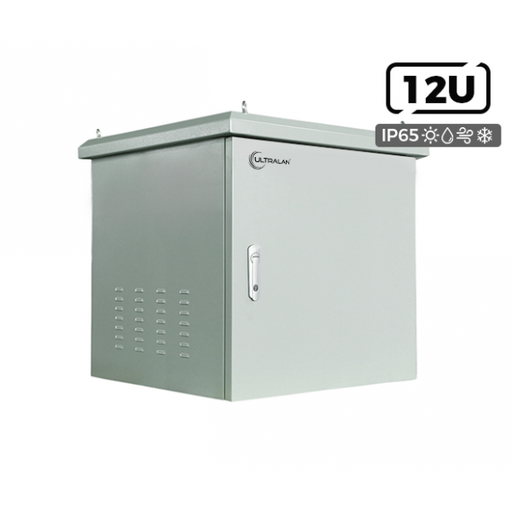

UltraLAN 12U Outdoor Wall Mount Network Cabinet


UltraLAN's outdoor cabinets are designed to protect your sensitive network equipment from harsh environments. The cabinet is made from durable electro-galvanized cold rolled steel and finished with a powder coating to protect it from the elements and corrosion. Several features are incorporated to safeguard the cabinet from the elements, while still keeping the equipment secure and well ventilated. These outdoor cabinets include a high-grade polyurethane door joint strip for better protection against water & dust, as well as a roof awning to prevent rain from entering through the top of the cabinet. These outdoor cabinets are secured with a 3-point swing handle locking system to keep the door closed and prevent unauthorized access.


Air ventilation is critical for the well being of your equipment, and the UltraLAN cabinet features vents on both side panels. In addition, metal mesh filters are set into a double wall on the inside, adding to dust ingress protection while still allowing air to pass through for better cooling inside the cabinet.


The UltraLAN outdoor cabinet has 2 ceiling mounted fans which improves air circulation and expels heat. Cable entry is allowed from the bottom of the cabinet through rubber covers. The UltraLAN wall mount outdoor cabinets also have 4 hooks on top for easier installation.


Features:

Body depth of 450mm (500mm including rooftop)
Includes 2 fans
Vented side panels for better air circulation and replaceable filters
3-point locking system for door
Made from powder-coated electro-galvanized cold rolled steel
Supplied fully assembled to save time and effort
Adjustable 19" mounting rails with numbered U markings
Round cable glands with removable rubber covers on the base

Cabinet Specs
Cabinet Dimensions (H x W x D) 12U, 600mm wide x 450mm deep (500mm deep including rooftop)
Vertical Rack Space 12U
Horizontal Rack Mounting Space 19 inch
Fan Mountings 2 ceiling mount fans (included)

UltraLAN 12U Swing Frame Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas. The swing frame cabinets have a hinged back section, allowing for the cabinet to swing out from the wall, giving easy access to rear of equipment (especially convenient when needing to access cables on the rear of equipment).



The cabinets have removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.


Product features:

Enclosure body depth of 600mm
Lift off hinges on swing frame
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock


Package contents:

1x 12U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door

Cabinet Specs
Cabinet Dimensions (H x W x D) 645 x 615 x 615mm
Vertical Rack Space 12 U
Horizontal Rack Mounting Space 19 inch
Maximum Static Load 60 KG
Fan Mountings 2 slots (fans not included)

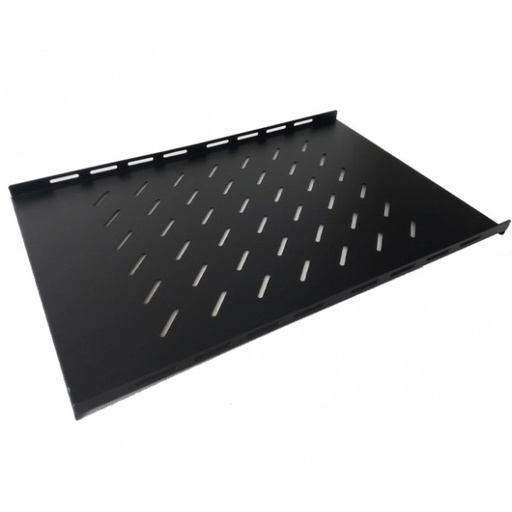

UltraLAN 19" 700mm Flat Cabinet Shelf for 1000mm depth cabinets


The UltraLAN flat 19" shelf mounts on the side of the network cabinet upright struts (4-post mounting). With a depth of 700mm, it can provide for various needs within your cabinet. Ideal to provide support for non-rackmount items in a network cabinet such as routers, PBX's, and other equipment. The shelf is vented to help expel heat and improve air flow through the bottom. Flat cabinet shelves provides the largest surface area and supports a load up to 50KG.
Shelf dimensions: 465mm x 700mm


This model shelf is suitable for cabinets with an enclosure depth of 1000mm.


*Does not include cage nuts and screws for mounting.
All UltraLAN cabinets come with cage nuts & screws included, or they can be purchased separately.

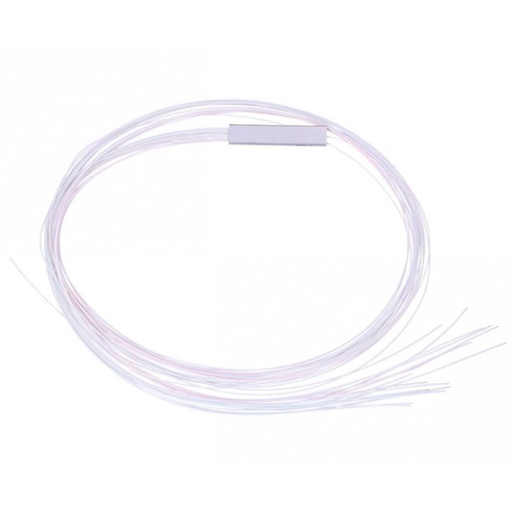

UltraLAN 1x16 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.

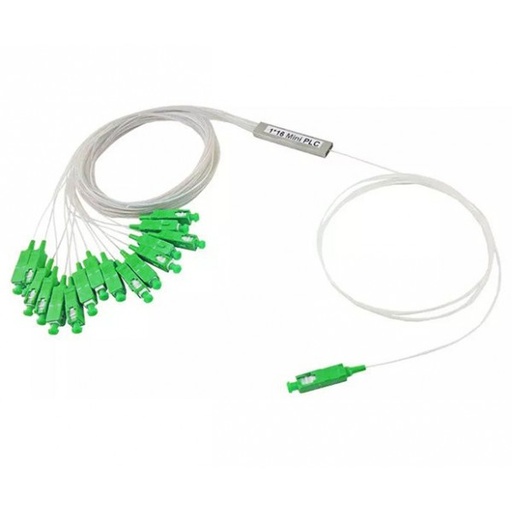

UltraLAN 1x16 SC/APC 900μm PLC Splitter


Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.


Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

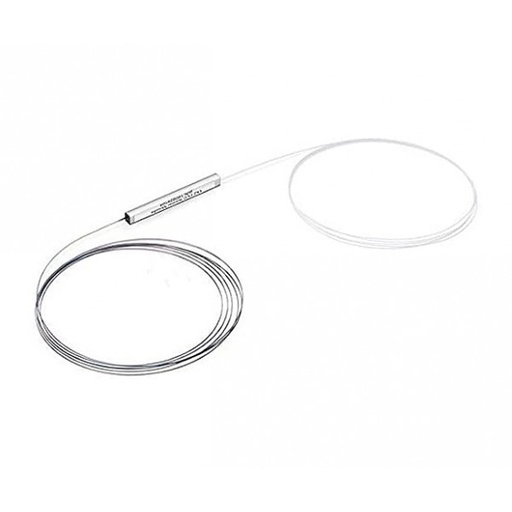

UltraLAN 1x2 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.

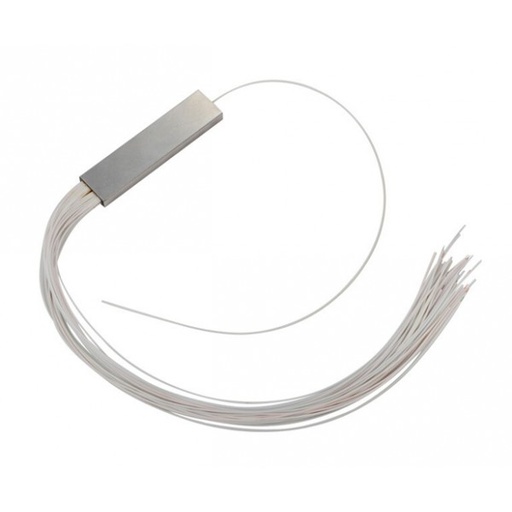

UltraLAN 1x32 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.

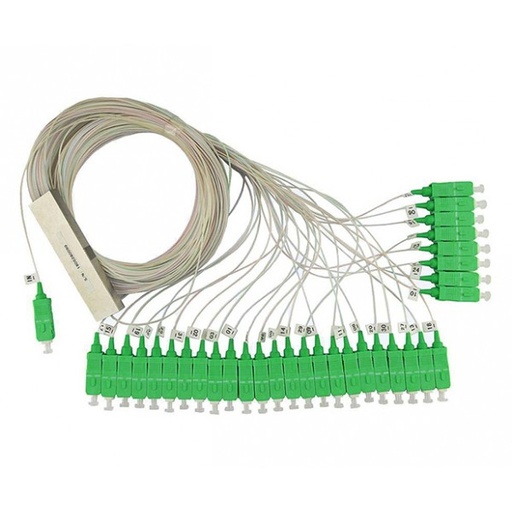

UltraLAN 1x32 SC/APC 900μm PLC Splitter


Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.


Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

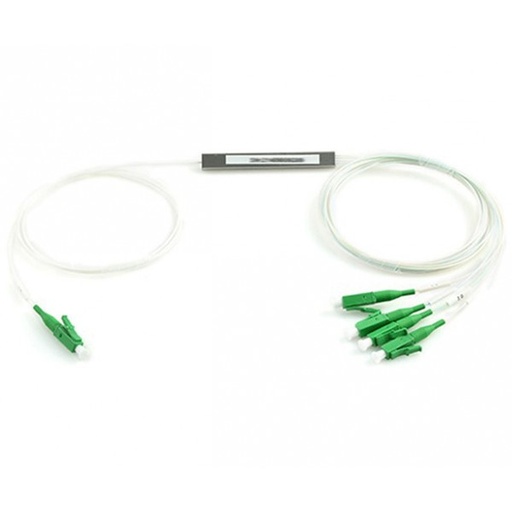

UltraLAN 1x4 LC/APC 900μm PLC Splitter


Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.


Specifications:

Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

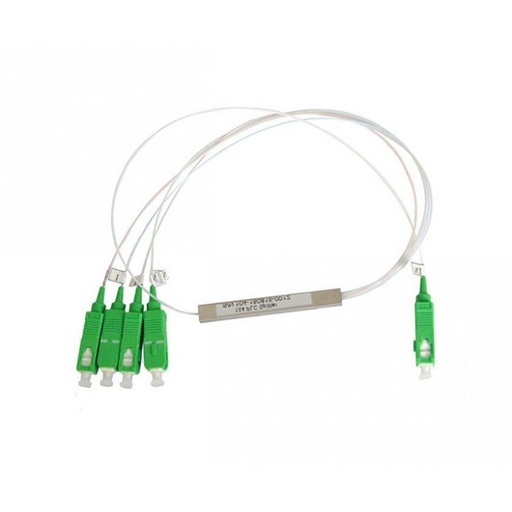

UltraLAN 1x4 SC/APC 900μm PLC Splitter


Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.



Specifications:
Port Configuration
1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

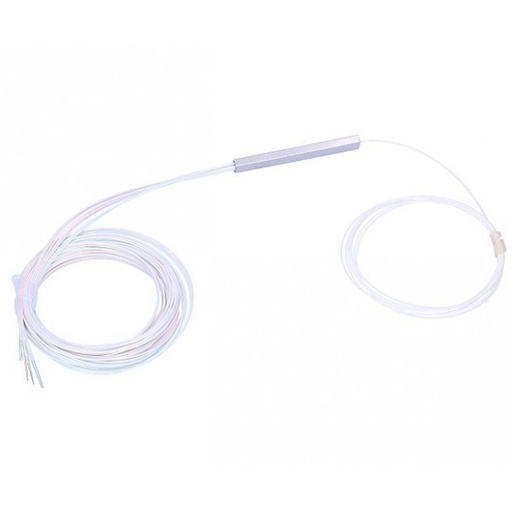

UltraLAN 1x8 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.

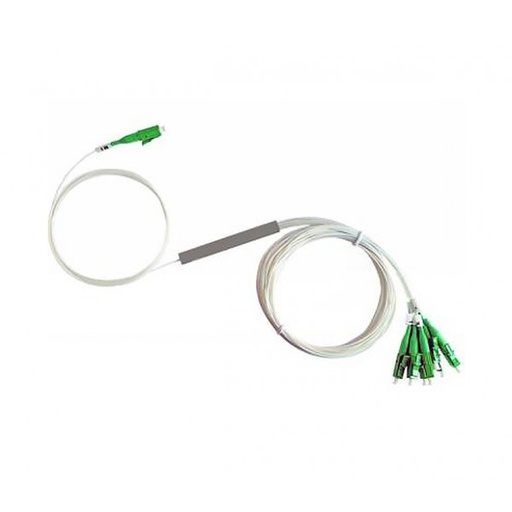

UltraLAN 1x8 LC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.


Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

UltraLAN 1x8 SC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

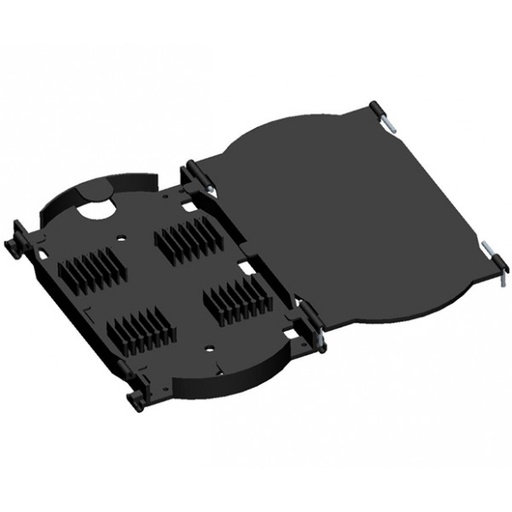

UltraLAN 24 Fiber Splice Tray


The UltraLAN fiber splice tray is designed to provide a place to store fiber cables and splices and prevent them from becoming damaged or being misplaced. These trays are commonly used individually/stand-alone, inside of fiber patch panels, or in large termination boxes.

The fiber splice tray has 4 access ports for fiber cable to either enter/exit the tray, allowing for cables to be easily fed into the tray from various angles. The tray is made from high strength injection mold plastic, is flame retardant, and offers a long anti-aging lifespan.


The UltraLAN fiber splice tray features 12 splice holder slots, but can also support a max of 24 splices when two sleeves are placed inside each slot. The cover and base section is securely joined with a metal pin, and the trays are stackable as well. The inner splice tray offers further cable management, with a fiber bend radius over 30mm.

UltraLAN 25G SFP28 BiDi Module Pair - SM 20KM 1270/1330nm


UltraLAN's SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 25Gbps and 20km transmission distance with SMF.


The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8402.


Product Features:

Up to 25.78Gb/s data links
Bi-Directional LC connector
Hot pluggable SFP28 footprint
1270nm/1330nm DFB transmitter
Applicable for 20KM SMF connection
Low power consumption, <1.5W
Compliant to SFF-8402 for SFP28 solution
RoHS Compliant


Please note, as these are BiDi SFP Modules they are only sold in a pair.
