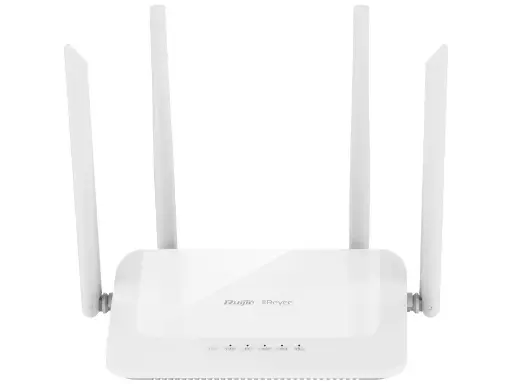

Reyee's RG-EW1200F is a dual-band Fast Ethernet router featuring 802.11ac (WiFi 5) MU-MIMO Wave 2 technology with speeds up to 1167Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: This device does not support WPS for third party devices. WiFi password settings do not support special characters.

Specifications
Antenna Gain: 4x5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset ; Mesh
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Dimensions: 182 x 120 x 32mm
Weight: 400g

Reyee's RG-EW1300G is a dual-band Gigabit Ethernet router featuring 4x Gigabit Ethernet ports and WiFi 5, MU-MIMO Wave 2 technology with speeds up to 1267Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

Specifications

Antenna Gain: 2.4GHz: 4.5dBi, 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset ; Mesh
Max. Power Consumption: 12W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 230 × 130 × 30mm
Weight: 980g

Reyee's RG-EW3000GX is a WiFi 6, dual-band, 2x2 MU-MIMO Gigabit router featuring dual WAN aggregation, 5x high gain antennas and an aggregate wireless data rate of up to 3000Mbps. It can be used as a stand-alone router or an access point, but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices.
It supports Ruijie’s smart networking feature which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: The Mesh button on this unit is only for use with other Reyee devices.

Specifications

Antenna Gain: 2.4GHz: 5dBi; 5.8GHz: 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 1x 10/100/1000 (LAN/WAN) ; 3x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset ; Mesh
Max. Power Consumption: 12W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1.0A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1.0A
USB Ports: None

Dimensions: 240mm × 130mm × 32mm
Weight: 0.48kg

Scoop's SPS-8F2F is an unmanaged 8 port Fast Ethernet AI PoE switch with 2x Fast Ethernet uplink ports.

Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 96W and the max budget per port is 36W.

The SPS-8F2F supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on Port 1-8.
AI Extend Mode: Transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
AI QOS: Priorities network bandwidth based on network usage history & analytics.
SKU SPS-8F2F
Manufacturer Scoop

Specifications

Ethernet Ports: 10x 10/100
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 3W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8
Power Input: 52V 1.85A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 52V
Dimensions: 184 x 94 x 27mm

Scoop's SPS-8G2G is an unmanaged 8 port Gigabit Ethernet AI PoE switch with 2x Gigabit Ethernet Uplink Ports.

Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 96W and the maximum budget per port is 36W.

The SPS-8G2G supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on Port 1-8.
AI Extend Mode: Transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
AI QOS: Priorities network bandwidth based on network usage history & analytics.
SKU SPS-8G2G
Manufacturer Scoop

Specifications

Ethernet Ports: 10x 10/100/1000
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8
Power Input: 52V 1.85A Power Adapter (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 52V
Dimensions: 184 x 94 x 27mm

Scoop’s SPS-16F2GS is an unmanaged 16 port Fast Ethernet AI PoE switch with 2x Gigabit Ethernet and 1x SFP Combo Uplink ports.

Each of these PoE ports are 802.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. The total PoE budget is 150W and up to a maximum of 30W per port.

The SPS-16F2GS supports 4 working modes:
AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-16.
AI QOS: Prioritizes network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

SKU SPS-16F2GS
Manufacturer Scoop

Specifications

Ethernet Ports: 16x 10/100; 2x 10/100/1000 (Combo)
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 8W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~16
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps (Combo)
Supported Voltage Range: 100V-240V
Dimensions: 280mm x 180mm x 44mm

Scoop’s SPS-16G2S is an unmanaged 16 port Gigabit Ethernet AI PoE switch with 2x SFP Uplink ports.

Each of these PoE ports are 802.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. The total PoE budget is 150W and up to a maximum of 30W per port.

The SPS-16G2S supports 4 working modes:
AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-16.
AI QOS: Prioritizes network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

SKU SPS-16G2S
Manufacturer Scoop

Specifications

Ethernet Ports: 16x 10/100/1000
Hardware Button: AI VLAN, AI Extender, AI PoE, AI QOS
Max. Power Consumption: 12W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~16
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100V-240V
Dimensions: 440mm x 180mm x 44mm

Scoop’s SPS-24F2G2 is an unmanaged 24 port Fast Ethernet AI PoE switch with 2x Gigabit Ethernet and 1x SFP Combo Uplink ports.

Each of these PoE ports are 802.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. The total PoE budget is 250W and up to a maximum of 30W per port.

The SPS-24F2G2 supports 4 working modes:
AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-24.
AI QOS: Prioritizes network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

SKU SPS-24F2GS
Manufacturer Scoop

Specifications

Ethernet Ports: 24x 10/100; 2x 10/100/1000 (Combo)
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 10W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps (Combo)
Supported Voltage Range: 100V-240V
Dimensions: 440mm x 180mm x 44mm

Scoop’s SPS-24G2S is an unmanaged 24 (port) Gigabit Ethernet AI PoE switch with 2x SFP Uplink ports.

Each of these PoE ports are 802.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. The total PoE budget is 250W and up to a maximum of 30W per port.

The SPS-24G2S supports 4 working modes:
AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-24.
AI QOS: Prioritises network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE-powered device if no data passes through the port for a set time.

SKU SPS-24G2S
Manufacturer Scoop

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 15W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100V-240V
Dimensions: 440mm x 180mm x 44mm

Scoops SPS-4F2F is an unmanaged 4 port Fast Ethernet AI PoE switch with 2x Fast Ethernet uplink ports.

Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 60W and the maximum budget per port is 36W.

The SPS-4F2F supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on port 1-4.
AI Extend Mode: Transmission distance of ports 1-4 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

SKU SPS-4F2F
Manufacturer Scoop

Specifications

AI QOS: Priorities network bandwidth based on network usage history & analytics.
Ethernet Ports: 6x 10/100
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 3W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4
Power Input: 52V 1.15A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 52V
Dimensions: 125 x 75 x 27mm

Scoop's SPS-4G2G is an unmanaged 4 port Gigabit Ethernet AI PoE switch with 2x Gigabit uplink ports.

Each of the PoE ports is IEE803.3af/at compliant which enables them to auto-detect and identify whether the connected device is compatible and requires power. Total maximum PoE budget is 60W and the maximum budget per port is 36W.

The SPS-4G2G supports 4 working modes:
VLAN (Port Isolation): Enables Port Isolation on Port 1-4.
AI Extend Mode: Transmission distance of ports 1-4 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
AI QOS: Priorities network bandwidth based on network usage history & analytics.

SKU SPS-4G2G
Manufacturer Scoop

Specifications

Ethernet Ports: 6x 10/100/1000
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4
Power Input: 52V 1.15A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 52V
Dimensions: 125 x 75 x 27mm

Scoop’s SPS-8F2G is an unmanaged, 8 port, Fast Ethernet AI PoE switch with 2 Gigabit Ethernet Uplink Ports.

Each of these PoE ports are IEEE 802.3af/at compliant which enables them to identify whether the connected device is compatible and requires power. The total PoE budget is 96W, or up to a maximum of 30W per port.

The SPS-8F2G supports 4 working modes:
AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-8.
AI QOS: Prioritizes network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.
SKU SPS-8F2G
Manufacturer Scoop

Specifications

Ethernet Ports: 8x 10/100; 2x 10/100/1000
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 5W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8
Power Input: 52V 1.85A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 52V
Dimensions: 184mm x 95mm x 28mm

Scoop’s SPS-8G2S is an unmanaged 8 port Gigabit Ethernet AI PoE switch, with 2 x 1.25Gbps SFP Uplink Ports. Each of these PoE ports are IEEE 802.3af/at compliant which enables them to identify whether the connected device is compatible and requires power. The total PoE budget is 96W, or up to a maximum of 36W per port.

The SPS-8G2S supports 4 working modes:

AI Extend: PoE transmission distance of ports 1-8 can be increased to up to 250 metres at 10Mbps using Cat6 solid copper cable.
AI VLAN: Enables Port Isolation on Ports 1-8.
AI QoS: Prioritizes network bandwidth based on network usage history and analytics.
AI PoE: Automatically restarts a PoE powered device if no data passes through the port for a set time.

SKU SPS-8G2S
Manufacturer Scoop

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: AI VLAN; AI Extender; AI PoE; AI QOS
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8
Power Input: 52V 1.85A Power Adapter (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps Ports
Supported Voltage Range: 52V
Dimensions: 185mm x 95mm x 28mm
Weight: 0.95kg

Ubiquiti's UCG-FIBER is a desktop 10Gbps dual WAN, UniFi cloud gateway with selectable NVR storage via SSD up to 2TB. The unit runs the complete UniFi application suite for full stack network management and features 1x 10Gbps WAN port, 4x 2.5Gbps LAN Ports, one with 802.3at (PoE+) PoE output, as well as 2 x SFP+ ports.

It can be configured and managed with the UniFi Network Application.

Note: NVMe SSD not included. Third-party SSD installation requires tray accessory.

Specifications
Ethernet Ports: 4x 10/100/1000/2500 (LAN); 1x 10/100/1000/10000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 29.4W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3at (PoE+) on Port 4
Power Input: 54V 1.1A Power Adapter (Included)
Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
Serial Interface: None
SFP Ports: 2 x SFP+ (1x WAN ; 1 x LAN)
Supported Voltage Range: 50-57V
System Memory: 3GB
USB Ports: None
Dimensions: 212.8 x 127.6 x 30 mm
Weight: 675g

Ubiquiti's UXG-FIBER is a desktop 10Gbps dual WAN, independent gateway which features 1x 10Gbps SFP+ port, 4x 2.5Gbps LAN Ports, one with PoE+ (802.3at) output as well as 1x SFP+ and 1x 10Gbps Ethernet WAN ports.

It can be configured and managed with a Cloud key, Official UniFi Hosting, or UniFi Network Server.

Specifications

Ethernet Ports: 4x 10/100/1000/2500 (LAN); 1x 10/100/1000/10000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3at (PoE+) on Port 4
Power Input: 54V 1.1A Power Adapter (Included)
Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
Serial Interface: None
SFP Ports: 2 x SFP+ (1x WAN ; 1 x LAN)
Supported Voltage Range: 50-57V
System Memory: 2GB
USB Ports: None
Dimensions: 212.8 x 127.6 x 30 mm
Weight: 605g

Ubiquiti's UCG-MAX is a powerful and compact 2.5Gbps multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features with 1.5Gbps IPS routing and a 512GB SSD for NVR storage. The unit can run all UniFi applications for full-stack network management and features 4x 2.5Gbps Ethernet ports, 1x 2.5Gbps WAN Port, a quad-core 1.5GHz CPU, 0.96" LCM status display, and Multi-WAN load balancing.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 4x 10/100/1000/2500 (LAN); 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset
Max. Power Consumption: 16.1W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x 5V 5A USB Power Adapter (Included)
Processor: Quad-core ARM® Cortex®-A53 at 1.5GHz
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V 3A via USB
System Memory: 3GB DDR4
USB Ports: None
Dimensions: 141.8 x 127.6 x 30 mm
Weight: 0.52kg

Ubiquiti's UCG-ULTRA is a powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features. The unit runs UniFi Network for full-stack network management and features 4x Gigabit Ethernet ports, 1x 2.5Gbps WAN Port, a quad-core 1.5GHz CPU, 0.96" LCM status display and multi-WAN load balancing.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN); 1x 10/100/1000 (LAN / WAN);1x 10/100/1000/2500 (WAN)
Hardware Button: Reset
Max. Power Consumption: 6.2W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x 5V 3A USB Power Adapter (Included);
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V 3A via USB
System Memory: 3 GB DDR4
USB Ports: None
Dimensions: 141.8 x 127.6 x 30 mm
Weight: 0.52kg

Ubiquiti's UISP-CON is a UISP Console with the pre-installed UISP application which features a built-in switch with 8x Gigabit Ethernet Ports and 1x 10Gbps SFP+ Port. It also offers 1x 10Gbps SFP+ and 1x Gigabit Ethernet WAN connections and can be wall or rack mounted with the included kit.

Specifications

Ethernet Ports: 8x 10/100/1000 (LAN) 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop, Wall or Rack-Mount
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: None
Power Input: 24V 2.5A power supply (Included)
Processor: Quad-Core 1.7 GHz ARM® Cortex®-A57
Serial Interface: None
SFP Ports: 1x 10Gbps (LAN) 1x 10Gbps (WAN)
Supported Voltage Range: 24-28V
System Memory: 4 GB DDR4
USB Ports: None
Other: 1x MicroSD card slot
Dimensions: 210.4 x 140.2 x 43.7 mm
Weight: 1.5kg

Ubiquiti's ER-6P is a professional 5 port Gigabit Ethernet router with SFP connectivity. Based on EdgeOS, it contains a quad-core, 1Ghz processor and 24v PoE out. It is designed for ISP (internet service provider) or SME (small to medium enterprise) deployments which require advanced routing features. It can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Wall Mount or Desktop
Operating System: EdgeMAX
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 24V Passive PoE Output on Ports 0~4
Power Input: 24V 2.5A Power Supply (Included)
Processor: 4-Core 1GHz; MIPS64
Serial Interface:1x RJ45 Serial Port
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 16 - 30VDC
System Memory: 1GB DDR3 RAM
USB Ports: 1x USB 3
Dimensions: 229 x 136.5 x 31.1 mm
Weight: 730 g

Ubiquiti's ES24-250 is a managed 24 port Gigabit PoE switch with SFP connectivity. It features 802.3af/at PoE as well as passive 24v PoE on all Ethernet ports with a maximum budget of 230W. L2/L3 functionality makes them suitable for a wide range of high performance applications. It can be managed via the UISP network management platform.
Specifications
Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop or Rack-Mount
Operating System: EdgeMAX
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 802.3af/at or 24V Passive PoE on Ports 1~24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: 1x RJ45 Ethernet In/Out Band
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100V-240V
Dimensions: 485 x 43.7 x 285.4mm
Weight: 4.7Kg
