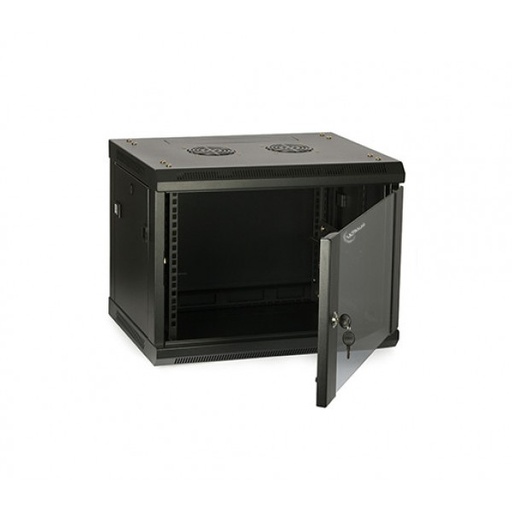

UltraLAN 9U Fixed Wall Mount Cabinet

UltraLAN wall mount cabinets provide a cost-effective, space-saving solution ideal for smaller networking installations in retail shops, small offices, schools, or any environment with limited floor space. Their compact, wall-mountable design helps maximize room efficiency without sacrificing functionality.

The cabinet features toolless removable side panels for quick and easy access, venting slots, and space for mounting two cooling fans (fans not included) to maintain optimal airflow. Finished with a durable powder-coated paint for longevity and scratch resistance, these cabinets come pre-assembled to save installation time.

The mounting rails are rack-numbered, simplifying equipment alignment and installation, while the strengthened safety glass front door with security keylock allows for clear visibility and secure protection of your equipment.

Product Features:

Enclosure body depth: 450 mm
Adjustable rail depth to suit various equipment
Strengthened safety glass front door with security keylock
Maximum static load: 60 kg
Fan mounting slots: 2 (fans not included)

Cabinet Specifications:

Dimensions (H x W x D): 515 x 615 x 465 mm
Vertical rack space: 9U
Horizontal rack mounting space: 19 inch
Maximum static load: 60 kg

Package Contents:

1 x 9U network cabinet (fully assembled)
1 x Bag of cage nuts & bolts
2 x Keys for lockable door

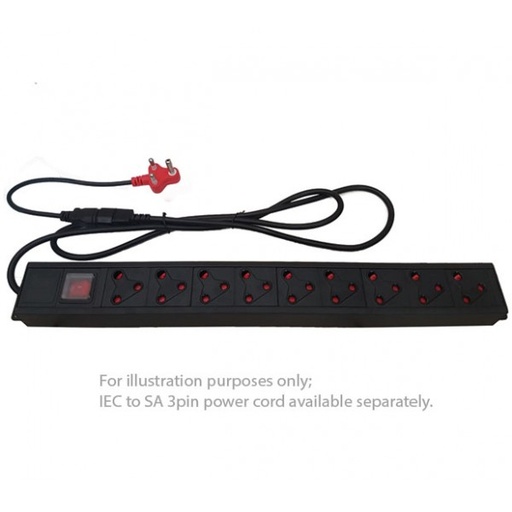

UltraLAN 9-socket (3pin SA) PDU with IEC Plug

UltraLAN’s 9-socket Power Distribution Unit (PDU) offers convenient 3-pin South African (SA) power outlets designed to supply power to your network cabinet hardware efficiently. This PDU mounts vertically inside your cabinet against the railings, helping to organize power connections neatly and safely.

Equipped with an IEC power cord, it easily connects to power sources such as a UPS within the server cabinet, ensuring reliable and uninterrupted power distribution.

Note: An IEC to 3-pin SA power cord is available separately if you want to connect the PDU directly to a standard 3-pin SA 220V wall socket.

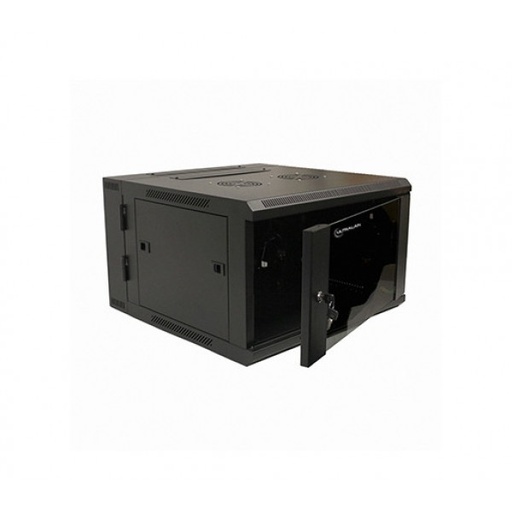

UltraLAN 6U Swing Frame Wall Mount Cabinet

UltraLAN wall mount cabinets are a cost-effective solution for smaller networking installations or limited space environments such as retail shops, small offices, or schools. The swing frame design features a hinged back section that allows the cabinet to swing out from the wall, providing easy access to the rear of equipment—especially useful when managing cable connections.

The cabinet includes toolless removable side panels for quick access, venting slots, and space for mounting two fans to keep equipment cool. Finished with a durable powder-coated paint for scratch resistance and longevity, the cabinet is pre-assembled to save installation time. Numbered rack mounting rails simplify alignment and equipment installation. The glass door with a viewing window allows clear visibility of installed equipment at all times.

Product Features:

Enclosure body depth: 600mm
Lift-off hinges on swing frame
Adjustable rail depth to suit equipment
Strengthened safety glass front door with security keylock
Maximum static load: 60 kg

Package Contents:

1x 6U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door
Cabinet Specs
Cabinet Dimensions (H x W x D) 385 x 615 x 615mm
Vertical Rack Space 6 U
Horizontal Rack Mounting Space 19 inch
Maximum Static Load 60 KG
Fan Mountings 2 slots (fans not included)

Expected Gross Weight: Approximately 22 - 25 kg

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

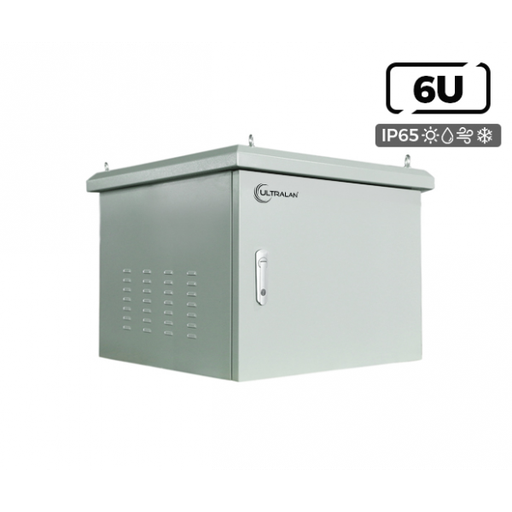

UltraLAN 6U Outdoor Wall Mount Network Cabinet

UltraLAN’s outdoor wall mount cabinets provide reliable protection for sensitive network equipment in harsh environments. Constructed from durable electro-galvanized cold rolled steel with a powder-coated finish, this cabinet safeguards your equipment from weather, corrosion, and dust ingress while ensuring proper ventilation and cooling.

Designed with a high-grade polyurethane door joint strip and a roof awning, it offers enhanced protection against water and dust penetration. The secure 3-point swing handle locking system keeps the door firmly closed to prevent unauthorized access.

Airflow is optimized with vented side panels and replaceable metal mesh filters inside a double wall to balance cooling and dust protection. Two ceiling-mounted fans further improve circulation and heat dissipation. Cable entry is facilitated at the bottom through removable rubber covers. The cabinet also features four hooks on top for easier wall installation.

Key Features:

Body depth: 450mm (500mm including rooftop)
Two built-in ceiling fans for improved air circulation
Vented side panels with replaceable dust filters
Secure 3-point locking system on the door
Powder-coated electro-galvanized cold rolled steel construction
Fully assembled for quick installation
Adjustable 19" mounting rails with numbered U markings
Round cable glands with removable rubber covers at base
Four hooks for convenient wall mounting

Specifications:
Feature Specification
Cabinet Dimensions (H x W x D) 6U, 600mm wide x 450mm deep (500mm including rooftop)
Vertical Rack Space 6U
Horizontal Rack Mounting Space 19 inch
Fan Mountings 2 ceiling-mounted fans (included)

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

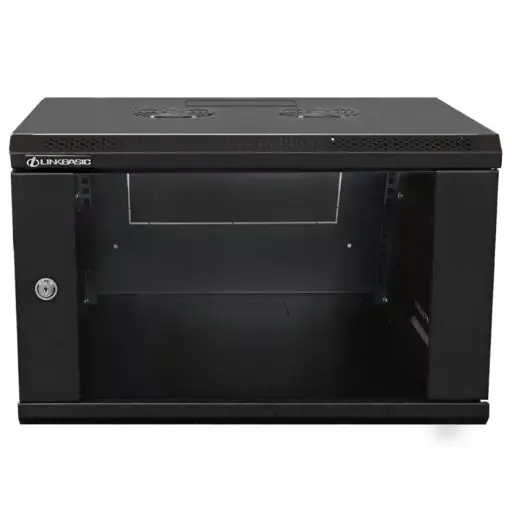

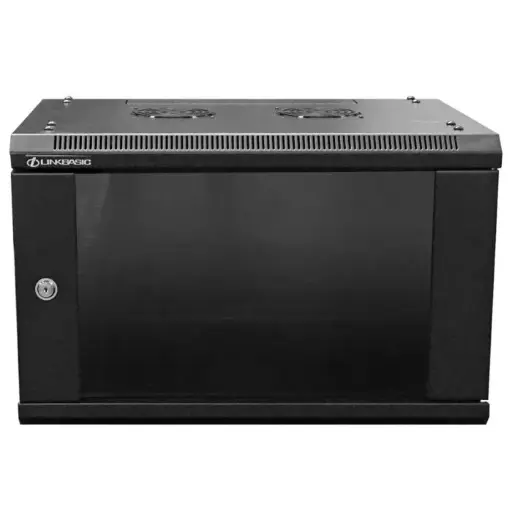

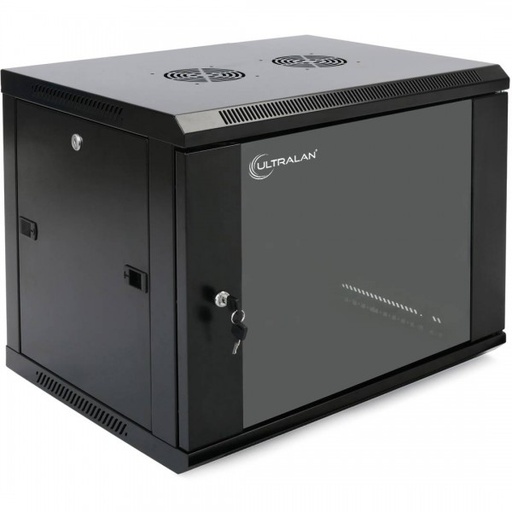

UltraLAN 6U Fixed Wall Mount Cabinet

UltraLAN wall mount cabinets offer a cost-effective solution for smaller networking setups or areas with limited space, such as retail shops, small offices, or schools. Their compact, wall-mountable design helps installers save valuable floor space.

The cabinets feature removable side panels for easy equipment access, venting slots, and room for two fans to maintain optimal cooling. Finished with durable powder-coated paint, these cabinets are scratch-resistant and designed for long-lasting use. Pre-assembled for convenience, they also include rack-numbered mounting rails to simplify alignment and installation. The strengthened safety glass front door with viewing window allows clear visibility of all installed equipment.

Product Features:

Enclosure body depth: 450mm
Adjustable rail depth to fit various equipment
Strengthened safety glass front door with security keylock

Package Contents:

1x 6U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door
Fan Mountings 2 slots (fans not included)

Expected Gross Weight: Approximately 15 – 17 kg (including packaging)

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

UltraLAN 5-in-1 Fiber Tester & Tracker

The UltraLAN all-in-one Optical Fiber Cable Tester is an essential tool for cable installers, fiber technicians or anyone working in networking environments. The tool features a combination of a fiber power meter, visual fault locator, cable tester, and cable tracker all built into one device. This allows you to test fiber optic cables for breaks, insertion loss and optical power loss, locate network cable and test its physical conditions.

The power meter supports 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. With the compact adaptor, it can be used to test RJ45 Cable's continuity, but also track cable among unknown bundles of wires (line hunt). The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status.

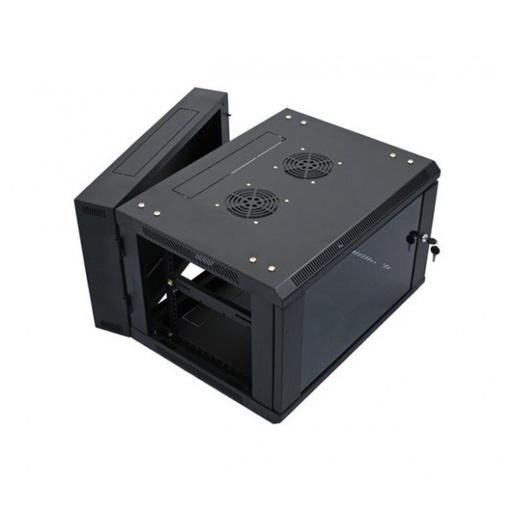

UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas. The swing frame cabinets have a hinged back section, allowing for the cabinet to swing out from the wall, giving easy access to the rear of equipment (especially convenient when needing to access cables on the rear of equipment).

The cabinets have removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. The side panels also include locks to secure the cabinet from unwanted entry. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.

Product features:

Enclosure body depth of 600mm
Lift off hinges on swing frame
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock

Package contents:

1x 4U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door
Fan Mountings 2 slots (fans not included)
Expected Gross Weight: Approximately 12 – 14 kg (including packaging)

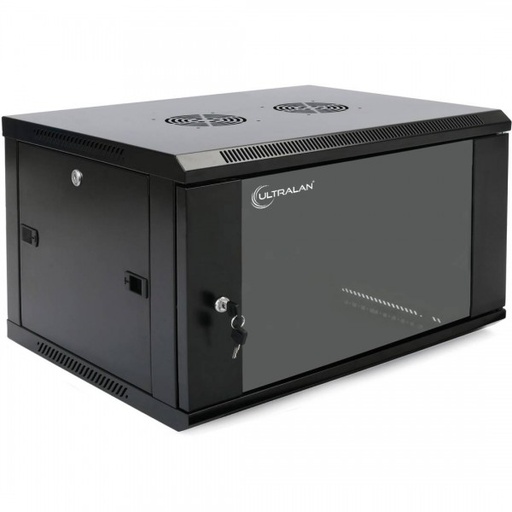

UltraLAN 4U Fixed Wall Mount Cabinet

UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas.

The cabinets have removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.

Product features:

Enclosure body depth of 450mm
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock

Package contents:

1x 4U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door

Expected Gross Weight: Approximately 10 – 12 kg (including packaging)

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

UltraLAN 45mm Fiber Splicing Sleeve

The UltraLAN fiber splice sleeves are specifically designed for the mechanical and environmental protection of fused fiber splices. The splice protectors consist of clear heat shrinkable tubing to allow for visual location of the splice prior to heat shrinking with a pre-installed stainless steel (1.5mm) reinforcing rod.

*Sold in a pack of 100.

UltraLAN Fiber Optic Fusion Splicer - Model FIB-T-FS2

The UltraLAN Fiber Optic Fusion Splicer Model FIB-T-FS2 is a cutting-edge tool designed to deliver unmatched precision and efficiency in fiber optic cable splicing. Whether you're working on a complex network installation or a routine maintenance task, this advanced splicer offers a comprehensive suite of features to enhance your workflow.

Rapid Heating Technology

One of the standout features of the FIB-T-FS2 is its rapid heating capability. With a fusion time of just 8 seconds and an 18-second heating cycle, you can achieve optimal fusion quickly and efficiently. The splicer supports both automatic and manual heating modes, allowing you to choose from six preset heat shrink tubes or customize the temperature settings to meet your specific needs.

High-Resolution Flip-Up Screen

The splicer is equipped with a 180° flip-up LCD touch screen, which provides high-resolution visuals and an intuitive user interface. This design not only enhances visibility but also simplifies operation, making it easy to navigate the graphical user interface (GUI) and perform tasks smoothly.

Advanced Motor System

Featuring a sophisticated six-motor drive system, the FIB-T-FS2 offers superior precision and reduced positioning errors compared to traditional four-motor systems. The precise micro-step guides ensure minimal dissolution loss and faster, more efficient splicing, ultimately improving your overall work efficiency.

Built-In Testing Tools

The FIB-T-FS2 integrates essential testing tools, including a built-in red light source (VFL) and an optical power meter (OPM). These tools support six wavelengths and feature self-calibration for accurate optical power measurements. With large capacity storage, you can save tens of thousands of data records, ensuring that all your critical information is securely stored.

Extended Battery Life

The splicer is designed with a robust 5200mAh battery that supports extended operational periods. The convenient pop-up battery compartment allows for easy single battery charging. Additionally, the device features automatic shutdown and power-saving modes to extend battery life even further.

Versatile Splicing Capabilities

The FIB-T-FS2 includes a three-in-one universal clamp that accommodates patch cords, bare fibers, and leather cables. This versatile clamp ensures stable and secure fixation, facilitating fully automatic and efficient fiber splicing. The inclusion of LED lighting helps you work in low-light conditions, and the status and heating indicator lights keep you informed of the splicer's operation.

User-Friendly Features

Designed with user convenience in mind, the splicer’s intelligent GUI interface provides a clear and concise display. The system includes intelligent fault detection and prompt notifications to help you address issues quickly. The device also supports external charging, USB upgrades, and fusion splice data export, ensuring you can keep your equipment updated and your data accessible.

Comprehensive Accessory Package

The UltraLAN FIB-T-FS2 comes with a dedicated toolbox and a fiber optic cleaver, providing everything you need for efficient splicing operations.

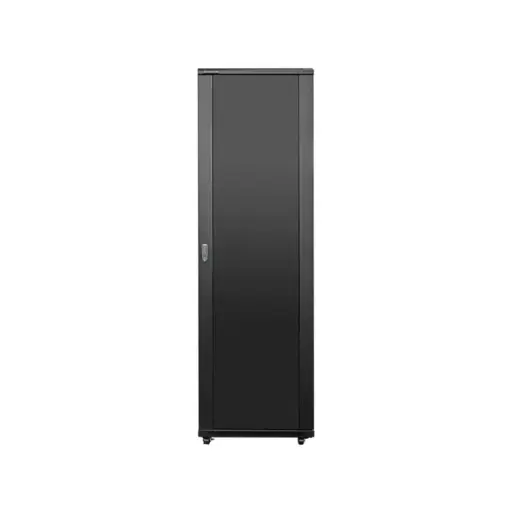

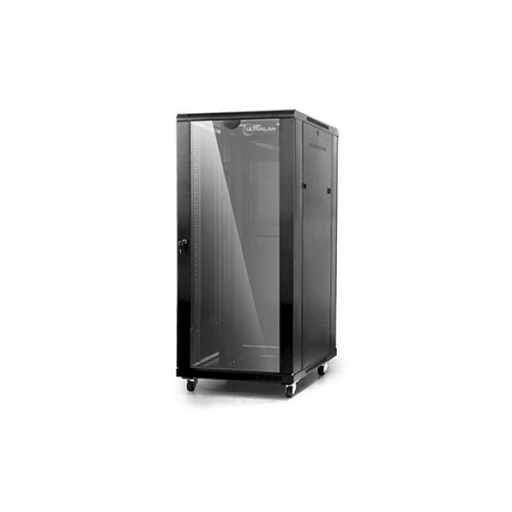

The UltraLAN 19" 27U free-standing server cabinet is designed for telecommunications, data, and IT environments, providing secure housing for networking and server equipment. It combines durability, accessibility, and a professional appearance, making it ideal for offices, server rooms, and data centers.

Key Features

Tempered glass front door for clear visibility and durability
Lockable front and rear doors for added security
Cable entry ports at top and bottom for easy cable management
Numbered 19" punch profiles (front & rear) for organized installation
Adjustable feet & lockable castors for mobility and stability
Complete four-way fan unit with power lead for improved ventilation
High static load capacity – supports up to 800kg
Earthing and grounding strips for electrical safety
Includes cage nuts and washers for rack mounting

Specifications

Rack Size: 27U
Depth: 1000mm
Material: High-grade steel with powder coating
Cooling: 4x Cabinet cooling fans (mountable top plate)
Shelves: 3x full-depth shelves included
Package: Flat-packed (3 boxes)
Static Load: 800kg

Package Contents

1x 27U Cabinet (Flat Packed)
1x Bag of cage nuts & bolts
2x Keys for lockable doors
3x Full-depth shelves
4x Cooling fans

Note: Assembly required. Contact our sales team if pre-assembly is needed.

"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."

UltraLAN 25G SFP28 BiDi Module Pair - SM 20KM 1270/1330nm


UltraLAN's SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 25Gbps and 20km transmission distance with SMF.


The transceiver consists of three sections: a FP/DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8402.


Product Features:

Up to 25.78Gb/s data links
Bi-Directional LC connector
Hot pluggable SFP28 footprint
1270nm/1330nm DFB transmitter
Applicable for 20KM SMF connection
Low power consumption, <1.5W
Compliant to SFF-8402 for SFP28 solution
RoHS Compliant


Please note, as these are BiDi SFP Modules they are only sold in a pair.

UltraLAN 24 Fiber Splice Tray


The UltraLAN fiber splice tray is designed to provide a place to store fiber cables and splices and prevent them from becoming damaged or being misplaced. These trays are commonly used individually/stand-alone, inside of fiber patch panels, or in large termination boxes.

The fiber splice tray has 4 access ports for fiber cable to either enter/exit the tray, allowing for cables to be easily fed into the tray from various angles. The tray is made from high strength injection mold plastic, is flame retardant, and offers a long anti-aging lifespan.


The UltraLAN fiber splice tray features 12 splice holder slots, but can also support a max of 24 splices when two sleeves are placed inside each slot. The cover and base section is securely joined with a metal pin, and the trays are stackable as well. The inner splice tray offers further cable management, with a fiber bend radius over 30mm.

UltraLAN 1x8 SC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

UltraLAN 1x8 LC/APC 900μm PLC Splitter
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

UltraLAN 1x8 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.

UltraLAN 1x4 SC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:
Port Configuration
1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

UltraLAN 1x4 LC/APC 900μm PLC Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

Specifications:

Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

UltraLAN 1x32 SC/APC 900μm PLC Splitter


Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.


Specifications:
Port Configuration 1x2 1x4 1x8 1x16 1x32
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) Typical 3.6 6.8 10.2 13.3 16.2
Max 4 7.4 10.5 13.5 16.9
Loss Uniformity (dB) Max 0.5 0.7 1 1.4 1.8
Return Loss (dB) Min 55 55 55 55 55
Polarization Dependent Loss(dB) Max 0.2 0.2 0.3 0.3 0.3
Directivity (dB) Min 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.8 0.5
Temperature Dependent Loss (-40～85 ℃) (dB) Max 0.5 0.5 0.5 0.8 0.8
Operating Temperature (℃) -40～+85
Storage Temperature (℃) -40～+85

UltraLAN 1x32 900μm Bare Fiber Splitter

Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to achieve optical signal power splitting.

These bare fiber splitters have no connectors pre-terminated, giving customers the option to terminate their own preferred connectors (LC/SC/ST etc) depending on the equipment requirements.
