Ubiquiti's AIR-D534X is a 5GHz 34dBi, 45° slanted dish antenna designed to seamlessly integrate with Ubiquiti radios. The industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity networks.

*Note: AF-5XHD not included.

Specifications

Antenna Gain: 34dBi
Beam-width: 3°
Connector: 2x RP SMA Female
Frequency Range: 4.9GHz – 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 1,779N @ 200km/h

Dimensions: Ø 1050 x 42mm
Weight: 13.5kg

Ubiquiti's AIR-D530X is a 5GHz 30dBi, 45° slanted dish antenna designed to seamlessly integrate with Ubiquity radios. The industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity networks.

*Note: AF-5XHD not included.

Antenna Gain: 30dBi
Beam-width: 5.8°
Connector: 2x RP SMA Female
Frequency Range: 4.9GHz – 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 790N @ 200km/h

Dimensions: Ø 650 x 386mm
Weight: 7.4kg

Ubiquiti's AIR-D523X is a 5GHz 23dBi, 45° slanted dish antenna designed to seamlessly integrate with Ubiquiti radios. The industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity networks.

*Note: AF-5XHD not included.

Antenna Gain: 23dBi
Beam-width: 10°
Connector: 2x RP SMA Female
Frequency Range: 5.1GHz - 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 190N @ 200km/h

Dimensions: ø 378 x 290mm
Weight: 3.5kg

Ubiquiti's AF-5XHD is designed for use in the 5GHz frequency band offering channel bandwidths of up to 100MHz, GPS synchronization and uses airOS LTU, manageable via UISP. The AF-5XHD is designed to work with Ubiquiti® airFiber X slant-polarized antennas for improved noise immunity and signal-to-noise ratio but is also compatible with other dish antennas in the Ubiquiti range. This device is managed via the UISP network management platform.

*Note: Antenna not included. The AF-5XHD only functions in PtP (master or slave) mode and therefore is not suitable for PtMP installations. The AF-5XHD is not backwards compatible with the AF5X.
Antenna Gain: Antenna Dependant (2x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: 1.34 Gbps
Ethernet Ports: Data - 1x 10/100/1000 ; Management – 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W-12W
Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V; 1A Gigabit PoE Injector (Included)
Serial Interface: Bluetooth V4.0
SIM Slots: None
Supported Voltage Range: 18V-54V
USB Ports: None

Dimensions: 224 x 82 x 48mm
Weight: 0.35kg

Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Duplexers and Antenna not included. For more information regarding an 11GHz spectrum license, please email [email protected].

Antenna Gain: Antenna Dependant (4x RP SMA Female)
Beam-width: Antenna Dependant
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data Port - 1x 10/100/1000 ; Management Port – 10/100
Hardware Button: Reset
Max. Power Consumption: 36W
Mounting: Antenna or Pole-Mount
Operating System: airOS F (airFiber)
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None
Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: 327 x 112 x 86mm
Weight: 2.260kg

Ubiquiti's AF-11DUPL is a duplexer used to enable the use of low band frequencies on the AF-11. A single duplexer is required for a SISO configuration, whereas two units are required for MIMO.

*Note: AF-11 and dish not Included. For more information regarding an 11GHz spectrum license, please email [email protected].

Low Channel: 10.700GHz - 10.955GHz
High Channel: 11.200GHz - 11.445GHz

Ubiquiti's AF-11DUPH is a duplexer used to enable the use of high band frequencies on the AF-11. A single duplexer is required for a SISO configuration, whereas two units are required for MIMO.

*Note: AF-11 and dish not Included. For more information regarding an 11GHz spectrum license, please email [email protected]
Low Channel: 10.940GHz – 11.200GHz
High Channel: 11.440GHz – 11.700GHz

Ubiquiti's AF-11KIT includes an AF-11 radio, an AF-11G35 35dBi dish antenna and an AF-DUPL single low band duplexer. Ubiquiti's AF-11 radio is built for outdoor Point-to-Point bridging and carrier-class network back-hauls using the 11GHz licensed radio band. Ubiquiti's custom silicon and proprietary radio architectures are explicitly designed for long-distance, low latency applications. It offers superior long-range performance and high throughput. The AF-11 can use single (SISO) or bonded (MIMO) channels, depending on your specific license specifications and requirements. It also features different channel widths to suit your deployment needs and allows you to configure TX and RX channel frequencies independently. Users are also able to program uplink and downlink duty cycles to suit their networking needs on the other end of the link. This device is managed via the UISP network management platform.

*Note: Kit includes Antenna and Duplexer. For more information regarding an 11GHz spectrum license, please email [email protected].
Antenna Gain: 35dBi
Beam-width: 2.5°
Data Rate: Up to 1.2+ Gbps
Ethernet Ports: Data: 10/100/1000 ; Management: 10/100
Hardware Button: Reset
Max. Power Consumption: 36W
Mounting: Antenna: Pole-Mount Radio: Antenna or Pole-Mount
Operating System: airMAX ac
Operating Temperature: -40°C to 55°C
PoE Input: 38V-56V Passive PoE
PoE Output: None
Power Input: 50V, 1.2A PoE Injector (Included) or DC Power Block
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 38V-56V
USB Ports: None

Dimensions: Antenna: ø 811 x 460mm Radio: 327 x 112 x 86mm
Weight: Antenna: 11.85kg Radio: 2.260kg

Product Overview

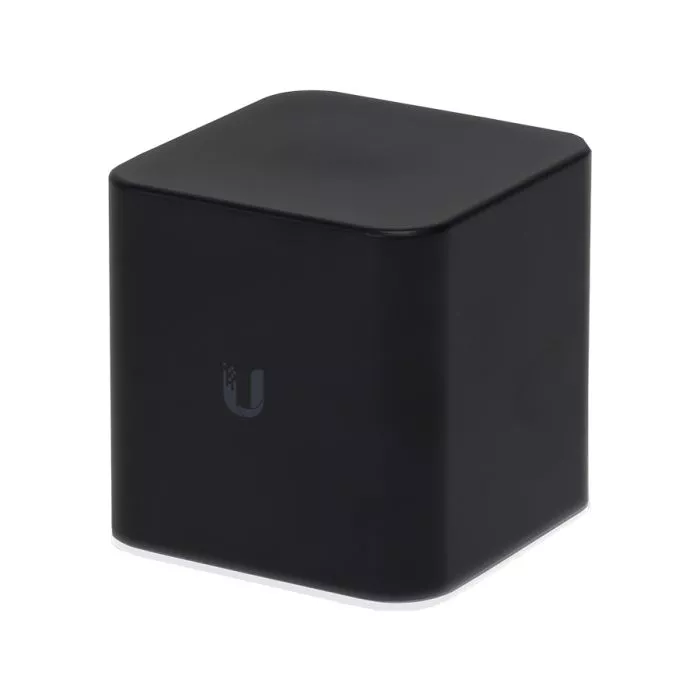

The Ubiquiti UISP airCube ISP (ACB-ISP) is a compact and efficient 2.4 GHz WiFi 4 Router and Access Point designed for Internet Service Providers and network deployments. It seamlessly integrates with the UISP network management platform for easy control and monitoring. The device features 24V Passive PoE pass-through, making it ideal for powering airMAX® CPEs without additional wiring complexity.
Key Features

Dual Functionality: Acts as both a WiFi router and access point on the 2.4 GHz band.

WiFi 4 Standard: Delivers reliable 300 Mbps data rates, perfect for ISP customer premises.

24V Passive PoE Pass-Through: Powers compatible airMAX® devices directly for simplified deployments.

Four Ethernet Ports: Four 10/100 Mbps LAN ports for wired connections.

Compact & Lightweight: Desktop mountable with a small footprint (87.8 x 89.5 x 89.25 mm; 215g).

360° Antenna Coverage: Built-in 4 dBi omnidirectional antenna with wide beam-width.

Robust Operating Conditions: Works reliably from -10°C to 50°C.

Easy Reset: Dedicated hardware reset button for quick troubleshooting.

Power Options: Supports 24V Passive PoE input or 5V Micro USB power (power supply and injector not included).

Managed by UISP Platform: Seamless integration for centralized network management and monitoring.

Technical Specifications
Specification Details
Frequency 2.4 GHz (WiFi 4)
Data Rate Up to 300 Mbps
Antenna Gain 4 dBi Omnidirectional
Beam-width 360°
Ethernet Ports 4 × 10/100 Mbps
Power Consumption Max 5 Watts
PoE Input 24V Passive PoE
PoE Pass-Through Output 24V Passive PoE
Power Input Options 24V Passive PoE or Micro USB (2A)
Operating Temp. Range -10°C to 50°C
Dimensions (mm) 87.80 x 89.50 x 89.25
Weight 215g
Package Contents

1 × Ubiquiti UISP airCube ISP WiFi Access Point (ACB-ISP)

1 × Quick Start Guide

Note: PoE injector and power supply are not included. Recommended PoE injector: POE-24G-24W.
Why Buy from QuickStore.co.za?

✔ Genuine Ubiquiti products with official warranty
✔ Fast nationwide delivery
✔ Expert technical support available

Ubiquiti's ACB-AC is a dual band, WiFi 5 Router/Access Point. It features 24V PoE pass-through to easily integrate with airMAX® CPEs. It is designed to work with the UISP network management platform.
Antenna Gain: 2.4GHz 4dBi ; 5.8GHz 5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300 Mbps ; 5.8GHz 866.7Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Desktop
Operating System: airOS
Operating Temperature: -10°C to 50°C
PoE Input: 24V Passive PoE on Port 1
PoE Output: 24V Passive PoE Pass-Through on Port 4
Power Input: 24V; 0.83A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 22-26V
USB Ports: None

Ubiquiti WAVE-MM is a corrosion-resistant pole mount which supports up to four WAVE-APM providing full 360° coverage.

Specifications

Pole Diameter: Ø25 - 76 mm (Ø1 - 3")
Wind Survivability: 200 km/h
Wind Loading: 100.9 N at 200 km/h
Dimensions: 175 x 148 x 133.5 mm
Weight: 1.4 kg

Ubiquiti's UISP-SPLUS features Layer 2 switching capabilities, 4x 2.5Gbps 27V Passive PoE ports, 4x SFP+, and a PoE budget of 160W when powered with the included Power Supply.

The UISP Switch can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Desktop, Wall-Mount or Rack Mount
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~4
Power Input: 27V 7.04A Power Supply (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 27V
Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

Ubiquiti's UISP-S features Layer 2 switching capabilities, 8x Gigabit 27V Passive PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. The UISP Switch can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 27V
Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

Ubiquiti's UISP-SPRO features Layer 2 switching capabilities, 24x Gigabit Ethernet Ports of which 16 are 27V Passive PoE ports, 4x SFP+, and a PoE budget of 220W. The UISP Switch Pro can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~16
Power Input: 1x IEC Power Cable (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
Dimensions: 442.4 x 267.5 x 43.7 mm
Weight: 4kg

Ubiquiti's UISP-RPRO is a professional router featuring 9x Gigabit Ethernet ports, and 4x 10Gbps SFP+ ports. Its quad-core 1.7GHz processor is ideal for ISP applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cable (Included)
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 4 GB DDR4
USB Ports: None
Dimensions: 442.4 x 200 x 43.7 mm
Weight: 3.3kg

Ubiquiti's UISP-R is a router featuring 8x Gigabit PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. Its dual core, 880Mhz processor is ideal for Micro Pop applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Processor Dual-core 880 MHz, MIPS1004Kc
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 24-28V
System Memory: 512 MB DDR3
USB Ports: None
Dimensions: 210.4 x 95 x 29 mm
Weight: 600g

Ubiquiti's UACC-TPC-30M is a 30m UISP Power Transport Cable for use between the UISP-BOX and the included power supply of the UISP-R or UISP-S.

Specifications
SKU UACC-TPC-30M
Manufacturer Ubiquiti
Manufacturer Product Code UACC-Cable-PT-30M
Specifications Connector: Power TransPort
Flame rating: VW-1
Conductor wire gauge: 12 AWG
Conductor type: Tin stranded copper
Jacket material: Thermoplastic elastomer
Jacket diameter: 11 x 6.5 mm
Operating temperature: -40 to 80°C
Cable Length: 30m

Ubiquiti's LTU-XR is a 5GHz, 29dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 29dBi
Beam-width: 3 dB: 5.5°, 6 dB: 7.5° (Horizontal & Vertical)
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 747 x 525 x 347mm
Weight: 3.2kg

Ubiquiti's LTU-ROCKET is a connectorised radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM. and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz ). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

Specifications

*Note: For maximum throughput firmware version 2.3.0 or later is required.
Antenna Gain: Antenna Dependent (2x RP SMA Female)
Beam-width: Antenna Dependent
Data Rate: Up to 600Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 55°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 1A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 244 x 82 x 48mm
Weight: 468g

Ubiquiti's LTU-PRO is a 5GHz, 24dBi, integrated radio featuring proprietary LTU technology. This technology is not impeded by the limitations of standard 802.11 WiFi technology, supporting 1024QAM and offering Channel Width Flexibility (10/20/30/40/50/60/80/100 MHz). Its custom LTU silicon and radio architecture provide up to 900+ Mbps of real TCP/IP throughput. It can be managed via the UISP network management platform.

*Note: PtP mode requires firmware versions 1.5.1 or later. For maximum throughput firmware version 2.3.0 or later is required.

Specifications

Antenna Gain: 24dBi
Beam-width: 14°
Data Rate: Up to 550Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 316.5 x 316.5 x 174.3mm
Weight: 1.3kg
