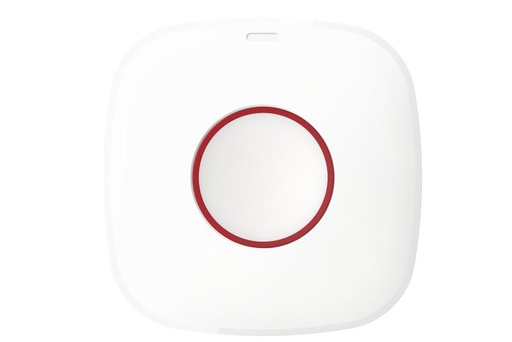

Fully remote configurable through App
Multiple enrollment methods and easy installation design
Effective emergency button
Frequency hopping against jamming for reliable transmission
Feature
Button1
Tamper ProtectionFront;Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport
Interface
LED IndicatorBlue(Alarm)
Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.2Km
Frequency HoppingSupport
Enrolling MethodPower up;Remote ID;QR Code

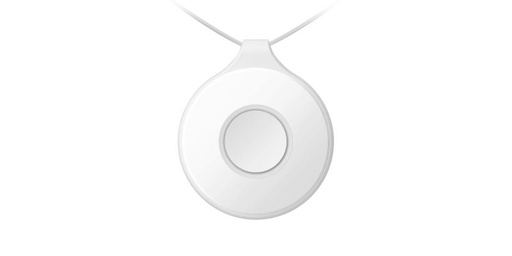

Accidental press protection
Fully remote configurable through APP
IP66 daily environment protection
Frequency hopping against jamming for reliable transmission
Optional lanyard and wristband accessory available
Feature
Button1
Tamper ProtectionNone
Signal Strength IndicatorSupport
Interface
LED IndicatorRed/Green
Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1Km
Frequency HoppingSupport
Enrolling MethodPower up;Remote ID;QR Code

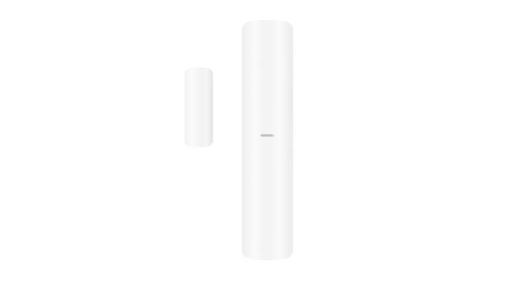

Slim design for an unobtrusive (unnoticeable) installation
Fully remote configurable through APP
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission
Detection Performance
Detection MethodOpening Contact
Detection Gap43 mm Max
Feature
Digital ProcessingSupport
Tamper ProtectionFront;Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport

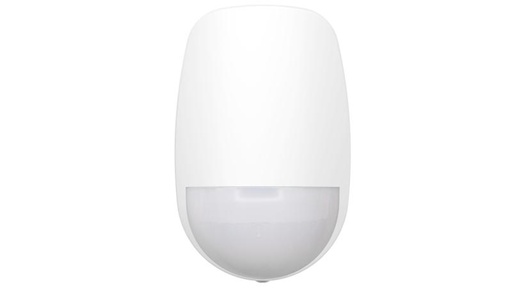

Detection Range: 15m/85.9°
Up to 30 kg pet immunity
SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
Fully remote configurable through APP
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected
Frequency hopping against jamming for reliable transmission

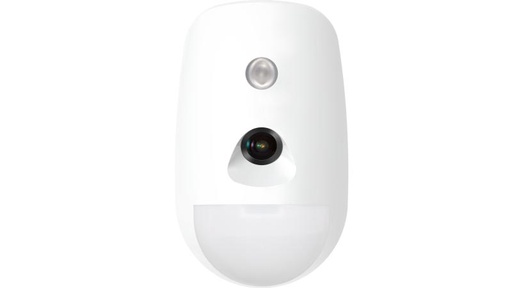

Detection range: 12m/85.9°
Up to 30 kg pet immunity
SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
Polarizing IR lens design for more uniform night illumination and excellent night shots
Large integrated memory buffer for image storage
Fully remote configurable through APP
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected

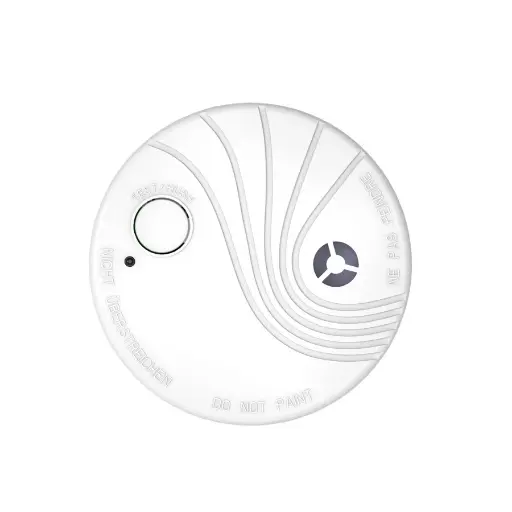

DS-PDSMK-S-WE AX PRO Wireless Photoelectric Smoke Detector High quality chamber with photoelectric sensor 10 years battery life EN 14604 Certified

Detection Performance
Detection MethodTemperature Sensor
Detection Range
-10°C to 55°C (standalone)
-35°C to 99°C (with included probe)
Feature
Digital ProcessingSupport
Tamper ProtectionFront;Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport
Interface
LED IndicatorOn screen display
Display
Screen Size2.7 inch
Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.2Km

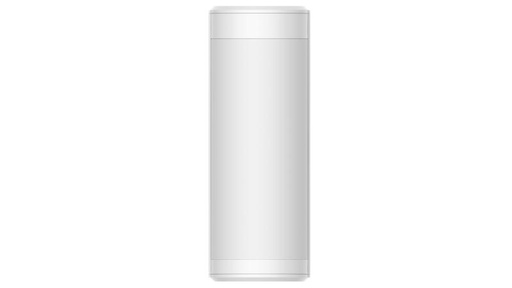

90°@180° adjustable coverage
IP65 weather resistance for outdoor application
Active IR anti-masking
Multiple enrollment methods and easy installation
Frequency hopping against jamming for reliable transmission

Detection Performance
Detection MethodPassive Infrared;Microwave
Detection Range15 m
Detection Angle90° @180° adjustable
Detection Zones92
Detectable Speed0.3～2m/s
SensitivityAuto;Low
White Light Filter10000lux
Microwave Frequency24GHz(24.15～24.25GHz)
Pet Immunity40 kg
Digital Temperature CompensationSupport
Anti-maskingSupport
Adaptable Coverage
Support,
Pattern mask included

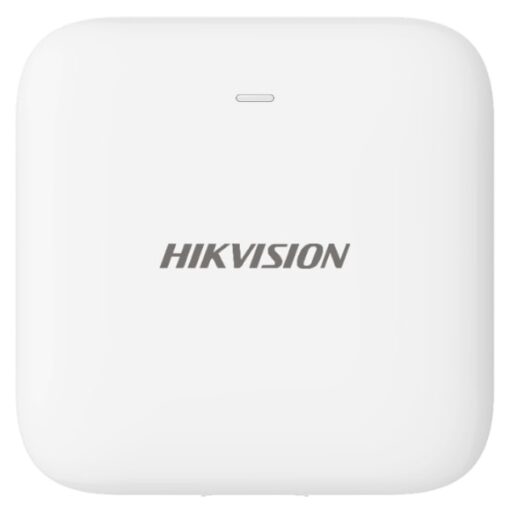

Hikvision water leak detector
Characteristics:

Function: Reporting water leakage
Battery life: 5 years
Wireless range from the Hub: 1,200 metres
Model number: DS-PDWL-E-WE

RF 868MHz
Offers reliable protection utilizing two-way wireless technology
Operation: Arming, disarming, alarm clearing, etc.
Supports arming or disarming with card
Patrol card for checking in (different from the arming/disarming card)
Full touch screen design with LED backlight
Communicates up to 800 m (in open area)

Hardware features
Serial port1, reserved
Tamper-ProofFront and rear
Function key6 function keys: fire alarm, away arming, stay arming, disarming, delete, and confirm

Electrical characteristics
Battery type4 AA batteries
Power supply3 VDC power input
Operation humidity10% to 90% (No condensing)
Operation temperature-10 °C to +55 °C (-4 °F to +122 °F)
Battery life span3 years

Wireless transmission
RF speed4.8 kbps
RF power10 dBm
RF frequency868MHz
RF modulation2GFSK
RF distance800 m (open area)

Display
Numeric key10 keys: 0 to 9
Indicator3 status indicators: power (green), fault (orange), and alarm (red) 4 partition
indicators: armed/disarmed (blue)

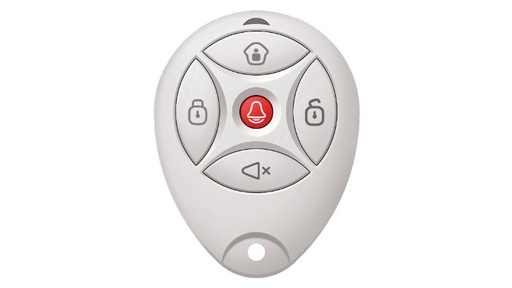

Operation: stay/away arming and disarming
Keyfob lock and unlock function
Fully remote configurable through App
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected
Frequency hopping against jamming for reliable transmission

Offers reliable operation utilizing two-way wireless technology
Buttons: Arm, disarm, stay armed, panic alarm, alarm elimination
Communicates up to 300 m away (in open areas)

Electrical characteristics
Battery typeCR2032 3.0V
Operation humidity10% to 90%
Operation temperature-10℃ to 55℃
Battery life span2-year power supply

Wireless transmission
RF speed4.8 kbps
RF frequency868MHz
RF modulationFSK
RF distance300m (Open area)

868MHz two-way wireless communication
AES-128 encryption
LED display, show status of device and replay on/off display
Small case design, which can be put into hiding places easily
Automation operating, one button turn on/off from APP/Keyfob/Keypad
Setting scenarios by different events

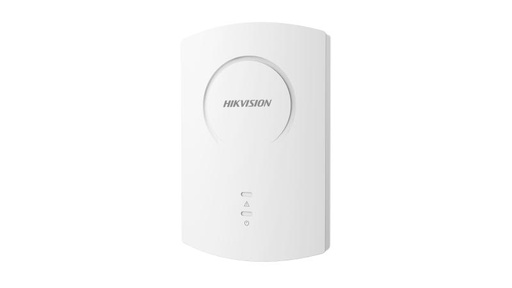

RF 868MHz, 2-output expander
Communicates up to 800 m (in open areas)
2 status LEDs

Hardware features
Tamper-ProofFront and rear
Power switch1 onboard switch for turning on/​off LED

Electrical characteristics
Power supply9 to 15 VDC
Operation humidity10% to 90% (non-condensing)
Operation temperature–10 °C to 55 °C (14 °F to 131 °F)

Wireless transmission
RF speed4.8 kbps
RF frequency868MHz
RF distance800 m (open area)

Display
Indicator3 LED: power (green), fault (orange), signal strength (green & orange)

General
Installation methodWall mounting
Dimension(WxHxD)160 mm × 105 mm × 28 mm (6.29" × 4.13" × 1.10")
Application scenarioIndoor
Shell materialPC + ABS
Weight165.0 g

Device management
Alarm output2-ch, capacity: 30 VDC/1 A
Relay output2, NO/NC

RF 868MHz, 8-output expander
Communicates up to 800 m (in open areas)
2 status LEDs


Hardware features
Tamper-ProofFront and rear
Power switch1 onboard switch for turning on/​off LED

Electrical characteristics
Power supply9 to 15 VDC
Operation humidity10% to 90% (non-condensing)
Operation temperature–10 °C to 55 °C (14 °F to 131 °F)

Wireless transmission
RF speed4.8 kbps
RF frequency868MHz
RF distance800 m (open area)

Display
Indicator3 LED: power (green), fault (orange), signal strength (green & orange)

General
Installation methodWall mounting
Dimension(WxHxD)160 mm × 105 mm × 28 mm (6.29" × 4.13" × 1.10")
Application scenarioIndoor
Shell materialPC + ABS
Weight165.0 g

Device management
Alarm output8-ch, capacity: 30 VDC/1 A
Relay output8, NO/NC

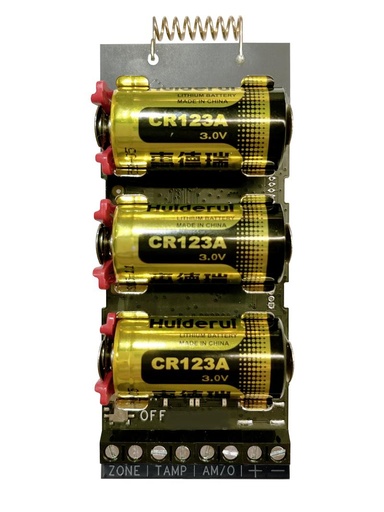

Small size design, which can be put into wired detector easily
868MHz two-way wireless communication
LED display, show the real status of device
With one tamper input and one PGM, can be used as zone input or alarm outpout
With 3.3V voltage output, can be used to power up external wired detector
Detection of device removal by accelerometer
Hardware features
Serial port1
Power switch1
Alarm input1 Alarm, 1 Tamper
Alarm output1 PGM, AM/Output
3.3v Output1, up to 10mA
Electrical characteristics
Power supply3 CR123
Operation humidity10% to 90%
Operation temperature–10°C to 55°C
Power consumption
Quiescent current: 40.29 uA
Max current: 47.85 mA
Voltage: 3 VDC
Battery life spanUp to 5 years (standby time)
Wireless transmission
RF frequency868 MHz
RF methodTwo-way communication
RF modulation2GFSK
RF distance1700 m
Display
Indicator3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red)

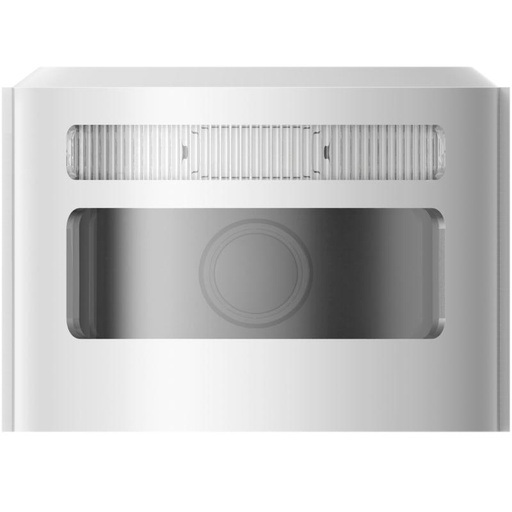

1/2.7" Progressive Scan CMOS
2.0 mm fixed lens
3D Digital Noise Reduction
Easy Installation
The direction of the Angle can be adjusted to fit the TT Detector's Angle
Protection Level IP66

Detection Performance
Detection MethodVideo Verification

Feature
Digital Noise Reduction3D
Focal length2.0mm@F2.25

Video
Field Angle137.2°(H), 80.1°(V)
Image TypeJPEG
Resolusion640*480;320*240;160*120
Fill LightInfrared Light
Fill Range15m
Day/Night SwitchAuto

Interface
Communication Interface1 12-Bit Data Interface

Electrical Characteristics
Power Supply3 VDC
Power Consumption1200mA

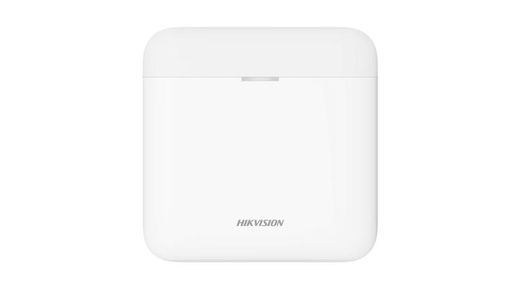

868MHz two-way wireless communication
Two-way communication, stable and secure
LED display, show the differernt feedbacks with easy understanding
Up to 35 hrs battery backup after mains lost, no worry about communication
Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
Easy installation with new designed structure

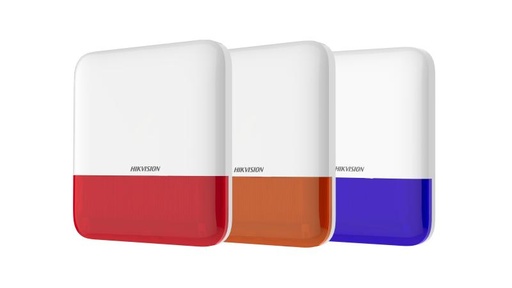

868 MHz two-way wireless communication
3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
AES-128 encryption
Front and rear panel tamper-proof
3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
Buzzer Decibel: 110 dB
Fully remote configurable through APP
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission
IP65 protective level
Electrical characteristics
Battery typeBattery (default power supply method) or 12 VDC
Power supplyBattery (default power supply method) or 12 VDC
Operation humidity10% to 90% (no condensing)
Operation temperature-20°C to 60°C (-4 °F to 140 °F)
Battery life spanUp to 3 years (standby time)
Wireless transmission
RF frequency868 MHz
RF modulation2GFSK
RF distance1.6 km (open area)

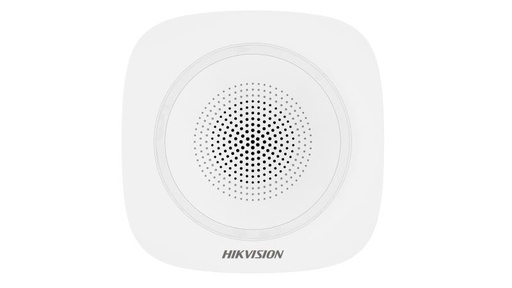

868 MHz two-way wireless communication
Configurable arming/disarming prompt sound and LED indicator
3 years battery life span (triggered every two weeks and alerting 90 sec for each triggering)
AES-128 encryption
Front and rear panel tamper-proof
3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
Buzzer Decibel: 90 to 110 dB
Fully remote configurable through APP
Multiple enrollment methods and easy installation design
Frequency hopping against jamming for reliable transmission
Electrical characteristics
Operation humidity10% to 90% (no condensing)
Operation temperature-10 °C to 55 °C (14 °F to 131 °F)
Battery life spanUp to 3 years (standby time)
Wireless transmission
RF frequency868 MHz
RF modulation2GFSK
RF distance1.6 km (open area)
