Scoop's RB-SXTG5ACSA by MikroTik Router BOARD, is an AC with up to 866Mbit over the air data-rate, 256-QAM modulation, and 80MHz channels.

The SA model has a 90-degree sector antenna, supports 802.11a/n mode and is compatible with all legacy Router BOARD devices, including Nstreme and Nv2 protocols. It is backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.
SKU RB-SXTG5ACSA
Manufacturer MikroTik
Manufacturer Product Code RBSXTG-5HPacD-SA

Specifications

Antenna Gain: 14dBi
Beam-width: 90°
Data Rate: 5.8GHz 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Pole-Mount
Operating System: Router OS (Level 4 license)
Operating Temperature: -30°C to 80°C
PoE Input: 12-57V (802.3af/at)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12-60V
USB Ports: 1x USB 2.0
Dimensions: 140 x 140 x 56 mm

MikroTik's RB-SXTLTE6 is a Cat6, LTE CPE designed for remote locations within the cellular network range. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity where even cell phones fail. The unit features a Cat6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands simultaneously. It is equipped with two Ethernet ports. The second port provides PoE-out functionality. It has two SIM slots for redundancy and is 802.3af/at compliant.

*Note: The second SIM slot is for scripted failover configurations only. It does not automatically failover or do load balancing.

SKU RB-SXTLTE6
Manufacturer MikroTik
Manufacturer Product Code SXTR&FG621-EA

Specifications

Antenna Gain: LTE: 9dBi
Beam-width: 60°
Data Rate: 300Mbps Downlink; 50Mbps Uplink
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole Mount
Operating System: Router OS (Level 3 License)
Operating Temperature: -40°C to 60°C
PoE Input: 12V-57V (Passive PoE; 802.3af/at)
PoE Output: PoE Pass-Through 18V-57V
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: 2 (Micro SIM 3FF)
Supported Voltage Range: 18V-57V
USB Ports: None
Dimensions: 140 x 140 x 103 mm

MikroTik RouterBoard RB3011UiAS (Rackmount) – High-Performance 10x Gigabit + SFP Router

Enterprise-Grade Networking with ARM CPU, USB 3.0 & LCD Touchscreen

The MikroTik RB3011UiAS-RM is a rack-mounted powerhouse featuring 10x Gigabit ports, SFP uplink, and a USB 3.0 port for storage/4G modems. Driven by an ARM CPU for superior throughput, it’s ideal for SMBs, ISPs, and data centers needing reliability and advanced routing.
🚀 Key Features

✔ 10x Gigabit Ethernet Ports – Dual switch groups (5 ports each) for VLAN/load balancing.
✔ SFP Fiber Uplink – Add a 1G optical connection for backbone links.
✔ USB 3.0 Port – Attach 3G/4G modems or external storage for backups.
✔ PoE Output – Last Ethernet port powers devices like APs (24V Passive PoE).
✔ Touchscreen LCD – Monitor status/configs without a console.
✔ RouterOS L6 License – Advanced firewall, QoS, VPN, and wireless features.
📊 Technical Specifications

CPU: Dual-core ARM 1.4GHz

RAM: 1GB

Ports:

10x Gigabit Ethernet (2x switch groups)

1x SFP (1G)

1x USB 3.0

1x Serial Console

PoE: Port 10 (24V Passive PoE-out)

Rack Size: 1U (included)

Power: 24V DC input (adapter sold separately)

🏆 Why Choose the RB3011UiAS?

✅ Future-Proof – ARM CPU handles VLANs, VPNs, and high-speed routing.
✅ All-in-One – LCD touchscreen for easy monitoring + USB 3.0 for expandability.
✅ ISP-Grade – Perfect for hotspots, VPN servers, or edge routing.
🔍 Ideal For:

🏢 Small/Medium Businesses – Robust routing with 10Gig LAN/SFP flexibility.
📶 Wireless ISPs – PoE-powered CPEs + fiber backhaul support.
🔒 VPN Gateways – High-speed encryption with RouterOS L6.
📦 What’s Included?

RB3011UiAS-RM router (rack ears pre-installed)

Power adapter (region-specific)

Mounting screws

MikroTik RBHGO-antenna-OUT – Dual-Band Outdoor Antenna (2.4GHz 3.3dBi / 5GHz 5.5-7.1dBi) | RP-SMA

Upgrade Your NetMetal ac² with High-Performance Outdoor WiFi Coverage

The MikroTik RBHGO-antenna-OUT is a weatherproof dual-band antenna designed to enhance outdoor wireless performance. With RP-SMA female connectors, it delivers 3.3dBi gain (2.4GHz) and 5.5-7.1dBi gain (5GHz), making it ideal for NetMetal ac² access points and other outdoor WiFi deployments.
📡 Key Features

✔ Dual-Band Optimization – 2.4GHz (3.3dBi) and 5GHz (5.5-7.1dBi) for versatile coverage.
✔ Weatherproof Design – Built to withstand rain, UV, and extreme temperatures.
✔ RP-SMA Connectors – Compatible with MikroTik NetMetal ac² and other outdoor APs.
✔ Easy Installation – Screw-on design for quick setup.
✔ Cost-Effective Upgrade – Boost signal range and stability without replacing your AP.
📦 Compatibility

✅ MikroTik NetMetal ac² (use two antennas for dual-band operation)
✅ Other outdoor WiFi devices with RP-SMA female ports
📋 Specifications

Frequency Bands: 2.4GHz & 5GHz

Gain:

2.4GHz: 3.3dBi

5GHz: 5.5-7.1dBi

Connector: RP-SMA female

Weather Resistance: IP54 (splash/dust resistant)

Cable Length: XX cm (if applicable)

🏆 Why Choose RBHGO-antenna-OUT?

✅ Plug-and-Play – No tools required for installation.
✅ Improved Coverage – Higher gain for better signal penetration.
✅ MikroTik Reliability – Built for long-term outdoor use.
🔍 Perfect For:

📶 Outdoor WiFi Networks – Extend coverage for NetMetal ac² APs.
🏡 Home & Business Deployments – Enhance backyard or parking lot WiFi.
🏗️ Temporary Setups – Durable enough for events or construction sites.

MikroTik QuickMount Pro Bracket – Premium 140° Wall/Pole Mount for Small Antennas

Advanced Mounting Solution for SXT, OmniTik & Lightweight Devices (<1.5kg)

The MikroTik QuickMount Pro Bracket is a high-durability mounting system designed for small antennas and networking devices (up to 1.5kg). Featuring 140° dual-axis adjustment and anvilNITE™ composite construction, it ensures precise alignment and long-term reliability for PtP, sector, or repeater setups.
🔧 Key Features

✔ 140° Dual-Axis Adjustment – Fine-tune horizontal & vertical angles for optimal signal strength.
✔ Ultra-Durable Material – Made with anvilNITE™ composite for weather/UV resistance.
✔ Multi-Mount Compatibility – Works with walls, poles, or MikroTik’s small mounting clips.
✔ Lightweight Yet Strong – Supports devices up to 1.5kg (e.g., SXT, OmniTik, BaseBox).
✔ Tool-Free Installation – Includes clamps & hardware for quick setup.
📦 Compatibility

✅ MikroTik SXT Series (Lite5, sq, etc.)
✅ OmniTik & NetMetal Devices
✅ Other Pole-Mountable Gear (<1.5kg)
📋 Specifications

Max Load Capacity: 1.5kg

Adjustment Range: 140° horizontal & vertical

Material: anvilNITE™ composite (impact/weather-resistant)

Mounting Options: Wall, pole, or clip (U-bolt included)

Weight: 0.4kg (lightweight but rugged)

🏆 Why Choose QuickMount Pro?

✅ Precision Alignment – Graduated scale for exact angle adjustments.
✅ Carrier-Grade Durability – Withstands rain, wind, and UV exposure.
✅ Versatile Use – Ideal for PtP links, sector antennas, or repeaters.
🔍 Perfect For:

📶 WISPs & Home Networks – Optimize SXT/Sector antenna positioning.
🏢 Urban Wireless Deployments – Secure mounting for rooftop setups.
🌦️ Harsh Environments – AnvilNITE™ resists corrosion and extreme temps.

MikroTik quickMOUNT extra – Heavy-Duty Antenna Mount | 190° Adjustment | Wall/Pole Compatible

Professional-Grade Mounting Solution for Large Sector & PtP Antennas

The MikroTik quickMOUNT extra is an industrial-strength wall/pole mount adapter designed for large antennas like the mANT 30 (30dBi dish) and mANT 19s (19dBi sector). Featuring 190° rotation range and universal compatibility, it ensures precise alignment for long-range wireless links.
🔩 Key Features

✔ 190° Articulation – Fine-tune antenna positioning horizontally & vertically
✔ Heavy-Duty Build – Supports large antennas up to XX kg (specify max load)
✔ Dual Mounting Options – Wall or pole (adapts to small/large diameters)
✔ All-Weather Design – Powder-coated steel for rust resistance
✔ Tool-Free Adjustment – Secure clamping with graduated scale for precision
📦 Compatibility

• MikroTik mANT 30 (30dBi parabolic dish)
• MikroTik mANT 19s (19dBi sector antenna)
• Other large PtP/sector antennas with standard mounting points
📋 Specifications

Material: 2mm steel with anti-corrosion coating

Rotation Range: 190° (horizontal + vertical)

Pole Diameter: XX-XX mm (adjust based on clamp specs)

Weight Capacity: XX kg (verify with antenna specs)

Installation: Includes U-bolts, clamps, and hardware

🏆 Why Choose quickMOUNT extra?

✅ Carrier-Grade Stability – No signal drift in high winds
✅ Future-Proof – Works with MikroTik’s largest antennas
✅ 5-Minute Setup – Pre-drilled holes for hassle-free mounting
🔍 Perfect For:

📶 WISPs – Secure mounting for tower/base station antennas
🏢 Enterprise PtP Links – Precise alignment for long-range bridges
🌪️ Harsh Environments – Withstands storms, salt spray, and UV exposure

MikroTik's PowerBox Pro is an outdoor five Gigabit Ethernet port router with PoE output on four ports. Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations. It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. The PowerBox Pro can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.

The device has a SFP port for adding optical fiber connectivity. It is affordable, small, easy to use, with a very powerful 800MHz CPU, capable of all the advanced configurations that Router OS supports.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole-Mount & DIN Mount
Operating System: Router OS (Level 4 License)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE; 802.3af/at)
PoE Output: 12V-57V Passive PoE; 802.3af/at on Ports 2~5
Power Input: 24V 2.5A Power Supply (Included)
Processor: 1 Core 800MHz; QCA9557
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 12V-57V
System Memory: 128MB
USB Ports: None
Other: None

MikroTik's RB-GPERX4 is a compact, outdoor-ready IP68, Gigabit device designed to split a single 90W PoE-out port into 3x 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices. The RB-GPERX4 supports PoE-in as well as 2-pin terminal and is equipped with SwOS Lite for advanced management.

*Note: Ports are isolated and only communicate with the first port. This device functions as an extender, not a traditional switch.

Specifications

Ethernet Ports: 4x 10/100/1000
Max Power Consumption: 4W
Hardware Button: None
Mounting: Pole Mount
Operating System: SwOS Lite
Operating Temperature: -40°C to 70°C
PoE Input: 802.3af/bt
PoE Output: 802.3af/at Ports 2-4
Power Input: 24V-57V (2-Pin Terminal) ; 802.3bt PoE
SFP Ports: None
Supported Voltage Range: 24V-57V (2-Pin Terminal); 48-57V (PoE)
Dimensions: 281 x 76 x 70 mm

MikroTik's OmniTik 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC, as well as backwards compatibility with regular 802.11a/n CPE) and features a weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz Omni antennas, a power supply, a PoE injector and a mounting kit.

The RB-OMNITIK5AC also supports passive or standard 802.3at/af PoE input/output (12v-57v). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit which means that the user has less power adapters and cables to worry about. It can power 48V devices (like IP camera) if 48V input is used.

Specifications

Antenna Gain: 2x 7.5dBi
Beam-width: 360°
Data Rate: 5GHz 867Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W
Mounting: Pole Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at)
PoE Output: 12V-57V Passive PoE on Ports 2 to 5
Power Input: 28V 2.57A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 11V-30V
USB Ports: 1x USB 2.0
Other: None
Dimensions: 416 x 129 x 58mm

MikroTik's RB-NETMETALAX is a dual band Wi-Fi 6, IP66 outdoor access point featuring 1x Gigabit Ethernet Port, 1x 2.5Gbps SFP Port, a USB port, and mini PCIe slot for expansion. The unit is equipped with 2x RP-SMA connectors which make provision for an antenna of your choice. You can adapt the Net Metal ax for low range deployments with the ANT-O25 screw on antenna.

SKU RB-NETMETALAX
Manufacturer MikroTik
Manufacturer Product Code L23UGSR-5HaxD2HaxD-NM

Specifications

Antenna Gain: Antenna Dependent (2x SMA RP Female)
Beam-width: Antenna Dependent
Data Rate: 2.4GHz: 574Mbps: 5.8GHz: 2400Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Pole Mount
Operating System: Router OS (Level 4 License)
Operating Temperature: -40°C to 70°C
PoE Input: 18V-28V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: Non
SIM Slots: None
Supported Voltage Range: 18V-28V (PoE) 12V-28V (DC)
USB Ports: 1x USB 2.0
Other: 1x 2.5Gbps SFP Port
Dimensions: 143 x 247 x 48mm

MikroTik's RB-NETMETAL is equipped with a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas.

The NetMetal is in a waterproof metal enclosure and it's rugged design is made to withstand the toughest conditions. It is easy to use and can be opened and closed with one hand. The solid aluminium enclosure also works as a reliable heat-sink for it’s high output power radio.

The Netmetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

Compatible with ANT-D530PA, a 5GHz, 30dBi dish antenna, also by MikroTik.

SKU RB-NETMETAL
Manufacturer MikroTik
Manufacturer Product Code RB922UAGS-5HPacD-NM

Specifications

Antenna Gain: Antenna Dependent (2x SMA RP Female)
Beam-width: Antenna Dependent
Data Rate: 5.8GHz 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 19W
Mounting: Pole Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 8V-30V
USB Ports: 1x USB 2.0
Other: 1x 1.25Gbps SFP Port
Dimensions: 143 x 247 x 48mm

MikroTik's RB-NETBOX5AX is a WiFi 6 outdoor router with a data rate of up to 2400Mbps. The unit features a Gigabit Ethernet Port with Passive PoE input as well as a USB port for additional storage and 2x SMA connectors for external antennas.

*Note: Maximum distance must be configured for client connections over 2km.

SKU RB-NETBOX5AX
Manufacturer MikroTik
Manufacturer Product Code L11UG-5HaxD-NB

Specifications

Antenna Gain: Antenna Dependent (2x SMA RP Female)
Beam-width: Antenna Dependent
Data Rate: 5.8GHz 2400Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-28V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-28V
USB Ports: 1x USB 2.0
Dimensions: 245 x 121 x 50 mm

MikroTik mANTBox ax 15s – 120° 15dBi WiFi 6 Sector AP | 20km PtMP | Dual-Band

Carrier-Grade Outdoor Wireless with Wi-Fi 6 & 2.5G SFP Uplink

The MikroTik mANTBox ax 15s is a high-performance WiFi 6 sector antenna designed for long-range PtMP networks. Combining a 15dBi 120° sector antenna, dual-band 802.11ax radios, and 2.5G SFP uplink, it delivers 40% faster 5GHz speeds and 90% faster 2.4GHz speeds versus Wi-Fi 5—ideal for stadiums, campuses, and ISPs.
🚀 Key Features

✔ Wi-Fi 6 (802.11ax) – Higher capacity & efficiency for 1000+ devices
✔ Long-Range Coverage – 20km+ point-to-multipoint connectivity
✔ Dual-Band Radios – 2.4GHz (4x4) + 5GHz (4x4) with 15dBi gain
✔ Advanced Security – WPA3 encryption & management frame protection
✔ 2.5G SFP Port – Fiber/copper uplink for backbone connectivity
✔ QuickMOUNT Pro – 140° tilt/pan adjustment with graduated scale
📦 Package Includes

mANTBox ax 15s unit

Gigabit PoE injector & power supply

Hose clamp & fastening set

quickMOUNT Pro wall bracket

📊 Technical Specifications

Antenna: 15dBi, 120° horizontal beamwidth

WiFi Standards: 802.11ax (2.4GHz & 5GHz)

Ports:

1x Gigabit Ethernet (24V PoE-in)

1x 2.5G SFP

CPU: Dual-core ARM

Max Speed: 1.7Gbps+ aggregate

Range: Up to 20km (PtMP, ideal conditions)

Mounting: Pole/wall (quickMOUNT Pro included)

🏆 Why Upgrade to Wi-Fi 6?

✅ 40% Faster 5GHz | ✅ 90% Faster 2.4GHz
✅ WPA3 Security – Blocks brute-force/deauth attacks
✅ Target Wake Time – 30% lower client power consumption
✅ OFDMA – Fair bandwidth allocation for high-density deployments
🔍 Ideal For:

🏟️ Stadiums & Events – Reliable coverage for 1000+ users
🏕️ Campuses & Resorts – Carrier-grade outdoor WiFi
📶 WISPs – Future-proof PtMP base stations

MikroTik's RB-LTAPHDLTE6 is a compact, 4G capable, weatherproof, wireless access point – ideal for a busy, urban environment or off-the-grid outdoor networking. It has a built-in Cat6 cellular modem that supports 4G connectivity out of the box with up to 300 Mbps download speed. LTE6 also enables carrier aggregation and allows the device to use multiple bands simultaneously, which is a great advantage when there are many LTE users in the area.

*Note: To make use of more than 1 SIM at a time, a second PCI LTE module is required.

SKU RB-LTAPHDLTE6
Manufacturer MikroTik
Manufacturer Product Code LtAP-2HnD&FG621-EA

Specifications

Antenna Gain: LTE: 4dBi (with UFL connector); Wireless: 2.5dBi
Beam-width: 360°
Data Rate: LTE: 300Mbps Downlink; 50Mbps Uplink; Wireless: 2.4GHz 300Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 24W
Mounting: Wall-Mount
Operating System: RouterOS (Level 4 License)
Operating Temperature: -30°C to 70°C
PoE Input: 12V-30V Passive PoE
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included) or Automotive Connector
Serial Interface: None
SIM Slots: 3 Mini SIM Slots
Supported Voltage Range: 12V-30V
USB Ports: 1x USB 2.0 (can only be used if miniPCIe slot #1 is not used)
Dimensions: 170 x 162 x 40mm

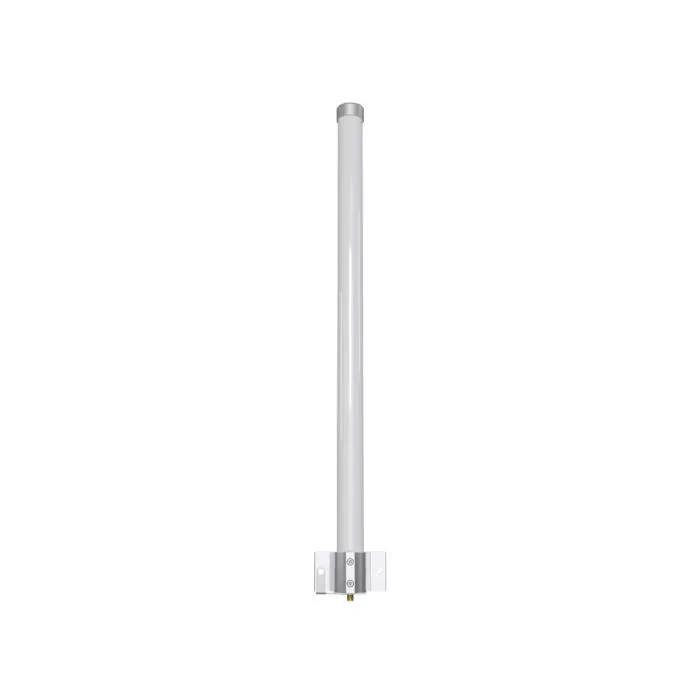

MikroTik's ANT-LORA is a 6.5 dBi Omni Antenna for the 824-928MHz frequency range. This device includes a 1m SMA cable and a mechanical holder for quick and easy mounting on masts 25-50mm.

Specifications

Antenna Gain: 6.5dBi (868 MHz) / 4.5dBi (915 MHz)
Beam-width: Horizontal: 360° Vertical: 30°
Connector: Antenna: 1x SMA Female
Frequency Range: 824 - 928 MHz
Polarization: Vertical & Horizontal
Dimensions: 42 x 68 x 495 mm
Weight: 600g

MikroTik's RB-LHG5ACXL4 is a 4-pack option featuring a long-range 5GHz 802.11ac (WiFi 5) wireless radio with an integrated 27dBi grid antenna. The RB-LHG5ACXL4 is ideal for point-to-point links or for use as a CPE at longer distances.
SKU RB-LHG5ACXL4
Manufacturer MikroTik
Manufacturer Product Code RBLHGG-5acD-XL4pack

Specifications

Antenna Gain: 27dBi
Beam-width: 7°
Data Rate: 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole Mount
Operating System: Router OS (Level 3 License)
Operating Temperature: -40°C to 70°C
PoE Input: 10-30V (Passive PoE)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10-30V
USB Ports: None
Dimensions: Ø 550 x 245 mm

MikroTik LHG Mount – Universal Metal Pole Bracket for LHG Series (Incl. LHG XL)

Durable, Low-Cost Mounting Solution for LHG Wireless Antennas

The MikroTik LHG Mount is a heavy-duty metal bracket designed to securely install LHG series antennas (including LHG XL models) on poles or masts. Includes U-bolt and K-58 mounting kit for quick, tool-free assembly.
🔩 Key Features

✔ Universal Compatibility – Fits all LHG series devices (LHG 5, LHG XL, LHG HP, etc.)
✔ Rugged Metal Construction – Withstands harsh outdoor conditions
✔ Easy Installation – Includes U-bolt + K-58 kit for poles up to XX mm diameter (specify max pole size)
✔ Cost-Effective – Affordable alternative to complex mounting systems
✔ Precision Alignment – Ensures optimal antenna positioning for signal strength
📦 Package Includes

1x LHG metal mounting bracket

1x U-bolt (stainless steel)

1x K-58 mounting kit (clamps, nuts, washers)

📋 Specifications

Material: Powder-coated steel

Pole Diameter Range: XX-XX mm (adjust based on U-bolt specs)

Weight: 0.5kg (lightweight but sturdy)

Weather Resistance: IP54 (splash/dust resistant)

🏆 Why Choose This Mount?

✅ No Tools Required – Hardware included for immediate installation
✅ Future-Proof – Works with current & future LHG models
✅ MikroTik-Quality – Engineered for long-term reliability
🔍 Perfect For:

📶 WISPs – Rapid deployment of LHG antennas on towers
🏡 Home Installations – Secure mounting for rooftop/sidewall setups
🏗️ Temporary Setups – Easy to relocate as needed

MikroTik's RB-LHGLTE6 is ideal for remote locations within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, to enable connection even where cell phones fail. Due to its large-sized, high-gain antenna, the RB-LHGLTE6 kit can connect to cell towers in extremely rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The RB-LHGLTE6 kit features a Cat6 LTE modem which enables carrier aggregation, allowing a device to use multiple bands simultaneously - A great advantage when there are multiple LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency in weaker signal situations.

SKU RB-LHGLTE6
Manufacturer MikroTik
Manufacturer Product Code LHGGR&FG621-EA

Specifications

Antenna Gain: LTE 17dBi
Beam-width: 25°
Data Rate: 300 Mbps Downlink; 50 Mbps Uplink
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 License)
Operating Temperature: -30°C to 70°C
PoE Input: 12V – 57V (Passive PoE; 802.3af/at)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Micro SIM)
Supported Voltage Range: 12V-57V
USB Ports: None
Dimensions: 391 x 391 x 227 mm

MikroTik LHG XL HP5 – 5GHz 27dBi High-Power Wireless Bridge | 40km Range

Long-Range PtP Connectivity with Integrated High-Gain Grid Antenna

The MikroTik LHG XL HP5 combines a 630mW high-power radio with an integrated 27dBi dual-polarization grid antenna, delivering 40km+ point-to-point links at full throughput. Designed for ISPs and enterprise backhauls requiring carrier-grade performance at minimal cost.
⚡ Key Features

✔ Extreme 5GHz Range – 40km+ in ideal conditions (FCC/ETSI compliant)
✔ High TX Power – 630mW output (27dBm) for penetrating obstacles
✔ Zero Cable Loss – Integrated antenna design maximizes signal integrity
✔ Nv2 Protocol – TDMA support for efficient airtime utilization
✔ All-Weather Durability – Wind-resistant grid (-40°C to 60°C operation)
✔ Tool-Free Tilt Adjustment – Includes 5° tilt adapter for precise alignment
📊 Technical Specifications

Frequency: 5GHz (802.11a/n)

Antenna Gain: 27dBi (dual-polarization)

Max TX Power: 630mW (27dBm)

Protocols: NV2, Nstreme, MIMO

Ports: 1x Gigabit Ethernet (24V Passive PoE-in)

Wind Survival: 60 m/s (134 mph)

Dimensions: 500 x 500 x 60mm (assembled)

Weight: 2.2kg (per unit)

🏆 Why Choose LHG XL HP5?

✅ Plug-and-Play Deployment – Ships flat-packed; assembles in minutes
✅ No RF Expertise Needed – Pre-tuned for optimal performance
✅ Carrier-Grade Reliability – Trusted by WISPs worldwide
🔍 Ideal For:

🌉 ISP Backhauls – Cost-effective 40km PtP links
🏗️ Industrial Sites – Mines, oil rigs, and remote campuses
📡 Emergency Comms – Rapid deployable long-range networks
📦 Package Includes

1x LHG XL HP5 unit (disassembled)

Mounting hardware & grounding kit

5° tilt adjustment adapter

Quick-start guide

MikroTik's RB-LHG60 is an outdoor, high-speed 60GHz CPE unit which, can be used to form either a Point-to-Point or Point-to-Multipoint link in the clean 60GHz spectrum. Pair up to 8 units with a MikroTik 60GHz Access Point or create a PtP link at a distance of up to 1.5km. The unit is equipped with a Gigabit Ethernet Port for high-speed connections and is shipped with an LHG mount and aim tool for precision alignment.
Antenna Gain: Maximum of 42dBi
Beam-width: 3°
Data Rate: 60GHz: 1Gbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 license)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE; 802.3af/at)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V-57V
USB Ports: None

Dimensions: Ø 391 x 222mm
