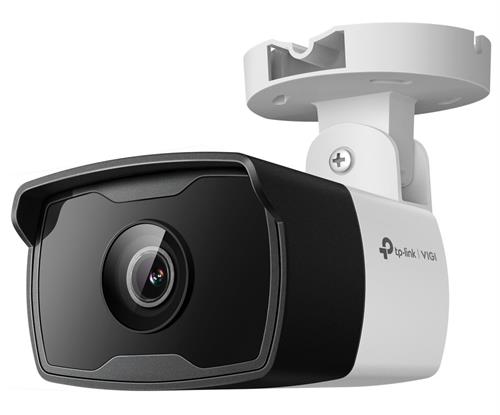

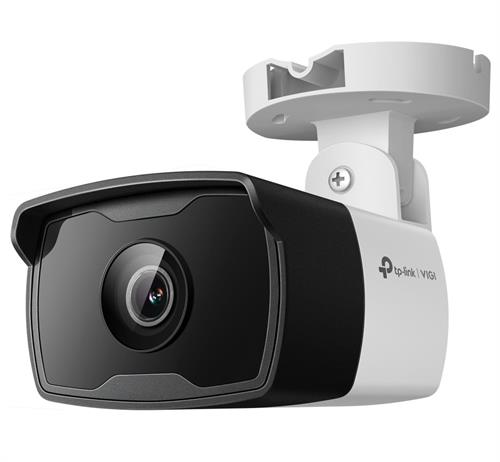

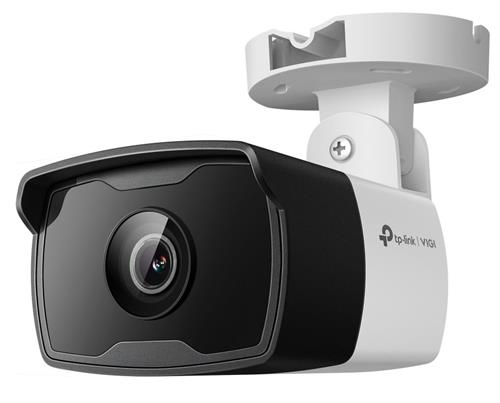

Product Code: VIGI-C330I(6MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C330I (6mm) is a precision outdoor bullet camera designed for long range surveillance. With 3MP resolution, infrared night vision up to 30 meters, and a 6mm fixed lens, it captures crisp detail across extended distances. Smart encoding (H.265+/H.264+) reduces bandwidth and storage costs, while IP67 rated housing ensures reliable performance in harsh environments. Ideal for perimeter security, parking lots, and industrial zones.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 6 mm, F2.0 aperture, M12 mount
Viewing Angle (6mm) H: 51.9°, V: 28.7°, D: 60°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Switch Auto, Manual, Scheduled
DORI Distance (6mm) Detect: 98m, observe: 41m, recognize: 20m, Identify: 10m
Compression Format H.265+/H.265/H.264+/H.264
Bitrate 64 Kbps to 4 Mbps
Frame Rate Up to 30 fps
Image Enhancement BLC, 3D DNR, HLC, Smart IR
Power Supply 12V DC ±5% (Max 5W), 5.5mm Coaxial Plug or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C (corrected)
Weatherproof Rating IP67
Dimensions (L × W × H) 174 × 74 × 71 mm
Net Weight 0.2 kg
Gross Weight 0.35 kg
Warranty 1 Year Limited

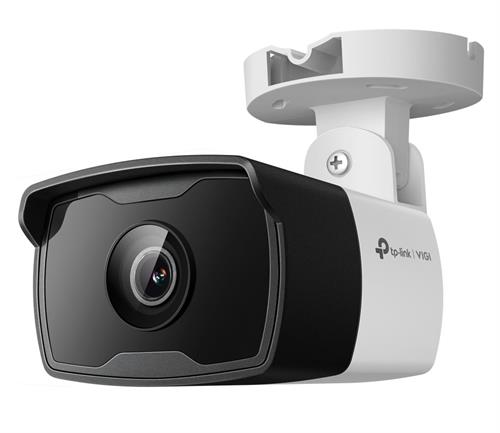

Product Code: VIGI-C330I(4MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C330I (4mm) is a robust outdoor bullet camera offering 3MP resolution and infrared night vision up to 30 meters. Its 4mm fixed lens provides a balanced field of view for medium range surveillance, while smart encoding (H.265+/H.264+) ensures efficient bandwidth and storage usage. With IP67 rated weatherproofing and support for multiple protocols, it’s ideal for securing driveways, storefronts, and perimeter zones.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 4 mm, F2.0 aperture, M12 mount
Viewing Angle (4mm) H: 82.5°, V: 44.9°, D: 99.3°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Switch Auto, Manual, Scheduled
DORI Distance (4mm) Detect: 65m, observe: 27m, recognize: 13m, Identify: 7m
Compression Format H.265+/H.265/H.264+/H.264
Bitrate 256 Kbps to 4 Mbps
Frame Rate Up to 30 fps (60Hz), 25 fps (50Hz)
Supported Resolutions 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS
Power Supply 12V DC ±5% (Max 5W), 5.5mm Coaxial Plug or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Dimensions (L × W × H) 174 × 74 × 71 mm
Net Weight 0.2 kg
Gross Weight 0.35 kg
Warranty 1 Year Limited

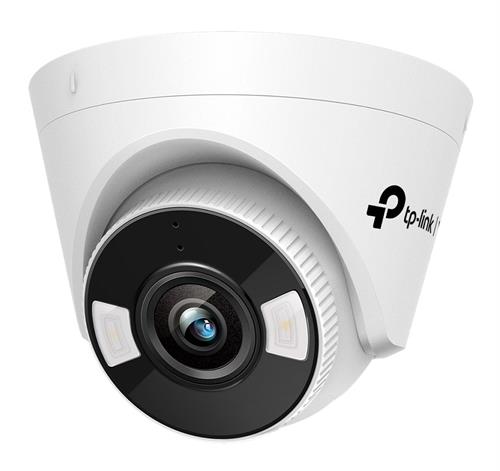

Product Code: VIGI-C430(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C430 (2.8mm) is a full color turret camera designed for high clarity surveillance in low light environments. With 3MP resolution, a large aperture lens, and supplemental white light LEDs, it delivers vivid color detail even in total darkness. Smart features like human/vehicle detection and built-in microphone for two-way audio enhance situational awareness. DWDR and 3D DNR ensure image clarity, while PoE and IP rated housing make installation flexible and reliable.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 2.8 mm, F1.6 aperture, M12 mount
Viewing Angle H: 107.5°, V: 57.2°, D: 128.7°
Night Vision Full color with white light + IR (30m range)
Minimum Illumination 0.005 Lux (Color), 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Human/vehicle detection, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps
Supported Resolutions 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
DORI Distance (2.8mm) Detect: 52m, observe: 22m, recognize: 10m, Identify: 5m
Video Enhancement DWDR, 3D DNR
Audio Built-in microphone (two-way audio capable)
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP-rated (not explicitly listed)
Pan/Tilt/Rotate Range Pan: 0–360°, Tilt: 0–85°, Rotate: 0–360°
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.21 kg
Gross Weight 0.36 kg
Warranty 1 Year Limited

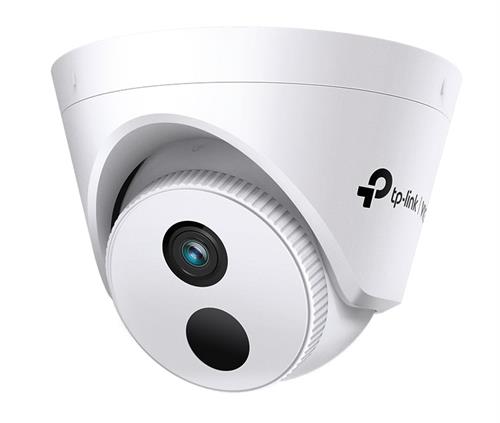

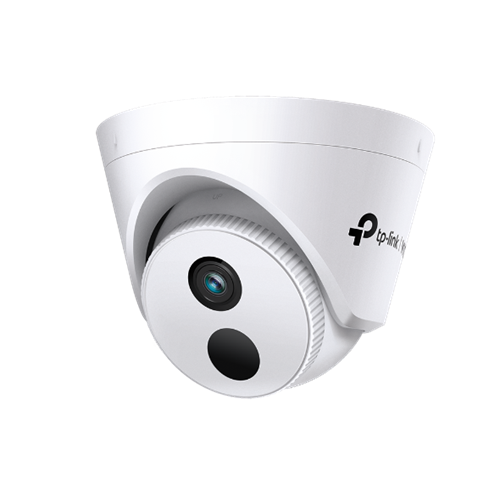

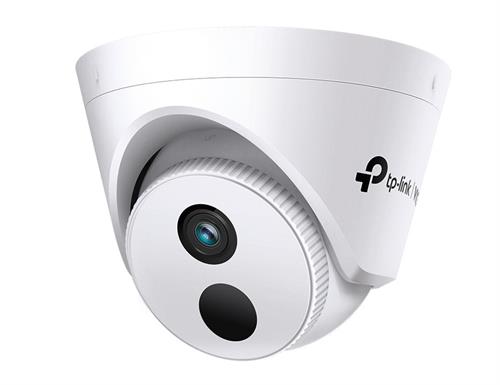

Product Code: VIGI-C420I(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C420I (2.8mm) is a compact turret camera offering 2MP Full HD resolution and advanced AI-powered detection. With human/vehicle classification, customizable alarm zones, and smart video enhancements like WDR and Smart IR, it delivers reliable surveillance in both indoor and outdoor environments. Corridor mode optimizes vertical viewing for hallways and narrow spaces, while PoE simplifies installation with a single cable for power and data.

📦 Key Specifications
Attribute Details
Max Resolution 2MP (1920 × 1080)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle (2.8mm) H: 88.8°, V: 48.9°, D: 106.5°
Night Vision IR LEDs (850nm), range up to 30m
Minimum Illumination 0.1 Lux (Color), 0 Lux with IR
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps
Corridor Mode Aspect ratio switch from 16:9 to 9:16
Video Enhancement Smart IR, WDR, 3D DNR
Power Supply PoE (802.3af/at) via RJ45 cable
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.21 kg
Gross Weight 0.36 kg
Warranty 1 Year Limited

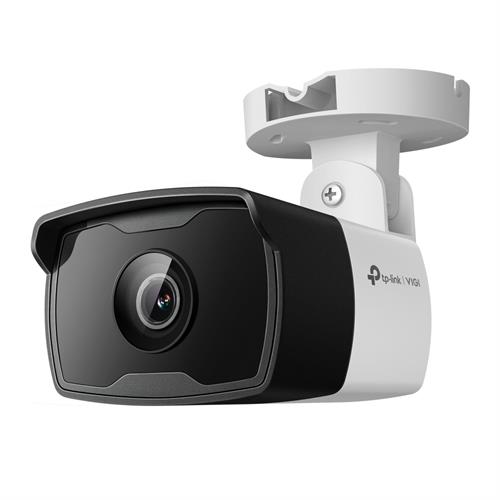

Product Code: VIGI-C320I(4MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C320I (4mm) is a full HD outdoor bullet camera designed for reliable perimeter surveillance. With 2MP resolution, AI-powered human and vehicle classification, and smart detection features, it delivers accurate alerts and crisp footage. Smart video enhancements like WDR, Smart IR, and 3D DNR ensure clarity in challenging lighting. Its IP67 rated housing and PoE support make it ideal for commercial, industrial, and residential deployments.

📦 Key Specifications
Attribute Details
Max Resolution 2MP (1920 × 1080)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 4 mm, F2.0 aperture, M12 mount
Viewing Angle (4mm) H: 82.5°, V: 44.9°, D: 99.3°
Night Vision IR LEDs (850nm), range up to 30m
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps
Video Enhancement Smart IR, WDR, 3D DNR
Corridor Mode Supported (16:9 to 9:16 aspect ratio)
Power Supply PoE (802.3af/at) via RJ45 cable
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Lens Options Available in 2.8mm, 4mm, and 6mm variants
Management Options VIGI app, NVR UI, VIGI Security Manager
Dimensions (L × W × H) ~174 × 74 × 71 mm (estimated)
Net Weight 0.2 kg
Gross Weight 0.35 kg
Warranty 1 Year Limited

Product Code: VIGI-C340I(4MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C340I (4mm) is a high-resolution outdoor bullet camera built for precision surveillance. With 4MP clarity, infrared night vision up to 30 meters, and smart detection features including human/vehicle classification it delivers focused alerts and reliable monitoring. The 4mm lens offers a balanced field of view for medium range coverage, while H.265+ compression ensures efficient bandwidth and storage. Its IP67 rated housing and flexible power options make it ideal for perimeter, parking, and commercial security.

📦 Key Specifications
Attribute Details
Max Resolution 4MP (2560 × 1440)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 4 mm, F2.2 aperture, M12 mount
Viewing Angle (4mm) H: 82.5°, V: 44.9°, D: 99.3°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Manual
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps (60Hz), 25 fps (50Hz)
DORI Distance (4mm) Detect: 80m, observe: 33m, recognize: 16m, Identify: 8m
Video Enhancement 3D DNR, WDR, Smart IR
Illuminator Control Auto / Scheduled / Always On / Always Off
Power Supply 12V DC ±5% (Max 5W), 5.5mm Coaxial Plug or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Dimensions (L × W × H) 174 × 74 × 71 mm
Net Weight ~0.2 kg
Gross Weight ~0.35 kg
Warranty 1 Year Limited

Product Code: VIGI-C440I(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C440I (2.8mm) is a high-performance IR turret camera designed for outdoor surveillance with 4MP ultra clear resolution and advanced smart detection. Equipped with human/vehicle classification, corridor mode, and a 30m IR range, it delivers precise monitoring in both wide and narrow spaces. H.265+ compression ensures efficient storage and bandwidth usage, while IP67 rated housing and PoE support make installation seamless and reliable.

📦 Key Specifications
Attribute Details
Max Resolution 4MP (2560 × 1440)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle (2.8mm) H: 88.8°, V: 48.9°, D: 106.5°
Night Vision IR LED (850nm), range up to 30m
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps (60Hz), 25 fps (50Hz)
Supported Resolutions 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
DORI Distance (2.8mm) Detect: 60m, observe: 25m, recognize: 12m, Identify: 6m
Video Enhancement Smart IR, DWDR, 3D DNR
Privacy Mask Up to 4 zones
Illuminator Control Auto / Scheduled / Always On / Always Off
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67 (assumed based on outdoor spec)
Pan/Tilt/Rotate Range Pan: 0–360°, Tilt: 0–85°, Rotate: 0–360°
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.19 kg
Gross Weight 0.34 kg
Warranty 1 Year Limited

Product Code: VIGI-C330I(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C330I (2.8mm) is a compact outdoor bullet camera designed for high clarity surveillance in low light environments. With 3MP resolution, DWDR, and 30m IR night vision, it captures crisp detail day and night. Smart features like human/vehicle recognition and boundary alerts ensure focused monitoring, while PoE and IP67 rated housing make installation simple and reliable.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle H: 97.8°, V: 52.9°, D: 117.9°
Night Vision IR LEDs (850nm), range up to 30m
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Manual
Smart Detection Human/vehicle recognition, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 25 fps (50Hz), 30 fps (60Hz)
Supported Resolutions 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
DORI Distance (2.8mm) Detect: 98m, observe: 41m, recognize: 20m, Identify: 10m
Video Enhancement DWDR, 3D DNR
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Certifications CE, BSMI, VCCI, ONVIF
Dimensions (L × W × H) 174 × 74 × 71 mm
Net Weight 0.2 kg
Gross Weight 0.35 kg
Warranty 1 Year Limited

Product Code: VIGI-C320I(2.8MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C320I (2.8mm) is a compact and durable outdoor bullet camera designed for Full HD surveillance. With 2MP resolution, DWDR, and 30m IR night vision, it delivers clear footage in varied lighting conditions. Smart features like human/vehicle classification, smart IR, and 3D DNR ensure accurate alerts and enhanced image quality. Its IP67 rated housing and PoE support make it ideal for driveways, storefronts, and perimeter monitoring.

📦 Key Specifications
Attribute Details
Max Resolution 2MP (1920 × 1080)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture
Viewing Angle Wide-angle coverage (not explicitly listed)
Night Vision IR LEDs (850nm), range up to 30m
Smart Detection Human/vehicle classification, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 25 fps (50Hz)
Supported Resolutions 1920×1080, 1280×960, 1280×720
Video Bitrate 64 Kbps to 4 Mbps
Video Enhancement DWDR, Smart IR, 3D DNR
Power Supply PoE (802.3af/at) or 12V DC ±5% (Max 5W)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Pan/Tilt Range Pan: -90° to 90°, Tilt: -90° to 90°
ONVIF Support Yes
Dimensions (L × W × H) 174 × 74 × 71 mm
Net Weight 0.2 kg
Gross Weight 0.35 kg
Warranty 1 Year Limited

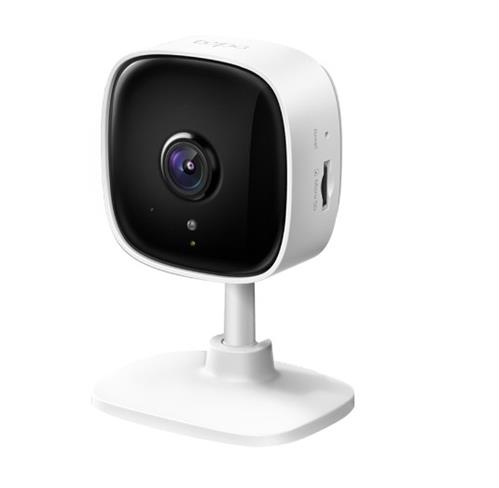

Product Code: TAPO-C110
Brand: TP-Link

🌟 Overview
The TP-Link Tapo C110 is a compact, high resolution indoor security camera designed for smart home protection. With 3MP ultra-HD video, advanced night vision, and motion triggered sound and light alarms, it keeps your home secure day and night. Two-way audio lets you interact with visitors or deter intruders remotely. Easy to install and manage via the Tapo app, it supports local microSD storage up to 256GB and connects via 2.4GHz Wi-Fi.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” CMOS
Lens Fixed 3.3 mm, F2.0 aperture
Viewing Angle Wide-angle (not explicitly listed)
Night Vision IR LED (850nm), range up to 30 ft
Motion Detection Yes, with push notifications
Sound & Light Alarm Yes
Audio Two-way audio (mic + speaker)
Video Compression H.264
Wireless Connectivity 2.4GHz Wi-Fi (802.11 b/g/n, up to 72.2 Mbps)
Wireless Security WPA/WPA2-PSK, AES 128-bit with SSL/TLS
Local Storage microSD card (up to 256GB)
Power Supply DC Adapter: 9V / 0.6A, 3m cable included
Operating Temp 0°C to +40°C
Storage Temp -40°C to +70°C
Operating Humidity 10–90% RH (non-condensing)
Dimensions (W × D × H) 67.6 × 54.8 × 98.9 mm
Net Weight 0.17 kg (estimated)
Gross Weight 0.32 kg (estimated)
Warranty 1 Year Limited

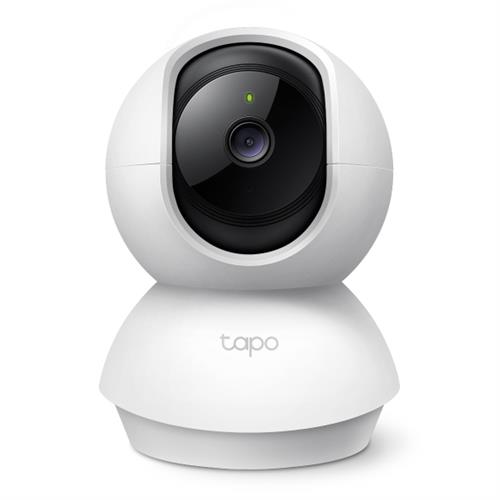

Product Code: TAPO-C210
Brand: TP-Link

🌟 Overview
The TP-Link Tapo C210 is a versatile indoor security camera offering 3MP ultra-HD video with mechanical pan and tilt for full-room coverage. With advanced motion detection, person and baby cry alerts, and two-way audio with noise cancellation, it provides peace of mind and real-time interaction. Night vision up to 10 meters ensures visibility in low light conditions, while smart integration with Alexa and Google Assistant makes it a seamless addition to any smart home.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 4 mm, F2.0 aperture
Field of View D: 98°, H: 83°, V: 45°
Pan/Tilt Range Pan: 340°, Tilt: 70°
Night Vision IR LED (850nm), range up to 10m
Frame Rate 15 fps
Audio Two-way audio with mic & speaker, noise cancellation
Detection Features Motion, person, baby cry, activity zones
Siren Volume 88 dB @ 10 cm
Storage microSD slot (up to 512GB)
Video Compression H.264
Wireless Connectivity 2.4GHz Wi-Fi (802.11 b/g/n)
Smart Integration Google Assistant, Amazon Alexa
RTSP / ONVIF Supported
Power Supply DC 9V / 0.6A adapter (included)
Operating Temp 0°C to +40°C
Storage Temp -20°C to +60°C
Operating Humidity 10–90% RH (non-condensing)
Dimensions (W × D × H) 85.4 × 86.8 × 117.7 mm
Net Weight 0.22 kg (estimated)
Gross Weight 0.38 kg (estimated)
Warranty 1 Year Limited

Product Code: VIGI-C420I(4MM) Brand: TP-Link

🌟 Overview
The TP-Link VIGI C420I (4mm) is a compact turret style IP camera designed for Full-HD surveillance in both indoor and outdoor environments. With 2MP resolution, smart detection features, and AI-powered human/vehicle classification, it delivers focused alerts and efficient monitoring. Smart IR, DWDR, and 3D DNR ensure clear imaging in low light conditions, while corridor mode optimizes vertical viewing for hallways and narrow spaces. PoE support simplifies installation with a single cable for power and data.

📦 Key Specifications
Attribute Details
Max Resolution 2MP (1920 × 1080)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 4 mm, F2.2 aperture, M12 mount
Viewing Angle (4mm) H: 75.1°, V: 41.5°, D: 88.7°
Night Vision IR LEDs (850nm), range up to 30m
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps
Corridor Mode Aspect ratio switch from 16:9 to 9:16
Video Enhancement Smart IR, DWDR, 3D DNR
Power Supply PoE (802.3af/at) or 12V DC ±5% (Max 5W)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Management Options VIGI app, NVR UI, VIGI Security Manager
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.21 kg
Gross Weight 0.36 kg
Warranty 1 Year Limited

Product Code: TAPO-C100
Brand: TP-Link

🌟 Overview
The TP-Link Tapo C100 is a compact indoor security camera offering Full-HD 1080p resolution and advanced night vision up to 30 feet. With motion detection, sound and light alarms, and two-way audio, it provides real-time protection and communication. Easy to set up and manage via the Tapo app, it supports local microSD storage up to 128GB and connects securely over 2.4GHz Wi-Fi.

📦 Key Specifications
Attribute Details
Max Resolution 1080p Full HD (1920 × 1080)
Image Sensor 1/3.2” CMOS
Lens Fixed 3.3 mm, F2.0 aperture
Night Vision IR LED (850nm), range up to 30 ft
Frame Rate 15 fps
Audio Two-way audio (mic + speaker)
Motion Detection Yes, with push notifications
Sound & Light Alarm Yes
Local Storage microSD card (up to 128GB)
Video Compression H.264
Wireless Connectivity 2.4GHz Wi-Fi (802.11 b/g/n, up to 150 Mbps)
Wireless Security WPA/WPA2-PSK, AES 128-bit with SSL/TLS
Power Supply DC Adapter: 9V / 0.6A, 3m cable included
Operating Temp 0°C to +40°C
Storage Temp -40°C to +70°C
Operating Humidity 10–90% RH (non-condensing)
Certifications FCC, IC, CE, NCC
Dimensions (W × D × H) 67.6 × 54.8 × 98.9 mm
Net Weight 0.17 kg (estimated)
Gross Weight 0.32 kg (estimated)
Warranty 1 Year Limited

Product Code: 550802 Brand: Intellinet

🌟 Overview
The Intellinet Wall Mount Bracket (550802) is a durable aluminum accessory designed for secure wall installation of compatible Intellinet network dome cameras. Engineered for models 550406, 550420, 550413, and 550444, it includes all necessary mounting hardware and offers a clean, professional finish for indoor or outdoor setups. Backed by a lifetime warranty, it’s the ideal choice for installers seeking reliability and ease of use.

📦 Key Specifications
Attribute Details
Compatibility Intellinet Dome Cameras: 550406, 550420, 550413, 550444
Material Aluminum
Mount Type Wall installation
Included Accessories Mounting screws and hardware
Finish Powder-coated (assumed)
Weather Resistance Suitable for indoor/outdoor use (assumed)
Dimensions (L × W × H) ~120 × 120 × 80 mm (estimated)
Net Weight 0.3 kg (estimated)
Gross Weight 0.45 kg (estimated)
Warranty Lifetime Limited
Packaging Retail Box

Product Code: UE300
Brand: TP-Link

🌟 Overview
The TP-Link UE300 is a compact, high-speed USB 3.0 to Gigabit Ethernet adapter designed for ultra books, laptops, and desktops lacking built-in LAN ports. With blazing fast data transfer rates up to 1000Mbps, it ensures stable wired connectivity for streaming, gaming, and file transfers. Its foldable, pocket-sized design makes it ideal for travel, while plug and play support across Windows, macOS, Chrome OS, and Linux guarantees seamless setup.

📦 Key Specifications
Attribute Details
Interface USB 3.0 (Type-A)
Ethernet Port 1 × RJ45 (10/100/1000 Mbps)
Chipset Realtek RTL8153
Compatibility Windows 10/8.1/8/7/Vista/XP, macOS 10.6–10.14, Chrome OS, Linux
Data Transfer Rate Up to 1000 Mbps
Plug & Play Supported (driver-free for most OS)
Design Foldable, portable
Dimensions (W × D × H) 71 × 26 × 16.2 mm (2.8 × 1.0 × 0.6 in)
Package Contents UE300 Adapter, Quick Installation Guide
Warranty 2-Year Limited

Product Code: TCT-5700B
Brand: Goldtool

🌟 Overview

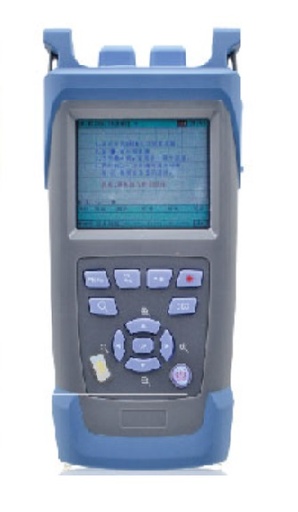

The Goldtool TCT-5700B is a multifunctional Optical Time Domain Reflectometer (OTDR) engineered for precise FTTX network diagnostics. With a dynamic range of 30–32 dB, it accurately measures fiber length, transmission loss, splice loss, and joint integrity. Its large display, auto-optimization, and waveform storage features streamline testing workflows, while USB export ensures fast data handling. Ideal for telecom technicians and fiber installers seeking reliable, handheld performance.

📦 Key Specifications
Attribute Details
Device Type Handheld Optical Time Domain Reflectometer
Dynamic Range 30 to 32 dB
Application FTTX network testing
Display Large, high-visibility interface
Measurement Functions Fiber length, transmission loss, splice loss, joint loss
Cursor Function Displays distance between two points
Auto Features Auto-optimization, auto event detection
Data Storage Internal waveform storage
USB Export Direct copy to U-disk
Operating Mode Manual and automatic
Power Supply Rechargeable battery (assumed)
Dimensions (L × W × H) ~220 × 120 × 60 mm (estimated)
Net Weight ~0.9 kg (estimated)
Gross Weight ~1.2 kg (estimated)
Warranty 1 Year Limited
Packaging Retail Box

Product Code: TCT-5700A
Brand: Goldtool

🌟 Overview

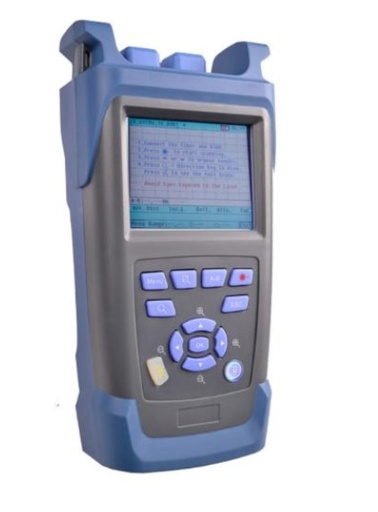

The Goldtool TCT-5700A is a multifunctional handheld Optical Time Domain Reflectometer (OTDR) designed for FTTX network diagnostics. With a dynamic range of 26–28 dB, it accurately measures fiber length, transmission loss, splice loss, and joint integrity. Featuring auto optimization, waveform storage, and USB export, it streamlines field testing and data management for fiber technicians and installers.

📦 Key Specifications
Attribute Details
Device Type Handheld Optical Time Domain Reflectometer
Dynamic Range 26 to 28 dB
Application FTTX network testing
Display Large, high visibility interface
Measurement Functions Fiber length, transmission loss, splice loss, joint loss
Cursor Function Displays distance between two points
Auto Features Auto optimization, auto event detection
Data Storage Internal waveform storage
USB Export Direct copy to U-disk
Operating Mode Manual and automatic
Power Supply Rechargeable battery (assumed)
Dimensions (L × W × H) ~220 × 120 × 60 mm (estimated)
Net Weight 0.9 kg (estimated)
Gross Weight 1.2 kg (estimated)
Warranty 1 Year Limited
Packaging Retail Box

Product Code: TCT-6250
Brand: Goldtool

🌟 Overview

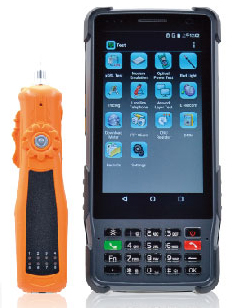

The Goldtool TCT-6250 is a compact, handheld Multi Service Access Test PDA designed for field technicians working across FTTX, xDSL, and Ethernet networks. Built for portability and precision, it supports multi-layer diagnostics, protocol analysis, and service verification. Ideal for last mile testing, it helps ensure reliable connectivity and rapid fault isolation in complex network environments.

📦 Key Specifications
Attribute Details
Device Type Multi-Service Access Test PDA
Application FTTX, xDSL, Ethernet, IP diagnostics
Display High-resolution touchscreen (assumed)
Interface Options RJ45, Optical Port (assumed)
Protocol Support PPPoE, DHCP, VLAN, IPv4/IPv6 (assumed)
Test Capabilities Ping, traceroute, throughput, loopback, service emulation
Storage Internal memory + USB export (assumed)
Battery Rechargeable, field-replaceable (assumed)
Dimensions (L × W × H) ~210 × 120 × 50 mm (estimated)
Net Weight 0.8 kg (estimated)
Gross Weight 1.1 kg (estimated)
Warranty 1 Year Limited
Packaging Retail Box

Product Code: TTK-6500
Brand: Goldtool

🌟 Overview
The Goldtool TTK-6500 is a comprehensive fiber optic tool kit designed for professional FTTX installation, maintenance, and diagnostics. It includes an optical power meter for verifying signal strength, precision tools for fiber preparation, and a cleaning kit to maintain optimal connector performance. Housed in a rugged hard-shell case with lift-and-pull mobility, it’s built for field durability and convenience.

📦 Key Specifications
Attribute Details
Kit Type Fiber Optic Installation & Maintenance
Included Instruments Optical Power Meter, High-Precision Cleaver
Additional Tools Screwdriver, Needle-Nose Pliers
Cleaning Accessories Fiber connector/interface cleaning kit
Case Type Hard-shell, lift-and-pull design
Application FTTX, FTTH, Fiber Splicing & Testing
Dimensions (L × W × H) ~350 × 280 × 120 mm (estimated)
Net Weight 2.8 kg (estimated)
Gross Weight 3.5 kg (estimated)
Warranty 1 Year Limited
Packaging Retail Box

Product Code: CMT-900C Brand: Goldtool

🌟 Overview

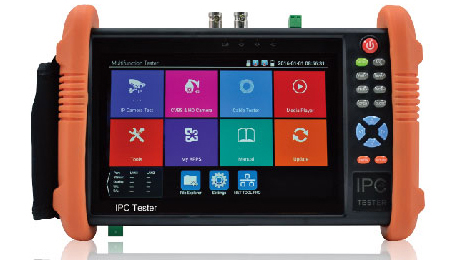

The Goldtool CMT-900C is a versatile, handheld CCTV tester designed for rapid installation, diagnostics, and maintenance of IP and analog surveillance systems. With support for ONVIF, IPC, Haikang protocols, and simulation camera testing, it streamlines setup across multiple platforms. Its PC one clicks test's function and built in electronic manual make it ideal for field technicians seeking speed, accuracy, and convenience.

📦 Key Specifications
Attribute Details
Device Type All-in-One CCTV Tester
Supported Protocols ONVIF, IPC, Haikang
Test Functions PC one-click test, simulation camera test
Display Integrated screen (assumed)
Interface Options RJ45, BNC, USB (assumed)
Built-in Tools Electronic manual
Application IP camera setup, analog camera testing, network diagnostics
Power Supply Rechargeable battery (assumed)
Dimensions (L × W × H) ~200 × 100 × 50 mm (estimated)
Net Weight 0.6 kg (estimated)
Gross Weight 0.9 kg (estimated)
Warranty 1 Year Limited
Packaging Retail Box
