UltraLAN Fiber Flylead LC-ST UPC MM OM3 (1Meter)

UltraLAN's 50/125μm OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

The UltraLAN OM3 Multi Mode fiber optic cables meet RoHS compliance and is optically tested for insertion loss to ensure high quality and excellent performance. It is very cost-effective for network cabling applications in data centers, enterprise networks, telecom rooms, server racks, cloud storage networks, and any other place fiber patch cables are needed with high bandwidth demands.

Connector Type LC to ST Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM3 50/125μm
Wavelength 850/1300nm 10G Ethernet Distance 300m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB

UltraLAN Fiber Flylead LC-ST UPC MM Duplex (1Meter)

UltraLAN's high-quality LC to ST Fiber flylead is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet applications. Ideal for use in data centers, educational & commercial premises, LAN and SAN applications.
The UltraLAN OM2 Multi Mode fiber optic cables have less attenuation when bent or twisted compared with traditional optical fiber cables which makes installation and maintenance of the fiber optic cables more efficient.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to ST Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM2 50/125μm
Wavelength 850/1300nm 1G Ethernet Distance 550m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB

UltraLAN Fiber Flylead LC-SC APC SM (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

These flyleads feature a LC connector on one side, and a SC connector on the other , making them practical flyleads to also connect PON ONU equipment to fiber termination boxes with an LC connector.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.


Connector Type LC to SC Polish Type APC to APC

Fiber Count Duplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC-LC UPC SM Simplex (5Meter)

The UltraLAN high-quality LC to LC Single Mode Fiber flylead is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet applications.
The fiber optic cable has industry standard flammability rating LSZH (Low Smoke Zero Halogen) jacket and simplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.

This OS2 9/125μm single mode cable provides exceptional transmission performance and meets RoHS compliance.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

UltraLAN Fiber Flylead LC-LC UPC SM Simplex (3Meter)

The UltraLAN high-quality LC to LC Single Mode Fiber flylead is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet applications.
The fiber optic cable has industry standard flammability rating LSZH (Low Smoke Zero Halogen) jacket and simplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.

This OS2 9/125μm single mode cable provides exceptional transmission performance and meets RoHS compliance.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

UltraLAN Fiber Flylead LC-LC UPC SM Simplex (20Meter)

The UltraLAN high-quality LC to LC Single Mode Fiber flylead is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet applications.
The fiber optic cable has industry standard flammability rating LSZH (Low Smoke Zero Halogen) jacket and simplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.

This OS2 9/125μm single mode cable provides exceptional transmission performance and meets RoHS compliance.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

UltraLAN Fiber Flylead LC-LC UPC SM (3Meter)

The UltraLAN high-quality LC to LC Single Mode Fiber flylead is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet applications.
The fiber optic cable has industry standard flammability rating LSZH (Low Smoke Zero Halogen) jacket and duplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.

This OS2 9/125μm single mode cable provides exceptional transmission performance and meets RoHS compliance.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

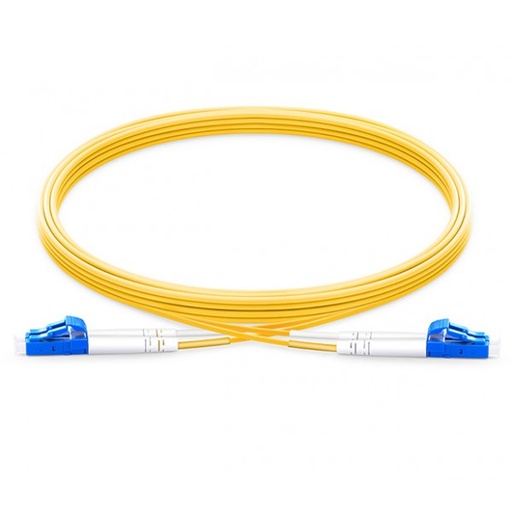

UltraLAN Fiber Flylead LC-LC UPC SM (1Meter)

The UltraLAN high-quality LC to LC Single Mode Fiber flylead is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet applications.
The fiber optic cable has industry standard flammability rating LSZH (Low Smoke Zero Halogen) jacket and duplex fiber connector which meets EIA/TIA 604-2 for high speed cabling networks.

This OS2 9/125μm single mode cable provides exceptional transmission performance and meets RoHS compliance.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥50dB

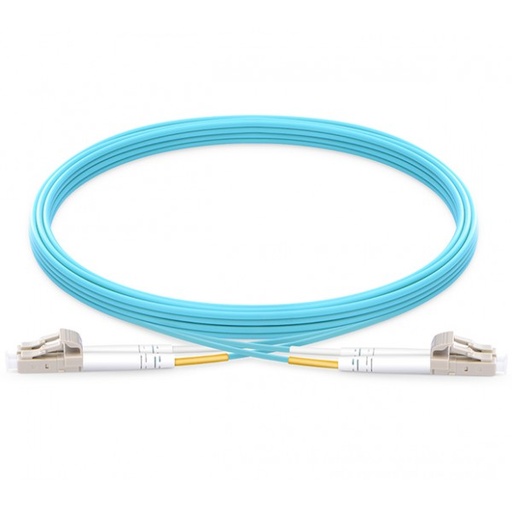

UltraLAN Fiber Flylead LC-LC UPC MM OM3 (1Meter)

UltraLAN's high Quality and cost-effective 50/125μm OM3 Multimode Fiber Optic Cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.

The UltraLAN OM3 Multi Mode fiber optic cables meets RoHS compliance, and is optically tested for insertion loss to ensure high quality and excellent performance. It is very cost-effective for network cabling applications in data centers, enterprise networks, telecom rooms, server racks, cloud storage networks, and any other place fiber patch cables are needed with high bandwidth demands.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM3 50/125μm
Wavelength 850/1300nm 10G Ethernet Distance 300m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB

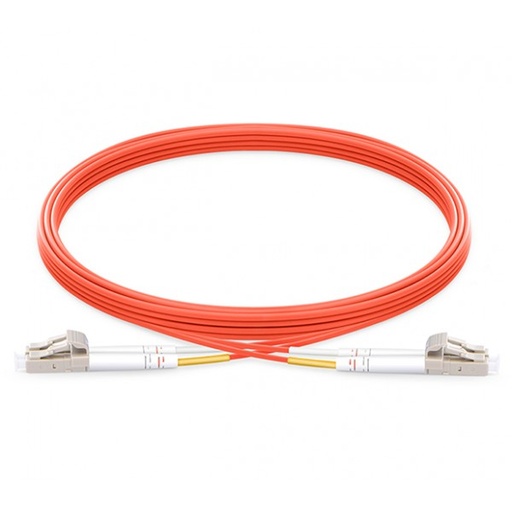

UltraLAN Fiber Flylead LC-LC UPC MM OM2 (1Meter)

UltraLAN's 50/125μm OM2 multimode fiber optic cable is ideal for connecting SFP and SFP+ transceivers together for 1G Ethernet connections. Ideal for short distance equipment interconnects, such as linking data switches together in a network rack.

The UltraLAN OM2 Multi Mode fiber optic cables has less attenuation when bent or twisted compared with traditional optical fiber cables which makes installation and maintenance of the fiber optic cables more efficient.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM2 50/125μm
Wavelength 850/1300nm 1G Ethernet Distance 550m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB

UltraLAN Fiber Flylead LC-LC APC SM Simplex (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to LC Polish Type APC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC-LC APC SM Duplex (3Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to LC Polish Type APC to APC

Fiber Count Duplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

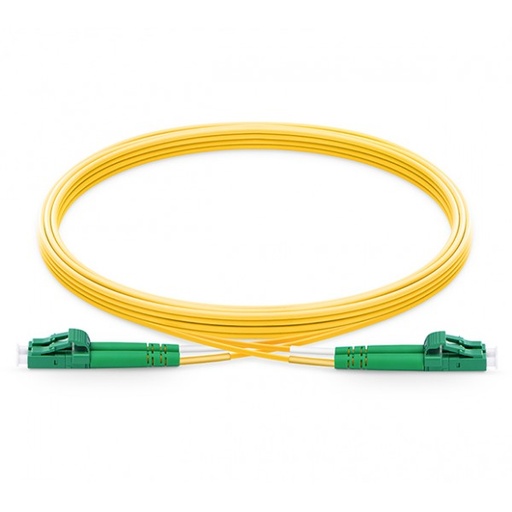

UltraLAN Fiber Flylead LC-LC APC SM Duplex (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.
This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to LC Polish Type APC to APC

Fiber Count Duplex Fiber Mode OS2 9/125μm

Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)

Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC UPC-SC APC SM Simplex (3Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.
This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to SC Polish Type UPC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC UPC-SC APC SM Simplex (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to SC Polish Type UPC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Drop Cable Stripper

The fiber drop cable stripper is designed for stripping flat fiber drop cable used in Fiber to the Home (FTTH) applications. The tool removes the jacket in two locations to expose the dielectric strength members and allowing quick removal of the fiber cable jacket.

Product Features:

Universal stripper designed for stripping Flat Drop Fiber Cable used in “Fiber to the Home” applications
One step stripping action that removes the jacket in two locations to expose the dielectric strength members and allowing the quick removal of the jacket
Tool is small and has a lightweight body for ease of use
Easily strips fiber drop cable in 3.1*2.0mm
Also suitable for 2.0mm, 3.0mm indoor fiber optic cable
Blade depth adjustable for protecting the fiber.
2 straight blades in across and 1 round blade in lengthwise

UltraLAN Fiber Drop Cable (Round, Gel Filled) - 2 Core

This UltraLAN fiber cable is a gel filled, Single Mode, G657A1, 2 core fiber cable for FTTX applications. The outer jacket is 3.8mm and made from UV resistant HDPE material suitable for both indoor and outdoor installations.
Supplied on a wooden drum in 2000m length.

Key Features:

Fiber Count: 2 core (G.657A2 single-mode)

Jacket Material: UV-resistant black HDPE

Strength Member: High-tensile aramid yarn

Loose Tube: Gel-filled for moisture protection

Cable Diameter: Approx. 3.8 ± 0.2mm

Weight: 12kg/km


Optical Performance:

Attenuation: ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm

Mode Field Diameter: 9.2μm @1310nm, 10.4μm @1550nm


Mechanical Ratings:

Tensile Strength: 150N (long-term), 300N (short-term)

Crush Resistance: 300N/10cm (long-term), 650N/10cm (short-term)

Bend Radius: 10D static / 20D dynamic

Operating Temperature: -40°C to +70°C


Ideal for outdoor drop connections, this cable delivers excellent protection, flexibility, and reliability in all climates.

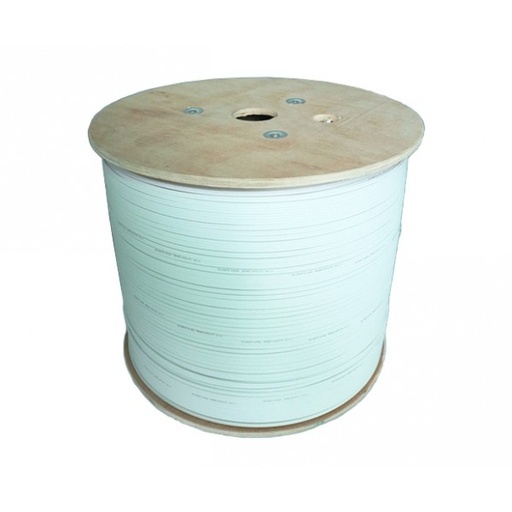

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 2 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners. With a white outer jacket, the cable blends into indoor home or office environments better.

Short Description:

Bend-insensitive G657A2 single-mode fiber
2-core flat “bow” profile with white LSZH jacket
UV-resistant, indoor/outdoor rated, –20 °C to +60 °C
Reinforced with 0.45 mm phosphate wires for pull strength
Supplied on 2000 m wooden drum with sequential metre marks

Key Specifications:

Fiber Type: Single-mode G657A2; bend-insensitive
Core Count & Profile: 2-core; flat “bow” profile (2 × 3 mm)
Jacket Material: White LSZH (Low Smoke Zero Halogen)
Reinforcement: Two 0.45 mm phosphate wires for > 200 N tensile strength
Environmental Rating: UV-resistant; indoor/outdoor; –20 °C to +60 °C
Safety: LSZH for low smoke and halogen-free compliance
Optical Performance:
Attenuation ≤ 0.35 dB/km @ 1310 nm
Attenuation ≤ 0.21 dB/km @ 1550 nm
Minimum bend radius: 5 mm
Packaging: Supplied on 2000 m wooden drum
Drum Specs: Ø 400 × 260 mm; approx. 22 kg
Cutting Aid: Sequential metre marks every 1 m
Gross shipping weight: Approx. 23 kg
Retail pack includes: 2 km drum with sequential markings

Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:
Calculate the most economical shipping option
Contact you with the exact additional charges
Process your order after receiving your confirmation
Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation.

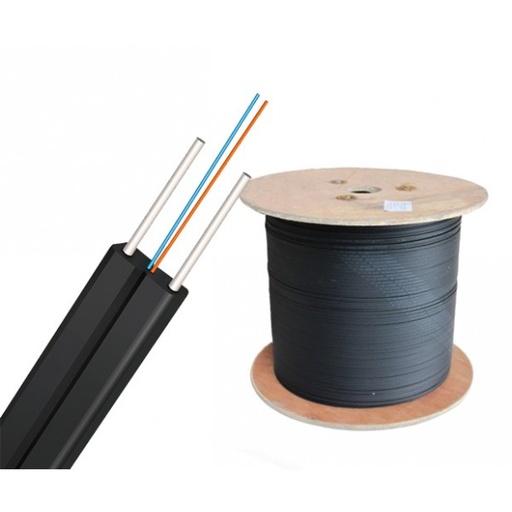

UltraLAN Fiber Bow Type Drop Cable (Black) - 4 Core

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 4 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners.
Supplied on a wooden drum in 2000m length.

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 2 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners.

Short Description:

Bend-insensitive G657A2 single-mode fiber in a black 2 × 3 mm bow-profile jacket
Two 0.45 mm phosphate wires for > 200 N pull strength and tight-corner stability
UV-resistant, indoor/outdoor rated, LSZH jacket for low smoke and halogen-free safety
Supplied on a 2 km wooden drum with sequential metre marks every 1 m

Key Specifications:

Fiber Type: Single-mode G657A2; bend-insensitive
Core Count & Profile: 2-core; flat bow profile (2 × 3 mm)
Jacket Material: Black LSZH (Low Smoke Zero Halogen)
Reinforcement: Two 0.45 mm phosphate wires for > 200 N tensile strength
Environmental Rating: UV-resistant; indoor/outdoor; –20 °C to +60 °C
Optical Performance: Attenuation ≤ 0.35 dB/km @ 1310 nm; ≤ 0.21 dB/km @ 1550 nm
Bend Radius: Minimum 5 mm
Packaging: Supplied on 2 km wooden drum; sequential metre marks every 1 m
Gross shipping weight: Approx. 22–23 kg
Drum dimensions: Ø 400 × 260 mm

Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:
Calculate the most economical shipping option
Contact you with the exact additional charges
Process your order after receiving your confirmation
Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation.
