The Hikvision DS‑2AE4225TI‑D Turbo Speed Dome Camera is a powerful 2MP analogue PTZ solution designed for professional surveillance. Featuring 1920×1080 resolution and a 25× optical zoom (4.8–120mm) with 16× digital zoom, it delivers sharp detail across wide coverage areas.

Equipped with IR illumination up to 30m, the camera ensures clear imaging in low‑light conditions. Its 360° endless pan and 300 preset positions provide flexible monitoring, while 4 pattern scans allow automated patrols.

Built to withstand harsh environments, the DS‑2AE4225TI‑D is rated IP66 weatherproof with TVS 4kV lightning protection. Powered via 12VDC or PoE+, it offers installation flexibility. Compact at Φ164.5 × 290 mm and weighing 2kg, it is ideal for outdoor and high‑security applications.

Technical Details:

Model / SKU: DS‑2AE4225TI‑D
Resolution: 2MP (1920×1080)
Optical Zoom: 25× (4.8–120mm)
Digital Zoom: 16×
IR Range: 30m
Pan/Tilt: 360° endless pan, multiple tilt angles
Presets: 300 positions, 4 pattern scans
Protection: IP66 weatherproof, TVS 4kV surge protection
Power Supply: 12VDC / PoE+
Dimensions: Φ164.5 × 290 mm
Weight: 2kg
Form Factor: 4" Turbo Speed Dome

The Ubiquiti UniFi USW‑Pro‑XG‑8‑PoE is a compact Layer‑3 Etherlighting™ switch designed for high‑performance enterprise networks. Featuring 8× 10Gbps PoE++ ports and 2× 10Gbps SFP+ uplinks, it delivers powerful throughput and flexible connectivity for next‑generation deployments.
With a 155W PoE budget (up to 60W per port), the switch can power demanding devices such as Wi‑Fi 7 access points, PTZ cameras, and VoIP systems. Its fanless design ensures silent operation, while desktop or wall‑mount options make it versatile for different environments.
Managed through the UniFi Network Application, the USW‑Pro‑XG‑8‑PoE integrates seamlessly into UniFi ecosystems, offering centralized configuration, monitoring, and automation. Compact at 210 × 174 × 44 mm and weighing 1.6 kg, it is engineered for reliability with ‑5°C to 45°C operating range and 100–240V AC input.

Technical Details:

Model / SKU: USW‑Pro‑XG‑8‑PoE
Ethernet Ports: 8 × 10Gbps (PoE++)
PoE Output: 802.3af/at/bt, up to 60W per port, 155W total budget
SFP+ Ports: 2 × 10Gbps uplinks
Switching Features: Layer‑3 Etherlighting™, fully managed
Power Input: IEC power cord (included), 100–240V AC
Max Power Consumption: 61W
Operating System: UniFi OS
Operating Temperature: ‑5°C to 45°C
Design: Fanless, silent operation
Mounting: Desktop or wall mount
Dimensions: 210.4 × 173.8 × 43.7 mm
Weight: 1.6 kg

The Ubiquiti UniFi Cloud Gateway Fiber (UCG‑Fiber + M.2 Tray) is a 10Gbps dual‑WAN desktop gateway designed for full‑stack UniFi network management. Equipped with a quad‑core ARM Cortex‑A73 processor at 2.2GHz and 3GB RAM, it delivers enterprise‑grade performance for demanding deployments.
This model includes an M.2 SSD tray (SSD not included), enabling NVR storage expansion up to 2TB for UniFi Protect, making it a versatile gateway + video recorder solution.

Connectivity highlights include:

1× 10Gbps WAN port
4× 2.5Gbps LAN ports (Port 4 supports 802.3at PoE+ output)
2× SFP+ ports (1 WAN, 1 LAN)

Running on UniFi OS, the UCG‑Fiber integrates seamlessly with the UniFi Network Application, offering centralized management of routing, switching, security, and video. Compact at 212.8 × 127.6 × 30 mm and weighing 675 g, it consumes just 29.4W and is powered via a 54V 1.1A adapter (included).

Technical Details:

Model / SKU: UCG‑Fiber + UACC‑SSD‑Tray
Processor: Quad‑core ARM Cortex‑A73, 2.2GHz
System Memory: 3GB
Storage: M.2 SSD tray (≤2TB, SSD not included)
Ethernet Ports: 4 × 2.5Gbps LAN (Port 4 PoE+), 1 × 10Gbps WAN
SFP+ Ports: 2 × (1 WAN, 1 LAN)
PoE Output: 802.3at PoE+ on Port 4
Power Input: 54V 1.1A adapter (included)
Max Power Consumption: 29.4W
Operating System: UniFi OS
Operating Temperature: 0°C to 40°C
Dimensions: 212.8 × 127.6 × 30 mm
Weight: 675 g
Mounting: Desktop

The TP‑Link VIGI‑NVR1008H‑8MP is an 8‑channel PoE+ 4K NVR offering robust performance for small to medium surveillance installations. With a 113 W PoE power budget it supplies power and network to up to eight PoE+ cameras, supports up to 8MP recording, and provides H.265+ compression to maximise storage efficiency. Local monitoring is via 4K HDMI output; playback supports up to eight channels simultaneously. A single SATA bay supports up to 16 TB for long retention, while ONVIF compatibility and the VIGI app enable flexible integrations and remote management. Compact (294 × 180 × 44 mm) and easy to deploy, it’s ideal for retail, offices, and residential estates.

Technical Details:

Model / SKU: VIGI‑NVR1008H‑8MP
Channels: 8 IP camera inputs
PoE: PoE+ with 113 W total budget (powers up to eight cameras depending on camera draw)
Max recording: Up to 8 MP
Incoming bandwidth: 80 Mbps
Outgoing bandwidth: 60 Mbps
Compression: H.265+, H.265, H.264
Decoding / Playback: Up to 8‑ch simultaneous playback
Video outputs: 1 × 4K HDMI (local monitor)
Storage: 1 × SATA bay, up to 16 TB (single HDD)
Integration: ONVIF compliant; remote management via VIGI app
Form factor / Dimensions: Compact desktop / rackable style; 294 × 180 × 44 mm
Operating environment: Typical commercial ranges (refer to official datasheet for exact specs)

The TP-Link VIGI-NVR1104H-4P is a 4‑channel PoE+ 4K NVR designed for efficient and intelligent video management. Supporting up to 16 MP decoding, 4K HDMI output, and 4‑channel synchronous playback, it delivers crisp, high‑resolution monitoring. With a 53 W PoE+ power budget, it can directly power and connect up to four IP cameras, simplifying installation. Featuring H.265+ compression for optimized storage, a single SATA interface supporting up to 10 TB HDD, ONVIF compatibility, and a built‑in speaker, this NVR integrates seamlessly with the VIGI app for remote access and management. Compact and reliable, it’s ideal for small to medium surveillance setups.

Technical Details:

Channels: 4‑channel input
PoE+ Budget: 53 W total
Video Output: 4K HDMI
Decoding Capability: Up to 16 MP
Playback: 4‑channel synchronous playback
Compression: H.265+, H.265, H.264
Storage: 1 × SATA interface, up to 10 TB HDD
Audio: Built‑in speaker
Integration: ONVIF compliant; remote management via VIGI app
Power: PoE+ and 12 VDC support
Model / SKU: VIGI-NVR1104H-4P

The Hikvision DS-2CD3666G2T-IZSY is a high-performance outdoor bullet camera with motorized zoom and advanced AcuSense analytics. Featuring 6 MP 4K resolution, DarkFighter low-light tech, and EXIR 2.0 illumination up to 80 meters, it’s built for precision surveillance in demanding environments. Ideal for perimeter protection, parking lots, and industrial sites.

Key On-Page Specifications:

Image Sensor: 6 MP 1/2.9" CMOS
Resolution: 3200 × 1800 @ 20 fps
Lens: 7–35 mm F1.6 motorized zoom; 31°–9° horizontal field of view
Low-Light Performance: DarkFighter; 0.002 lux colour, 0 lux IR
Illumination: EXIR 2.0 infrared up to 80 m; 850 nm wavelength
Video Enhancements: 120 dB true WDR, 3D-DNR, BLC
Compression: H.265+/H.264+
Storage: microSD up to 512 GB
Smart Features: AcuSense 3.0 human/vehicle classification
Audio & I/O: Built-in mic & speaker; 1 alarm input/output
Power: PoE+ or 12 V DC; max 18 W
Weather Rating: IP67
Body: Metal housing
Operating Temp: –30 °C to +60 °C
Dimensions: 314 × 103 × 100 mm
Weight: Approx. 1.4 kg

DORI Distances:
Detect: 280 m
Observe: 112 m
Recognize: 56 m
Identify: 28 m
Model: DS-2CD3666G2T-IZSY-7-35MM

Hikvision 2 MP PTZ IP camera with 25× optical zoom, 100 m EXIR, DarkFighter low-light tech, 4K HDMI output, IP66 metal body, and PoE+.

Short Description:

2 MP resolution with 25× optical zoom and 16× digital zoom
DarkFighter colour at 0.005 lux; EXIR 2.0 IR up to 100 m
360° endless pan, –15° to +90° tilt, 256 presets, 8 patrols
4K HDMI output, ONVIF S/G, micro-SD up to 256 GB
PoE+ or 12 V DC; IP66-rated metal body; IK10 vandal resistance
DORI: Detect 1900 m / Observe 760 m / Recognize 380 m / Identify 190 m

Key Specifications:

Sensor and Resolution: 2 MP 1/2.8" Progressive CMOS; 1920 × 1080 @ 30 fps
Zoom and Lens: 25× optical zoom (4.8–120 mm), 16× digital zoom; F1.6–F3.5
Low-Light Performance: DarkFighter 0.005 lux colour, 0 lux IR
IR Range: EXIR 2.0 up to 100 m; 850 nm wavelength
PTZ Control: Pan 360° endless, Tilt –15° to +90°, Preset speed 240°/s
Presets and Patrols: 256 presets, 8 patrols, 4 patterns
Video Output: 4K HDMI
Storage: micro-SD slot (up to 256 GB)
Protocols: ONVIF Profile S/G
Power: PoE+ (802.3 at) or 12 V DC; max 18 W
Build: IP66 weather-proof, IK10 vandal-resistant metal body
Operating Temp: –40 °C to +65 °C
Dimensions and Weight: Ø 220 × 353 mm; 4.5 kg
DORI Distances: Detect 1900 m / Observe 760 m / Recognize 380 m / Identify 190 m
Gross shipping weight: Approx. 5.2 kg
Retail pack includes: PTZ camera, mounting bracket, screws, quick start guide

Hikvision 4 MP ColorVu bullet IP camera with motorized zoom, 24/7 colour, smart IR up to 40 m, built-in mic & speaker, IP67 metal body, and deep-learning alerts.

Short Description:

4 MP resolution with 2.8–12 mm motorized zoom lens
ColorVu 24/7 colour with white-light LEDs, 40 m range
Deep-learning human/vehicle classification
Built-in mic & speaker, 1 alarm I/O
PoE+ or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 94 m / Observe 38 m / Recognize 19 m / Identify 9 m

Key Specifications:

Sensor and Resolution: 4 MP 1/1.8" CMOS; 2688 × 1520 @ 25/30 fps
Lens and FOV: 2.8–12 mm F1.0 motorized zoom; 125°–33° horizontal field of view
Illumination: ColorVu 24/7 colour via white-light LEDs; 0.0005 lux colour; 40 m range with auto-brightness
Image Enhancements: 130 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: Deep-learning human/vehicle classification
Audio: Built-in microphone and speaker
I/O: 1 alarm input/output
Storage: micro-SD slot (up to 512 GB)
Power: PoE+ or 12 V DC; max 12 W
Build: IP67 weather-proof, metal body
Dimensions and Weight: 314 × 103 × 100 mm; 1.4 kg
DORI Distances: Detect 94 m / Observe 38 m / Recognize 19 m / Identify 9 m
Gross shipping weight: Approx. 1.6 kg
Retail pack includes Bullet camera, mounting bracket, screws, quick start guide

Hikvision 4 MP bullet IP camera with DarkFighter low-light tech, motorized zoom, EXIR 2.0 up to 100 m, built-in mic & speaker, IP67 metal body, and AcuSense alerts.

Short Description:

4 MP resolution with 2.7–13.5 mm motorized zoom lens
DarkFighter colour at 0.002 lux; EXIR 2.0 IR up to 100 m
AcuSense 3.0 human/vehicle classification
Built-in mic & speaker, 1 alarm I/O
PoE+ or 12 V DC; IP67-rated metal body; micro-SD up to 512 GB
DORI: Detect 94 m / Observe 38 m / Recognize 19 m / Identify 9 m

Key Specifications:

Sensor and Resolution: 4 MP 1/2.8" CMOS; 2688 × 1520 @ 30 fps
Lens and FOV: 2.7–13.5 mm F1.6 motorized zoom; 106°–31° horizontal field of view
Low-Light Performance: DarkFighter 0.002 lux colour, 0 lux IR
IR Range: EXIR 2.0 up to 100 m; 850 nm wavelength
Image Enhancements: 120 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Audio: Built-in microphone and speaker
I/O: 1 alarm input/output
Storage: micro-SD slot (up to 512 GB)
Power: PoE+ or 12 V DC; max 12 W
Build: IP67 weather-proof, metal body
Dimensions and Weight: 314 × 103 × 100 mm; 1.4 kg
DORI Distances: Detect 94 m / Observe 38 m / Recognize 19 m / Identify 9 m
Gross shipping weight: Approx. 1.6 kg
Retail pack includes Bullet camera, mounting bracket, screws, quick start guide

Hikvision 8 MP AcuSense dome IP camera with motorized PTRZ control, 4K resolution, smart IR up to 30 m, built-in mic, IP66 metal body, and PoE++.

Short Description:

8 MP 4K resolution with 2.8–12 mm motorized varifocal lens
PTRZ remote Pan/Tilt/Rotate/Zoom for post-install adjustment
AcuSense 3.0 human/vehicle classification
Smart IR up to 30 m; 0.0005 lux colour, 0 lux IR
PoE++ or 12 V DC; IP66-rated metal body; micro-SD up to 512 GB
DORI: Detect 61 m / Observe 24 m / Recognize 12 m / Identify 6 m

Key Specifications:

Sensor and Resolution: 8 MP 1/1.8" CMOS; 3840 × 2160 @ 20 fps
Lens and FOV: 2.8–12 mm F1.0 motorized varifocal; 108°–46° horizontal field of view
PTRZ Control: Remote Pan (0–355°), Tilt (0–75°), Rotate (0–355°), Zoom
Illumination: Smart IR up to 30 m; 0.0005 lux colour, 0 lux IR
Image Enhancements: 120 dB true WDR, 3D-DNR, BLC
Compression: H.265+, H.264+
Smart Detection: AcuSense 3.0 human/vehicle classification
Storage: micro-SD slot (up to 512 GB)
Power: PoE++ (802.3 bt) or 12 V DC; max 18 W
Build: IP66 weather-proof, IK10 vandal-resistant metal body
Dimensions and Weight: Ø 160 × 134 mm; 1.4 kg
DORI Distances: Detect 61 m / Observe 24 m / Recognize 12 m / Identify 6 m
SKU DS-2CD2786G2H-IPTRZS2.8-12MM
Gross shipping weight: Approx. 1.7 kg
Retail pack includes: PTRZ dome camera, mounting screws, quick start guide

Buy Hikvision 4" 4MP 25X ColorVu & IR Network Speed Dome – dual-lens PTZ camera with vivid color imaging, 30m IR, IP66 rating, and 2-year warranty. Ideal for advanced outdoor surveillance.

Short Description:

4MP resolution with 25X optical zoom
Dual-lens PTZ design with ColorVu + IR
IP66-rated for outdoor environments
Code: DS-2SE4C425MWG-E_14F0; 2-year warranty

Long Description:

The Hikvision Tandemvu 4-Inch 4MP 25X ColorVu & IR Network Speed Dome delivers precision surveillance with vivid color imaging and powerful infrared capabilities. Its dual-lens PTZ design offers wide-area coverage and detailed zoom, making it ideal for commercial, municipal, and perimeter security. With IP66 weatherproofing and a varifocal lens, it’s built for reliable performance in demanding outdoor conditions. Backed by a 2-year warranty.

Technical Specifications:

Specification Details
Brand Name Hikvision
Camera Form Factor Dome
Camera Resolution 4MP
Focal Length 2.8 mm
IP Rating IP66 (weatherproof)
IR Illumination 30 m
Lens Type Varifocal
Warranty 2 Year Warranty
Stock Code DS-2SE4C425MWG-E_14F0

The Reyee RG-NBS3300-8MG2XS-P is a high-performance Layer 2+ smart managed switch designed for advanced enterprise and SMB networking. Featuring 8 × 2.5Gbps PoE ports and 2 × 10Gbps SFP+ uplinks, it delivers blazing fast connectivity with a robust 240W PoE budget across ports 1–8.
Built for scalability and remote management, it supports Ruijie’s free cloud platform with auto provisioning, QR-code onboarding, and mobile app integration. Advanced Layer 2 features include IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control, and Access Control Lists (ACL) for secure, efficient traffic handling.
Compact and desktop mountable, it’s ideal for high density deployments in smart offices, surveillance setups, and campus networks.

Key Features
🔌 8 × 2.5Gbps PoE Ports (802.3af/at) – High-speed power and data delivery
🚀 2 × 10Gbps SFP+ Uplinks – Ultra-fast fiber connectivity
⚡ 240W PoE Budget – Supports multiple high-power devices
🔒 Advanced Layer 2+ Features – IGMP Snooping, MVR, DHCP Snooping, ACL
📱 Cloud Management via Ruijie Platform – Auto-provisioning + QR onboarding
📦 Retail Box Packaging – Includes IEC Power Cord + 3-Year Warranty

Technical Specifications
Feature Details
Product Code RG-NBS8P2XS
Manufacturer Reyee
Model RG-NBS3300-8MG2XS-P
Ethernet Ports 8 × 10/100/1000/2500 Mbps
SFP Ports 2 × 10Gbps SFP+
PoE Output 802.3af/at on Ports 1–8
PoE Budget 240W
Max Power Consumption 27W
Power Input 1 × IEC Power Cord (Included)
Supported Voltage Range 100–240V
Operating Temperature 0°C to 50°C
Mounting Desktop
Operating System None
Serial Interface None
Hardware Button None
Dimensions (L × W × H) 300 × 233 × 43.6 mm
Weight 2.64 kg
Warranty 3-Year Manufacturer Warranty
Packaging Retail Box

What’s Included
1 × Reyee RG-NBS3300-8MG2XS-P Managed Switch
1 × IEC Power Cord
1 × User Documentation

Product Code: TL-SG105PE
Brand: TP-Link

🌟 Overview
The TP-Link TL-SG105PE is a compact, fanless smart switch designed for small offices, homes, and surveillance setups. With 4 PoE+ ports delivering up to 30W each and a total power budget of 65W, it powers IP cameras, VoIP phones, and access points with ease. Advanced Layer 2 features like IGMP Snooping, Port Mirroring, and Loop Prevention are managed via an intuitive web GUI. Extend Mode supports long-distance PoE transmission up to 250m, while QoS ensures smooth performance for latency-sensitive applications.

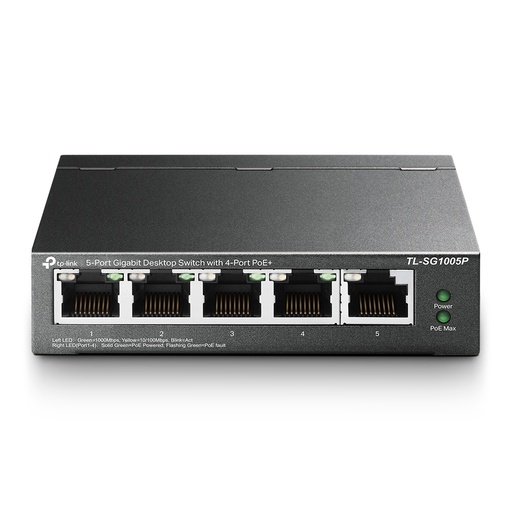

📦 Key Specifications
Attribute Details
Total Ports 5 × Gigabit RJ45
PoE Ports 4 × 802.3af/at compliant (Ports 1–4)
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
MAC Address Table 2K
Packet Buffer Memory 1.5 Mb
Jumbo Frame Support 16 KB
Transmission Method Store-and-forward
Fan Configuration Fanless
Power Supply External Adapter (53.5VDC / 1.3A)
Max Power Consumption 75.2W (with full PoE load)
PoE Budget 65W total
Heat Dissipation 256.3 BTU/h (max)
Advanced Features QoS (802.1p/DSCP), IGMP Snooping V1/V2/V3, Port Mirroring, Static Link Aggregation, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode
Management Web-based GUI
Dimensions (W × D × H) 99.8 × 98 × 25 mm
Mounting Type Desktop
Operating Temp -40°C to 70°C
Operating Humidity 10%–90% RH non-condensing
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 0.55 kg (estimated)
Box Dimensions (L × W × H): 160 × 140 × 60 mm

SKU: UVC-AIPTZ-W
Manufacturer: Ubiquiti

🌟 Overview
The Ubiquiti UVC-AI-PTZ-W is a high-performance industrial-grade PTZ camera engineered for precision surveillance in demanding environments. Featuring a 1/1.8" 8MP sensor with 4K resolution, 22× optical zoom, and long-range IR night vision up to 100 meters, it delivers crystal-clear imaging day or night. Advanced AI capabilities include face recognition, license plate detection, and smart object tracking (people, vehicles, animals). Fully managed via UniFi Protect, it supports PoE++ (802.3bt) for streamlined installation.

Note: PoE Injector not included.

📦 Key Specifications
Attribute Details
Resolution 8MP (3840 × 2160), 4K UHD
Sensor 1/1.8" CMOS
Zoom 22× Optical Zoom Lens
Frame Rate Up to 30 FPS (resolution dependent)
Night Vision IR up to 100m
AI Features Face recognition, license plate detection, smart tracking (people, vehicles, animals)
Compression H.264, MJPG
Ethernet Port 1 × 10/100/1000 Mbps RJ45
PoE Standard 802.3bt (PoE++), 60W
Max Power Consumption 51W
Mounting Options Wall, pole, desk stand (included)
Operating Temperature -40°C to 50°C
Weather Rating IP66 (outdoor-rated)
Microphone None
Reset Button Yes
Dimensions (L × W × H) 207 × 223.7 × 341.3 mm
Weight 3.8 kg
Management Platform UniFi Protect
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 4.5 kg
Box Dimensions (L × W × H): 400 × 300 × 250 mm
Volumetric Weight: 6.0 kg (based on standard courier formula)

Product Code: TL-SG1008P
Brand: TP-Link

🌟 Overview
The TP-Link TL-SG1008P is a compact, high-performance desktop switch designed for small offices, home networks, and surveillance setups. With 4 PoE+ ports delivering up to 30W each and a total power budget of 64W, it powers IP cameras, VoIP phones, and access points with ease. Its fanless design ensures silent operation, while plug and play setup and QoS support make it ideal for latency-sensitive applications.

📦 Key Specifications
Attribute Details
Total Ports 8 × Gigabit RJ45
PoE Ports 4 × 802.3af/at compliant (Ports 1–4)
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.904 Mpps
MAC Address Table 4K
Jumbo Frame Support 16 KB
Transmission Method Store-and-forward
Fan Configuration Fanless
Power Supply External Adapter (54VDC / 1.3A)
Max Power Consumption 75W (with full PoE load)
PoE Budget 64W total
Heat Dissipation 225.8 BTU/h (max)
Advanced Features IGMP Snooping, QoS (802.1p/DSCP), IEEE802.3x Flow Control
Physical Security Lock slot included
Dimensions (W × D × H) 171 × 98 × 27 mm
Mounting Type Desktop
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 0.6 kg (estimated)
Box Dimensions (L × W × H): 220 × 140 × 60 mm

Product Code: TL-SF1009P
Brand: TP-Link

🌟 Overview
The TP-Link TL-SF1009P is a compact, fan less desktop switch designed for small offices, home networks, and surveillance setups. With 8 PoE+ ports delivering up to 30W each and a total power budget of 65W, it powers IP cameras, VoIP phones, and access points effortlessly. Plug and play setup, physical security lock, and advanced modes like Extend, Priority, and Isolation make it a smart choice for simple yet powerful networking.

📦 Key Specifications
Attribute Details
Total Ports 9 × 10/100 Mbps RJ45
PoE Ports 8 × 802.3af/at compliant (Ports 1–8)
Uplink Port 1 × RJ45 (non-PoE)
Switching Capacity 1.8 Gbps
Packet Forwarding Rate 1.3392 Mpps
MAC Address Table 2K
Jumbo Frame Support 2 KB
Transmission Method Store-and-forward
Fan Configuration Fan less
Power Supply External Adapter (53.5VDC / 1.3A)
Max Power Consumption 77.1W (with full PoE load)
PoE Budget 65W total
Heat Dissipation 262.8 BTU/h (max)
Advanced Modes Extend (up to 250m), Priority, Isolation
Flow Control IEEE802.3x (Full Duplex), Backpressure (Half Duplex)
Physical Security Lock slot included
Dimensions (W × D × H) 171 × 98 × 27 mm
Mounting Type Desktop
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 0.6 kg (estimated)
Box Dimensions (L × W × H): 220 × 140 × 60 mm

Product Code: TE-TEG1120P-16-250W Brand: Tenda

🌟 Overview
The Tenda TEG1120P-16-250W is a high-performance unmanaged gigabit switch designed for scalable PoE deployments. With 16 PoE+ ports delivering up to 30W each and a total power budget of 230W, it’s ideal for powering IP cameras, access points, and VoIP phones. Two uplink RJ45 ports and two SFP slots offer flexible backbone connectivity. Built for SMBs, hotels, schools, and surveillance networks, it supports plug and play setup, rack/wall/desktop mounting, and advanced protections like 6KV lightning and ESD shielding.

📦 Key Specifications
Attribute Details
Total Ports 20 (16 × PoE+ RJ45 + 2 × RJ45 uplink + 2 × SFP)
PoE Standard IEEE 802.3af/at
Max PoE Power per Port 30W
Total PoE Budget 230W
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.8 Mpps
MAC Address Table 8K
Buffer Memory 4 Mb
Jumbo Frame Support Yes (up to 9KB)
Operating Modes Standard, Priority, Extend, VLAN
LED Indicators Power, Link/Act, PoE MAX
Transmission Media CAT5/5e UTP or better
Protection Level 6KV (Port & Power)
Forwarding Mode Store-and-forward
Fan Quantity 1
Dimensions (W × D × H) 440 × 178 × 44 mm
Mounting Options Rack, desktop, wall
Power Consumption Max 250W
Input Voltage 100–240V AC, 50/60Hz
Operating Temperature 0°C to 45°C
Storage Temperature -40°C to 70°C
Operating Humidity 10%–90% non-condensing
Certifications FCC, CE, RoHS
Warranty 1 Year Limited
Packaging Retail Box
Gross Weight: 4.2 kg (estimated)
Box Dimensions (L × W × H): 500 × 300 × 80 mm

Product Code: TL-SG2428P
Brand: TP-Link

🌟 Overview
The TP-Link TL-SG2428P JetStream Smart Switch delivers enterprise grade performance with 24 PoE+ ports and 4 Gigabit SFP slots. Designed for scalable deployments, it powers IP cameras, VoIP phones, and access points while offering centralized cloud management via Omada. With advanced Layer 2+ features, QoS, VLAN support, and robust security protocols, it’s ideal for high density networks demanding speed, flexibility, and control.

📦 Key Specifications
Attribute Details
Total Ports 28 (24 × RJ45 PoE+ + 4 × Gigabit SFP)
PoE Standard IEEE 802.3af/at
Max PoE Power Budget 250W
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.7 Mpps
MAC Address Table 8K
Jumbo Frame Support 9KB
VLAN Support Up to 4K VLANs
QoS Features 802.1p CoS/DSCP, 8 priority queues, SP/WRR scheduling
Security Features DHCP Snooping, IP-MAC-Port Binding, ARP Inspection, Radius
Management Options Omada Cloud, OC200/OC300 Controllers, Web, TFTP
Diagnostic Tools VCT, SYSLOG, Remote Ping/Traceroute
Dimensions (W × D × H) 440 × 220 × 44 mm (17.3 × 8.7 × 1.73 in)
Mounting Rack mountable
Power Consumption Max 308.6W (with full PoE load)
Warranty 1 Year Limited
Packaging Retail Box

Product Code: TEW-825DAP
Brand: TrendNet

🌟 Overview
The TrendNet TEW-825DAP is a high-performance AC1750 Dual Band PoE+ Access Point designed for scalable business and enterprise deployments. Broadcasting concurrent 1300 Mbps WiFi AC and 450 Mbps WiFi N bands, it supports multiple modes including AP, Client, WDS, and Repeater. Band steering intelligently shifts devices to the 5 GHz band to reduce congestion, while PoE+ and a low-profile mountable design simplify installation.

📦 Key Specifications
Attribute Details
Wireless Standard IEEE 802.11ac/n/g/b/a
Max Wireless Speeds 1300 Mbps (5 GHz) + 450 Mbps (2.4 GHz)
Operating Modes AP, Client, WDS AP, WDS Bridge, WDS Station, Repeater
LAN Port 1 × Gigabit PoE+ (802.3at)
SSID Support Up to 8 per band (16 total)
Band Steering Yes (2.4 GHz → 5 GHz)
Wireless Security WPA/WPA2, WPA2-Enterprise
Traffic Management Wi-Fi Traffic Shaping
IPv6 Support Yes
Mounting Options Ceiling / Wall mount plate included
Housing Off-white, low-profile
Power Options PoE+ or included AC adapter
Dimensions (L × W × H) ~160 × 160 × 40 mm (estimated)
Net Weight 0.35 kg (estimated)
Gross Weight 0.55 kg (estimated)
Warranty 1 Year Limited
Packaging Retail Box

Product Code: 561198 Brand: Intellinet

⚙️ Overview
The Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch is built for high performance enterprise networking. With 16 PoE+ ports delivering up to 30W each and a total power budget of 374W, it powers access points, IP cameras, and VoIP phones over standard Cat5e/Cat6 cables. Two SFP uplink ports, advanced SNMP management, VLAN support, and PoE monitoring features make it ideal for scalable deployments. Housed in a 19" rackmount chassis with dual cooling fans, it’s engineered for reliability and control.

📦 Key Specifications
Attribute Details
Ports 16 × Gigabit RJ45 (PoE+), 2 × SFP
PoE Standard IEEE 802.3at/af (PoE/PoE+)
PoE Budget 374W total, up to 30W per port
Switching Capacity 36 Gbps
MAC Address Table 8K entries
Jumbo Frame Support Up to 9 kBytes
Buffer Memory 512 kBytes
Management Web, Telnet, SSH, SNMP v1/v2c/v3, RMON
VLAN Support Tag-based & port-based
QoS Port-based & DSCP
Security IEEE 802.1x port-based
Protocols IPv4/v6, STP/RSTP, Link Aggregation
Monitoring Features PoE scheduling, device restart, PDM
Energy Efficiency IEEE 802.3az compliant
Cooling Dual high-volume fans
Mounting 19" Rackmount
Warranty 1 Year Limited

🛠️ Ideal For
Enterprise networks and IP surveillance setups
VoIP deployments and wireless access point clusters
Managed PoE environments with remote monitoring
