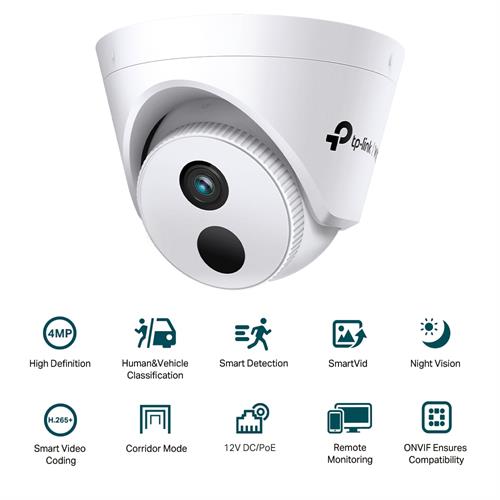

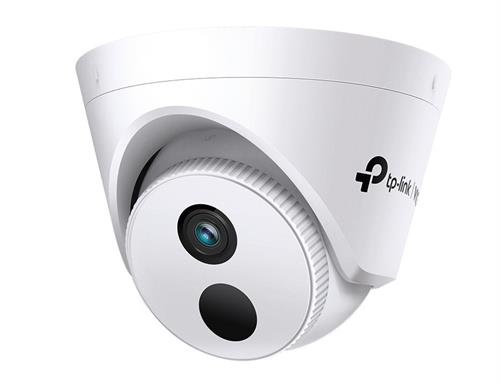

TP-Link VIGI C440I 4 MP IR Turret Camera – Corridor Mode, Smart Detect, IP67, PoE
Product Code: VIGI-C440I(2.8MM)
Brand: TP-Link
🌟 Overview
The TP-Link VIGI C440I (2.8mm) is a high-performance IR turret camera designed for outdoor surveillance with 4MP ultra clear resolution and advanced smart detection. Equipped with human/vehicle classification, corridor mode, and a 30m IR range, it delivers precise monitoring in both wide and narrow spaces. H.265+ compression ensures efficient storage and bandwidth usage, while IP67 rated housing and PoE support make installation seamless and reliable.
📦 Key Specifications
Attribute Details
Max Resolution 4MP (2560 × 1440)
Image Sensor 1/3” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle (2.8mm) H: 88.8°, V: 48.9°, D: 106.5°
Night Vision IR LED (850nm), range up to 30m
Smart Detection Human/vehicle classification, motion, intrusion, tampering, object removal
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps (60Hz), 25 fps (50Hz)
Supported Resolutions 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
DORI Distance (2.8mm) Detect: 60m, observe: 25m, recognize: 12m, Identify: 6m
Video Enhancement Smart IR, DWDR, 3D DNR
Privacy Mask Up to 4 zones
Illuminator Control Auto / Scheduled / Always On / Always Off
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67 (assumed based on outdoor spec)
Pan/Tilt/Rotate Range Pan: 0–360°, Tilt: 0–85°, Rotate: 0–360°
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.19 kg
Gross Weight 0.34 kg
Warranty 1 Year Limited
