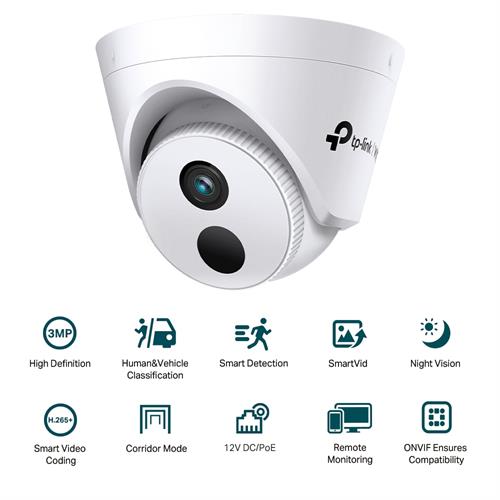

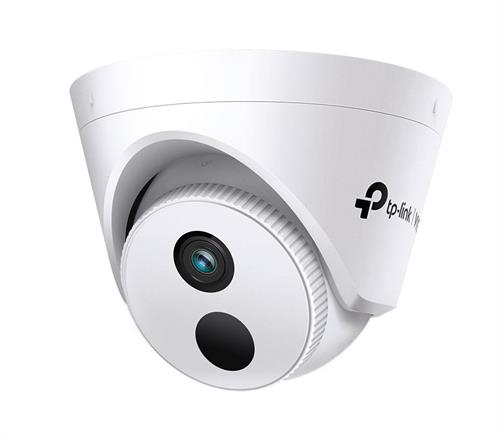

TP-Link VIGI C430I 3 MP IR Turret Camera – Smart Detect, DWDR, IP67, PoE, 30 m IR
Product Code: VIGI-C430I(2.8MM)
Brand: TP-Link
🌟 Overview
The TP-Link VIGI C430I (2.8mm) is a compact turret-style IP camera engineered for wide-area surveillance with sharp 3MP resolution and 30m infrared night vision. Smart features like human/vehicle detection and corridor mode enhance situational awareness, while DWDR and 3D DNR ensure image clarity in challenging lighting. With PoE support, IP67 weatherproofing, and IK-rated durability, it’s ideal for both indoor and outdoor deployments.
📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 2.8 mm, F2.2 aperture, M12 mount
Viewing Angle H: 97.8°, V: 52.9°, D: 117.9°
Night Vision IR LED (850nm), range up to 30m
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Human/vehicle detection, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Bitrate Main: 256 Kbps 4 Mbps
Frame Rate Up to 30 fps
Video Enhancement DWDR, 3D DNR, Privacy Mask (up to 4 zones)
DORI Distance (2.8mm) Detect: 49m, observe: 20m, recognize: 10m, Identify: 5m
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP67
Pan/Tilt/Rotate Range Pan: 0–360°, Tilt: 0–85°, Rotate: 0–360°
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.19 kg
Gross Weight 0.34 kg
Warranty 1 Year Limited
