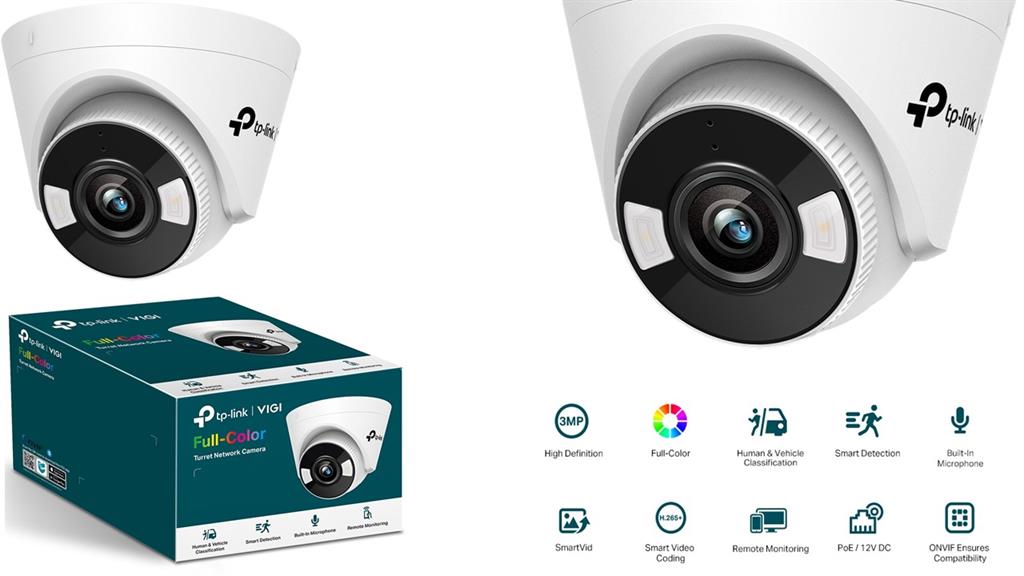

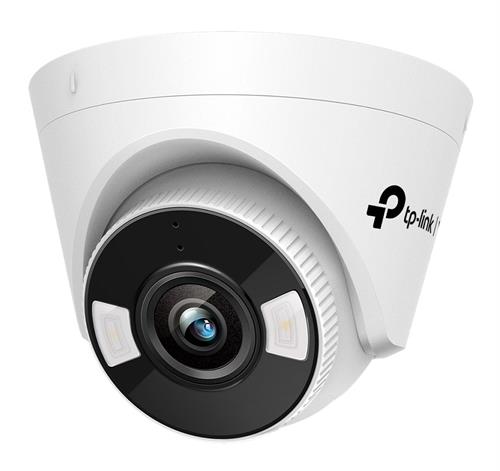

TP-Link VIGI C430 3 MP Full-Color Turret – Smart Detect, DWDR, IP67, PoE, 30 m Night

Product Code: VIGI-C430(2.8MM)
Brand: TP-Link

🌟 Overview
The TP-Link VIGI C430 (2.8mm) is a full color turret camera designed for high clarity surveillance in low light environments. With 3MP resolution, a large aperture lens, and supplemental white light LEDs, it delivers vivid color detail even in total darkness. Smart features like human/vehicle detection and built-in microphone for two-way audio enhance situational awareness. DWDR and 3D DNR ensure image clarity, while PoE and IP rated housing make installation flexible and reliable.

📦 Key Specifications
Attribute Details
Max Resolution 3MP (2304 × 1296)
Image Sensor 1/2.8” Progressive Scan CMOS
Lens Fixed 2.8 mm, F1.6 aperture, M12 mount
Viewing Angle H: 107.5°, V: 57.2°, D: 128.7°
Night Vision Full color with white light + IR (30m range)
Minimum Illumination 0.005 Lux (Color), 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter, Auto/Scheduled/Unified
Smart Detection Human/vehicle detection, motion, intrusion, tampering
Compression Format H.265+/H.265/H.264+/H.264
Frame Rate Up to 30 fps
Supported Resolutions 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
DORI Distance (2.8mm) Detect: 52m, observe: 22m, recognize: 10m, Identify: 5m
Video Enhancement DWDR, 3D DNR
Audio Built-in microphone (two-way audio capable)
Power Supply 12V DC ±5% (Max 5W) or PoE (802.3af/at, Class 0)
Operating Temp -30°C to +60°C
Storage Temp -40°C to +60°C
Weatherproof Rating IP-rated (not explicitly listed)
Pan/Tilt/Rotate Range Pan: 0–360°, Tilt: 0–85°, Rotate: 0–360°
Dimensions (L × W × H) 123 × 83 × 123 mm
Net Weight 0.21 kg
Gross Weight 0.36 kg
Warranty 1 Year Limited
