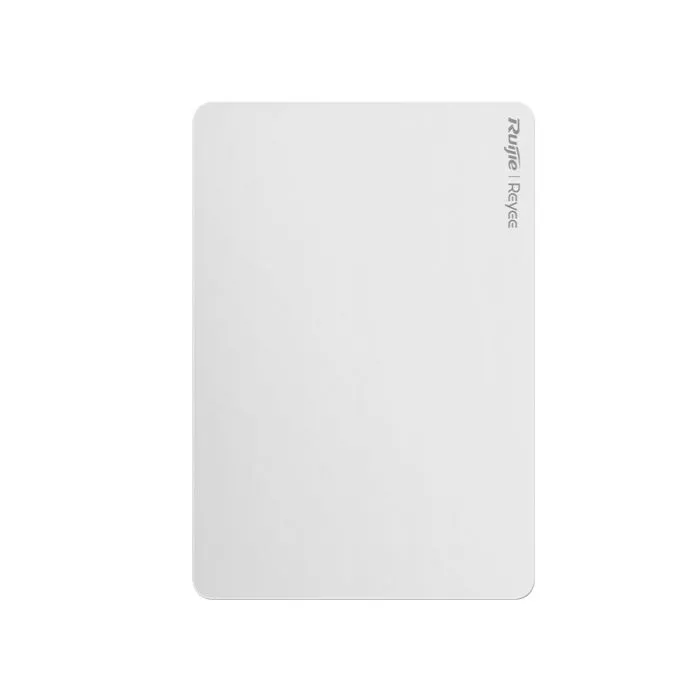

Reyee RG-RAP1260 AX3000 5-Port In-Wall AP 1G PoE+ Mesh

Reyee's RG-RAP1206X is a WiFi 6 (802.3ax) Dual Band, In-Wall Access Point featuring 5x Gigabit Ethernet Ports with PoE-Input and smart AI roaming. The unit supports up to 2976Mbps with 574Mbps on 2.4GHz and 2402Mbps on 5.8GHz and includes a mounting plate for quick and easy installation. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 3dBi; 5.8GHz: 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Wall-Mount (Mounting Bracket Included)
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V
USB Ports: None
Dimensions: 124 × 86 × 24 mm
Weight: 500g
