Ubiquiti's USW-LITE8P is a fully managed, Layer 2, UniFi switch with 8x Gigabit Ethernet ports, 4x auto-sensing 802.3at PoE+ ports and a PoE budget of 52W. The device offers an extensive suite of advanced layer 2 switching protocols and features. A wall-mountable kit is included with the switch. The device is fan less, meaning that it will be silent no matter where it is used.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop or Wall-Mount
Operating System: UniFi
Operating Temperature: -15 to 40° C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 4
Power Input: 54V 1A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 50-57V
Dimensions: 99.6 x 163.7 x 31.7 mm
Weight: 450g

Ubiquiti's USW-LITE16P is a fully managed layer 2 switch with 16x Gigabit Ethernet ports, 8x 802.3af/at PoE+ ports and a PoE budget of 45W. The device offers an extensive suite of advanced layer 2 switching protocols and features. A wall-mountable kit is included with the switch. The device is fanless, meaning that it will be silent no matter where it is used.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 16x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 15W
Mounting: Desktop or Wall-Mount
Operating System: UniFi
Operating Temperature: -15 to 40° C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 8
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100 to 240VAC
Dimensions: 99.6 x 163.7 x 31.7mm
Weight: 450g

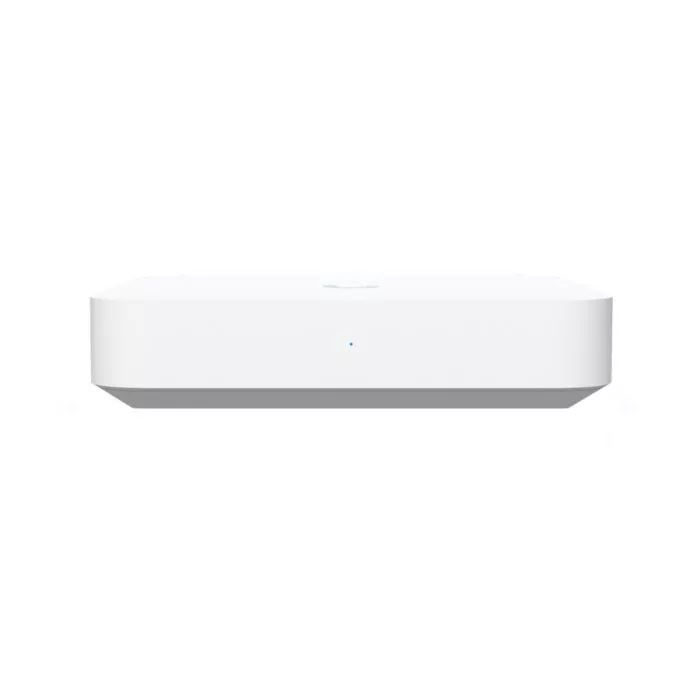

Ubiquiti's UXG-MAX is a compact, Multi-WAN, independent gateway featuring a 1.5GHz quad-core processor, 1x 2.5Gbps WAN and 4x 2.5Gbps LAN ports, with one of the LAN ports remappable to WAN. It also features intrusion detection and prevention systems (IDS/IPS), advanced networking features, and is powered by the included USB-C adapter. It can be configured and managed with a Cloud key, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 and later.

Specifications

Ethernet Ports: 1x 10/100/1000/2500 (WAN): 3x 10/100/1000/2500 (LAN); 1x 10/100/1000/2500 (LAN/WAN)
Hardware Button: Reset
Max. Power Consumption: 9.6W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 5V 3A USB-C Power Supply (Included)
Processor: Quad-core 1.5GHz
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V 3A
System Memory: 2 GB DDR4
USB Ports: None
Dimensions: 141.8 x 127.6 x 30 mm
Weight: 520g

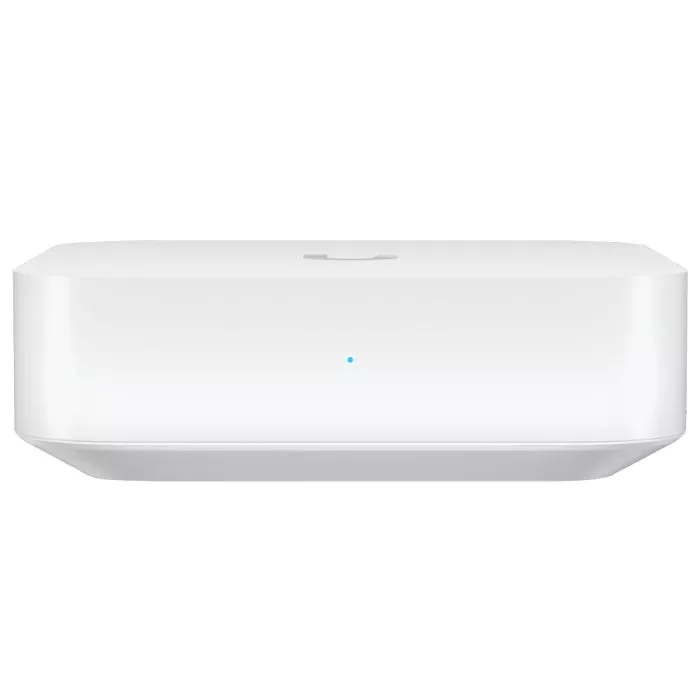

Ubiquiti's UXG-LITE features a compact design, a 1GHz dual-core processor, 1x Gigabit Ethernet WAN and 1x Gigabit Ethernet LAN port. It also features next-generation security with intrusion detection and prevention systems (IDS/IPS), advanced networking features, and is powered by the included USB-C adapter.

It can be configured and managed with a Cloud key, Official UniFi hosting, or UniFi Network Server with UniFi Network 8.0.7 and later.

Specifications

Ethernet Ports: 1x 10/100/1000 (WAN): 1x 10/100/1000 (LAN)
Hardware Button: Reset
Max. Power Consumption: 3.83W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 5V USB-C Power Supply (Included)
Processor: Dual core 1GHz
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V
System Memory: 1 GB DDR3L
USB Ports: None
Dimensions: 98 x 98 x 30 mm
Weight: 320g

Ubiquiti's UVC-G5F features a 4MP image with a wide-angle (102.4°) lens in a weatherproof IPX4-rated enclosure. It features various mounting options for both indoor and outdoor installation and has infrared LEDs with an automatic IR cut filter.

It can be configured and managed using the UniFi Protect Application.

*Note: PoE Injector not included.

Specifications

Ethernet Ports: 1x 10/100
Hardware Button: Reset
Lens: Fixed focal length
Max Frame Rate: 30 FPS
Microphone: Yes
Max. Power Consumption: 4W
Mounting: Desktop, wall, pole or hard-ceiling
Night Mode: IR LEDs with Mechanical IR Filter
Operating Temperature: -20°C to 40°C
PoE Input: 802.3af PoE
Power Input: 802.3af PoE (Not Included)
Resolution: 2688 x 1512
Sensor: 5MP CMOS sensor
Video Compression: H.264 ; MJPEG
Dimensions: Ø48 x 107.5 mm
Weight: 170g

Ubiquiti's USW-MAX16P is a 16 port, fully managed, Layer 3 Etherlighting™ switch. The switch includes a rack-mount kit for 10-inch racks and wall mounting. The UACC-MAX16P-RM accessory makes provision for 19 inch rack-mount deployments. The unit features a 180W PoE budget with 12x Gigabit PoE+ (802.3af/at) Ports, 4x 2.5Gbps PoE++ (802.3af/at/bt) ports and 2x SFP+ Uplink Ports. It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 12x 10/100/1000; 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop & 10-Inch Wall-Mount, or 19-Inch Rack Mount with UACC-MAX16P-RM (Not Included)
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 2.5Gbps: 4x 802.3af/at/bt ; Gigabit: 12x 802.3af/at
Power Input: 1x 54V, 3.9A, 210W DC adapter (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 54V
Dimensions: 325.1 x 160 x 43.7 mm
Weight: 2.1kg

Ubiquiti's USW-MAX16 is a 16 port, fully managed, Layer 3, Etherlighting™ switch. The unit features 12x Gigabit Ports, 4x 2.5Gbps ports and 2x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps Ethernet as well as 10Gbps fibre uplinks to your network.

Note: It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 12x 10/100/1000; 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Desktop & 10-Inch Wall-Mount, or 19-Inch Rack Mount with UACC-MAX16P-RM (Not Included)
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 325.1 x 160 x 43.7 mm
Weight: 1.95kg

Ubiquiti's USW-5FLEX is a managed, Layer 2, UniFi switch with 5x Gigabit Ethernet Ports. It includes 4x 802.3af PoE+ Ports and 1x 802.3af/at/bt PoE input. It is designed for indoor or outdoor use with its weatherproof housing and versatile mounting options. The USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.
We recommend using the UPOE-48G60W or a Ubiquiti UniFi Switch to power these devices. When making use of the UPOE-48G60W, be sure to set the power source on the UniFi Network Application to injector.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop, Wall and Pole-Mount
Operating System: UniFi
Operating Temperature: -40°C to 55°C
PoE Input: 802.3af/at/bt
PoE Output: 802.3af on Ports 2~5
Power Input: 802.3af/at/bt on Port 1
Serial Interface: 1x RJ45 Ethernet In-Band
SFP Ports: None
Supported Voltage Range: 44–57V (802.3af) 50-57V (802.3bt)
Dimensions: 122.5 x 107.1 x 28.0mm
Weight: 230g

Ubiquiti's USW-5FLEXMINI is an indoor, fully managed, 5 port, Gigabit UniFi switch with 1x 802.3af PoE+ input on port 1.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: None
Max. Power Consumption: 2.5W
Mounting: Desktop
Operating System: UniFi
Operating temperature: -5°C to 45°C
PoE Input: 802.3af/at on Port 1
PoE Output: None
Power Input: 5V 1A USB-C Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 4.7V-5.3V DC or 802.3af/at PoE
Dimensions: 107.16 x 70.15 x 21.17mm
Weight: 150g

Ubiquiti's USW-5FLEX-2.5G is an indoor, compact, 5 Port 2.5Gbps switch that can be powered via PoE on Port 5 or via the included USB-C adapter. It can be configured and managed with the UniFi Network Application.

Specifications

SKU USW-5FLEX-2.5G
Manufacturer Ubiquiti
Manufacturer Product Code USW-Flex-2.5G-5-EU
Ethernet Ports: 5x 10/100/1000/2500
Hardware Button: None
Max. Power Consumption: AC/DC: 5W ; PoE: 6.4W
Mounting: Desktop
Operating System: UniFi
Operating temperature: 20 to 45°C
PoE Input: 802.3af/at on Port 5
PoE Output: None
Power Input: 5V USB-C Adapter (Included) or PoE on Port 5
Serial Interface: None
SFP Ports: None
Supported Voltage Range: AC/DC: 5V ; PoE: 44-57V
Dimensions: 117.1 x 90 x 21.2 mm
Weight: 206g

Ubiquiti's USW-E8P is an 8 port, fully managed Layer 3 switch with 8x 2.5GbE, 802.3at PoE+ ports, 2x 10Gbps SFP+ ports and a PoE budget of 120W. The switch includes a wall mount kit and features a 1.3" LCM colour touchscreen to display key system and connection information.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 8x 100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop or Wall Mount (Kit Included)
Operating System: UniFi
Operating Temperature: -5°C to 45°C
PoE Input: None
PoE Output: 8x 802.3af/at
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 200 x 248 x 44 mm
Weight: 2.4Kg

Product Overview

The Ubiquiti UISP airCube ISP (ACB-ISP) is a compact and efficient 2.4 GHz WiFi 4 Router and Access Point designed for Internet Service Providers and network deployments. It seamlessly integrates with the UISP network management platform for easy control and monitoring. The device features 24V Passive PoE pass-through, making it ideal for powering airMAX® CPEs without additional wiring complexity.
Key Features

Dual Functionality: Acts as both a WiFi router and access point on the 2.4 GHz band.

WiFi 4 Standard: Delivers reliable 300 Mbps data rates, perfect for ISP customer premises.

24V Passive PoE Pass-Through: Powers compatible airMAX® devices directly for simplified deployments.

Four Ethernet Ports: Four 10/100 Mbps LAN ports for wired connections.

Compact & Lightweight: Desktop mountable with a small footprint (87.8 x 89.5 x 89.25 mm; 215g).

360° Antenna Coverage: Built-in 4 dBi omnidirectional antenna with wide beam-width.

Robust Operating Conditions: Works reliably from -10°C to 50°C.

Easy Reset: Dedicated hardware reset button for quick troubleshooting.

Power Options: Supports 24V Passive PoE input or 5V Micro USB power (power supply and injector not included).

Managed by UISP Platform: Seamless integration for centralized network management and monitoring.

Technical Specifications
Specification Details
Frequency 2.4 GHz (WiFi 4)
Data Rate Up to 300 Mbps
Antenna Gain 4 dBi Omnidirectional
Beam-width 360°
Ethernet Ports 4 × 10/100 Mbps
Power Consumption Max 5 Watts
PoE Input 24V Passive PoE
PoE Pass-Through Output 24V Passive PoE
Power Input Options 24V Passive PoE or Micro USB (2A)
Operating Temp. Range -10°C to 50°C
Dimensions (mm) 87.80 x 89.50 x 89.25
Weight 215g
Package Contents

1 × Ubiquiti UISP airCube ISP WiFi Access Point (ACB-ISP)

1 × Quick Start Guide

Note: PoE injector and power supply are not included. Recommended PoE injector: POE-24G-24W.
Why Buy from QuickStore.co.za?

✔ Genuine Ubiquiti products with official warranty
✔ Fast nationwide delivery
✔ Expert technical support available

Ubiquiti's ACB-AC is a dual band, WiFi 5 Router/Access Point. It features 24V PoE pass-through to easily integrate with airMAX® CPEs. It is designed to work with the UISP network management platform.
Antenna Gain: 2.4GHz 4dBi ; 5.8GHz 5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300 Mbps ; 5.8GHz 866.7Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8.5W
Mounting: Desktop
Operating System: airOS
Operating Temperature: -10°C to 50°C
PoE Input: 24V Passive PoE on Port 1
PoE Output: 24V Passive PoE Pass-Through on Port 4
Power Input: 24V; 0.83A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 22-26V
USB Ports: None

Ubiquiti's UISP-SPLUS features Layer 2 switching capabilities, 4x 2.5Gbps 27V Passive PoE ports, 4x SFP+, and a PoE budget of 160W when powered with the included Power Supply.

The UISP Switch can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Desktop, Wall-Mount or Rack Mount
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~4
Power Input: 27V 7.04A Power Supply (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 27V
Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

Ubiquiti's UISP-S features Layer 2 switching capabilities, 8x Gigabit 27V Passive PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. The UISP Switch can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 27V
Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

Ubiquiti's UISP-SPRO features Layer 2 switching capabilities, 24x Gigabit Ethernet Ports of which 16 are 27V Passive PoE ports, 4x SFP+, and a PoE budget of 220W. The UISP Switch Pro can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~16
Power Input: 1x IEC Power Cable (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
Dimensions: 442.4 x 267.5 x 43.7 mm
Weight: 4kg

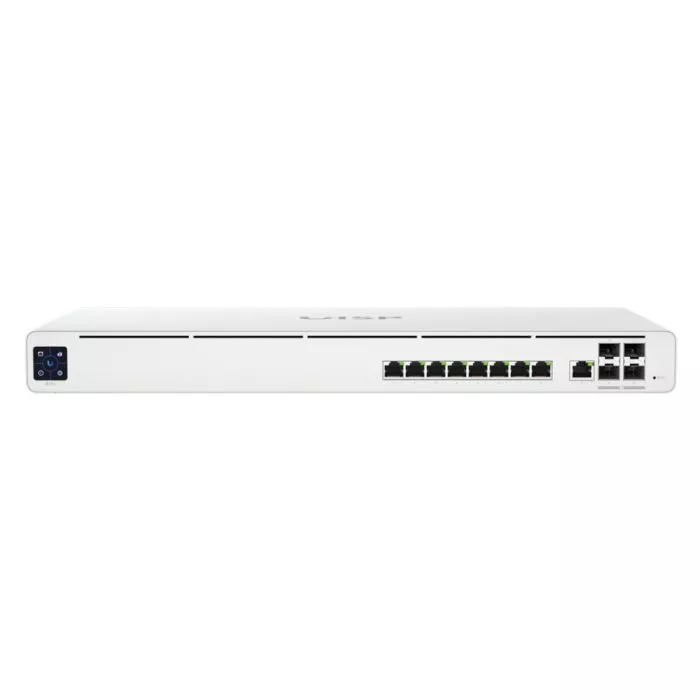

Ubiquiti's UISP-RPRO is a professional router featuring 9x Gigabit Ethernet ports, and 4x 10Gbps SFP+ ports. Its quad-core 1.7GHz processor is ideal for ISP applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cable (Included)
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 4 GB DDR4
USB Ports: None
Dimensions: 442.4 x 200 x 43.7 mm
Weight: 3.3kg

Ubiquiti's UISP-R is a router featuring 8x Gigabit PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. Its dual core, 880Mhz processor is ideal for Micro Pop applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Processor Dual-core 880 MHz, MIPS1004Kc
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 24-28V
System Memory: 512 MB DDR3
USB Ports: None
Dimensions: 210.4 x 95 x 29 mm
Weight: 600g

Ubiquiti's UF-WIFI is a robust, high-performance GPON CPE. It features an LED display, 4x Gigabit Ethernet ports, 1x SC APC port and 2.4GHz WiFi connectivity. It provides powerful Layer 2/3 management features. The unit can be powered using 24V Passive PoE on Port 1, or by a 24V power supply.

It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 1dBi
Beam-width: 360°
Data Rate: 300Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-28V
USB Ports: None
Other: 1x 2.5/1.25Gbps SC APC GPON
Dimensions: 126.34 x 126.09 x 31.65mm
Weight: 190g

Ubiquiti's UF-LOCO is a robust, high-performance GPON CPE that features extremely low power consumption and a choice of 24V passive PoE or Micro-USB power methods. It supports GPON links of up to 20km. The UF-LOCO integrates with the UF-OLT4 and UF-OLT and provides powerful Layer 2/3 management features.

It can be managed via the UISP network management platform.

For third-party compatibility, Ubiquiti has provided the following guide: OLT Compatibility Guide.(https://help.ui.com/hc/en-us/articles/115009335068-UISP-Fiber-Supported-Third-Party-OLTs)

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 3.5W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 5V 1A Micro USB Power Supply (Included)
Processor: MIPS32; 240 MHz
Serial Interface: None
SFP Ports: 1x 2.5/1.25Gbps SC APC GPON
Supported Voltage Range: 24V Passive PoE or 4.7 – 5.3VDC
System Memory: 128 MB DDR3
USB Ports: None
Dimensions: 76.5 x 76.5 x 26.4mm
Weight: 77g
