The SOLARIX Pre-Built 8kW Power board with Deye Inverter is a ready-to-install solar power solution featuring the Deye 8kW Hybrid Inverter. It combines advanced energy management, high efficiency (up to 97.6%), and dual MPPT technology for optimized solar energy utilization. The system is equipped with an LCD touchscreen for easy monitoring and supports both on-grid and off-grid modes, ensuring seamless energy transitions. It is compatible with lithium-ion and lead-acid batteries, offers reliable protection features such as IP65 rating and anti-islanding, and includes WiFi-enabled remote monitoring capabilities


Product Overview

The SOLARIX Pre-Built 8kW Power board with Deye Inverter is a comprehensive solar energy solution designed for residential and commercial use. It features the highly efficient Deye 8kW Hybrid Inverter, which supports both grid-tied and off-grid applications. The system integrates seamlessly with solar panels and batteries, offering advanced energy management, including peak shaving and smart load functions. Equipped with an LCD touchscreen and WiFi connectivity, it allows for real-time monitoring and control via a mobile app. Its robust design ensures reliable operation, with quick switching times and compatibility with various battery types. This pre-assembled unit simplifies installation, making it an ideal choice for those seeking a high-performance solar power system

Specifications

Product Code: SOLPBDEYE8KW
Product Overview: SOLARIX Pre-Built 8kW Power board with Deye Inverter
Inverter Model: Deye 8kW Hybrid Inverter
Rated Power: 8kW
Efficiency: Up to 97.6%
Battery Compatibility: Supports both lithium-ion and lead-acid batteries
MPPT Inputs: Dual MPPT for optimized solar energy harvesting
Monitoring: LCD touchscreen with WiFi-enabled remote monitoring via app
Operating Modes: On-grid and off-grid functionality
Protection Features: IP65-rated enclosure for outdoor use, anti-islanding protection
Additional Features: Peak shaving, smart load management, and seamless energy transition

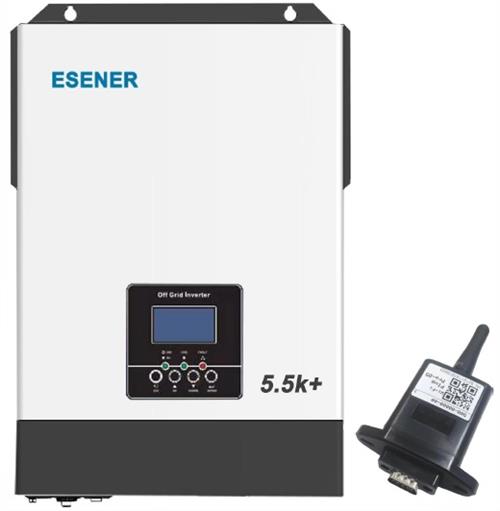

Solarix Esenser Pre-Built 5.5KVA Power Board Solution – 100A MPPT Solar Charge Controller, 5500w Rated Power, Maximum Charge Current 100A, Off Grid 145VDC, AC/DC Ready DB Board with 40A AC UPS Changeover and is DC Solar Ready, A/C Input Circuit Breaker for AC Protection, DB Board is Pre Wired to Inverter (AC and DC Sides), Plug Socket with 2 Pin and USB Ports, Wall Bracket Included, Brown Installer Box, Retail Box, 1 Year Limited Warranty


Product Overview

The Solarix Esener Pre-Built 5.5KVA Power Board Solution is an efficient off-grid power system featuring a 100A MPPT solar charge controller and a rated output of 5500W. It includes a pre-wired AC/DC ready distribution board with a 40A AC UPS changeover for reliable power management. The solution offers plug sockets with USB ports and comes with a wall bracket for easy installation. With a one-year limited warranty, it’s perfect for those looking to harness solar energy effectively.

Specifications

• Product Code : SOLPBPLUSES55KVA
• Product Overview : Solarix Esenser Pre-Built 5.5KVA Power Board Solution
• Model : Solarix Esener 5.5KVA 48VDC 100A Parallel Inverter
• Rated Power : 5.5KVA / 5500W
• Input Voltage : 48V DC
• Output Waveform : Pure Sine Wave
• Charge Controller : 100A MPPT (Maximum Power Point Tracking)
• Maximum Charge Current : 100A
• System Type : Off-Grid Solar Ready
• Parallel Capability : Supports up to 12 units (Single or Three Phase)
• Pre-Wired DB Board : AC/DC Ready with 40A AC UPS Changeover
• Protection Features : A/C Input Circuit Breaker, DC Disconnect Fuse
• Battery Compatibility : Supports Gel AGM, Lead Acid, or 48V Lithium Battery Packs
• Connectivity Options : Plug Socket with 2-Pin and USB Ports
• Installation Design : Wall-Mounted Semi Plug-and-Play Power Board Solution
• Efficiency Features : Saves ~8 hours of installation time with factory pre-wiring
• Monitoring & Communication : Wi-Fi/GPRS (optional), RS485 for Battery Management System (BMS)
• Accessories Included : Wall Bracket, Installer Box
• Warranty : 1-Year Limited Warranty

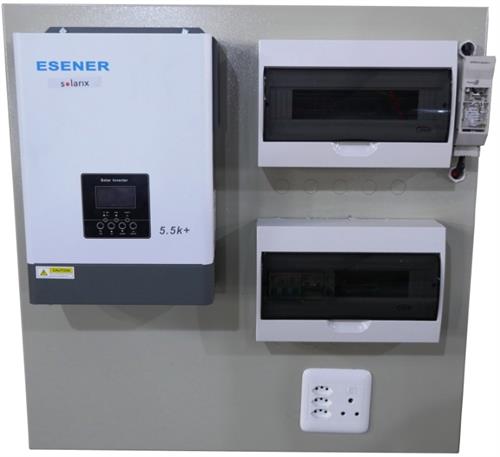

Solarix Esener 5.5KVA 48VDC 100A High Voltage Parallel Inverter And Semi Plug And Play Power Board Solution – 100A MPPT Solar Charge Controller, 5500w Rated Power, Maximum Charge Current 100A, Off Grid 145VDC, AC/DC Ready DB Board with 40A AC UPS Changeover and is DC Solar Ready, A/C Input Circuit Breaker for AC Protection, DB Board is Pre Wired to Inverter (AC and DC Sides), Plug Socket with 2 Pin and USB Ports, Wall Bracket Included, Brown Installer Box, Retail Box, 1 Year Limited Warranty

Product Overview
The Solarix Esener 5.5KVA 48VDC 100A High Voltage Parallel Off-Grid Solar Inverter and Semi Plug and Play Power Board Solution combination has been ben developed with a Team of System Engineers, and Electricians as a Semi Plug and Play Power Solution for Homes or Businesses Like No Other in the Market Today. This Inverter System and Semi Plug and Play Power Board Solution is pre-wired to the DB Board and tested at the factory, thus taking the complexity of installing an inverter system the normal way. Only 4 wires have to be connected to the on-premises DB Board that saves the Installer about 8 hours of installation / configuration time and provides a better than PERFECT finish. Any type of Battery System can be utilized i.e. 4 x Gel AGM / Acid or 48V Lithium battery pack. Unit is 100% Solar Ready (Pre-Wired)

Please Note: Batteries, Solar PV Panels and Accessories Are Not included and need to be purchased separately.

Highlights

•5.5KVA / 48V Esener Pure Sine Wave Inverter
•Off-Grid Solar Inverter
•Wall Mount Semi Plug and Play Power Board Solution
•Save About 8 Hours of Installation / Configuration Time
•100A MPPT Solar Charge Controller
•5500w Rated Power
•Maximum Charge Current 100A
•AC/DC Ready DB Board with 40A AC UPS Changeover
•A/C Input Circuit Breaker for AC Protection
•DB Board is Pre Wired to Inverter (AC and DC Sides)
•Plug Socket with 2 Pin and USB Ports
•DC Disconnect Fuse for DC Protection
•Unit is 100% Solar Ready (Pre-Wired)
•Supports Any Type of Battery i.e. 4 x Gel AGM / Acid or 48v Lithium battery pack
•Wall Bracket Included

Specifications

• Stock Code SOLPBMES55KVA
• Description Solarix Esener 5.5KVA 48VDC 100A Parallel Inverter and Power Board Solution
• Inverter Type- Off-Grid Solar Inverter
• Wall Mounted Semi Plug and Play Power Board Solution
• A/C Input Circuit Breaker for AC Protection
• 40A AC Change Over Switch
• DB Board is Pre Wired to Inverter (AC and DC Sides)
• Plug Socket with 2 Pin and USB Ports
• DC Disconnect Fuse for DC Protection
What’s in the box
•1 x Solarix Esener 5.5kVA 48VDC Inverter and Semi Plug and Play Power Board Solution

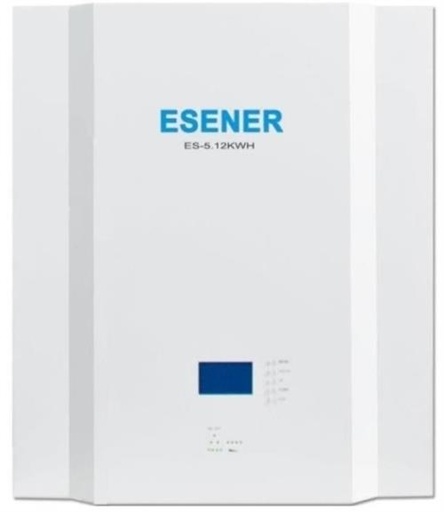

Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalized Charge Voltage: 58.4V, Discharge Cut-off Voltage: 40.0V, Easy Wall Mount Or Shelf Rack Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box , 1 year Limited Warranty

Product Overview

The Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module is a Wall Mount Or Shelf Rack Installation complete with integrated Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 7KVA. Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication. This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 72kWh. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)

Highlights

•Esener 51.2V 100Ah LiFePo4 Single Battery Module
•Wall Mount Or Shelf Rack Installation with Brackets Included
•Complete with integrated Battery Management System (BMS)
•Advanced BMS With Current Limiting Factor
•Parallel Connection Up To 15 Packs with Full Communication To A Total Of 72kwh
•Normal Voltage: 51.2V
•Rated Capacity (5HR):110Ah
•Total Usable 4.8 kWh
•Maximum Continuous Charging Current: 100A
•Maximum Continuous Discharging Current: 100A
•Equalized Charge Voltage: 58.4V
•Low Self-Discharge
•High Energy Density and Conversion Efficiency
•Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
•LCD Control Panel
•Bulk Voltage 55.2V-56.8V
•Float Voltage 52.8V-54.4V
•Cut-off Voltage 44.0V-45.6V

Specifications

•Stock Code SOLES51LB100A
•Description Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module
•Complete with integrated Battery Management System
•Rated Capacity (5HR): 110Ah
•Voltage: 51.2V
•Discharge Cut-off Voltage: 40.0V
•Equalised Charge Voltage: 58.4V
•Maximum Continuous Charging and Discharging Current: 100A
•Display: LCD
•Parallel: Parallel connection up to 15 packs with full communications
•Cells: New Li-Ion Prismatic Cells
•Design Life: -/+ 15 Years
•Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
•Ports: 1x CAN Bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction Ports
•Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
•Dimensions (WxDxH): 505mm x 162mm x 543mm
•Weight: Approx. 46kg

Solarix Must 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalised Charge Voltage: 57.6V, Discharge Cut-off Voltage: 44.0V, Easy Wall Mount Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box, 3 Year Limited Warranty

Product Overview

The Solarix Must 51.2V 100Ah LiFePo4 Single Battery Module is a Wall Mount Installation complete with integrated Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 7KVA. Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication. This is unit is designed for single use but can also be connected in Parallel with up to 4 battery packs. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)

Highlights

•Must 51.2V 100Ah LiFePo4 Single Battery Module
•Wall Mount Installation with Brackets Included
•Complete with integrated Battery Management System (BMS)
•Advanced BMS With Current Limiting Factor
•Parallel Connection Up To 4 Packs with Full Communication
•Communication CAN 2.0/RS232/RS485
•Nominal Voltage: 51.2V
•Nominal Capacity 100Ah
•Total Usable 4.8 kWh
•Maximum Continuous Charging Current: 100A
•Maximum Continuous Discharging Current: 100A
•Equalised Charge Voltage: 57.6V
•Low Self-Discharge
•High Energy Density and Conversion Efficiency
• Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
•LCD Control Panel with Battery Level Indicator
•Bulk Voltage 55.2V-56.8V
•Float Voltage 52.8V-54.4V
•Cut-off Voltage 44.0V-45.6V

Specifications

•Stock Code SOLMLP1648100
•Description Solarix Must 51.2V 100Ah LiFePo4 Single Battery Module
•Complete with integrated Battery Management System
•Rated Capacity 100Ah
•Voltage: 51.2V
•Discharge Cut-off Voltage: 40.0V
•Equalized Charge Voltage: 57.6V
•Maximum Continuous Charging and Discharging Current: 100A
•Display: LCD Panel and Battery Indicator
•Parallel: Parallel connection up to 4 packs with full communications
•Design Life: -/+ 15 Years
•Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, above 6000 cycles @ 80% DOD
•Ports: 1x CAN Bus, 1x RS-485 Battery Link ports,
•Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
•Dimensions (WxDxH): 400mm x 150 mm x 580mm
•Weight: Approx. 44kg

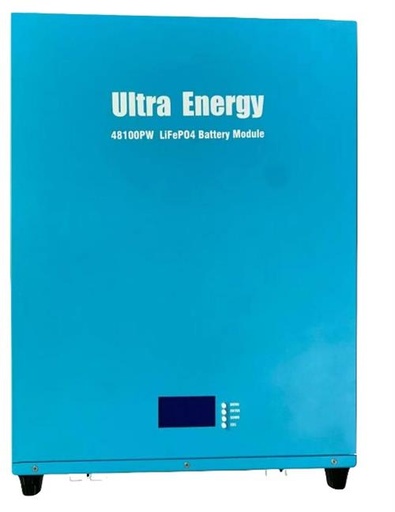

Solarix Ultra Energy Wall Mount 48V 100Ah LiFePo4 Single Battery Module – Nominal Voltage 48V, Rated Capacity: 100Ah, Total Usable Energy 4.8 kWh, Standard Continuous Charge Current 20A, Bulk Absorption: 56V, Float: 54V, Low Voltage Cut Off: 44V, Maximum Continuous Discharge For Single Unit: 50A, Wall Mount Design , CAN Bus Comms, Built-In Battery Management System (BMS), LCD Touchscreen, Design To Work Perfectly With Low Voltage Hybrid Invertors Up To 7KVA 48V, Colour Blue , Retail Box , 6 month Warranty

Product Overview
The Solarix Ultra Energy Wall Mount 48V 100Ah LiFePo4 Single Battery Module is designed and perfect for medium to large residential installation with a Lithium-ion battery solution with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Invertors Up To 7KVA 48V.

This Wall Mount Embedded Designed Module is designed for a single use renewable energy storage solution. When fully installed, it is a low-voltage DC battery system with an operating voltage of 51.2V and works with a low voltage inverter to realize the goal of energy storage for home or office applications and supports parallel connection to expand capacity, which can meet various capacity requirements.

It has a built-in battery management system (BMS), which can manage and monitor the pack and cell information – including voltage, current and temperature. What’s more, the BMS can balance cell charging and discharging to extend cycle life

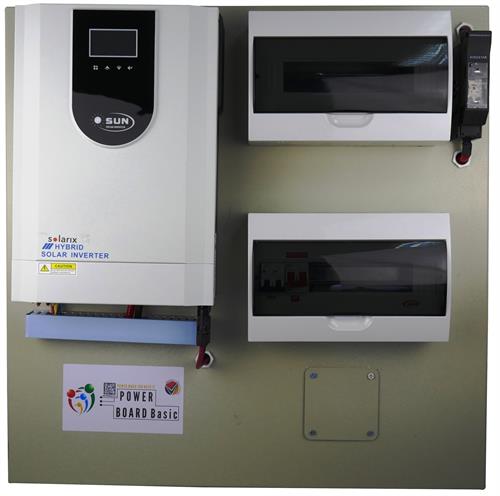

Solarix Sun 6.5KVA 48VDC 120A High Voltage Inverter And Semi Plug And Play Power Board Solution – High Voltage 120A MPPT Solar Charge Controller, 6200w Rated Output Power, Nominal PV DC Voltage 360VDC, Maximum PV DC Voltage 500VDC, Input Voltage 230VAC, Maximum Input Current 40A, Maximum Charge Current 100A, Maximum Battery Current 125A, AC/DC Ready DB Board with 40A AC UPS Changeover and is DC Solar Ready, A/C Input Circuit Breaker for AC Protection, DB Board is Pre Wired to Inverter (AC and DC Sides), Wall Bracket Included, Retail Box, 12 Months Warranty

Product Overview
The Solarix Sun 6.5KVA 48VDC 120A High Voltage Inverter and Semi Plug and Play Power Board Solution combination has been ben developed with a Team of System Engineers, and Electricians as a Semi Plug and Play Power Solution for Homes or Businesses Like No Other in the Market Today. This Inverter System and Semi Plug and Play Power Board Solution is pre-wired to the DB Board and tested at the factory, thus taking the complexity of installing an inverter system the normal way. Only 4 wires have to be connected to the on-premises DB Board that saves the Installer about 8 hours of installation / configuration time and provides a better than PERFECT finish. Any type of Battery System can be utilized i.e. 4 x Gel AGM / Acid or 48V Lithium battery pack. Unit is 100% Solar Ready (Pre-Wired)

Please Note: Batteries, Solar PV Panels and Accessories Are Not included and need to be purchased separately.

Highlights

•6.5KVA / 48V Solarix Sun Pure Sine Wave Inverter
•Wall Mount Semi Plug and Play Power Board Solution
•Save About 8 Hours of Installation / Configuration Time
•High Voltage 120A MPPT Solar Charge Controller
•6200w Rated Output Power
•Maximum Charge Current 100A
•AC/DC Ready DB Board with 40A AC UPS Changeover
•A/C Input Circuit Breaker for AC Protection
•DB Board is Pre Wired to Inverter (AC and DC Sides)
•DC Disconnect Fuse for DC Protection
•Unit is 100% Solar Ready (Pre-Wired)
•Supports Any Type of Battery i.e. 4 x Gel AGM / Acid or 48v Lithium battery pack
•Wall Bracket Included

Specifications

• Stock Code SOLPBMES55KVA
• Description Solarix Sun 6.5KVA 48VDC 100A Inverter and Power Board Solution
• Wall Mounted Semi Plug and Play Power Board Solution
• A/C Input Circuit Breaker for AC Protection
• 40A AC Change Over Switch
• DB Board is Pre Wired to Inverter (AC and DC Sides)
• DC Disconnect Fuse for DC Protection

What’s in the box
•1 x Solarix Sun 6.5kVA 48VDC Inverter and Semi Plug and Play Power Board Solution

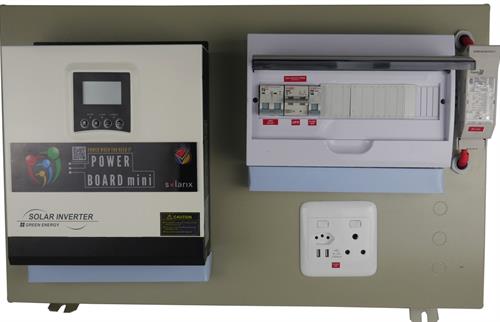

Solarix Esener 3KVA 24VDC Inverter And Semi Plug And Play Power Board Mini Solution - 60A MPPT Solar Charge Controller, 3000w Rated Power, Maximum Charge Current 80A, OffGrid 145VDC, AC/DC Ready DB Board with 40A AC UPS Changeover and is DC Solar Ready, A/C Input Circuit Breaker for AC Protection, DB Board is Pre Wired to Inverter (AC and DC Sides), 40A AC Change Over Switch, Plug Socket with 2 Pin and USB Ports, Wall Bracket Included, Brown Installer Box. , Retail Box , 1 Year Limited Warranty

Product Overview

The Solarix Esener 3KVA 24VDC Off-Grid Solar Inverter and Semi Plug and Play Power Board Mini Solution combination has been ben developed with a Team of System Engineers, and Electricians as a Semi Plug and Play Power Solution for Homes or Businesses Like No Other in the Market Today. This Inverter System and Semi Plug and Play Power Board Mini Solution is pre-wired to the DB Board and tested at the factory, thus taking the complexity of installing an inverter system the normal way. Only 4 wires have to be connected to the on-premises DB Board that saves the Installer about 8 hours of installation / configuration time and provides a better than PERFECT finish. Any type of Battery System can be utilized i.e. 2 x Gel AGM / Acid or Lithium battery pack (25V)

Please Note: Batteries, Solar PV Panels and Accessories Are Not included and need to be purchased separately.

Highlights

•3KW / 24V Esener Pure Sine Wave Inverter
• Off-Grid Solar Inverter
•Wall Mount Semi Plug And Play Power Board Mini Solution
•Save About 8 Hours Of Installation / Configuration Time
•60A MPPT Solar Charge Controller
•3000w Rated Power
•Maximum Charge Current 80A
•AC/DC Ready DB Board with 40A AC UPS Changeover
•A/C Input Circuit Breaker for AC Protection
•40A AC Change Over Switch
•DB Board is Pre Wired to Inverter (AC and DC Sides)
•Plug Socket with 2 Pin and USB Ports
•DC Disconnect Fuse for DC Protection
•Unit is 100% Solar Ready (Pre-Wired)
•Supports Any Type of Battery i.e. 2 x Gel AGM / Acid or Lithium battery pack (25V)
•Wall Bracket Included

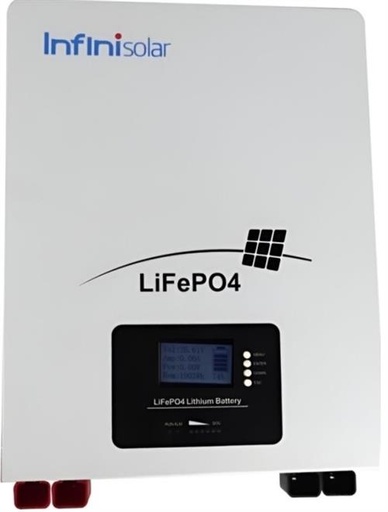

Solarix Infini solar 25.6V 100Ah Lifepo4 Single Battery Module- Total Usable Energy 2.56KWh , Normal Voltage: 25.6V, Rated Capacity (5HR): 100 Ah, Voltage Range 22.0V to 29.2V, LCD Display and Battery Level Indicator , Continuous Charging Current: 100A, Continuous Discharging Current: 100A, Low Self-Discharge, Wall Mount Unit, Parallel Up to 15 units, Work Perfectly Hybrid Inverters Up To 3.5KVA 24V, Colour White, Retail Box, 3 Year Limited Warranty

Product Overview

The Solarix Must (Infini solar Branded) 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Inverter system Up To 3.5KVA 24V and has a long lifespan of up to 10 years. Standard Wall Mount Design or easy installation and maintenance.
Features
• Must (Infinisolar Branded) 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
• Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
• Long Lifespan Up To 10 Years
• Cycle Life Up to 6000 cycles @ 80% DOD
• Normal Voltage 25.6V
• Rated Capacity: 100Ah
• Total Usable Energy 2.56KWh
• Voltage Range 22.0V to 29.2V
• Charge Current 100A
• Discharge Current 100A
• LCD Display and Battery Level Indicator
• Communication CAN Bus 2.0, RS232 and RS485
• Parallel Up to 15 units
• Wall Mount Chassis

Specifications

•Stock Code SOLLP1624100
•Description Solarix Infinisolar Branded 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery
•Rated Capacity (5HR): 100Ah.
•Voltage: 25.6V.
•Total Usable Energy 2.56KWh
•Discharge Cut-off Voltage: 22.0V.
•Equalised Charge Voltage: 29.2V.
•Floating Voltage 26.4V -27.2V
•Bulk Voltage 27.6V -28.4V
•Maximum Continuous Charging Current: 100A.
•Maximum Continuous Discharging Current: 100A.
•Display: LCD Panel and Battery Level Indicator
•Ports: 2x Positive Socket, 2x Negative Socket, 1x Power switch.
•Design Life: -/+ 10 Years.
•Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Up to 6000 cycles @ 80% DOD.
•Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
•Dimensions (WxDxH): 450mm x 442mm x 140mm.
•Weight: Approx. 23kg

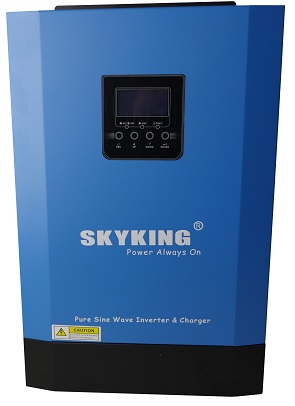

Solarix Skyking 7KVA 48V Hybrid Inverter - 7KW 48V SkyKing Hybrid Off-Grid Inverter, is integrated with a 80A MPPT solar charge controller, Retail Box, No warranty

Product Overview
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting Configurable AC/Solar Charger priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection Smart battery charger design for optimized battery performance
• Cold start function

Specifications

• Stock Code: SKV7KVA
• Description: Solarix Skyking 7KVA 48V Hybrid Inverter
• Colour: Blue & Black
• Operating temperature range: 0-55°C
Inverter Mode
• Rated Power: 7000VA(5500W)
• DC INPUT: 48VDC, 127A
• AC OutputL: 230VAC, 550/60Hz, 23,90A, 1
• AC Input: 230VAC, 50/60Hz, 38.5A, 1
• DC Output: 54VDC
• Max.80A, Default 30A
• AC Output: 230VAC, 50/60Hz, 23.9A, 1
Charger Solar Mode:
• Rated Power: 6000W
• MAx Charger: 110A
• Nominal Operation Voltage: 240VDC
• Max Solar Voltage (VOC): 500VDC
• MPPT Voltage range: 120 - 450VDC
• Ingress Protection: IP21
• Protective class: class 1

Solarix Esener 5.5KVA 48VDC 100A High Voltage Parallel Inverter- Pure Sine Wave, Off-Grid Solar Inverter, Max Watt Output 5.5kW, HV 100A MPPT Solar Charge Controller, Parallel Connection with Up To 12 Units, Wi-Fi/GPRS Remote Monitoring, RS485 Communication For BMS, Design to Provide Reliable Power, Retail Box, 1 Year Warranty, Retail Box, 1 Year Limited Warranty

Product Overview
The latest Solarix Esener Branded 5.5KW 100A 48VDC Pure Sine Wave High Voltage Solar Inverter is designed to provide a reliable backup power solution for homes and small business office environment installations. Equipped with a High Voltage 100A MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. The pure sine wave output enables easy start-ups for motor-type loads such as refrigerators, motors, pumps. compressors and laser printers as well as electronic loads like TVs. Computers. power tool and battery chargers. Parallel Connection with Up To 12 Units, Wi-Fi/GPRS remote monitoring, RS485 communication for BMS, Design to Provide Reliable Power. Batteries And Solar Panels Are Not Included.

NB: It has parallel operation with up to 12 units. It supports parallel in single phase/3 phase as well as wireless parallel without extra sharing current cable

Solarix 365Power 1KVA Mobile Inverter and Lithium LiFePo4 Battery Combination- Plug and Play Mobile Unit, Rated Power 1000w, Built-In 100Ah 12.8V Lithium LiFePo4 Battery , Total Usable Energy: 1280Wh, Digital LCD and LEDs Control Panel, Dual AC Output Connection, Dual USB Ports, Dual 12VDC Output Ports, for 12V devices, PWM Controller 30A Max, Solar Voltage 30VDC, AC Input Voltage Range: 230VAC, AC Output Voltage: 230VAC, AC Output Overload Protection And Short Circuit Protection, Retail Box, 6 Months Warranty

Product Overview:

The Solarix 365 Power 1kVA Pure Sine Wave UPS Inverter and Lithium LiFePo4 Battery combination is a high-performance, Pure Sine Wave UPS inverter with a built-in 100Ah battery and 30A PWM solar charge controller. This simple to use inverter has a Dual AC Output Connections and Dual 5VDC-USB Output Ports as well as Dual 12VDC Output Ports, for 12V devices. Designed with wheels, this mobile unit is easily transported to wherever it is you needed and makes it easy to store away when not in use. This unit has a connection for a second 100Ah Battery that can be added and has a connection for a PV (solar) Panel(s). Fully Plug-And-Play Ability makes it the perfect companion during load shedding and is ideal for powering appliances that have no heating elements such as PC’s, TV's, Decoders, Wi-Fi routers, Radios, Lights. Designed To Be Ideal for a Small Home in a Town House Complex or Flats.

Features:

• 1000W Pure Sine Wave Inverter And 100Ah Lithium LiFePo4 Battery Combination
• Portable Unit Designed with Wheels
• Fully Plug-And-Play Ability Perfect Companion During Load Shedding
• Rated Power 1000w
• Built-In 100Ah 12.8V Lithium LiFePo4Battery
• Digital LCD and LEDs Control Panel
• Dual AC Output Connection
• Dual 5VDC-USB Output Ports
• Dual 12VDC Output Ports, for 12V devices
• AC Output Voltage: 230VAC 4.3A
• PWM Controller Rated Charge: 30A Max
• Maximum PV Open Circuit Voltage: 50VDC
• Flexible Mains Supply Mode/Energy-Saving Mode/Battery Mode Settings.
• Designed To Be Ideal for a Small Home in A Town House Complex or Flats

Specifications:

• Stock Code SOLSKUPS1000LI
• Description Solarix 365Power 1KVA Pure Sine Wave Inverter And 100Ah Lithium Battery Combination
• Product Type Mobile Pure Sine Wave Ups Inverter
• Rated Power 1000 Watts
• Input Voltage 230 VAC 5.6A
• Output Voltage 230 VAC ( ±5%)
• Output Frequency ( Hz ) 50/ 60
• Built-In 100Ah 12.8V Lithium LiFePo4100AH Battery
• Total Usable Energy: 1280Wh
• Max. Solar PV voltage ( VDC ) <30
• Controller Rated Charge Current ( A ) PWM 30A
• 2x 5VDC USB Output Max 2A
• 2x 12VDC output ports Max 2A
• External size: W*D*H* ( mm ) 443x267x445
• Colour: Blue and White
• Gross Weight 45Kg

True Online Double Conversion UPS - 3000VA, Input/Output Voltage 230V/230V, Tower or Rackmount Design, Power Factor 0.9, Internal & optional external battery

Product Overview

This sleek true online UPS uses double conversion technology to deliver pure sine wave output, ensuring maximum protection and stable power for critical server room and industrial equipment. Featuring rack-tower versatility, extended runtime options up to 4 hours, advanced LCD monitoring, and intelligent management with SNMP support, it's designed for optimal reliability across IT, medical, and industrial applications. High efficiency (up to 94% in ECO mode), wide voltage range, and comprehensive safety features make it an ideal power backup solution for demanding environments.

Application

PC’s, Workstations, Network Centres, SOHO, Servers, Industry Equipment, Medical Equipment or Other Critical Systems

Features

•Rack-tower convertible
•Two directions LCD display
•On-line double conversion
•Output power factor: 0.9
•Extended runtime with up to four extended battery modules
•Optimized battery configuration: 1KVA-24V, 2KVA-48V, 3KVA-72V
•Emergency shutdown through remote emergency power-off (EPO) port
•Three segment charging mode to increase battery service life and optimize recharge time
•Diverse options of accessories, intelligent management
•Intelligent slot – optional SNMP/dry contact board
•Input neutral and live wires reverse detection
•Economic operation mode (ECO)
•Wide input voltage range
•Self-testing on UPS start-up
•Cold Start (DC)
•Hot-swappable battery pack
•Output voltage can be set
•Full digital control (DSP)

Specfications

•Product Code: M3RT
•Description: PSS 3KVA Series Rack/Tower UPS
•Technology: True Online Double Conversion UPS
•Size: 3000VA
•Input/Output Voltage: 230V/230V
•Design: Tower or Rackmount
•Power Factor: 0.9
•Battery: Internal & optional external
•Software: Intelligent
•Extended Battery Racks Also Available

KingStar Solarix pre-built 1.5KVA Hybrid Pure Sine Wave 12V Power board - hybrid solar inverter designed for off-grid applications. It features a pure sine wave output, ensuring clean and stable power for sensitive appliances. The inverter includes a built-in PWM 30A solar charger controller, supporting up to 400W of solar power. It operates on a 12V DC battery system and is compatible with mains voltage or generator power for charging. The unit offers configurable AC and solar input priority via an LCD display and includes a smart battery charger design with a cold start function.

Product Overview

The Solarix KingStar 1500VA is a hybrid solar inverter designed for off-grid applications. It features a pure sine wave output, ensuring clean and stable power for sensitive appliances. The inverter includes a built-in PWM 30A solar charger controller, supporting up to 400W of solar power. It operates on a 12V DC battery system and is compatible with mains voltage or generator power for charging. The unit offers configurable AC and solar input priority via an LCD display and includes a smart battery charger design with a cold start function. It is suitable for small to medium solar setups, providing flexibility between solar and grid/generator power sources. The product comes with a 6-month warranty.

Key Features

- Rated power output of 1500VA (1.5KVA) with a pure sine wave output.
- Built-in PWM 30A solar charge controller supporting up to 400W solar input.
- Operates on a 12V DC battery system with a maximum solar voltage (VOC) of 30V.
- Configurable AC and solar input priority via an LCD display.
- Compatible with mains voltage or generator power for charging and operation.
- Smart battery charger design with cold start function.
- Includes battery cables and a cable with a South African 3-pin plug.
- Batteries are not included and require 2x 12V deep cycle batteries for operation.
- The unit comes in a blue retail box and carries a 6-month warranty.

Specifications

- Product Code : SOLPBMKS1500VA
- Product Overview: KingStar Solarix Pre-Built 1.5KVA Hybrid Pure Sine Wave 12V Power board
- Waveform: Pure Sine Wave
- Rated Power: 1500VA/1200W
- AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
- Input: 230VAC 50/60HZ
- Output: 230VAC 50/60HZ
- DC Input: 12VDC 120A
- DC Output: 13.75VDC 30A
- Max Solar Voltage (VOC): 30V
- Solar Rated Power: 400W
- Solar Charger Controller: PWM 30A
- Parallel Capability: Yes, 9 units
- Smart Battery Charger design for optimized battery performance
- Auto Restart While AC Is Recovering
- Overload and Short Circuit Protection
- Compatible with Mains Voltage or Generator Power
- Configurable AC and Solar Input Priority via LCD Display
- Cold Start Function

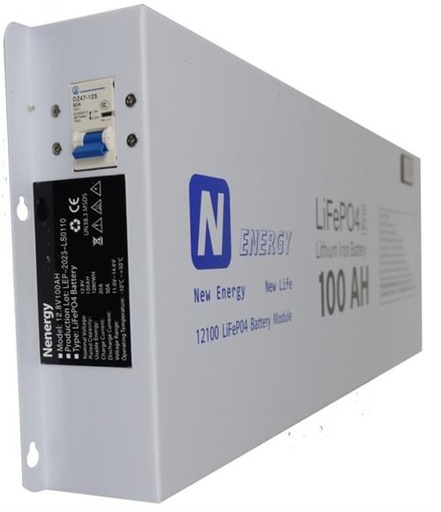

Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module- Wall Mount Unit, Nominal Voltage 12.8V, Rated Capacity 100AH, Total Usable Energy 1.280KWh, Continuous Charging 20A, Continuous Discharging 50A, Working Voltage Range 11.6V-14.6V, Wall Mount Unit Design to Work Perfectly With 12V Hybrid Invertors Up To 2KVA, , Retail Box, 1 Year Limited Warranty

Product Overview
The Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module is a Lead-Acid/AGM /Gel batter battery replacement, This Wall Mountable standalone design Li-ion LiFePO4 battery with Total Usable Energy 1.280 kWh is perfect for small to medium residential or office installations with a proven Lithium Iron Phosphate (LifePO4) solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 2000 at 80% DOD. Design To Work Perfectly with 12V Inverters Up To 2KVA.

Not suitable for starting engines or other extreme high current draw applications.

Highlights

•Nenergy 12.8V 100Ah LiFePo4 Single Battery Module
•Wall Mount Installation Unit
•Nominal Voltage: 12.8V
•Working Voltage Range 12V
•Rated Capacity 100Ah
•Total Usable Energy 1.280 kWh
•Maximum Continuous Charging Current: 20A
•Maximum Continuous Discharging Current: 50A
•Working Voltage Range 116V-14.6V
•Built In Protection -Over-Charge, Over-Discharge, Over-Temperature

Specifications

•Stock Code SOLNE12V100AH
•Description Solarix Nenergy 12V 100Ah LiFePo4 Single Battery Module
Product Type Wall Mountable 12V 100Ah LiFePo4 Single Battery Module
•Rated Capacity 100Ah
•Nominal Voltage 12.8V
•Working Voltage Range 12V
•Maximum Continuous Charging Current: 20A
•Maximum Continuous Discharging Current: 50A
•Cells: New Li-Ion Prismatic Cells
•Design Life: -/+ 10 Years
•Cycle Life @ 1C: +/-1000 Cycles @ 100% DOD, Above 2000 cycles @ 80% DOD
•Protection: Electronic Circuit Breaker, Voltage Protection, Current Limiting
•Dimensions (LxWxH): 72x7x25cm
•Weight: Approx.9.5kg

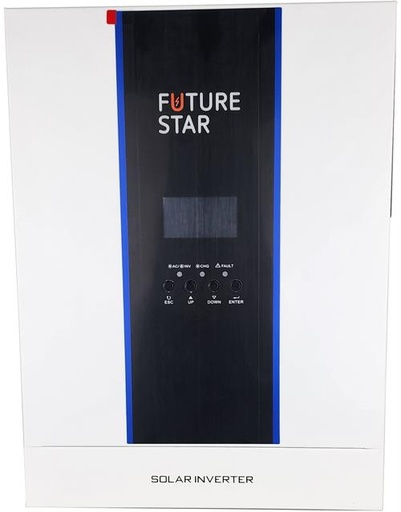

Solarix Inverter 3.5KVA 24V Future Star - A reliable 3.5KVA solar inverter providing efficient power conversion for home use, supporting multiple battery types and operating modes. It offers a rated power of 3500VA with a DC input of 24VDC and AC output of 230VAC at 50/60Hz.

Product Overview
The Solarix Inverter 3.5KVA 24V Future Star is a versatile solar inverter designed to provide reliable power conversion for residential applications. It operates in multiple modes, including inverter, AC charger, and solar charger, supporting lithium, gel, and lead-acid batteries. The inverter offers a rated power of 3500VA with a DC input of 24VDC and AC output of 230VAC at 50/60Hz. It features a robust solar charger with a maximum charge current of 100A and supports solar voltages ranging from 40VDC to 500VDC. The device is designed to operate effectively in temperatures between -10°C and 50°C, ensuring reliable performance in various environmental conditions.

Specifications

• Product Code: SOLFS3500VA
• Product Overview: Solarix Inverter 3.5KVA 24V Future Star
• Brand : Solarix
• Product Type : Solar Inverter
• Model : 35KVA 24V Future Star
• Inveter Mode :
Rated Power : 3500va
DC Input : 24VDC, 138.9A
AC Output : 230VAC, 50/60Hz, 13A
Battery Type : Lithium/Gel/Lead Acid
• AC Charger Mode :
AC Input : 230VAC, 50/60Hz, 20 1A
DC Output : 27VDC, 60A
AC Output : 230VAC, 50/60Hz, 13A
• Solar Charger Mode :
Max. Charge Current : 100A
Rated Power : 3000W
Min. Solar Voltage : 40VDC
Max. Solar Voltage : 500VDC
• Environment :
Temperature: -10 ~ 50DC
Protective Class: I
Degree of Protection: IP21

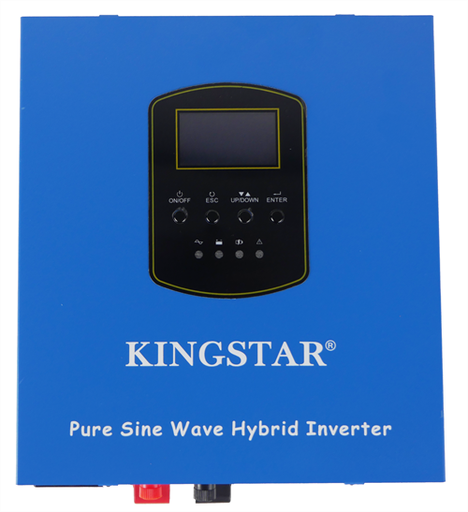

Solarix Kingstar 1500VA Pure Sine Wave 12V Inverter- Off-Grid Solar Inverter Built-in PWM 30A Solar Charger Controller, 1200W Rated Power, Input 230VAC 50/60HZ, Output 230VAC 50/60HZ, DC Input 12VDC 120A, DC Output 13.75VDC 30A, Max Solar Voltage [VOC] 30V, Solar Rated Power 400W, Configurable AC And Solar Input Priority Via LCD Display, Compatible To Mains Voltage Or Generator Power, Smart Battery Charger Design, Cold Start Function, Colour Blue Retail Box , 6 Months Warranty

Product Overview
The Solarix Kingstar 1500VA Pure Sine Wave 12V Inverter with a built-in PWM 30A Solar Charger Controller is designed to get you through the challenges of Load-Shedding on a limited budget and suitable for use with basic low energy appliances such as PCs, TVs, lights, and Wi-Fi routers. It is designed to be ideal for a small home in a town house complex or flats. The PWM 30A Solar Charger Controller maximizes and regulates DC power from the solar array for charging the battery bank. This pure sine wave hybrid inverter and built-in PWM 30A Solar Charger Controller combination functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. It’s comprehensive LCD display offers user-configurable acceptable and. easy-accessible button operation such as battery charging current.AC/solar charger priority, and acceptable input voltage based on different applications to provides reliable power conversion in size and with high efficiency.

Highlights

• 1500VA Pure Sine Wave 12V Inverter
• Built-in PWM 30A Solar Charger Controller
• Off-Grid Solar Inverter
• Rated Power 1200W
• AC Input 230VAC 50/60HZ
• AC Output 230VAC 50/60HZ
• DC Input 12VDC 120A
• DC Output 13.75VDC 30A
• Max Solar Voltage [VOC] 30VDC
• Selectable Input Voltage Range And Frequency
• Configurable AC And Solar Input Priority Via LCD Display
• Compatible To Mains Voltage Or Generator Power

Specifications

• Stock Code KSW1500VA1200W
• Description Solarix Kingstar 1500VA Pure Sine Wave 12V Inverter
• Built-in PWM 30A Solar Charger Controller
• Off-Grid Solar Inverter
• Rated Power 1200W
• Input : 230VAC 50/60HZ
• Output : 230VAC 50/60HZ
• DC Input: 12VDC
• Nominal Voltage 30V
• Solar Charger Model : PWM 30A
• Max Solar Voltage [VOC]: 30VDC
• Solar Rated Power 400W
• Min Solar Voltage 15V
• Max Solar Voltage 30V
• Max Solar Voltage [VOC]: 30VDC
• Auto Restart While AC Is Recovering
• Overload And Short Circuit Protection
• Smart Battery Charger Design For Optimized Battery Performance
• Colour Blue

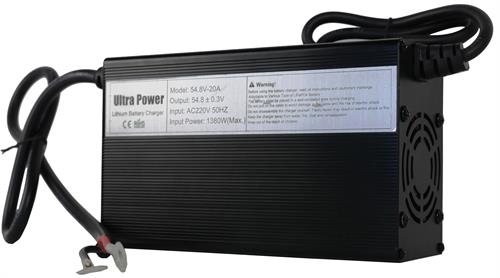

Solarix Ultra Power 48V 20A Lithium-Ion Phosphate Battery Charger -4 Steps Charging, Maximum Charging Output Voltage (CV) 54.8V, Maximum Output Current (CC): 20 Amps, AC Input Voltage 220VAC, AC Input Frequency 50 Hz, Input Power1000W (1380W Maximum), Lightweight Aluminum Casing with Ventilation Fan, 2x Round 8.2mm Output Connector Lugs, Colour Black, Retail Box, 1 Year Limited Warranty

Product Overview
The Solarix Ultra Power 48V 20 A Lithium-Ion Phosphate Battery Charger is designed to optimize the performance and lifespan of Lithium-Ion Phosphate (Lifepo4) batteries and can safely achieve a 100% State of Charge. This 48V 20 A battery charger operates from mains AC 220-240V as input, supplying up to 20A charging output suitable for nominal 48V LiFePO4 battery banks. The charger's built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit making it very safe to use. With energy efficiency > 85%, the charger produces less heat, delivers more energy and allows faster charging in less than 2 hours. The Lightweight Aluminum Casing is equipped with active ventilation fan system that allows the charger to be used in harsh environments or hot climates

Highlights

• Ultra Power Lithium-Ion Phosphate Battery Charger
• 4 Steps Charging
• Maximum Charging Output Voltage(CV) 54.8V
• Maximum Constant Output Current (CC): 20 Amps
• AC Input Voltage 220VAC Max 240VAC
• AC Input Frequency 50 Hz
• Power Efficiency >85% At Full Load
• Output Power1000W (1380W Maximum Output)
• Lightweight Aluminum Casing with Ventilation Fan
• 2x Round 8.2mm Output Connector Lugs

Specifications

• Stock Code SOLUPLIBC
• Description Solarix Ultra Power Lithium-Ion Phosphate Battery Charger
• Product Type 4 Steps Charging System
• Input Voltage Min 220VAC to Max 240VAC
• Output Power1000W (1380W Maximum Output)
• Constant Charge Voltage Min 58.1VDC to Max 58.7VDC
• Constant Current 20A
• Charge Complete Current VDC Min 1.2A to Max 1.8A
• Power Efficiency >85% At Full Load
• Colour Black
• Dimensions Length 210mm x W-125mm x H-70mm
• Weight 3.0Kg

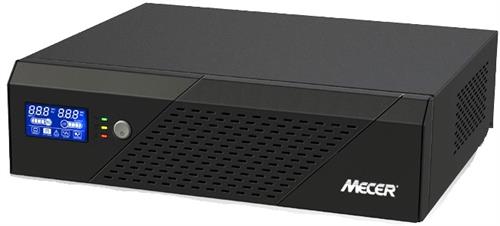

Mecer 2400VA 1440W 24V Inverter- Simulated Sinewave, Built-In AVR For Voltage Regulation, 1440 Wattage, LCD display Panel , Wide Input Voltage Range: 90-280 VAC, Overload And Short Circuit Protection, Auto-Restart During AC Recovery, Built In Intelligent Fan Cooling Fan, Maximum Charge Current 10 and 20 Selectable- Requires 2x 12V Lead Acid or Deep Cycle AGM Batteries wired in series,Colour Black, Retail Box , 1 year Limited Warranty

Product Overview

The Mecer 2400VA 1440W 24V Inverter is a high-quality Off-Grid simulated sine wave inverter designed to get you through the challenges of Load-Shedding on a limited budget and suitable for use with basic low energy appliances such as PCs, TVs, lights, and Wifi routers. It is designed to be ideal for a small home in a town house complex or flats. This Simulated Sinewave Inverter with built-In AVR For Voltage Regulation provides reliable power conversion with high efficiency.Requires 2x 12V Lead Acid or Deep Cycle AGM Batteries wired in series to operate.

Please Note Will not be able to run a kettle, heater or anything that uses a motor or an element.

Highlights

• 2400VA 1440W 24V Inverter
• Off-Grid Simulated Sinewave
• Built-In AVR For Voltage Regulation
• Wide input voltage range: 90-280 VAC
• Overload and short circuit protection
• LCD display for comprehensive information
• Solar Charge controller is not included, will needs to be purchase separately
• Requires 2x 12V Lead Acid or Deep Cycle AGM Batteries wired in series to operate

Specifications

• Stock Code IVR-2400LBKS
• Description Mecer 2400VA 1440W 24V Inverter
• Product Type Off-Grid Simulated Sinewave Inverter
• Capacity: 2400 VA / 1440 W
• Power factor: 0.6
• Acceptable Voltage Range 90-280 VAC
• Battery Voltage 24 VDC
• Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery
• DC Start Voltage >22VDC
• Constant Current Charger Voltage 28.6VDC /-2%
• Floating Charge Voltage 27.4 VDC ±2%
• Low Battery Alarm Voltage 20.4Vdc ±2%
• Shutdown Voltage 19.8Vdc ±2%
• Overcharge Protection 30.0Vdc ±2%’
• Full Protection Overload, Short Circuit And Polarity Reserve Protection
• Line Mode Breaker
• Battery Mode Current limit Firmware Protection
• Efficiency (Peak) 85%
• Maximum Charge Current 10 A or 20 A (Selectable)
• Dimension, D X W X H (mm) 300 x 360 x 88
• Net Weight (kgs) 4.8

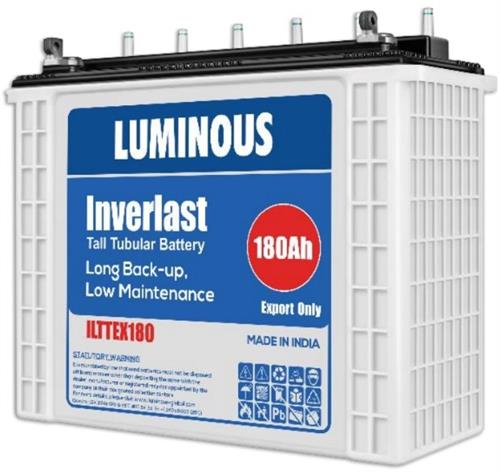

Solarix Luminous 12V 180AH Flooded Tall Tubular Battery- Tubular Plate Design, Lead Acid Storage, Suitable For Frequent Power Cuts, Excellent Overcharge Resistance, High Durability With Sealed Plastic Housing, 180AH, Voltage 12V @ C20 Rating Battery, Over 1250 Cycles At 80% Depth Of Discharge (DOD), Extra Tall to store 30% More Electrolyte, Retail Box , 12 month Warranty

Product Overview
The latest Solarix Luminous branded 12V 180AH Flooded Tall Tubular Battery is designed for frequent power cuts due to loadshedding and provide up to 30% longer service life than standard AGM Gel flat plate batteries and designed to have a life of over 1250 cycles at 80% Depth of Discharge (DOD) due to the unique patented alloy composition. Made using rugged tubular plates that require minimum maintenance and can withstand long and frequent power cuts.

What’s more, battery maintenance for the Luminous tubular battery has been made easy by design. With provided 6 level water management indicators that extend above each battery cell, checking the battery is as simple as ABC – just a glance at the indicator tells if there is any need for a top-up. And if there is (which could be once in a quarter), you simply top with distilled water. That’s really all the trouble you need to take. Best of all, when the tubular battery eventually begins to lose strength (that is, the electrolyte gets weaker), you can revitalise it with a complete electrolyte change and boost charging.

Specifications

• Stock Code ILTTEX180
• Description Solarix Luminous 12V 180AH Flooded Tall Tubular Battery
• Product Type 12V Flooded Tall Tubular Design Battery @ C20 Rating
• Voltage: 12V @ C20 Rating Battery
• Ceramic Water Level Management
• Suitable For Frequent Power Cuts Due to Load Shedding
• Over 1250 Cycles At 80% Depth of Discharge (DOD)
• Tubular Plate Design and Lead Acid Storage
• Unique Alloy Composition Protects Lead Part of Battery From Corrosion
• Excellent Overcharge Resistance
• High Durability with Sealed Plastic Housing
• Easy maintenance with 6 water Level indicators
• Material: Polypropylene
• Dimensions (LxWxH )502 x 191 x 412mm
• Weight 59kg


"Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:

1.Calculate the most economical shipping option

2.Contact you with the exact additional charges

3.Process your order after receiving your confirmation

Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation."
