MikroTik's RB-CAPACXL is an 802.11ac (WiFi 5) Access Point featuring a Qualcomm Quad Core CPU, high-gain dual-band antennas, built-in reflectors and 2x Gigabit Ethernet Ports. The unit supports 802.3af/at PoE input on Port 1 and passive PoE output (up to 57V) on Port 2. It is compatible with MikroTik CAPs MAN (controlled AP system manager), allowing you to manage all your Access Points from one central location.

Specifications

Antenna Gain: 2.4GHz: 6dBi; 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-57V (Passive PoE or 802.3af/at)
PoE Output: 18-57V Passive PoE
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-57V
USB Ports: None
Other: None
Dimensions: 191 x 42 mm

MikroTik's cAP lite is a tiny access point device, ideal for public locations and hospitality areas like hotels, airports, shopping malls etc. Included with the product are two different casings, which can be swapped out easily. You also have the capability to custom design the casing by using the included 3D printer friendly design files. The cAP lite supports 802.11b/g/n and can be powered by Power over Ethernet. It’s the ideal companion for the MikroTik Caps MAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand-alone access point with the full potential of Router OS.
*Note: This device only supports 10-60V Passive PoE input.

Specifications

Antenna Gain: 1.5dBi
Beam-width: 360°
Data Rate: 2.4Ghz 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 4W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 10V-60V (Passive PoE)
PoE Output: None
Power Input: 24V 0.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10V-60V
USB Ports: 1x Micro USB for Powering Device
Other: None
Dimensions: Wall case: 88 x 52 x 20mm; Ceiling case: 88 x 20mm

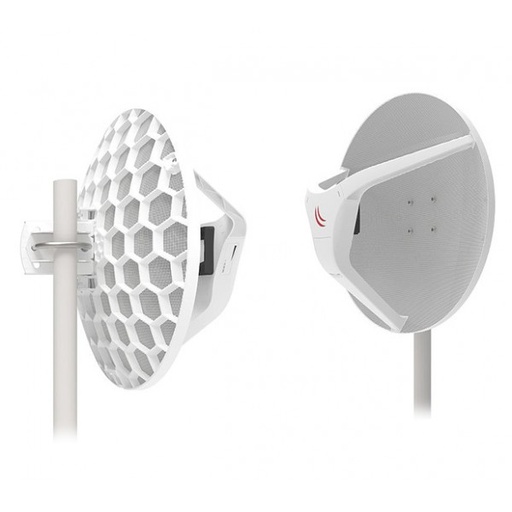

MikroTik Wireless Wire Dish (LHG 60GHz Kit)

The Wireless Wire Dish is a groundbreaking solution which offers Fiber speed and quality on distances up to 1500 m for a fraction of the price!

This amazing kit makes a secure AES encrypted 60 GHz wireless link that is not affected by the crowded WiFi spectrum, offering a stable and fast link for distances of 1500 meters or more. Simply point the included devices at one another and power them on, they are already preconfigured to connect automatically and will make a 2 Gb/s aggregate link.

The box includes two LHGG-60ad devices that are already paired together, power supplies, PoE injectors and mounting kits for both devices.

Specifications Antenna Gain: Maximum of 42dBi
Beam-width: 3°
Data Rate: 60GHz: 1Gbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 license)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE; 802.3af/at)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V-57V
USB Ports: None

Dimensions: Ø 391 x 222mm

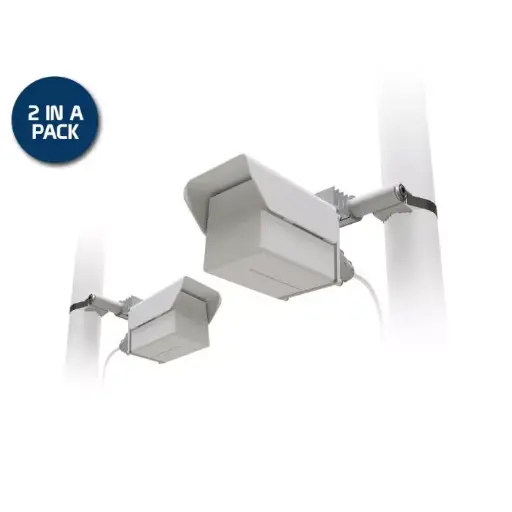

MikroTik's RB-CUBE60PKIT includes two 60GHz 802.11ay Cube 60Pro ac CPE's in a pre-configured link. The kit features automatic 5.8GHz 802.11ac failover, 1x Gigabit Ethernet and a durable, unobtrusive enclosure. Establish an ultra-fast, Point-to-Point connection for distances up to 2.4km with Channel 5 enabled.

Specifications

Antenna Gain: 5.8GHz: 11.5dBi: 60GHz: N/A Recommended for up to 2.4km
Beam-width: 5.8GHz: 35° : 60GHz: 11°
Data Rate: 60GHz: up to 1Gbps+ : 5.8GHz: 433Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 13W
Mounting: Pole-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 802.3af/at or 18V-57V (Passive PoE)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18-57V
USB Ports: None
Dimensions: 115 x 95 x 82 mm

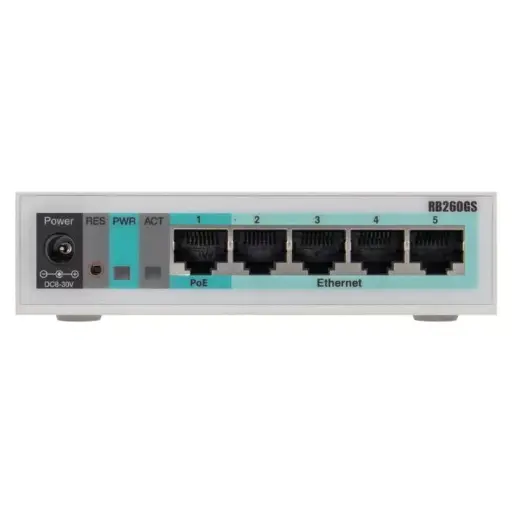

MikroTik's RB-260GS is a SwOS smart switch featuring 5x Gigabit Ethernet ports and 1x 1.25Gbps SFP port. Powered by SwOS, the unit is configurable from a web browser and provides all the basic functionality of a managed switch. Additional features include port-to-port forwarding, MAC filters, VLANs, mirror traffic, applying bandwidth limitation and even adjusting some MAC and IP header fields.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: SwOS
Operating Temperature: -25°C to +65°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Processor: Taifatech TF470
Serial Interface: None
SFP Ports: 1x 1.25Gbps SFP Port
Supported Voltage Range: 8V-30V
System Memory: 128KB
USB Ports: None
Other: None
Dimensions: 113 x 138 x 29mm

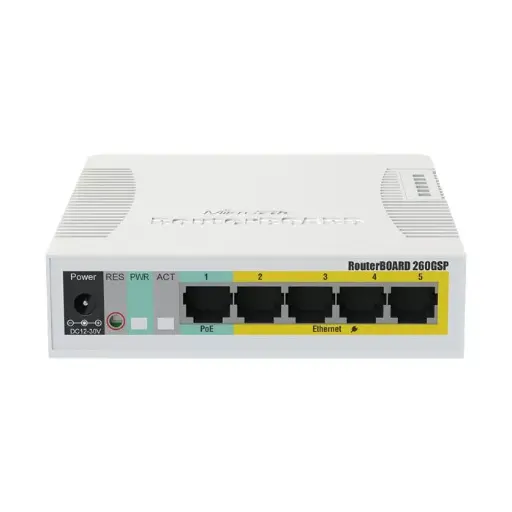

MikroTik's RB-260GSP is SwOS smart switch featuring 5x Gigabit Ethernet ports, 1x 1.25Gbps SFP Port and PoE passthrough on ports 2 to 5. Powered by SwOS, the unit is configurable from a web browser and provides all the basic functionality of a managed switch. Additional features include port-to-port forwarding, MAC filters, VLANs, mirror traffic, applying bandwidth limitation and even adjusting some MAC and IP header fields.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: SwOS
Operating Temperature: -25°C to +65°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: 8V-30V Passive PoE on Ports 2 to 5
Power Input: 24V 2.5A Power Supply (Included)
Processor: Taifatech TF470
Serial Interface: None
SFP Ports: 1x 1.25Gbps SFP Port
Supported Voltage Range: 8V-30V
System Memory: 128KB
USB Ports: None
Other: None
Dimensions: 113 x 138 x 29mm

MikroTik's RB-SXTSQ2 is a compact and lightweight outdoor wireless device with an integrated antenna. Ideal for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount.

The RB-SXTSQ2 retains a 10dBi antenna, the antenna design has been improved, and the physical size has been reduced.
SKU RB-SXTSQ2
Manufacturer MikroTik
Manufacturer Product Code RBSXTsq2nD

Specifications

Antenna Gain: 10dBi
Beam-width: 60°
Data Rate: 2.4GHz: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 license)
Operating Temperature: -40°C to +70°C
PoE Input: 10V - 30V (Passive PoE)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10V - 30V
USB Ports: None
Dimensions: 129 x 129 x 34 mm

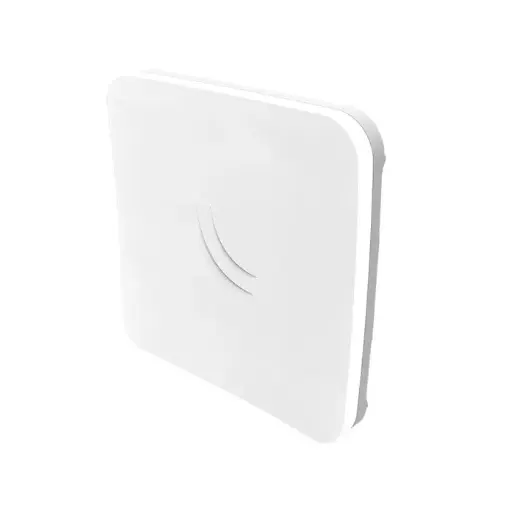

MikroTik's RB-SXTSQ5AC is a compact, lightweight, outdoor, 5GHz, 802.11ac wireless device. It features an integrated antenna and is ideal for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port, enabling full utilization of the speed 802.11ac protocol provides. The RB-SXTSQ5AC retains a 16 dBi antenna while the physical size has been dramatically reduced - the SXTsq is two times thinner than the SXT 5. The weather-proof enclosure includes slots to directly attach a hose-clamp-mount in three different mounting places, with the added ability to also be mounted on horizontal railings. It's easily accessible grounding connection protects it against lightning.

SKU RB-SXTSQ5AC
Manufacturer MikroTik
Manufacturer Product Code RBSXTsqG-5acD

Specifications

Antenna Gain: 16dBi
Beam-width: 23°
Data Rate: 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 license)
Operating Temperature: -40 to 70° C
PoE Input: 10-30V (Passive PoE)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10-30V
USB Ports: None
Dimensions: 129 x 129 x 34 mm

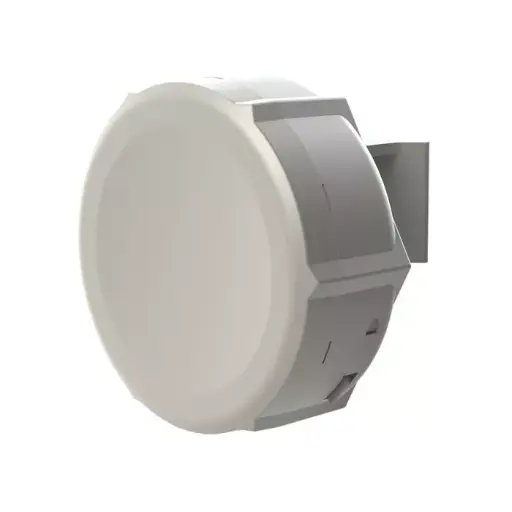

Scoop's RB-SXTG5ACSA by MikroTik Router BOARD, is an AC with up to 866Mbit over the air data-rate, 256-QAM modulation, and 80MHz channels.

The SA model has a 90-degree sector antenna, supports 802.11a/n mode and is compatible with all legacy Router BOARD devices, including Nstreme and Nv2 protocols. It is backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.
SKU RB-SXTG5ACSA
Manufacturer MikroTik
Manufacturer Product Code RBSXTG-5HPacD-SA

Specifications

Antenna Gain: 14dBi
Beam-width: 90°
Data Rate: 5.8GHz 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Pole-Mount
Operating System: Router OS (Level 4 license)
Operating Temperature: -30°C to 80°C
PoE Input: 12-57V (802.3af/at)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12-60V
USB Ports: 1x USB 2.0
Dimensions: 140 x 140 x 56 mm

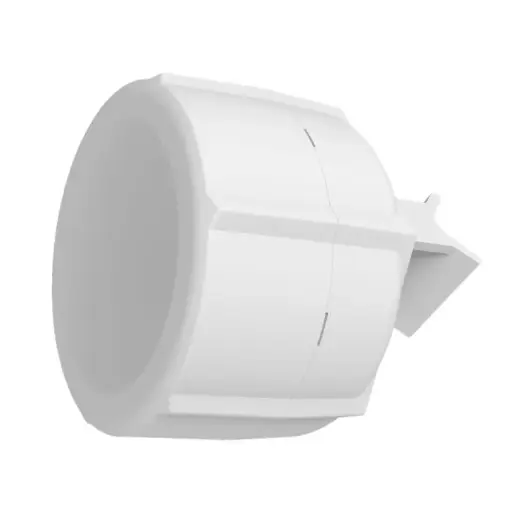

MikroTik's RB-SXTLTE6 is a Cat6, LTE CPE designed for remote locations within the cellular network range. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity where even cell phones fail. The unit features a Cat6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands simultaneously. It is equipped with two Ethernet ports. The second port provides PoE-out functionality. It has two SIM slots for redundancy and is 802.3af/at compliant.

*Note: The second SIM slot is for scripted failover configurations only. It does not automatically failover or do load balancing.

SKU RB-SXTLTE6
Manufacturer MikroTik
Manufacturer Product Code SXTR&FG621-EA

Specifications

Antenna Gain: LTE: 9dBi
Beam-width: 60°
Data Rate: 300Mbps Downlink; 50Mbps Uplink
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole Mount
Operating System: Router OS (Level 3 License)
Operating Temperature: -40°C to 60°C
PoE Input: 12V-57V (Passive PoE; 802.3af/at)
PoE Output: PoE Pass-Through 18V-57V
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: 2 (Micro SIM 3FF)
Supported Voltage Range: 18V-57V
USB Ports: None
Dimensions: 140 x 140 x 103 mm

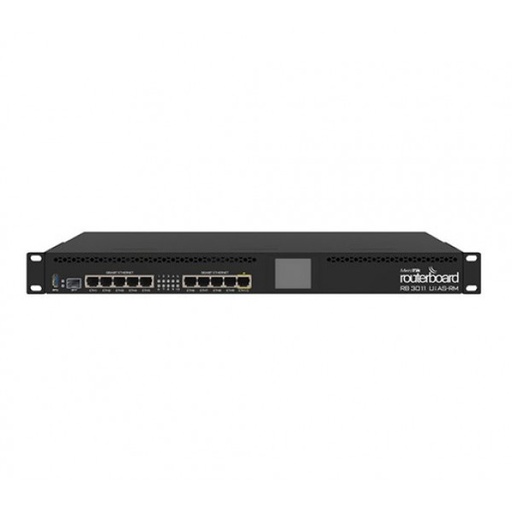

MikroTik RouterBoard RB3011UiAS (Rackmount) – High-Performance 10x Gigabit + SFP Router

Enterprise-Grade Networking with ARM CPU, USB 3.0 & LCD Touchscreen

The MikroTik RB3011UiAS-RM is a rack-mounted powerhouse featuring 10x Gigabit ports, SFP uplink, and a USB 3.0 port for storage/4G modems. Driven by an ARM CPU for superior throughput, it’s ideal for SMBs, ISPs, and data centers needing reliability and advanced routing.
🚀 Key Features

✔ 10x Gigabit Ethernet Ports – Dual switch groups (5 ports each) for VLAN/load balancing.
✔ SFP Fiber Uplink – Add a 1G optical connection for backbone links.
✔ USB 3.0 Port – Attach 3G/4G modems or external storage for backups.
✔ PoE Output – Last Ethernet port powers devices like APs (24V Passive PoE).
✔ Touchscreen LCD – Monitor status/configs without a console.
✔ RouterOS L6 License – Advanced firewall, QoS, VPN, and wireless features.
📊 Technical Specifications

CPU: Dual-core ARM 1.4GHz

RAM: 1GB

Ports:

10x Gigabit Ethernet (2x switch groups)

1x SFP (1G)

1x USB 3.0

1x Serial Console

PoE: Port 10 (24V Passive PoE-out)

Rack Size: 1U (included)

Power: 24V DC input (adapter sold separately)

🏆 Why Choose the RB3011UiAS?

✅ Future-Proof – ARM CPU handles VLANs, VPNs, and high-speed routing.
✅ All-in-One – LCD touchscreen for easy monitoring + USB 3.0 for expandability.
✅ ISP-Grade – Perfect for hotspots, VPN servers, or edge routing.
🔍 Ideal For:

🏢 Small/Medium Businesses – Robust routing with 10Gig LAN/SFP flexibility.
📶 Wireless ISPs – PoE-powered CPEs + fiber backhaul support.
🔒 VPN Gateways – High-speed encryption with RouterOS L6.
📦 What’s Included?

RB3011UiAS-RM router (rack ears pre-installed)

Power adapter (region-specific)

Mounting screws

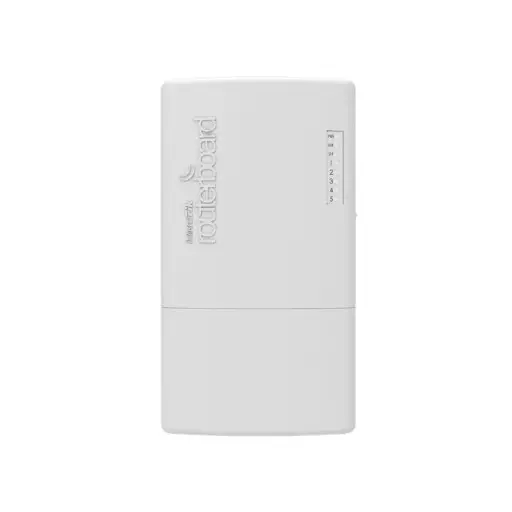

MikroTik's PowerBox Pro is an outdoor five Gigabit Ethernet port router with PoE output on four ports. Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations. It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. The PowerBox Pro can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.

The device has a SFP port for adding optical fiber connectivity. It is affordable, small, easy to use, with a very powerful 800MHz CPU, capable of all the advanced configurations that Router OS supports.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Pole-Mount & DIN Mount
Operating System: Router OS (Level 4 License)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE; 802.3af/at)
PoE Output: 12V-57V Passive PoE; 802.3af/at on Ports 2~5
Power Input: 24V 2.5A Power Supply (Included)
Processor: 1 Core 800MHz; QCA9557
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 12V-57V
System Memory: 128MB
USB Ports: None
Other: None

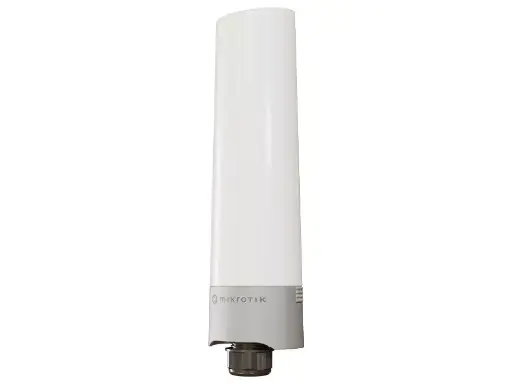

MikroTik's RB-GPERX4 is a compact, outdoor-ready IP68, Gigabit device designed to split a single 90W PoE-out port into 3x 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices. The RB-GPERX4 supports PoE-in as well as 2-pin terminal and is equipped with SwOS Lite for advanced management.

*Note: Ports are isolated and only communicate with the first port. This device functions as an extender, not a traditional switch.

Specifications

Ethernet Ports: 4x 10/100/1000
Max Power Consumption: 4W
Hardware Button: None
Mounting: Pole Mount
Operating System: SwOS Lite
Operating Temperature: -40°C to 70°C
PoE Input: 802.3af/bt
PoE Output: 802.3af/at Ports 2-4
Power Input: 24V-57V (2-Pin Terminal) ; 802.3bt PoE
SFP Ports: None
Supported Voltage Range: 24V-57V (2-Pin Terminal); 48-57V (PoE)
Dimensions: 281 x 76 x 70 mm

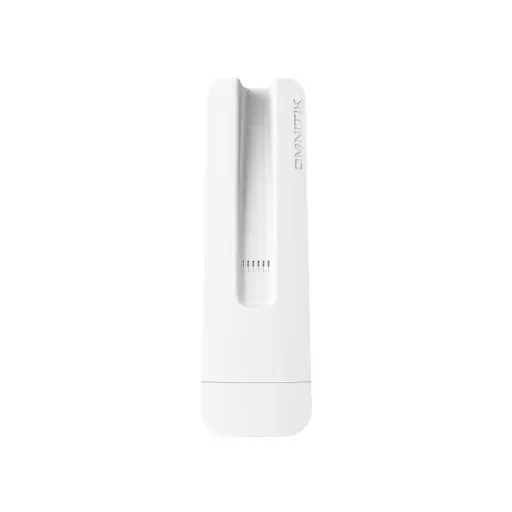

MikroTik's OmniTik 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC, as well as backwards compatibility with regular 802.11a/n CPE) and features a weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz Omni antennas, a power supply, a PoE injector and a mounting kit.

The RB-OMNITIK5AC also supports passive or standard 802.3at/af PoE input/output (12v-57v). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit which means that the user has less power adapters and cables to worry about. It can power 48V devices (like IP camera) if 48V input is used.

Specifications

Antenna Gain: 2x 7.5dBi
Beam-width: 360°
Data Rate: 5GHz 867Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W
Mounting: Pole Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at)
PoE Output: 12V-57V Passive PoE on Ports 2 to 5
Power Input: 28V 2.57A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 11V-30V
USB Ports: 1x USB 2.0
Other: None
Dimensions: 416 x 129 x 58mm

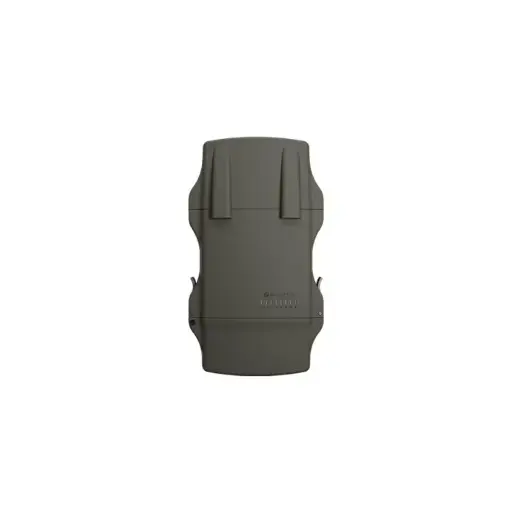

MikroTik's RB-NETMETALAX is a dual band Wi-Fi 6, IP66 outdoor access point featuring 1x Gigabit Ethernet Port, 1x 2.5Gbps SFP Port, a USB port, and mini PCIe slot for expansion. The unit is equipped with 2x RP-SMA connectors which make provision for an antenna of your choice. You can adapt the Net Metal ax for low range deployments with the ANT-O25 screw on antenna.

SKU RB-NETMETALAX
Manufacturer MikroTik
Manufacturer Product Code L23UGSR-5HaxD2HaxD-NM

Specifications

Antenna Gain: Antenna Dependent (2x SMA RP Female)
Beam-width: Antenna Dependent
Data Rate: 2.4GHz: 574Mbps: 5.8GHz: 2400Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Pole Mount
Operating System: Router OS (Level 4 License)
Operating Temperature: -40°C to 70°C
PoE Input: 18V-28V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: Non
SIM Slots: None
Supported Voltage Range: 18V-28V (PoE) 12V-28V (DC)
USB Ports: 1x USB 2.0
Other: 1x 2.5Gbps SFP Port
Dimensions: 143 x 247 x 48mm

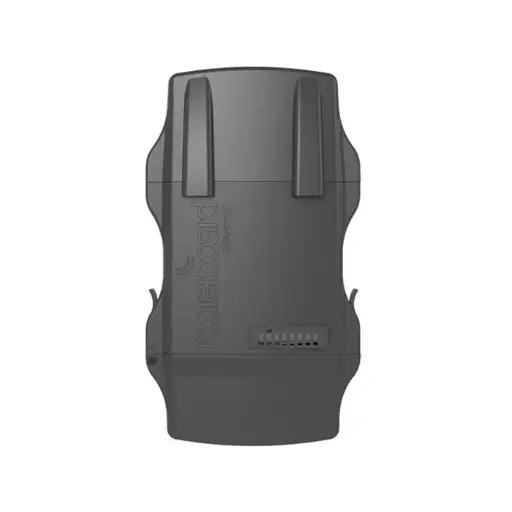

MikroTik's RB-NETMETAL is equipped with a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas.

The NetMetal is in a waterproof metal enclosure and it's rugged design is made to withstand the toughest conditions. It is easy to use and can be opened and closed with one hand. The solid aluminium enclosure also works as a reliable heat-sink for it’s high output power radio.

The Netmetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

Compatible with ANT-D530PA, a 5GHz, 30dBi dish antenna, also by MikroTik.

SKU RB-NETMETAL
Manufacturer MikroTik
Manufacturer Product Code RB922UAGS-5HPacD-NM

Specifications

Antenna Gain: Antenna Dependent (2x SMA RP Female)
Beam-width: Antenna Dependent
Data Rate: 5.8GHz 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 19W
Mounting: Pole Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 8V-30V
USB Ports: 1x USB 2.0
Other: 1x 1.25Gbps SFP Port
Dimensions: 143 x 247 x 48mm

HiLook 24-Port 100 Mbps Long-Range Unmanaged PoE Switch
Unmanaged switch with 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
All ports support 6 kV lighting protection
230 W PoE power budget
Maximum transmission distance is 250 meters for port 17 to 24 in "extend" mode
MAC address auto learning and auto aging

Port number24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority ports Ports 1 to 8
Ports for long-distance transmission Ports 17 to 24
MAC address table4 K
Switching capacity8.8 Gbps
Packet forwarding rate6.547 Mpps
Internal cache2.75 Mbits
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE port Ports 1 to 24
Max. port power30 W
PoE power budget230 W
Max. power consumption250 W
Shell Metal material
Gross weight3.33 kg (7.34 lb)
Net weight2.55 kg (5.6 lb)
Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity5% to 95% (no condensation)
Storage humidity5% to 95% (no condensation)
Power supply100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle20 W

16 Port Fast Ethernet Unmanaged POE Switch
Unmanaged switch with 16 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
All ports support 6 kV lighting protection
130 W PoE power budget
Maximum transmission distance is 250 meters for port 9 to 16 in "extend" mode
MAC address auto learning and auto aging
General
Shell Metal material
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Storage humidity5% to 95% (no condensation)
Net weight1.8 kg (4.0 lb)
Gross weight2.58 kg (5.69 lb)
Dimension (L × H × D)266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle20 W

Network parameters
Port number16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
MAC address table4 K
Switching capacity7.2 Gbps
Packet forwarding rate5.356 Mpps
Internal cache2.75 Mbits
High priority ports Ports 1 to 8
Ports for long-distance transmission Ports 9 to 16
PoE power supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE portPorts 1 to 16
Max. port power30 W
PoE power budget130 W
Max. power consumption150 W

8 Port Fast Ethernet Unmanaged POE Switch

Unmanaged switch with 8 x 100 Mbps PoE ports, 1 x 100 Mbps RJ45 port
All ports support 6 kV lighting protection
60 W PoE power budget
Maximum transmission distance is 250 meters for port 1 to 8 in "extend" mode
MAC address auto learning and auto aging
General
Shell Metal material, fan-free design
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply48 VDC, 1.35 A
Storage humidity5% to 95% (no condensation)
Net weight0.35 kg (0.77 lb)
Gross weight0.89 kg (1.96 lb)
Dimension (L × H × D)170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle5 W
Network parameters
Port number8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
MAC address table2 K
Switching capacity1.8 Gbps
Packet forwarding rate1.339 Mpps
Internal cache1 Mbits
High priority ports Ports 1 to 2
Ports for long-distance transmission Ports 1 to 8

Port Fast Ethernet Unmanaged POE Switch

Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port
All ports support 6 kV lighting protection
35 W PoE power budget
Maximum transmission distance is 250 meters
MAC address auto learning and auto aging

General
ShellMetal material, fan-free design
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Power supply48 VDC, 0.8 A
Storage humidity5% to 95% (no condensation)
Net weight 0.2 kg (0.4 lb)
Gross weight 0.48 kg (1.06 lb)
Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Operating humidity5% to 95% (no condensation)
Power consumption in idle3 W
PoE power supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE port Ports 1 to 4
Max. port power30 W
PoE power budget35 W
Max. power consumption38 W
