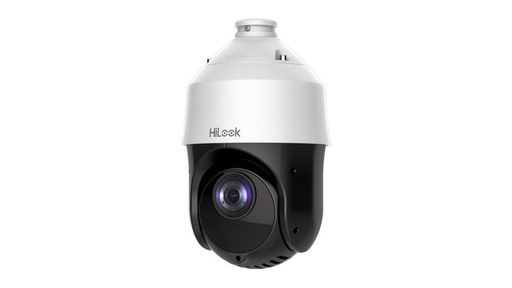

4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome

Four-inch 2 MP camera with pan, tilt and zoom (25x) ability
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Zoom25 × optical, 16 × digital

Lens
Focal Length4.8 mm to 120 mm, 25 × optical
FOVHorizontal FOV: 57.6° to 2.5° (wide to tele)
FocusAuto, semi-auto, manual
ApertureF1.6 to F3.5
Zoom SpeedApprox. 3.2 s (optical, wide to tele)

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 100 m

PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s
Tilt Speed Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
Proportional Pan Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol Scan10 patrols, up to 32 presets for each patrol
Pattern Scan5 patterns, record time over 10 minutes for each scan
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Status Display Yes
Scheduled Task Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
Power-off Memory Yes

Video
Frame Rate 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)

Network Protocols UTC protocol (or HIKVISION-C protocol in previous DVR)

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485 Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

General
Power12 VDC, max. 20 W (IR: 7 W)
DimensionØ 165.9 mm × 290 mm (Ø 6.5" × 11.4")
Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
Language English

4 MP Smart Hybrid Light MD 2.0 Fixed Bullet Network Camera
High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens MountM12
Iris Type Fixed
ApertureF1.6
DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength850 nm
General
Power
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
MaterialMetal & Plastic
Dimension184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Weight Approx. 270 g (0.6 lb.)
With Package Weight Approx. 481 g (1.1 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized varifocal lens for easy installation and monitoring
Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
DimensionØ141 mm × 99.9 mm (Ø5.6″ × 3.9″)
Package Dimension140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
WeightApprox. 820 g (1.8 lb.)
With Package WeightApprox. 1200 g (2.6 lb.)
Storage Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Hikvision 4-ch 720p Mini 1U H.265 DVR
Smart Function

Deep learning-based motion detection 2.0

Compression and Recording

H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs

Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p

Playback

Smart search for efficient playback

Network & Ethernet Access

Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 5-ch IP camera inputs (up to 2 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
1 SATA interface - Up to 10 TB capacity (HDD not included)

General
Power Supply12 VDC, 1.5 A
Consumption≤ 16 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight≤ 0.8 kg (without HDD, 1.8 lb.)

Hikvision 7100 Value Series 4-ch 1080P AcuSense 1U Mini DVR iDS-7104HQHI-M1/S

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Up to 2-ch Human/Vehicle Analysis
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
4-ch BNC interface, supporting coaxitron connection
Audio via coaxial cable
Up to 6-ch IP camera inputs (up to 6 MP)
1x RJ45 10/100 Mbps self-adaptive Ethernet interface (Additional switch required for IP Camera's)
Encoding ability up to 3K/5M Lite @ 12 fps
2x USB 2.0 Real panel

Smart Function

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning based perimeter protection

Compression and Recording

H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 3K/5 MP Lite resolution
Storage and Playback

1x SATA interface (up to 6 TB capacity)
Smart search for efficient playback

Network & Ethernet Access

Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Hikvision 7100 Series 8-ch AcuSense 1080p Mini 1U DVR

Smart Function

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning based perimeter protection

Compression and Recording

H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 4 MP Lite resolution

Storage and Playback

1 SATA interface (up to 10 TB capacity)
Smart search for efficient playback

Network & Ethernet Access

Compatible with major Wi-Fi dongle products in the market
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Features

Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
2x USB 2.0
Audio via coaxial cable
Up to 12-ch IP camera inputs (up to 6 MP)
Up to 1080p@15 fps encoding capability
General
Power Supply12 VDC, 1.33 A
Consumption≤ 12 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Weight≤ 1 kg (without HDD, 2.2 lb.)

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR 1 SATA 12TB supports 2ch facial recognition or 4ch advanced perimeter VCA or 8ch Motion 2.0
Feature
8 channels and 1 HDD 1U AcuSense DVR
Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 4-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5M Lite @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 12 -ch network cameras can be connected
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Network
Remote Connection64
Total Bandwidth96 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
Serial InterfaceRS-485 (half-duplex)
SATA1 SATA interface, up to 10 TB capacity for each disk
Alarm In/OutN/A (optional to support)
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
Power Supply12 VDC, 1.5 A
Consumption≤ 18 W (without HDD)
Working Temperature-10 °C to + 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight≤ 1.78 kg (3.9 lb) (without HDD)

Hikvision 16-ch 1080p Mini 1U H.265 AcuSense DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 6 MP)
Encoding ability up to 3K/5M Lite @ 12 fps

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported
Perimeter Protection
Line Crossing Detection/Intrusion Detection4-ch
Facial Detection
Facial Detection and CaptureFace picture detection, face picture search
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Network
Remote Connection128
Total Bandwidth128 Mbps
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10M/100M/1000M
self-adaptive Ethernet interface
General
Power Supply12 VDC, 2A
Consumption≤ 24W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
Weight≤ 1 kg (2.2 lb)

Hikvision 16-channel 1080p 1U H.265 AcuSense DVR IDS-7216HQHI-M2/XT

Features:

16 channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/5MP Lite@12fps
Up to 24 channels IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio technology
General
Power Supply12 VDC, 3.3 A
Consumption≤40 W
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
Weight≤ 2 kg (4.4 lb)

Hikvision Pro Series 32-channel 1080p 1U H.265 AcuSense DVR iDS-7232HQHI-M2/XT

Pro Series with AcuSense
Detect humans & vehicles and search fast with deep learning technology

- 32 channels and 2 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 8-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/ 5MP Lite@12fps
- Up to 40 channels IP camera inputs, each channel up to 6MP
- Up to 24*1080P@30fps decoding ability
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
Specifications:

Product colour: Black
Maximum video resolution: 3840 x 2160 pixels
Video compression formats: H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Video resolutions: 1280 x 720,1920 x 1080,2560 x 1440,3840 x 2160
Video input channels: 32 channels
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Supported network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Ethernet LAN data rates: 10,100,1000 Mbit/s
Maximum HDD capacity: 12 TB
Supported HDD interfaces: Serial ATA
General
Power Supply12 VDC, 5 A
Consumption≤ 60 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight≤ 2.1 kg (4.6 lb)

Hikvision Pro Series 32-channel 1080p 1U H.265 AcuSense DVR iDS-7232HQHI-M2/XT

32 channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 8-ch AcuSearch Technology
Efficient H.265 pro+ compression technology
Encoding ability up to 3K/ 5MP Lite@12fps
Up to 40 channels IP camera inputs, each channel up to 6MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology
Facial Recognition
Face Picture Library Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Quick search by object or event type is supported.
Perimeter Protection
Human/Vehicle Analysis Up to 8-ch (advanced model)
Facial Detection
Facial Detection and Capture
Face picture detection, face picture search.
4-ch face picture capture
General
Power Supply12 VDC, 5 A
Consumption≤ 60 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Weight≤ 2.1 kg (4.6 lb)

Asustor Lockerstor 10 Pro AS7110T Series Enterprise Network Attached Storage, 3.4GHz Quad-Core, One 10GbE Port, Three 2.5GbE Ports, Two M.2 Slots for NVMe SSD Cache, 8GB RAM DDR4 (10 Bay Diskless NAS), Retail Box, 1 year warranty

Product Overview
The Asustor Lockerstor 10 Pro AS7110T Series offers enterprise-level network storage with a powerful 3.4GHz quad-core processor, 8GB DDR4 RAM, and extensive connectivity including one 10GbE port and three 2.5GbE ports, alongside dual M.2 slots for NVMe SSD cache, providing high-speed data access and storage flexibility for demanding applications.
Specifications
•Product code: AS7110T
•Description: Asustor Lockerstor 10 Pro AS7110T Series Enterprise Network Attached Storage
•Number of Bays
•10x 2.5"/3.5"
•2x M.2 (2280)
•Inputs/Outputs
•2x USB-A 3.1/3.2 Gen 2
•1x USB-A 3.0 / 3.1/3.2 Gen 1
•3x RJ45 2.5GbE
•1x RJ45 10GbE
•Compatible Drive Interface: SATA III, NVMe
•RAID: RAID 0/1/5/6/JBOD
•CPU: Quad-Core: 3.4 to 4.6 GHz
•Processor: Intel Xeon E-2224
•Total Installed Memory: 8 GB ECC DDR4
•User-Replaceable Memory: 1x 8 GB
•Total Memory Slots: 2x SO-DIMM
•Flash Memory: 8 GB eMMC
•Number of Bays
•10x 2.5"/3.5"
•2x M.2 (2280)
•Inputs/Outputs
•2x USB-A 3.1/3.2 Gen 2
•1x USB-A 3.0 / 3.1/3.2 Gen 1
•3x RJ45 2.5GbE
•1x RJ45 10GbE
•Compatible Drive Interface
•SATA III, NVMe
•Maximum Capacity
•With Drives Installed up to 180 TB
•With Drives Installed up to 396 TB (with Expansion)
•RAID: RAID 0/1/5/6/JBOD
•Wake on LAN: Yes
•Link Aggregation and Failover Support: Yes
•iSCSI LUN: 256
•iSCSI Target: 256
•Max Concurrent Connections: 2048
•Max Folders: 512
•Max Groups: 512
•Max User Accounts: 16,384
•Max Cameras Supported: 100
•Encryption: 256-Bit AES
•Power Source: AC Adapter
•PSU Wattage: 1 x 350 W
•Status Monitoring: LED Indicator
•Cooling: 2x 120 mm Fans
•Noise Level: 22 dBA
•Dimensions: 11.5 x 9.1 x 8.5" / 293 x 230 x 215.5 mm
•Weight: 15.6 lb / 7.1 kg
•Package Weight: 20.905 lb
•Box Dimensions (LxWxH): 15.7 x 14.6 x 13.6"

Seagate SkyHawk AI 16TB 256MB Cache 3.5 inch Internal Surveillance Hard Disk Drive - SATA III 6 Gb/s Interface, , 3 year warranty

Product Overview
Designed for demanding surveillance systems, the Seagate SkyHawk AI delivers exceptional performance and reliability. With a massive 16TB capacity, it effortlessly stores high-resolution video footage from up to 32 AI cameras. Optimized for 24/7 operation, this drive ensures smooth video playback and analysis, making it ideal for security and monitoring applications. applications.
Features
•16TB Storage Capacity
•3.5" Form Factor
•SATA 6 Gb/s Interface
•Cache: 256MB
•32 AI Channels
•CMR Recording Technology
•Data Transfer Rate: Up to 250MB

Specifications
•Product code: ST16000VE002
•Description: Seagate SkyHawk AI 16TB 256MB Cache 3.5 inch Internal Surveillance Hard Disk Drive
•Brand Seagate
•Series Skyhawk AI
•Model ST16000VE002
•Capacity 16TB
•Interface SATA 6 Gb/s
•Recording Technology CMR
•Drive Design Helium
•Features & Performance
•Drive Bays Supported 16+
•AI Channels 32
•AI Real Time Capture Events/Sec Up to 120
•AI Real Time Compare Events/Sec Up to 96
•HD Cameras Supported Up to 64
•RV Sensors Yes
•Max. Sustained Transfer Rate OD 250MB/s
•Cache 256MB
•Reliability / Data Integrity
•Tarnish Resistant Yes
•Load / Unload Cycles 300,000
•Non-recoverable Read Errors Rate 1 per 10E15
•Power-On Hours per Year 8760
•Workload Rate Limit (WRL) 550
•Mean Time Between Failures (MTBF) 2,000,000 Hours
•Power Management
•Startup Current, Typical (12V) 1.8A
•Average Operating Power 6.71W
•Idling Average 5.1W
•Standby Mode/Sleep Mode, Typical 1.05/1.05
•Voltage Tolerance (5 V) 5%
•Voltage Tolerance (12 V) 10%
•Environmental / Temperature
•Operating 5°C -70°C
•Dimensions 26.11mm x 101.85mm x 146.99mm
•Weight 670g

Seagate SkyHawk AI 12TB 256MB Cache 3.5 inch Internal Surveillance Hard Disk Drive - SATA III 6 Gb/s Interface, , 3 year warranty

Product Overview
The Seagate SkyHawk AI 12TB Internal Surveillance Hard Disk Drive is designed for continuous 24/7 operation, making it ideal for video surveillance systems. With a 256MB cache and optimized firmware, it supports multiple HD camera streams while ensuring minimal downtime and enhanced reliability. This high-capacity drive is engineered to handle the demands of AI-enabled surveillance applications, providing robust performance for secure data storage.
Specifications
•Product code: ST12000VE001
•Description: Seagate SkyHawk AI 12TB 256MB Cache 3.5 inch Internal Surveillance Hard Disk Drive
•Brand Seagate
•Series Exos X18
•Model ST12000VE001
•Capacity 12TB
•Interface SATA III 6Gb/s
•Features & Performance
•Cache 256MB
•Drive Bays Supported 16
•AI Channels 32
•AI Real Time Capture Events/Sec Up to 120
•AI Real Time Compare Events/Sec Up to 96
•HD Cameras Supported Up to 64
•RV Sensors Yes
•Max. Sustained Transfer Rate OD 250MB/s
•Reliability / Data Integrity
•Mean Time Between Failures (MTBF) 2,000,000 Hours
•Tarnish Resistant Yes
•Load/Unload Cycles 300,000
•Non-recoverable Read Errors Rate, Max 1 Per 10E15
•Power-On Hours per year 8760 Hours
•Workload Rate Limit (WRL) 550
•Power Consumption
•Startup Current, Typical (12V) 1.8A
•Average Operating Power 6.9W
•Idle Average 4.9W
•Standby Mode/Sleep Mode, Typical 1.2W
•Dimensions 26.11mm x 101.85mm x 146.9mm
•Weight 690g

Seagate SkyHawk AI 10TB 256MB Cache 3.5 inch Internal Surveillance Hard Disk Drive - SATA III 6 Gb/s Interface, , 3 year warranty

Product Overview
The Seagate SkyHawk AI 10TB Internal Surveillance Hard Disk Drive is designed for continuous 24/7 operation, making it ideal for video surveillance systems. With a 256MB cache and optimized firmware, it supports multiple HD camera streams while ensuring minimal downtime and enhanced reliability. This high-capacity drive is engineered to handle the demands of AI-enabled surveillance applications, providing robust performance for secure data storage.
Specifications
•Product code: ST10000VE001
•Description: Seagate SkyHawk AI 10TB 256MB Cache 3.5 inch Internal Surveillance Hard Disk Drive
•Brand Seagate
•Series Exos X18
•Model ST12000VE001
•Capacity 12TB
•Interface SATA III 6Gb/s
•Features & Performance
•Cache 256MB
•Drive Bays Supported 16
•AI Channels 32
•AI Real Time Capture Events/Sec Up to 120
•AI Real Time Compare Events/Sec Up to 96
•HD Cameras Supported Up to 64
•RV Sensors Yes
•Max. Sustained Transfer Rate OD 250MB/s
•Reliability / Data Integrity
•Mean Time Between Failures (MTBF) 2,000,000 Hours
•Tarnish Resistant Yes
•Load/Unload Cycles 300,000
•Non-recoverable Read Errors Rate, Max 1 Per 10E15
•Power-On Hours per year 8760 Hours
•Workload Rate Limit (WRL) 550
•Power Consumption
•Startup Current, Typical (12V) 1.8A
•Average Operating Power 6.9W
•Idle Average 4.9W
•Standby Mode/Sleep Mode, Typical 1.2W
•Dimensions 26.11mm x 101.85mm x 146.9mm
•Weight 690g

Seagate SkyHawk AI 8TB 256MB Cache 3.5 inch Internal Surveillance Hard Disk Drive - SATA III 6 Gb/s Interface, , 3 year warranty

Product Overview
The Seagate SkyHawk AI 8TB Internal Surveillance Hard Disk Drive is designed for continuous 24/7 operation, making it ideal for video surveillance systems. With a 256MB cache and optimized firmware, it supports multiple HD camera streams while ensuring minimal downtime and enhanced reliability. This high-capacity drive is engineered to handle the demands of AI-enabled surveillance applications, providing robust performance for secure data storage.
Specifications
•Product code: ST10000VE001
•Description: Seagate SkyHawk AI 8TB 256MB Cache 3.5 inch Internal Surveillance Hard Disk Drive
•Brand Seagate
•Series Exos X18
•Model ST12000VE001
•Capacity 8TB
•Interface SATA III 6Gb/s
•Features & Performance
•Cache 256MB
•Drive Bays Supported 16
•AI Channels 32
•AI Real Time Capture Events/Sec Up to 120
•AI Real Time Compare Events/Sec Up to 96
•HD Cameras Supported Up to 64
•RV Sensors Yes
•Max. Sustained Transfer Rate OD 250MB/s
•Reliability / Data Integrity
•Mean Time Between Failures (MTBF) 2,000,000 Hours
•Tarnish Resistant Yes
•Load/Unload Cycles 300,000
•Non-recoverable Read Errors Rate, Max 1 Per 10E15
•Power-On Hours per year 8760 Hours
•Workload Rate Limit (WRL) 550
•Power Consumption
•Startup Current, Typical (12V) 1.8A
•Average Operating Power 6.9W
•Idle Average 4.9W
•Standby Mode/Sleep Mode, Typical 1.2W
•Dimensions 26.11mm x 101.85mm x 146.9mm
•Weight 690g

Toshiba S300 10TB Surveillance Hard Drive, , 1 year warranty

Product Overview
The Toshiba S300 10TB Surveillance Hard Drive is a workhorse for video security systems. Built for nonstop operation, it offers reliable storage for high-resolution footage from up to 64 cameras. With a massive 10TB capacity, you can record and playback video for extended periods, even with features like object identification and face recognition.
Specifications
•Product code: HDETV10ZSA51F
•Description: Toshiba S300 10TB Surveillance Hard Drive,
•Capacity 10000GB
•Drive device, buffer size 256MB
•Embedded battery Well
•Gross depth (mm) 102mm
•Gross depth master carton 410mm
•Gross height (mm) 25 mm
•Gross height master carton 235 mm
•Gross weight 0.756 kg
•Gross width (mm) 145mm
•Gross width master carton 315mm
•Hard drive interface SATA
•Hard drive size 3.5"
•Hard drive speed 7200RPM
•Even weight 0.456 kg
•Net weight master carton 15.12 kg
•Other features Supports up to 64 video cameras, the S300 Pro ensures mission-critical surveillance continuously records
•Packing quantity 20pc(s)
•Palette Qty 1120 pc(s)
•Paper/Pasteboard 250.00 g
•Plastic (No PET) 50.00 g
•Producer product family Surveillance Hard Drive
•Producer product house S300 Pro
•Tare weight (kg) 0.30 kg
•Tare weight master carton 0.304 kg
•Volume (m3) 0.00036975m³

Toshiba S300 10TB Surveillance Hard Drive, , 1 year warranty

Product Overview
The Toshiba S300 10TB Surveillance Hard Drive is a workhorse for video security systems. Built for nonstop operation, it offers reliable storage for high-resolution footage from up to 64 cameras. With a massive 10TB capacity, you can record and playback video for extended periods, even with features like object identification and face recognition.
Specifications
•Product code: HDET02KZSA51F
•Description: Toshiba S300 10TB Surveillance Hard Drive,
•Capacity 10000GB
•Drive device, buffer size 256MB
•Embedded battery Well
•Gross depth (mm) 102mm
•Gross depth master carton 410mm
•Gross height (mm) 25 mm
•Gross height master carton 235 mm
•Gross weight 0.756 kg
•Gross width (mm) 145mm
•Gross width master carton 315mm
•Hard drive interface SATA
•Hard drive size 3.5"
•Hard drive speed 7200RPM
•Even weight 0.456 kg
•Net weight master carton 15.12 kg
•Other features Supports up to 64 video cameras, the S300 Pro ensures mission-critical surveillance continuously records
•Packing quantity 20pc(s)
•Palette Qty 1120 pc(s)
•Paper/Pasteboard 250.00 g
•Plastic (No PET) 50.00 g
•Producer product family Surveillance Hard Drive
•Producer product house S300 Pro
•Tare weight (kg) 0.30 kg
•Tare weight master carton 0.304 kg
•Volume (m3) 0.00036975m³

Western Digital Purple - 6.0TB 3.5" SATA3 6.0Gbps Surveillance HDD, Intellipower™ Speed Management, 256MB Cache, 150MB/s Host to/from (Sustained), AllFrame, HD Video Optimised, , 2 year warranty

Product Overview
WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that’s tested for compatibility in a wide range of security systems. Exclusive AllFrame™ technology helps reduce frame loss and improve overall video playback.
Features
Western Digital's Exclusive AllFrame™ Technology
•All WD Purple drives are equipped with AllFrame™ technology, which helps reduce video frame drops and improves video recording and playback.
Enhanced Workload Ratings
•WD Purple drives feature a workload rating of up to 180TB/year2 - up to three times that of desktop drives - to handle the unique demands of mainstream video surveillance DVR and NVR systems.
Multiple Cameras, Multiple Streams
•Modern recorders now support multiple video streams per camera. WD Purple drives support up to 64 single-stream HD cameras5. With so many options, you have the flexibility to upgrade or expand your security applications in the future.
Designed for Surveillance Solutions
•With an MTBF of up to 1 million hours3, WD Purple drives are engineered for mainstream surveillance DVRs and NVRs that operate 24/7. With tarnish-resistant components and support in storage systems with more than eight drive bays4, WD Purple drives deliver reliable operation even in harsh environments.

Specifications
•Product code: WD64PURZ
•Description: Western Digital Purple - 6.0TB 3.5" SATA3 6.0Gbps Surveillance HDD
•Capacity: 6TB
•Form Factor: 3.5-Inch
•Connector: SATA
•Up to 64 HD cameras
•Up to 16 drive bays
•All Frame firmware technology
•Interface: SATA
•Transfer Rate: up to 175MB/s
•Recording Technology: CMR
•Cache Size: 256MB
•Dimensions (L x W x H): 5.79" x 4" x 1.03"
•Weight: 570gms
•Operating Temperature: 0°C to 65°C
•Non-Operating Temperature: -40°C to 70°C

Toshiba S300 6TB Surveillance Hard Drive, , 1 year warranty

Product Overview
Reliability is a function of component quality and testing. The S300 takes it to a new level, using optimised components to deliver the clear detail from up to 64 video cameras at the same time. Rigorous testing provides performance you can trust day in, day out.
Use for
•Surveillance Digital Video Recorders (sDVR)
•Surveillance Network Video Recorders (sNVR)
•Hybrid sDVR (analog and IP)

Specifications
•Product code: HDKPB06Z0A01
•Description: Toshiba S300 6TB Surveillance Hard Drive
•3.5″ SATA Hard Drive
•5400 rpm
•256 MB buffer
•24/7 operation
•Supports up to 64 video cameras
•High reliability and enhanced real-time performance
•Toshiba Dynamic Cache Technology
•Toshiba Stable Platter Technology
•High-endurance design
Item Weight 794 Grams
