Scoop's FDC-150M single core pre-terminated LC-LC (APC) Single Mode fibre drop cable is designed for a quick and easy installation without the need for splicing.

It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, 1 core, FTTX drop cable. The outer jacket is 2x3mm and made from Low Smoke, Zero Halogen (LSZH) material ideally suited for both indoor and outdoor installations when used in ducting. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 150m
Connector Type: LC-LC
Diameter: 2x3mm
Fibre Cores: 1
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

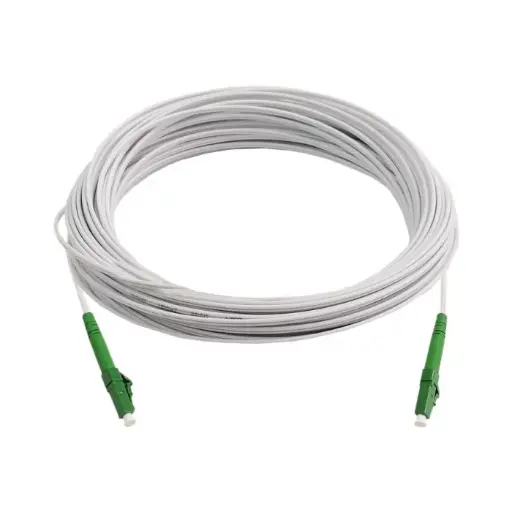

Scoop's FDC-30M single core pre-terminated LC-LC (APC) Single Mode fibre drop cable is designed for a quick and easy installation without the need for splicing.

It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, 1 core, FTTX drop cable. The outer jacket is 2x3mm and made from Low Smoke, Zero Halogen (LSZH) material ideally suited for both indoor and outdoor installations when used in ducting. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Bend Sensitivity: G657A2
Cable Length: 30m
Connector Type: LC-LC
Diameter: 2x3mm
Fibre Cores: 1
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

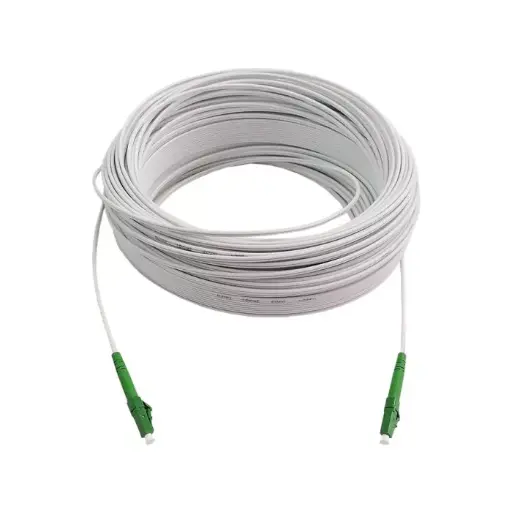

Scoop's FDC-60M single core pre-terminated LC-LC (APC) single-mode fibre drop cable is designed for a quick and easy installation without the need for splicing.

It is a 'Bow Type', single-mode, G657A2, bend-insensitive, 1x core, FTTX drop cable. The outer jacket is 2x3mm and made from Low Smoke, Zero Halogen (LSZH) material ideally suited for both indoor and outdoor installations when used in ducting. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 60m
Connector Type: LC-LC
Diameter: 2x3mm
Fibre Cores: 1
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

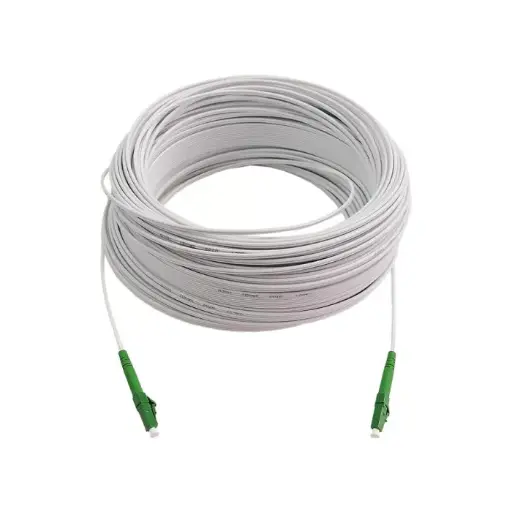

Scoop's FDC-90M single core pre-terminated LC-LC (APC) single-mode fibre drop cable is designed for a quick and easy installation without the need for splicing.

It is a 'Bow Type', single-mode, G657A2, bend-insensitive, 1x core, FTTX drop cable. The outer jacket is 2x3mm and made from Low Smoke, Zero Halogen (LSZH) material ideally suited for both indoor and outdoor installations when used in ducting. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 90m
Connector Type: LC-LC
Diameter: 2x3mm
Fibre Cores: 1
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃～+60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

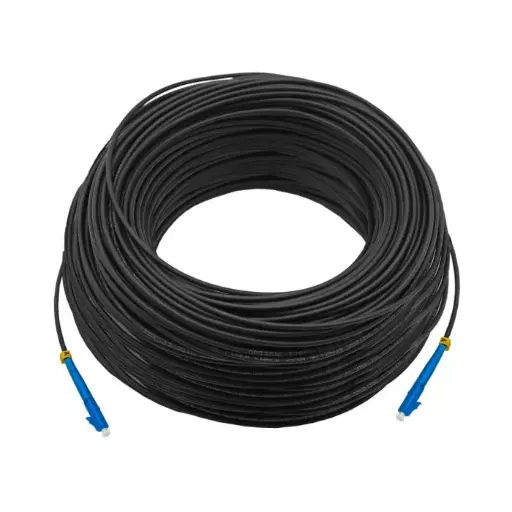

Scoop's FDC-150MU1 is a single-core, pre-terminated, LC-LC, UPC, Single-Mode uplink drop cable is designed for Bi-Directional SFP connections without the need for splicing. It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, single-core cable. The outer jacket is 2x3mm and made from UV-resistant, Low Smoke Zero Halogen (LSZH) material suited for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 150m
Connector Type: LC-LC (UPC)
Diameter: 2x3mm
Fibre Cores: 1
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

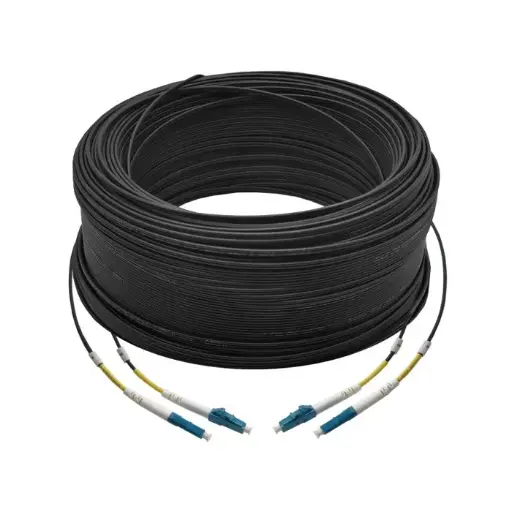

Scoop's FDC-150MU 2-core, pre-terminated, LC-LC, UPC, Single-Mode uplink drop cable is designed for SFP connections without the need for splicing.

It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, dual-core cable. The outer jacket is 2x3mm and made from UV-resistant, Low Smoke Zero Halogen (LSZH) material suited for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 150m
Connector Type: LC-LC (UPC)
Diameter: 2x3mm
Fibre Cores: 2
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

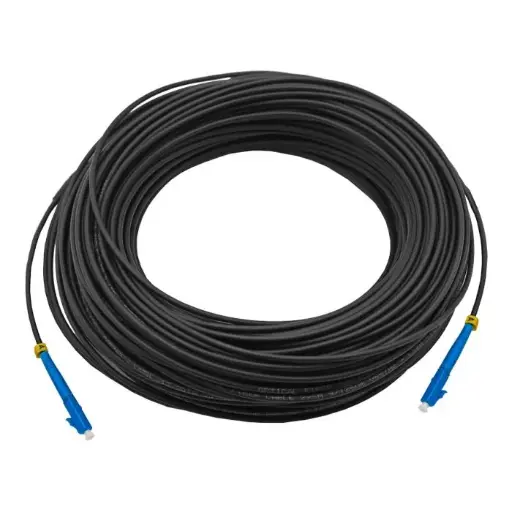

Scoop's FDC-30MU1 is a single-core, pre-terminated, LC-LC, UPC, Single-Mode uplink cable is designed for Bi-Directional SFP connections without the need for splicing. It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, single-core cable. The outer jacket is 2x3mm and made from UV-resistant, Low Smoke Zero Halogen (LSZH) material suited for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 30m
Connector Type: LC-LC (UPC)
Diameter: 2x3mm
Fibre Cores: 1
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

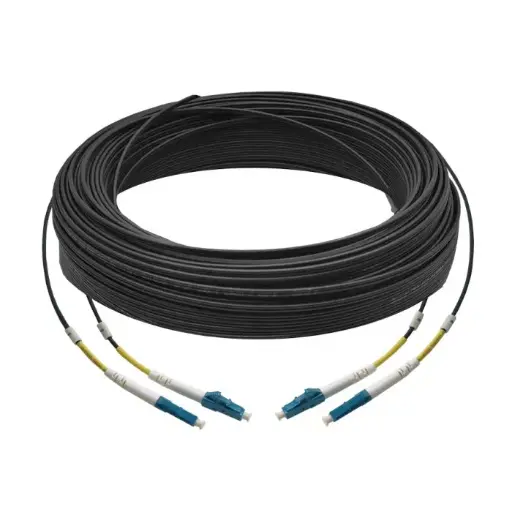

Scoop's FDC-30MU 2-core, pre-terminated, LC-LC, UPC, Single-Mode uplink drop cable is designed for SFP connections without the need for splicing.

It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, dual-core cable. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suited for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Bend Sensitivity: G657A2
Cable Length: 30m
Connector Type: LC-LC (UPC)
Diameter: 2x3mm
Fibre Cores: 2
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

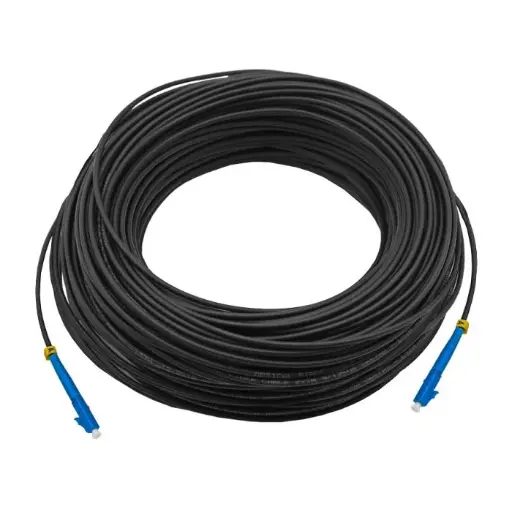

Scoop's FDC-60MU1 is a single-core, pre-terminated, LC-LC, UPC, Single-Mode uplink cable is designed for Bi-Directional SFP connections without the need for splicing. It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, single-core cable. The outer jacket is 2x3mm and made from UV-resistant, Low Smoke Zero Halogen (LSZH) material suited for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 60m
Connector Type: LC-LC (UPC)
Diameter: 2x3mm
Fibre Cores: 1
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

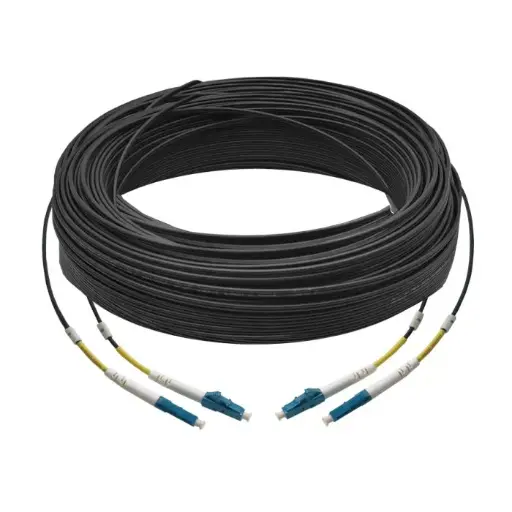

Scoop's FDC-60MU 2-core, pre-terminated, LC-LC, UPC, Single-Mode uplink drop cable is designed for SFP connections without the need for splicing.

It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, dual-core cable. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suited for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 60m
Connector Type: LC-LC (UPC)
Diameter: 2x3mm
Fibre Cores: 2
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

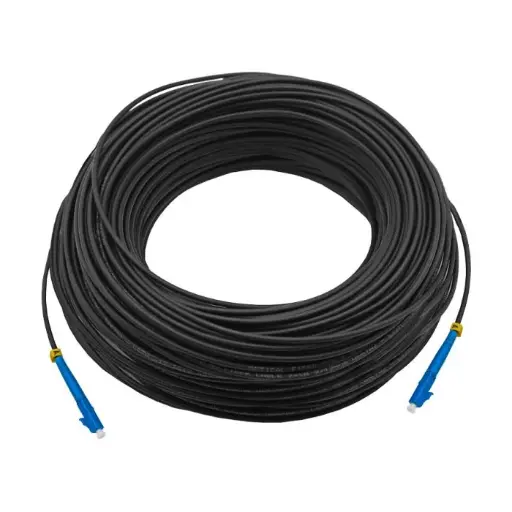

Scoop's FDC-90MU1 is a single-core, pre-terminated, LC-LC, UPC, Single-Mode uplink cable is designed for Bi-Directional SFP connections without the need for splicing. It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, single-core cable. The outer jacket is 2x3mm and made from UV-resistant, Low Smoke Zero Halogen (LSZH) material suited for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 90m
Connector Type: LC-LC (UPC)
Diameter: 2x3mm
Fibre Cores: 1
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

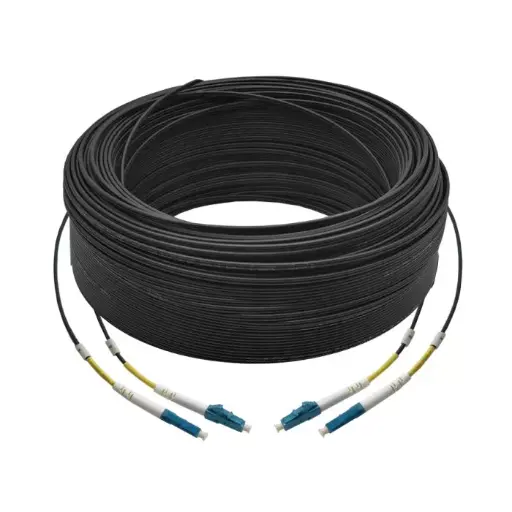

Scoop's FDC-90MU 2-core, pre-terminated, LC-LC, UPC, Single-Mode uplink drop cable is designed for SFP connections without the need for splicing.

It is a 'Bow Type', Single Mode, G657A2, bend-insensitive, dual-core cable. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suited for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to improve pull strength and provide resistance when bending around corners.
Specifications Bend Sensitivity: G657A2
Cable Length: 90m
Connector Type: LC-LC (UPC)
Diameter: 2x3mm
Fibre Cores: 2
Jacket: LSZH (Low Smoke Zero Halogen)
Operating Temperature: -40℃ to 60℃
Strength Member: 0.45mm Phosphate Wire x2
Type: Single Mode

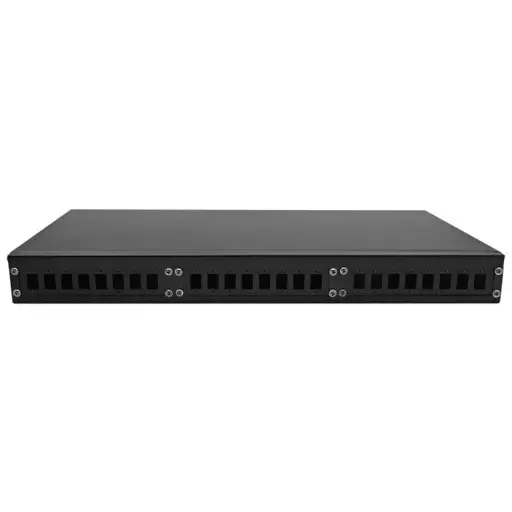

Scoop's FPP-24, is a blank, rack-mountable, fibre optic patch panel that supports up to 24 SC/LC fibre connections. The number of ports can be customised based on user requirements for the network. The FPP-24 simplifies management of SC fibre terminations in a cabinet. Fibre SC/LC mid-couplers are sold separately.
SKU FPP-24
Manufacturer Scoop
Specifications Material: Cold Steel with Power Coating
Mounting: 19 inch rack-mountable
Ports: 24x SC ; 48x LC
Splice Tray: 1 (Up to 24 splices)
Dimensions: 435 x 255 x 40mm

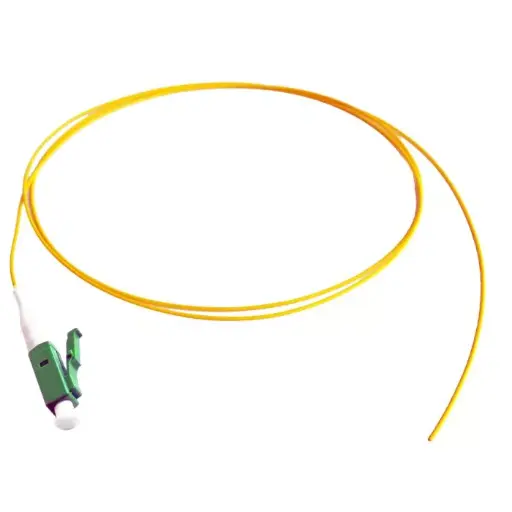

Scoops FP-LC-S1A single mode fibre optic pigtail is used for termination inside patch panels and termination boxes.
SKU FP-LC-S1A
Manufacturer Scoop
Specifications Cable Length: 1M
Connector: LC APC
Fibre Cores: 1
Jacket: LSZH
Operating Temperature: -20℃ to 70℃
Strength Member: None
Mode: Single Mode

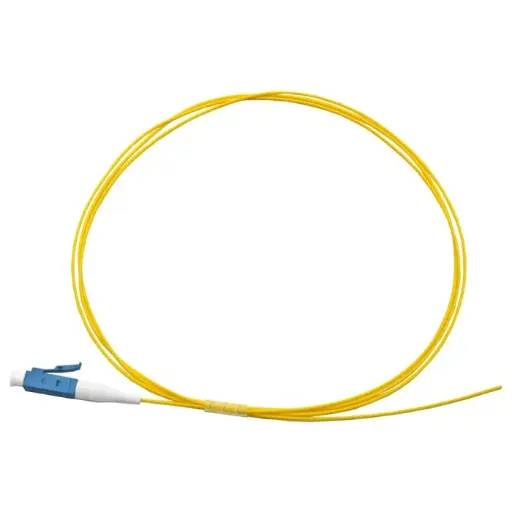

Scoop's FP-LC-S1U Single Mode LC Pigtail is single fibre, tight buffered with Kevlar strength member and jacketed for indoor use where cable flexibility and ease of termination are important. Best suited for splicing inside a patch panel. All pigtails are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
SKU FP-LC-S1U
Manufacturer Scoop
Specifications Cable Length: 1M
Connector: LC UPC
Fibre Cores: 1
Jacket: LSZH
Operating Temperature: -40℃ to 80℃
Strength Member: None
Mode: Single Mode

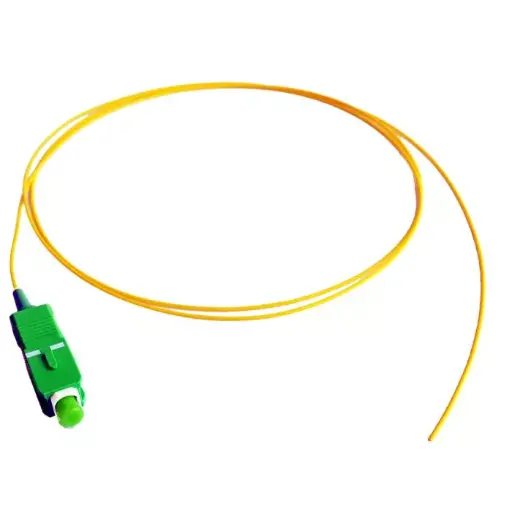

Scoops FP-SC-S1A single mode fibre optic pigtail is used for termination inside patch panels and termination boxes.
SKU FP-SC-S1A
Manufacturer Scoop
Specifications Cable Length: 1M
Connector: SC APC
Fibre Cores: 1
Jacket: LSZH
Operating Temperature: -20℃ to 70℃
Strength Member: None
Mode: Single Mode

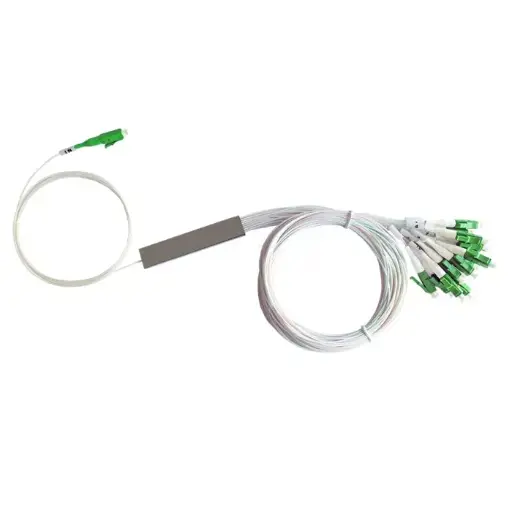

Scoop's FS-LC16, 1-16 fibre optic Blockless (Mini Type) PLC splitter is used for multiple and even splits with minimal loss. Ideal for PON applications.
SKU FS-LC16
Manufacturer Scoop
Specifications Cable Length: 1M
Connector: LC APC
Fibre Cores: 16
Jacket: PVC
Mode: Single Mode

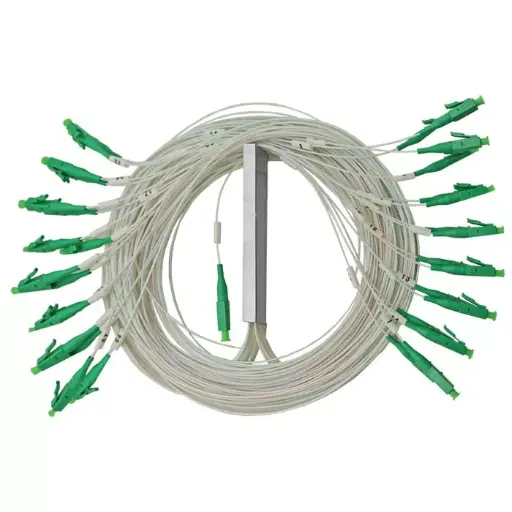

Scoop's FS-LC32, 1-32 fibre optic Blockless (Mini Type) PLC splitter is used for multiple and even splits with minimal loss. Ideal for PON applications.
SKU FS-LC32
Manufacturer Scoop
Specifications Cable Length: 1M
Connector: LC APC
Fibre Cores: 32
Jacket: PVC
Mode: Single Mode

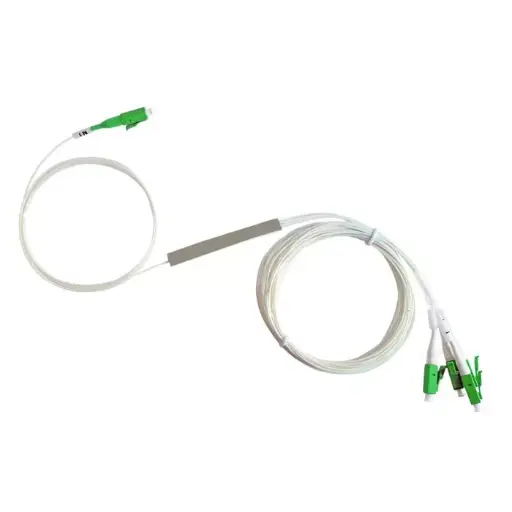

Scoop's FS-LC4, 1-4 fibre optic Blockless (Mini Type) PLC splitter is used for multiple and even splits with minimal loss. Ideal for PON applications.
SKU FS-LC4
Manufacturer Scoop
Specifications Cable Length: 1M
Connector: LC APC
Fibre Cores: 4
Jacket: PVC
Mode: Single Mode

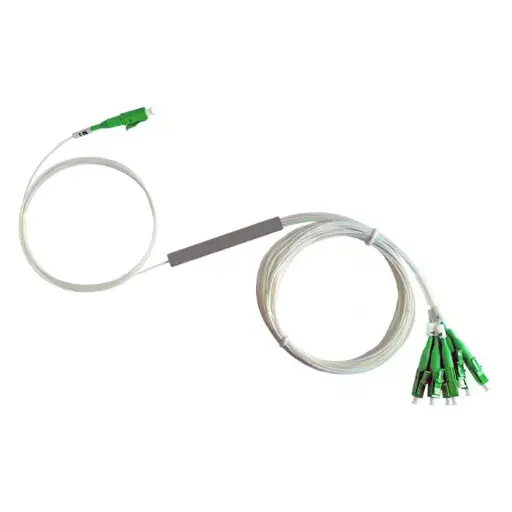

Scoop's FS-LC8, 1-8 fibre optic Blockless (Mini Type) PLC splitter is used for multiple and even splits with minimal loss. Ideal for PON applications.
SKU FS-LC8
Manufacturer Scoop
Specifications Cable Length: 1M
Connector: LC APC
Fibre Cores: 8
Jacket: PVC
Mode: Single Mode
