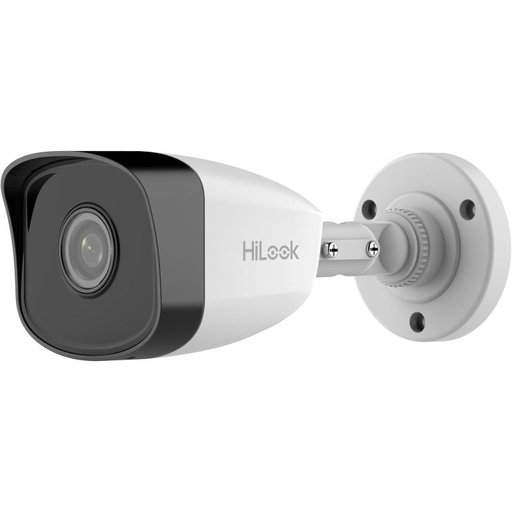

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Camera
Image Sensor1/2.9" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens MountM12
Iris TypeFixed
ApertureF1.6
Dimension184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
WeightApprox. 265 g (0.6 lb.)
With Package WeightApprox. 495 g (1.1 lb.)

FEATURES

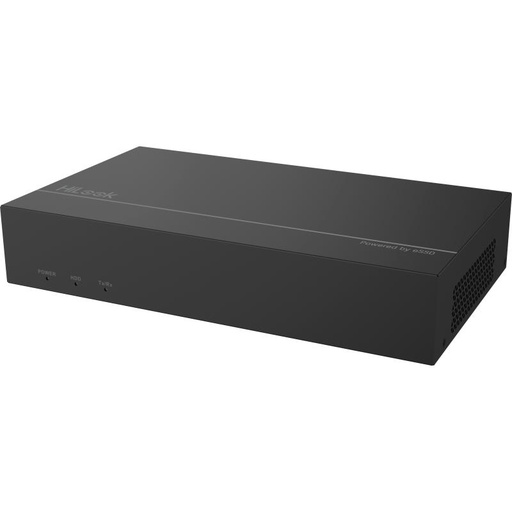

HiLook 16-ch 1080pLite 1U H.265 eSSD DVR

Powered by eSSD technology
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Scene-adaptive bitrate control video compression
Up to 1080p Lite@15 fps encoding capability
Low power consumption
Audio via coaxial cable

PRODUCT SPECIFICATIONS
Brand HiLook
Item model number IL-HIL052E-DVR-E16G-B
Product Type DVR
Power Supply 12 VDC, 1 A
Consumption ≤ 9.5 W (with eSSD)
Working Temperature -10 °C to 45 °C (14 °F to 113 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 235 × 146.6 × 46.6 mm (9.25 × 5.77 × 1.83 inch)

HiLook 8-ch 1080p Lite 1U H.265 eSSD DVR
Powered by eSSD technology
Deep learning-based human and vehicle targets classification of Motion Detection 2.0
Scene-Adaptive Bitrate Control video compression
Up to 1080p Lite@15 fps encoding capability
Low power consumption
Audio via coaxial cable
Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.
Video and Audio
IP Video Input
2-ch
Up to 5 MP resolution
Support H.265+/H.265 IP cameras
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input8-ch via coaxial cable
Audio Output1-ch via HDMI
Synchronous playback8-ch
Recording
Video CompressionH.265 Pro/H.265
Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
Frame Rate
Main stream:
1080p Lite/720p/720p Lite/WD1/4CIF@15 fps
Note:
1080p Lite/720p is 15 fps by default
Sub-stream:
CIF/QVGA@15 fps
Video Bitrate According to the actual scene, scene-adaptive bitrate control technology would automatically allocate appropriate bitrate to ensure the stability of recording period.

General
Power Supply12 VDC, 1 A
Consumption≤ 6.2 W (with eSSD)
Working Temperature-10 °C to 45 °C (14 °F to +113 °F)
Working Humidity10% to 90%
Dimension (W × D × H)152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch)
Weight≤ 0.5 kg (with eSSD, 1.1 lb.)

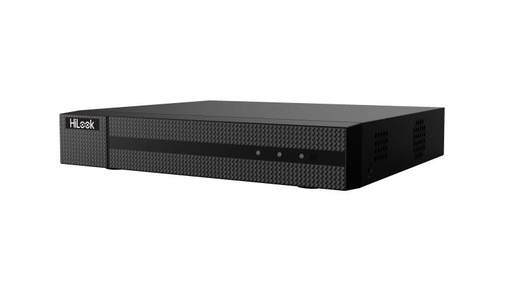

HiLook 16-ch 1080p Lite 1U H.265 DVR
Deep learning-based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 18-ch IP camera input (up to 5 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal
Motion Detection 2.0 Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported.
Video and Audio
IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30

General
Power Supply12 VDC, 2 A
Consumption≤ 10 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight≤ 1.1 kg (without HDD, 2.4 lb.)

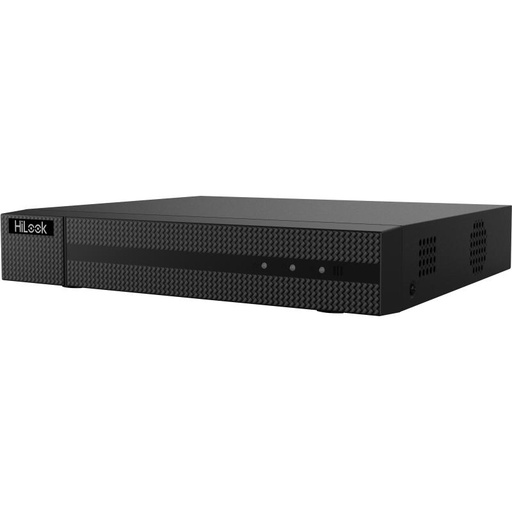

HiLook 8-ch 1080p 1U H.265 DVR
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Long distance transmission over UTP and coaxial cable
H.265 Pro+ compression to improve encoding efficiency and reduce data storage costs
Supports 4 MP lite, and when enabled the image effect is similar with 4 MP
One HDD for continuous video recording
Smart search for efficient playback.
Video and Audio
IP Video Input
4-ch (up to 12-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
*: The 3 MP signal input is only available for channel 1/2.
AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input PAL/NTSC
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Synchronous playback8-ch

General
Power Supply12 VDC, 1.33 A
Consumption≤ 12 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight≤ 1 kg (2.2 lb.)

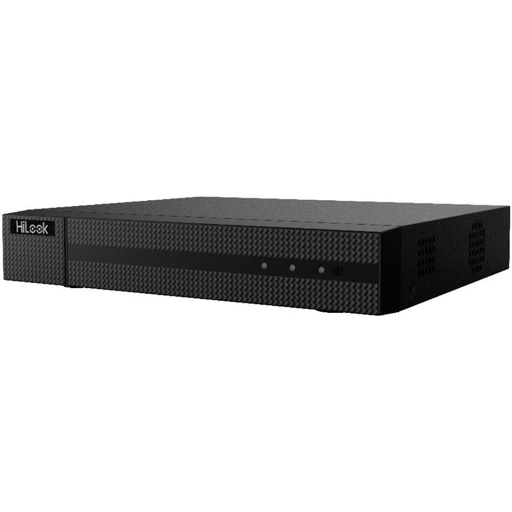

HiLook 8-ch 1080p Lite 1U H.265 DVR
Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 10-ch IP camera input (up to 5 MP)
Encoding ability up to 1080p lite @ 15 fps
Max. 1200 m for 720p HDTVI signal

Motion Detection 2.0 Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Video and Audio
IP Video Input
2-ch (up to 10-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way AudioReuse the first audio input
Synchronous playback8-ch

General
Power Supply12 VDC, 1.5 A
Consumption≤ 17 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight≤ 1 kg (without HDD, 2.2 lb.)

HiLook 4-ch 1080p Lite 1U H.265 DVR
Deep learning-based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 5-ch IP camera input (up to 2 MP)
Encoding ability up to 1080p lite @ 30 fps
Max. 1200 m for 720p HDTVI signal
Motion Detection 2.0 Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights Quick search by object or event type is supported.
Video and Audio
IP Video Input
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Input Support
HDTVI Input1080p25, 1080p30, 720p25, 720p30
Synchronous playback4-ch
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
Video Output Mode HDMI/VGA simultaneous output
Audio Output1-ch, RCA (Linear, 1 KΩ)
Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Two-Way Audio Reuse the first audio input

General
Power Supply12 VDC, 1.5 A
Consumption≤ 16 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity10% to 90%
Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weight≤ 0.8 kg (without HDD, 1.8 lb.)

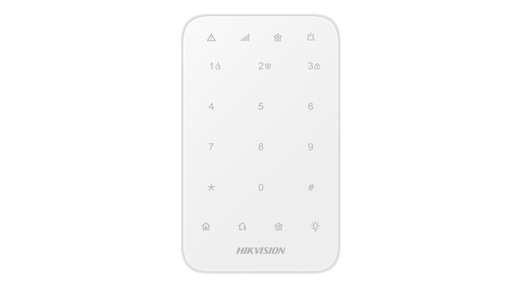

🔒 Secure & Easy-to-Use Alarm System Control

✅ Wireless 868MHz Communication – Reliable two-way connectivity with AES-128 encryption
✅ Full Touch Keypad with LED Backlight – Easy operation in low-light conditions
✅ Remote Configuration via Hik-Connect App – Manage settings from anywhere
✅ Multiple Alarm Modes – Stay/Away arming, panic, fire & medical alerts
📊 Key Features

✔ Easy Installation – Wireless design with replaceable battery
✔ Frequency Hopping – Anti-jamming for stable signal transmission
✔ Zone Control – Arm/disarm specific areas independently
✔ LED Status Indicators – Clear visual feedback
**🏠 Ideal For:

✔ Hikvision AX Pro alarm systems
✔ Smart home security integration
✔ Remote monitoring via Hik-Connect
✔ Quick emergency alerts (panic/fire/medical)
**📦 What's Included?

DS-PK1-E-WE Keypad
Mounting hardware
Quick start guide

"Take control of your security—intuitive wireless keypad for Hikvision AX Pro systems!"

**⚙️ Pro Tips:

Place centrally for easy access in emergencies
Enable silent mode for discreet alarms
Use Hik-Connect app for remote management

**🔍 Why Choose This Keypad?

✔ Secure encrypted communication
✔ Sleek, modern touch interface
✔ Works with AX Pro sensors & detectors

(Part of Hikvision’s complete AX Pro wireless security ecosystem)

AVT808 offers 8 channels of video analysis using AME ( the Artificial Mind Engine )
Capable of Analyzing any rtsp video stream of VGA Resolution at 6 Frames per second per channel. Model includes Power supply, battery, relay outputs, tamper detection and indoor enclosure. Detection regions of up to 30 Meters

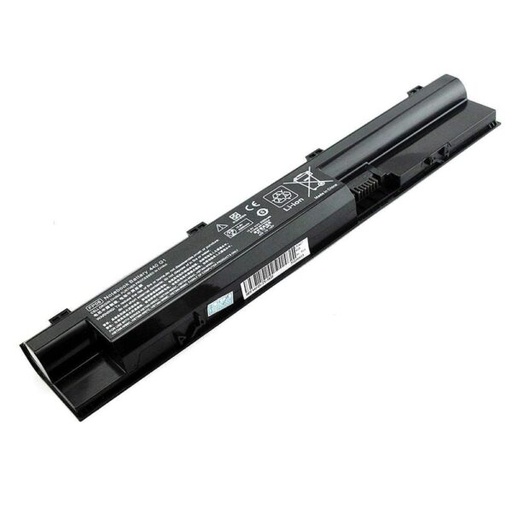

SKU: ABT-HPFP06 | Warranty: 12 months | Condition: Brand New

Extend your HP ProBook’s unplugged runtime with the Astrum ABT-HPFP06 replacement battery—engineered for reliable performance, exact OEM fit, and advanced safety protections.

🌟 Key Benefits
High Capacity: 4400 mAh at 10.8 V delivers long-lasting power
OEM-Perfect Fit: Custom housing for ProBook 440, 445, 450, 455, and 470 series
Certified Safety: CE and RoHS compliant with overcharge, over-discharge, and short-circuit protection
Durable Cycle Life: Maintains optimal capacity over 500+ full charge/discharge cycles
Tool-Free Installation: Plug-and-play swap—no special tools required
Peace of Mind: Backed by a full 12-month manufacturer warranty

📋 Technical Specifications
Specification Details
Battery Type Lithium-Ion (Li-Ion)
Voltage 10.8 V
Capacity 4400 mAh
Cell Count 6-Cell
Dimensions OEM form-factor for ProBook series
Operating Temp. 0 °C to 60 °C (32 °F to 140 °F)
Storage Temp. –20 °C to 45 °C (–4 °F to 113 °F)
Protections Overcharge, Over-discharge, Short-circuit
Certifications CE, RoHS

💻 Compatible HP Models
ProBook 440, 440 G0, 440 G1
ProBook 445, 445 G0, 445 G1
ProBook 450, 450 G0, 450 G1
ProBook 455, 455 G0, 455 G1
ProBook 470, 470 G0

🔑 Compatible Part Numbers
3ICR19/65-3 · 707616-141 · 707616-851 · 707617-421 · 708457-001 · 708458-001 · FP06 · FP09 · H6L26AA · H6L27AA · HSTNN-DB4J · HSTNN-IB4J · ABT-HPFP06 · HSTNN-JB4J · HSTNN-LB4K · HSTNN-UB4J · HSTNN-W92C · HSTNN-W93C · HSTNN-W94C · HSTNN-W95C · HSTNN-W96C · HSTNN-W97C · HSTNN-W98C · HSTNN-W99C · STNN-W95C

🛠 Installation & Care Tips
Power off your notebook and unplug the AC adapter.
Slide the battery release latch and remove the existing pack.
Align contacts, insert Astrum ABT-HPFP06 until it clicks securely.
Fully charge before first use to calibrate the internal gauge.
Avoid extreme temperatures; perform a full discharge/charge cycle monthly to maintain capacity accuracy.

📦 What’s in the Box
1 × Astrum ABT-HPFP06 10.8 V / 4400 mAh (6-Cell) Battery
1 × Quick-Start Guide with Safety & Installation Instructions

SKU: ABT-HP4730 | Warranty: 12 months | Condition: 100% New from Manufacturer

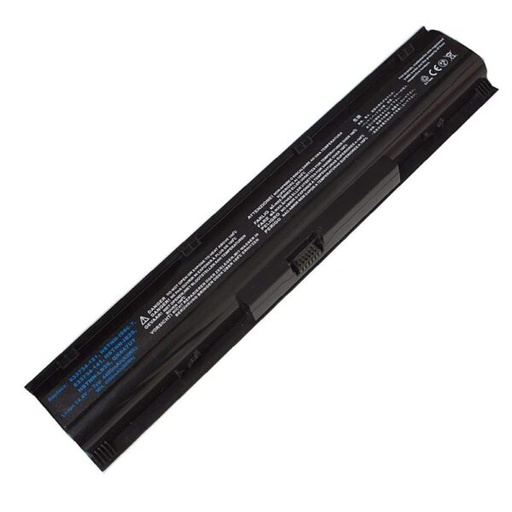

Upgrade your HP ProBook 4370 Series with the Astrum ABT-HP4730 replacement battery, engineered to deliver extended runtime, exact OEM fit, and advanced safety protections.

Key Benefits
Extended runtime: 4400mAh capacity at 14.4V for hours of unplugged productivity
OEM-perfect fit: Compatible with ProBook 4330S, 4331S, 4400, 4430S, 4431S, 4435S, 4436S, 4440S, 4441S, 4445S, 4446S, 4500, 4530S, 4535S, 4540S, 4545S, and 4730s
Certified safety: CE and RoHS compliant with overcharge, over-discharge, and short-circuit protection
Durable cycle life: Maintains consistent performance across 500 + recharge cycles
Tool-free installation: Plug-and-play swap with no special tools required
Peace of mind: Backed by a 12-month warranty

Technical Specifications
Feature Details
Battery Type Lithium-Ion
Voltage 14.4V
Capacity 4400mAh
Cells 4-Cell
SKU ABT-HP4730
Warranty 12 months
Certifications CE, RoHS
Protections Overcharge, Over-discharge, Short-circuit

Compatible HP Models
ProBook 4330S, 4331S, 4400, 4430S, 4431S, 4435S, 4436S, 4440S, 4441S, 4445S, 4446S, 4500, 4530S, 4535S, 4540S, 4545S, 4730s

Compatible Part Numbers
633734-141, 633734-151, 633734-421, 633807-001, B0Y84EA, B6M23EA, B6M92EA, B6N04EA, HSTNN-I98C, HSTNN-I98C-7, HSTNN-IB25, ABT-HP4730, HSTNN-IB2S, HSTNN-LB2S, LJ487UT#ABA, LJ488UT#ABA, LJ502UT#ABA, PR08, QK647AA, QK647UT

Installation & Care Tips
Power off and unplug your laptop before replacing the battery.
Slide the release latch to remove the existing battery.
Align contacts and insert the Astrum ABT-HP4730 until it clicks securely.
Charge fully before first use to calibrate the internal gauge.
Avoid extreme temperatures; perform monthly full-discharge/charge cycles for optimal accuracy.

Package Includes
1 × Astrum ABT-HP4730 14.4V 4400mAh (4-Cell) Battery
1 × Installation & Safety Guide

SKU: ABT-HPRO04 | Warranty: 12 months | Condition: Brand New

🌟 Key Benefits
Extended runtime: 2200 mAh capacity at 14.8 V powers you through the workday.
OEM-perfect fit: Custom-engineered for HP ProBook 400 G3, 430 G3, and 440 G3.
Advanced safety: Integrated overcharge, over-discharge, and short-circuit protection.
Durable cycle life: Retains over 80 % capacity after 300+ full charge/discharge cycles.
Tool-free swap: Slide in/out design lets you replace your battery in seconds.
Peace of mind: Backed by Astrum’s 12-month manufacturer warranty.

📋 Technical Specifications
Feature Details
Battery Type Lithium-Ion (Li-Ion)
Voltage 14.8 V
Capacity 2200 mAh
Energy 32.56 Wh
Cell Count 4-Cell
SKU ABT-HPRO04
Warranty 12 months
Certifications CE, RoHS
Protections Overcharge, Over-discharge, Short-circuit
Operating Temp. 0 °C to 60 °C (32 °F to 140 °F)
Storage Temp. –20 °C to 45 °C (–4 °F to 113 °F)

🔑 Compatible Part Numbers
805044-851
805291-001
811347-001
HSTNN-PB6N
HSTNN-PB6P
HSTNN-Q96C
HSTNN-Q98C
RO04
RO06XL
ABT-HPRO04

💻 Compatible Models
HP ProBook 400 G3
HP ProBook 430 G3
HP ProBook 440 G3

🛠 Installation & Care Tips
Shut down your notebook and remove the AC adapter.
Unlock and slide out the original battery.
Align the Astrum ABT-HPRO04 contacts; slide in until it clicks.
Charge fully before first use to calibrate the internal gauge.
Keep the battery away from extreme heat or cold.
Run a full discharge/charge cycle monthly to maintain accuracy.
Store long-term at ~40 % charge in a cool, dry place.

📦 What’s Included
1 × Astrum ABT-HPRO04 14.8 V / 2200 mAh (4-Cell) Battery
1 × Quick-Start Guide with Safety & Installation Instructions

SKU: ABT‑ASX540 | Warranty: 12 months | Condition: 100% New from Manufacturer

Give your ASUS X540‑series laptop a new lease on life with the Astrum ABT‑ASX540 replacement battery. Designed for perfect fit and reliable performance, it’s ideal for students, professionals, and anyone who needs dependable power on the go.

🌟 Key Features

Perfect Compatibility: Designed for ASUS X540, X540L, X540SA, X540S, X540LA, X540YA, and other X540‑series models.

OEM‑Matched Fit: Works with part numbers C11P1609, C21P1609, B31N1625 (verify your exact ASUS OEM code before purchase).

Reliable Power: 11.1V Li‑Ion battery (available in 2‑cell or 3‑cell configurations) for stable, long‑lasting performance.

Certified Safe: CE and RoHS compliant with built‑in overcharge and overheat protection.

Hassle‑Free Warranty: Backed by a 12‑month manufacturer warranty.

📋 Technical Specifications
Feature Details
Battery Type Lithium‑Ion
Voltage 11.1V
Capacity [Insert confirmed mAh / Wh]
Cell Count 2‑cell or 3‑cell
Connector Original ASUS‑compatible plug
Certifications CE, RoHS
Warranty 12 months
📦 Package Includes
1 × Astrum ABT‑ASX540 Replacement Battery

Installation Guide

🔑 Installation & Care Tips
Power off and unplug your laptop before replacing the battery.
Insert the new battery until it clicks securely into place.
Charge fully before first use to calibrate performance.
Avoid extreme temperatures and store partially charged if unused for long periods.

SKU: ABT‑DL1520 | Warranty: 12 months | Condition: 100% New from Manufacturer

Power your Dell laptop with the Astrum ABT‑DL1520 replacement battery — engineered for extended runtime, seamless compatibility, and certified safety. Built with high‑quality Li‑Ion cells, it’s the ideal solution for restoring performance to aging Dell Inspiron and Vostro models.

🌟 Key Benefits
High Capacity: 4400mAh at 11.1V for longer unplugged productivity.
Perfect Compatibility: Designed for Dell Inspiron 1520, 1521, 1720 and Vostro 1500, 1700.
Certified Safe: CE and RoHS compliant; includes overcharge, overheat, and short‑circuit protection.
Durable Build: Reliable performance across up to 500 recharge cycles.
Easy Installation: Drop‑in replacement with no tools required.
12‑Month Warranty: Hassle‑free support and peace of mind.

📋 Technical Specifications
Feature Details
Battery Type Lithium‑Ion
Voltage 11.1V
Capacity 4400mAh
Cells 6‑Cell
Certifications CE, RoHS
Protections Overcharge, Overheat, Short‑circuit
SKU ABT‑DL1520
Warranty 12 months

💻 Compatible Dell Laptop Models
Dell Inspiron 1520
Dell Inspiron 1521
Dell Inspiron 1720
Dell Vostro 1500
Dell Vostro 1700

🔑 Compatible Part Numbers
W280, 0UW280, NR239, 312‑0589, 451‑10477, FK890, GK476, GK479, 312‑0504, 312‑0575, 312‑0576, 312‑0590, 312‑0594, FP282.

🛠 Installation & Care Tips
Power Down: Shut off the laptop and unplug the charger.
Replace Battery: Remove the old battery and insert the Astrum ABT‑DL1520 until it clicks securely.
Initial Charge: Charge fully before first use to calibrate performance.
Battery Care: Avoid extreme heat; perform occasional full discharge cycles for optimal lifespan.

📦 Package Includes
1 × Astrum ABT‑DL1520 11.1V 4400mAh Battery
1 × User Manual with Safety Guidelines

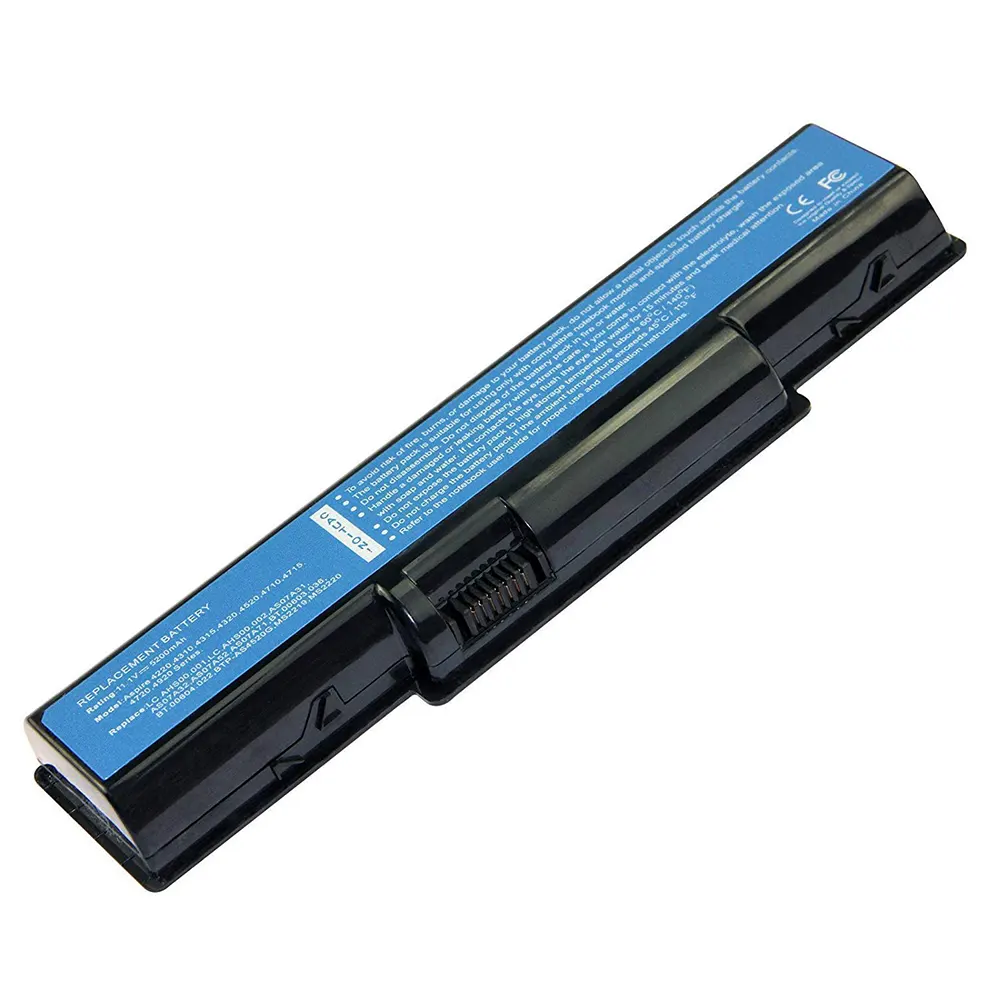

High-Performance Replacement Battery for Acer Aspire 4720 / AS07A31

✔ Compatibility: Designed for Acer Aspire 4720 and other compatible models requiring AS07A31 battery.
✔ Specifications:

Voltage: 11.1V

Capacity: 4400mAh / 48Wh

Battery Type: Li-ion (3-Cell)

Connector Type: Standard Acer-compatible plug

✔ Safety & Reliability:

CE / RoHS Certified

Built-in protection against overcharge, overheating & short circuits

1-Year Warranty

✔ Package Includes:

1 x Astrum Replacement Battery

User Manual

🎙️ All-in-One Podcast Studio with AI Enhancement

✅ 6-Channel Mixer – XLR/TRS combo inputs with 48V phantom power
✅ AI Audio Processing – Real-time noise reduction & voice enhancement
✅ USB-C Audio Interface – 24-bit/96kHz studio-quality recording
✅ Touchscreen Control – 4" LCD for intuitive mixing
✅ Streaming Ready – Direct USB output to OBS/Streamlabs

📊 Technical Specifications

Feature Specification
Model UC8000
Input Channels 4x XLR-1/4" combo, 2x 1/4" TRS
Phantom Power 48V (per channel)
Sample Rate 24-bit/96kHz
AI Features Noise suppression, Voice focus, De-reverb
Outputs USB-C, 3.5mm monitor, XLR main
Display 4" capacitive touchscreen
Warranty 2-Year Limited

🎧 Ideal For:

✔ Podcast Studios – Multi-host interviews
✔ Live Streamers – Professional audio for Twitch/YouTube
✔ Voiceover Artists – AI-clean audio without post-production
✔ House of Worship – Live sound mixing

📦 Package Includes:

UC8000 Mixer Unit
USB-C to USB-C Cable
Power Adapter
Quick Start Guide
Aten AI Mixer App License

"From amateur to pro sound – AI does the heavy lifting!"

⚙️ Pro Setup Tips:

• For vocals: Enable "Voice Focus" AI preset
• Streaming setup: Assign USB as audio source in OBS
• Monitor mix: Use 3.5mm out for zero-latency monitoring
• Save profiles: Store settings for different shows

🔍 Why Choose UC8000?

✔ Smarter Than Competitors – Built-in AI vs manual EQ
✔ More Connectivity – 6 channels vs standard 4-input mixers
✔ Future-Proof – USB-C with 96kHz support

*(For portable use, see UC6000 battery-powered model)*

🎥 Professional Video Capture for Live Streaming & Conferencing

✅ 4K30 HDMI Input – Capture high-resolution video sources
✅ USB-C 3.1 Output – Plug-and-play UVC compatibility
✅ PD 3.0 Pass-Through – 60W power delivery to host device
✅ No Drivers Needed – Works with Zoom/OBS/Teams out-of-the-box
✅ Compact Aluminum Body – Durable and portable

📊 Technical Specifications

Feature Specification
Model UC3021
Input HDMI 2.0 (4K30/1080p60)
Output USB-C 3.1 Gen 1
Power Delivery 60W PD 3.0 pass-through
Compatibility UVC 1.5 compliant
Dimensions 3.9 × 2.4 × 0.8 in (100×60×20mm)
OS Support Windows/macOS/Android/Linux
Warranty 2-Year Limited

🎬 Ideal For:

✔ Content Creators – Capture DSLR/mirrorless cameras
✔ Live Streamers – Connect consoles to streaming PCs
✔ Business Hybrid Meetings – Integrate pro cameras with laptops
✔ Education – Lecture capture setups

📦 Package Includes:

UC3021 Capture Device
USB-C to USB-C Cable (1m)
Quick Start Guide

"The ultimate all-in-one capture solution – no extra power bricks needed!"

⚙️ Pro Setup Tips:

• For 4K capture: Use high-quality HDMI 2.0 cables
• Power Priority: Connect PD charger to capture device first
• OBS Settings: Configure as UVC device at native resolution
• Mac Users: Enable camera permissions in System Preferences

🔍 Why Choose UC3021?

✔ Cleaner Setup – Single-cable solution with power delivery
✔ Wider Compatibility – Works with M1/M2 Macs and iPads
✔ Better Heat Dissipation – Aluminum enclosure vs plastic competitors

*(For multi-input capture, see Aten VS1821 model)*

The Astrum XZ PRO TWS Earbuds deliver a premium audio experience with cutting-edge features designed for modern lifestyles. Powered by Qualcomm 3072 chipset and aptX Adaptive decoding, these earbuds offer high-resolution sound, low latency, and seamless connectivity via Bluetooth 5.3.

Enjoy immersive listening with Hybrid Active Noise Cancellation (ANC) that reduces ambient noise by up to 37dB, while Transparency Mode keeps you aware of your surroundings when needed. With touch controls, managing music, calls, and modes is effortless just a tap away.

Built for comfort and durability, the IPX4-rated design resists sweat and splashes, making it ideal for workouts and outdoor use. The multi-pairing feature allows connection to two devices simultaneously, and the long battery life ensures up to 7 hours of playback (ANC off) or 5 hours (ANC on), with quick recharging via USB-C.

Key Features
🎧 Hybrid ANC Technology – Reduces noise up to 37dB for immersive sound
🔊 aptX Adaptive Audio – High-quality streaming with dynamic adjustment
🧠 Smart Touch Controls – Manage playback, calls, and modes with a tap
🔄 Transparency Mode – Stay aware of your environment while listening
💧 IPX4 Water Resistance – Sweat and splash-proof for active lifestyles
🔋 Long Battery Life – Up to 7 hours playback (ANC off), 5 hours (ANC on)
🔌 USB-C Fast Charging – 1.5h for earbuds, 2h for case
📶 Bluetooth 5.3 – Stable, low-latency wireless connection
📱 Multi-Pairing Support – Connect to two devices simultaneously
🕒 12-Month Manufacturer Warranty – Reliable long-term performance

Technical Specifications
Feature Details
SKU A10612-B
Product Code XZ PRO
Chipset Qualcomm 3072
Audio Decoding aptX Adaptive, aptX, AAC, SBC
ANC Depth Up to 37dB @ 200Hz
Microphones 3 per earbud (6 total)
Bluetooth Protocols A2DP 1.3, AVRCP 1.6, HFP 1.7, SPP 1.2, GATT
Playback Time (ANC Off) Approx. 7 hours
Playback Time (ANC On) Approx. 5 hours
Transparency Mode Supported
ENC Talk Time Approx. 5 hours
Charging Port USB Type-C
Earbud Charging Time Approx. 1.5 hours
Case Charging Time Approx. 2 hours
Standby Time Up to 5 months
Earbud Weight 3.5g each
Charging Case Weight 65g
Water Resistance IPX4
Warranty 12 Months Limited Manufacturer Warranty

What’s Included
1 × Pair of Astrum XZ PRO TWS Earbuds – Black
1 × Charging Case
1 × USB-C Charging Cable
1 × User Manual

Ideal Use Cases
🎶 High-fidelity music streaming with adaptive audio
📞 Clear calls with ENC and multi-mic setup
🏃‍♂️ Workout-ready earbuds with water resistance
🧳 Travel-friendly design with long standby and playback time

The Astrum XZ PIA TWS Earbuds combine premium audio performance with elegant design, delivering a truly immersive and intelligent listening experience. Powered by the Qualcomm 3072 chipset, these earbuds feature aptX Adaptive decoding, Hybrid Active Noise Cancellation (ANC) up to 37dB, and Bluetooth 5.3 for seamless connectivity and crystal-clear sound.

With touch control functionality, you can manage music, calls, and modes effortlessly. The IPX4 water resistance ensures durability during workouts and rainy commutes, while the multi-pairing feature allows simultaneous connection to two devices perfect for switching between your phone and tablet.

Enjoy up to 7 hours of playback with ANC off and 5 hours with ANC or Transparency Mode on. The earbuds recharge in just 1.5 hours, and the stylish charging case tops up in 2 hours, offering extended usability and convenience. Whether you're commuting, working out, or relaxing, the XZ PIA earbuds deliver high-fidelity sound with adaptive noise control and sleek sophistication.

Key Features
🎧 Hybrid ANC Technology – Reduces ambient noise up to 37dB for immersive audio
🔊 aptX Adaptive Audio – High-resolution streaming with dynamic adjustment
🧠 Touch Controls – Effortless management of playback, calls, and modes
🔄 Transparency Mode – Stay aware of your surroundings while listening
💧 IPX4 Water Resistance – Sweat and splash-proof for active lifestyles
🔋 Long Battery Life – Up to 7 hours playback (ANC off), 5 hours (ANC on)
🔌 USB-C Fast Charging – 1.5h for earbuds, 2h for case
📶 Bluetooth 5.3 – Stable, low-latency wireless connection
📱 Multi-Pairing Support – Connect to two devices simultaneously
🕒 24-Month Manufacturer Warranty – Extended peace of mind

Technical Specifications
Feature Details
SKU A10612-H
Product Code XZ PIA
Chipset Qualcomm 3072
Audio Decoding aptX Adaptive, aptX, AAC, SBC
ANC Depth Up to 37dB @ 200Hz
Microphones 3 per earbud (6 total)
Bluetooth Protocols A2DP 1.3, AVRCP 1.6, HFP 1.7, SPP 1.2, GATT
Playback Time (ANC Off) Approx. 7 hours
Playback Time (ANC On) Approx. 5 hours
Transparency Mode Supported
ENC Talk Time Approx. 5 hours
Charging Port USB Type-C
Earbud Charging Time Approx. 1.5 hours
Case Charging Time Approx. 2 hours
Standby Time Up to 5 months
Earbud Weight 3.5g each
Charging Case Weight 65g
Water Resistance IPX4
Warranty 24 Months Limited Manufacturer Warranty

What’s Included
1 × Pair of Astrum XZ PIA TWS Earbuds – Gold
1 × Charging Case
1 × USB-C Charging Cable
1 × User Manual

Ideal Use Cases
🎶 High-fidelity music streaming with adaptive audio
📞 Clear calls with ENC and multi-mic setup
🏃‍♂️ Workout-ready earbuds with water resistance
🧳 Travel-friendly design with long standby and playback time
