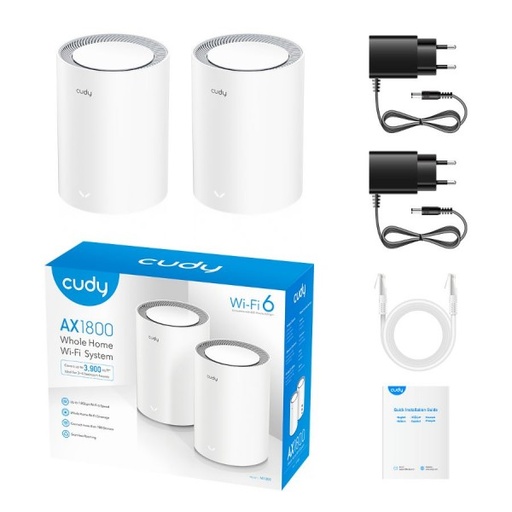

Cudy's CD-M18002 is a 2 pack, dual band 802.11ax (WiFi 6) mesh system featuring 2x Gigabit Ethernet Ports, integrated antennas and an aggregate data rate of up to 1775Mbps. The router supports Cudy's whole home mesh system, seamless roaming and multiple VPN Client options including PPTP, L2TP, OpenVPN, WireGuard, IPSec and Zerotier. It also supports OpenWRT, a popular open-sourced firmware, which allows access to more features and customisation. Access the OpenWRT firmware for this router here.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: 2.4GHz: 4.9dBi ; 5.8GHz: 6.04dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 1201Mbps
Ethernet Ports: 2x 10/100/1000 (Per Mesh Point)
Hardware Button: Reset ; Pair
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Dimensions: 150 x 150 x 110 mm
Weight: 405g

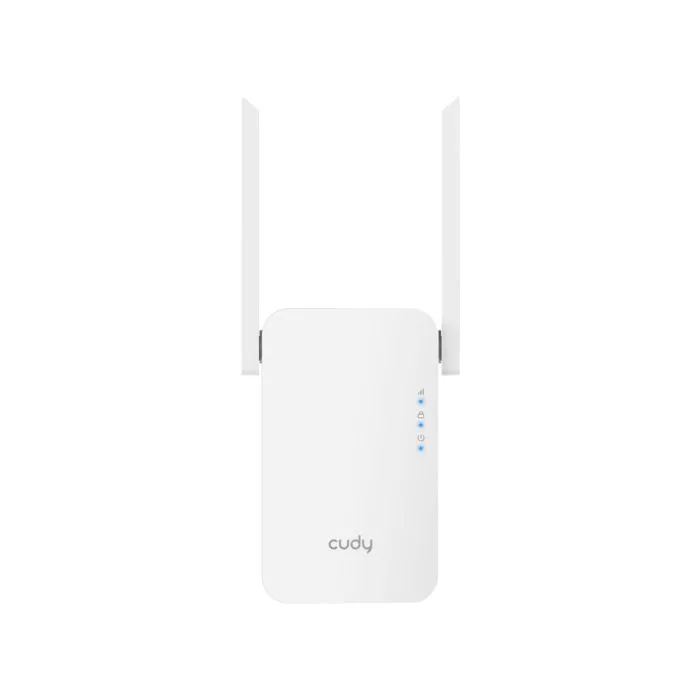

Cudy's CD-RE1200 is a dual band 802.11ac (WiFi 5) range extender featuring 1x Fast Ethernet Ports, 2x 5dBi high gain antennas and an aggregate data rate of up to 1167Mbps. The range extender supports Cudy's whole home mesh system and can operate in both range extender and access point mode.

Specifications

Antenna Gain: 2x 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset ; Pair
Max. Power Consumption: 10w
Mounting: Plug Point
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 2 Pin 5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 110V-240V
USB Ports: None
Dimensions: 130 x 80 x 100mm
Weight: 310g

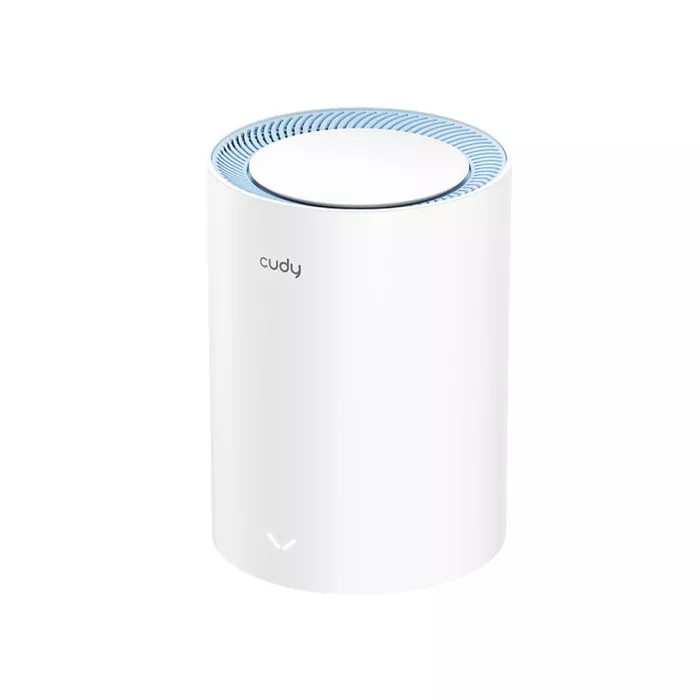

Cudy's CD-M12001 is a dual band 802.11ac (WiFi 5) mesh router featuring 2x Fast Ethernet Ports, integrated antennas and an aggregate data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system, seamless roaming and multiple VPN Client options including PPTP, L2TP, OpenVPN, WireGuard, IPSec and Zerotier.

*Note: Easily manage this device on site or remotely using the mobile app.

Specifications

Antenna Gain: 2x 4dBi Internal Antennas
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset ; Pair
Max. Power Consumption: 10W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

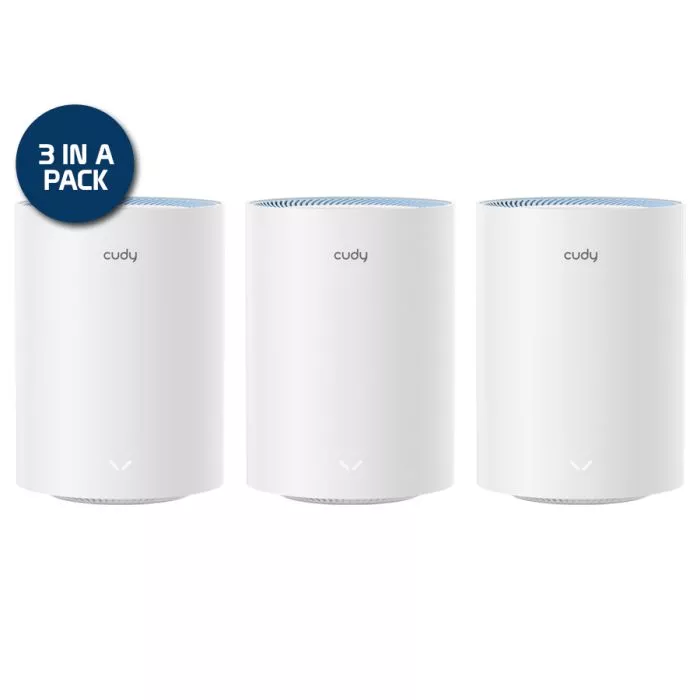

Cudy's CD-M12003 is a 3 pack, dual band 802.11ac (WiFi 5) mesh system featuring 2x Fast Ethernet Ports, integrated antennas and an aggregate data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system, seamless roaming and multiple VPN Client options including PPTP, L2TP, OpenVPN, WireGuard, IPSec and Zerotier.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: 2x 4dBi Internal Antennas
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100 (Per Mesh Point)
Hardware Button: Reset ; Pair
Max. Power Consumption: 10W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Dimensions: 150 x 150 x 110 mm
Weight: 900g

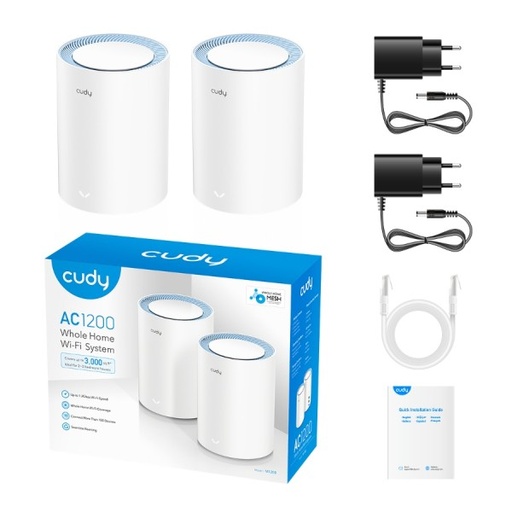

Cudy's CD-M12002 is a 2 pack, dual band 802.11ac (WiFi 5) mesh system featuring 2x Fast Ethernet Ports, integrated antennas and an aggregate data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system, seamless roaming and multiple VPN Client options including PPTP, L2TP, OpenVPN, WireGuard, IPSec and Zerotier.

*Note: Easily manage this device on site or remotely using the mobile app.
Antenna Gain: 2x 4dBi Internal Antennas
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100 (Per Mesh Point)
Hardware Button: Reset ; Pair
Max. Power Consumption: 10W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None

Dimensions: 150 x 150 x 110mm
Weight: 405g

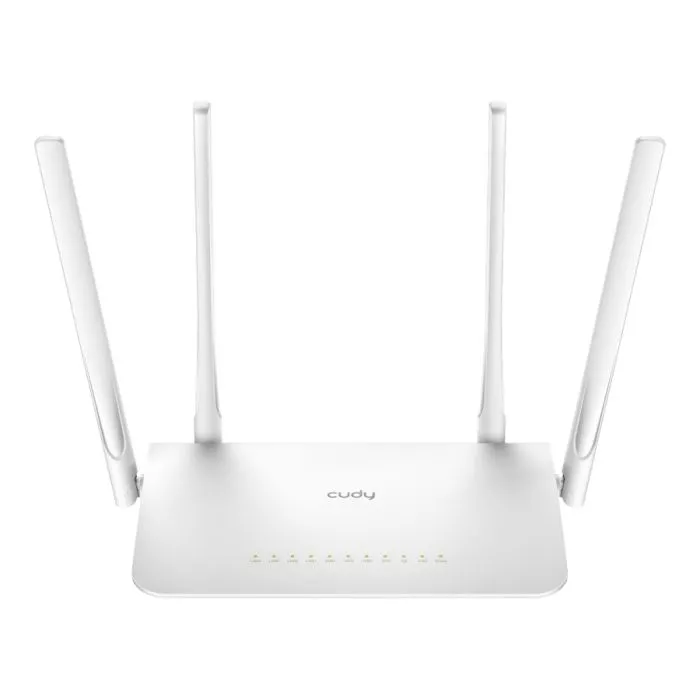

Cudy's CD-WR1300 is a dual-band 802.11ac (WiFi 5) wireless router featuring 5x Gigabit Ethernet ports and an aggregate data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system, DNS over TLS (DoT), and various VPN server or client protocols as well as TR-069. It also supports OpenWRT, a popular open-sourced firmware, which allows access to more features and customisation. Access the OpenWRT firmware for this router here.

*Note: Easily manage this device on site or remotely using the mobile app.

Specifications

Antenna Gain: 4x5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset ; WPS
Max. Power Consumption: 10W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 250 x 240 x 40mm
Weight: 375g

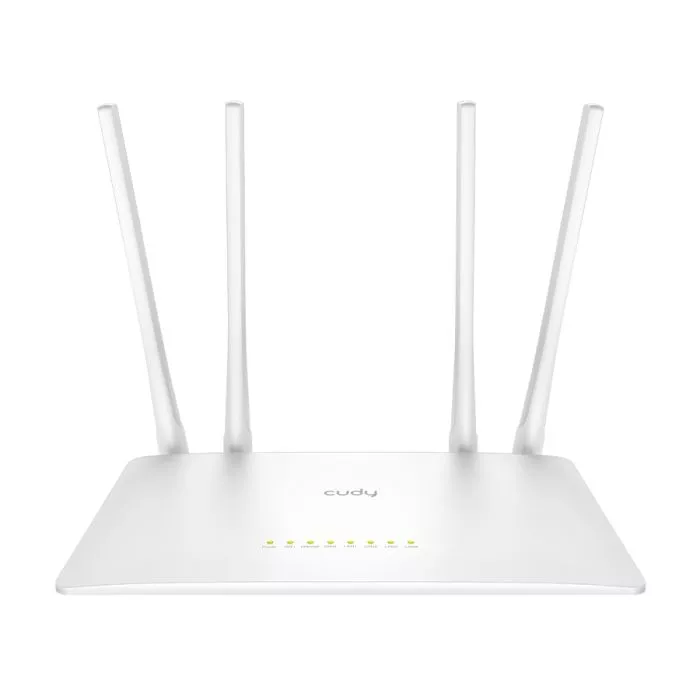

Cudy's CD-WR1200 is a dual-band WiFi 5 wireless router featuring 5x Fast Ethernet ports, 4x 5dBi high gain antennas and an aggregate data rate of up to 1167Mbps. The router features a built in firewall and VPN client, IPv6 compatibility and is easily deployed using WPS.

*Note: Easily manage your Cudy devices on site (Local App Management Only) using the mobile app. No Cudy Mesh support. VPN client mode only.

Specifications

Antenna Gain: 4x 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 5x 10/100
Hardware Button: Reset ; WPS
Max. Power Consumption: 9W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 221 x 134.6 x 27.9 mm

Cudy's CD-GS108D features 8x Gigabit Ethernet Ports and supports non-blocking switching architecture and MAC address auto-learning and auto-aging.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: None
Max. Power Consumption: 2.3W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 5V 1A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V
Dimensions: 143 x 72.7 x 26.9 mm
Weight: 215g

Cudy's CD-FS1010PG is an 8 Port Fast Ethernet switch with 8x 802.3af/at PoE ports and 2x Gigabit Uplink ports. The switch offers a 115W PoE budget, up to 32W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-8 while Extender mode increases the transmission distance on ports 1-8 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port.

Specifications

Ethernet Ports: 8x 10/100; 2x 10/100/1000
Hardware Button: VLAN; Extender; Default
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100-240V
Dimensions: 220 x 150 x 40mm
Weight: 800g

Cudy's CD-FS1006P is a 5 Port Fast Ethernet switch with 4x 802.3af/at PoE ports and 2x Fast Ethernet Uplink ports. The switch offers a 60W PoE budget, up to 32W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-4 while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port.

Specifications

Ethernet Ports: 6x 10/100
Hardware Button: VLAN; Extender; Default
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: -20°C to 50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100-240V
Dimensions: 200 x 120 x 50mm
Weight: 600g

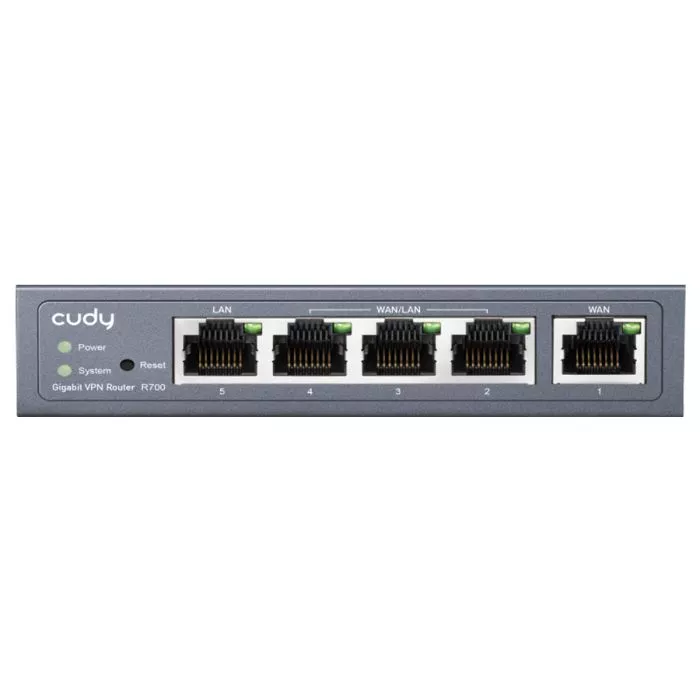

Cudy's CD-R700 features 5x Gigabit Ethernet Ports which are comprised of 3x LAN/WAN ports, 1x dedicated WAN and 1x LAN port. The router supports multi-WAN load balancing, flexible traffic control, DNS over TLS (DoT), various VPN server/client protocols and a variety of security mechanisms.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN/WAN) ; 1x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Processor: MT7621DA
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 12V
System Memory: 128MB DDR
USB Ports: None
Dimensions: 119 x 85 x 28 mm

Cudy's CD-GS105D features 5x Gigabit Ethernet Ports and supports non-blocking switching architecture and MAC address auto-learning and auto-aging.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: None
Max. Power Consumption: 2.3W
Mounting: Desktop
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 5V 0.5A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V
Dimensions: 100 x 69 x 24 mm
Weight: 75g

Cudy's CD-GS1005PT is a 5-Port Gigabit switch with 4x 802.3af/at PoE ports, 1x SFP and 1x Gigabit Uplink ports. The switch offers a 115W PoE budget with up to 60W (802.3bt) on port 1 and 30W on ports 2~4. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-4 while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: -20°C to 50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~4
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 200 x 112 x 40mm
Weight: 600g

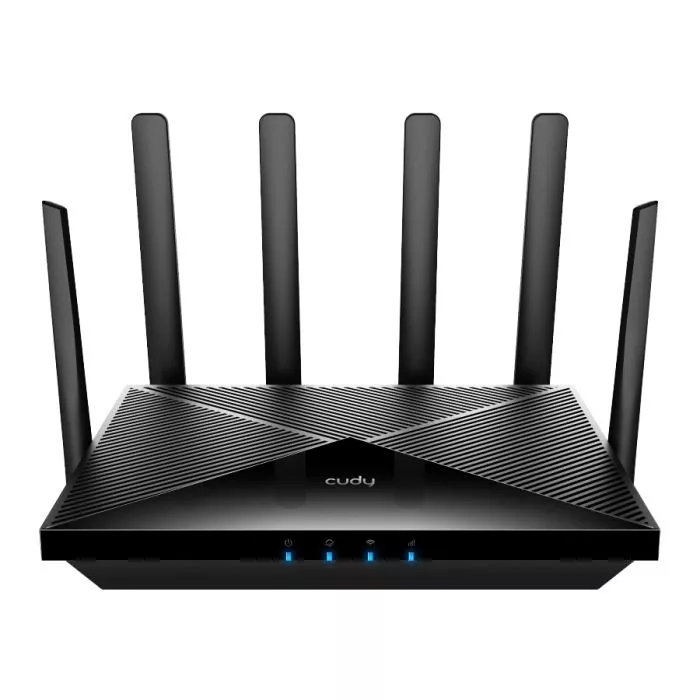

Cudy's CD-LT700 is a dual band 802.11ac (WiFi 5) Gigabit router with an integrated CAT6 LTE modem offering speeds of up to 50Mbps uplink and 300Mbps downlink. The router features 4x Gigabit Ethernet ports, 2x fixed WiFi antennas, 4x detachable LTE antennas and an aggregate wireless data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system, TR069 as well as multiple VPN Client options including PPTP, L2TP, OpenVPN, Wire Guard, IPSec and Zero tier.

Specifications

Antenna Gain: LTE: 4x 5dBi (detachable); Wi-Fi: 2x 5dBi
Beam-width: 360°
Data Rate: LTE: 300Mbps Downlink; 50Mbps Uplink; Wireless: 2.4GHz: 300Mbps ; 5.8GHz: 867Mbps
Ethernet Ports: 3x 10/100/1000 (LAN); 1x 10/100/1000 (LAN/WAN)
Hardware Button: Reset ; WPS
Max. Power Consumption: 11W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 45°
PoE Input: None
PoE Output: None
Power Input: 12V 1.5A Power Supply (Included)
Serial Interface: None
SIM Slots: 2 (Nano SIM)
Supported Voltage Range: 12V 1.5A
USB Ports: None
Dimensions: 252.5 x 161 x 48.2 mm

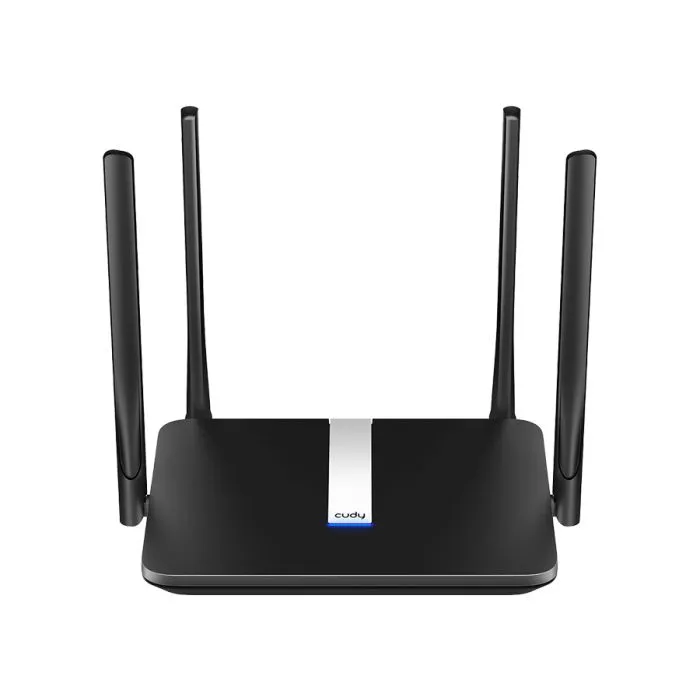

Cudy's CD-LT500 is a dual band 802.11ac (WiFi 5) Fast Ethernet router with an integrated CAT4 LTE modem with speeds of up to 50Mbps uplink and 150Mbps downlink. The router features 4x Fast Ethernet ports, 4x 5dBi high gain antennas and an aggregate wireless data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system as well as multiple VPN Client options including PPTP, L2TP, OpenVPN, Wire Guard, IPSec and Zero tier.

Specifications

Antenna Gain: 5dBi (2x WiFi, 2x LTE)
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink; Wireless: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 3x 10/100 (LAN); 1x 10/100 (LAN/WAN)
Hardware Button: Reset; WPS
Max. Power Consumption: 10W
Mounting: Desktop
Operating System: Cudy
Operating Temperature: 0° to 40°
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Nano SIM)
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 200 x 130 x 40mm
Weight: 299g

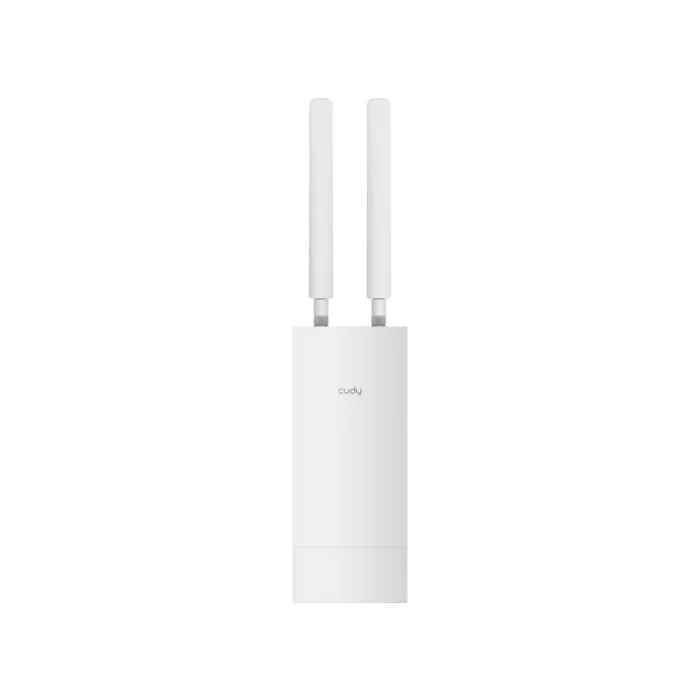

Cudy's CD-LT500O is an IP65 outdoor, dual band WiFi 5 (802.11ac) Fast Ethernet router. With an integrated CAT4 LTE modem, it reaches speeds of up to 50Mbps uplink and 150Mbps downlink. It features 1x Fast Ethernet port, 2x Internal WiFi antennas, 2x detachable LTE antennas, and an aggregate wireless data rate of up to 1167Mbps. The router supports Cudy's whole home mesh system (only as the main router) as well as multiple VPN options including PPTP, L2TP, OpenVPN, Wire Guard, IPSec and Zero tier.

Specifications

Antenna Gain: LTE: 2x 5dBi; Wireless: 2.4GHz: 3.5 dBi ; 5GHz: 5dBi
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink; Wireless: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset; WPS
Max. Power Consumption: 10W
Mounting: Pole-mount or Wall-mount
Operating System: Cudy
Operating Temperature: -20° to 60°
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE (Included)
Serial Interface: None
SIM Slots: 1 (Nano SIM)
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 200 x 130 x 40mm
Weight: 299g

Cudy’s CD-GSPOE40 is a 4-Port Gigabit PoE switch with an 802.3af/at/bt Gigabit PoE input port. The switch can only be powered via PoE input on port 5. The switch has a maximum PoE budget of 60W when powered by 802.3bt and can supply up to 30W per port. It can be either desktop or wall mounted.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: None
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at/bt
PoE Output: 802.3af/at PoE on Ports 1~4
Power Input: 802.3af/at/bt on Port 5
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 44-57V (802.3af/at/bt)
Dimensions: 119 x 85 x 28 mm

Cudy's CD-GS1024 is a 24 Port Gigabit Switch that supports both desktop and rack-mount options. It features a toggle switch with VLAN, Extender and Default modes. In Default mode all ports operate freely. VLAN mode enables port isolation on ports 1-22 while Extender mode increases the transmission distance on ports 1-22 to 250m at 10Mbps.
Ethernet Ports: 24x 10/100/1000
Hardware Button: None
Max. Power Consumption: 15W
Mounting: Desktop or Rack-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100V-240V

Dimensions: 270 x 180 x 44mm

Provide a variety of installation methods for easy deployment in any environment
● Support 11-inch Rack-mount Steel Case
● Support Desktop installation

High Performance
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Power Saving
Save power up to 40% - The GS1024 uses green Ethernet technology to make your network compatible without compromising performance. The switch automatically powers down the ports that are idle and budgets power output for different Ethernet cable lengths. It helps you save power up to 40%.


Features
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
Store-and-Forward switching method
Supports 16K MAC address auto-learning and auto-agin

Cudy's CD-GS1026PS is a 24 Port Gigabit switch with 24x 802.3af/at PoE ports, 2x Gigabit and 2x SFP Uplink ports. The switch offers a 280W PoE budget and up to 30W per PoE port. In Extended Mode, the transmission range on ports 17-24 is extended to 250 meters at 10Mbps. The Watchdog function continuously monitors PoE connections when in Extender Mode. If an error is detected on the device, the switch immediately restarts the port.

Specifications

Ethernet Ports: 26x 10/100/1000
Hardware Button: Extended; Default
Max. Power Consumption: 20W
Mounting: Rack-Mount
Operating System: None
Operating Temperature: -10~50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 320 x 207 x 44 mm
Weight: 2.5kg

Cudy's CD-FS1026PS is a 26-Port Fast Ethernet switch with 24x 802.3af/at PoE ports, 2x Gigabit, and 1x SFP Uplink ports. The switch offers a 290W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-24 while Extender mode increases the transmission distance on ports 1-24 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections when in VLAN or Extender Mode. If an error is detected on the device, the switch immediately restarts the port.

Specifications

Ethernet Ports: 24x 10/100; 2x 10/100/1000
Hardware Button: VLAN; Extender; Default
Max. Power Consumption: 10W
Mounting: Rackmount
Operating System: None
Operating Temperature: -20°C to 50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 320 x 210 x 50mm
Weight: 1.9kg
