Brand: UltraLAN
SKU/Product Code: CAB‑C‑64509OD
Description: 9U outdoor wall mount cabinet with 450mm depth, 2 cooling fans, weatherproof steel construction, and 3‑point locking system.

Product Overview
The UltraLAN CAB‑C‑64509OD is a rugged outdoor wall mount cabinet designed to protect sensitive networking equipment from harsh environments. Built from electro‑galvanized cold rolled steel with a powder‑coated finish, it resists corrosion and ensures long‑term durability.

For weatherproofing, the cabinet features a polyurethane door joint strip for water and dust protection, plus a roof awning to prevent rain ingress. Security is enhanced with a 3‑point swing handle locking system, while ventilation is managed through side panel vents with replaceable mesh filters and 2 ceiling‑mounted fans for efficient heat dissipation. Cable entry is provided via rubber‑sealed glands at the base, and four hooks on top simplify installation.

Key Features
9U outdoor wall mount cabinet – 450mm body depth (500mm including rooftop)
Powder‑coated electro‑galvanized cold rolled steel – corrosion resistant
Supplied fully assembled – saves installation time
Polyurethane door joint strip – water & dust protection
Roof awning – prevents rain ingress
3‑point swing handle locking system – enhanced security
2 ceiling‑mounted fans – improved airflow and cooling
Side vents with replaceable mesh filters – dust resistance
Adjustable 19" mounting rails – numbered U markings for easy alignment
Cable entry via round glands with removable rubber covers
4 hooks on top – easier installation

Technical Specifications
Specification Details
Product Code CAB‑C‑64509OD
Manufacturer UltraLAN
Rack Units 9U
Rack Width 19"
Depth 450mm body / 500mm including rooftop
Dimensions (W × D) 600mm wide × 450mm deep
Material Electro‑galvanized cold rolled steel
Finish Powder‑coated
Front Door 3‑point swing handle lock, polyurethane seal
Cooling 2 ceiling‑mounted fans
Side Panels Vented with replaceable mesh filters
Cable Entry Round glands with rubber covers (base)
Mounting Wall mount (hooks included)
Assembly Supplied fully assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~28–30 kg (typical for 9U outdoor steel cabinets with fans)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 32 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑C‑64509WMFA
Description: 9U fixed wall mount cabinet with 450mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑64509WMFA is a cost‑effective wall mount cabinet designed for smaller networking installations in retail shops, small offices, and school environments. Its compact size and wall‑mount design save valuable floor space while providing secure housing for networking equipment.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features toolless removable side panels for easy access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with keylock provides both visibility and security.

Key Features
9U fixed wall mount cabinet – compact and space‑saving
Enclosure depth: 450mm – suitable for networking gear
Strengthened safety glass front door – with lock and keys
Toolless removable side panels – easy access for installers
Venting slots with 2 fan mountings (fans not included)
Adjustable rail depth – flexible equipment installation
Powder‑coated finish – scratch resistant and durable
Pre‑assembled – saves time and effort
Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑64509WMFA
Manufacturer UltraLAN
Rack Units 9U
Rack Width 19"
Depth 450mm
Dimensions (H × W × D) 515 × 615 × 465 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Toolless removable
Fan Mountings 2 slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~22–24 kg (typical for 9U steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 26 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑CPDU‑09SAIEC14
Description: 9‑socket vertical rack‑mount PDU with IEC plug, designed to provide 3pin SA power points for cabinet hardware.

Product Overview
The UltraLAN CAB‑CPDU‑09SAIEC14 is a 9‑socket vertical rack PDU designed for efficient power distribution inside server and network cabinets. It provides nine 3pin SA outlets for hardware and mounts vertically against cabinet railings for neat integration.

Equipped with an IEC power cord, this PDU connects directly to a UPS, making it ideal for professional server environments. For added flexibility, an IEC female to SA 3pin power cord (1.8m) can be purchased separately, allowing connection to a standard SA 220V socket.

Key Features
Vertical rack‑mount design – fits standard server/network cabinets
9 × 3pin SA power sockets – reliable distribution for cabinet hardware
IEC power cord – direct connection to UPS or mains supply
Optional IEC female to SA 3pin cord (1.8m) – for SA 220V socket use
Durable construction – long‑lasting performance
Ideal for powering servers, switches, and networking gear

Technical Specifications
Specification Details
Product Code CAB‑CPDU‑09SAIEC14
Manufacturer UltraLAN
Type Rack Mount PDU
Rack Size 19" standard width (vertical mount)
Sockets 9 × 3pin SA
Plug Type IEC
Cord Option IEC female to SA 3pin (1.8m, sold separately)
Mounting Vertical, against cabinet railings
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~1.5–2 kg (aluminium + sockets + cord)
Packaging (protective box + padding): ~0.5–0.7 kg
Gross shipping weight: ± 2.5 kg

Brand: UltraLAN
SKU/Product Code: CAB‑C‑6606WMSA
Description: 6U swing frame wall mount cabinet with 600mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑6606WMSA is a swing frame wall mount cabinet designed for smaller networking installations where space is limited, such as retail shops, small offices, or schools. Its hinged back section allows the cabinet to swing out from the wall, providing easy access to the rear of equipment — especially useful for cable management.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features toolless removable side panels for quick access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with lock provides both visibility and security.

Key Features
6U swing frame wall mount cabinet – compact and space‑saving
Hinged back section – easy rear access for cabling
Enclosure depth: 600mm – accommodates deeper equipment
Strengthened safety glass front door – with lock and keys
Toolless removable side panels – quick access for installers
Venting slots with 2 fan mountings (fans not included)
Adjustable rail depth – flexible equipment installation
Powder‑coated finish – scratch resistant and durable
Pre‑assembled – saves time and effort
Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑6606WMSA
Manufacturer UltraLAN
Rack Units 6U
Rack Width 19"
Depth 600mm
Dimensions (H × W × D) 385 × 615 × 615 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Toolless removable
Cooling 2 fan slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~20–22 kg (typical for 6U swing frame steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 24 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑C‑64506OD
Description: 6U outdoor wall mount cabinet with 450mm depth, 2 cooling fans, weatherproof steel construction, and 3‑point locking system.

Product Overview
The UltraLAN CAB‑C‑64506OD is a rugged outdoor wall mount cabinet designed to protect sensitive networking equipment from harsh environments. Built from electro‑galvanized cold rolled steel with a powder‑coated finish, it resists corrosion and ensures long‑term durability.

For weatherproofing, the cabinet features a polyurethane door joint strip for water and dust protection, plus a roof awning to prevent rain ingress. Security is enhanced with a 3‑point swing handle locking system, while ventilation is managed through side panel vents with replaceable mesh filters and 2 ceiling‑mounted fans for efficient heat dissipation. Cable entry is provided via rubber‑sealed glands at the base, and four hooks on top simplify installation.

Key Features
6U outdoor wall mount cabinet – 450mm body depth (500mm including rooftop)
Powder‑coated electro‑galvanized cold rolled steel – corrosion resistant
Supplied fully assembled – saves installation time
Polyurethane door joint strip – water & dust protection
Roof awning – prevents rain ingress
3‑point swing handle locking system – enhanced security
2 ceiling‑mounted fans – improved airflow and cooling
Side vents with replaceable mesh filters – dust resistance
Adjustable 19" mounting rails – numbered U markings for easy alignment
Cable entry via round glands with removable rubber covers
4 hooks on top – easier installation

Technical Specifications
Specification Details
Product Code CAB‑C‑64506OD
Manufacturer UltraLAN
Rack Units 6U
Rack Width 19"
Depth 450mm body / 500mm including rooftop
Dimensions (W × D) 600mm wide × 450mm deep
Material Electro‑galvanized cold rolled steel
Finish Powder‑coated
Front Door 3‑point swing handle lock, polyurethane seal
Cooling 2 ceiling‑mounted fans
Side Panels Vented with replaceable mesh filters
Cable Entry Round glands with rubber covers (base)
Mounting Wall mount (hooks included)
Assembly Supplied fully assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~24–26 kg (typical for 6U outdoor steel cabinets with fans)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 28 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑C‑64506WMFA
Description: 6U fixed wall mount cabinet with 450mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑64506WMFA is a cost‑effective fixed wall mount cabinet designed for smaller networking installations in retail shops, small offices, and school environments. Its compact size and wall‑mount design save valuable floor space while providing secure housing for networking equipment.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features removable side panels for easy access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with lock provides both visibility and security.

Key Features
6U fixed wall mount cabinet – compact and space‑saving

Enclosure depth: 450mm – suitable for networking gear

Strengthened safety glass front door – with lock and keys

Removable side panels – quick access for installers

Venting slots with 2 fan mountings (fans not included)

Adjustable rail depth – flexible equipment installation

Powder‑coated finish – scratch resistant and durable

Pre‑assembled – saves time and effort

Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑64506WMFA
Manufacturer UltraLAN
Rack Units 6U
Rack Width 19"
Depth 450mm
Dimensions (H × W × D) 385 × 615 × 465 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Removable
Cooling 2 fan slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~20–22 kg (typical for 6U fixed steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 24 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑C‑6604WMSA
Description: 4U swing frame wall mount cabinet with 600mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑6604WMSA is a compact swing frame wall mount cabinet designed for smaller networking installations in retail shops, small offices, and school environments. Its hinged back section allows the cabinet to swing out from the wall, providing easy access to the rear of equipment especially useful for cable management.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features removable side panels with locks for added security, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with lock provides both visibility and protection.

Key Features
4U swing frame wall mount cabinet – space‑saving design
Hinged back section – easy rear access for cabling
Enclosure depth: 600mm – accommodates deeper equipment
Strengthened safety glass front door – with lock and keys
Removable side panels with locks – secure and accessible
Venting slots with 2 fan mountings (fans not included)
Adjustable rail depth – flexible equipment installation
Powder‑coated finish – scratch resistant and durable
Pre‑assembled – saves time and effort
Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑6604WMSA
Manufacturer UltraLAN
Rack Units 4U
Rack Width 19"
Depth 600mm
Dimensions (H × W × D) 315 × 615 × 615 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Removable, lockable
Cooling 2 fan slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~18–20 kg (typical for 4U swing frame steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 22 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑C‑64504WMFA
Description: 4U fixed wall mount cabinet with 450mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑64504WMFA is a compact fixed wall mount cabinet designed for smaller networking installations in retail shops, small offices, and school environments. Its wall‑mount design saves valuable floor space while providing secure housing for networking equipment.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features removable side panels for easy access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with lock provides both visibility and security.

Key Features
4U fixed wall mount cabinet – compact and space‑saving
Enclosure depth: 450mm – suitable for networking gear
Strengthened safety glass front door – with lock and keys
Removable side panels – quick access for installers
Venting slots with 2 fan mountings (fans not included)
Adjustable rail depth – flexible equipment installation
Powder‑coated finish – scratch resistant and durable
Pre‑assembled – saves time and effort
Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑64504WMFA
Manufacturer UltraLAN
Rack Units 4U
Rack Width 19"
Depth 450mm
Dimensions (H × W × D) 295 × 615 × 465 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Removable
Cooling 2 fan slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~16–18 kg (typical for 4U fixed steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 20 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
Product Code: FIB‑T‑FS2
Description: UltraLAN 4.3″ Touch Screen Fiber Fusion Splicer

Product Overview
The UltraLAN FIB‑T‑FS2 Fiber Optic Fusion Splicer is a precision tool engineered for fast, efficient, and reliable fiber optic cable splicing. With advanced features such as rapid heating technology, a high‑resolution 180° flip‑up LCD touch screen, and a six‑motor drive system, it ensures superior accuracy and reduced positioning errors. Built‑in testing tools, extended battery life, and versatile splicing capabilities make it ideal for professional network installations and maintenance tasks.

Key Features
Rapid heating technology: 8‑second fusion time, 18‑second heating cycle
High‑resolution 180° flip‑up LCD touch screen with intuitive GUI
Six‑motor drive system for enhanced precision and reduced errors
Built‑in red light source (VFL) and optical power meter (OPM) with self‑calibration
Large storage capacity for tens of thousands of splice records
5200mAh battery with extended operational life and power‑saving modes
Three‑in‑one universal clamp for patch cords, bare fibers, and leather cables
LED lighting for low‑light environments, plus status and heating indicators
Intelligent fault detection and prompt notifications
Supports external charging, USB upgrades, and splice data export
Comprehensive accessory package including toolbox and fiber optic cleaver
Estimated gross shipping weight: 4.5–5.0 kg (device + accessories + packaging)

Technical Specifications
Feature Details
Product Code FIB‑T‑FS2
Display 4.3″ LCD touch screen, 180° flip‑up
Fusion Time 8 seconds
Heating Cycle 18 seconds
Motors Six‑motor drive system
Testing Tools Built‑in VFL and OPM (six wavelengths)
Battery 5200mAh, pop‑up compartment, extended life
Clamp Three‑in‑one universal clamp
Storage Large capacity for splice records
Connectivity USB upgrades, external charging, data export
Dimensions Standard portable splicer size (toolbox included)
Gross Shipping Weight 4.5–5.0 kg
Warranty As per manufacturer

What’s Included
1 × UltraLAN FIB‑T‑FS2 Fiber Fusion Splicer
1 × Toolbox
1 × Fiber optic cleaver
1 × Power adapter and charging accessories
1 × User manual

Brand: UltraLAN
SKU/Product Code: CAB‑C‑61027FSUA
Description: 27U free‑standing server cabinet with 1m depth, tempered glass door, 4 cooling fans, 3 shelves, and 800kg load capacity.

Product Overview
The UltraLAN CAB‑C‑61027FSUA is a 27U free‑standing server cabinet designed for professional IT, telecom, and data environments. With a depth of 1 meter (1000mm), it accommodates larger equipment while ensuring durability and stability.

This cabinet includes a tempered glass front door, lockable doors, and cable entry points at the top and bottom for flexible installation. It comes with 3 full‑depth shelves, a complete four‑way fan unit, and adjustable feet with lockable castors for mobility and stability. Built from high‑strength steel with powder coating, it supports up to 800kg static load capacity.

Key Features
27U free‑standing server cabinet – 1m deep
Tempered glass front door – secure and stylish
Lockable doors – enhanced security
Cable entry spacing – top & bottom
Numbered 19" punch profiles – front & rear for easy alignment
Adjustable feet & lockable castors – stability and mobility
Complete four‑way fan unit – efficient cooling
3 full‑depth shelves included – flexible mounting options
Earthing and grounding strips – safety compliance
Supplied flat‑packed (3 boxes) – easier transport
Static load capacity: 800kg

Technical Specifications
Specification Details
Product Code CAB‑C‑61027FSUA
Manufacturer UltraLAN
Rack Units 27U
Rack Width 19"
Depth 1000mm (1m)
Dimensions (H × W × D) 1200 × 600 × 1000 mm
Material Powder‑coated steel
Front Door Tempered glass, lockable
Cooling 4 fans (included)
Shelves 3 full‑depth shelves
Load Capacity 800kg
Assembly Supplied flat‑packed (3 boxes)
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~95–100 kg (steel cabinet + shelves + fans)
Packaging (3 flat‑packed boxes + padding): ~8–10 kg
Gross shipping weight: ± 108 kg
Volumetric weight: ~85–90 kg (couriers may charge on volumetric weight)

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑CS‑F1000
Description: 19" 700mm flat cabinet shelf designed for 1000mm depth cabinets, vented for airflow, supports up to 50kg.

Product Overview
The UltraLAN CAB‑CS‑F1000 is a flat 19" cabinet shelf designed for use in 1000mm depth server and network cabinets. With a depth of 700mm, it provides a large surface area to support non‑rackmount equipment such as routers, PBX systems, and other devices.

Constructed from durable steel and featuring a vented design, the shelf improves airflow and heat dissipation inside the cabinet. It mounts securely to the upright struts with 4‑post mounting, ensuring stability even under heavier loads.

Key Features
19" flat cabinet shelf – 700mm depth
Suitable for 1000mm depth cabinets
4‑post mounting – secure and stable installation
Vented design – improved airflow and heat dissipation
Supports non‑rackmount equipment – routers, PBX, etc.
Load capacity: up to 50kg
Shelf dimensions: 465 × 700 mm
Cage nuts & screws not included (available separately or with UltraLAN cabinets)

Technical Specifications
Specification Details
Product Code CAB‑CS‑F1000
Manufacturer UltraLAN
Type Flat Cabinet Shelf
Rack Width 19"
Depth 700mm
Suitable Cabinet Depth 1000mm
Dimensions (W × D) 465 × 700 mm
Mounting 4‑post mounting
Design Vented
Load Capacity 50kg
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~6–7 kg (steel shelf)
Packaging (protective box + padding): ~1–1.5 kg
Gross shipping weight: ± 8 kg

Brand: UltraLAN
SKU/Product Code: CAB‑C‑6612WMSA
Description: 12U swing frame wall mount cabinet with 600mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑6612WMSA is a swing frame wall mount cabinet designed for medium‑sized networking installations where space is limited, such as retail shops, small offices, or schools. Its hinged back section allows the cabinet to swing out from the wall, providing easy access to the rear of equipment — especially useful for cable management and maintenance.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features removable side panels for quick access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with lock provides both visibility and security.

Key Features
12U swing frame wall mount cabinet – space‑saving design
Hinged back section – easy rear access for cabling
Enclosure depth: 600mm – accommodates deeper equipment
Strengthened safety glass front door – with lock and keys
Removable side panels – quick access for installers
Venting slots with 2 fan mountings (fans not included)
Adjustable rail depth – flexible equipment installation
Powder‑coated finish – scratch resistant and durable
Pre‑assembled – saves time and effort
Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑6612WMSA
Manufacturer UltraLAN
Rack Units 12U
Rack Width 19"
Depth 600mm
Dimensions (H × W × D) 645 × 615 × 615 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Removable
Cooling 2 fan slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~26–28 kg (typical for 12U swing frame steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 30 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑C‑64512OD
Description: 12U outdoor wall mount cabinet with 450mm depth, 2 cooling fans, weatherproof steel construction, and 3‑point locking system.

Product Overview
The UltraLAN CAB‑C‑64512OD is a rugged outdoor wall mount cabinet designed to protect sensitive networking equipment from harsh environments. Built from electro‑galvanized cold rolled steel with a powder‑coated finish, it resists corrosion and ensures long‑term durability.

For weatherproofing, the cabinet features a polyurethane door joint strip for water and dust protection, plus a roof awning to prevent rain ingress. Security is enhanced with a 3‑point swing handle locking system, while ventilation is managed through side panel vents with replaceable mesh filters and 2 ceiling‑mounted fans for efficient heat dissipation. Cable entry is provided via rubber‑sealed glands at the base, and four hooks on top simplify installation.

Key Features
12U outdoor wall mount cabinet – 450mm body depth (500mm including rooftop)
Powder‑coated electro‑galvanized cold rolled steel – corrosion resistant
Supplied fully assembled – saves installation time
Polyurethane door joint strip – water & dust protection
Roof awning – prevents rain ingress
3‑point swing handle locking system – enhanced security
2 ceiling‑mounted fans – improved airflow and cooling
Side vents with replaceable mesh filters – dust resistance
Adjustable 19" mounting rails – numbered U markings for easy alignment
Cable entry via round glands with removable rubber covers
4 hooks on top – easier installation

Technical Specifications
Specification Details
Product Code CAB‑C‑64512OD
Manufacturer UltraLAN
Rack Units 12U
Rack Width 19"
Depth 450mm body / 500mm including rooftop
Dimensions (W × D) 600mm wide × 450mm deep
Material Electro‑galvanized cold rolled steel
Finish Powder‑coated
Front Door 3‑point swing handle lock, polyurethane seal
Cooling 2 ceiling‑mounted fans
Side Panels Vented with replaceable mesh filters
Cable Entry Round glands with rubber covers (base)
Mounting Wall mount (hooks included)
Assembly Supplied fully assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~30–32 kg (typical for 12U outdoor steel cabinets with fans)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 34 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑C‑64512WMFA
Description: 12U fixed wall mount cabinet with 450mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑64512WMFA is a cost‑effective fixed wall mount cabinet designed for medium‑sized networking installations in retail shops, small offices, and school environments. Its compact size and wall‑mount design save valuable floor space while providing secure housing for networking equipment.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features toolless removable side panels for easy access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with lock provides both visibility and security.

Key Features
12U fixed wall mount cabinet – compact and space‑saving
Enclosure depth: 450mm – suitable for networking gear
Strengthened safety glass front door – with lock and keys
Toolless removable side panels – quick access for installers
Venting slots with 2 fan mountings (fans not included)
Adjustable rail depth – flexible equipment installation
Powder‑coated finish – scratch resistant and durable
Pre‑assembled – saves time and effort
Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑64512WMFA
Manufacturer UltraLAN
Rack Units 12U
Rack Width 19"
Depth 450mm
Dimensions (H × W × D) 645 × 615 × 465 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Toolless removable
Cooling 2 fan slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~24–26 kg (typical for 12U fixed steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 28 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑C‑DR010U
Description: 10U desktop open frame rack with adjustable tilt angle, steel construction, and 30kg load capacity.

Product Overview
The UltraLAN CAB‑C‑DR010U is a professional desktop open frame rack designed for studios, processing environments, and test setups where compact and flexible equipment housing is required. Compliant with ANSI/EIA RS‑310D, DIN41491, and IEC60297 standards, it ensures maximum compatibility and ease of installation.

Its 0°–15° adjustable slanted front profiles provide optimal stability and ergonomic viewing angles for installed equipment. Constructed from 2.0mm thick cold‑rolled steel with a fine‑structured black powder coating (RAL9004), the rack combines durability with a sleek finish. Perforated sides allow cable guiding and accessory mounting, while the simple flat‑down package design enables easy 5‑minute assembly by a single person.

Key Features
10U desktop open frame rack – compact and versatile
Adjustable tilt angle: 0°–15° for ergonomic viewing
Stores up to 10 units of 19" equipment
2.0mm thick cold‑rolled steel frame – durable and stable
Black powder coating (RAL9004) – fine structure finish
Punched square holes – compatible with snap‑in cage nuts
Perforated sides – cable guiding and accessory mounting
Easy assembly – flat‑down package, 5 minutes setup
Desktop standing use – ideal for studios and test environments
Max load capacity: 30kg

Technical Specifications
Specification Details
Product Code CAB‑C‑DR010U
Manufacturer UltraLAN
Rack Units 10U (9 HE height)
Rack Width 19"
Tilt Angle 0°–15° adjustable
Dimensions (W × H × D) 509 × 446.2 × 301.3 mm (incl. rubber feet)
Material 2.0mm cold‑rolled steel
Finish Black powder coating (RAL9004)
Load Capacity 30kg
Assembly Flat‑down package, 5 minutes assembly
Accessories Assembly hardware + 20 cage nuts & screws
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~8–9 kg (steel frame)
Packaging (flat‑down box + padding): ~2–3 kg
Gross shipping weight: ± 11 kg

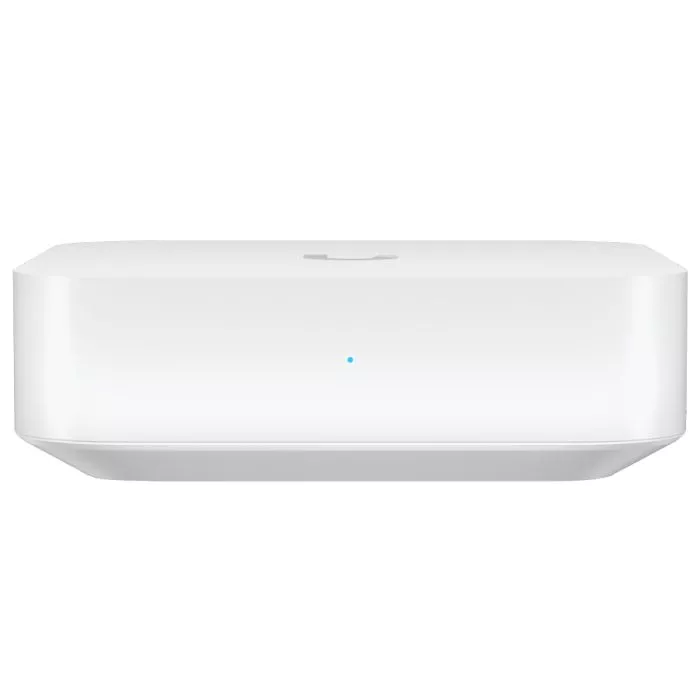

Brand: Ubiquiti
Product Code / SKU: UXG‑LITE
Supplier Code: UXG‑LITE
Description
Ubiquiti UniFi Security Gateway Lite – compact desktop gateway with 1 × Gigabit WAN and 1 × Gigabit LAN port. Powered by a dual‑core 1GHz processor with 1GB DDR3L memory. Features next‑generation security including IDS/IPS, advanced networking functions, and UniFi Network 8.0.7+ support. Managed via CloudKey, UniFi Hosting, or UniFi Network Server. Retail box packaging. 1‑year warranty.

Product Overview
Ubiquiti UniFi Security Gateway Lite – compact dual‑core gateway with IDS/IPS, 1Gbps WAN/LAN ports, UniFi app management, and USB‑C power.

Highlights
Compact desktop gateway
1 × Gigabit WAN port
1 × Gigabit LAN port
Dual‑core 1GHz processor
1GB DDR3L system memory
IDS/IPS intrusion detection & prevention
Advanced networking features
Managed via UniFi Network 8.0.7+
Max power consumption: 3.83W
Operating temperature: –10°C to +40°C
Retail box packaging
Warranty: 1 year

What’s Included
1 × Ubiquiti UniFi Security Gateway Lite
5V USB‑C power adapter
User documentation
Retail box packaging
1‑year warranty

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote, regional, or high‑risk delivery areas. Orders above R1500 qualify for free courier delivery in urban areas only. Compact networking equipment may incur handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

Brand: Ubiquiti
Product Code: LBE‑523ACG2
Description: Ubiquiti UISP airMAX LiteBeam AC 5GHz 23dBi Radio

Product Overview
The Ubiquiti LiteBeam AC Gen2 (LBE‑5AC‑Gen2) is a lightweight, cost‑effective 5GHz radio solution designed for long‑distance CPE (client premises equipment) or PtP (point‑to‑point) deployments. Featuring a 23dBi antenna with a 15° beamwidth, it delivers reliable connectivity with speeds up to 867Mbps. The dedicated 2.4GHz management radio allows for simplified setup and monitoring via the UISP network management platform. Compact and durable, it is ideal for extending wireless coverage in rural, enterprise, or ISP environments.

Key Features
23dBi high‑gain antenna for long‑distance connectivity
15° beamwidth for focused point‑to‑point links
Data rate up to 867Mbps
Dedicated 2.4GHz management radio for easy setup
1 × Gigabit Ethernet port
Pole‑mount design for outdoor installations
Max power consumption: 7W
Operating temperature: –40°C to 70°C
Includes 24V Gigabit PoE injector
Dimensions: 358 × 271.95 × 272.5 mm
Net weight: 980g
Gross shipping weight: 1.5–1.8 kg (including packaging)

Technical Specifications
Feature Details
Product Code LBE‑523ACG2
Antenna Gain 23dBi
Beamwidth 15°
Data Rate 867Mbps
Ethernet Ports 1 × 10/100/1000
Hardware Button Reset
Max Power Consumption 7W
Mounting Pole‑mount
Operating System airOS
Operating Temp –40°C to 70°C
PoE Input 24V Passive PoE
PoE Output None
Power Input 24V; 0.3A Gigabit PoE Injector (included)
Dimensions 358 × 271.95 × 272.5 mm
Net Weight 980g
Gross Shipping Weight 1.5–1.8 kg

What’s Included
1 × Ubiquiti LiteBeam AC Gen2 (LBE‑5AC‑Gen2)
1 × 24V Gigabit PoE Injector
Pole‑mounting kit
User documentation

Brand: Ubiquiti
Product Code: LAP‑517AC
Description: Ubiquiti UISP airMAX LiteAP AC 5GHz 17dBi 90° Radio with GPS

Product Overview
The Ubiquiti LiteAP AC GPS (LAP‑GPS) is a lightweight, cost‑effective PtMP (point‑to‑multipoint) access point solution designed for outdoor deployments. Featuring a 17dBi, 90° sector antenna, it delivers reliable connectivity with speeds up to 867Mbps. The integrated GPS radio is optimized for co‑location environments, helping mitigate interference and improve network performance. With a dedicated 2.4GHz management radio, setup and monitoring are simplified via the UISP network management platform. Its pole‑mount bracket requires minimal tools, ensuring quick and easy installation.

Key Features
17dBi high‑gain, 90° sector antenna
Optimized for PtMP access point deployments
GPS synchronization for interference mitigation in co‑location environments
Data rate up to 867Mbps
Dedicated 2.4GHz management radio for simplified setup
1 × Gigabit Ethernet port
Pole‑mount design for outdoor installations
Max power consumption: 7.1W
Operating temperature: –40°C to 70°C
Includes 24V Gigabit PoE injector
Dimensions: 360.98 × 124.57 × 71.28 mm
Net weight: 752g
Gross shipping weight: 1.2–1.5 kg (including packaging)

Technical Specifications
Feature Details
Product Code LAP‑517AC
Antenna Gain 17dBi
Beamwidth 90°
Data Rate 867Mbps
Ethernet Ports 1 × 10/100/1000
Hardware Button Reset
Max Power Consumption 7.1W
Mounting Pole‑mount
Operating System airOS
Operating Temp –40°C to 70°C
PoE Input 24V Passive PoE
PoE Output None
Power Input 24V; 0.3A Gigabit PoE Injector (included)
Dimensions 360.98 × 124.57 × 71.28 mm
Net Weight 752g
Gross Shipping Weight 1.2–1.5 kg

What’s Included
1 × Ubiquiti LiteAP AC GPS (LAP‑GPS)
1 × 24V Gigabit PoE Injector
Pole‑mounting kit
User documentation

Brand: Ubiquiti
Product Code: ISO‑514AC
Description: Ubiquiti UISP airMAX IsoStation AC 5GHz 14dBi Horn Radio

Product Overview
The Ubiquiti IsoStation AC (IS‑5AC) is a shielded airMAX AC 5GHz radio featuring a 14dBi, 45° symmetrical horn antenna. Designed for PtMP (point‑to‑multipoint) deployments in high‑interference environments, it offers excellent co‑location performance in a compact form factor. It can also serve as a short‑range CPE (client premises equipment). The antenna is interchangeable with other Ubiquiti horn antennas (sold separately), providing deployment flexibility. A dedicated 2.4GHz management radio simplifies setup and monitoring via the UISP network management platform.

Key Features
14dBi gain, 45° symmetrical horn antenna
Optimized for PtMP access point deployments in high‑interference environments
Can also be used as short‑range CPE
Interchangeable horn antennas for flexible deployments (sold separately)
Dedicated 2.4GHz management radio for easy setup
Data rate up to 867Mbps
1 × Gigabit Ethernet port
Pole‑mount design for outdoor installations
Max power consumption: 8.5W
Operating temperature: –40°C to 70°C
Includes 24V Gigabit PoE injector
Dimensions: 174 × 174 × 150 mm
Net weight: 725.7g
Gross shipping weight: 1.2–1.5 kg (including packaging)

Technical Specifications
Feature Details
Product Code ISO‑514AC
Antenna Gain 14dBi
Beamwidth 45°
Data Rate 867Mbps
Ethernet Ports 1 × 10/100/1000
Hardware Button Reset
Max Power Consumption 8.5W
Mounting Pole‑mount
Operating System airOS
Operating Temp –40°C to 70°C
PoE Input 24V Passive PoE
PoE Output None
Power Input 24V; 0.5A Gigabit PoE Injector (included)
Dimensions 174 × 174 × 150 mm
Net Weight 725.7g
Gross Shipping Weight 1.2–1.5 kg

What’s Included
1 × Ubiquiti IsoStation AC (IS‑5AC)
1 × 24V Gigabit PoE Injector
Pole‑mounting kit
User documentation

Product Overview

The Ubiquiti UISP airCube ISP (ACB-ISP) is a compact and efficient 2.4 GHz WiFi 4 Router and Access Point designed for Internet Service Providers and network deployments. It seamlessly integrates with the UISP network management platform for easy control and monitoring. The device features 24V Passive PoE pass-through, making it ideal for powering airMAX® CPEs without additional wiring complexity.
Key Features

Dual Functionality: Acts as both a WiFi router and access point on the 2.4 GHz band.

WiFi 4 Standard: Delivers reliable 300 Mbps data rates, perfect for ISP customer premises.

24V Passive PoE Pass-Through: Powers compatible airMAX® devices directly for simplified deployments.

Four Ethernet Ports: Four 10/100 Mbps LAN ports for wired connections.

Compact & Lightweight: Desktop mountable with a small footprint (87.8 x 89.5 x 89.25 mm; 215g).

360° Antenna Coverage: Built-in 4 dBi omnidirectional antenna with wide beam-width.

Robust Operating Conditions: Works reliably from -10°C to 50°C.

Easy Reset: Dedicated hardware reset button for quick troubleshooting.

Power Options: Supports 24V Passive PoE input or 5V Micro USB power (power supply and injector not included).

Managed by UISP Platform: Seamless integration for centralized network management and monitoring.

Technical Specifications
Specification Details
Frequency 2.4 GHz (WiFi 4)
Data Rate Up to 300 Mbps
Antenna Gain 4 dBi Omnidirectional
Beam-width 360°
Ethernet Ports 4 × 10/100 Mbps
Power Consumption Max 5 Watts
PoE Input 24V Passive PoE
PoE Pass-Through Output 24V Passive PoE
Power Input Options 24V Passive PoE or Micro USB (2A)
Operating Temp. Range -10°C to 50°C
Dimensions (mm) 87.80 x 89.50 x 89.25
Weight 215g
Package Contents

1 × Ubiquiti UISP airCube ISP WiFi Access Point (ACB-ISP)

1 × Quick Start Guide

Note: PoE injector and power supply are not included. Recommended PoE injector: POE-24G-24W.
Why Buy from QuickStore.co.za?

✔ Genuine Ubiquiti products with official warranty
✔ Fast nationwide delivery
✔ Expert technical support available
