MikroTik 8port PoE Smart Switch (RBCRS112-8P-4S-IN)

The MikroTik CRS112-8P-4S-IN is an eight Gigabit RJ45 ports PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V

The MikroTik CRS series combines a fully functional router and a managable switch with L3 features, it’s powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. IGMP snooping is also supported.

Switching Features:

Non-blocking Layer 2 switching capacity
16K host table
IEEE 802.1Q VLAN
Supports up to 4K simultaneous VLANs
Port isolation
Port security
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol
Access Control List
MikroTik neighbor discovery
SNMP
9204-byte jumbo frames support
IGMP snooping
static link aggregation

Quick Specifications:

8 Gigabit RJ45 Ports
4 SFP Ports
Non-Blocking Throughput: 12 Gbps
Switching Capacity: 24 Gbps
Forwarding Rate: 17.8 Mpps
Maximum Power Consumption: 10 W (without PoE devices connected)
Supports PoE+ IEEE 802.3at/af and 24 V Passive PoE
Quiet, Fanless Operation
Desktop-Rackmount

Weight & Dimensions
W : 24cm
L : 31cm
H : 20cm
Weight : 550g

MikroTik's RB-L009UGSAX is a 2.4GHz 600Mbps Wi-Fi 6 router featuring a powerful dual-core ARM CPU, 8x Gigabit Ethernet Ports, 1x SFP port supporting both 1.25Gbps and 2.5Gbps as well as a full-sized USB 3.0 port. The unit can be powered by either the included power supply or 24-56V PoE on Port 1. It also features PoE out on port 8 when powered by the DC Jack.

SKU RB-L009UGSAX
Manufacturer MikroTik
Manufacturer Product Code L009UiGS-2HaxD-IN

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Desktop (Can be rack-mounted with the RB-5009RMKIT)
Operating System: RouterOS (Level 5 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 24V-56V (Passive or 802.3af/at PoE)
PoE Output: Passive PoE on Port 8 (Only when powered via DC Jack)
Power Input: 24V 1.5A Power Supply (Included)
Processor: 2 Core 800MHz IIPQ-5018 ARM 64bit
Serial Interface: RJ45
SFP Ports: 1x 1.25Gbps/ 2.5Gbps
Supported Voltage Range: 24V-56V
System Memory: 512MB
USB Ports: 1x USB 3.0
Other: 2.4GHz: 4dBi 600Mbps
Dimensions: 220 x 125 x 22 mm

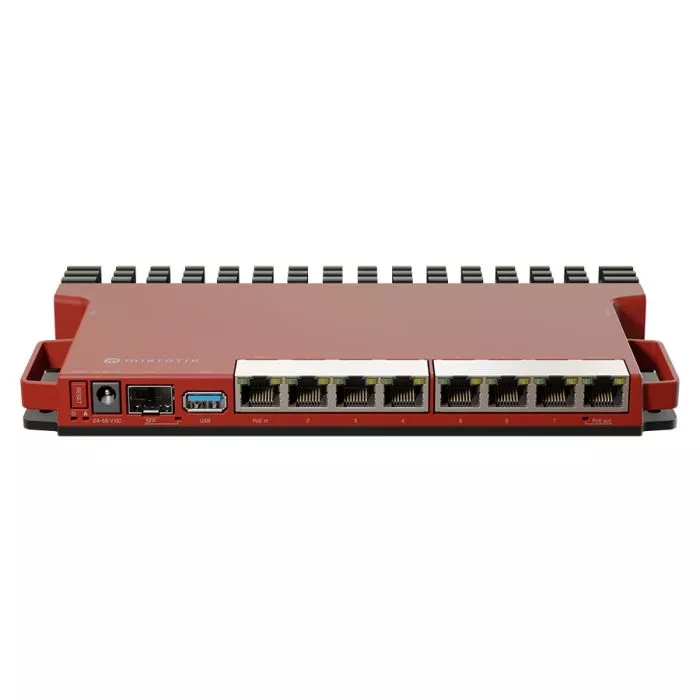

MikroTik's RB-L009UGSRM features a powerful dual-core ARM CPU, 8x Gigabit Ethernet Ports, 1x SFP port supporting both 1.25Gbps and 2.5Gbps as well as a full-sized USB 3.0 port. The unit can be powered by either the included power supply or 24-56V PoE on Port 1. It also features PoE out on port 8 when powered by the DC Jack and ships with an RB-5009RMKIT rack-mount kit.

SKU RB-L009UGSRM
Manufacturer MikroTik
Manufacturer Product Code L009UiGS-RM

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Rackmount (with included RB-5009RMKIT)
Operating System: Router OS (Level 5 License)
Operating Temperature: -40°C to 70°C
PoE Input: 24V-56V (Passive or 802.3af/at PoE)
PoE Output: Passive PoE on Port 8 (Only when powered via DC Jack)
Power Input: 24V 1.5A Power Supply (Included)
Processor: 2 Core 800MHz IPQ-5018 ARM 64bit
Serial Interface: RJ45
SFP Ports: 1x 1.25Gbps / 2.5Gbps
Supported Voltage Range: 24V-56V
System Memory: 512MB
USB Ports: 1x USB 3.0
Dimensions: 220 x 125 x 22 mm

MikroTik's RB-5009UPSO is a 4-core, heavy-duty, IP66 outdoor router featuring 7x Gigabit Ethernet Ports, 1x 2.5Gbps Ethernet port, 1x 10Gbps SFP+ port and a full-sized USB 3.0 slot. The unit also features PoE-in & PoE-out on all eight Ethernet ports with up to 25W per port, providing power redundancy using either Passive PoE-In or the 2-pin DC terminal.

Specifications

Ethernet Ports: 7x 10/100/1000; 1x 2.5Gbps
Hardware Button: Reset
Max. Power Consumption: 15W
Mounting: Pole Mount
Operating System: RouterOS v7 only (Level 5 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 24V-57V on Ports 1-8
PoE Output: PoE Passthrough on Ports 1-8
Power Input: 24-57V PoE or 2-pin Terminal
Processor: 4 Core 1.4GHz 88F7040 ARM 64bit
Serial Interface: None
SFP Ports: 1x 10Gbps
Supported Voltage Range: 24-57V
System Memory: 1GB
USB Ports: 1x USB 3.0
Other: 1x 2-Pin Terminal Connection
Dimensions: 220 x 125 x 22 mm

Brand: MikroTik
Product Code: RB5009UG+S+IN
Description: MikroTik RB5009UG+S+IN Compact High‑Performance Router

Product Overview
The MikroTik RB5009UG+S+IN is a compact yet powerful router designed for home labs, small offices, and enterprise edge deployments. Featuring 9 wired ports (7 × Gigabit Ethernet, 1 × 2.5Gbps Ethernet, and 1 × 10G SFP+ cage), it delivers exceptional connectivity and flexibility. Powered by a Marvell Armada Quad‑core ARMv8 1.4GHz CPU and Marvell Amethyst switch‑chip, the RB5009 offers nearly double the performance compared to similar form‑factor devices under heavy CPU loads. With multiple powering options (PoE‑in, DC jack, or 2‑pin terminal) and efficient cooling via its case‑integrated heat sink, it is built for reliability and productivity.

Key Features
9 wired ports: 7 × Gigabit, 1 × 2.5Gbps, 1 × 10G SFP+ cage
Quad‑core ARMv8 1.4GHz CPU with Marvell Amethyst switch‑chip
1GB DDR4 RAM + 1GB NAND storage
Compact design with efficient heat‑sink case
Triple power options: PoE‑in (port #1), DC jack, 2‑pin terminal
Full‑sized USB 3.0 port for storage or peripherals
Rackmount option: mount up to 4 units in 1U space
RouterOS support with advanced networking features
Estimated gross shipping weight: 1.2–1.5 kg (unit + packaging)

Technical Specifications
Feature Details
Product Code RB5009UG+S+IN
CPU Marvell Armada Quad‑core ARMv8 1.4GHz
Switch‑chip Marvell Amethyst family
RAM 1GB DDR4
Storage 1GB NAND
Ethernet Ports 7 × Gigabit + 1 × 2.5Gbps
SFP+ Cage 1 × 10G
USB Ports 1 × USB 3.0
Power Options PoE‑in (port #1), DC jack, 2‑pin terminal
Mounting Desktop or rackmount (up to 4 units in 1U)
Cooling Case‑integrated heat sink
Net Weight 1.0 kg
Gross Shipping Weight 1.2–1.5 kg

What’s Included
1 × MikroTik RB5009UG+S+IN Router
Power accessories (DC jack compatible)
User documentation

MikroTik's RB-5009UPSIN is a 4-core, heavy-duty, desktop router featuring 7x Gigabit Ethernet Ports, 1x 2.5Gbps Ethernet port, 1x 10Gbps SFP+ port and a full-sized USB 3.0 slot. The unit also features PoE-in & PoE-out on all eight Ethernet ports with up to 25W per port. It provides power redundancy and is powered by either Passive PoE, DC Jack or 2-pin DC terminal and can be easily rack-mounted when paired with the RB-5009RMKIT.

Specifications

Ethernet Ports: 7x 10/100/1000; 1x 2.5Gbps
Hardware Button: Reset
Max. Power Consumption: 15W
Mounting: Desktop (Can be rack-mounted with the RB-5009RMKIT)
Operating System: RouterOS v7 only (Level 5 Licence)
Operating Temperature: -40°C to 60°C
PoE Input: 44V-57V (802.3af/at Endspan on Port 1) (Midspan Passive PoE on Ports 2-8)
PoE Output: PoE Passthrough on Ports 1-8
Power Input: 48V 2A Power Supply (Included)
Processor: 4 Core 1.4GHz 88F7040 ARM 64bit
Serial Interface: None
SFP Ports: 1x 10Gbps
Supported Voltage Range: 24-57V (PoE) 24-57V (DC Jack) 24-57 (2-pin terminal)
System Memory: 1GB
USB Ports: 1x USB 3.0
Other: 1x 2-Pin Terminal Connection
Dimensions: 220 x 125 x 22 mm

MikroTik's RB-951UI2 is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built-in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

*Note: Package contains MikroTIk's 951Ui-2HnD in a plastic case and power adapter.

Specifications

Antenna Gain: 2.5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 5x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -20°C to 50°C
PoE Input: 8V-30V (Passive PoE)
PoE Output: Passive PoE Pass-through on Port 5
Supported Voltage Range: 8V-30V
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 9V-30V
USB Ports: 1x USB 2.0
Other: None
Dimensions: 113 x 138 x 29 mm

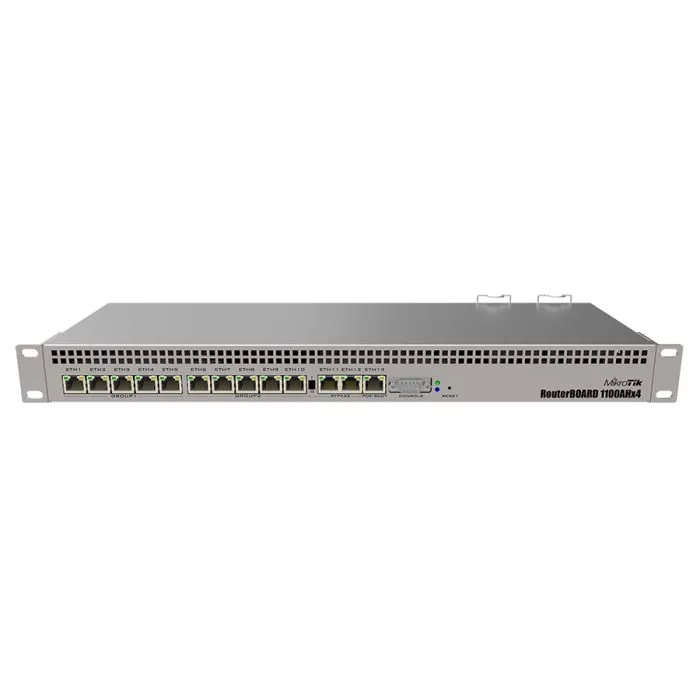

MikroTik's RB-1100AHX4 is a 4-core rack-mount router featuring 13x Gigabit Ethernet ports, 1x Micro SD card slot and sports multiple power options for redundancy. Dual IEC power supplies, PoE input or 2 pin DC terminal.
