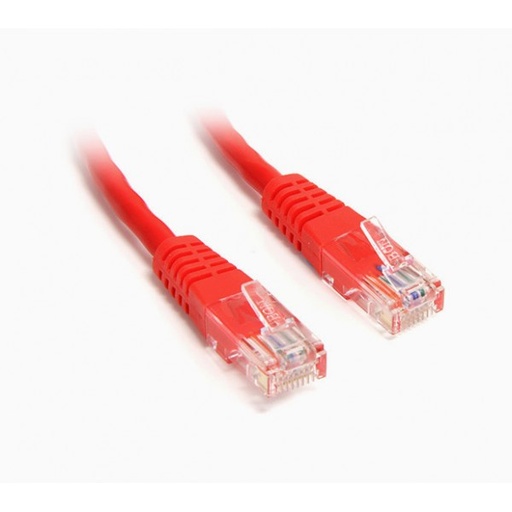

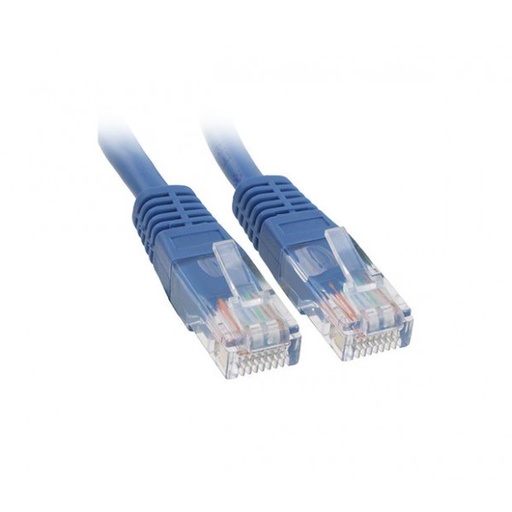

10m UltraLAN CAT5e Flylead


All UltraLAN patch cords are 100% tested for performance and continuity in accordance with industry standards. The booted (molded boot) cable gives the assembly additional strain relief. It also makes it easier to remove the cable from a bundle due to its snag-free tab. UltraLAN patch cables are CAT5e rated which provides performance of up to 100 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet) applications.

Low Cost
Our patch cables are very cost effective, allowing network administrators to deploy large scale cable solutions within budget restrictions.

Booted and crimped
The patch cables are pre-crimped with RJ45 connectors and pre-fitted with molded boots to save you time and effort.

High Speed Performance
Rated at CAT5e standards, patch cables are no longer bottlenecks in ultra-fast networks, and allows up to Gigabit speed transmission.

Flexible
Our patch cables have a great bend radius while maintaining high durability, and features a soft sheath for greater flexibility, ideal for confined spaces.

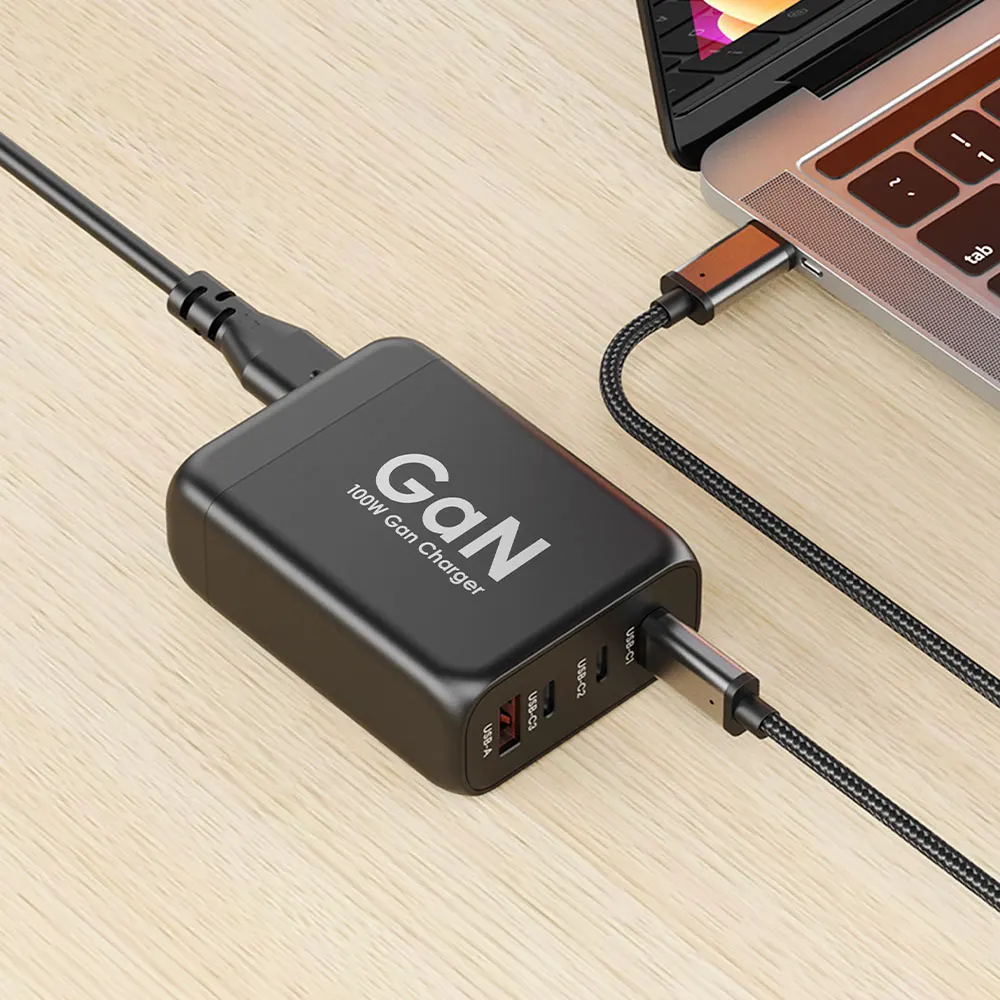

The Astrum Pro PD140 is a 100W GaN fast‑charging desktop wall charger built for users who need high‑power, multi‑device charging at home, in the office, or while traveling. With three USB‑C PD ports and one USB‑A QC port, it delivers rapid, balanced power to laptops, tablets, smartphones, and accessories simultaneously. Powered by advanced GaN technology, it offers cooler, more efficient performance in a compact, lightweight body. The detachable EU and UK plugs make it ideal for international travel, while intelligent circuitry ensures full protection against over‑voltage, overheating, over‑current, and short‑circuit damage. Designed for wide compatibility, the PD140 charges MacBooks, laptops, iPhones, Android devices, tablets, and more with precise, stable energy delivery.

Key Specifications
100W USB‑C Power Delivery fast charging
Four‑port output: 3 USB‑C + 1 USB‑A
GaN technology for efficient, cool operation
Detachable EU and UK travel plugs
Intelligent current distribution for multi‑device charging
Wide compatibility with laptops, phones, tablets
Built‑in over‑voltage, short‑circuit, overheating, and over‑temperature protection
Compact, lightweight travel‑friendly design

Technical Details
Feature Details
Model Astrum Pro PD140
Ports 3× USB‑C + 1× USB‑A
USB‑C1 / USB‑C2 Output 3.3V–21V 5A or 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W Max.)
USB‑C3 Output 3.3V–11V 5A or 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W Max.)
USB‑A Output 4.5V/5A, 5V/4.5A, 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A (30W Max.)
Combined Outputs Multiple intelligent combinations up to 100W Max.
Input 100–240V AC, 50/60Hz, 1.5A Max.
Technology GaN fast‑charging
Plugs Detachable EU and UK
Dimensions 80.5 × 61 × 29.5 mm
Weight 300 g (approx.)
Protection Over‑voltage, over‑heat, over‑current, short‑circuit
Warranty 24 Months

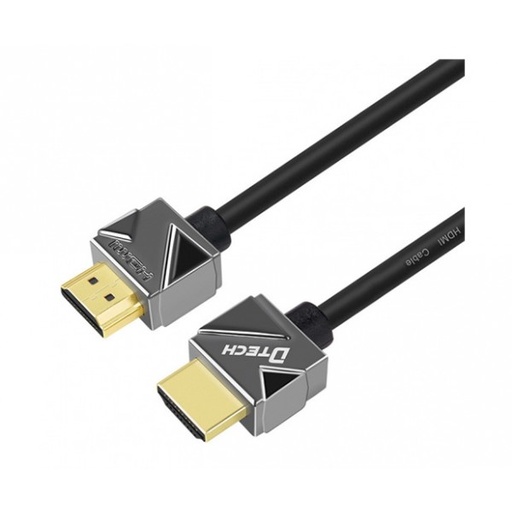

1.5m HDMI V2 Male-to-Male Cable (Slim)


Need an HDMI cable? Get reliable signal transfer for your HD video/audio without spending a fortune by using this Slim HDMI cable.

Ideal where space is crucial, the slim cable is easier to manage and get through tight spots.

Perfect for connecting your HDTV, DVD/Blu-Ray players, HDMI Extenders/splitters, gaming systems, and other home theater/entertainment components.


Supports resolution up to 3840x2160@60Hz
HDMI Version 2.0
High speed:Total data throughput of 18Gbps
Gold plated connector for better transmission

0.5m HDMI V2.0 Male-to-Male Cable


Need an HDMI cable? Get reliable signal transfer for your HD video/audio without spending a fortune by using this 0.5meter HDMI cable.

Perfect for connecting your HDTV, DVD/Blu-Ray players, HDMI Extenders/splitters, gaming systems, and other home theater/entertainment components.


Supports resolution up to 3840x2160@60Hz
HDMI Version 2.0
High speed: Total data throughput of 18Gbps
Gold plated connector for better conductivity
PVC molding

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 2.4 W
Materia lPlastic
White Light Range Up to 20 m
Dimension Ø 85.4 mm × 71.46 mm (Ø 3.36" × 2.79")
WeightApprox.123 g (0.27 lb)

High quality imaging with 2 MP, 1920 × 1080 resolution
Smart-Hybrid light, optimize your security with flexible lighting options
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°
Lens MountM12
Illuminator
Supplement Light TypeWhite Light;IR
Supplement Light Range
IR : Up to 20 m
White Light : Up to 20 m

General
MaterialPlastic
DimensionØ84.6 mm × 78.9 mm (3.33'' × 3.11'')
WeightMax. 135 g (0.3 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply

12 VDC ± 25%, Max. 3.2 W

*You are recommended to use one power adapter to supply the power for one camera.

HiLook 2 MP Indoor Audio Fixed Turret Camera

1080P turret camera
Up to 20 m IR distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
With built-in microphone, enhancing your safety with video and audio together.
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens MountM12

General
Power12 VDC ± 25%, max. 2.7 W
Material Plastic
DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Weight Approx. 140.5 g (0.31 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language English

080p vari-focal bullet camera
EXIR 2.0: advanced infrared technology with 40 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time1/25 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm to 12 mm
Focal Length & FOV111.5° to 33.4°
Lens MountΦ14

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes

Image Settings Brightness; Sharpness; Mirror; AGC
Frame Rate: PAL:1080p@25fps NTSC: 1080p@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement BLC
Noise Reduction2D DNR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS;1 HD analog output

General
Power12 VDC ± 15%, max. 5 W
MaterialFront cover: Metal, Main body: Plastic
Dimension256.4 mm × 83.3 mm × 78.2 mm (10" × 3.2" × 3")
WeightApprox. 605 g (1.33 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Language English

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 4 W
Material Metal
White Light Range Up to 40 m
Dimension75.4 mm × 223.25 mm × 87.3 mm (2.97" × 8.79" × 3.44")
Weight Approx. 560 g (1.23 lb)

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal System PAL/NTSC
Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light Alarm Solid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

General
Operating Condition-40°C to 60°C (-40°F to140°F), humidity: 90% or less (non-condensing)
Power Supply

12 VDC±25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 2.4 W
Material Plastic
White Light Range Up to 20 m
Dimension162.7 mm × 70 mm × 70 mm (6.41" × 2.75" × 2.75")
Weight Approx. 152.5 g (0.34 lb.)

HiLook 2 MP Fixed Mini Bullet Camera
1080p bullet camera
Smart IR: up to 20 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm and 6 mm
Focal Length & FOV
2.8 mm, horizontal FOV: 103°
3.6 mm, horizontal FOV: 80.7°
6 mm, horizontal FOV: 50.1°
Lens MountM12

High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Detects human body through heat-sensitive passive infrared (PIR)
Water and dust resistant (IP66)

Camera
Image Sensor2 MP CMOS
Signal System PAL/NTSC
Resolution1920 (H) × 1080 (V)
Frame Rate TVI: 1080p@25fps, 1080p@30fps
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens2.8 mm, 3.6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 44.7°, diagonal FOV: 94.5°
Lens MountM12
Light Alarm Flashing Light Alarm (White Light);Solid Light Alarm (White Light)
Day & Night IR Cut Filter
WDR (Wide Dynamic Range)Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
White LightAuto/Off
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeGlobal;HLC;BLC;DWDR
Noise Reduction2D DNR
Language English
FunctionSharpness;Smart IR;Mirror;Brightness

General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
Power Supply

12VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 3.6 W
Protection LevelIP66
Material Metal
IR Range Up to 20 m
White Light Range Up to 20 m
PIR Range Angle: 110°, Range: 11 m
Communication HIKVISION-C
Dimension166.7 mm × 68 mm × 69.3 mm (6.56" × 2.68" × 2.73")
Weight Approx. 296 g (0.65 lb.)

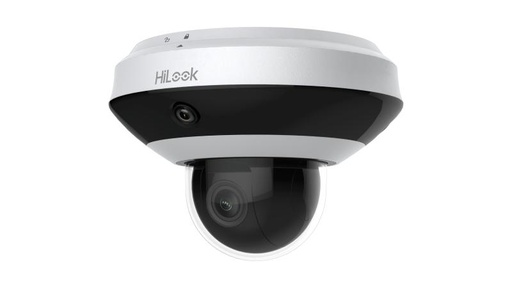

Buy HiLook 2MP 4× DarkFighter IP PTZ Camera – 360° panoramic coverage, 4-lens setup, 10m IR, PoE, DWDR, and smart detection. Ideal for wide-area surveillance.

Short Description:

3" IP PTZ with 4-lens panoramic coverage
Three 2MP wide-angle cameras + one 2MP zoom lens
4× optical zoom, DWDR, 10m IR, PoE-powered
Smart detection, ANR, ROI, and image enhancement
IP66-rated; 24W max power; 0.9 kg; lightning protected

Long Description:

The HiLook 3" 2MP 4× DarkFighter IP PTZ Camera delivers full-scene awareness with a 360° panoramic view powered by three wide-angle 2MP lenses and one 2MP zoom lens. With 4× optical zoom, DWDR, and 10m IR, it excels in both day and night conditions. Smart detection features include motion, intrusion, line crossing, and audio exception alerts. Built with PC+ABS and aluminum alloy, it’s IP66-rated and protected against lightning and surges. Ideal for parking lots, campuses, and public spaces.

Technical Specifications:

Specification Details
Brand Name HiLook
Camera Form Factor PTZ Dome
Camera Resolution 4 × 2MP (3 panoramic + 1 zoom)
Focal Length 2.8 mm to 12 mm (4× optical zoom)
Field of View H: 120°–56.6°, V: 61.8°–31.7°, D: 149°–65°
Zoom Speed Approx. 5.4 s (optical)
IR Range Up to 10 m
Aperture F2.0 to F2.4
Smart Detection Motion, Tampering, Audio Exception, Intrusion, Line Crossing
Smart Record ANR (Automatic Network Replenishment)
ROI 8 fixed areas (main stream)
Image Enhancements HLC, BLC, 3D DNR, Regional Exposure/Focus
Compression H.265+
Material PC + ABS & Aluminum alloy
Dimensions Φ183 mm × 133 mm
Weight Approx. 0.9 kg
Protection Level TVS 2000V Lightning, Surge, Voltage Transient
Power 12 VDC, 2.0 A & PoE (802.3 at), Max 24 W
Operating Temp -10°C to 50°C
Humidity ≤ 90%
IP Rating IP66

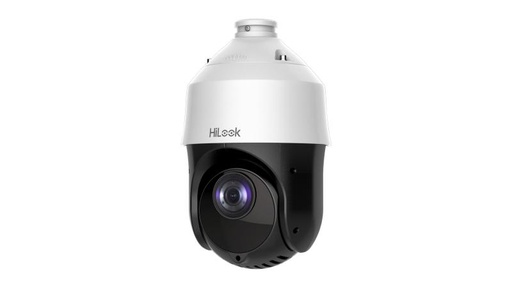

Buy HiLook 2MP 25× DarkFighter IP PTZ Camera – 100m IR, 120dB WDR, PoE+, and IP66-rated for outdoor surveillance. Smart PTZ with 300 presets and advanced scan modes.

Short Description:

2MP resolution with 25× optical zoom
DarkFighter imaging + 100m IR range
120dB WDR, H.265+ compression, PoE+ powered
IP66-rated dome with 360° pan and auto-flip tilt
Code: PTZ; 2.5 kg; 18W max power

Long Description:

The HiLook 4" 2MP 25× DarkFighter IP PTZ Camera delivers high-performance surveillance with powerful zoom, enhanced low-light clarity, and smart PTZ control. Featuring 25× optical zoom, 120dB true WDR, and up to 100m IR range, it excels in challenging lighting conditions. With 300 presets, 8 patrols, and 4 pattern scans, it adapts to dynamic monitoring needs. Built with ADC 12 and reinforced PC+GF, it’s IP66-rated and PoE+ powered ideal for perimeter, parking, and municipal installations.

Technical Specifications:

Specification Details
Brand Name HiLook
Camera Form Factor PTZ Dome
Camera Resolution 2MP (1920 × 1080)
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux; B/W: 0.001 Lux; 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Zoom 25× optical, 16× digital
Focal Length 4.8 mm to 120 mm
Field of View H: 57.6°–2.5°, V: 34.4°–1.4°, D: 64.5°–2.9°
Aperture F1.6 to F3.5
Zoom Speed Approx. 3.2 s (optical)
IR Range Up to 100 m
Smart IR Yes
PTZ Range Pan: 360° endless; Tilt: -15° to 90° (auto-flip)
PTZ Speed Manual: 0.1°–80°/s; Preset: 80°/s
Presets 300
Patrol/Pattern Scans 8 patrols, 4 patterns
Park Actions Preset, Pattern, Patrol, Auto, Tilt, Random, Frame, Panorama
PTZ Status Display Yes
Scheduled Tasks Full scan modes + dome reboot/adjust
Power 12 VDC, 2.0 A & PoE+ (802.3at), Max 18W
Dimensions Ø165.9 mm × 290 mm
Weight Approx. 2.5 kg
Material ADC 12, PC + 10% GF
Operating Temp -30°C to 65°C
Humidity ≤ 90% (non-condensing)
IP Rating IP66

The HiLook NVR-116MH-C is a compact 1U 16‑channel 4K network video recorder built for small-to-medium deployments. It supports H.265+/H.265/H.264+/H.264, up to 160 Mbps incoming bandwidth, and flexible decoding (up to 1 channel @ 8MP or 5 channels @ 1080p). Local monitoring includes a 4K HDMI output and VGA, while audio is handled via RCA I/O with one‑way and two‑way support. Low power consumption (≤10 W), wide operating temperature range, and a slim 265 × 225 × 48 mm chassis make this NVR ideal for space‑constrained installations that still demand high‑resolution recording and efficient storage.

Technical Details:

Channels: Up to 16 IP camera inputs
Compression: H.265+/H.265/H.264+/H.264
Decoding: Up to 1‑ch @ 8MP or 5‑ch @ 1080p
Incoming bandwidth: 160 Mbps
Outgoing bandwidth: 80 Mbps
Video outputs: 1× HDMI (4K@30Hz and multiple lower modes), 1× VGA (1080p etc.)
Audio: 1× RCA output (linear, 1 kΩ); 1‑way/two‑way via RCA (2.0 Vp‑p, 1 kΩ)
Storage: 1× SATA (typical spec sheet shows 6 TB supported)
Power: 12 VDC, 1.3 A
Power consumption: ≤ 10 W
Operating temp/humidity: -10 to +55°C; 10–90% RH
Chassis: 1U
Dimensions: 265 × 225 × 48 mm
Model / SKU: NVR‑116MH‑C

HiLook 4-ch Mini 1U 4 PoE 4K NVR
Up to 8 channel IP cameras can be connected
Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
Supports decoding H.264+/H.264 multiple video formats
Up to 4-ch @ 1080p decoding capacity
1 HDD for continuous video recording
Video and Audio
IP video input8-ch
Two-way audio input1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio output
HDMI/VGA output1-ch, resolution:1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output1-ch, RCA (Linear, 1kΩ)
Recording resolution4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF
General
Power supply48 VDC
Working temperature-10 °C to +55 °C (14 °F to 131 °F)
Working humidity10 % to 90 %
Consumption (without hard disk and PoE)≤ 10 W
Chassis1U chassis
Dimensions(W × D × H)285 × 215 × 48 mm(11.2" × 8.5" × 1.9")
Weight(without hard disk)≤ 1 kg (2.2 lb)

MikroTik's RB-WAPAX is a WiFi 6 AX3000 outdoor router featuring a dual core processor, 2x Gigabit Ethernet Ports, PoE and DC powering options and can be wall, ceiling or pole mounted. It allows for an Ethernet cable to be run directly from the back of the case and is secured with an anti-vandal screw for added security.

WI-FI 6 TECHNOLOGY Features advanced 802.11ax wireless technology for higher speeds and improved network efficiency in high-density environments
DUAL CHAIN MIMO: Equipped with 2x2 MIMO technology for higher signal strength, better coverage and reliable wireless connections
WEATHER RESISTANT DESIGN Built to withstand various weather conditions, making it suitable for both indoor and outdoor installations
VERSATILE MOUNTING Compact form factor allows flexible placement options on walls, posts or other surfaces
Performance Features: Supports dual-band operation with advanced wireless protocols for optimal network performance

Antenna Gain: 2.4GHz: 7dBi ; 5.8GHz: 7dBi
Beam-width: 180°
Data Rate: 2.4GHz: 574Mbps ; 5.8GHz: 2400Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Desktop, Ceiling, Pole & Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-57V Passive PoE ; 802.3af/at
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18-57V (PoE) 12-57V (DC Jack Input)
USB Ports: None

Dimensions: 185 x 85 x 30 mm

Brand: MikroTik
Product Code: RBMTAS‑5G‑19D120
Description: MikroTik mANT 19dBi 5GHz 120° Dual Polarised Sector Antenna

Product Overview
The MikroTik mANT 19dBi 5GHz Sector Antenna is designed for outdoor wireless deployments requiring wide coverage and reliable performance. With dual polarisation (horizontal and vertical) and a 120° beamwidth, it provides strong signal distribution for point‑to‑multipoint setups. Featuring two RP‑SMA connectors and a metallic U‑bolt mounting kit, it integrates seamlessly with MikroTik BaseBox, NetBox, NetMetal, and other outdoor devices. Operating in the 5.17–5.825 GHz frequency range, it delivers a powerful 19dBi gain for extended reach.

Key Features
19dBi antenna gain for extended coverage
Dual polarisation (horizontal and vertical)
120° beamwidth for wide‑angle sector coverage
Two RP‑SMA connectors for integration with MikroTik devices
Outdoor‑ready design with metallic U‑bolt mounts
Frequency range: 5.17–5.825 GHz
Estimated gross shipping weight: 2.5–3.0 kg

Technical Specifications
Feature Details
Product Code RBMTAS‑5G‑19D120
Antenna Type Sector Antenna
Polarisation Dual (Horizontal & Vertical)
Antenna Gain 19dBi
Beamwidth 120°
Frequency Range 5.17 – 5.825 GHz
Connectors 2 × RP‑SMA
Mounting Metallic U‑Bolt Type
Compatibility BaseBox, NetBox, NetMetal, Outdoor Devices
Gross Shipping Weight 2.5–3.0 kg

What’s Included
1 × MikroTik mANT 19dBi Sector Antenna
2 × RP‑SMA connectors
1 × Mounting kit (U‑Bolt type)
1 × User manual

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Dual-Light: advanced technology with long range
Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal resistant (IK08)
Efficient H.265+ compression technology
Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens MountM12
Iris Type Fixed
ApertureF1.6
Power 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal & Plastic
DimensionØ121.4 mm × 97.7 mm (Ø4.8" × 3.8")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 550 g (1.2 lb.)
With Package WeightApprox. 800 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Built-in microphone for real-time audio security
Efficient H.265+ compression technology
Water and dust resistant (IP67) and vandal resistant (IK08)
Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129°
4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103°
Lens MountM12
Iris TypeFixed
ApertureF1.0
Material Base: metal, cover: plastic
DimensionØ121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Weight Approx. 490 g (1.1 lb.)
With Package Weight Approx. 710 g (1.6 lb.)
