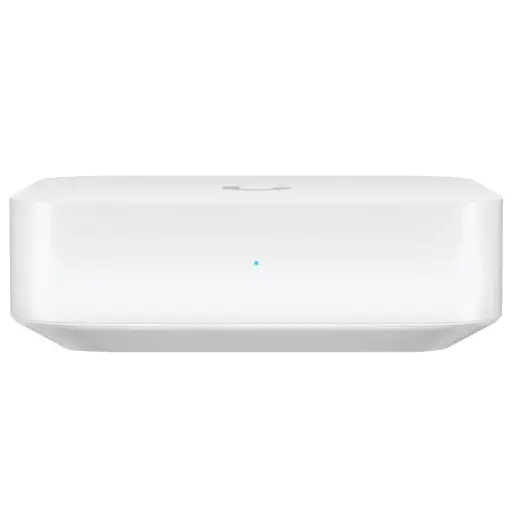

Ubiquiti's UXG-LITE features a compact design, a 1GHz dual-core processor, 1x Gigabit Ethernet WAN and 1x Gigabit Ethernet LAN port. It also features next-generation security with intrusion detection and prevention systems (IDS/IPS), advanced networking features, and is powered by the included USB-C adapter.

It can be configured and managed with a Cloudkey, Official UniFi hosting, or UniFi Network Server with UniFi Network 8.0.7 and later.
Ethernet Ports: 1x 10/100/1000 (WAN) : 1x 10/100/1000 (LAN)
Hardware Button: Reset
Max. Power Consumption: 3.83W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 5V USB-C Power Supply (Included)
Processor: Dual-core 1GHz
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V
System Memory: 1 GB DDR3L
USB Ports: None

Dimensions: 98 x 98 x 30 mm
Weight: 320g

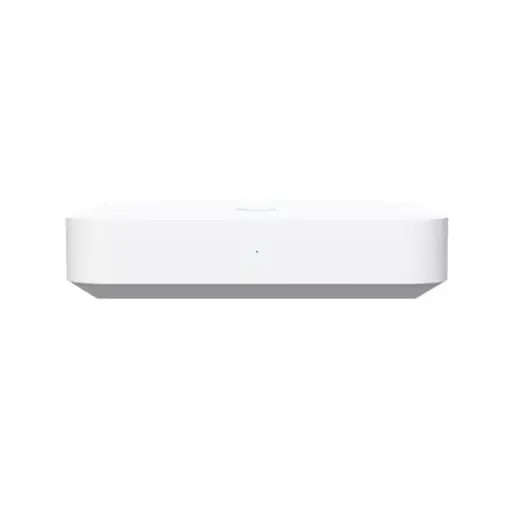

Ubiquiti's UXG-MAX is a compact, Multi-WAN, independent gateway featuring a 1.5GHz quad-core processor, 1x 2.5Gbps WAN and 4x 2.5Gbps LAN ports, with one of the LAN ports remappable to WAN. It also features intrusion detection and prevention systems (IDS/IPS), advanced networking features, and is powered by the included USB-C adapter. It can be configured and managed with a Cloudkey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 and later.
Ethernet Ports: 1x 10/100/1000/2500 (WAN) : 3x 10/100/1000/2500 (LAN); 1x 10/100/1000/2500 (LAN/WAN)
Hardware Button: Reset
Max. Power Consumption: 9.6W
Mounting: Desktop
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 5V 3A USB-C Power Supply (Included)
Processor: Quad-core 1.5GHz
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 5V 3A
System Memory: 2 GB DDR4
USB Ports: None

Dimensions: 141.8 x 127.6 x 30 mm
Weight: 520g

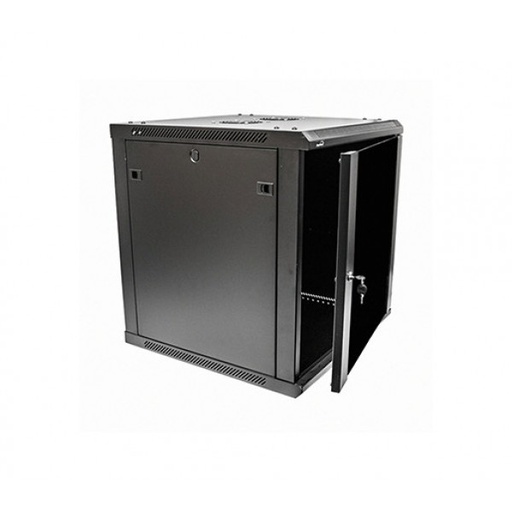

UltraLAN 12U Fixed Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas.



The cabinets have toolless removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.


Product features:

Enclosure body depth of 450mm
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock
Maximum static load: 60 kg


Package contents:

1x 12U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door

UltraLAN 12U Fixed Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas.



The cabinets have toolless removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.


Product features:

Enclosure body depth of 450mm
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock
Maximum static load: 60 kg

Cabinet Specs
Cabinet Dimensions (H x W x D) 645 x 615 x 465 mm
Vertical Rack Space 12 U
Horizontal Rack Mounting Space 19 inch
Maximum Static Load 60 KG
Fan Mountings 2 slots (fans not included)

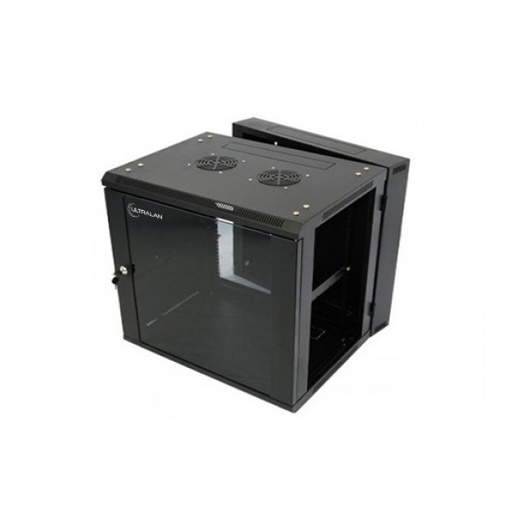

UltraLAN 12U Swing Frame Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas. The swing frame cabinets have a hinged back section, allowing for the cabinet to swing out from the wall, giving easy access to rear of equipment (especially convenient when needing to access cables on the rear of equipment).



The cabinets have removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.


Product features:

Enclosure body depth of 600mm
Lift off hinges on swing frame
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock


Package contents:

1x 12U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door

Cabinet Specs
Cabinet Dimensions (H x W x D) 645 x 615 x 615mm
Vertical Rack Space 12 U
Horizontal Rack Mounting Space 19 inch
Maximum Static Load 60 KG
Fan Mountings 2 slots (fans not included)

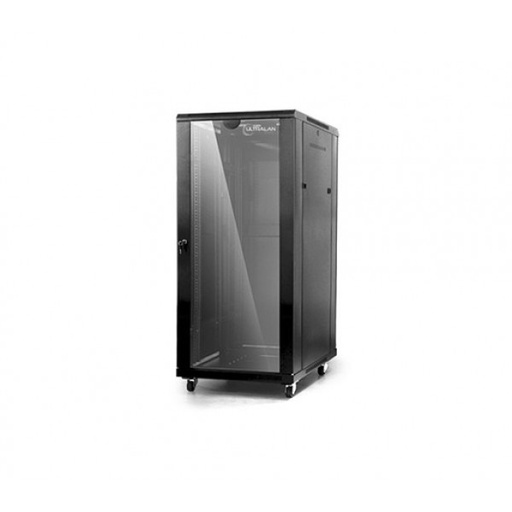

UltraLAN 27U Free-standing Server Cabinet (1meter deep)


The UltraLAN 19 27U free-standing network server cabinet provides an elegant and efficient solution for the telecommunications, electronics, data, and IT industries. Rackmount shelves, power strips, Keyboard trays, and other additional components are also available. This stylish and secure 19" network server cabinet protects your investment in computer and network equipment against environmental elements.

Product features:

Tempered glass door
Lockable doors
Cable entry spacing provided top & bottom
Numbered 19’’ punch profiles
Additional rear numbered 19 punch profiles
Adjustable feet & lockable castors
Complete four-way fan unit with power lead
The static load capacity of 800Kgs
Earthing and grounding strips
Cage nuts and washers included


Package contents:

1x 27U cabinet - Flat packed* (consists of 3 boxes)
1x Bag of cage nuts & bolts
2x Keys for lockable doors
3x Full depth shelves
4x Cabinet Cooling Fans (on the mountable top plate)


*Cabinet comes flat packed for shipping purposes. Please inquire with a sales consultant should you require assembly.

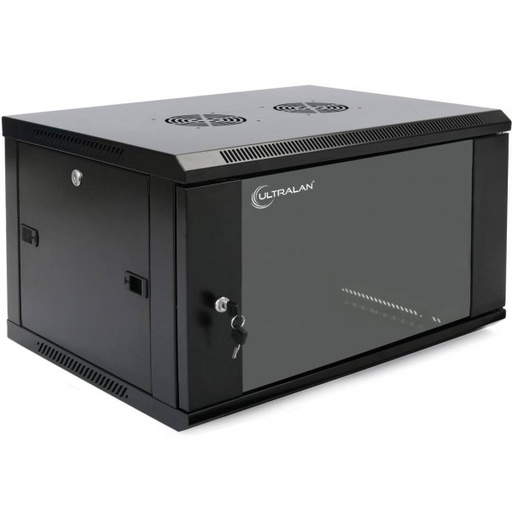

UltraLAN 4U Fixed Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas.

The cabinets have removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.

Product features:

Enclosure body depth of 450mm
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock

Package contents:

1x 4U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door

Cabinet Specs
Cabinet Dimensions (H x W x D) 295 x 615 x 465 mm
Vertical Rack Space 4 U
Horizontal Rack Mounting Space 19 inch
Maximum Static Load 60 KG
Fan Mountings 2 slots (fans not included)

UltraLAN 4U Swing Frame Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas. The swing frame cabinets have a hinged back section, allowing for the cabinet to swing out from the wall, giving easy access to the rear of equipment (especially convenient when needing to access cables on the rear of equipment).


The cabinets have removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. The side panels also include locks to secure the cabinet from unwanted entry. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.


Product features:

Enclosure body depth of 600mm
Lift off hinges on swing frame
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock


Package contents:

1x 4U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door

Cabinet Specs
Cabinet Dimensions (H x W x D) 315 x 615 x 615mm
Vertical Rack Space 4U
Horizontal Rack Mounting Space 19 inch
Maximum Static Load 60 KG
Fan Mountings 2 slots (fans not included)

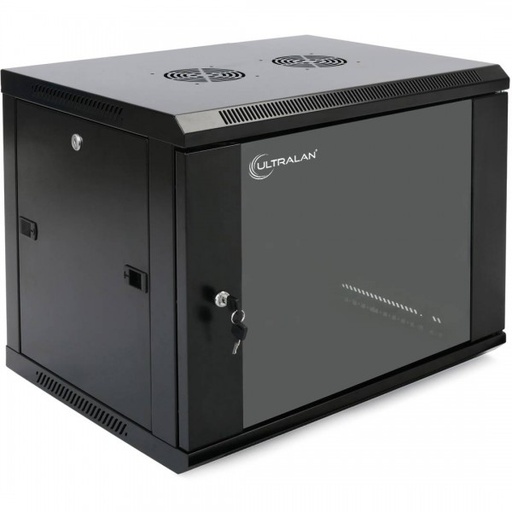

UltraLAN 6U Fixed Wall Mount Cabinet

UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas.


The cabinets have removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.

Product features:

Enclosure body depth of 450mm
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock

Package contents:

1x 6U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door
Cabinet Specs
Cabinet Dimensions (H x W x D) 385 x 615 x 465 mm
Vertical Rack Space 6 U
Horizontal Rack Mounting Space 19 inch
Maximum Static Load 60 KG
Fan Mountings 2 slots (fans not included)

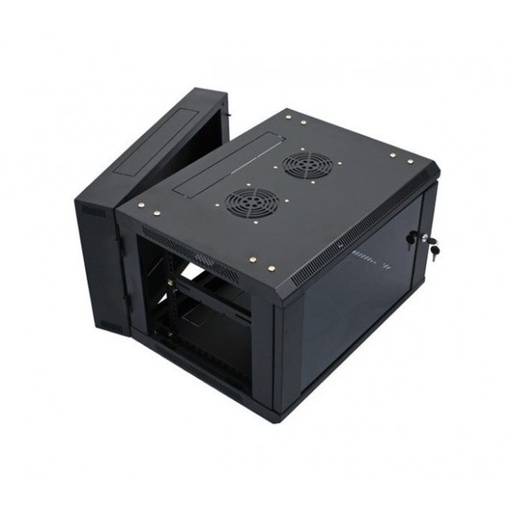

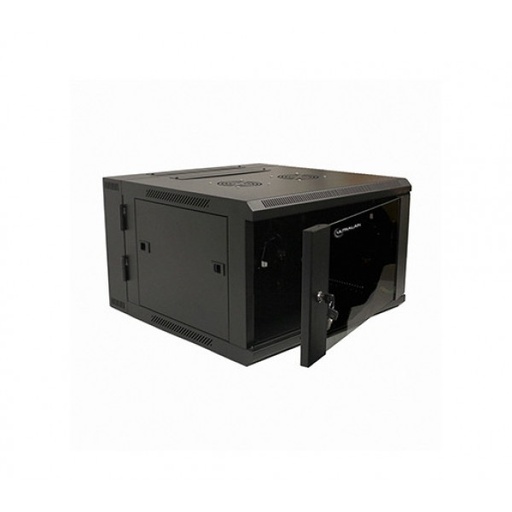

UltraLAN 6U Swing Frame Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas. The swing frame cabinets have a hinged back section, allowing for the cabinet to swing out from the wall, giving easy access to rear of equipment (especially convenient when needing to access cables on the rear of equipment).



The cabinets have toolless removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.


Product features:

Enclosure body depth of 600mm
Lift off hinges on swing frame
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock
Maximum static load: 60 kg


Package contents:

1x 6U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door

UltraLAN 9U Fixed Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas.



The cabinets have toolless removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.


Product features:

Enclosure body depth of 450mm
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock
Maximum static load: 60 kg


Package contents:

1x 9U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door
Cabinet Specs
Cabinet Dimensions (H x W x D) 515 x 615 x 465 mm
Vertical Rack Space 9 U
Horizontal Rack Mounting Space 19 inch
Maximum Static Load 60 KG
Fan Mountings 2 slots (fans not included)

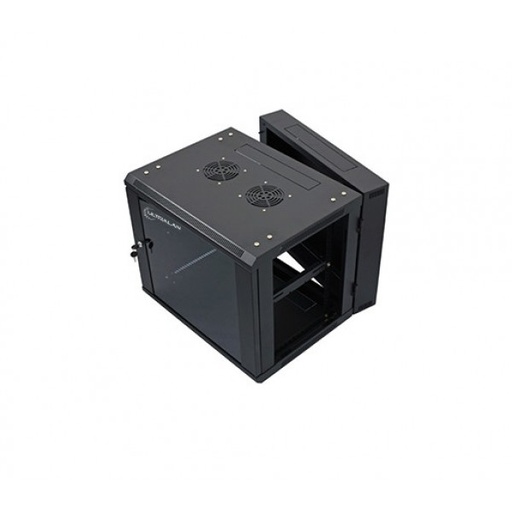

UltraLAN 9U Swing Frame Wall Mount Cabinet


UltraLAN wall mount cabinets are a great cost-effective solution for smaller networking installations or where space is limited, for example in retail shops, small offices, or school environments. Due to the smaller size and the cabinet being wall mountable, installers can save floor space in constricting areas. The swing frame cabinets have a hinged back section, allowing for the cabinet to swing out from the wall, giving easy access to rear of equipment (especially convenient when needing to access cables on the rear of equipment).


The cabinets have removable side panels for easy access, along with venting slots and space for mounting two fans to keep your equipment cool. These cabinets are powder coated with paint for longer life spans & scratch resistance. They are also pre-assembled, saving you time and effort. The mounting rails are rack numbered, allowing for easier alignment and equipment installation within the cabinet. A glass door with viewing window also allows all items installed in the cabinet to be clearly and easily seen at all times.

Product features:

Enclosure body depth of 600mm
Lift off hinges on swing frame
Adjustable rail depth to suit equipment
Strengthened safety glass front door, with security keylock


Package contents:

1x 9U network cabinet (fully assembled)
1x Bag of cage nuts & bolts
2x Keys for lockable door

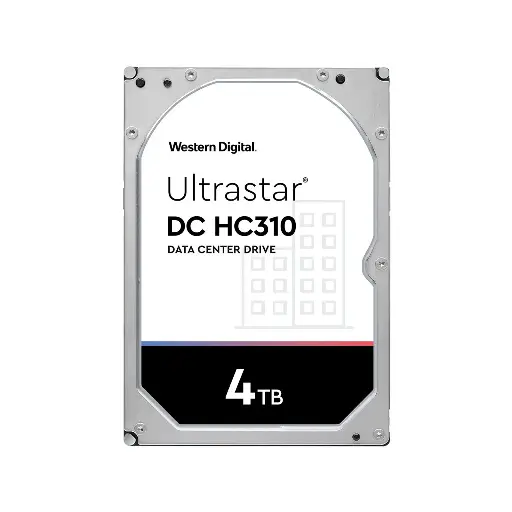

Mid-capacity Drives

The Ultrastar DC HC300-series provides low to mid-capacity drives that are economical to acquire yet deliver quick and reliable data access for traditional data center applications.

Economical Capacities and Fast Data Access Key Requirements for HDDs in the Data Center
IT managers need to offer storage tiers as they deploy purpose-built solutions to meet their on-prem, off-prem & cloud storage requirements. While helium filled drives enable the highest capacities, air-filled drives offer important benefits. With a lower TCA (total cost of acquisition), legacy options, and higher access density (IOPs/TB), they are the perfect choice for maintaining a desired level of performance while allowing customers to tailor budgets to meet their needs. The Ultrastar® DC HC300-series help to address data center requirements by providing capacities from 4TB to 10TB1 while increasing performance over prior generations. They are designed for a variety of applications including traditional storage arrays, rack-mounted storage enclosures and server-based distributed storage systems, as well as distributed and scalable computing, including block and file storage architectures. They are offered at 7,200 RPM with either 6Gb/s SATA or 12Gb/s SAS interface in Advanced Format 4Kn and512e format4. A 512n option is also available on 4TB models to support legacy systems with native 512-byte block sizes.

Z-3100 Linear Image Handheld Scanner
Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability.
At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar.
It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.

• Proprietary Ultrascan decoding technology
• Streamline design and Large trigger for effortless operation
• 32-bit micro processor unit
• Analog image capture technology
• Support presentation scan mode
• 0 – 100,000 Lux light immunity
• Captures barcodes on mobile phone, tablet, or computer screens

Light Source
617 nm visible LED
Optical System
Linear CCD array
Microprocessor
32-bit
Depth of Field
4 mil: 0 – 60 mm
5 mil: 0 – 100 mm
7.5 mil: 0 – 180 mm
10 mil: 0 – 220 mm
13 mil: 0 – 285 mm
20 mil: 0 – 350 mm
Note: DOF may vary depending on environment condition and barcode quality.
Scan Angle
42°
Scan Rate
330 scans per second
Print Contrast
30% @ UPC/EAN 100%
Indicator
Blue LED
Programmable Operation
Programmable tone & beep time
System Interface
Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS

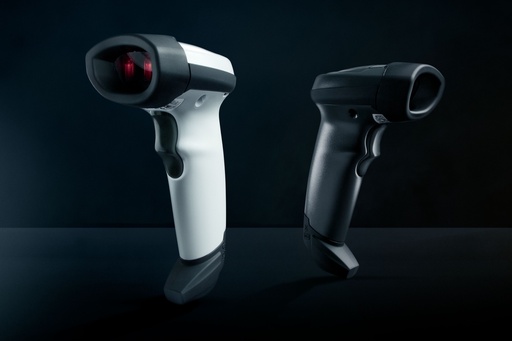

The LI2208 represents the next generation in 1D scanning and builds on our most popular scanner ever, the LS2208. You get the same reliability and ergonomics of the LS2208, combined with enhanced features such as extended range and support for mobile bar codes. With our best-in-class linear imager, you can count on unparalleled scanning performance on every bar code, every time. practically every minute of every day. Built-in Comprehensive Coverage protects your scanners from the unexpected, significantly reducing unforeseen repair expenses and delivering service peace of mind.

Features

Excellent 1D scanning performance

Delivers superior scanning speed and a wide data capture range

Captures virtually all 1D bar codes on any surface — including mobile phone displays

Capture bar codes printed on traditional paper labels or displayed on the screen of a mobile phone, tablet or computer

Industry-leading working range

Reads 13 mil 100% UPC bar codes from 1 in./2.54 cm to over 30 in./76.2 cm as well as high density codes and extended ranges for greater application flexibility

Patented single circuit board construction

Maximizes durability and reduces downtime by removing the most common points of failure

Compatible with 123Scan2 and Scanner Management Service (SMS)

Dramatically reduces management time and cost, from initial configuration to day-to-day management; SDK available for custom development

Superior motion and angular tolerance

Bar codes can be captured faster, and there is no need to pause during scans

International keyboard support

Support for over 90 international keyboards enables easy deployment anywhere in the world

Withstands 100+ consecutive drops to concrete and 1,000 consecutive 1.64 ft./ 0.5 m tumbles

Ensures reliable operation despite the inevitable everyday drops to help maximize uptime

Flexible modes — handheld and presentation

Gooseneck Intellistand enables presentation scanning and automatic switching between hands- free and handheld operation

Built for all day everyday use
A patented single circuit board improves reliability by eliminating connectors and ribbon cables, which are the most common points of failure. You can drop it and use it in dusty and damp environments — and still expect reliable operation.
Superior out-of-box experience
New smart auto-host detect cables automatically distinguish which interface is attached, reducing the need to scan multiple parameter bar codes. Over 90 international keyboards are hosted within the scanner making localized set up fast and easy.
