Ubiquiti's USW-AGG is a fully managed Layer 2 switch with 8x SFP+ ports and up to 160Gbps switching capacity. It features a compact 4.7" depth and fanless design. It is easy to mount and silent even under full load. It provides link aggregation for higher capacity and increased availability. The unit features a 1.3" touch LCM to provide status information.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: None
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 8x 10Gbps+
Supported Voltage Range: 100 to 240VAC
Dimensions: 442.4 x 120 x 43.7 mm
Weight: 2.74kg

Ubiquiti's AIR-D530LW is a 5GHz 30dBi lightweight dish antenna designed to seamlessly integrate with the Ubiquiti Radios.
*Note: Radio not included.

Specifications

Antenna Gain: 30dBi
Beam-width: 5.8°
Connector: 2x RP SMA Female
Frequency Range: 5.1GHz - 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 790N @ 200km/h

Dimensions: Ø 650 x 386mm
Weight: 7.4kg

Ubiquiti's UISP-DISH is a 5GHz 30dBi dish antenna designed to seamlessly integrate with Ubiquiti radios. The antenna provides extended coverage by utilising a wide frequency range. The unit comes with a precision mounting bracket for easy installation and alignment.

*Note: Radio not Included.

Specifications

Antenna Gain: 30dBi
Beam-width: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Connector: WaveGuide Adapter (Included)
Frequency Range: 5.15 - 6.875GHz
Polarization: Vertical & Horizontal
Wind Loading: 860 N at 200 km/h
Dimensions: Ø 650 x 200 mm
Weight: 7.64Kg

Ubiquiti's AIR-D530X is a 5GHz 30dBi, 45° slanted dish antenna designed to seamlessly integrate with Ubiquity radios. The industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity networks.

*Note: AF-5XHD not included.

Antenna Gain: 30dBi
Beam-width: 5.8°
Connector: 2x RP SMA Female
Frequency Range: 4.9GHz – 5.9GHz
Polarization: Vertical & Horizontal
Wind Loading: 790N @ 200km/h

Dimensions: Ø 650 x 386mm
Weight: 7.4kg

Ubiquiti's UISP-SPRO features Layer 2 switching capabilities, 24x Gigabit Ethernet Ports of which 16 are 27V Passive PoE ports, 4x SFP+, and a PoE budget of 220W. The UISP Switch Pro can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~16
Power Input: 1x IEC Power Cable (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
Dimensions: 442.4 x 267.5 x 43.7 mm
Weight: 4kg

Ubiquiti's UISP-R is a router featuring 8x Gigabit PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. Its dual core, 880Mhz processor is ideal for Micro Pop applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Processor Dual-core 880 MHz, MIPS1004Kc
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 24-28V
System Memory: 512 MB DDR3
USB Ports: None
Dimensions: 210.4 x 95 x 29 mm
Weight: 600g

Ubiquiti's UF-OLT-4 is a fibre solution that anyone can deploy. No command lines, manuals or paid support licenses are required. UISP offers internet and telecom service providers a cost-effective fibre optic delivery system for Triple Play Services (data, voice, IPTV/VoD). The UISP Fiber OLT 4 features four PON ports to connect up to 512 ONUs. The SFP+ port delivers up to 10 Gbps of uplink connectivity. The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19" wide rack.

It can be managed via the UISP network management platform.

*Note: 1x UF-GP-B+ included.

Specifications

Ethernet Ports: None
Hardware Button: Reset
Max. Power Consumption: 35W
Mounting: Rack-Mount
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included) ; 24VDC (Not Included)
Processor: MIPS 1004kc; 880 MHz Dual Core
Serial Interface: 1x RJ45 Serial Console Port
SFP Ports: 4x 2.5/1.25Gbps GPON Ports ; 1x 10Gbps
Supported Voltage Range: 24V or 100V – 240V
System Memory: 512 MB DDR3; 512 MB NAND
USB Ports: 1x USB 2.0
Dimensions: 299.80 x 258.95 x 42.55mm
Weight: 2.13kg

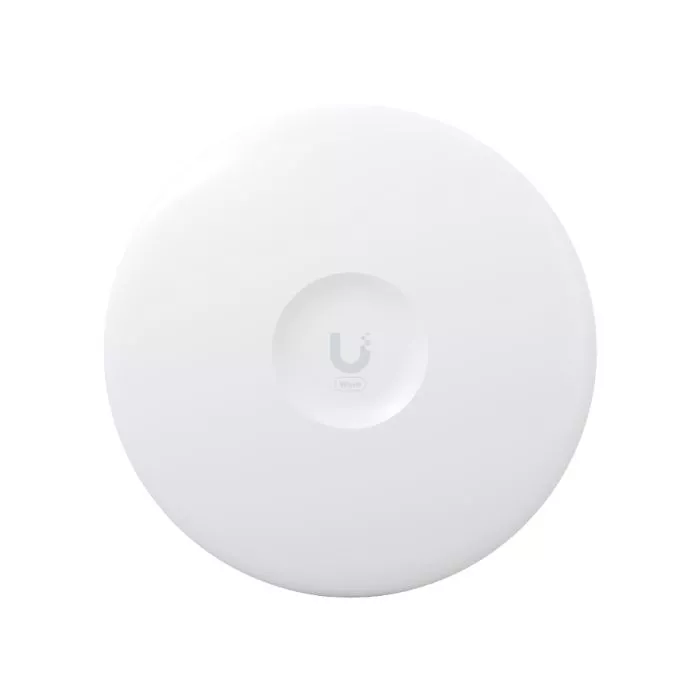

Brand: Ubiquiti
Product Code: WAVE‑PRO
Description: Ubiquiti UISP 60GHz/5GHz Wave Professional Radio

Product Overview
The Ubiquiti Wave‑Pro is a high‑capacity 60GHz radio system with a 5GHz backup radio, designed for professional long‑range wireless deployments. Featuring an integrated high‑gain antenna, 2 × 2.5Gbps Ethernet ports, 1 × 10Gbps SFP+ uplink, and integrated GPS, it delivers true duplex gigabit performance for PtP links up to 15km. In PtMP mode, it can operate as a CPE when paired with the Wave‑AP (up to 8km) or Wave‑APM (up to 6km), achieving a total throughput of up to 5.4Gbps. The unit includes a Bluetooth management radio for easy setup via the UISP platform, plus a precision alignment tool for reliable antenna positioning.

Key Features
High‑capacity 60GHz radio with 5GHz backup
True duplex gigabit PtP links up to 15km
PtMP mode: CPE with Wave‑AP (8km) or Wave‑APM (6km)
Aggregate throughput up to 5.4Gbps
Integrated GPS and precision mount bracket
Built‑in Bluetooth management radio for easy setup
2 × 2.5Gbps Ethernet ports + 1 × 10Gbps SFP+ uplink
Antenna gain: 60GHz 46dBi; 5GHz 22dBi
Beamwidth: 60GHz 1.3°; 5GHz 8°
Max power consumption: 26W
Operating temperature: –40°C to 60°C
Dimensions: Ø424.4 × 166.2 mm
Net weight: 4kg
Gross shipping weight: 5.0–5.5 kg (including packaging)

Note: Firmware v3.2.0 or later required for PtP links

Technical Specifications
Feature Details
Product Code WAVE‑PRO
Antenna Gain 60GHz: 46dBi; 5GHz: 22dBi
Beamwidth 60GHz: 1.3°; 5GHz: 8°
Data Rate 60GHz: up to 5.4Gbps; 5GHz: 800Mbps
Ethernet Ports 2 × 10/100/1000/2500
SFP+ Port 1 × 10Gbps
Hardware Button Reset
Max Power Consumption 26W
Mounting Pole‑mount
Operating System airOS
Operating Temp –40°C to 60°C
PoE Input 44–54V or 22–27V Passive PoE
PoE Output None
Power Input 48V 0.65A Gigabit PoE Injector (included)
Dimensions Ø424.4 × 166.2 mm
Net Weight 4kg
Gross Shipping Weight 5.0–5.5 kg

What’s Included
1 × Ubiquiti Wave‑Pro Radio
1 × 48V 0.65A Gigabit PoE Injector
Precision alignment tool
Pole‑mounting kit
User documentation

Ubiquiti's WAVE-NANO is a 60GHz radio system with an integrated high-gain antenna, GPS, and a 5GHz backup radio. It features Wave technology with true duplex gigabit performance P2P links up to 12 km. In PtMP mode, it can be used as a CPE and paired with the WAVE-AP (up to 5km) or WAVE-APM (4km) with a total throughput of up to 2Gbps.

Also included is a built-in Bluetooth management radio for easy setup via the UISP network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas.

*Note: For P2P links, firmware v.3.2.0 or later is required.

Specifications

Antenna Gain: 60GHz: 41dBi; 5.8GHz: 19dBi
Beamwidth: 60GHz: 1° ; 5GHz: 17°
Data Rate: 60GHz: Up to 2Gbps; 5.8GHz: 800Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V or 48V Passive PoE
PoE Output: None
Power Input: 48V 0.65A Gigabit PoE Injector (included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V or 48V
USB Ports: None
Dimensions: Ø256.5 x 113.5 mm
Weight: 1.2kg

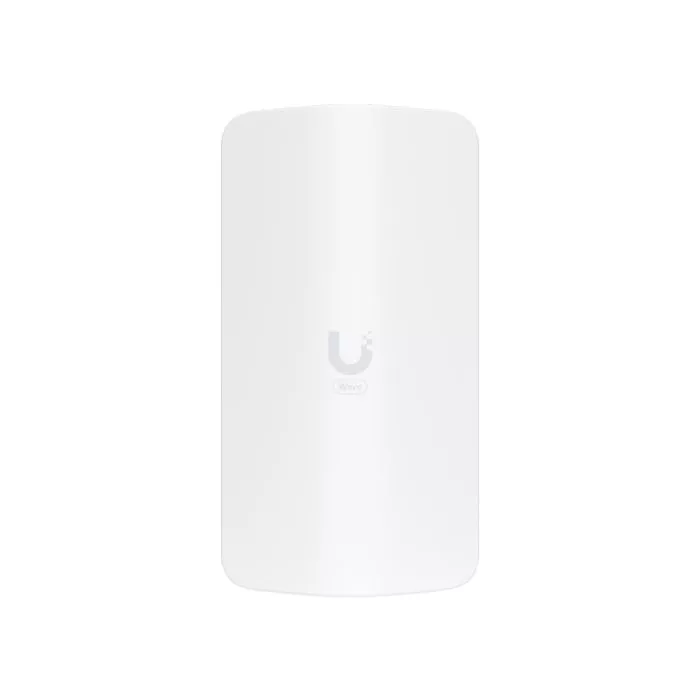

Brand: Ubiquiti
Product Code: WAVE‑APM
Description: Ubiquiti UISP 60GHz/5GHz PtMP Wave Access Point Micro

Product Overview
The Ubiquiti Wave‑AP Micro (WAVE‑APM) is a compact Point‑to‑MultiPoint (PtMP) access point designed for high‑capacity 60GHz deployments with 5GHz failover. Featuring 1 × 2.5Gbps Ethernet port and an integrated GPS antenna, it supports up to 15 stations with a total throughput of 5Gbps. Distances vary depending on the paired CPE: 900m with Wave‑Pico, 4km with Wave‑Nano, and 6km with Wave‑LR. For full coverage, up to 4 Wave‑APM units can be mounted using the Wave‑MM bracket to achieve 360° sector coverage. The built‑in Bluetooth management radio ensures easy setup via the UISP platform.

Key Features
60GHz PtMP access point with 5GHz failover
Connects up to 15 stations
Throughput up to 5Gbps
Range: 900m (Wave‑Pico), 4km (Wave‑Nano), 6km (Wave‑LR)
Mount up to 4 units with Wave‑MM for 360° coverage
Integrated GPS antenna for synchronization
Built‑in Bluetooth management radio for easy setup
1 × 2.5Gbps Ethernet port
Antenna gain: 60GHz 20dBi; 5GHz 13.5dBi
Beamwidth: 90° (60GHz/5GHz)
Max power consumption: 24W
Operating temperature: –40°C to 60°C
Dimensions: 284 × 156 × 76 mm
Net weight: 1.3kg

Gross shipping weight: 2.0–2.3 kg (including packaging)

Technical Specifications
Feature Details
Product Code WAVE‑APM
Antenna Gain 60GHz: 20dBi; 5GHz: 13.5dBi
Beamwidth 90°
Data Rate 60GHz: up to 5.4Gbps; 5GHz: 800Mbps
Ethernet Ports 1 × 2.5Gbps
Hardware Button Reset
Max Power Consumption 24W
Mounting Pole‑mount or Wave‑MM for 360° coverage
Operating System airOS
Operating Temp –40°C to 60°C
PoE Input 24V or 48V Passive PoE
PoE Output None
Power Input 48V 0.65A 2.5GbE PoE Injector (included)
Dimensions 284 × 156 × 76 mm
Net Weight 1.3kg
Gross Shipping Weight 2.0–2.3 kg

What’s Included
1 × Ubiquiti Wave‑AP Micro (WAVE‑APM)
1 × 48V 0.65A 2.5GbE PoE Injector
Pole‑mounting kit
User documentation

🎥 Professional-Grade Storage for 24/7 CCTV & NVR Systems

✅ Surveillance-Optimized – Supports up to 64 cameras
✅ 7200 RPM + 256MB Cache – Smooth 4K video streaming
✅ 24/7 Reliability – Designed for continuous operation
✅ SATA III 6Gb/s – Fast data transfer speeds
✅ 3-Year Warranty – Toshiba's professional protection

📊 Technical Specifications

Category Specification
Model HDKPJ42ZRA02S
Capacity 1TB
Interface SATA III (6Gb/s)
RPM 7200
Cache 256MB
Camera Support Up to 64 channels
Form Factor 3.5"
Error Rate <1 in 10¹⁵ bits
Warranty 3-Year Limited

🏢 Ideal For:

✔ CCTV Systems – Hikvision, Dahua, Lorex NVRs
✔ Surveillance DVRs – 24/7 video recording
✔ Retail Security – Multi-camera installations
✔ Smart Home – High-resolution video storage

📦 What's Included?

Toshiba S300 Pro 1TB HDD
Mounting Screws (4x)
Quick Installation Guide

"Never miss a frame – professional surveillance storage for mission-critical security!"

⚙️ Pro Installation Tips:

• For NVR systems: Enable continuous recording mode
• Cooling: Maintain <45°C for optimal lifespan
• RAID Setup: Use RAID 1 for critical redundancy
• Burn-in: Run 72hr stress test before deployment

🔍 Why Choose S300 Pro?

✔ Higher Camera Density – 64 streams vs competitors' 32
✔ Faster RPM – 7200 vs standard 5400 surveillance drives
✔ StreamOptimized™ – Minimizes frame drops

*(For larger capacities, see 2TB/4TB S300 Pro models)*

🏢 Enterprise-Grade Storage for 24/7 NAS & RAID Systems

✅ NAS-Optimized – 180TB/year workload rating
✅ 7200 RPM + 512MB Cache – Fast data access
✅ Dynamic Cache Technology – Intelligent cache allocation
✅ Stable Platter Design – Vibration resistance for 8-bay systems
✅ 3-Year Limited Warranty – Toshiba reliability

📊 Technical Specifications

Category Specification
Model HDWG780EZSTAU
Capacity 8TB
Interface SATA III (6Gb/s)
RPM 7200
Cache 512MB
Workload Rate 180TB/year
Form Factor 3.5"
Dimensions 101.9×147×26.1mm
Warranty 3-Year Limited

🖥️ Ideal For:

✔ NAS Systems – Synology, QNAP, TerraMaster
✔ RAID Arrays – Levels 0, 1, 5, 10
✔ Surveillance Storage – NVR/DVR systems
✔ Creative Pros – 4K video editing workspace

📦 What's Included?

Toshiba N300 8TB Hard Drive
Mounting Screws (4x)
Quick Installation Guide

"The workhorse drive built for always-on operation – now with enterprise vibration control!"

⚙️ Pro Deployment Tips:

• For NAS use: Enable TLER/ERC (Timeout-Limited Error Recovery)
• In RAID setups: Use identical N300 drives for best performance
• Cooling: Maintain <40°C with proper NAS ventilation
• Burn-in: Run 48hr stress test before production use

🔍 Why Choose N300 Over Desktop Drives?

✔ 3× Higher Workload – 180TB vs 60TB annual rating
✔ Vibration Sensors – For multi-bay stability
✔ RAID-Ready Firmware – Prevents dropouts

*(For larger capacities, see 12TB/14TB N300 models)*

The Toshiba 100″ Z670N Series QLED Smart LED TV is designed for immersive home theater and gaming experiences.
Its Quantum Dot panel delivers 4K UHD resolution (3840 × 2160) with vibrant colors, sharp details, and enhanced brightness.
Powered by VIDAA Smart OS, it offers seamless streaming, Anyview screen mirroring, and smart home integration.
With Dolby Vision HDR, Dolby Atmos audio, AI 4K upscaling, and 144Hz Game Mode, this TV excels in cinematic viewing, sports, and responsive gaming.
Its slim bezel design maximizes the viewing area, making it ideal for large living spaces seeking premium performance.

Key Features
100″ QLED UHD display (3840 × 2160 resolution)
Quantum Dot technology for enhanced color accuracy and brightness
HDR formats: Dolby Vision, HDR10, HLG
Dolby Atmos audio with Tru Bass Booster
AI 4K upscaling for near‑4K quality on lower‑resolution content
120Hz refresh rate with 144Hz Game Mode capability
VIDAA Smart OS with app support, voice control, and Anyview screen mirroring
Connectivity: 3 × HDMI (ARC), 2 × USB 2.0, Bluetooth, Wi‑Fi dual‑band, Ethernet LAN
Slim bezel design for modern setups
3‑year limited warranty

Specifications
Screen Size: 100 inches (flat screen)
Resolution: 3840 × 2160 (4K UHD)
Display Technology: QLED (Quantum Dot)
Brightness: 250 cd/m² (typical)
Refresh Rate: 120Hz (144Hz Game Mode capability)
Audio Output: Dolby Atmos, Tru Bass Booster
Connectivity: HDMI × 3 (ARC), USB 2.0 × 2, Bluetooth, Wi‑Fi, Ethernet LAN
Operating System: VIDAA Smart OS
Screen Mirroring: Anyview
Dimensions (with stand): 223.5 × 131.9 × 46 cm
Dimensions (without stand): 223.5 × 128.6 × 10.1 cm
Net Weight: 62.1 kg
Gross Weight: 96.6 kg
Warranty: 3 Years

🚀 Next-Gen Wi-Fi 6 for Your Entire Home

✅ AX1800 Dual-Band Wi-Fi 6 – 1201Mbps @5GHz + 574Mbps @2.4GHz
✅ Whole-Home Coverage – 2 units cover up to 4,000 sq. ft.
✅ Seamless Roaming – No drop-offs as you move around
✅ OFDMA & MU-MIMO – Handles 150+ devices efficiently

🔧 Key Features

✔ Easy Setup – Guided installation via Deco app
✔ Parental Controls – Manage screen time & block content
✔ AI-Driven Mesh – Automatically optimizes connections
✔ Works with Alexa – Voice control for your network

📊 Technical Specifications

Category Specification
Model Deco X20 (2-Pack)
Wi-Fi Standard 802.11ax (Wi-Fi 6)
Coverage Up to 4,000 sq. ft. (2 units)
Ethernet Ports 2× Gigabit per unit (WAN/LAN auto-sensing)
Security WPA3, SPI Firewall, Guest Network
Dimensions 4.33 × 4.33 × 4.72 in (110 × 110 × 120 mm)
Warranty 2-year limited

**🏡 Ideal For:

✔ Large homes (3-5 bedrooms)
✔ Smart homes with 100+ devices
✔ 4K streaming & gaming
✔ Remote work & video calls

**📦 What's Included?

2× Deco X20 units
2× Power adapters
1× Ethernet cable
Quick start guide

"Future-proof Wi-Fi 6 coverage—eliminate dead zones with seamless mesh technology!"

**⚙️ Pro Tips:

Place units centrally for optimal coverage
Use Ethernet backhaul for fastest speeds (if possible)
Enable QoS in the Deco app to prioritize gaming/streaming

**🔍 Why Choose Deco X20?

✔ 40% faster than Wi-Fi 5 mesh systems
✔ Easy app management (even for non-tech users)
✔ Compact, stylish design blends into any home
*(For tri-band or higher speeds, see Deco X60/X90 models)*

🚀 Next-Gen Wi-Fi 6 Speeds for Your PC

✅ AX1800 Dual-Band Wi-Fi 6

1201Mbps @5GHz (4K/VR-ready speeds)
574Mbps @2.4GHz (IoT/legacy device support)
✅ 2× High-Gain Antennas – Extends coverage throughout your home
✅ USB 3.0 SuperSpeed – 10× faster than USB 2.0

🎮 Lag-Free Gaming & Streaming

✔ OFDMA & MU-MIMO – Reduces latency for competitive gaming
✔ Beamforming Technology – Focuses signal on your devices
✔ WPA3 Encryption – Enterprise-grade security

📊 Technical Specifications

Category Specification
Model Archer TX20UH
Interface USB 3.0 (Backward compatible)
Antennas 2× detachable (5dBi each)
OS Support Windows 10/11
Dimensions 4.4×1.2×0.58 in (111.7×30.5×14.8 mm)

💻 Perfect For:

Gaming PCs – Ultra-low latency
4K Streaming – Buffer-free video
Home Offices – Reliable video calls
Legacy PCs – Modern Wi-Fi upgrade

📦 What's Included?

TX20UH USB adapter
USB 3.0 cradle
Quick start guide

⚙️ Pro Tips:

Use USB 3.0 ports (blue) for maximum speed
Position antennas vertically for best reception
Download latest drivers from TP-Link

🔍 Why Choose This Adapter?

✔ Faster than most built-in Wi-Fi
✔ Easy plug-and-play setup
✔ Future-proof Wi-Fi 6 ready

"Transform any PC into a Wi-Fi 6 powerhouse—perfect for gamers, streamers, and remote workers!"
(For PCIe version, see Archer TX20E model)

🚀 Next-Gen Wi-Fi 6 for Demanding Environments

✅ Wi-Fi 6 (802.11ax) – AX1800 Dual-Band

1201Mbps @5GHz (Lag-free 4K/VR streaming)

574Mbps @2.4GHz (IoT device compatibility)
✅ High-Density Optimized – Handles 200+ concurrent clients
✅ Omada SDN Integration – Centralized cloud management

🔧 Enterprise-Grade Features

✔ PoE+ Powered (802.3at) – Single-cable deployment
✔ Seamless Roaming – Zero drop-offs for VoIP/video calls
✔ Advanced QoS – Band steering & airtime fairness
✔ 4× Internal Antennas – Optimized for ceiling-mount coverage

📊 Technical Specifications

Category Specification
Model EAP620-HD
Wi-Fi Standard 802.11ax (Wi-Fi 6)
Antennas 4× internal (high-gain)
Ethernet 1× Gigabit (PoE+)
Mounting Ceiling (hardware included)
Dimensions Φ8.7×1.6 in (Φ220×40 mm)
Warranty Limited lifetime

🏢 Ideal For:

✔ Conference rooms & lecture halls
✔ Hotels & dormitories
✔ High-traffic retail stores
✔ Enterprise offices

🔒 Security & Management

WPA3 Encryption
Captive Portal for guest access
VLAN Support (Up to 16 SSIDs)

📦 Package Includes

EAP620-HD Access Point
Ceiling mount kit
Quick start guide

"The perfect balance of performance and value for high-density Wi-Fi 6 deployments!"

*(For outdoor use, see EAP610-Outdoor model)*

🚀 Next-Gen Desktop Connectivity

✅ Wi-Fi 6 (802.11ax) - AX1800 Speeds
1201Mbps @5GHz (4K/VR-ready)
574Mbps @2.4GHz (IoT/legacy support)
✅ Bluetooth 5.2 - 2× faster, 4× range vs BT 4.2
✅ High-Gain Antennas - Detachable dual-band antennas for optimal signal

🔧 Built for Performance

✔ PCIe x1 Interface - Lower latency than USB adapters
✔ MU-MIMO & OFDMA - Handles 50+ devices efficiently
✔ WPA3 Encryption - Enterprise-grade security
✔ Backward Compatible - Works with all Wi-Fi 5/4/3 networks

📊 Technical Specifications

Category Specification
Model Archer TX20E
Chipset Realtek Wi-Fi 6
Antennas 2× detachable (5dBi each)
Bluetooth 5.2 (BLE support)
OS Support Windows 10/11 (64-bit)
Dimensions 4.76×3.09×0.82 in (120.8×78.5×20.9 mm)

🎮 Perfect For:

Gaming PCs - Ultra-low latency
VR/4K Streaming - No buffering
Bluetooth Peripherals - Mice, headsets, controllers
Legacy PCs - Modern Wi-Fi upgrade

📦 What's Included?

TX20E PCIe card
2× antennas
Low-profile bracket
Driver CD

⚙️ Pro Tips:

Position antennas vertically for best signal
Download latest drivers from TP-Link for full Wi-Fi 6 speeds
Use 5GHz band for gaming/streaming

🔍 Why Choose This Adapter?

✔ Faster than most built-in motherboard Wi-Fi
✔ Dual-band flexibility - Optimize device connections
✔ Future-proof - Ready for Wi-Fi 6 networks

"Transform your desktop into a wireless powerhouse—perfect for gamers, streamers, and creators!"
(For laptops, see the Archer TX20U USB version)

🚀 Professional-Grade Wi-Fi for Demanding Environments

AC1350 Dual-Band Wi-Fi
867Mbps @5GHz (Lag-free 4K streaming)
450Mbps @2.4GHz (IoT device compatibility)
802.11ac Wave 2 with MU-MIMO - Serves multiple devices simultaneously

🔧 Enterprise Features Made Simple

✅ Omada SDN Integration - Centralized cloud management
✅ Seamless Roaming - Uninterrupted VoIP/video calls
✅ Flexible PoE Options - 802.3af or Passive PoE (adapter included)
✅ Smart Traffic Optimization:

Band Steering - Auto-shifts devices to 5GHz
Beamforming - Focused signal for stronger connections
Airtime Fairness - Prevents slow devices from bottlenecking

📊 Technical Specifications

Category Specification
Model EAP225
Wi-Fi Standard 802.11ac Wave 2
Antennas Internal (4dBi @2.4GHz, 5dBi @5GHz)
Ethernet 1× Gigabit (PoE/PoE+)
Mounting Ceiling/wall (kits included)
Dimensions Φ7.87×1.57 in (Φ200×40 mm)
Client Capacity 200+ devices

🏢 Perfect For:

✔ Offices & conference rooms
✔ Hotels & student housing
✔ Retail stores & restaurants
✔ Smart home backbones

📦 Package Includes:

EAP225 Access Point
PoE adapter
Ceiling/wall mount kit
Quick start guide

"Deploy enterprise Wi-Fi with plug-and-play simplicity - ideal for businesses needing reliable, high-speed connectivity!"

⚙️ Pro Deployment Tips:

Enable Band Steering to maximize 5GHz utilization
Schedule automatic reboots for maintenance-free operation
Use Omada Controller for multi-AP management

🔍 Why IT Pros Choose EAP225:

✔ Cost-effective alternative to Cisco/Ruckus
✔ Future-ready with MU-MIMO technology
✔ Scalable - Add more APs as needed

Note: For Wi-Fi 6 performance, consider the EAP610 model.

🚀 Ultra-Fast Wireless Speeds

AC1300 Dual-Band Wi-Fi

867Mbps @5GHz (Lag-free gaming/4K streaming)
400Mbps @2.4GHz (Stable browsing/HD video)

Wi-Fi 5 (802.11ac) with MU-MIMO for efficient multi-device connectivity

🔌 Plug-and-Play Convenience

✅ USB 3.0 Interface - 10× faster than USB 2.0
✅ Compact & Portable - Smaller than a flash drive (1.6×0.8×0.5 in)
✅ Omni-Directional Antenna - Strong signal reception
✅ WPA3 Encryption - Enterprise-grade security

📊 Technical Specifications

Category Specification
Model Archer T3U
Interface USB 3.0 (Backward compatible with USB 2.0)
Wi-Fi Standards 802.11ac/a/n @5GHz, 802.11n/g/b @2.4GHz
Antenna Internal omni-directional
OS Support Windows 11/10/8.1/7, macOS 10.9-12.x
Dimensions 1.6×0.8×0.5 in (40×21×12.5 mm)
Weight 0.35 oz (10 g)

💻 Perfect For:

✔ Laptops/PCs with weak built-in Wi-Fi
✔ Gaming rigs needing low-latency connections
✔ 4K streaming on smart TVs (via USB port)
✔ Travelers requiring compact Wi-Fi solutions

📦 What's Included?

Archer T3U adapter
Quick start guide

"Upgrade your PC's Wi-Fi instantly - enjoy lag-free gaming and 4K streaming with this pocket-sized powerhouse!"

⚙️ Pro Tips:

Use USB 3.0 ports for maximum speed (Blue ports)
Position vertically for optimal signal reception
Download drivers from TP-Link for macOS support

🔍 Why Choose Archer T3U?

✔ Faster than most built-in laptop Wi-Fi
✔ Discreet design won't block adjacent USB ports
✔ Budget-friendly upgrade for older devices

Note: For Wi-Fi 6 (802.11ax) speeds, consider the Archer TX20U model.

Key Features:

300Mbps Wi-Fi Extension - Eliminates dead zones with strong wireless coverage
600Mbps Powerline Speeds (AV600 standard) for stable HD/4K streaming
Wi-Fi Clone Button - One-touch sync with your existing network name/password

Dual Connectivity Options:
Wi-Fi extension for wireless devices
Gigabit Ethernet port for wired connections

Plug-and-Play Setup - No new wires or configuration needed
Compact Wall-Plug Design - Doesn't block adjacent outlets

Technical Specifications:

Model: TL-WPA4221-KIT
Wi-Fi Standard: 802.11n (2.4GHz)
Wi-Fi Speed: Up to 300Mbps
Powerline Standard: HomePlug AV2
Powerline Speed: Up to 600Mbps
Ethernet Port: 1× Gigabit
Security: 128-bit AES encryption
Indicators: Power, Powerline, Wi-Fi, Ethernet
Dimensions: 4.1 × 2.7 × 1.5 in (104 × 68 × 38 mm)
Warranty: 2-year limited

Ideal For:
✔ Extending Wi-Fi to basements or upstairs bedrooms
✔ Lag-free 4K streaming to smart TVs
✔ Online gaming without latency
✔ Home offices with spotty coverage

Package Includes:

1× Powerline Adapter with Wi-Fi (TL-WPA4220)
1× Basic Powerline Adapter (TL-PA4010)
2× Ethernet Cables
Quick Installation Guide

Why Choose This Kit?
This starter kit provides the perfect balance of Wi-Fi extension and powerline technology, delivering both wireless and wired connectivity through your home's electrical wiring. The one-touch Wi-Fi clone makes setup effortless, while the AV600 speeds ensure smooth performance for bandwidth-intensive activities.
