Scoop's POE-GIG is a single port Gigabit Passive PoE Injector. The unit supports an input voltage of 9-48V and can be wall-mounted.

*Note: Power Supply sold separately.
SKU POE-GIG
Manufacturer Scoop

Specifications

Ethernet Ports: 2x 10/100/1000
Max. Current Per Port: 650mA
Operating Temperature: 0°C to 65°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 9-48V Power Supply (Not Included)
Supported Voltage Range: 9-48V

Scoop's POE-12G is a 12-Port Gigabit Passive PoE injector with dual power supplies for both Mode A and Mode B operation. The unit supports an input voltage of 24-57V and is rack-mountable.

*Note: Power supply sold separately.
SKU POE-12G
Manufacturer Scoop

Specifications

Ethernet Ports: 24x 10/100/1000 (12x PoE ; 12x Ethernet)
Max. Current Per Port: 1300mA (With 2x PSU of the same Voltage)
Operating Temperature: 0°C to 40°C
PoE Mode: Mode A & B (Mid & Endspan) A:+3/6 & -1/2- B:+4/5 & -7/8
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 24-57V Power Supply (Not Included)
Supported Voltage Range: 24-57V

Scoop's POE-16G is a 16-Port Gigabit Passive PoE injector with dual power supplies for both Mode A and Mode B operation. The unit supports an input voltage of 24-57V and is rack-mountable.

*Note: Power supply sold separately.
SKU POE-16G
Manufacturer Scoop

Specifications

Ethernet Ports: 32x 10/100/1000 (16x PoE ; 16x Ethernet)
Max. Current Per Port: 1300mA (With 2x PSU of the same Voltage)
Operating Temperature: 0°C to 40°C
PoE Mode: Mode A & B (Mid & Endspan) A:+3/6 & -1/2- B:+4/5 & -7/8
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 24-57V Power Supply (Not Included)
Supported Voltage Range: 24-57V

Scoop's POE-24G is a 24-Port Gigabit Passive PoE Injector featuring dual power supplies for increased PoE budget and redundancy. The unit supports an input voltage of 12-57V and is rack-mountable.

*Note: Power supply sold separately.
SKU POE-24G
Manufacturer Scoop

Specifications

Ethernet Ports: 48x 10/100/1000 (24x PoE ; 24x Ethernet)
Max. Current Per Port: 1000mA
Operating Temperature: 0°C to 50°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 12-57V Power Supply (Not Included)
Supported Voltage Range: 12-57V

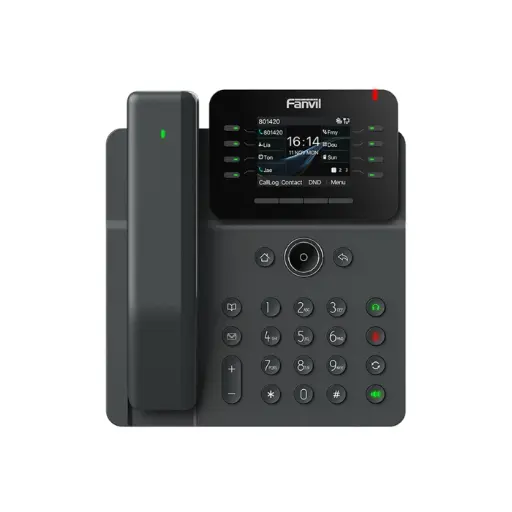

anvil's FAN-V62PRO features 2x Gigabit Ethernet ports, 802.3af/at PoE support, 12 SIP lines, HD Audio, a 2.8'' colour LCD screen and a Bluetooth wireless handset with programmable keys. The FAN-V62PRO is compatible with major platforms, including 3CX, Broadsoft, Elastix, Asterisk, and Xorcom, among others.

*Note: PSU-5V10W power supply not included.
SKU FAN-V62PRO
Manufacturer Fanvil
Manufacturer Product Code V62PRO

Specifications

Bluetooth Support: Bluetooth handset
Ethernet Ports: 2x 10/100/1000
Max Power Consumption: 5.6W
Headset Port: 1x RJ9
Mounting: Desktop or Wall with FAN-WB107
Operating Temperature: 0°C to 45°C
PoE Input: 802.3af/at
Power Input: 5V 1A (Not included) or 802.3af/at PoE
SIP Lines: 12
WiFi Support: None
Dimensions: 309 x 270 x 66mm

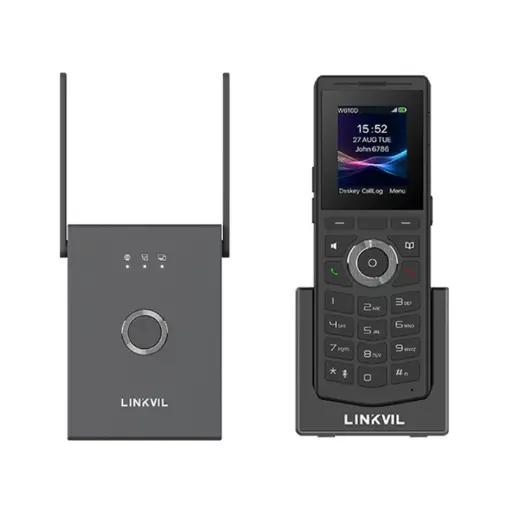

Fanvil's FAN-W710P is a PoE-powered DECT IP Phone and Base Station. The base station has provision for up to 10 handsets, 20 SIP accounts and up to 10 internal extensions. The wireless provides signal coverage that extends up to 50m indoors and 300m outdoors. The DECT IP Phone features 4x SIP lines, a rechargeable 1900mAh battery, and a 2" 240 x 320 colour screen with an intuitive user interface. It offers up to 8 hours of talk time and 160 hours of standby time.

*Note: Additional FAN-W610D units can be added to this Base Station.
SKU FAN-W710P
Manufacturer Fanvil
Manufacturer Product Code W710P

Specifications

Bluetooth Support: None
Ethernet Ports: 1x 10/100
Max Power Consumption: 1.4W
Mounting: Desktop
Operating Temperature: -10°C to 45°C
PoE Input: 802.3af/at
Power Input: 5V 1A Power Supply or 802.3af/at PoE
SIP Lines: 20
WiFi Support: None
Dimensions: 140 x 100 x 26 mm
Weight: 184.5g

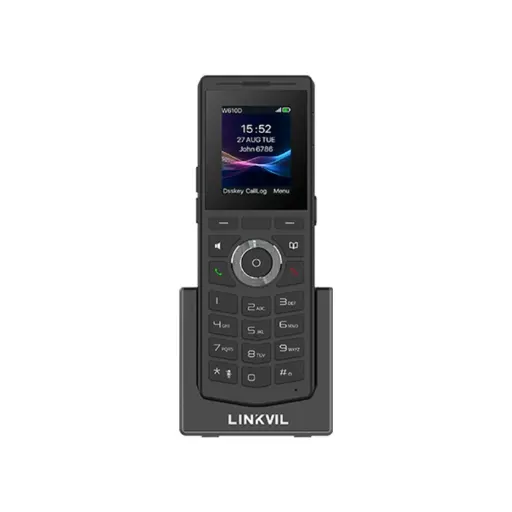

Fanvil's FAN-W610D is a cordless phone based on DECT technology. It features 4x SIP lines, a rechargeable 1900mAh battery, and a 2" 240 x 320 colour screen with an intuitive user interface. The W610D offers up to 8 hours of talk time and 160 hours of standby time.

*Note: This device cannot be used without a FAN-W710P Base Station.
SKU FAN-W610D
Manufacturer Fanvil
Manufacturer Product Code W610D

Specifications

Bluetooth Support: Integrated Bluetooth 5.0
Ethernet Ports: None
Battery Capacity: 1900mAh Rechargeable
Headset Port: 3.5mm Standard Jack
Mounting: Desktop
Operating Temperature: -10°C to 45°C
PoE Input: None
Power Input: 5V 2A USB-C
SIP Lines: 4
WiFi Support: None
Dimensions: 193 x 80 x 89mm
Weight: 146g

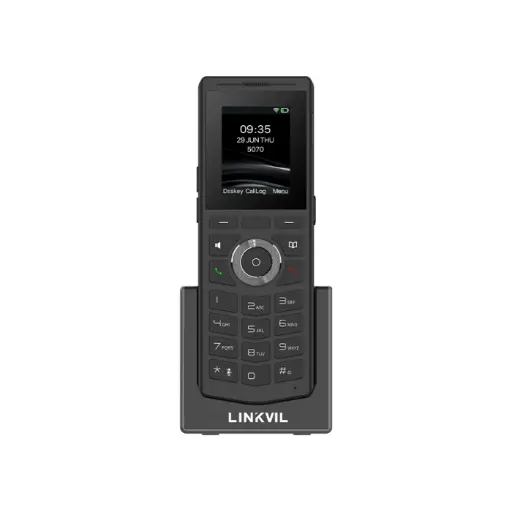

Fanvil's FAN-W610W features a 2.0” colour screen, IEEE802.11k/v/r roaming, built in Bluetooth and dual band WiFi 4 with up to 9 hours of talk time. The FAN-W610W is compatible with major platforms such as 3CX, Broadsoft, Elastix, Asterisk, Xorcom and others.
SKU FAN-W610W
Manufacturer Fanvil
Manufacturer Product Code W610W

Specifications

Bluetooth Support: Integrated Bluetooth 5.0
Ethernet Ports: None
Battery Capacity: 1900mAH Rechargable
Headset Port: Compatible with Bluetooth 5.0
Mounting: Desktop
Operating Temperature: 0°C to 45°C
PoE Input: None
Power Input: 5V 2A Power Supply (Included)
SIP Lines: 4
WiFi Support: Dual Band WiFi 4
Dimensions: 156 x 53 x 17.7 mm
Weight: 147g

Linkbasic's FLY-6-0.2N is a 0.22m CAT6 Nano Thin Flylead supplied moulded with a boot to provide additional strain relief. The nano thin cables are rated at 28AWG and support 10/100/1000/10 000Mbps data transmission speeds with a stranded copper design for the best possible performance.
SKU FLY-6-0.2N
Manufacturer Linkbasic
Manufacturer Product Code CAA01-UC6-0.2-28

Specifications

AWG Rating: 28
Cable Length: 0.22m
Colour: Grey
Conductor Dimensions:
Construction: UTP - Stranded Bare Copper
Cross Filter: Yes
ESD Drain Wire: None
Number of Pairs: 4
Outer Jacket: PVC

Procet’s POE-24V15W is a Gigabit, 24V, 15W, surge-protected, passive PoE injector enclosed in an IP40 fire-retardant plastic case.

*Note: Clover Power Cable Not Included.
SKU POE-24V15W
Manufacturer Scoop

Specifications

Ethernet Ports: 2x 10/100/1000
Operating Temperature: 0°C to 40°C
PoE Output: 24V 0.64A Passive PoE
Power Input: 1x Clover Power Cable (Not Included)
Supported Voltage Range: 100V-240V
Dimensions: 86.3mm x 46mm x 30.5mm
Weight: 90g

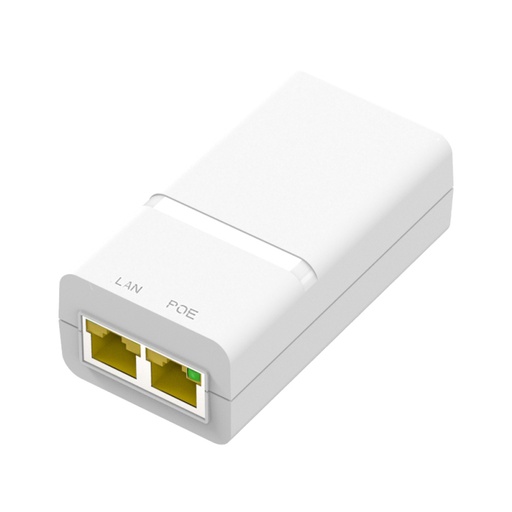

Procet’s POE-24V30W is a Gigabit, 24V, 30W, surge-protected, passive PoE injector enclosed in an IP40 fire-retardant plastic case.

*Note: Clover Power Cable Not Included.
SKU POE-24V30W
Manufacturer Scoop

Specifications

Ethernet Ports: 2x 10/100/1000
Operating Temperature: 0°C to 40°C
PoE Output: 24V 1.25A Passive PoE
Power Input: 1x Clover Power Cable (Not Included)
Supported Voltage Range: 100V-240V
Dimensions: 95.3mm x 51mm x 34.5mm
Weight: 135g

Procet’s POE-48V15W is a Gigabit, 48V, 15W, surge-protected, passive PoE injector enclosed in an IP40 fire-retardant plastic case ideal for powering 802.3af PoE devices.

*Note: Clover Power Cable Not Included.
SKU POE-48V15W
Manufacturer Scoop

Specifications

Ethernet Ports: 2x 10/100/1000
Operating Temperature: 0°C to 40°C
PoE Output: 48V 0.32A Passive PoE
Power Input: 1x Clover Power Cable (Not Included)
Supported Voltage Range: 100V-240V
Dimensions: 86.5mm x 46mm x 30.5mm
Weight: 91g

Procet’s POE-52V30W is a Gigabit, 52V, 30W, surge-protected, passive PoE injector enclosed in an IP40 fire retardant plastic case ideal for powering 802.3af/at PoE devices.

*Note: Clover Power Cable Not Included.
SKU POE-52V30W
Manufacturer Scoop

Specifications

Ethernet Ports: 2x 10/100/1000
Operating Temperature: 0°C to 40°C
PoE Output: 52V 0.58A Passive PoE
Power Input: 1x Clover Power Cable (Not Included)
Supported Voltage Range: 100V-240V
Dimensions: 95.3mm x 51mm x 34.5mm
Weight: 135g

Scoop's POE-4G is a 4-Port Gigabit Passive PoE Injector. The unit supports an input voltage of 12-57V and can be wall-mounted.

*Note: Power supply sold separately.
SKU POE-4G
Manufacturer Scoop

Specifications

Ethernet Ports: 8x 10/100/1000 (4x PoE ; 4x Ethernet)
Max. Current Per Port: 1000mA
Operating Temperature: 0°C to 40°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 12-57V Power Supply (Not Included)
Supported Voltage Range: 12-57V

Scoop's POE-8G is an 8-Port Gigabit Passive PoE Injector with both DC and Terminal Powering options. The unit supports an input voltage of 12-57V and can be wall-mounted.

*Note: Power supply sold separately.
SKU POE-8G
Manufacturer Scoop

Specifications

Ethernet Ports: 16x 10/100/1000 (8x PoE ; 8x Ethernet) Max. Current Per Port: 1000mA
Operating Temperature: 0°C to 40°C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 12-57V Power Supply (Not Included)
Supported Voltage Range: 12-57V

Scoop’s POE-KIT is supplied as an injector and splitter combination. It is used to supply Fast Ethernet PoE to devices which do not have native PoE support. PoE range is limited to the tolerance of the end device after the voltage drop along the PoE run. Therefore, we do not recommend installation for distances longer than 30m.
SKU POE-KIT
Manufacturer Scoop
Specifications N/A

Scoop's POE-RACK is a blank rack mountable 19" panel, ideal for mounting multiple PoE injectors.

*Note: This product is compatible with the Ubiquiti PoE Injectors. PoE Injectors sold separately.
SKU POE-RACK
Manufacturer Scoop

Specifications

Material: Cold steel sheet with electrostatic power coating
Size: 19 inch rack-mountable

Procet's POE-USBC is a 44-57V PoE (802.3af/at) to 5V 2A USB-C adapter which includes a 0.5m USB-C cable. This indoor adapter converts power and data from PoE to USB-C devices while still providing 10W of USB output power. It also supports the PD2.0/3.0 charging protocol and is encapsulated in an IP40 white plastic housing.
SKU POE-USBC
Manufacturer Scoop

Specifications

Operating Temperature: -20℃ to 40℃
Ports: 1x USB-C ; 1x 10/100 (Both data & power)
Power Input: 802.3af/at
Power Output: USB-C 5V 2A
Supported Voltage Range: 44-57V
Dimensions: 65mm X 29mm X 16.2mm
Weight: 26g

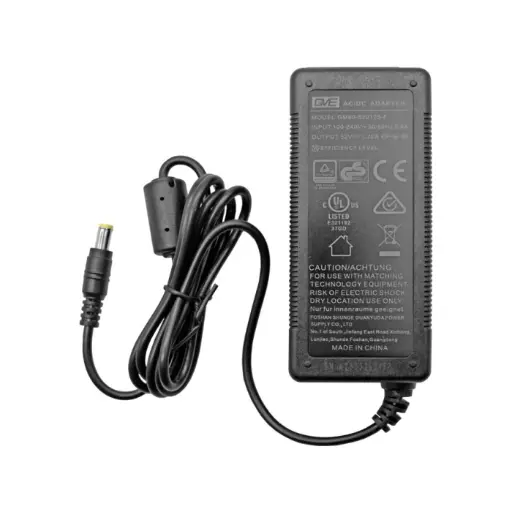

Scoop's PSU-52V65W is a 52V 65W (1.25A) IEC power supply suitable as a replacement PSU for the 4 port Scoop PoE Switches or with our range of single or multi-port Passive PoE Injectors.
SKU PSU-52V60W
Manufacturer Scoop

Specifications

Connector: IEC
DC Connector: 2.1mm Jack
Voltage: 52V
Wattage: 65W

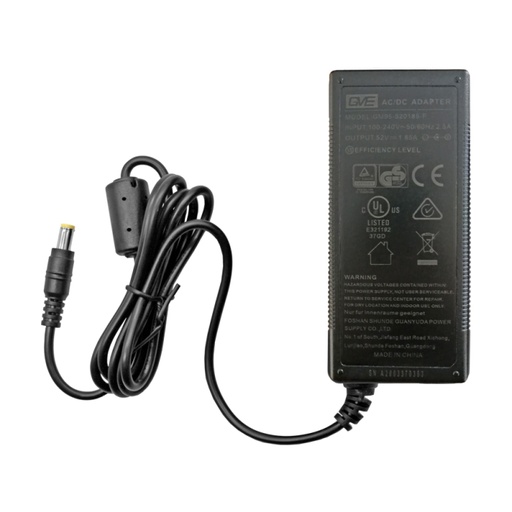

Scoop's PSU-52V96W is a 52V 96W (1.85A) IEC power supply suitable as a replacement PSU for the 8 port Scoop PoE Switches or with our range of single or multi-port Passive PoE Injectors.

SKU PSU-52V96W
Manufacturer Scoop

Specifications

Connector: IEC
DC Connector: 2.1mm Jack
Voltage: 52V
Wattage: 96Witches or with our range of single or multi-port Passive PoE Injectors.
