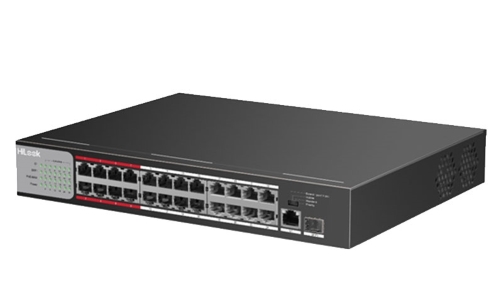

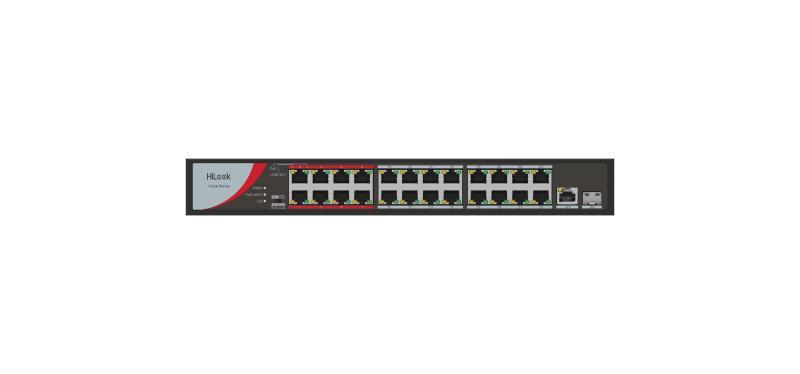

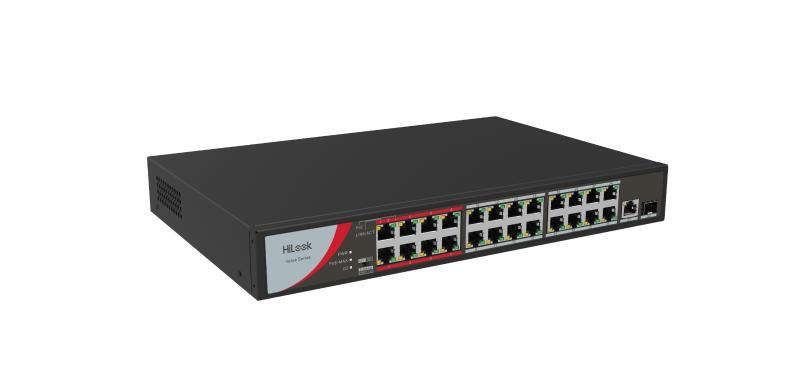

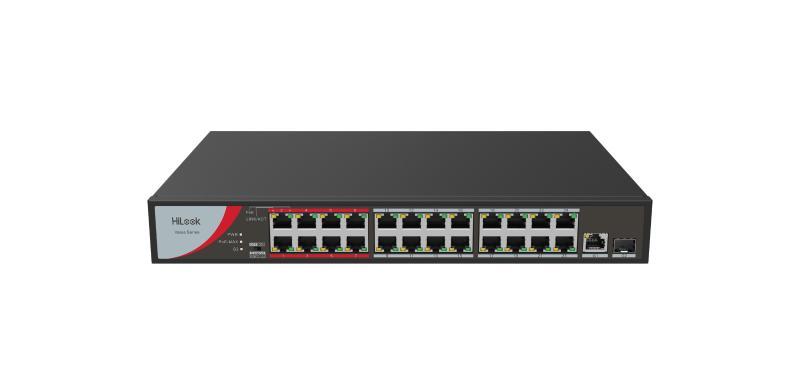

HiLook 24 Port Fast Ethernet Unmanaged POE Switch | NS-0326P-230(B)

HiLook 24-Port 100 Mbps Long-Range Unmanaged PoE Switch
Unmanaged switch with 24 x 100 Mbps PoE ports, 1 x 1000 Mbps RJ45 port, and 1 x 1000 Mbps SFP port
All ports support 6 kV lighting protection
230 W PoE power budget
Maximum transmission distance is 250 meters for port 17 to 24 in "extend" mode
MAC address auto learning and auto aging

Port number24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority ports Ports 1 to 8
Ports for long-distance transmission Ports 17 to 24
MAC address table4 K
Switching capacity8.8 Gbps
Packet forwarding rate6.547 Mpps
Internal cache2.75 Mbits
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE port Ports 1 to 24
Max. port power30 W
PoE power budget230 W
Max. power consumption250 W
Shell Metal material
Gross weight3.33 kg (7.34 lb)
Net weight2.55 kg (5.6 lb)
Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity5% to 95% (no condensation)
Storage humidity5% to 95% (no condensation)
Power supply100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle20 W
