Brand: Ubiquiti
Product Code / SKU: WAVE‑PRO
Supplier Code: Wave‑Pro
Description
Ubiquiti UISP Wave Pro – high‑capacity 60GHz radio with 5GHz backup, integrated GPS, precision mount bracket, 2 × 2.5GbE ports, 1 × 10Gbps SFP+, and Bluetooth management. Supports PtP links up to 15km with true duplex gigabit performance, or PtMP mode with up to 5.4Gbps throughput. Retail box packaging. PoE injector included. 1‑year warranty.

Product Overview
Ubiquiti Wave Pro – 60GHz PtP/ PtMP radio with GPS, 5GHz backup, 2.5GbE + 10Gbps SFP+, 15km PtP range, 5.4Gbps throughput, precision mount bracket.

Highlights
60GHz Wave technology with true duplex gigabit performance
PtP links up to 15km range
PtMP mode: up to 5.4Gbps throughput
5GHz backup radio for reliability
Integrated GPS antenna for sync
Precision mount bracket + alignment tool included
2 × 2.5GbE Ethernet ports
1 × 10Gbps SFP+ uplink port
Built‑in Bluetooth radio for easy setup via UISP platform
Operating temperature: –40°C to +60°C
Retail box packaging
Warranty: 1 year

What’s Included
1 × Ubiquiti UISP Wave Pro Radio

Precision mount bracket + alignment tool

PoE injector (48V 0.65A)

User documentation

Retail box packaging

1‑year warranty

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote, regional, or high‑risk delivery areas. Orders above R1500 qualify for free courier delivery in urban areas only. Bulky networking equipment may incur handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

Ubiquiti's WAVE-PICO is a 60GHz radio system with an integrated high-gain antenna, and a WiFi 6, 5GHz backup radio. It features Wave technology with true duplex gigabit performance PtP links up to 3km. In PtMP mode, it can be used as a CPE and paired with the WAVE-AP (up to 1.3km) or WAVE-APM (900m) with a total throughput of up to 2Gbps.

Also included is a built-in Bluetooth management radio for easy setup via the UISP network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas.

*Note: For P2P links, firmware v.3.2.0 or later is required.

Specifications

Antenna Gain: 60GHz: 27.7dBi; 5.8GHz: 9dBi
Beamwidth: 60GHz: 6°; 5GHz: 50°
Data Rate: 60GHz: Up to 2Gbps ; 5.8GHz: 800Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V or 48V Passive PoE
PoE Output: None
Power Input: 48V 0.5A, Gigabit PoE Injector (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 44–54V or 22–27V Passive PoE
USB Ports: None
Dimensions: Ø152.1 x 55.8 mm
Weight: 347g

Ubiquiti's WAVE-NANO is a 60GHz radio system with an integrated high-gain antenna, GPS, and a 5GHz backup radio. It features Wave technology with true duplex gigabit performance P2P links up to 12 km. In PtMP mode, it can be used as a CPE and paired with the WAVE-AP (up to 5km) or WAVE-APM (4km) with a total throughput of up to 2Gbps.

Also included is a built-in Bluetooth management radio for easy setup via the UISP network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas.

*Note: For P2P links, firmware v.3.2.0 or later is required.

Specifications

Antenna Gain: 60GHz: 41dBi; 5.8GHz: 19dBi
Beamwidth: 60GHz: 1° ; 5GHz: 17°
Data Rate: 60GHz: Up to 2Gbps; 5.8GHz: 800Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V or 48V Passive PoE
PoE Output: None
Power Input: 48V 0.65A Gigabit PoE Injector (included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V or 48V
USB Ports: None
Dimensions: Ø256.5 x 113.5 mm
Weight: 1.2kg

Ubiquiti's WAVE-LR is a long-range 60GHz radio system with an integrated high-gain antenna, GPS, precision mount bracket, and a 5GHz backup radio. It features Wave technology with true duplex gigabit performance PtP links up to 15 km. In PtMP mode, it can be used as a CPE and paired with the WAVE-AP (up to 8km) or WAVE-APM (6km) with a total throughput of up to 2Gbps.

Also included is a built-in Bluetooth management radio for easy setup via the UISP network management platform. An alignment tool is included with the unit to assist with accurate and reliable aligning of the antennas.

*Note: For PtP links, firmware v.3.2.0 or later is required.

Specifications

Antenna Gain: 60GHz: 46dBi; 5.8GHz: 22dBi
Beamwidth: 60GHz: 1.1°; 5GHz: 10°
Data Rate: 60GHz: Up to 2Gbps; 5.8GHz: 800Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V or 48V Passive PoE
PoE Output: None
Power Input: 48V 0.65A Gigabit PoE Injector (included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V or 48V
USB Ports: None
Dimensions: Ø424.4 x 166.2mm
Weight: 2.59kg

Ubiquiti's WAVE-AP is a UISP 60GHz Point-to-MultiPoint Access Point featuring 5GHz failover, 1x 10Gbps SFP+ Port, 1x 2.5Gbps Ethernet Port and an integrated GPS antenna. Utilizing 60GHz point-to-multipoint technology, it can connect up to 15 stations with a total throughput of 5.4Gbps at distances of up to 1.3km when paired with the WAVE-PICO, 5km when paired with the WAVE-NANO, and 8km when paired with the WAVE-LR.

The dedicated Bluetooth radio allows for easy set-up via the UISP network management platform.

Specifications

Antenna Gain: 60GHz: 24dBi; 5.8GHz: 12dBi
Beamwidth: 60GHz/5GHz: 30°
Data Rate: 60GHz: Up to 5.4Gbps ; 5.8GHz: 800Mbps
Ethernet Ports: 1x 2.5Gbps
Hardware Button: Reset
Max. Power Consumption: 24W
Mounting: Pole-Mount
Operating System: airOS
Operating Temperature: -40°C to 60°C
PoE Input: 24V or 48V Passive PoE
PoE Output: None
Power Input: 48V 0.65A 2.5GbE PoE Injector (included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 44–54V or 22–27V
USB Ports: None
Other: 1x SFP+
Dimensions: 212 x 205 x 187mm
Weight: 2.3kg

Brand: Ubiquiti
Product Code / SKU: WAVE‑APM
Supplier Code: Wave‑AP‑Micro
Description

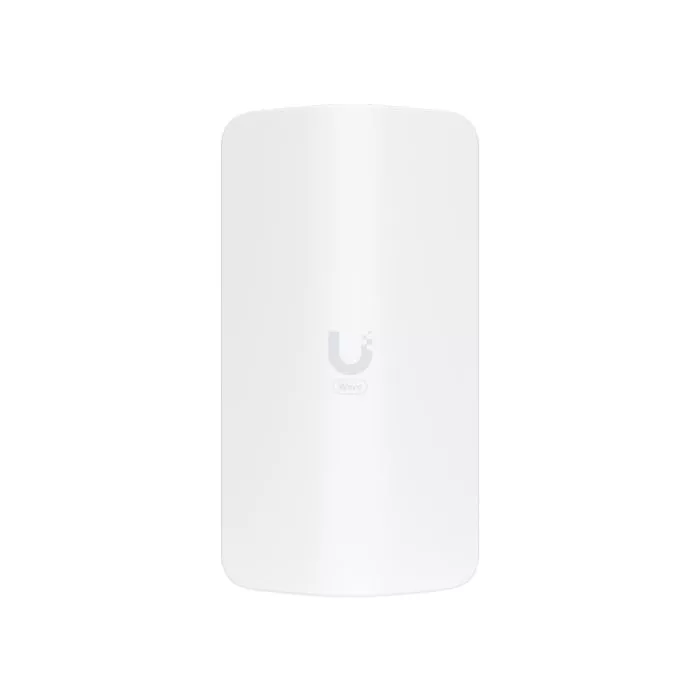

Ubiquiti UISP Wave AP Micro – 60GHz Point‑to‑MultiPoint outdoor access point with 5GHz failover, integrated GPS antenna, 2.5GbE port, and UPS support. Connect up to 15 stations with 5Gbps throughput, 900m–6km range depending on paired device. Retail box packaging. PoE injector included. 1‑year warranty.

Product Overview
Ubiquiti Wave AP Micro – 60GHz PtMP outdoor AP with UPS, 5GHz failover, GPS, 2.5GbE port, 15‑station support, 5Gbps throughput, 900m–6km range.

Highlights
60GHz Point‑to‑MultiPoint access point
5GHz failover for reliability
Connect up to 15 stations
Throughput: up to 5Gbps
Range: 900m (Wave‑Pico), 4km (Wave‑Nano), 6km (Wave‑LR)
Integrated GPS antenna for sync
1 × 2.5Gbps Ethernet port
Dedicated Bluetooth radio for easy setup
Mount up to 4 units with WAVE‑MM for 360° coverage
Outdoor‑ready: IP66 weatherproof, –40°C to +60°C
UPS + smart battery charger integrated
Retail box packaging
Warranty: 1 year

What’s Included
1 × Ubiquiti UISP Wave AP Micro
PoE injector (48V 0.65A)
Mounting accessories
User documentation
Retail box packaging
1‑year warranty

Shipping Disclaimer
Standard courier rates apply for major cities and towns across South Africa. Additional charges may apply for remote, regional, or high‑risk delivery areas. Orders above R1500 qualify for free courier delivery in urban areas only. Bulky networking equipment may incur handling or insurance fees. QuickStore covers up to 25% of courier surcharges; any excess will be billed to the customer before dispatch.

Brand: Ubiquiti
Product Code: UISP‑HORN
Description: Ubiquiti UISP 5GHz 19dBi 30° Horn Antenna

Product Overview
The Ubiquiti UISP‑HORN is a high‑isolation 5GHz horn antenna designed for seamless integration with Ubiquiti radios. Featuring 19.5dBi gain and a 30° beamwidth, it delivers focused coverage with minimal interference, making it ideal for co‑location deployments. The antenna supports a wide frequency range from 5.15GHz to 6.875GHz and is engineered with low back lobes to reduce noise and improve performance. Built for durability, it includes a WaveGuide adapter and withstands wind loading up to 90N at 200km/h.

Key Features
5GHz horn antenna with 19.5dBi gain
30° beamwidth for focused coverage
High isolation design with low back lobes
Wide frequency range: 5.15GHz – 6.875GHz
Vertical & horizontal polarization
Includes WaveGuide adapter for easy integration
Wind loading: 90N @ 200km/h
Dimensions: 282 × 224 × 380 mm
Net weight: 3.98kg
Gross shipping weight: 5.0–5.5 kg (including packaging)

Note: Radio not included

Technical Specifications
Feature Details
Product Code UISP‑HORN
Antenna Gain 19.5dBi
Beamwidth 30°
Frequency Range 5.15 – 6.875GHz
Polarization Vertical & Horizontal
Connector WaveGuide Adapter (included)
Wind Loading 90N @ 200km/h
Dimensions 282 × 224 × 380 mm
Net Weight 3.98kg
Gross Shipping Weight 5.0–5.5 kg

What’s Included
1 × Ubiquiti UISP‑HORN Antenna
1 × WaveGuide Adapter
User documentation

🌦️ Professional Outdoor Wi-Fi 6 Coverage

✅ Wi-Fi 6 (802.11ax) – AX1800 Dual-Band

1201Mbps @5GHz (Low-latency streaming)
574Mbps @2.4GHz (Long-range IoT coverage)
✅ IP66 Weatherproof – Resists heavy rain, dust, and extreme temps (-30°C to 70°C)
✅ High-Power Antennas – 4× external 5dBi antennas for wide-area coverage

📡 Enterprise-Grade Performance

✔ Omada SDN Compatible – Centralized cloud management
✔ PoE+ Powered (802.3at) – Single-cable deployment (injector not included)
✔ Seamless Roaming – Uninterrupted connectivity for mobile devices
✔ MU-MIMO & OFDMA – Handles 200+ devices efficiently
🔒 Advanced Security & Control

WPA3 Encryption – Enhanced wireless security
Captive Portal – Customizable guest access
VLAN & Multi-SSID – Isolate traffic for different user groups

📊 Technical Specifications

Category Specification
Model EAP610-Outdoor
Wi-Fi Standard 802.11ax (Wi-Fi 6)
Antennas 4× 5dBi detachable (RP-SMA)
Ethernet 1× Gigabit (PoE+)
Mounting Pole/wall (hardware included)
Dimensions 9.8 × 5.9 × 2.4 in (250 × 150 × 60 mm)
Operating Temp -30°C to 70°C (-22°F to 158°F)
Warranty Limited lifetime

🏗️ Ideal Deployment Scenarios

✔ Outdoor venues (Parks, stadiums, cafes)
✔ Industrial sites & warehouses
✔ Campus-wide Wi-Fi
✔ Smart city infrastructure

📦 Package Includes

EAP610-Outdoor AP
Mounting kit (pole/wall)
Quick start guide

"Enterprise-grade outdoor Wi-Fi 6—built to withstand the elements while delivering gigabit speeds!"

⚙️ Pro Installation Tips

Angle antennas downward for ground-level coverage
Use shielded Ethernet cables in lightning-prone areas
Enable Band Steering to prioritize 5GHz devices

🔍 Why IT Pros Choose This AP?

✔ 4× more capacity than Wi-Fi 5 outdoor APs
✔ Omada ecosystem integration for scalable networks
✔ Future-proof with Wi-Fi 6 technology

*(For indoor Wi-Fi 6, see the EAP610 model)*

Key Features:

4G LTE Connectivity: Fast and reliable mobile internet access
Multi-Device Sharing: Connect up to 10 Wi-Fi devices simultaneously
Long Battery Life: 2000mAh battery provides up to 8 hours of continuous use
Global Compatibility: Supports FDD/TDD-LTE networks in most countries
Easy Management: Convenient control via tpMiFi mobile app (iOS/Android)
Compact Design: Pocket-sized portable router (105 × 66 × 15 mm)

Technical Specifications:

Model M7010
Network 4G LTE (FDD/TDD-LTE)
Wi-Fi 802.11n (2.4GHz)
Max Speed Up to 150Mbps download / 50Mbps upload
Battery 2000mAh lithium-ion (up to 8 hours)
Charging Micro USB port
Security WPA2-PSK encryption
Dimensions 105 × 66 × 15 mm
Weight 100g

What's Included:

M7010 Mobile Hotspot device
2000mAh rechargeable battery
Micro USB charging cable
Quick start guide

Ideal For:

✔ International travelers needing reliable connectivity
✔ Remote workers and digital nomads
✔ Students in dorms with poor Wi-Fi
✔ Backup internet solution for home/office
✔ Family trips and group travel

Why Choose M7010?

Simple Setup: Ready to use in minutes with any compatible SIM card
Cost-Effective: Affordable alternative to expensive roaming plans
Lightweight: Weighs just 100g - slips easily into any bag
User-Friendly: Intuitive tpMiFi app for easy network management

FAQ:

Q: Is this device unlocked?
A: Yes, works with any compatible SIM card from supported carriers.

Q: Does it support 5G networks?
A: No, this device supports 4G LTE networks only.

Q: Can I use it while charging?
A: Yes, you can continue using it while connected to power.

Q: What's the maximum storage capacity?
A: This model doesn't include storage expansion options.

"Stay connected anywhere with the TP-Link M7010 - your reliable 4G LTE mobile hotspot for travel, work and entertainment!"

"TP-Link CPE220 outdoor wireless CPE delivers 300Mbps with 12dBi antenna and 13km range. Features Passive PoE, 4 operation modes, and Pharos MAXtream TDMA tech for long-distance connectivity."

TP-Link CPE220 - High-Power Outdoor CPE for Long-Range Wireless Networks

Perfect for WISPs, remote monitoring, and point-to-point links, this outdoor CPE offers:
✅ 300Mbps 2.4GHz with 12dBi dual-polarized MIMO antenna
✅ Up to 13km range with adjustable 0-30dBm (1000mW) output
✅ Pharos MAXtream TDMA for reduced latency in multi-client deployments
✅ 4 operation modes: AP/Client/AP Router/AP Client Router
✅ Passive PoE support (60m range) for easy installation

📡 Superior Wireless Performance

2.4GHz 802.11n (Wi-Fi 4) with 2x2 MIMO
Adjustable TX power (0-30dBm) for optimal coverage
System optimizations for stable long-range connections

🏗️ Flexible Deployment Options

AP, Client, AP Router, & WISP modes
Pharos Control for centralized management
Passive PoE (included adapter) for 60m power delivery

🌐 Carrier-Grade Reliability

IP65-rated weatherproof housing
Lightning protection (6kV)
-30°C to 70°C operating temperature

📋 Technical Specifications

Category Specification
Model CPE220
Wireless Standard 802.11n (Wi-Fi 4)
Frequency 2.4GHz
Speed 300Mbps
Antenna 12dBi 2x2 MIMO directional
TX Power Adjustable 0-30dBm (1000mW)
Max Range 13km (line-of-sight)
Ethernet 1x 10/100Mbps (Passive PoE)
Management Pharos Control
Modes AP/Client/AP Router/WISP
Dimensions 8.66 x 3.94 x 2.36 in (220 x 100 x 60mm)
Power Passive PoE (24V 0.5A)
Warranty 2 years


❓ What's the difference between CPE210 and CPE220?
🆚 CPE220 adds Pharos MAXtream TDMA for better multi-client performance.
❓ Can this be used for point-to-point links?
📡 Yes! In Client mode, it can receive signal from another CPE/AP up to 13km away.
❓ Does it include a PoE injector?
🔌 Yes, comes with 24V 0.5A Passive PoE injector (60m max).

"Extend your network miles further with the CPE220—ideal for outdoor surveillance, rural internet, and WISP backhaul! 🚀"

Reyee BE5040 Wi-Fi 7 Indoor/Outdoor Versatile Access Point (RG-RAP72Pro-OD)


The RG-RAP72Pro-OD is a versatile Wi-Fi 7 access point designed for both indoor and outdoor environments. This device delivers exceptional wireless performance with a combined peak data rate of up to 5,011 Mbps, ensuring seamless connectivity for high-demand applications.

Highlight Features:

AI-Powered Wi-Fi 7 Versatile Outdoor/Indoor Mesh AP
Wall or Pole Mounting to Fit in Any Location
IP65 Weatherproof Rating, Delivering Consistent Protection and Signal Stability
Build-in Antennas for Customized Coverage Where Needed
Tailored for Retail Businesses with Reyee Mesh, Standalone Portal, and AI Roaming Features

*Note: PoE injector not included.

Specifications

Antenna Gain: 2.4GHz: 3.6dBi : 5GHz: 6.2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 688Mbps; 5.8GHz: 4323Mbps
Ethernet Ports: 1x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 21W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C to 65°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 37-57V (POE)
USB Ports: None
Dimensions: 200 × 70 × 35.7 mm
Weight: 700g

Reyee's RG-RAP62X is a compact WiFi 6, dual-band, IP65 outdoor access point with external antennas. The unit features 2x2 MU-MIMO, 1x Gigabit Ethernet ports, standalone portal, and seamless Layer 3 roaming. The unit supports up to 2974Mbps with 573Mbps on 2.4GHz and 2401Mbps on 5.8GHz. It also supports Ruijie’s smart networking feature which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: PoE injector not included.

Specifications

Antenna Gain: 2.4GHz: 4dBi : 5GHz: 6.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 573Mbps; 5.8GHz: 2401Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C to 65°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at or 24V Passive PoE (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 802.3af PoE or 24V Passive PoE
USB Ports: None
Dimensions: 200 × 70 × 35.7 mm
Weight: 400g

Reyee's RG-RAP52G is a compact WiFi 5, dual-band, IP65 outdoor access point with external antennas. The unit features 2x2 MU-MIMO, 1x Gigabit Ethernet ports, standalone portal, and seamless Layer 3 roaming. The unit supports up to 1267Mbps with 400Mbps on 2.4GHz and 867Mbps on 5.8GHz. It also supports Ruijie’s smart networking feature which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: PoE injector not included.

Specifications

Antenna Gain: 2.4GHz: 3dBi : 5GHz: 4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 14W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C to 65°C
PoE Input: 802.3af
PoE Output: None
Power Input: 802.3af or 24V Passive PoE (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 802.3af PoE or 24V Passive PoE
USB Ports: None
Dimensions: 220 × 50 × 35.7 mm
Weight: 400g

Ruijie Reyee Series RG-EST310 V2 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, RG-EST310 V2 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services.

RG-EST310 V2 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end.

Specifications

Antenna Gain: 5GHz: 10dBi
Beam-width: 60°
Data Rate: 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 55°C
PoE Input: 24v Passive PoE
PoE Output: None
Power Input: 24V Passive PoE (Included) or 12V 1A Power Supply (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 24v PoE PoE or 12V 1A DC
USB Ports: None

Dimensions: 400 x 231 x 88 mm
Weight: 0.35g

Introducing the Reyee RG-EST100-E, a 2.4GHz wireless bridge kit optimized for short-distance point-to-point (PTP) connections. Elevate your surveillance systems with stable, real-time data transmission even from 500 meters away. With factory-free configuration, you're spared from complex alignments. Its robust IP55 weatherproof design ensures unwavering performance in the harshest conditions, from bone-chilling cold to scorching heat.

Key Features:

500-Meter Real-Time Transmission: Stay connected and ensure stable signal for wireless connections even at a distance.

Plug-and-Play Design: Hassle-free setup without the need for intricate configurations or alignments.

Rugged & Weatherproof: IP55 rated to withstand the elements; confidently use it outdoors or in challenging environments like elevators.

Optimized for Surveillance: Support up to 10 x 3MP cameras at 100m and 5 x 3MP cameras at 500m, making it ideal for CCTV scenarios.

Remote Monitoring & Maintenance: With intuitive statistics viewable on Ruijie Cloud, you can monitor and manage your setup remotely with ease.

Better Visibility: Incorporated fluorescent stickers ensure easy recognition even in the dark.

Rust-Proof for Reliability: A design focused on longevity, ensuring a lower failure rate.


With the RG-EST100-E, experience unparalleled stability in your wireless connections, designed with CCTV systems in mind.

Specifications
Antenna Gain: 2.4GHz: 8dBi
Beam-width: 70°
Data Rate: 2.4GHz: 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 60°C
PoE Input: 12V Passive PoE
PoE Output: None
Power Input: 12V Passive PoE or 12V Power Supply (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V
USB Ports: None
Dimensions: 165.5 × 68.7 x 42mm
Weight: 0.30kg

The Reyee RG-EST350 V2 Wireless Bridge is a high-performance outdoor solution designed for long-range, real-time data transmission. Operating on 5GHz dual-stream 802.11ac (Wi-Fi 5 Wave2), it delivers speeds up to 867Mbps and supports MU-MIMO 2×2 for efficient multi-device communication.

With a 15dBi directional antenna, it can transmit data up to 5KM, making it ideal for surveillance, remote access, and point-to-point networking. The bridge supports up to 45 × 2MP cameras at 3KM and 20 × 2MP cameras at 5KM, ensuring robust throughput for high-density deployments.

Installation is simplified with automatic long-distance pairing, eliminating complex alignment procedures. Rated IP54 weatherproof and built to operate in extreme temperatures from -30°C to 65°C, it’s engineered for reliable outdoor performance. Remote monitoring and maintenance are made easy via Ruijie Cloud, offering intuitive statistics and control.

Key Features
🌐 5GHz Dual-Stream Wi-Fi 5 (802.11ac Wave2) – Fast and stable wireless transmission
📡 15dBi Directional Antenna – Optimized for long-range point-to-point links
🚀 Up to 867Mbps Speed – High bandwidth for real-time data and video
🔄 Automatic Long-Distance Pairing – No complex alignment required
🛡️ IP54 Weatherproof Rating – Built for outdoor environments
❄️ Wide Operating Temperature – -30°C to 65°C for extreme conditions
📷 Supports 45 × 2MP Cameras @ 3KM / 20 @ 5KM – Ideal for surveillance networks
📊 Ruijie Cloud Monitoring – Remote management and performance stats
🔌 2 × Gigabit Ethernet Ports – Seamless wired integration
🕒 3-Year Manufacturer Warranty – Long-term reliability

Technical Specifications
Feature Details
Product Code RG-EST350-V2
Wireless Standard Wi-Fi 5 (IEEE 802.11ac Wave2)
Frequency Band 5GHz
Wi-Fi Speed Up to 867Mbps
Antenna Gain 15dBi Directional
MIMO 2×2 MU-MIMO
Transmission Range Up to 5KM
Wireless Power ≤400mW (26dBm, adjustable)
Ethernet Ports 2 × 10/100/1000Base-T
Operating Temperature -30°C to 65°C
Weatherproof Rating IP54
Certifications CE, RoHS
Environment Outdoor
Warranty 3 Years Limited Manufacturer Warranty

What’s Included
1 × Reyee RG-EST350 V2 Wireless Bridge
1 × Mounting Kit
1 × Quick Start Guide

Brand: Mimosa
Product Code: MIM‑N5‑X25
Description: Mimosa N5‑X25 Twist‑On 5GHz 25dBi Antenna (430mm)

Product Overview
The Mimosa N5‑X25 is a twist‑on modular antenna designed to extend the performance of Mimosa’s C5x radio platform. With a 25dBi gain and 430mm size, it delivers long‑range connectivity while maintaining ease of installation. The N5‑X series allows flexible gain options (8, 12, 16, 20, and 25dBi), offering the simplicity of integrated radios with the adaptability of modular design. Built ultra‑rugged, the N5‑X25 supports extended frequency operation from 4.9–6.4GHz and provides best‑in‑class noise immunity, making it ideal for high‑density and interference‑prone environments.

Key Features
25dBi high‑gain twist‑on antenna (430mm)
Modular design compatible with Mimosa C5x radios
Flexible gain options: 8, 12, 16, 20, 25dBi
Extended frequency range: 4.9–6.4GHz
Rugged construction for outdoor deployments
Best‑in‑class noise immunity for reliable performance
Simple installation with twist‑on mechanism
Estimated gross shipping weight: 2.5–3.0 kg (antenna + packaging)

Technical Specifications
Feature Details
Product Code MIM‑N5‑X25
Antenna Type Twist‑On Modular Antenna
Frequency Range 4.9–6.4GHz
Antenna Gain 25dBi
Compatible Radios Mimosa C5x
Gain Options 8, 12, 16, 20, 25dBi
Dimensions 430mm
Construction Rugged outdoor design
Noise Immunity Best‑in‑class
Net Weight 2.2 kg
Gross Shipping Weight 2.5–3.0 kg

What’s Included
1 × Mimosa N5‑X25 Twist‑On Antenna
Mounting accessories
User documentation

Brand: Mimosa
Product Code: MIM‑N5‑X25‑8PACK
Description: Mimosa N5‑X25 Twist‑On 5GHz 25dBi Antenna (430mm, 8 Pack)

Product Overview
The Mimosa N5‑X25 (8 Pack) provides a modular, high‑gain antenna solution for extending the performance of Mimosa’s C5x radio platform. Each antenna delivers 25dBi gain with a 430mm diameter, enabling long‑range connectivity with precision beam control. The N5‑X series offers five gain options (8, 12, 16, 20, and 25dBi), combining the simplicity of integrated radios with the flexibility of modular design. Built ultra‑rugged, the N5‑X25 supports extended frequency operation from 4.9–6.4GHz and provides best‑in‑class noise immunity, making it ideal for high‑density deployments and interference‑prone environments.

Key Features
25dBi high‑gain twist‑on antenna (430mm)
Modular design compatible with Mimosa C5x radios
Flexible gain options: 8, 12, 16, 20, 25dBi
Extended frequency range: 4.9–6.4GHz
Dual‑slant polarization (±45°)
Narrow 8° symmetric beamwidth for focused coverage
High front‑to‑back ratio (≥40dB) and front‑to‑side ratio (>45dB)
Rugged outdoor construction with wind survivability up to 200 km/h
Wind loading: 36.26 kg @ 160 km/h
Simple twist‑on mounting system
Supplied as an 8‑pack for bulk deployments
Estimated gross shipping weight: 20–22 kg (8 units + packaging)

Technical Specifications
Feature Details
Product Code MIM‑N5‑X25‑8PACK
Antenna Type Twist‑On Modular Antenna
Frequency Range 4.9–6.4GHz
Antenna Gain 25dBi
Polarization Dual‑Slant (±45°)
Beamwidth (3dB) 8°
Front‑to‑Back Ratio ≥40dB
Front‑to‑Side Ratio >45dB
Dimensions Ø429mm × 116mm
Mount Mimosa N5‑X twist‑on
Wind Survivability 200 km/h (125 mph)
Wind Loading 36.26 kg @ 160 km/h
Net Weight (per unit) 2.2 kg
Gross Shipping Weight 20–22 kg (8 units + packaging)

What’s Included
8 × Mimosa N5‑X25 Twist‑On Antennas
Mounting accessories
User documentation

Product Overview

Upgrade your wireless network with the Mimosa N5-X20 modular twist-on antenna, designed to enhance the native 8dBi gain of Mimosa radios like the C5x up to a powerful 20dBi. This ultra-rugged antenna operates across a broad 4.9–6.4 GHz frequency range, delivering superior noise immunity and flexible deployment options for long-range and high-performance wireless links.
Key Features

High Gain: Boost signal strength with 20dBi gain for extended range and improved link reliability.

Modular Twist-On Design: Easily swap antennas for different gain requirements (8, 12, 16, 20, or 25 dBi) to tailor your network.

Wide Frequency Range: Supports operation from 4.9 GHz to 6.4 GHz, perfect for diverse wireless environments.

Robust & Rugged: Built for outdoor use with durable construction to withstand harsh weather and environmental conditions.

Best-in-Class Noise Immunity: Designed to minimize interference and improve wireless signal quality for cleaner connections.

Technical Specifications
Specification Details
Frequency Range 4.9 – 6.4 GHz
Gain 20 dBi
Antenna Type Modular Twist-On
Length 270 mm
Compatibility Mimosa C5x Series & Other Compatible Radios
Noise Immunity Best-in-class
Construction Weatherproof & Rugged
Why Buy from QuickStore.co.za?

✔ Genuine Mimosa antennas with local warranty
✔ Expert technical support for wireless installations
✔ Fast, reliable shipping across South Africa

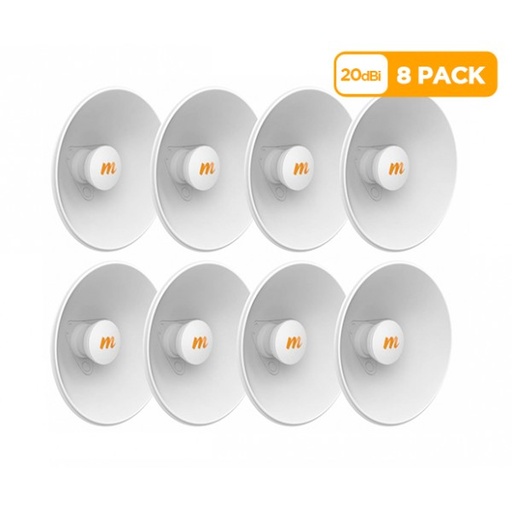

Maximize Your Wireless Network with Modular Flexibility

Upgrade your wireless links with this bulk 8-pack of Mimosa N5-X20 20dBi twist-on antennas. Designed for the Mimosa C5x radio series, these modular antennas boost the native 8dBi gain up to 20dBi for extended range, stronger signals, and enhanced network reliability.
Key Benefits

Bulk Value Pack: Eight high-performance 20dBi antennas, perfect for large-scale deployments or stocking spares.
Modular Twist-On Design: Easily attach or swap antennas for customized gain options (8, 12, 16, 20, 25 dBi).
Extended Frequency Range: Works seamlessly between 4.9 GHz and 6.4 GHz for versatile use in diverse wireless environments.
Robust Dual-Slant 45º Polarization: Improves signal quality and reduces interference for stable connections.
Narrow 12º Beamwidth: Offers focused, symmetrical coverage for precise targeting of wireless signals.
Superior Signal Isolation: Front-to-back ratio of 35 dB and front-to-side ratio of 37 dB reduce noise and interference.
Rugged Construction: Designed to withstand winds up to 200 km/h (125 mph) and harsh outdoor conditions.
Compact & Lightweight: Each antenna weighs just 0.77 kg and measures 270 mm in diameter, making installation and mounting straightforward.

Technical Specifications

Feature Specification
Gain 20 dBi
Frequency Range 4.9 – 6.4 GHz
Polarization Dual-Slant 45º
Beamwidth (3dB) 12º Symmetric
Front-to-Back Ratio 35 dB
Front-to-Side Ratio 37 dB
Weight 0.77 kg (1.70 lbs) per antenna
Dimensions Diameter: 270 mm (10.63”) Depth: 83 mm (3.27”)
Mount Type Mimosa N5-X twist-on
Wind Survivability 200 km/h (125 mph)
Wind Loading 14.55 @ 160 km/h (32.07 lbs @ 100 mph)

Ideal For

Wireless ISPs requiring extended-range PTP/PTMP links
Large-scale network deployments needing multiple high-gain antennas
Customers who prefer modular and flexible antenna solutions

Why Shop With Us?

Authentic Mimosa products backed by local warranty
Fast and reliable shipping across South Africa
Expert support to assist with your wireless network setup
