UltraLAN Fiber Drop Cable Stripper

The fiber drop cable stripper is designed for stripping flat fiber drop cable used in Fiber to the Home (FTTH) applications. The tool removes the jacket in two locations to expose the dielectric strength members and allowing quick removal of the fiber cable jacket.

Product Features:

Universal stripper designed for stripping Flat Drop Fiber Cable used in “Fiber to the Home” applications
One step stripping action that removes the jacket in two locations to expose the dielectric strength members and allowing the quick removal of the jacket
Tool is small and has a lightweight body for ease of use
Easily strips fiber drop cable in 3.1*2.0mm
Also suitable for 2.0mm, 3.0mm indoor fiber optic cable
Blade depth adjustable for protecting the fiber.
2 straight blades in across and 1 round blade in lengthwise

UltraLAN 5-in-1 Fiber Tester & Tracker

The UltraLAN all-in-one Optical Fiber Cable Tester is an essential tool for cable installers, fiber technicians or anyone working in networking environments. The tool features a combination of a fiber power meter, visual fault locator, cable tester, and cable tracker all built into one device. This allows you to test fiber optic cables for breaks, insertion loss and optical power loss, locate network cable and test its physical conditions.

The power meter supports 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. With the compact adaptor, it can be used to test RJ45 Cable's continuity, but also track cable among unknown bundles of wires (line hunt). The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status.

Brand: UltraLAN
Product Code: FIB‑T‑FS2
Description: UltraLAN 4.3″ Touch Screen Fiber Fusion Splicer

Product Overview
The UltraLAN FIB‑T‑FS2 Fiber Optic Fusion Splicer is a precision tool engineered for fast, efficient, and reliable fiber optic cable splicing. With advanced features such as rapid heating technology, a high‑resolution 180° flip‑up LCD touch screen, and a six‑motor drive system, it ensures superior accuracy and reduced positioning errors. Built‑in testing tools, extended battery life, and versatile splicing capabilities make it ideal for professional network installations and maintenance tasks.

Key Features
Rapid heating technology: 8‑second fusion time, 18‑second heating cycle
High‑resolution 180° flip‑up LCD touch screen with intuitive GUI
Six‑motor drive system for enhanced precision and reduced errors
Built‑in red light source (VFL) and optical power meter (OPM) with self‑calibration
Large storage capacity for tens of thousands of splice records
5200mAh battery with extended operational life and power‑saving modes
Three‑in‑one universal clamp for patch cords, bare fibers, and leather cables
LED lighting for low‑light environments, plus status and heating indicators
Intelligent fault detection and prompt notifications
Supports external charging, USB upgrades, and splice data export
Comprehensive accessory package including toolbox and fiber optic cleaver
Estimated gross shipping weight: 4.5–5.0 kg (device + accessories + packaging)

Technical Specifications
Feature Details
Product Code FIB‑T‑FS2
Display 4.3″ LCD touch screen, 180° flip‑up
Fusion Time 8 seconds
Heating Cycle 18 seconds
Motors Six‑motor drive system
Testing Tools Built‑in VFL and OPM (six wavelengths)
Battery 5200mAh, pop‑up compartment, extended life
Clamp Three‑in‑one universal clamp
Storage Large capacity for splice records
Connectivity USB upgrades, external charging, data export
Dimensions Standard portable splicer size (toolbox included)
Gross Shipping Weight 4.5–5.0 kg
Warranty As per manufacturer

What’s Included
1 × UltraLAN FIB‑T‑FS2 Fiber Fusion Splicer
1 × Toolbox
1 × Fiber optic cleaver
1 × Power adapter and charging accessories
1 × User manual

UltraLAN 24 Fiber Splice Tray


The UltraLAN fiber splice tray is designed to provide a place to store fiber cables and splices and prevent them from becoming damaged or being misplaced. These trays are commonly used individually/stand-alone, inside of fiber patch panels, or in large termination boxes.

The fiber splice tray has 4 access ports for fiber cable to either enter/exit the tray, allowing for cables to be easily fed into the tray from various angles. The tray is made from high strength injection mold plastic, is flame retardant, and offers a long anti-aging lifespan.


The UltraLAN fiber splice tray features 12 splice holder slots, but can also support a max of 24 splices when two sleeves are placed inside each slot. The cover and base section is securely joined with a metal pin, and the trays are stackable as well. The inner splice tray offers further cable management, with a fiber bend radius over 30mm.

Linkbasic's UTP Ratchet Crimp tool is used for crimping UTP RJ45 connectors. This rugged, heavy-duty tool is used to crimp, strip and cut UTP or Modular Cable.

The parallel action design maintains accurate alignment of the die with the plug for a precision crimp every time.
SKU TOOL-CRIMP
Manufacturer Linkbasic
Manufacturer Product Code TLC11
Specifications
Compatibility: RJ45 & RJ11
Functions: Crimper & Stripper
Material: Carbon Steel

Linkbasic's UTP Cable Tester allows you to inspect/test network cable, LAN RJ45 and RJ11.

It is designed for testing the UTP and screens for the opens, shorts, reversals, mis-wiring and so on. The relative indicators on the main tester and the remote testing terminal will flash one by one in cycle to judge which wire is in the correct working connection, or in the incorrect order connection.

SKU TOOL-TEST
Manufacturer Linkbasic
Manufacturer Product Code CSA01

Specifications

Compatibility: RJ45 & RJ11
Functions: Cable Tester

LC Connector Adapter for Fiber Power Meters

This adapter can be used to replace the SC or FC socket that are standard on various fiber power meters. Once this adapter has been attached to the fiber power meter, a fiber cable with an LC connector can then be inserted into this adapter in order to test the cable.

Compatible with the following power meters:

UltraLAN Fiber Power Meter (FIB-T-PM)
UltraLAN Fiber Power Meter with VFL (FIB-T-PMVFL10MW)
UltraLAN Fiber Power Meter with VFL (FIB-T-PM+VFL)

Brand: UltraLAN
Product Code / SKU: FIB‑T‑KS
Manufacturer Product Code: FIB‑T‑KS

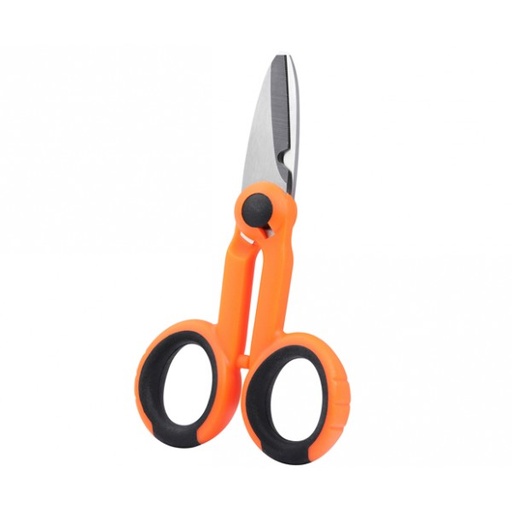

Description: UltraLAN Kevlar Scissors – precision tool designed for cutting Kevlar strength members and fiber optic materials. Made of durable 3CR13 steel with micro‑serrated blades for superior grip and cutting performance.

Product Overview
The UltraLAN Kevlar Scissors are engineered for fiber optic cabling applications, offering reliable performance and durability. Constructed from 3CR13 stainless steel, they provide excellent corrosion and wear resistance. The hollow ground blades with micro‑serration ensure a true “grip & cut” action, reducing slippage and delivering clean cuts.

Lightweight and ergonomically designed, these scissors are comfortable for both right‑ and left‑handed users, making them an essential tool for technicians working with fiber optic cable construction.

Highlights
Made of 3CR13 stainless steel
Excellent corrosion and wear resistance
Hollow ground blades with micro‑serration for grip & cut performance
Lightweight design for easy handling
Ergonomic molded handles for comfort
Suitable for right‑ and left‑handed users
Ideal for cutting Kevlar strength members in fiber optic cables
Backed by manufacturer warranty

Technical Specifications
Feature Details
Product Code / SKU FIB‑T‑KS
Brand UltraLAN
Material 3CR13 stainless steel
Blade Type Hollow ground, micro‑serrated
Application Kevlar and fiber optic cabling
Handle Design Ergonomic molded
Warranty Manufacturer warranty

What’s Included
1 × UltraLAN Kevlar Scissors
Retail packaging
Warranty documentation
