Ubiquiti's USW-24P is a managed Layer 2 switch with 24x Gigabit Ethernet ports. It consists of 16x auto-sensing 802.3at PoE+ ports, 2x 1.25Gbps SFP uplink ports and a PoE budget of 95W. The unit features a 1.3" touch LCM to provide status information.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1~16
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 1.25Gbps
Supported Voltage Range: 100 to 240VAC
Dimensions: 442.4 x 200 x 43.7mm
Weight: 3.09kg

Ubiquiti's USW-MAX48 is a 48 port, fully managed, Layer 3, Ether lighting™ switch. The unit features 32x Gigabit Ports, 16x 2.5Gbps ports and 4x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps Ethernet as well as 10Gbps fiber uplinks to your network.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 32x 10/100/1000; 16x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 100W
Mounting: Rackmount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 442 x 325 x 44mm
Weight: 5.2kg

Ubiquiti's USW-MAX24 is a 24 port, fully managed, Layer 3, Etherlighting™ switch. The unit features 16x Gigabit Ports, 8x 2.5Gbps ports and 2x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps Ethernet as well as 10Gbps fibre uplinks to your network.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 16x 10/100/1000; 8x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 442 x 325 x 44 mm
Weight: 5.2kg

Ubiquiti's USW-MAX16 is a 16 port, fully managed, Layer 3, Etherlighting™ switch. The unit features 12x Gigabit Ports, 4x 2.5Gbps ports and 2x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps Ethernet as well as 10Gbps fibre uplinks to your network.

Note: It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 12x 10/100/1000; 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Desktop & 10-Inch Wall-Mount, or 19-Inch Rack Mount with UACC-MAX16P-RM (Not Included)
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 325.1 x 160 x 43.7 mm
Weight: 1.95kg

Ubiquiti's USW-5FLEX is a managed, Layer 2, UniFi switch with 5x Gigabit Ethernet Ports. It includes 4x 802.3af PoE+ Ports and 1x 802.3af/at/bt PoE input. It is designed for indoor or outdoor use with its weatherproof housing and versatile mounting options. The USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

It can be configured and managed with the UniFi Network Application.

*Note: PoE injector not included.
We recommend using the UPOE-48G60W or a Ubiquiti UniFi Switch to power these devices. When making use of the UPOE-48G60W, be sure to set the power source on the UniFi Network Application to injector.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop, Wall and Pole-Mount
Operating System: UniFi
Operating Temperature: -40°C to 55°C
PoE Input: 802.3af/at/bt
PoE Output: 802.3af on Ports 2~5
Power Input: 802.3af/at/bt on Port 1
Serial Interface: 1x RJ45 Ethernet In-Band
SFP Ports: None
Supported Voltage Range: 44–57V (802.3af) 50-57V (802.3bt)
Dimensions: 122.5 x 107.1 x 28.0mm
Weight: 230g

Ubiquiti's USW-5FLEXMINI is an indoor, fully managed, 5 port, Gigabit UniFi switch with 1x 802.3af PoE+ input on port 1.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: None
Max. Power Consumption: 2.5W
Mounting: Desktop
Operating System: UniFi
Operating temperature: -5°C to 45°C
PoE Input: 802.3af/at on Port 1
PoE Output: None
Power Input: 5V 1A USB-C Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 4.7V-5.3V DC or 802.3af/at PoE
Dimensions: 107.16 x 70.15 x 21.17mm
Weight: 150g

Ubiquiti's USW-5FLEX-2.5G is an indoor, compact, 5 Port 2.5Gbps switch that can be powered via PoE on Port 5 or via the included USB-C adapter. It can be configured and managed with the UniFi Network Application.

Specifications

SKU USW-5FLEX-2.5G
Manufacturer Ubiquiti
Manufacturer Product Code USW-Flex-2.5G-5-EU
Ethernet Ports: 5x 10/100/1000/2500
Hardware Button: None
Max. Power Consumption: AC/DC: 5W ; PoE: 6.4W
Mounting: Desktop
Operating System: UniFi
Operating temperature: 20 to 45°C
PoE Input: 802.3af/at on Port 5
PoE Output: None
Power Input: 5V USB-C Adapter (Included) or PoE on Port 5
Serial Interface: None
SFP Ports: None
Supported Voltage Range: AC/DC: 5V ; PoE: 44-57V
Dimensions: 117.1 x 90 x 21.2 mm
Weight: 206g

Ubiquiti's USW-E8P is an 8 port, fully managed Layer 3 switch with 8x 2.5GbE, 802.3at PoE+ ports, 2x 10Gbps SFP+ ports and a PoE budget of 120W. The switch includes a wall mount kit and features a 1.3" LCM colour touchscreen to display key system and connection information.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 8x 100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop or Wall Mount (Kit Included)
Operating System: UniFi
Operating Temperature: -5°C to 45°C
PoE Input: None
PoE Output: 8x 802.3af/at
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 200 x 248 x 44 mm
Weight: 2.4Kg

Ubiquiti's USW-E24XG is a layer 3 switch featuring 24x 10Gbps Ports, 2x 25Gbps SFP28 ports and a 1.3" LCM colour touchscreen with AR switch management.

It can be configured and managed with the UniFi Network Application.

*Note: The two SFP28 ports do not support mixed speed in 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps, the others will be limited at 25 Gbps. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.

Specifications

Ethernet Ports: 24x 10Gbps
Hardware Button: Reset
Max. Power Consumption: 100W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 25Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 442 x 44 x 285 mm
Weight: 4.57kg

Ubiquiti’s USW-AGGPRO is a fully managed Layer 3 switch featuring 28x SFP+ 10Gbps ports and 4x SFP28 25Gbps ports. It is designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. The rack-mountable switch offers 760Gbps switching capacity and features a 1.3" LCM colour touchscreen.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: None
Hardware Button: Reset
Max. Power Consumption: 100W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 28x 10Gbps; 4x 25Gbps
Supported Voltage Range: 100 to 240VAC
Dimensions: 442 x 325 x 44 mm
Weight: 4.7kg

Ubiquiti's USW-AGG is a fully managed Layer 2 switch with 8x SFP+ ports and up to 160Gbps switching capacity. It features a compact 4.7" depth and fanless design. It is easy to mount and silent even under full load. It provides link aggregation for higher capacity and increased availability. The unit features a 1.3" touch LCM to provide status information.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: None
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 8x 10Gbps+
Supported Voltage Range: 100 to 240VAC
Dimensions: 442.4 x 120 x 43.7 mm
Weight: 2.74kg

Ubiquiti's UISP-SPLUS features Layer 2 switching capabilities, 4x 2.5Gbps 27V Passive PoE ports, 4x SFP+, and a PoE budget of 160W when powered with the included Power Supply.

The UISP Switch can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 25W
Mounting: Desktop, Wall-Mount or Rack Mount
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~4
Power Input: 27V 7.04A Power Supply (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 27V
Dimensions: 210.4 x 95 x 29 mm
Weight: 610g

🏢 Enterprise-Grade Switching for Demanding Networks

✅ 24× Gigabit Ethernet Ports – High-density 1Gbps connectivity
✅ 4× 10G SFP+ Slots – Fiber/copper uplinks for backbone connectivity
✅ L2+ Features – Static routing, VLAN, QoS, ACLs
✅ Omada SDN Compatible – Centralized cloud management

🔧 Advanced Features

✔ 128Gbps Switching Capacity – Non-blocking performance
✔ 95.2Mpps Forwarding Rate – Wire-speed throughput
✔ 8K MAC Address Table – Large-scale deployments
✔ Energy Efficient – 802.3az compliant

📊 Technical Specifications

Category Specification
Model SG3428X
Uplinks 4× 10G SFP+
Management CLI/Web/Omada SDN
Switching 128Gbps capacity
Dimensions 17.3×12.2×1.7 in (440×310×44 mm)
Power 100-240V AC, 741 BTU/h max
Warranty Limited lifetime

**🏢 Ideal For:

✔ Enterprise networks
✔ Data center edge
✔ Campus backbones
✔ High-performance storage

**📦 What's Included?

SG3428X Switch
Rack ears
Power cord
Quick start guide

"The perfect balance of 1G density and 10G uplinks for growing businesses!"

**⚙️ Pro Tips:

Use SFP+ DAC cables for cost-effective 10G server connections
Enable ECMP for load-balanced uplinks
Configure ACLs for enhanced security

**🔍 Why Choose SG3428X?

✔ Lifetime warranty for peace of mind
✔ Omada integration for scalable management
✔ Future-ready with 10G uplinks

*(For PoE+ versions, see SG3428MP model)*

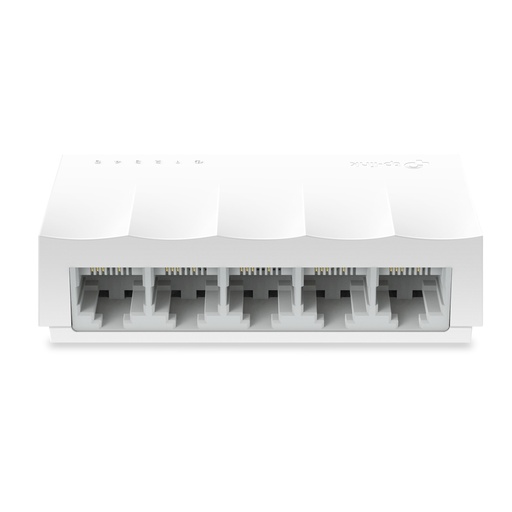

Key Features:

✅ 5× Fast Ethernet Ports - 10/100Mbps auto-negotiation
✅ True Plug-and-Play - No configuration required
✅ Ultra-Compact Design - Space-saving (158 x 98 x 25 mm)
✅ Energy Efficient - Low power consumption
✅ Auto MDI/MDIX - No crossover cables needed
✅ Durable Plastic Housing - Lightweight yet sturdy

Technical Specifications:

Category Specification
Model LS1005
Ports 5× 10/100Mbps RJ45
Switching Capacity 1Gbps
Forwarding Rate 0.744 Mpps
MAC Address Table 2K entries
Power Consumption ≤2.8W
Dimensions 6.22×3.86×0.98 in (158×98×25 mm)
Certifications CE, FCC, RoHS
Warranty 3-year limited

Ideal For:

✔ Basic home networks
✔ Connecting printers & older devices
✔ Small office setups
✔ Expanding router ports
✔ Legacy systems requiring 10/100Mbps

Why Choose This Switch?

Budget-Friendly - Affordable solution for basic networking
Silent Operation - Fanless design
Easy Installation - Works right out of the box
Reliable Performance - Store-and-forward switching

"The simplest way to add wired connections for basic networking needs!"

What's in the Box?

LS1005 Switch
Power Adapter
Quick Installation Guide
Rubber Feet

Key Features:

✅ 5× Gigabit Ethernet Ports - Full 10/100/1000Mbps auto-negotiation
✅ True Plug-and-Play - Zero configuration required
✅ Ultra-Compact Design - Space-saving (158 x 101 x 26 mm)
✅ Energy Efficient - Up to 80% power savings with Green Technology
✅ Auto MDI/MDIX - Eliminates crossover cable need
✅ Durable Metal Case - Cool operation & long lifespan

Technical Specifications:

Category Specification
Model TL-SG105S
Ports 5× 10/100/1000Mbps RJ45
Switching Capacity 10Gbps
Forwarding Rate 7.44 Mpps
MAC Address Table 8K entries
Jumbo Frame 9KB
Power Consumption 2.8W (max)
Dimensions 6.22×3.98×1.02 in (158×101×26 mm)
Certifications CE, FCC, RoHS
Warranty 3-year limited

Ideal For:

✔ Home office networks
✔ Connecting gaming consoles & smart TVs
✔ Expanding router ports
✔ Small business setups
✔ IP camera systems (non-PoE)

Why Choose This Switch?

Reliable Performance: Non-blocking wire-speed switching
Silent Operation: Fanless design for noise-free environments
Future-Ready: Backward compatible with Fast Ethernet
Value Pack: Includes power adapter and rubber feet

"The simplest way to add wired connections - just plug in and enjoy instant Gigabit speeds!"
What's in the Box?

TL-SG105S Switch
Power Adapter
Quick Installation Guide
Rubber Feet (for desktop placement)

Key Features:

✅ 5× Gigabit Ethernet Ports - 10/100/1000Mbps auto-negotiation
✅ Plug-and-Play Setup - No configuration required
✅ Compact & Silent - Fanless design (99×98×25 mm)
✅ Energy Efficient - Saves up to 70% power
✅ Auto MDI/MDIX - No crossover cables needed
✅ Steel Housing - Durable desktop design

Technical Specifications:

Category Specification
Model LS105G
Ports 5× 10/100/1000Mbps RJ45
Switching Capacity 10Gbps
Forwarding Rate 7.44 Mpps
MAC Address Table 2K entries
Power Consumption ≤3.1W
Dimensions 3.9×3.9×1.0 in (99×98×25 mm)
Certifications CE, FCC, RoHS
Warranty 3-year limited

Ideal For:

✔ Home networks
✔ Small offices
✔ Gaming consoles
✔ Expanding router ports
✔ Connecting smart home devices

Why Choose This Switch?

Reliable Performance: Non-blocking switching architecture
Space-Saving: Fits anywhere with wall-mount capability
Cost-Effective: Affordable way to add wired connections

"Expand your network effortlessly with TP-Link's simple, reliable 5-port Gigabit switch!"

"TP-Link TL-SF1024D 24-port 10/100Mbps switch delivers 4.8Gbps switching in a fanless steel case. Features 75% power savings, rackmountable, and plug-and-play connectivity."
TP-Link TL-SF1024D - Reliable 24-Port Fast Ethernet Switch for Office Networks

Ideal for small businesses and workgroups, this unmanaged switch offers:

✅ 24x 10/100Mbps ports for seamless device connectivity
✅ Energy-efficient design saves up to 75% power
✅ Fanless operation for silent performance
✅ Steel housing with rackmount capability (kit included)
✅ Plug-and-play setup with auto MDI/MDIX

🔌 High-Density Connectivity

24x RJ45 ports (10/100Mbps auto-negotiation)
Auto MDI/MDIX eliminates need for crossover cables
4.8Gbps switching capacity handles office traffic

🌱 Eco-Friendly Design

Innovative power-saving (up to 75% reduction)
Fanless construction (0dB noise)
Low heat dissipation (10.88 BTU/h max)

🛡️ Durable & Secure

13-inch steel case for durability
Kensington lock slot for physical security
Wide operating temp (0°C to 40°C)

📋 Technical Specifications

Category Specification
Model TL-SF1024D
Ports 24x 10/100Mbps RJ45
Switching Capacity 4.8Gbps
Forwarding Rate 3.57Mpps
MAC Address Table 8K entries
Power Consumption 3.19W max
Dimensions 11.6 x 7.1 x 1.7 in (294 x 180 x 44mm)
Mounting Desktop or 19" rack (kit included)
Certifications FCC, RoHS
Warranty 1 year

❓ FAQ Section
❓ Is this switch managed or unmanaged?
🖥️ Unmanaged - Plug-and-play operation with no configuration needed.
❓ Can it power PoE devices?
⚠️ No - This is a non-PoE switch. For PoE, consider TP-Link's JetStream series.
❓ Does it support gigabit speeds?
🔌 No - Ports are 10/100Mbps only. For gigabit, see TL-SG1024D.

"Upgrade your office network with the TL-SF1024D—the perfect high-density, energy-efficient switch for workgroups and small businesses! 🚀"**

"TP-Link TL-SG3210 10-port L2 managed switch features 8x 1GbE RJ45 + 2x 1G SFP ports, VLAN, QoS, and rackmount design. Ideal for SMB networks with 3-year warranty."
TP-Link TL-SG3210 - Professional 10-Port L2 Managed Switch for Reliable Networking

The TL-SG3210 delivers robust network management with:

✅ 8x Gigabit Ethernet ports + 2x 1G SFP fiber ports for flexible connectivity
✅ Layer 2 management with VLAN, QoS, and IGMP snooping
✅ Rackmount design saves space in server rooms
✅ Energy-efficient with 802.3az compliance
✅ 3-year warranty for peace of mind

🔌 Flexible Connectivity Options

8x 10/100/1000Mbps RJ45 ports for copper connections
2x 1G SFP slots for fiber uplinks (transceivers sold separately)
Auto-negotiation for optimal speed detection

🛠️ Advanced Management Capabilities

VLAN support (802.1Q) for network segmentation
QoS (802.1p) prioritizes critical traffic
IGMP snooping optimizes multicast streaming
Port mirroring for network monitoring

🖥️ Enterprise-Grade Design

Rackmountable (1U) for standard 19" racks
Fanless operation for silent performance
LED indicators for port status monitoring

📋 Technical Specifications

Category Specification
Model TL-SG3210
Ports 8x 1GbE RJ45 + 2x 1G SFP
Management Layer 2 (Web/CLI)
Switching Capacity 20Gbps
Forwarding Rate 14.88Mpps
VLAN 802.1Q (4K VLAN IDs)
QoS 802.1p/DSCP
Dimensions 17.3 x 9.8 x 1.7 in (440 x 250 x 44mm)
Power 100-240V AC, 15W max
Warranty 3 years

❓ Is this switch stackable?

⚠️ No, the TL-SG3210 doesn't support stacking but offers comprehensive L2 features.
❓ Does it support PoE?

🔌 No, this is a non-PoE switch. For PoE options, consider TP-Link's JetStream series.
❓ What SFP modules are compatible?

📡 Supports standard 1G SFP modules (sold separately).
.
"Upgrade your business network with the TL-SG3210 - the perfect cost-effective L2 managed switch for growing SMBs! 🚀"

Reyee's RG-NBS48P4XS is a Layer 2+ smart switch featuring 48 Gigabit 802.3af/at PoE Ports and 4 x10 Gbps SFP+ Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 48x 10/100/1000
Hardware Button: None
Max. Power Consumption: 48W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 50°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 48
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 10 Gbps
Supported Voltage Range: 100-240V
Dimensions: 440 x 357.6 x 43.6 mm
Weight: 5.4kg

Reyee's RG-NBS24P2S is a Layer 2+ smart switch featuring 24 Gigabit 802.3af/at PoE Ports and 4 x1.25Gbps SFP Ports. The NBS series offers additional Layer 2 functionality with advanced multicast and security features such as IGMP Snooping, Multicast VLAN Registration (MVR), DHCP Snooping, Storm Control and Access Control List (ACL). With Ruijie's free cloud service users are able to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Ethernet Ports: 24x 10/100/1000
Hardware Button: None
Max. Power Consumption: 30W
Mounting: Desktop
Operating System: None
Operating temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 1 to 24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 1.25Gbps
Supported Voltage Range: 100-240V
Dimensions: 440 × 293 × 44mm
