UltraLAN GPON ONT (HGU - SC/APC)

A robust, high-performance Fiber GPON CPE that features extremely low power consumption with fast bandwidth speeds. Supports GPON links of up to 20km, with a max downstream speed of 2.5Gbps, and upstream rate of 1.25Gpbs. The ONT is compatible with major 3rd party vendor's OLT units. This is a HGU (Home Gateway Unit) ONT.

Features:

GPON mode (can access GPON OLTs).
Plug and play, integrate auto detection, auto configuration and auto firmware upgrades.
Support downstream 2.5Gbps and upstream 1.25Gbps with transmission distance to 20km.
Fiber access and gigabit port provide incredibly fast transfer speeds.
Supports OMCI (ONT Management Control Interface) remote management.
Support IPv4/ IPv6 IGMP snooping and MLD snooping.
Support bridge, route and bridge/route mixed mode.


Differences between SFU and HGU ONT's:

SFU ONT HGU ONT Type of PON EPON / GPON EPON / GPON
EPON/GPON Standard IEEE 802.3/802.3ah ITU-TG.984.x IEEE 802.3/802.3ah ITU-TG.984.x
Bridging /Routing Bridging/L2 Bridging/L2 and Routing/L3
WAN Configuration Not Supported Supported
TR069 Function Not Supported Supported
OLT to configure its Ethernet Ports Supported Not Supported
NAT Function Not Supported Supported
Port Forwarding Function Not Supported Supported
Loop Detection Function Supported Not Supported
DHCP Server Not Supported Supported

Specifications:

Distance
20km Maximum
Data Rates
Upstream rate 1.25Gbps
Downstream rate 2.5Gbps
PON TX Power
1~5dBm (1310nm)
PON RX sensitivity
<-28dBm (1490nm)
Power
≤ 3W
Interfaces
1x SC/APC PON (Passive Optical Network) Port
1x 10/100/1000Mbps LAN port
Buttons
Reset Button
Power Supply
DC 12V 0.5A
Operating Temperature
-10°C~50°C
Storage Temperature
-40°C~70°C
Operating Humidity
10%~90%, non-condensing
Storage Humidity
5%~90% non-condensing
WAN Type
Dynamic IP/Static IP/PPPoE
DHCP
Server, Client, DHCP Client List, Address Reservation
Quality of Service
Bandwidth Control
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
VLAN
Port-based VLAN, IEEE802.1Q VLAN
Access Control
Local Management Control, Host List, Access Schedule, Rule Management
Route
Support NAT, Support PPPOE, Support Server Client, Support Route
Firewall Security
DoS, SPI Firewall, IP Address Filter/MAC Address Filter, Domain Filter, IP and MAC Address Binding

Ubiquiti's UISP-RPRO is a professional router featuring 9x Gigabit Ethernet ports, and 4x 10Gbps SFP+ ports. Its quad-core 1.7GHz processor is ideal for ISP applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Desktop
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cable (Included)
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 4 GB DDR4
USB Ports: None
Dimensions: 442.4 x 200 x 43.7 mm
Weight: 3.3kg

Ubiquiti's UISP-R is a router featuring 8x Gigabit PoE ports, 1x SFP and a PoE budget of 110W when powered with the included Power Supply. Its dual core, 880Mhz processor is ideal for Micro Pop applications and can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 8x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 10W
Mounting: Desktop or Outdoors with the UISP-BOX
Operating System: UISP
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 27V Passive PoE Output on Ports 1~8
Power Input: 27V, 4.4A Power Supply (Included)
Processor Dual-core 880 MHz, MIPS1004Kc
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 24-28V
System Memory: 512 MB DDR3
USB Ports: None
Dimensions: 210.4 x 95 x 29 mm
Weight: 600g

Ubiquiti's UF-WIFI is a robust, high-performance GPON CPE. It features an LED display, 4x Gigabit Ethernet ports, 1x SC APC port and 2.4GHz WiFi connectivity. It provides powerful Layer 2/3 management features. The unit can be powered using 24V Passive PoE on Port 1, or by a 24V power supply.

It can be managed via the UISP network management platform.

Specifications

Antenna Gain: 1dBi
Beam-width: 360°
Data Rate: 300Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 20V-28V
USB Ports: None
Other: 1x 2.5/1.25Gbps SC APC GPON
Dimensions: 126.34 x 126.09 x 31.65mm
Weight: 190g

Ubiquiti's UF-LOCO is a robust, high-performance GPON CPE that features extremely low power consumption and a choice of 24V passive PoE or Micro-USB power methods. It supports GPON links of up to 20km. The UF-LOCO integrates with the UF-OLT4 and UF-OLT and provides powerful Layer 2/3 management features.

It can be managed via the UISP network management platform.

For third-party compatibility, Ubiquiti has provided the following guide: OLT Compatibility Guide.(https://help.ui.com/hc/en-us/articles/115009335068-UISP-Fiber-Supported-Third-Party-OLTs)

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 3.5W
Mounting: Desktop
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 5V 1A Micro USB Power Supply (Included)
Processor: MIPS32; 240 MHz
Serial Interface: None
SFP Ports: 1x 2.5/1.25Gbps SC APC GPON
Supported Voltage Range: 24V Passive PoE or 4.7 – 5.3VDC
System Memory: 128 MB DDR3
USB Ports: None
Dimensions: 76.5 x 76.5 x 26.4mm
Weight: 77g

Ubiquiti's UF-OLT-4 is a fibre solution that anyone can deploy. No command lines, manuals or paid support licenses are required. UISP offers internet and telecom service providers a cost-effective fibre optic delivery system for Triple Play Services (data, voice, IPTV/VoD). The UISP Fiber OLT 4 features four PON ports to connect up to 512 ONUs. The SFP+ port delivers up to 10 Gbps of uplink connectivity. The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19" wide rack.

It can be managed via the UISP network management platform.

*Note: 1x UF-GP-B+ included.

Specifications

Ethernet Ports: None
Hardware Button: Reset
Max. Power Consumption: 35W
Mounting: Rack-Mount
Operating System: UFiber
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included) ; 24VDC (Not Included)
Processor: MIPS 1004kc; 880 MHz Dual Core
Serial Interface: 1x RJ45 Serial Console Port
SFP Ports: 4x 2.5/1.25Gbps GPON Ports ; 1x 10Gbps
Supported Voltage Range: 24V or 100V – 240V
System Memory: 512 MB DDR3; 512 MB NAND
USB Ports: 1x USB 2.0
Dimensions: 299.80 x 258.95 x 42.55mm
Weight: 2.13kg

Ubiquiti's ER-6P is a professional 5 port Gigabit Ethernet router with SFP connectivity. Based on EdgeOS, it contains a quad-core, 1Ghz processor and 24v PoE out. It is designed for ISP (internet service provider) or SME (small to medium enterprise) deployments which require advanced routing features. It can be managed via the UISP network management platform.

Specifications

Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Wall Mount or Desktop
Operating System: EdgeMAX
Operating Temperature: -10°C to 50°C
PoE Input: None
PoE Output: 24V Passive PoE Output on Ports 0~4
Power Input: 24V 2.5A Power Supply (Included)
Processor: 4-Core 1GHz; MIPS64
Serial Interface:1x RJ45 Serial Port
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 16 - 30VDC
System Memory: 1GB DDR3 RAM
USB Ports: 1x USB 3
Dimensions: 229 x 136.5 x 31.1 mm
Weight: 730 g

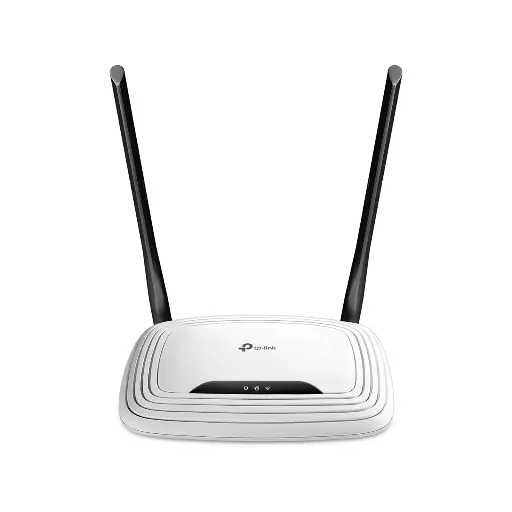

"TP-Link TL-WR841N N300 router delivers 300Mbps Wi-Fi 4 (2.4GHz) with 4x Ethernet ports. Features guest network, parental controls, and easy setup for home networks."
TP-Link TL-WR841N - Reliable Wireless Router for Home & Small Office

Ideal for basic internet needs, this router offers:

✅ 300Mbps Wi-Fi 4 (2.4GHz) - Smooth HD streaming & browsing
✅ 4x 10/100M Ethernet ports for wired connections
✅ Guest network access for visitors
✅ Parental controls to manage internet usage
✅ Easy setup with TP-Link Tether app

📶 Stable Wireless Performance

802.11n Wi-Fi 4 (2.4GHz single-band)
2x external antennas for better coverage
WPA/WPA2 encryption for security
🔌 Wired Connectivity
4x 10/100M LAN ports
1x 10/100M WAN port

🛡️ Network Management

Guest network isolation
Parental controls (access scheduling)
IP & MAC binding

📋 Technical Specifications

Category Specification
Model TL-WR841N
Wi-Fi Standard 802.11n (Wi-Fi 4)
Speed 300Mbps (2.4GHz)
Ethernet Ports 4x 10/100M LAN + 1x 10/100M WAN
Antennas 2x external fixed
Security WEP, WPA/WPA2
Management Web interface, Tether app
Dimensions 7.2 x 5.0 x 1.4 in (182 x 128 x 35mm)
Warranty 2 years

❓ FAQ Section

❓ Does this support mesh networking?
⚠️ No - For mesh, consider TP-Link's Deco series.
❓ Can I use this with a 100Mbps internet connection?
✅ Yes - Perfect for basic broadband plans up to 100Mbps.
❓ Is the firmware upgradable?
🔄 Yes - TP-Link provides regular security updates.

"Upgrade your home network with the TL-WR841N—an affordable, reliable router for everyday internet use! 🚀"

Reyee's RG-EW3000GX is a WiFi 6, dual-band, 2x2 MU-MIMO Gigabit router featuring dual WAN aggregation, 5x high gain antennas and an aggregate wireless data rate of up to 3000Mbps. It can be used as a stand-alone router or an access point, but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices.
It supports Ruijie’s smart networking feature which, with Ruijie's free cloud service, allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: The Mesh button on this unit is only for use with other Reyee devices.

Specifications

Antenna Gain: 2.4GHz: 5dBi; 5.8GHz: 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 2402Mbps
Ethernet Ports: 1x 10/100/1000 (LAN/WAN) ; 3x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset ; Mesh
Max. Power Consumption: 12W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1.0A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1.0A
USB Ports: None

Dimensions: 240mm × 130mm × 32mm
Weight: 0.48kg

Reyee's RG-EW1300G is a dual-band Gigabit Ethernet router featuring 4x Gigabit Ethernet ports and WiFi 5, MU-MIMO Wave 2 technology with speeds up to 1267Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

Specifications

Antenna Gain: 2.4GHz: 4.5dBi, 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100/1000
Hardware Button: Reset ; Mesh
Max. Power Consumption: 12W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 230 × 130 × 30mm
Weight: 980g

Reyee's RG-EW1200F is a dual-band Fast Ethernet router featuring 802.11ac (WiFi 5) MU-MIMO Wave 2 technology with speeds up to 1167Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: This device does not support WPS for third party devices. WiFi password settings do not support special characters.

Specifications

Antenna Gain: 4x5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset ; Mesh
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 182 x 120 x 32mm
Weight: 400g

Reyee's RG-EG1510XS is a 10 port cloud-managed, 4-core router featuring 4x Gigabit Ethernet ports, 4x 2.5Gbps Ethernet ports, 2xSFP+ ports, and caters for up to 7 WAN ports. It supports up to 1500 users with a maximum WAN bandwidth of 4Gbps.

The unit is equipped with a 2.5'' SATA HDD bay for local syslog storage and integrates with Ruijie's free cloud service allowing users to quickly and easily auto-provision, deploy, and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN/WAN) ; 3x 10/100/1000/2500 (LAN/WAN); 1x 10/100/1000 (LAN) ; 1x 10/100/1000/2500 (WAN)
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Rack-Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100-240V
System Memory: 4GB
USB Ports: None

Dimensions: 440 x 210 x 43.6 mm
Weight: 3kg

Reyee's RG-EG105GW is a cloud-managed, WiFi 5 MU-MIMO Wave 2 router with 5 Gigabit Ethernet ports and up to 4 WAN ports. With concurrent 2.4G and 5G wireless, the unit supports up to 1267Mbps aggregate over wireless, as well as up to 150 users with a maximum WAN bandwidth of 600Mbps. The router integrates with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely.

Specifications

Antenna Gain: 2.4GHz : 3dBi; 5.8GHz : 4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100/1000 (LAN); 1x 10/100/1000 (WAN); 3x 10/100/1000 (LAN/WAN)
Hardware Button: Reset, MESH
Max. Power Consumption: 15W
Mounting: Desktop / Wall Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: DC 12V 1.5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 220V
USB Ports: 1x USB 2.0

Dimensions: 120 x 120 x 28mm
Weight: 0.251Kg

Reyee's RG-E305GP is a 5 port cloud-managed, dual-core router featuring 4 Gigabit Ethernet PoE ports and up to x4 WAN ports. It supports up to 300 users with a maximum WAN bandwidth of 1.5Gbps.

The router integrates with Ruijie's free cloud service allowing users to quickly and easily auto-provision, deploy, and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN/WAN) ; 1x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 0-3
Power Input: 54V 1.4A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 54V
System Memory: 512MB
USB Ports: None

Dimensions: 202 x 108 x 28 mm
Weight: 0.55kg

Reyee's RG-EG105G is a cloud-managed router featuring 5x Gigabit Ethernet Ports with up to x2 WAN ports. It supports up to 100 users with a maximum WAN bandwidth of 600Mbps. The router integrates with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN); 1x 10/100/1000 (WAN); 1x 10/100/1000 (LAN/WAN)
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 12v Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 220V
System Memory: 128MB
USB Ports: None

Dimensions: 206.5 x 108.5 x 28mm
Weight: 840g

Reyee's RG-EG105GP is a cloud-managed router featuring 5x Gigabit Ethernet Ports with up to x2 WAN ports and 4x 802.3af/at PoE ports. It supports up to 100 users with a maximum WAN bandwidth of 600Mbps. The router integrates with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN); 1x 10/100/1000 (WAN); 1x 10/100/1000 (LAN/WAN)
Hardware Button: Reset
Max. Power Consumption: 6W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 4x 802.3af/at on Ports 1-4
Power Input: 54V 1.11A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 220V
System Memory: 128MB
USB Ports: None

Dimensions: 206.5 x 108.5 x 28mm
Weight: 840g

Reyee's RG-E310GP is a 10 port cloud-managed, dual-core router featuring 8 Gigabit Ethernet PoE ports and caters for up to x4 WAN ports. It supports up to 300 users with a maximum WAN bandwidth of 1.5Gbps.

The router integrates with Ruijie's free cloud service allowing users to quickly and easily auto-provision, deploy, and manage devices remotely.

Specifications

Ethernet Ports: 3x 10/100/1000 (LAN/WAN) ; 6x 10/100/1000 (LAN) ; 1x 10/100/1000 (WAN)
Hardware Button: Reset
Max. Power Consumption: 20W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at on Ports 0-7
Power Input: 54V 2.4A Power Supply (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 54V
System Memory: 512MB
USB Ports: None

Dimensions: 202 x 108 x 28 mm
Weight: 0.55kg

MikroTik's RB-WAPLTE6AC is a small weatherproof, dual-band 802.11ac Access Point. LTE6 also enables carrier aggregation and allows the device to use multiple bands simultaneously, which is a great advantage when there are many LTE users in the area.

SKU RB-WAPLTE6AC
Manufacturer MikroTik
Manufacturer Product Code RBwAPGR-5HacD2HnD&R11e-LTE6

Specifications

Antenna Gain: LTE: 4dBi; Wireless: 2.5dBi
Beam-width: 360°
Data Rate: LTE: 300Mbps Downlink; 50Mbps Uplink; Wireless: 2.4GHz: 300Mbps 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 16W
Mounting: Pole-Mount
Operating System: RouterOS (Level 4 License)
Operating Temperature: -30°C to 60°C
PoE Input: 18V-57V (Passive PoE; 802.3af/at)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Micro SIM)
Supported Voltage Range: 10V-57V
USB Ports: None
Dimensions: 185 x 85 x 30mm

MikroTik RB-WAPAC – Outdoor Dual-Band WiFi 5 AP | 2x Gigabit | Quad-Core CPU | PoE Powered

Versatile, Weatherproof Wireless for Homes, Businesses & ISPs

The MikroTik RB-WAPAC is a sleek, high-performance outdoor AP featuring dual-band 802.11ac WiFi, 2x Gigabit ports, and a quad-core CPU in a compact, vandal-resistant enclosure. Ideal for wall, ceiling, or pole mounting, it delivers seamless 360° coverage in harsh environments.
⚡ Key Features

✔ Dual-Band WiFi 5 (AC) – 2.4GHz (300Mbps) + 5GHz (867Mbps) for 1.2Gbps total throughput.
✔ 2x Gigabit Ethernet – PoE-in support (802.3af/at or Passive 18-57V).
✔ Quad-Core CPU – Handles 50+ concurrent clients with RouterOS L4 features.
✔ Ultra-Durable – IP54-rated, -40°C to 70°C operation, and anti-theft screw.
✔ Flexible Mounting – Install on walls, poles, ceilings, or desktops.
📊 Technical Specifications

WiFi Standards: 802.11a/b/g/n/ac

Antenna Gain: 2.5dBi (2.4GHz & 5GHz, omnidirectional)

Ports:

2x Gigabit Ethernet (PoE-in on Port 1)

Power:

802.3af/at or Passive PoE (18-57V)

10W max consumption

Mounting: Includes hardware for all orientations

Dimensions: 185 x 85 x 30mm (compact/low-profile)

🏆 Why Choose RB-WAPAC?

✅ Plug-and-Play – RouterOS pre-installed (Level 4 license).
✅ ISP-Grade Reliability – Survives extreme temps, rain, and dust.
✅ Discreet Design – White casing blends into urban environments.
🔍 Ideal For:

🏡 Outdoor Home WiFi – Cover gardens, garages, or pools.
🏢 Business Hotspots – Cafes, hotels, or office courtyards.
📶 WISP Deployments – Affordable PtMP client access.

MikroTik's RB-WAPLTE is a small weatherproof wireless access point with a built-in LTE4 modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The RB-WAPLTE also has one 10/100 Ethernet LAN port for your wired devices.

LTE cards are connected to two internal antennas with u.FL connectors, making it possible to unplug the connectors and add your own external LTE antenna for larger coverage. The RB-WAPLTE has several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector for the car, bus or train. It includes LTE modem that supports International LTE bands 1,2,3,7,8,20,28,38 and 40.

SKU RB-WAPLTE
Manufacturer MikroTik
Manufacturer Product Code wAPR-2nD&EC200A-EU

Specifications

Antenna Gain: LTE: 2 - 4.5dBi (with uFL connector) Wireless: 2dBi
Beam-width: 360°
Data Rate: LTE: 150Mbps Downlink; 50Mbps Uplink ; Wireless: 2.4GHz 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Desktop; Ceiling; Pole & Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to +60°C
PoE Input: 9 – 30V (Passive PoE)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: 1 (Mini SIM)
Supported Voltage Range: 9V-30V
USB Ports: None
Dimensions: 185 x 85 x 30 mm
