Ruijie Reyee Series RG-EST310 V2 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, RG-EST310 V2 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services.

RG-EST310 V2 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end.

Specifications

Antenna Gain: 5GHz: 10dBi
Beam-width: 60°
Data Rate: 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 55°C
PoE Input: 24v Passive PoE
PoE Output: None
Power Input: 24V Passive PoE (Included) or 12V 1A Power Supply (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 24v PoE PoE or 12V 1A DC
USB Ports: None

Dimensions: 400 x 231 x 88 mm
Weight: 0.35g

Introducing the Reyee RG-EST100-E, a 2.4GHz wireless bridge kit optimized for short-distance point-to-point (PTP) connections. Elevate your surveillance systems with stable, real-time data transmission even from 500 meters away. With factory-free configuration, you're spared from complex alignments. Its robust IP55 weatherproof design ensures unwavering performance in the harshest conditions, from bone-chilling cold to scorching heat.

Key Features:

500-Meter Real-Time Transmission: Stay connected and ensure stable signal for wireless connections even at a distance.

Plug-and-Play Design: Hassle-free setup without the need for intricate configurations or alignments.

Rugged & Weatherproof: IP55 rated to withstand the elements; confidently use it outdoors or in challenging environments like elevators.

Optimized for Surveillance: Support up to 10 x 3MP cameras at 100m and 5 x 3MP cameras at 500m, making it ideal for CCTV scenarios.

Remote Monitoring & Maintenance: With intuitive statistics viewable on Ruijie Cloud, you can monitor and manage your setup remotely with ease.

Better Visibility: Incorporated fluorescent stickers ensure easy recognition even in the dark.

Rust-Proof for Reliability: A design focused on longevity, ensuring a lower failure rate.


With the RG-EST100-E, experience unparalleled stability in your wireless connections, designed with CCTV systems in mind.

Specifications
Antenna Gain: 2.4GHz: 8dBi
Beam-width: 70°
Data Rate: 2.4GHz: 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C ~ 60°C
PoE Input: 12V Passive PoE
PoE Output: None
Power Input: 12V Passive PoE or 12V Power Supply (Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 12V
USB Ports: None
Dimensions: 165.5 × 68.7 x 42mm
Weight: 0.30kg

The Reyee RG-EST350 V2 Wireless Bridge is a high-performance outdoor solution designed for long-range, real-time data transmission. Operating on 5GHz dual-stream 802.11ac (Wi-Fi 5 Wave2), it delivers speeds up to 867Mbps and supports MU-MIMO 2×2 for efficient multi-device communication.

With a 15dBi directional antenna, it can transmit data up to 5KM, making it ideal for surveillance, remote access, and point-to-point networking. The bridge supports up to 45 × 2MP cameras at 3KM and 20 × 2MP cameras at 5KM, ensuring robust throughput for high-density deployments.

Installation is simplified with automatic long-distance pairing, eliminating complex alignment procedures. Rated IP54 weatherproof and built to operate in extreme temperatures from -30°C to 65°C, it’s engineered for reliable outdoor performance. Remote monitoring and maintenance are made easy via Ruijie Cloud, offering intuitive statistics and control.

Key Features
🌐 5GHz Dual-Stream Wi-Fi 5 (802.11ac Wave2) – Fast and stable wireless transmission
📡 15dBi Directional Antenna – Optimized for long-range point-to-point links
🚀 Up to 867Mbps Speed – High bandwidth for real-time data and video
🔄 Automatic Long-Distance Pairing – No complex alignment required
🛡️ IP54 Weatherproof Rating – Built for outdoor environments
❄️ Wide Operating Temperature – -30°C to 65°C for extreme conditions
📷 Supports 45 × 2MP Cameras @ 3KM / 20 @ 5KM – Ideal for surveillance networks
📊 Ruijie Cloud Monitoring – Remote management and performance stats
🔌 2 × Gigabit Ethernet Ports – Seamless wired integration
🕒 3-Year Manufacturer Warranty – Long-term reliability

Technical Specifications
Feature Details
Product Code RG-EST350-V2
Wireless Standard Wi-Fi 5 (IEEE 802.11ac Wave2)
Frequency Band 5GHz
Wi-Fi Speed Up to 867Mbps
Antenna Gain 15dBi Directional
MIMO 2×2 MU-MIMO
Transmission Range Up to 5KM
Wireless Power ≤400mW (26dBm, adjustable)
Ethernet Ports 2 × 10/100/1000Base-T
Operating Temperature -30°C to 65°C
Weatherproof Rating IP54
Certifications CE, RoHS
Environment Outdoor
Warranty 3 Years Limited Manufacturer Warranty

What’s Included
1 × Reyee RG-EST350 V2 Wireless Bridge
1 × Mounting Kit
1 × Quick Start Guide

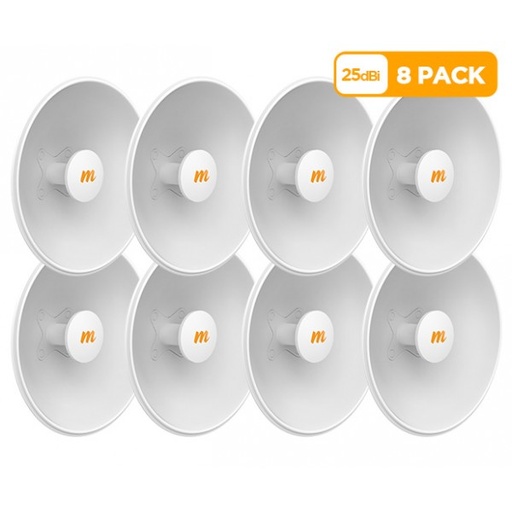

Extend Your Network Reach with Maximum Gain

Boost your wireless link performance with the Mimosa N5-X25 twist-on antenna, delivering an impressive 25dBi gain for unparalleled range and signal strength. Designed as a modular upgrade for the Mimosa C5x radio series, this antenna offers a simple twist-on installation that transforms your integrated radio into a long-distance powerhouse.
Key Features

Highest Gain Option: Achieve up to 25dBi gain to extend coverage and improve link reliability.
Modular & Versatile: Easily twist on and swap with other N5-X antennas (8, 12, 16, 20, and 25 dBi) to customize network performance.
Wide Frequency Support: Operates across an extended 4.9 GHz to 6.4 GHz spectrum, suitable for diverse deployments.
Ultra-Rugged Design: Built to endure harsh outdoor environments with excellent noise immunity for stable connections.
Optimized for Mimosa Radios: Fully compatible with the Mimosa C5x platform for seamless integration.

Technical Specifications

Feature Specification
Gain 25 dBi
Frequency Range 4.9 – 6.4 GHz
Polarization Dual-Slant 45º (typical for N5-X series)
Dimensions Diameter: Approx. 430 mm (16.93”)
Mount Type Mimosa N5-X twist-on
Construction Ultra-rugged for outdoor use
Noise Immunity Best-in-class for interference reduction

Ideal Use Cases

Long-range point-to-point (PTP) and point-to-multipoint (PTMP) wireless backhaul links
Deployments needing maximum antenna gain and superior link quality
Flexible network design with modular antenna upgradeability

Why Choose Mimosa N5-X25?

Enhance your existing Mimosa radios with a simple twist-on upgrade
Reliable, high-performance antenna designed for professional-grade wireless networking
Ruggedized build ensures durability in extreme outdoor conditions

Upgrade your wireless infrastructure with the Mimosa N5-X25 25dBi antenna — powerful, flexible, and engineered for superior long-distance connectivity.

Extend Your Network Reach with Maximum Gain

Boost your wireless link performance with the Mimosa N5-X25 twist-on antenna, delivering an impressive 25dBi gain for unparalleled range and signal strength. Designed as a modular upgrade for the Mimosa C5x radio series, this antenna offers a simple twist-on installation that transforms your integrated radio into a long-distance powerhouse.
Key Features

Highest Gain Option: Achieve up to 25dBi gain to extend coverage and improve link reliability.
Modular & Versatile: Easily twist on and swap with other N5-X antennas (8, 12, 16, 20, and 25 dBi) to customize network performance.
Wide Frequency Support: Operates across an extended 4.9 GHz to 6.4 GHz spectrum, suitable for diverse deployments.
Ultra-Rugged Design: Built to endure harsh outdoor environments with excellent noise immunity for stable connections.
Optimized for Mimosa Radios: Fully compatible with the Mimosa C5x platform for seamless integration.

Technical Specifications

Feature Specification
Gain 25 dBi
Frequency Range 4.9 – 6.4 GHz
Polarization Dual-Slant 45º (typical for N5-X series)
Dimensions Diameter: Approx. 430 mm (16.93”)
Mount Type Mimosa N5-X twist-on
Construction Ultra-rugged for outdoor use
Noise Immunity Best-in-class for interference reduction

Ideal Use Cases

Long-range point-to-point (PTP) and point-to-multipoint (PTMP) wireless backhaul links
Deployments needing maximum antenna gain and superior link quality
Flexible network design with modular antenna upgradeability

Why Choose Mimosa N5-X25?

Enhance your existing Mimosa radios with a simple twist-on upgrade
Reliable, high-performance antenna designed for professional-grade wireless networking
Ruggedized build ensures durability in extreme outdoor conditions

Upgrade your wireless infrastructure with the Mimosa N5-X25 25dBi antenna — powerful, flexible, and engineered for superior long-distance connectivity.

Product Overview

Upgrade your wireless network with the Mimosa N5-X20 modular twist-on antenna, designed to enhance the native 8dBi gain of Mimosa radios like the C5x up to a powerful 20dBi. This ultra-rugged antenna operates across a broad 4.9–6.4 GHz frequency range, delivering superior noise immunity and flexible deployment options for long-range and high-performance wireless links.
Key Features

High Gain: Boost signal strength with 20dBi gain for extended range and improved link reliability.

Modular Twist-On Design: Easily swap antennas for different gain requirements (8, 12, 16, 20, or 25 dBi) to tailor your network.

Wide Frequency Range: Supports operation from 4.9 GHz to 6.4 GHz, perfect for diverse wireless environments.

Robust & Rugged: Built for outdoor use with durable construction to withstand harsh weather and environmental conditions.

Best-in-Class Noise Immunity: Designed to minimize interference and improve wireless signal quality for cleaner connections.

Technical Specifications
Specification Details
Frequency Range 4.9 – 6.4 GHz
Gain 20 dBi
Antenna Type Modular Twist-On
Length 270 mm
Compatibility Mimosa C5x Series & Other Compatible Radios
Noise Immunity Best-in-class
Construction Weatherproof & Rugged
Why Buy from QuickStore.co.za?

✔ Genuine Mimosa antennas with local warranty
✔ Expert technical support for wireless installations
✔ Fast, reliable shipping across South Africa

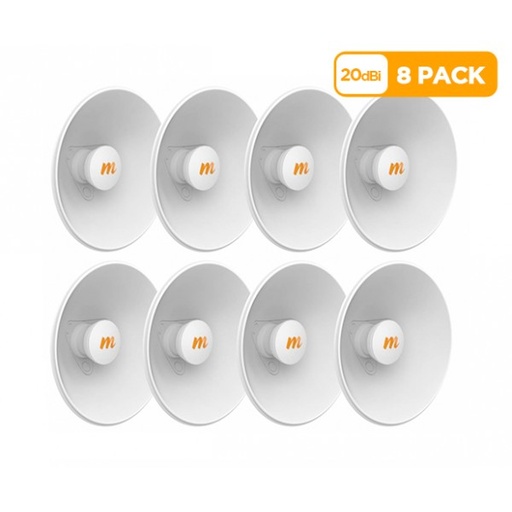

Maximize Your Wireless Network with Modular Flexibility

Upgrade your wireless links with this bulk 8-pack of Mimosa N5-X20 20dBi twist-on antennas. Designed for the Mimosa C5x radio series, these modular antennas boost the native 8dBi gain up to 20dBi for extended range, stronger signals, and enhanced network reliability.
Key Benefits

Bulk Value Pack: Eight high-performance 20dBi antennas, perfect for large-scale deployments or stocking spares.
Modular Twist-On Design: Easily attach or swap antennas for customized gain options (8, 12, 16, 20, 25 dBi).
Extended Frequency Range: Works seamlessly between 4.9 GHz and 6.4 GHz for versatile use in diverse wireless environments.
Robust Dual-Slant 45º Polarization: Improves signal quality and reduces interference for stable connections.
Narrow 12º Beamwidth: Offers focused, symmetrical coverage for precise targeting of wireless signals.
Superior Signal Isolation: Front-to-back ratio of 35 dB and front-to-side ratio of 37 dB reduce noise and interference.
Rugged Construction: Designed to withstand winds up to 200 km/h (125 mph) and harsh outdoor conditions.
Compact & Lightweight: Each antenna weighs just 0.77 kg and measures 270 mm in diameter, making installation and mounting straightforward.

Technical Specifications

Feature Specification
Gain 20 dBi
Frequency Range 4.9 – 6.4 GHz
Polarization Dual-Slant 45º
Beamwidth (3dB) 12º Symmetric
Front-to-Back Ratio 35 dB
Front-to-Side Ratio 37 dB
Weight 0.77 kg (1.70 lbs) per antenna
Dimensions Diameter: 270 mm (10.63”) Depth: 83 mm (3.27”)
Mount Type Mimosa N5-X twist-on
Wind Survivability 200 km/h (125 mph)
Wind Loading 14.55 @ 160 km/h (32.07 lbs @ 100 mph)

Ideal For

Wireless ISPs requiring extended-range PTP/PTMP links
Large-scale network deployments needing multiple high-gain antennas
Customers who prefer modular and flexible antenna solutions

Why Shop With Us?

Authentic Mimosa products backed by local warranty
Fast and reliable shipping across South Africa
Expert support to assist with your wireless network setup

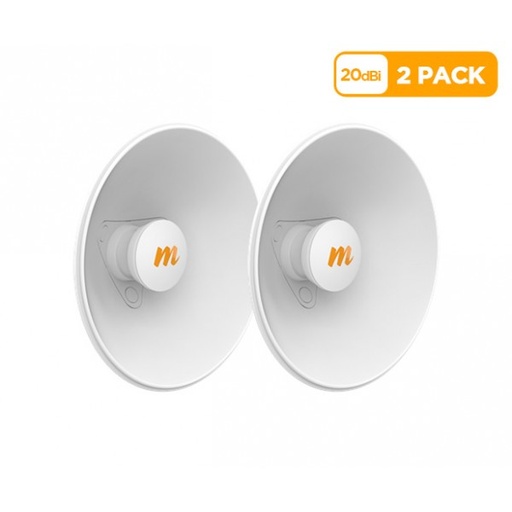

Boost Your Wireless Network Performance

Upgrade your Mimosa C5x radios with this 2-pack of high-performance N5-X20 twist-on antennas, designed to enhance your wireless link gain from the native 8dBi up to a powerful 20dBi. These modular antennas offer unmatched flexibility and reliability, perfect for long-range, high-capacity point-to-point or point-to-multipoint deployments.
Key Features

Dual Pack: Includes two identical 20dBi antennas for a complete set.

Modular Twist-On Design: Easy to install and swap antennas to meet your coverage needs with gain options from 8dBi to 25dBi.

Wide Frequency Range: Operates from 4.9 GHz to 6.4 GHz, ideal for diverse wireless environments.

Dual-Slant 45º Polarization: Improves signal robustness and reduces interference.

Narrow Beamwidth: 12º symmetric beam for precise directional coverage.

Superior Front-to-Back & Front-to-Side Ratios: 35 dB and 37 dB respectively, minimizing signal interference and maximizing link quality.

Rugged & Weather-Resistant: Designed to withstand winds up to 200 km/h (125 mph) and harsh outdoor conditions.

Lightweight & Compact: Weighs 0.77 kg each with a diameter of 270 mm and depth of 83 mm for easy mounting.

Technical Specifications
Specification Details
Gain 20 dBi
Frequency Range 4.9 – 6.4 GHz
Polarization Dual-Slant 45º
Beamwidth (3dB) 12º Symmetric
Front-to-Back Ratio 35 dB
Front-to-Side Ratio 37 dB
Weight 0.77 kg (1.70 lbs) per antenna
Dimensions Diameter: 270 mm (10.63”) Depth: 83 mm (3.27”)
Mounting Type Mimosa N5-X twist-on
Wind Survivability 200 km/h (125 mph)
Wind Loading 14.55 @ 160 km/h (32.07 lbs @ 100 mph)

Why Buy from QuickStore.co.za?
Official Mimosa reseller with genuine products
Local warranty and support
Fast delivery across South Africa
Expert advice for your wireless setup

Product Overview

Upgrade your Mimosa C5x radios with the Mimosa N5-X16 Twist-On Antenna, designed to boost your wireless network performance with a powerful 16dBi gain. This modular, twist-on antenna extends the native 8dBi gain of your radios, offering enhanced range and signal strength while maintaining the simplicity of integrated radio systems. Built rugged and designed for outdoor use, the N5-X16 delivers reliable performance even in challenging environments.
Key Features

16dBi Gain — Significantly improves signal reach and connection quality for long-distance wireless links.

Modular Twist-On Design — Easy antenna swaps without replacing your radio unit, allowing flexible network upgrades.

Extended Frequency Range — Covers 4.9 to 6.4 GHz spectrum for diverse wireless applications.

Ultra-Rugged Build — Weather-resistant construction ensures durability in harsh outdoor conditions.

Superior Noise Immunity — Enhances signal clarity and reduces interference for consistent network performance.

Technical Specifications
Specification Details
Frequency Range 4.9 GHz – 6.4 GHz
Gain 16 dBi
Antenna Type Twist-On Modular Antenna
Compatible Radios Mimosa C5x and compatible N5 series
Length 160 mm
Construction Rugged, weatherproof
Package Contents

1 × Mimosa N5-X16 5GHz 16dBi Twist-On Antenna

Installation Guide

Why Buy From QuickStore.co.za?

✔ Authentic Mimosa networking gear
✔ Local warranty and expert support
✔ Fast and reliable South African delivery

Product Overview

The Mimosa N5-X12 Twist-On Antenna is a modular 5GHz antenna designed to enhance the performance of your Mimosa C5x wireless radios. Offering a 12dBi gain, this rugged antenna boosts signal strength and extends range, providing greater flexibility and improved network reliability. Compatible with Mimosa’s native 8dBi radios, the N5-X12 allows for easy upgrades with minimal installation effort.
Key Features

12dBi Gain — Increases signal strength for clearer and more stable wireless connections.

Modular Twist-On Design — Easily swap antennas to fit different deployment needs without replacing the radio unit.

Wide Frequency Range — Operates effectively across 4.9–6.4 GHz, supporting versatile wireless applications.

Ultra-Rugged Construction — Built to withstand harsh outdoor environments and ensure long-term durability.

Noise Immunity — Delivers superior resistance to interference, enhancing signal quality and network performance.

Technical Specifications
Specification Details
Frequency Range 4.9 GHz to 6.4 GHz
Gain 12 dBi
Antenna Type Twist-On Modular Antenna
Compatible Radios Mimosa C5x and other N5 series
Length 70 mm
Construction Rugged, weather-resistant
Package Contents

1 × Mimosa N5-X12 5GHz 12dBi Twist-On Antenna

Installation Guide

Why Buy from QuickStore.co.za?

✔ Genuine Mimosa products guaranteed
✔ Expert local support and warranty
✔ Fast delivery across South Africa

Product Overview

The Mimosa C5X Modular PTP Backhaul is a high-capacity, flexible point-to-point wireless solution designed to deliver ultra-fast, reliable connectivity over long distances. Engineered for ISPs and enterprise networks, the C5X combines modularity with advanced technology to support scalable deployments with up to 2.5 Gbps throughput—perfect for modern high-demand backhaul applications.
Key Features

Modular Design for Maximum Flexibility — Easily customize your backhaul system by pairing with a wide range of compatible antennas to suit your deployment needs.

Exceptional Speed & Capacity — Supports up to 2.5 Gbps TCP throughput, ensuring smooth, high-bandwidth connectivity for demanding network environments.

Advanced Interference Mitigation — Designed to perform optimally in areas with interference and environmental challenges, ensuring consistent link quality.

Easy Network Integration — Seamless compatibility with Mimosa’s network management platform enables efficient provisioning, monitoring, and control.

Robust and Reliable — Built for outdoor deployments with rugged construction that withstands harsh weather conditions.

Technical Specifications
Specification Details
Maximum Throughput Up to 2.5 Gbps TCP
Frequency Band 5 GHz (exact range depends on regional model)
Modularity Supports multiple antenna options for custom setups
Network Management Compatible with Mimosa cloud management
Mounting Pole or tower mounting compatible
Environmental Rating Weather-resistant for outdoor use
Package Contents

1 × Mimosa C5X Modular PTP Backhaul Radio

Mounting accessories

User manual

Why Buy from QuickStore.co.za?

✔ Authorized Mimosa Reseller with genuine products
✔ Local warranty and reliable support
✔ Fast, nationwide delivery across South Africa

Product Overview

The Mimosa C5C is a high-performance connectorized point-to-point (PTP) backhaul radio designed for long-range, high-throughput wireless links. Ideal for ISPs and network providers, it delivers up to 700 Mbps TCP throughput and supports flexible antenna configurations for custom client deployments—even in challenging environments with dense vegetation.
Key Features

High-Speed Long-Range Backhaul — Optimized for PTP and point-to-multipoint (PTMP) GigaPoP and MicroPoP links with reliable performance over long distances.

Connectorized Design — Compatible with a wide range of dual-polarization antennas via 2x2:2 MIMO RP-SMA connectors, allowing custom antenna selection for optimal link quality.

Easy Installation & Auto-Provisioning — Use the Mimosa Install App for rapid subscriber setup, automated device provisioning, and smooth integration into your ISP network, reducing deployment time and operational costs.

Spectrum Reuse Synchronization (SRS) Client — Works in SRS mode for improved medium access control (MAC) efficiency, interference coordination, and lower jitter by synchronizing transmissions with the Access Point (A5/A5c).

Flexible Mounting Options — Can be pole-mounted with hose clamps or clipped onto compatible antenna mounting brackets for versatile deployment.

Technical Specifications
Specification Details
Throughput Up to 700 Mbps TCP
Connectivity 2x2:2 MIMO with dual RP-SMA connectors
Supported Modes PTP, PTMP GigaPoP, PTMP MicroPoP
Auto-Provisioning Supported via Mimosa Install App
Antenna Compatibility Compatible with many dual-pol antennas
Mounting Options Pole mount (hose clamps), clip-on brackets
Spectrum Access Spectrum Reuse Synchronization (SRS) client
Environmental Suitability Optimized for areas with vegetation interference
Package Contents

1 × Mimosa C5C Connectorized PTP Backhaul Radio

Mounting accessories

User manual

Why Shop at QuickStore.co.za?

✔ Genuine Mimosa networking products with local warranty
✔ Fast, reliable shipping across South Africa
✔ Expert technical support for your network needs

MikroTik RB-WAPAC – Outdoor Dual-Band WiFi 5 AP | 2x Gigabit | Quad-Core CPU | PoE Powered

Versatile, Weatherproof Wireless for Homes, Businesses & ISPs

The MikroTik RB-WAPAC is a sleek, high-performance outdoor AP featuring dual-band 802.11ac WiFi, 2x Gigabit ports, and a quad-core CPU in a compact, vandal-resistant enclosure. Ideal for wall, ceiling, or pole mounting, it delivers seamless 360° coverage in harsh environments.
⚡ Key Features

✔ Dual-Band WiFi 5 (AC) – 2.4GHz (300Mbps) + 5GHz (867Mbps) for 1.2Gbps total throughput.
✔ 2x Gigabit Ethernet – PoE-in support (802.3af/at or Passive 18-57V).
✔ Quad-Core CPU – Handles 50+ concurrent clients with RouterOS L4 features.
✔ Ultra-Durable – IP54-rated, -40°C to 70°C operation, and anti-theft screw.
✔ Flexible Mounting – Install on walls, poles, ceilings, or desktops.
📊 Technical Specifications

WiFi Standards: 802.11a/b/g/n/ac

Antenna Gain: 2.5dBi (2.4GHz & 5GHz, omnidirectional)

Ports:

2x Gigabit Ethernet (PoE-in on Port 1)

Power:

802.3af/at or Passive PoE (18-57V)

10W max consumption

Mounting: Includes hardware for all orientations

Dimensions: 185 x 85 x 30mm (compact/low-profile)

🏆 Why Choose RB-WAPAC?

✅ Plug-and-Play – RouterOS pre-installed (Level 4 license).
✅ ISP-Grade Reliability – Survives extreme temps, rain, and dust.
✅ Discreet Design – White casing blends into urban environments.
🔍 Ideal For:

🏡 Outdoor Home WiFi – Cover gardens, garages, or pools.
🏢 Business Hotspots – Cafes, hotels, or office courtyards.
📶 WISP Deployments – Affordable PtMP client access.

MikroTik quickMOUNT-X – Dual-Axis Pole Mount for SXTsq & DISC 5

Precision Alignment for Outdoor CPEs | Lightweight & Durable

The quickMOUNT-X adds vertical/horizontal adjustment to pole-mounted SXTsq and DISC 5 devices, ensuring optimal signal alignment. Made from glass-fiber-reinforced nylon, it’s built to last in harsh outdoor conditions.

✔ Dual-Axis Adjustment – Fine-tune antenna positioning effortlessly.
✔ Universal Fit – Compatible with SXTsq series and DISC 5 (up to 2kg).
✔ Rugged Design – No small parts; survives extreme weather (-40°C to 60°C).
✔ Easy Install – Fits 30–60mm poles (hose clamps included).

Specs:

Weight Capacity: 2kg

Material: Glass-fiber nylon

Dimensions: 60×56×35mm

Pole Range: 30–60mm

Ideal for:
📶 WISPs deploying SXTsq PtP links
🏗️ Rooftop/pole installations requiring precise alignment

Price: Budget-friendly (comparable to a milkshake!).

MikroTik's RB-MANTBOX15AX is a dual band, WiFi 6 base station with an integrated sector antenna. The unit features a Gigabit Ethernet Port as well as a 2.5Gbps SFP slot and an aggregate data rate of up to 2974Mbps. On 2.4GHz the antenna offers 12dBi at 90°, and on 5.8GHz 15dBi at 60° coverage.

*Note: Maximum distance must be configured for client connections over 2km.

Antenna Gain: KU RB-MANTBOX15AX
Manufacturer MikroTik
Manufacturer Product Code L22UGS-5HaxD2HaxD-15S

Specifications

2.4GHz: 12dBi; 5.8GHz: 15dBi
Beam-width: 2.4GHz: 90°; 5.8GHz: 60°
Data Rate: 2.4GHz 574Mbps; 5.8GHz 2400Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W
Mounting: Pole-Mount
Operating System: Router OS (Level 4 License)
Operating Temperature: -40°C to 70°C
PoE Input: 18-28 (Passive PoE)
PoE Output: None
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12-28V
USB Ports: 1x USB 2.0
Other: 1x 2.5Gbps SFP
Dimensions: 349 x 140 x 82 mm

MikroTik's ANT-D530PA is a 5GHz 30dBi dish antenna and precision alignment mount built to accommodate the BaseBox series of products. It can also be used with any pole-mounted, 5GHz wireless device due to the adequate length of the included Flex Guide cable.

*Note: Radio not included

Specifications

Antenna Gain: 30dBi
Beam-width: +/-2.5 deg
Connector: 2x RP SMA Female
Frequency Range: 4.7GHz-5.875GHz
Polarization: Vertical & Horizontal
Wind Loading: 181.4kg @ 200km/hr
Dimensions: Ø 700 x 450mm
PLEASE TAKE NOTE:
This product is the MikroTik Dish ONLY. Electronic devices/CPE’s such as the MikroTik BaseBox5 or Ubiquiti RocketM5 are sold separately and not included. Pictures for the mANT30 dish are for illustration purposes only and shows the CPE mounting position for items such as the BaseBox5.

MikroTik's ANT-MLTE is a 5dBi LTE Omni Antenna operating on the 699 - 2690 MHz frequency range. The device housing is a flat design for easy mounting, but the antenna itself is omni directional and does not have to be accurately pointed, allowing for simple installation.

Specifications

Antenna Gain: 5dBi
Beam-width: 360°
Connector: 2x SMA Female
Frequency Range: 699 to 2690MHz
Polarization: Vertical & Horizontal
Dimensions: 129 x 129 x 34mm

MikroTik Wireless Wire Dish (LHG 60GHz Kit)

The Wireless Wire Dish is a groundbreaking solution which offers Fiber speed and quality on distances up to 1500 m for a fraction of the price!

This amazing kit makes a secure AES encrypted 60 GHz wireless link that is not affected by the crowded WiFi spectrum, offering a stable and fast link for distances of 1500 meters or more. Simply point the included devices at one another and power them on, they are already preconfigured to connect automatically and will make a 2 Gb/s aggregate link.

The box includes two LHGG-60ad devices that are already paired together, power supplies, PoE injectors and mounting kits for both devices.

Specifications Antenna Gain: Maximum of 42dBi
Beam-width: 3°
Data Rate: 60GHz: 1Gbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 7W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 license)
Operating Temperature: -40°C to 70°C
PoE Input: 12V-57V (Passive PoE; 802.3af/at)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V-57V
USB Ports: None

Dimensions: Ø 391 x 222mm

MikroTik's RB-CUBE60PKIT includes two 60GHz 802.11ay Cube 60Pro ac CPE's in a pre-configured link. The kit features automatic 5.8GHz 802.11ac failover, 1x Gigabit Ethernet and a durable, unobtrusive enclosure. Establish an ultra-fast, Point-to-Point connection for distances up to 2.4km with Channel 5 enabled.

Specifications

Antenna Gain: 5.8GHz: 11.5dBi: 60GHz: N/A Recommended for up to 2.4km
Beam-width: 5.8GHz: 35° : 60GHz: 11°
Data Rate: 60GHz: up to 1Gbps+ : 5.8GHz: 433Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 13W
Mounting: Pole-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 802.3af/at or 18V-57V (Passive PoE)
PoE Output: None
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18-57V
USB Ports: None
Dimensions: 115 x 95 x 82 mm

MikroTik's RB-SXTSQ2 is a compact and lightweight outdoor wireless device with an integrated antenna. Ideal for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount.

The RB-SXTSQ2 retains a 10dBi antenna, the antenna design has been improved, and the physical size has been reduced.
SKU RB-SXTSQ2
Manufacturer MikroTik
Manufacturer Product Code RBSXTsq2nD

Specifications

Antenna Gain: 10dBi
Beam-width: 60°
Data Rate: 2.4GHz: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Pole-Mount
Operating System: RouterOS (Level 3 license)
Operating Temperature: -40°C to +70°C
PoE Input: 10V - 30V (Passive PoE)
PoE Output: None
Power Input: 24V 0.38A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 10V - 30V
USB Ports: None
Dimensions: 129 x 129 x 34 mm
