Reyee's RG-RAP2200F Reyee's is an 802.11ac (WiFi 5) dual-band ceiling mount access point featuring MU-MIMO Wave 2 technology, dual Fast Ethernet ports, seamless roaming and speeds up of up to 1267Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: Power Supply/PoE Injector not included.

Specifications

Antenna Gain: 2.4GHz: 2dBi; 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 12.95W
Mounting: Ceiling or Wall-Mount
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at or 12V 1.5A Power Supply (not included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V (PoE) 12V (DC Input)
USB Ports: None
Dimensions: 194 x 194 x 35mm
Weight: 450g

Reyee's RG-RAP1200GP is an 802.11ac (WiFi 5) Wave 2 In-Wall Access point with 5x Gigabit Ethernet Ports, PoE-Input and PoE Pass-through. The unit supports up to 1267Mbps with 400Mbps on 2.4GHz and 867Mbps on 5.8GHz and includes a mounting plate for quick and easy installation. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 2dBi ; 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 400Mbps ; 5.8GHz: 867Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 8W
Mounting: Wall-Mount (Mounting Bracket Included)
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: PoE Pass-through
Power Input: 802.3af/at
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V
USB Ports: None
Dimensions: 126 × 86 × 50 mm
Weight: 240g

Reyee's RG-EW1200F is a dual-band Fast Ethernet router featuring 802.11ac (WiFi 5) MU-MIMO Wave 2 technology with speeds up to 1167Mbps. It can be used as a stand-alone router or access point but can also be used in a mesh topology via Ethernet or wireless with other Reyee wireless devices. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

*Note: This device does not support WPS for third party devices. WiFi password settings do not support special characters.

Specifications

Antenna Gain: 4x5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 4x 10/100
Hardware Button: Reset ; Mesh
Max. Power Consumption: 7W
Mounting: Desktop
Operating System: Reyee
Operating Temperature: 0°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 12V 1A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 12V 1A
USB Ports: None
Dimensions: 182 x 120 x 32mm
Weight: 400g

Reyee's RG-EW1200R is a dual band, 802.11ac (WiFi 5) range extender featuring 1x Fast Ethernet Port, 2x 4dBi external antennas and dual band 2x2 MU-MIMO with speeds up to 1167Mbps. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud. In addition, the unit also supports Ruijie’s Router App, specifically designed for home users for a quick and easy setup with remote management.

Specifications

Antenna Gain: 2x4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 867Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset ; Mesh ; Reset
Max. Power Consumption: 15W
Mounting: Plug Point
Operating System: Reyee
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 2 Pin 5A
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 100-240V
USB Ports: None
Dimensions: 128 x 102 x 60 mm
Weight: 250g

Reyee's RG-RAP1206X is a WiFi 6 (802.3ax) Dual Band, In-Wall Access Point featuring 5x Gigabit Ethernet Ports with PoE-Input and smart AI roaming. The unit supports up to 2976Mbps with 574Mbps on 2.4GHz and 2402Mbps on 5.8GHz and includes a mounting plate for quick and easy installation. It supports Ruijie’s smart networking feature, which with Ruijie's free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

Specifications

Antenna Gain: 2.4GHz: 3dBi ; 5.8GHz: 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps ; 5.8GHz: 2402Mbps
Ethernet Ports: 5x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12W
Mounting: Wall-Mount (Mounting Bracket Included)
Operating System: Reyee
Operating Temperature: 0°C to 40°C
PoE Input: 802.3af/at
PoE Output: None
Power Input: 802.3af/at
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 37-57V
USB Ports: None
Dimensions: 124 × 86 × 24 mm
Weight: 500g

AX1800 Wi-Fi 6 dual-band Gigabit ceiling mount Indoor Access Point, dual Gigabit LAN uplink ports, built-in antennas, dual-band 2.4GHz/5GHz, 802.11ax, 802.11ac wave2/wave1, up to 1775Mbps
Ruijie Cloud app management; DC 12V/1.5A or POE (Note: power adapter not included)
Coverage 50m+ or 25m+ radius, users 100 max 512
Reyee CAP
Wireless Protocol 802.11ax (Wi-Fi 6), 1775Mbps
Antenna Built-in Omni-directional
Recommended Clients 512/100
Certifications CE, ROHS
MIMO 2x2 @2.4 GHz, 2x2 @5 GHz
Reyee switches
10/100/1000M Base-T ports 2
Dimensions 194mm × 194mm × 35mm
Weight 0.56kg (excluding mounting Kits)
Power consumption <15.3W
Power supply 802.3at PoE, 12V/1.5A DC Adaptor
Operating temperature 0°C~40°C
Warranty 3 Years

MikroTik's RB-MAP is a tiny sized, 2.4GHz wireless Access Point with full Router OS capabilities. It is portable and accepts power from a wide variety of sources - USB, Passive or power jack. It also functions as a PoE injector - the second Ethernet port can provide up to 500mA of power to another device, for example, you can connect an SXT CPE device to it.

SKU RB-MAP
Manufacturer MikroTik
Manufacturer Product Code RbmAP2n

Specifications

Antenna Gain: 1.2dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 2x 10/100
Hardware Button: Reset
Max. Power Consumption: 5W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -20°C to 70°C
PoE Input: 12V-57V (Passive PoE, 802.3af/at) Or 5V 1A USB Power
PoE Output: 12V-57V PoE Pass-Through on Port 2
Power Input: 24V 0.8A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 5V or 12V-57V
USB Ports: 1x Micro USB
Other: None
Dimensions: 68 x 68 x 19mm

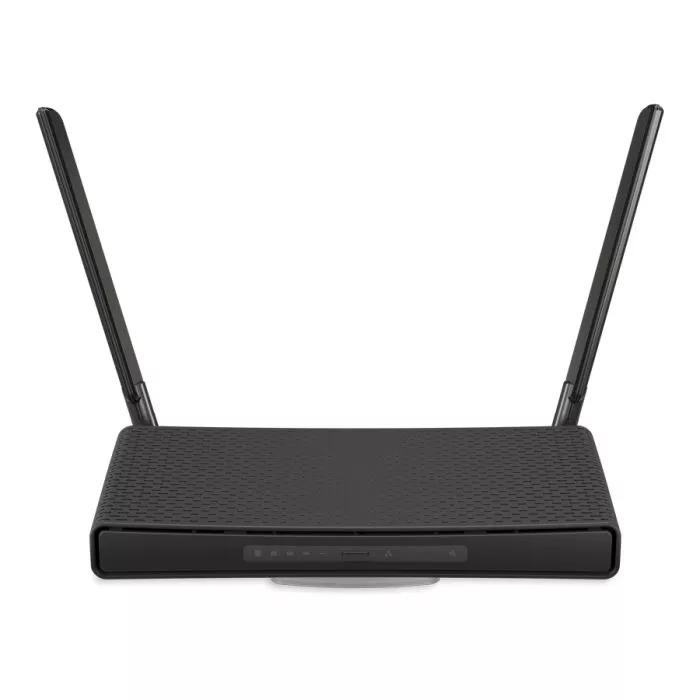

The MikroTik hAP ax³ is a high-performance WiFi 6 router/access point designed for demanding home and office networks.
Powered by a quad-core ARM 1.8GHz CPU, it delivers an aggregate data rate of up to 1800Mbps across dual-band WiFi (574Mbps @ 2.4GHz + 1200Mbps @ 5GHz).
It features 4 Gigabit Ethernet ports and 1 × 2.5Gbps Ethernet port for ultra-fast wired connectivity, plus PoE-in and PoE-out support for flexible deployment.
A USB 3.0 port allows external storage or 4G/LTE modem integration, while RouterOS v7 (Level 6 licence) provides advanced networking capabilities.
The universal case design supports both horizontal and vertical positioning, making it versatile for any setup. Backed by a 24-month warranty.

Key Features
Dual-band WiFi 6 router/AP (2.4GHz + 5GHz)
Aggregate data rate: up to 1800Mbps (574Mbps @ 2.4GHz + 1200Mbps @ 5GHz)
Quad-core ARM 1.8GHz CPU with RouterOS v7 (Level 6 licence)
4 × Gigabit Ethernet ports + 1 × 2.5Gbps Ethernet port
PoE-in and PoE-out support (Port 1)
USB 3.0 port for external storage or 4G/LTE modem
Antenna gain: 2.4GHz: 3.3dBi; 5.8GHz: 5.5dBi
Compact desktop design, horizontal or vertical mounting
Max power consumption: 15W
Operating temperature: -40°C to 70°C
24-month limited warranty

Specifications
Antenna Gain: 2.4GHz: 3.3dBi; 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 1200Mbps
Ethernet Ports: 4 × 10/100/1000Mbps + 1 × 2.5Gbps
Hardware Button: Reset
Max Power Consumption: 15W
Mounting: Desktop (horizontal or vertical)
Operating System: RouterOS v7 (Level 6 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18V–28V (Passive PoE)
PoE Output: Passive PoE on Port 1
Power Input: 24V 1.5A (adapter included)
USB Ports: 1 × USB 3.0
Dimensions: 251 × 130 × 39mm
Warranty: 24 Months

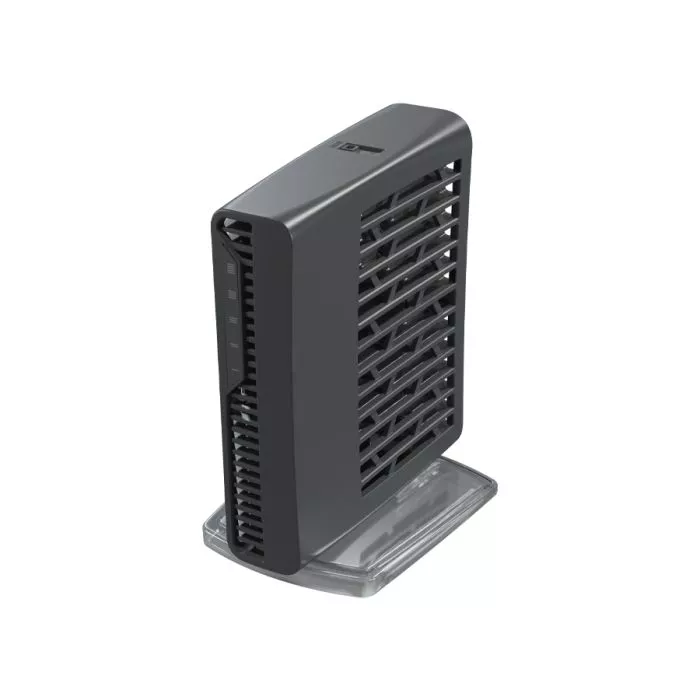

The MikroTik hAP ax² is a powerful WiFi 6 router/access point designed for modern homes and offices.
Featuring a quad-core 864MHz CPU, 5 Gigabit Ethernet ports, and an aggregate data rate of up to 1800Mbps, it delivers fast and stable connectivity for multiple devices.
It supports PoE-in or PoE-out on Port 1, making it flexible for powering or being powered by other MikroTik devices.
The universal case design allows horizontal or vertical positioning, while RouterOS (Level 4 licence) provides advanced networking features such as firewall, bandwidth shaping, and VLAN support.
Compact, versatile, and backed by a 24-month warranty, the hAP ax² is a cost-effective entry into WiFi 6 networking.

Key Features
Dual-band WiFi 6 router/AP (2.4GHz + 5GHz)
Aggregate data rate: up to 1800Mbps (574Mbps @ 2.4GHz + 1200Mbps @ 5GHz)
Quad-core 864MHz CPU with RouterOS (Level 4 licence)
5 × Gigabit Ethernet ports (10/100/1000Mbps)
PoE-in or PoE-out support on Port 1
Antenna gain: 2.4GHz: 4.5dBi; 5.8GHz: 4dBi
Compact desktop or wall-mount design
Max power consumption: 12W
Operating temperature: -40°C to 50°C
24-month limited warranty

Specifications
Antenna Gain: 2.4GHz: 4.5dBi; 5.8GHz: 4dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 1200Mbps
Ethernet Ports: 5 × 10/100/1000Mbps
Hardware Button: Reset
Max Power Consumption: 12W
Mounting: Desktop or Wall-Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 50°C
PoE Input: 18V–28V (Passive PoE)
PoE Output: Passive PoE on Port 1
Power Input: 24V 1.2A (adapter included)
USB Ports: None
Dimensions: 120 × 101 × 37mm
Warranty: 24 Months

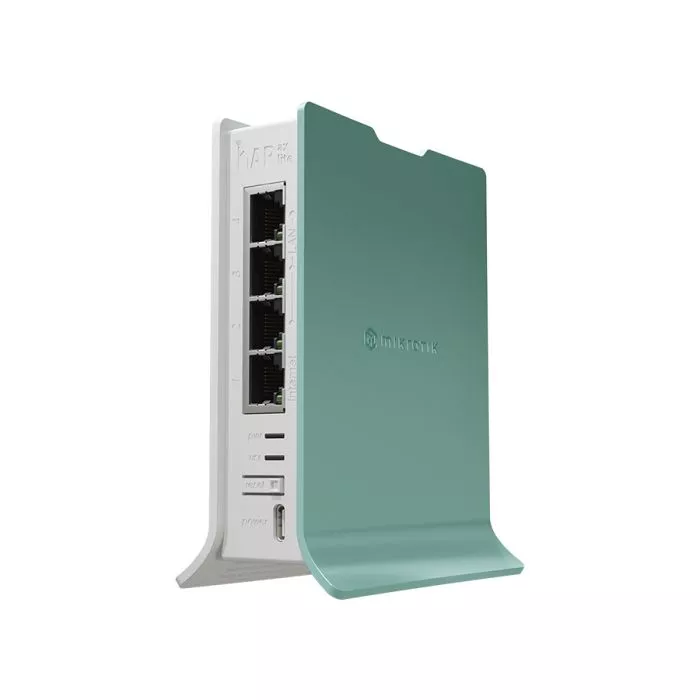

The MikroTik hAP ax lite is a compact WiFi 6 router/access point designed for apartments, homes, and small offices.
Powered by a dual core 880MHz CPU and RouterOS v7 (Level 4 licence), it delivers reliable performance with advanced networking features.
It supports 2.4GHz WiFi 6 with data rates up to 574Mbps, backed by 4 Gigabit Ethernet ports for wired connectivity.
With USB-C power input, low power consumption, and a compact desktop form factor, the hAP ax lite is a cost-effective entry into WiFi 6 networking.
Backed by a 24-month warranty, it’s ideal for modern home setups.

Key Features
WiFi 6 (802.11ax) router/AP, 2.4GHz band
Data rate: up to 574Mbps
Dual-core 880MHz CPU with RouterOS v7 (L4 licence)
4 × Gigabit Ethernet ports (10/100/1000Mbps)
Antenna gain: 4.3dBi, 360° beamwidth
Compact desktop design with USB-C power input
Max power consumption: 8W
Operating temperature: -40°C to 70°C
24-month limited warranty

Specifications
Antenna Gain: 2.4GHz: 4.3dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps
Ethernet Ports: 4 × 10/100/1000Mbps
Hardware Button: Reset
Max Power Consumption: 8W
Mounting: Desktop
Operating System: RouterOS v7 (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: None
PoE Output: None
Power Input: 5V 2.4A USB-C (adapter included)
USB Ports: None
Dimensions: 124 × 100 × 54mm
Warranty: 24 Months

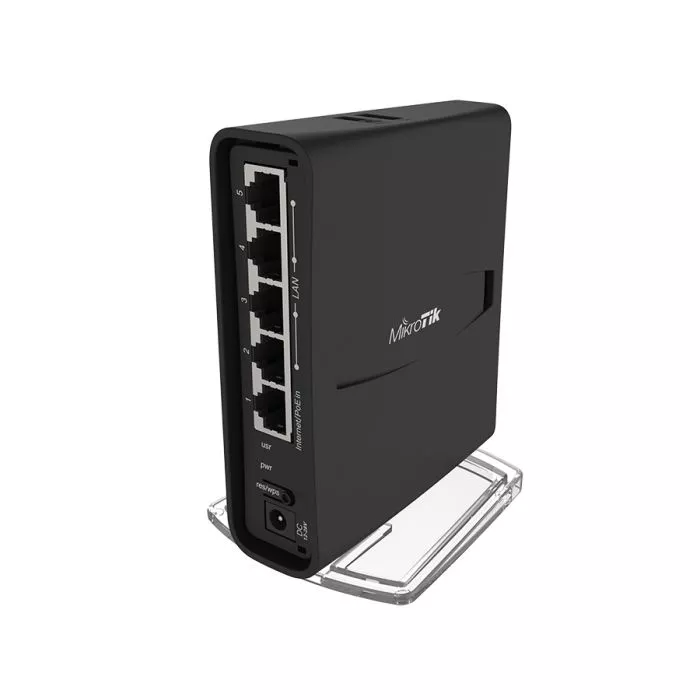

The MikroTik hAP ac² is a dual-concurrent access point/router that provides simultaneous Wi-Fi coverage for both 2.4GHz and 5GHz bands.
Equipped with five Gigabit Ethernet ports, it ensures fast wired connections for multiple devices, while the USB 2.0 port supports external storage or 4G/LTE modem connectivity.
Powered by RouterOS (Level 4 licence), it offers advanced networking features such as firewall, bandwidth shaping, and user access control.
Its universal case design allows flexible placement — either horizontally or vertically — making it ideal for home or office setups.
Backed by a 24-month warranty, the hAP ac² delivers reliable WiFi 5 performance with Gigabit-class wired networking.

Key Features
Dual-band WiFi 5 router/AP (2.4GHz + 5GHz)
2.4GHz: 300Mbps, 5GHz: 867Mbps throughput
5 × Gigabit Ethernet ports (10/100/1000Mbps)
USB 2.0 port for external storage or 4G/LTE modem
RouterOS (Level 4 licence) with advanced features
Universal case design: horizontal or vertical positioning
Passive PoE-in support (18V–28V)
Max power consumption: 15W
Operating temperature: -40°C to 50°C
24-month limited warranty

Specifications
Antenna Gain: 2.4GHz: 2.5dBi, 5.8GHz: 2.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps, 5.8GHz: 867Mbps
Ethernet Ports: 5 × 10/100/1000Mbps
Hardware Buttons: Reset & Mode
Max Power Consumption: 15W
Mounting: Desktop (horizontal or vertical)
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 50°C
PoE Input: 18V–28V (Passive PoE)
PoE Output: None
Power Input: 24V 0.8A (adapter included)
USB Ports: 1 × USB 2.0
Dimensions: 34 × 119 × 98mm
Warranty: 24 Months

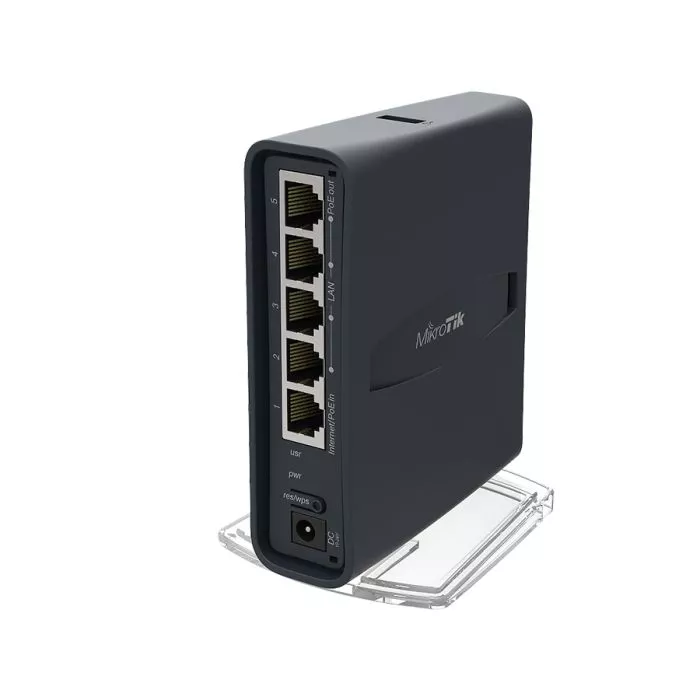

The MikroTik hAP ac Lite Tower Case is a dual-concurrent access point/router that provides simultaneous Wi-Fi coverage for both 2.4GHz and 5GHz bands.
Equipped with a 650MHz CPU and 64MB RAM, it delivers reliable performance for home or small office networks.
It features five Fast Ethernet ports, with PoE output on port #5, dual-chain 802.11b/g/n 2.4GHz wireless, single-chain 802.11ac 5GHz wireless, and a USB port for 3G/4G modem support.
Running RouterOS (Level 4 licence), it offers advanced networking features such as firewall, bandwidth shaping, and user access control.
Compact tower-style design with included power adapter, backed by a 24-month warranty.

Key Features
Dual-band WiFi 5 router/AP (2.4GHz + 5GHz)
2.4GHz: 300Mbps, 5GHz: 433Mbps throughput
5 × Fast Ethernet ports (10/100Mbps)
PoE-in support (10V–28V passive PoE)
PoE-out pass-through on port #5
USB 2.0 port for 3G/4G modem connectivity
RouterOS (Level 4 licence) with advanced features
Compact tower case desktop design, power adapter included
Max power consumption: 7W
24-month limited warranty

Specifications
Antenna Gain: 2.4GHz: 1.5dBi, 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps, 5.8GHz: 433Mbps
Ethernet Ports: 5 × 10/100Mbps
Hardware Button: Reset
Max Power Consumption: 7W
Mounting: Desktop Tower Case
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -30°C to 70°C
PoE Input: 10V–28V (Passive PoE)
PoE Output: Passive PoE pass-through on Port 5
Power Input: 24V 1.2A (adapter included)
USB Ports: 1 × USB 2.0
Dimensions: 34 × 119 × 98mm
Warranty: 24 Months

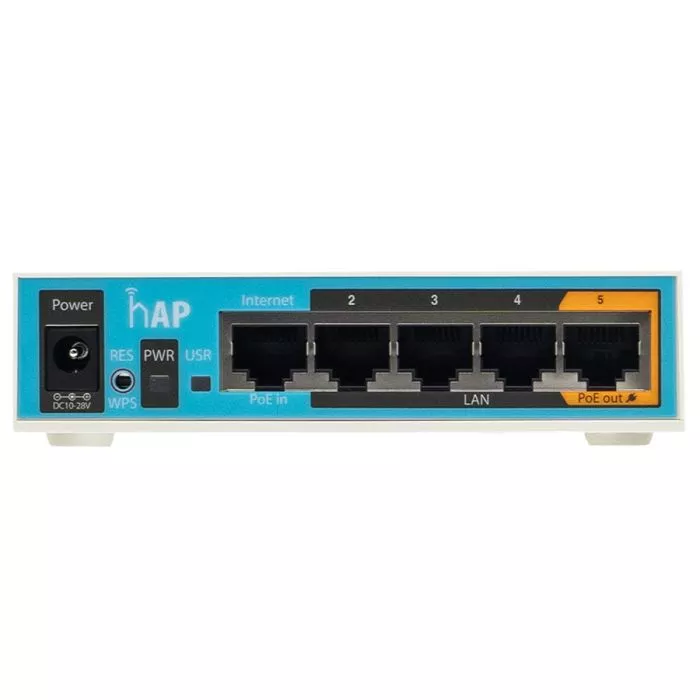

The MikroTik hAP ac Lite is a dual-concurrent access point/router that provides simultaneous Wi-Fi coverage for both 2.4GHz and 5GHz bands.
Equipped with a 650MHz CPU and 64MB RAM, it delivers reliable performance for home or small office networks.
It features five Fast Ethernet ports, with PoE output on port #5, dual-chain 802.11b/g/n 2.4GHz wireless, single-chain 802.11ac 5GHz wireless, and a USB port for 3G/4G modem support.
Running RouterOS (Level 4 licence), it offers advanced networking features such as firewall, bandwidth shaping, and user access control.
Compact and desktop-friendly, it’s backed by a 24-month warranty.

Key Features
Dual-band WiFi 5 router/AP (2.4GHz + 5GHz)
2.4GHz: 300Mbps, 5GHz: 433Mbps throughput
5 × Fast Ethernet ports (10/100Mbps)
PoE-in support (12V–30V passive PoE)
PoE-out pass-through on port #5
USB 2.0 port for 3G/4G modem connectivity
RouterOS (Level 4 licence) with advanced features
Compact desktop design, power adapter included
Max power consumption: 8W
24-month limited warranty

Specifications
Antenna Gain: 2.4GHz: 1.5dBi, 5.8GHz: 2dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps, 5.8GHz: 433Mbps
Ethernet Ports: 5 × 10/100Mbps
Hardware Button: Reset
Max Power Consumption: 8W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
PoE Input: 12V–30V (Passive PoE)
PoE Output: Passive PoE pass-through on Port 5
Power Input: 24V 1.2A (adapter included)
USB Ports: 1 × USB 2.0
Dimensions: 113 × 89 × 28mm
Warranty: 24 Months

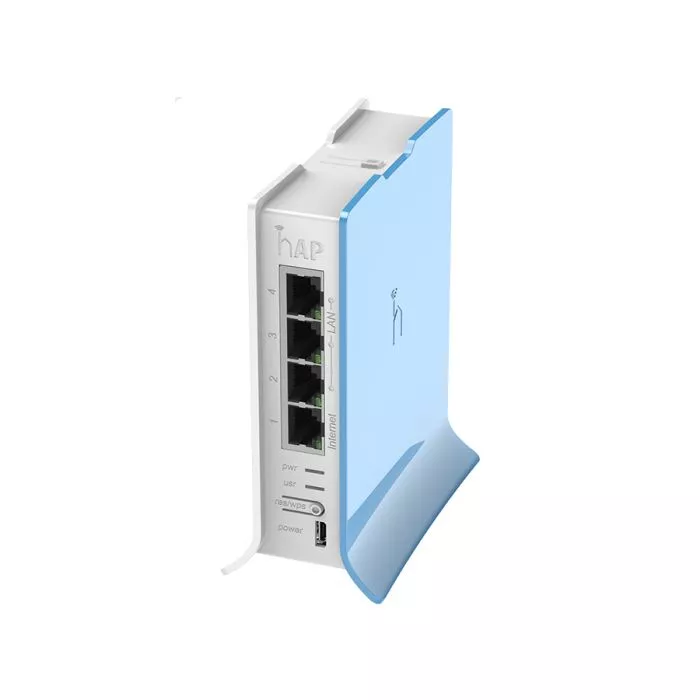

The MikroTik hAP Lite Tower Case is a compact home access point/router, ideal for apartments, houses, or small offices.
It delivers WiFi 4 (2.4GHz, 300Mbps) wireless connectivity and includes 4 Fast Ethernet ports for wired devices.
With button-triggered WPS, visitors can connect easily without typing complex passwords. It can also switch to cAP mode to join a centrally managed CAPsMAN network at the push of a button.
Powered by a 650MHz CPU with 32MB RAM, it runs RouterOS (Level 4 licence), offering advanced features like bandwidth shaping, firewall, and user access control.
Compact, tower-style, and USB‑powered, it’s a reliable entry-level router/AP backed by a 24-month warranty.

Key Features
WiFi 4 (2.4GHz, 300Mbps) wireless access point/router
4 × Fast Ethernet ports for wired connectivity
Button-triggered WPS for easy guest access
cAP mode support for CAPsMAN centralized management
RouterOS (Level 4 licence) with advanced networking features
650MHz CPU with 32MB RAM
Tower case desktop design, USB power supply included
Operating temperature: -20°C to 70°C
24-month limited warranty

Specifications
Antenna Gain: 1.5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 4 × 10/100
Hardware Button: Reset
Max Power Consumption: 3.5W
Mounting: Desktop Tower Case
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -20°C to 70°C
PoE Input: None
PoE Output: None
Power Input: 5V 1A USB (included)
USB Ports: 1 × Micro USB (power only)
Dimensions: 124 × 100 × 54mm
Warranty: 24 Months

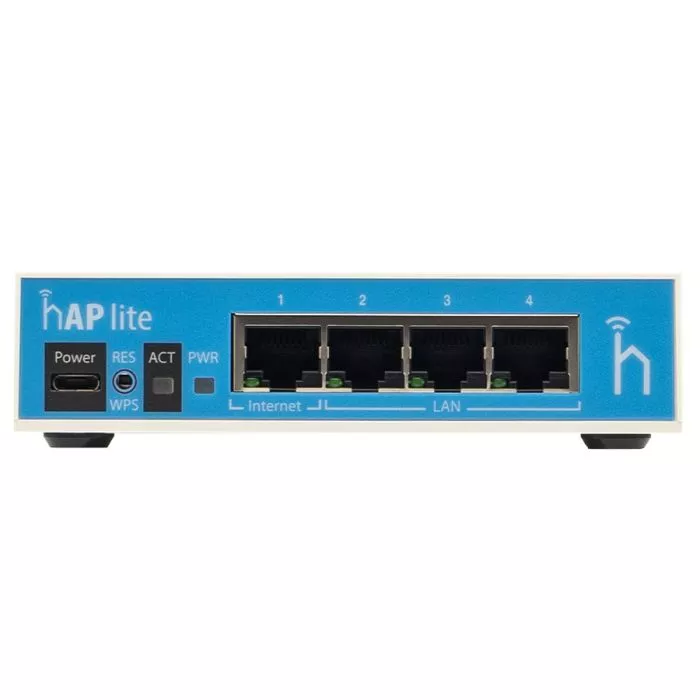

The MikroTik hAP Lite is a compact home access point/router, ideal for apartments, houses, or small offices.
It delivers WiFi 4 (2.4GHz, 300Mbps) wireless connectivity and includes 4 Fast Ethernet ports for wired devices.
With button-triggered WPS, visitors can connect easily without typing complex passwords. It can also switch to cAP mode to join a centrally managed CapsMAN network at the push of a button.
Powered by a 650MHz CPU with 32MB RAM, it runs RouterOS (Level 4 licence), offering advanced features like bandwidth shaping, firewall, and user access control.
Compact and USB‑powered, it’s a reliable entry-level router/AP backed by a 24-month warranty.

Key Features
WiFi 4 (2.4GHz, 300Mbps) wireless access point/router
4 × Fast Ethernet ports for wired connectivity
Button-triggered WPS for easy guest access
cAP mode support for CapsMAN centralized management
RouterOS (Level 4 licence) with advanced networking features
650MHz CPU with 32MB RAM
Compact desktop design, USB power supply included
Operating temperature: -20°C to 60°C
24-month limited warranty

Specifications
Antenna Gain: 1.5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 4 × 10/100
Hardware Button: Reset
Max Power Consumption: 3.5W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -20°C to 60°C
PoE Input: None
PoE Output: None
Power Input: 5V 1A USB (included)
USB Ports: 1 × Micro USB (power only)
Dimensions: 113 × 89 × 28mm
Warranty: 24 Months

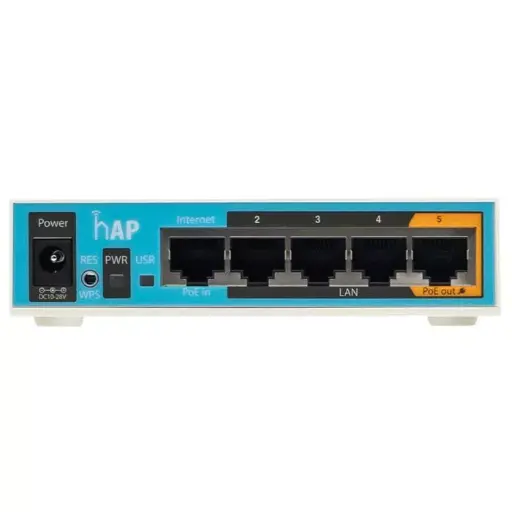

The MikroTik hAP RB951Ui-2nD is a compact home access point/router, ideal for homes or small offices.
It delivers WiFi 4 (2.4GHz, 300Mbps) wireless connectivity and includes 5 Fast Ethernet ports for wired devices.
Powered via DC jack or passive PoE, it also features PoE-out on port 5 to power another MikroTik device.
Preconfigured for quick setup, it runs RouterOS (Level 4 licence), offering advanced routing and firewall features in a small desktop form factor.
Backed by a 24-month warranty, it’s a reliable entry-level router/AP solution.

Key Features
WiFi 4 (2.4GHz, 300Mbps) wireless access point
5 × 10/100 Ethernet ports for wired connectivity
Passive PoE-in and PoE-out support (port 5)
Compact desktop design with included power adapter
RouterOS (Level 4 licence) for advanced networking features
Antenna gain: 1.5dBi, 360° beamwidth
Operating temperature: -30°C to 70°C
USB 2.0 port for expansion
24-month limited warranty

Specifications
Antenna Gain: 1.5dBi
Beam-width: 360°
Data Rate: 2.4GHz 300Mbps
Ethernet Ports: 5 × 10/100
Hardware Button: Reset
Max Power Consumption: 5W
Mounting: Desktop
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -30°C to 70°C
PoE Input: 10V–28V (Passive PoE)
PoE Output: Passive PoE pass-through on Port 5
Power Input: 24V 0.8A (adapter included)
USB Ports: 1 × USB 2.0
Dimensions: 113 × 89 × 28mm
Warranty: 24 Months

MikroTik cAP-2nD – Ceiling-Mount 2.4GHz WiFi AP | 802.11n | PoE Powered

Discreet, High-Performance Access Point for Hotels, Offices & Public Spaces

The MikroTik cAP-2nD is a ceiling-mounted 2.4GHz WiFi AP designed for seamless deployment in hospitality, retail, and enterprise environments. With 802.11n support, 802.3af/at PoE compatibility, and CAPsMAN integration, it delivers reliable wireless coverage while blending into any decor.
🚀 Key Features

✔ Upgraded Hardware – 650MHz CPU & 2x memory vs. previous model (cAP-2n).
✔ 802.11n WiFi – 2.4GHz coverage for legacy and IoT devices.
✔ Flexible Power Options – 802.3af/at PoE or 11-57V DC input.
✔ CAPsMAN Support – Centrally manage multiple APs from any RouterBOARD device.
✔ Complete Mounting Kit – Includes PoE injector, screws, and ceiling/wall brackets.
📊 Technical Specifications

WiFi Standards: 802.11b/g/n (2.4GHz)

Max Speed: 150Mbps (theoretical)

Antennas: Internal 2x2 MIMO

PoE Support: 802.3af/at (included injector)

Power Input: 11-57V DC (passive PoE or adapter)

Mounting: Ceiling/wall (hardware included)

Dimensions: Ø 160mm x 35mm (low-profile)

🏆 Why Choose the cAP-2nD?

✅ Plug-and-Play Setup – Pre-installed RouterOS + CAPsMAN ready.
✅ Cost-Effective – No need for a separate controller PC.
✅ Discreet Design – Blends into ceilings for aesthetic installations.
🔍 Ideal For:

🏨 Hotels & Hospitality – Reliable guest WiFi without bulky hardware.
🛒 Retail Stores & Malls – Uniform coverage for POS/customer access.
🏢 Office Spaces – Easy deployment with PoE-powered simplicity.
📦 What’s Included?

cAP-2nD access point

PoE injector & power adapter

Ceiling/wall mount kit (screws + anchors)

MikroTik's RB-CAPAX is a Wi-Fi 6 indoor ceiling mount Access Point. It features a quad-core 1.8GHz CPU, 2x Gigabit Ethernet Ports with PoE in and PoE out, and an aggregate data rate of up to 1800Mbps across its 5.8GHz and 2.4GHz bands.

Specifications

Antenna Gain: 2.4GHz: 6dBi; 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 1200Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS v7 only (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18V-57V (Passive PoE, 802.3af/at)
PoE Output: Passive PoE Pass-through Port 2
Power Input: 48V 0.95A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-57V
USB Ports: None
Other: None
Dimensions: 228 x 48 mm

MikroTik's RB-CAPAC is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual-band wireless radio supports dual chain 2GHz and 5GHz in 802.11ac and legacy standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output (up to 57V) on the second port. The cAP ac is a feature-packed device with a sleek enclosure, that can become inconspicuous with sounds at its default configuration, but can be reconfigured to launch any RouterOS script.

The device comes bundled with two enclosures, so you can choose the design you like best.

Specifications

Antenna Gain: 2.4GHz: 2dBi 5.8GHz: 2.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 13W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 50°C
PoE Input: 17V-57V (Passive PoE, 802.3af/at)
PoE Output: Passive PoE Pass-through Port 2
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 17V-57V
USB Ports: None
Other: None
Dimensions: Round case: 136 x 30mm; Square case: 145 x 145 x 30mm

MikroTik's RB-CAPACXL is an 802.11ac (WiFi 5) Access Point featuring a Qualcomm Quad Core CPU, high-gain dual-band antennas, built-in reflectors and 2x Gigabit Ethernet Ports. The unit supports 802.3af/at PoE input on Port 1 and passive PoE output (up to 57V) on Port 2. It is compatible with MikroTik CAPs MAN (controlled AP system manager), allowing you to manage all your Access Points from one central location.

Specifications

Antenna Gain: 2.4GHz: 6dBi; 5.8GHz: 5.5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps 5.8GHz: 867Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 11W
Mounting: Wall & Ceiling Mount
Operating System: RouterOS (Level 4 Licence)
Operating Temperature: -40°C to 70°C
PoE Input: 18-57V (Passive PoE or 802.3af/at)
PoE Output: 18-57V Passive PoE
Power Input: 24V 1.2A Power Supply (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 18V-57V
USB Ports: None
Other: None
Dimensions: 191 x 42 mm
