UltraLAN Fiber Flylead LC-LC APC SM Duplex (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.
This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to LC Polish Type APC to APC

Fiber Count Duplex Fiber Mode OS2 9/125μm

Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)

Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC UPC-SC APC SM Simplex (3Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.
This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to SC Polish Type UPC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Flylead LC UPC-SC APC SM Simplex (1Meter)

The UltraLAN 9/125μm OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. Being both cost effective and high performance, these cables are ideally suited for short distance equipment interconnects, such as linking data switches together in a network rack.

This fiber flylead features a LSZH (Low Smoke Zero Halogen) outer jacket.

Connector Type LC to SC Polish Type UPC to APC
Fiber Count Simplex Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm Fiber Grade G.657.A1 (Compatible with G.652.D)
Insertion Loss ≤0.3dB Return Loss ≥60dB

UltraLAN Fiber Drop Cable Stripper

The fiber drop cable stripper is designed for stripping flat fiber drop cable used in Fiber to the Home (FTTH) applications. The tool removes the jacket in two locations to expose the dielectric strength members and allowing quick removal of the fiber cable jacket.

Product Features:

Universal stripper designed for stripping Flat Drop Fiber Cable used in “Fiber to the Home” applications
One step stripping action that removes the jacket in two locations to expose the dielectric strength members and allowing the quick removal of the jacket
Tool is small and has a lightweight body for ease of use
Easily strips fiber drop cable in 3.1*2.0mm
Also suitable for 2.0mm, 3.0mm indoor fiber optic cable
Blade depth adjustable for protecting the fiber.
2 straight blades in across and 1 round blade in lengthwise

UltraLAN Fiber Drop Cable (Round, Gel Filled) - 2 Core

This UltraLAN fiber cable is a gel filled, Single Mode, G657A1, 2 core fiber cable for FTTX applications. The outer jacket is 3.8mm and made from UV resistant HDPE material suitable for both indoor and outdoor installations.
Supplied on a wooden drum in 2000m length.

Key Features:

Fiber Count: 2 core (G.657A2 single-mode)

Jacket Material: UV-resistant black HDPE

Strength Member: High-tensile aramid yarn

Loose Tube: Gel-filled for moisture protection

Cable Diameter: Approx. 3.8 ± 0.2mm

Weight: 12kg/km


Optical Performance:

Attenuation: ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm

Mode Field Diameter: 9.2μm @1310nm, 10.4μm @1550nm


Mechanical Ratings:

Tensile Strength: 150N (long-term), 300N (short-term)

Crush Resistance: 300N/10cm (long-term), 650N/10cm (short-term)

Bend Radius: 10D static / 20D dynamic

Operating Temperature: -40°C to +70°C


Ideal for outdoor drop connections, this cable delivers excellent protection, flexibility, and reliability in all climates.

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 2 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners. With a white outer jacket, the cable blends into indoor home or office environments better.

Short Description:

Bend-insensitive G657A2 single-mode fiber
2-core flat “bow” profile with white LSZH jacket
UV-resistant, indoor/outdoor rated, –20 °C to +60 °C
Reinforced with 0.45 mm phosphate wires for pull strength
Supplied on 2000 m wooden drum with sequential metre marks

Key Specifications:

Fiber Type: Single-mode G657A2; bend-insensitive
Core Count & Profile: 2-core; flat “bow” profile (2 × 3 mm)
Jacket Material: White LSZH (Low Smoke Zero Halogen)
Reinforcement: Two 0.45 mm phosphate wires for > 200 N tensile strength
Environmental Rating: UV-resistant; indoor/outdoor; –20 °C to +60 °C
Safety: LSZH for low smoke and halogen-free compliance
Optical Performance:
Attenuation ≤ 0.35 dB/km @ 1310 nm
Attenuation ≤ 0.21 dB/km @ 1550 nm
Minimum bend radius: 5 mm
Packaging: Supplied on 2000 m wooden drum
Drum Specs: Ø 400 × 260 mm; approx. 22 kg
Cutting Aid: Sequential metre marks every 1 m
Gross shipping weight: Approx. 23 kg
Retail pack includes: 2 km drum with sequential markings

Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:
Calculate the most economical shipping option
Contact you with the exact additional charges
Process your order after receiving your confirmation
Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation.

UltraLAN Fiber Bow Type Drop Cable (Black) - 4 Core

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 4 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners.
Supplied on a wooden drum in 2000m length.

This UltraLAN fiber cable is a 'Bow Type' Single Mode, G657A2, bend-insensitive, 2 core fiber cable for FTTX applications. The outer jacket is 2x3mm and made from UV resistant, Low Smoke Zero Halogen (LSZH) material suitable for both indoor and outdoor installations. The cable is reinforced with two 0.45mm phosphate wires to provide support, resulting in better pull strength and resistance when bending around corners.

Short Description:

Bend-insensitive G657A2 single-mode fiber in a black 2 × 3 mm bow-profile jacket
Two 0.45 mm phosphate wires for > 200 N pull strength and tight-corner stability
UV-resistant, indoor/outdoor rated, LSZH jacket for low smoke and halogen-free safety
Supplied on a 2 km wooden drum with sequential metre marks every 1 m

Key Specifications:

Fiber Type: Single-mode G657A2; bend-insensitive
Core Count & Profile: 2-core; flat bow profile (2 × 3 mm)
Jacket Material: Black LSZH (Low Smoke Zero Halogen)
Reinforcement: Two 0.45 mm phosphate wires for > 200 N tensile strength
Environmental Rating: UV-resistant; indoor/outdoor; –20 °C to +60 °C
Optical Performance: Attenuation ≤ 0.35 dB/km @ 1310 nm; ≤ 0.21 dB/km @ 1550 nm
Bend Radius: Minimum 5 mm
Packaging: Supplied on 2 km wooden drum; sequential metre marks every 1 m
Gross shipping weight: Approx. 22–23 kg
Drum dimensions: Ø 400 × 260 mm

Shipping Policy for Heavy/Bulky Items:

This item requires special shipping arrangements due to its size/weight. After your order is placed, our team will:
Calculate the most economical shipping option
Contact you with the exact additional charges
Process your order after receiving your confirmation
Note: Standard checkout shipping rates don't apply. Delivery timeline begins after shipping payment confirmation.

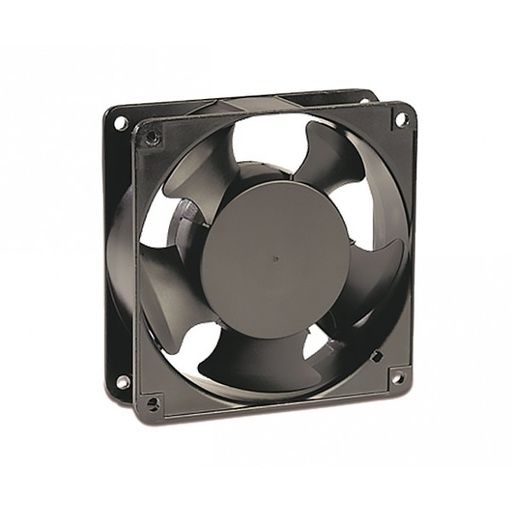

Brand: UltraLAN
SKU/Product Code: CAB‑C‑FAN
Description: Cabinet cooling fan with 220V AC power cord (SA 3‑pin plug), designed for efficient heat dissipation in server and network cabinets.

Product Overview
The UltraLAN CAB‑C‑FAN is a cabinet cooling fan designed to maintain optimal airflow and temperature inside server and network cabinets. By dissipating heat generated by hardware, it helps create a cooler environment, extending the lifespan of critical equipment.

This fan connects directly to 220V AC via its SA 3‑pin plug and comes with a 1.3m power cord for flexible installation. Compact yet powerful, it is ideal for enhancing cabinet cooling performance in professional networking environments.

Key Features
Cabinet cooling fan – efficient heat dissipation
Connects directly to 220V AC – SA 3‑pin plug
Fan size: 120 × 120 × 39 mm
Power cord length: 1.3 m
Extends equipment lifespan – prevents overheating
Easy installation – plug‑and‑play design
Ideal for server and network cabinets

Technical Specifications
Specification Details
Product Code CAB‑C‑FAN
Manufacturer UltraLAN
Type Cabinet Cooling Fan
Fan Size 120 × 120 × 39 mm
Power Input 220V AC
Plug Type SA 3‑pin
Cord Length 1.3 m
Material Durable ABS + metal housing
Mounting Cabinet installation
Warranty 1 Year Limited

📦 Gross Shipping Weight

Actual product weight: ~0.6–0.8 kg (fan + cord)
Packaging (protective box + padding): ~0.3–0.4 kg
Gross shipping weight: ± 1.2 kg

UltraLAN CAT6 EZ Shielded RJ45 Connector


The UltraLAN EZ RJ45 CAT6 Shielded Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician or installer to easily verify the proper wiring order. Crimping is recommended by using the UltraLAN EZ Crimping tool, which crimps the RJ45 connector and trims the excess cable in one simple cycle.

Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is also optimized!

This RJ45 connector is enclosed in a metal frame to provide shielding and grounding with suitable cables.

Please note, only sold in packets of 50 connectors.

UltraLAN CAT6 EZ RJ45 Connector


The UltraLAN EZ RJ45 CAT6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician or installer to easily verify the proper wiring order. Crimping is recommended by using the UltraLAN EZ Crimping tool, which crimps the RJ45 connector and trims the excess cable in one simple cycle.

Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is also optimized!

Please note, only sold in packets of 50 connectors.

UltraLAN CAT5e Shielded RJ45 Connector

This RJ45 connector is intended for use with 4-pair Ethernet UTP,STP or FTP cable (shielded or foil twisted pair), commonly referred to as shielded Ethernet cable or shielded CAT5e.

The surrounding metal frame of the connector also allows them to withstand a lot of wear and tear.

Please note, only sold in packets of 50 connectors.

UltraLAN CAT5e EZ Shielded RJ45 Connector (50x Packet)

The UltraLAN EZ RJ45 CAT5e Shielded Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician or installer to easily verify the proper wiring order. Crimping is recommended by using the UltraLAN EZ Crimping tool, which crimps the RJ45 connector and trims the excess cable in one simple cycle.

Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is also optimized!

This RJ45 connector is enclosed in a metal frame to provide shielding and grounding when used with suitable networking cable.

Please note, only sold in packets of 50 connectors.

UltraLAN CAT5e EZ RJ45 Connector


The UltraLAN EZ RJ45 CAT5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician or installer to easily verify the proper wiring order. Crimping is recommended by using the UltraLAN EZ Crimping tool, which crimps the RJ45 connector and trims the excess cable in one simple cycle.

Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is also optimized!

Please note, only sold in packets of 50 connectors.

UltraLAN CAT5e/6/6A/7 Crimping Tool

This professional crimp tool is compact and rugged, while fitting comfortably in your hand or in your pocket. The straight action termination delivers even pressure on each of the modular plug’s pins, ensuring precise termination with minimal hand force.

The crimp tool also stays securely closed with a gun-style lock. Its superior fit and function consistently meets performance requirements.

Product Features:

Able to crimp CAT5/6/6A/7 RJ45 connectors
Straight action crimp with minimal hand force
Compact and rugged
Terminates to industry specified crimp heights

Brand: UltraLAN
SKU/Product Code: CAB‑C‑6609WMSA
Description: 9U swing frame wall mount cabinet with 600mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑6609WMSA is a swing frame wall mount cabinet designed for smaller networking installations where space is limited, such as retail shops, small offices, or schools. Its hinged back section allows the cabinet to swing out from the wall, providing easy access to the rear of equipment — especially useful for cable management.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features removable side panels for quick access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with lock provides both visibility and security.

Key Features
9U swing frame wall mount cabinet – compact and space‑saving

Hinged back section – easy rear access for cabling

Enclosure depth: 600mm – accommodates deeper equipment

Strengthened safety glass front door – with lock and keys

Removable side panels – quick access for installers

Venting slots with 2 fan mountings (fans not included)

Adjustable rail depth – flexible equipment installation

Powder‑coated finish – scratch resistant and durable

Pre‑assembled – saves time and effort

Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑6609WMSA
Manufacturer UltraLAN
Rack Units 9U
Rack Width 19"
Depth 600mm
Dimensions (H × W × D) 515 × 615 × 615 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Removable
Cooling 2 fan slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~24–26 kg (typical for 9U swing frame steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 28 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

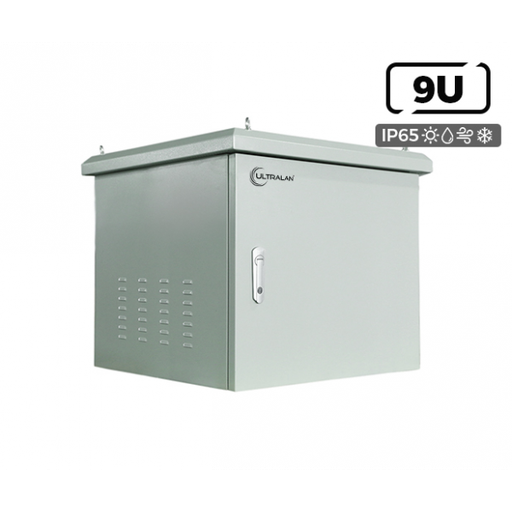

Brand: UltraLAN
SKU/Product Code: CAB‑C‑64509OD
Description: 9U outdoor wall mount cabinet with 450mm depth, 2 cooling fans, weatherproof steel construction, and 3‑point locking system.

Product Overview
The UltraLAN CAB‑C‑64509OD is a rugged outdoor wall mount cabinet designed to protect sensitive networking equipment from harsh environments. Built from electro‑galvanized cold rolled steel with a powder‑coated finish, it resists corrosion and ensures long‑term durability.

For weatherproofing, the cabinet features a polyurethane door joint strip for water and dust protection, plus a roof awning to prevent rain ingress. Security is enhanced with a 3‑point swing handle locking system, while ventilation is managed through side panel vents with replaceable mesh filters and 2 ceiling‑mounted fans for efficient heat dissipation. Cable entry is provided via rubber‑sealed glands at the base, and four hooks on top simplify installation.

Key Features
9U outdoor wall mount cabinet – 450mm body depth (500mm including rooftop)
Powder‑coated electro‑galvanized cold rolled steel – corrosion resistant
Supplied fully assembled – saves installation time
Polyurethane door joint strip – water & dust protection
Roof awning – prevents rain ingress
3‑point swing handle locking system – enhanced security
2 ceiling‑mounted fans – improved airflow and cooling
Side vents with replaceable mesh filters – dust resistance
Adjustable 19" mounting rails – numbered U markings for easy alignment
Cable entry via round glands with removable rubber covers
4 hooks on top – easier installation

Technical Specifications
Specification Details
Product Code CAB‑C‑64509OD
Manufacturer UltraLAN
Rack Units 9U
Rack Width 19"
Depth 450mm body / 500mm including rooftop
Dimensions (W × D) 600mm wide × 450mm deep
Material Electro‑galvanized cold rolled steel
Finish Powder‑coated
Front Door 3‑point swing handle lock, polyurethane seal
Cooling 2 ceiling‑mounted fans
Side Panels Vented with replaceable mesh filters
Cable Entry Round glands with rubber covers (base)
Mounting Wall mount (hooks included)
Assembly Supplied fully assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~28–30 kg (typical for 9U outdoor steel cabinets with fans)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 32 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑C‑64509WMFA
Description: 9U fixed wall mount cabinet with 450mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑64509WMFA is a cost‑effective wall mount cabinet designed for smaller networking installations in retail shops, small offices, and school environments. Its compact size and wall‑mount design save valuable floor space while providing secure housing for networking equipment.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features toolless removable side panels for easy access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with keylock provides both visibility and security.

Key Features
9U fixed wall mount cabinet – compact and space‑saving
Enclosure depth: 450mm – suitable for networking gear
Strengthened safety glass front door – with lock and keys
Toolless removable side panels – easy access for installers
Venting slots with 2 fan mountings (fans not included)
Adjustable rail depth – flexible equipment installation
Powder‑coated finish – scratch resistant and durable
Pre‑assembled – saves time and effort
Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑64509WMFA
Manufacturer UltraLAN
Rack Units 9U
Rack Width 19"
Depth 450mm
Dimensions (H × W × D) 515 × 615 × 465 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Toolless removable
Fan Mountings 2 slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~22–24 kg (typical for 9U steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 26 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).

Brand: UltraLAN
SKU/Product Code: CAB‑CPDU‑09SAIEC14

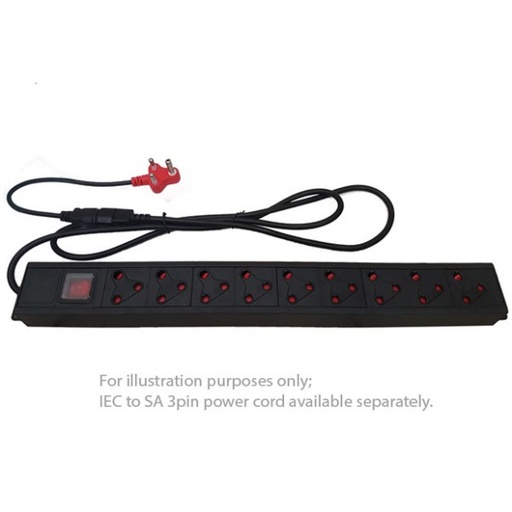

Description: 9‑socket vertical rack‑mount PDU with IEC plug, designed to provide 3pin SA power points for cabinet hardware.

Product Overview
The UltraLAN CAB‑CPDU‑09SAIEC14 is a 9‑socket vertical rack PDU designed for efficient power distribution inside server and network cabinets. It provides nine 3pin SA outlets for hardware and mounts vertically against cabinet railings for neat integration.

Equipped with an IEC power cord, this PDU connects directly to a UPS, making it ideal for professional server environments. For added flexibility, an IEC female to SA 3pin power cord (1.8m) can be purchased separately, allowing connection to a standard SA 220V socket.

Key Features
Vertical rack‑mount design – fits standard server/network cabinets
9 × 3pin SA power sockets – reliable distribution for cabinet hardware
IEC power cord – direct connection to UPS or mains supply
Optional IEC female to SA 3pin cord (1.8m) – for SA 220V socket use
Durable construction – long‑lasting performance
Ideal for powering servers, switches, and networking gear

Technical Specifications
Specification Details
Product Code CAB‑CPDU‑09SAIEC14
Manufacturer UltraLAN
Type Rack Mount PDU
Rack Size 19" standard width (vertical mount)
Sockets 9 × 3pin SA
Plug Type IEC
Cord Option IEC female to SA 3pin (1.8m, sold separately)
Mounting Vertical, against cabinet railings
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~1.5–2 kg (aluminium + sockets + cord)
Packaging (protective box + padding): ~0.5–0.7 kg
Gross shipping weight: ± 2.5 kg

Brand: UltraLAN
SKU/Product Code: CAB‑C‑6606WMSA
Description: 6U swing frame wall mount cabinet with 600mm depth, strengthened glass door, removable side panels, and 60kg load capacity.

Product Overview
The UltraLAN CAB‑C‑6606WMSA is a swing frame wall mount cabinet designed for smaller networking installations where space is limited, such as retail shops, small offices, or schools. Its hinged back section allows the cabinet to swing out from the wall, providing easy access to the rear of equipment — especially useful for cable management.

Constructed from powder‑coated steel, the cabinet offers durability and scratch resistance. It features toolless removable side panels for quick access, venting slots with space for two fans to improve airflow, and rack‑numbered mounting rails for simplified equipment alignment. The strengthened safety glass front door with lock provides both visibility and security.

Key Features
6U swing frame wall mount cabinet – compact and space‑saving
Hinged back section – easy rear access for cabling
Enclosure depth: 600mm – accommodates deeper equipment
Strengthened safety glass front door – with lock and keys
Toolless removable side panels – quick access for installers
Venting slots with 2 fan mountings (fans not included)
Adjustable rail depth – flexible equipment installation
Powder‑coated finish – scratch resistant and durable
Pre‑assembled – saves time and effort
Maximum static load: 60kg

Technical Specifications
Specification Details
Product Code CAB‑C‑6606WMSA
Manufacturer UltraLAN
Rack Units 6U
Rack Width 19"
Depth 600mm
Dimensions (H × W × D) 385 × 615 × 615 mm
Material Powder‑coated steel
Front Door Strengthened safety glass, lockable
Side Panels Toolless removable
Cooling 2 fan slots (fans not included)
Load Capacity 60kg
Assembly Supplied pre‑assembled
Warranty 1 Year Limited

📦 Gross Shipping Weight
Actual product weight: ~20–22 kg (typical for 6U swing frame steel cabinets)
Packaging (protective box + padding): ~2–3 kg
Gross shipping weight: ± 24 kg

🚚 Bulky Item Shipping Disclaimer
Note: Price includes shipping for bulky items in urban areas only. Deliveries to remote or outlying regions may incur additional surcharges, calculated on a case‑by‑case basis. Delivery timelines begin after surcharge confirmation (if applicable).
