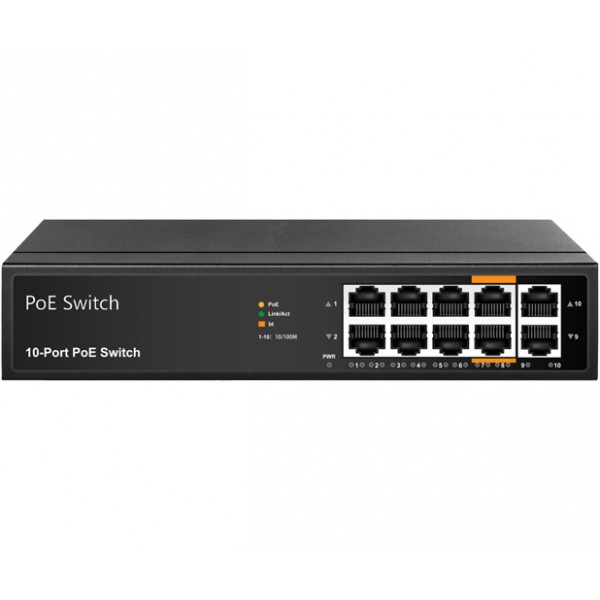

UltraLAN SF1010P PoE Switch | 10‑Port 100Mbps AI

Brand: UltraLAN
Product Code: SF1010P
Description: UltraLAN SF1010P – 10‑Port 100Mbps AI PoE Switch

Product Overview
The UltraLAN SF1010P is a 10‑Port Fast Ethernet AI PoE Switch designed for medium‑scale CCTV and wireless deployments. It combines AI PoE intelligent reboot, AI VLAN isolation, and 250m long‑reach PoE, making it ideal for professional surveillance and access point installations.

With dual 60W PoE ports (7–8), the SF1010P supports high‑power devices such as PTZ cameras and long‑range APs. Built‑in 6KV surge protection and safeguards against over‑voltage, over‑temperature, and short‑circuit ensure reliable operation in demanding environments.

Key Features
10‑Port Fast Ethernet AI PoE switch
8 × PoE ports + 2 × uplink ports
AI PoE auto‑recovery for unresponsive devices
AI VLAN isolation for improved stability
AI Extend mode supports PoE up to 250m
Dual 60W PoE ports (7–8) for PTZ cameras/APs
Total PoE budget: 96W
IEEE 802.3af/at/bt compliant
6KV surge protection on all ports
Non‑blocking switching with wire‑speed forwarding
Compact, fanless design for silent operation
Plug‑and‑play, zero configuration required
Net weight: 700g
Gross shipping weight: 1.0–1.2 kg (including packaging)

Technical Specifications
Feature Details
Ports 8 × PoE + 2 × uplink Fast Ethernet
Max PoE per port 60W (Ports 7–8)
Total PoE Budget 96W
PoE Standards IEEE 802.3af/at/bt
Extend Mode PoE up to 250m
Surge Protection 6KV
Dimensions 210 × 152 × 40 mm

What’s Included
1 × UltraLAN SF1010P PoE Switch
User documentation
